Renesas R0E001000FLX00 Manuale utente

R0E001000FLX00

Extension Flexible Cable for E100 Emulato

r

User’s Manual

CAUTION If the requirements shown in the "CAUTION" sentences are ignored,

the equipment may cause personal injury or damage to the products.

Renesas Tools Homepage http://www.renesas.com/tools

Rev.1.00

Jun. 01, 2008

REJ10J1884-0100

(1/2)

1. Outline

The R0E001000FLX00 is a flexible cable that extends between

the MCU unit for E100 Emulator and the user system.

2. Package Components (See Figure 1)

Check to see if the R0E001000FLX00 package has all the

following contents before using this product.

(1) R0E001000FLX00 flexible cable................................ 1 pc.

(2) SP-RE10FLX metal fitting.......................................... 1 pc.

(3) R0E001000FLX00 User's Manual (this manual)

3. Specifications

Table 1 Specifications

Insertion/removal

iterations of connector 50 times guaranteed

4. Usage (See Figure 2)

Flexible cable

R0E001000FLX10

Metal fitting

SP-RE10FLX

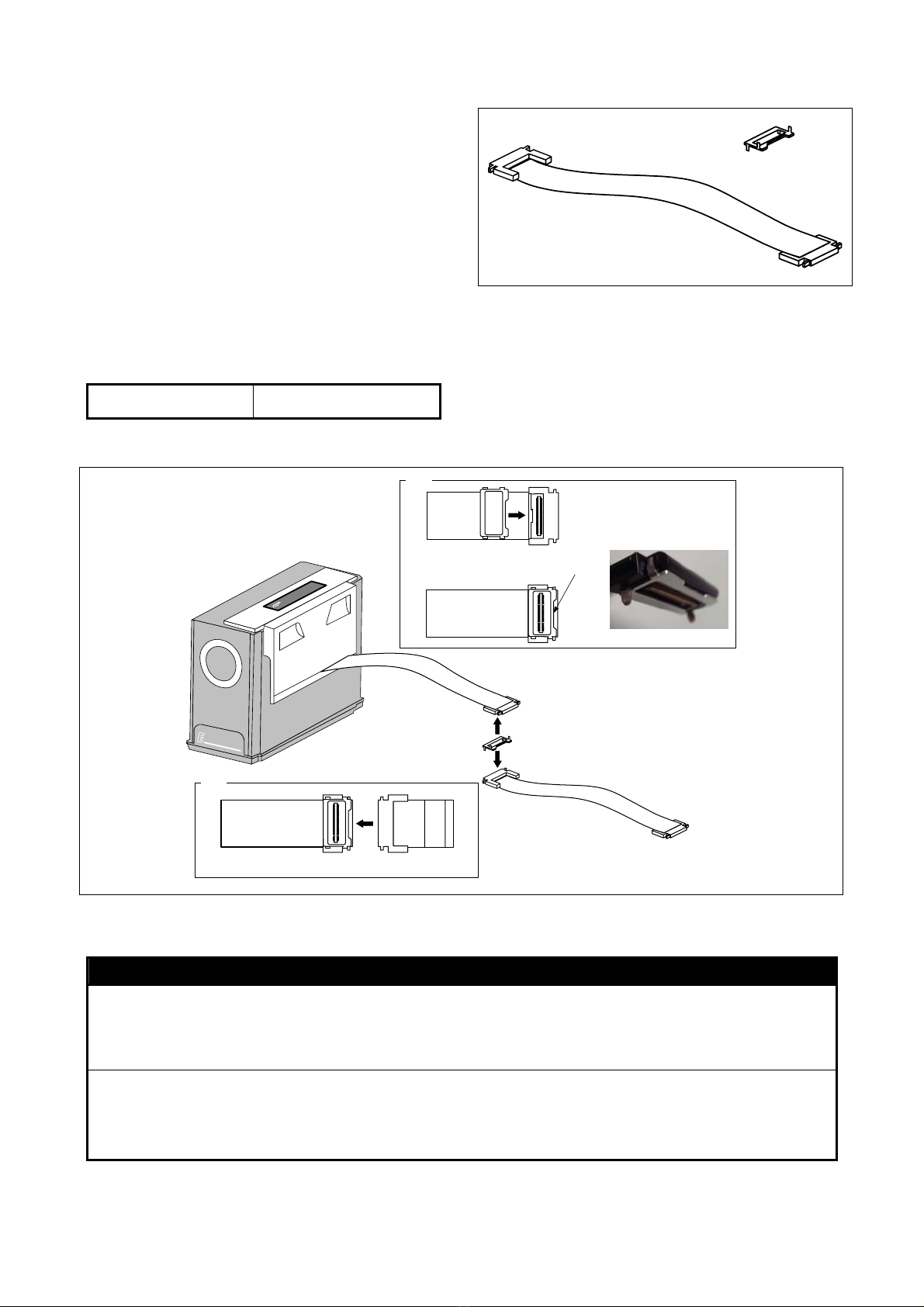

Figure 1 Package components of the R0E001000FLX00

100

HIGHPERFORMANCE

EMULATORSYSTEM

R0E530650MCU00

(1)

(2)

Attach the metal fitting to the flexible

cable cover with the notch side to

the end of the cable.

(1)

Connect the flexible cables.

(2)

Metal fitting attached to the cable

Figure 2 Usage of the R0E001000FLX00

5. Precautions

IMPORTANT

Note on Electrical Characteristics:

zBy using this cable for extension, the DC resistance will increase (approximately 5Ωper one line), so that the

electrical transmission characteristics, etc, become worse. When problems occur, such as a difference in timing

between the user system and the MCU unit, do not use this cable.

Notes on This Product:

zWe cannot accept any request for repair.

zFor inquiries about the product or the contents of this manual, contact your local distributor.

Renesas Tools Homepage http://www.renesas.com/tools

(2/2)
