English English1 2

What’s in the Box 2

Camera Introduction 3

Connection Diagram 4

Set up the Camera 5

Mount the Camera 6

Troubleshooting 9

Speciﬁcations 10

Notiﬁcation of Compliance 11

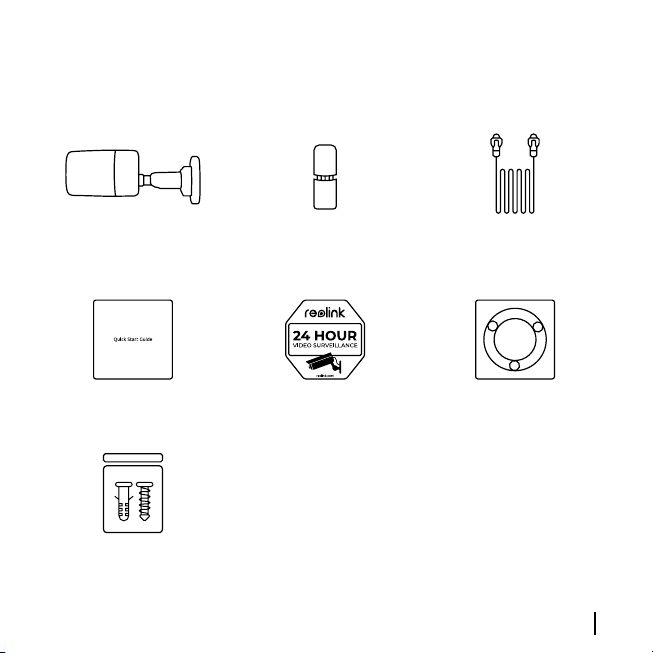

What's in the Box

Pack of Screws

Camera Waterproof Lid Ethernet Cable

Surveillance SignQuick Start Guide Mounting Hole

Template

Content

English English3 4

VGAHDMIUSB

AUDIO

OUT

DC 48V

2 4 6 8

1 3 5 7

OFF

LAN

eSATA

Connection DiagramCamera Introduction

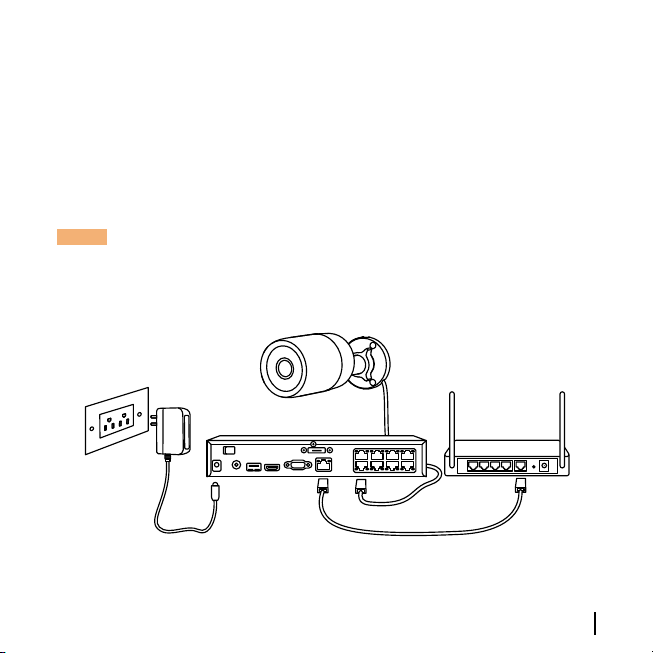

Before using the camera, please connect your camera as instructed

below to ﬁnish initial setup.

1. Connect the camera to a Reolink NVR (not included) with an Ethernet

cable.

2. Connect the NVR to your router, and then power on the NVR.

* You may also connect the camera to a PoE switch or PoE injector.

NOTE: The camera should be powered with a 12V DC adapter or a PoE

powering device such as PoE injector, PoE switch or Reolink NVR

(not included in the package).

PoE IP Camera

Ethernet Cable

Reolink NVR* Router

Ethernet Cable

Power Adapter

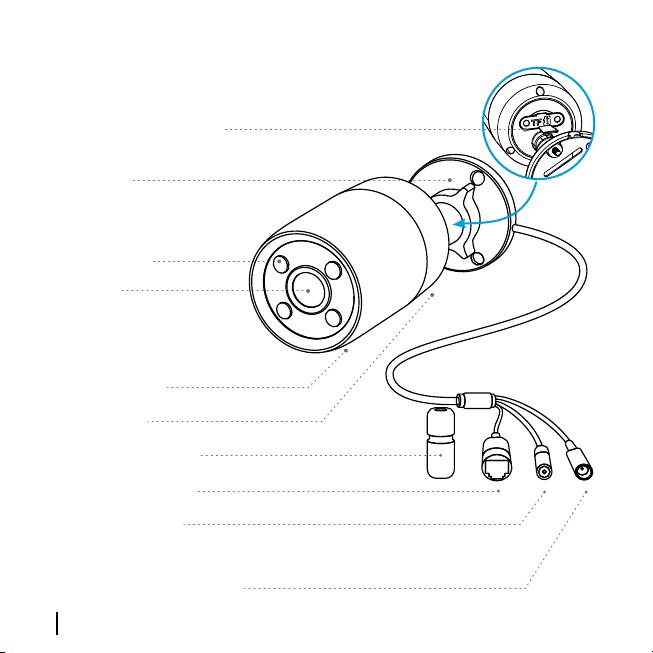

Mount

Micro SD Card Slot

Spotlight

Lens

Built-in Mic

Speaker

Waterproof Lid

Network Cable

Reset Button

Power Port(Optional)

* Press for about 10 seconds to restore the

device to factory settings.

English English3 4

VGAHDMIUSB

AUDIO

OUT

DC 48V

2 4 6 8

1 3 5 7

OFF

LAN

eSATA

Connection DiagramCamera Introduction

Before using the camera, please connect your camera as instructed

below to ﬁnish initial setup.

1. Connect the camera to a Reolink NVR (not included) with an Ethernet

cable.

2. Connect the NVR to your router, and then power on the NVR.

* You may also connect the camera to a PoE switch or PoE injector.

NOTE: The camera should be powered with a 12V DC adapter or a PoE

powering device such as PoE injector, PoE switch or Reolink NVR

(not included in the package).

PoE IP Camera

Ethernet Cable

Reolink NVR* Router

Ethernet Cable

Power Adapter

Mount

Micro SD Card Slot

Spotlight

Lens

Built-in Mic

Speaker

Waterproof Lid

Network Cable

Reset Button

Power Port(Optional)

* Press for about 10 seconds to restore the

device to factory settings.

English English5 6

Mount the Camera

• Do not face the camera towards any light sources.

• Do not point the camera towards a glass window. Or, it may result in

poor image quality because of the window glare by infrared LEDs,

ambient lights or status lights.

• Do not place the camera in a shaded area and point it towards a

well-lit area. Or, it may result in poor image quality. To ensure best image

quality, the lighting condition for both the camera and the capture object

shall be the same.

• To ensure better image quality, it’s recommended to clean the lens with

a soft cloth from time to time.

• Make sure the power ports are not directly exposed to water or

moisture and not blocked by dirt or other elements.

• With IP waterproof ratings, the camera can work properly under

conditions like rain and snow. However, it doesn't mean the camera can

work underwater.

• Do not install the camera at places where rain and snow can hit the lens

directly.

• The camera may work in extreme cold conditions as low as -25°C.

Because when it is powered on, the camera will produce heat. You may

power on the camera indoors for a few minutes before installing it

outdoors.

Installation Tips

Set up the Camera

• On Smartphone

• On PC

Scan to download the Reolink App.

Download path of the Reolink Client: Go to https://reolink.com > Support

> App & Client.

Download and launch the Reolink App or Client software, and follow the

onscreen instructions to ﬁnish initial setup.

NOTE: If you are connecting the camera to a Reolink PoE NVR,

please set up the camera via the NVR interface.

English English5 6

Mount the Camera

• Do not face the camera towards any light sources.

• Do not point the camera towards a glass window. Or, it may result in

poor image quality because of the window glare by infrared LEDs,

ambient lights or status lights.

• Do not place the camera in a shaded area and point it towards a

well-lit area. Or, it may result in poor image quality. To ensure best image

quality, the lighting condition for both the camera and the capture object

shall be the same.

• To ensure better image quality, it’s recommended to clean the lens with

a soft cloth from time to time.

• Make sure the power ports are not directly exposed to water or

moisture and not blocked by dirt or other elements.

• With IP waterproof ratings, the camera can work properly under

conditions like rain and snow. However, it doesn't mean the camera can

work underwater.

• Do not install the camera at places where rain and snow can hit the lens

directly.

• The camera may work in extreme cold conditions as low as -25°C.

Because when it is powered on, the camera will produce heat. You may

power on the camera indoors for a few minutes before installing it

outdoors.

Installation Tips

Set up the Camera

• On Smartphone

• On PC

Scan to download the Reolink App.

Download path of the Reolink Client: Go to https://reolink.com > Support

> App & Client.

Download and launch the Reolink App or Client software, and follow the

onscreen instructions to ﬁnish initial setup.

NOTE: If you are connecting the camera to a Reolink PoE NVR,

please set up the camera via the NVR interface.

English English7 8

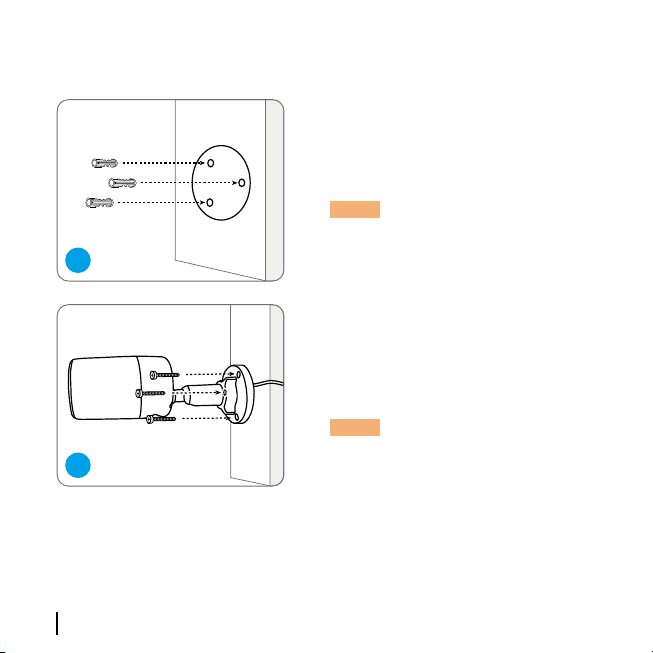

Install the Camera

Drill holes in accordance with the

mounting hole template. To get the best ﬁeld of view, loosen

the adjustment knob on security

mount and turn the camera.

Stien the adjustment knob to

lock the camera.

Install the mount base with the

mounting screws included in the

package.

NOTE: Use the drywall anchors

included in the package if needed.

NOTE: Run the cable through the

cable notch on the mount base.

English English7 8

Install the Camera

Drill holes in accordance with the

mounting hole template. To get the best ﬁeld of view, loosen

the adjustment knob on security

mount and turn the camera.

Stien the adjustment knob to

lock the camera.

Install the mount base with the

mounting screws included in the

package.

NOTE: Use the drywall anchors

included in the package if needed.

NOTE: Run the cable through the

cable notch on the mount base.

English English9 10

Speciﬁcations

Power: By PoE (802.3af)/DC 12V

Spotlight: 4pcs/3.5W/6500K

Day/Night Mode: Auto Switchover

Operating Temperature: -10°C to 55°C (14°F to 131°F)

If these won't work, contact Reolink Support https://support.reolink.com/.

If the spotlight on your camera is not on, please try the following

solutions:

• Ensure the spotlight is enabled under Device Settings page via Reolink

App/Client.

• Upgrade the ﬁrmware of your camera to the latest version.

• Restore the camera to factory settings and check out the spotlight light

settings again.

If these won't work, contact Reolink Support https://support.reolink.com/.

Hardware Features

General

Spotlight is not On

Troubleshooting

If your camera is not powering on, please try the following solutions:

• Make sure your camera is powered properly. The PoE camera should

be powered by a PoE switch/injector, the Reolink NVR or a 12V power

adapter.

• If the camera is connected to a PoE device as listed above, connect the

camera to another PoE port and see if the camera will power on.

• Try again with another Ethernet cable.

If these won't work, contact Reolink Support https://support.reolink.com/.

If the picture from the camera is not clear, please try the following

solutions:

• Check the camera lens for dirt, dust or spiderwebs, please clean the

lens with a soft, clean cloth.

• Point the camera to a well-lit area, the lighting condition will aect the

picture quality a lot.

• Upgrade the ﬁrmware of your camera to the latest version.

• Restore the camera to factory settings and check out again.

Camera is not Powering On

Picture is not Clear

English English9 10

Speciﬁcations

Power: By PoE (802.3af)/DC 12V

Spotlight: 4pcs/3.5W/6500K

Day/Night Mode: Auto Switchover

Operating Temperature: -10°C to 55°C (14°F to 131°F)

If these won't work, contact Reolink Support https://support.reolink.com/.

If the spotlight on your camera is not on, please try the following

solutions:

• Ensure the spotlight is enabled under Device Settings page via Reolink

App/Client.

• Upgrade the ﬁrmware of your camera to the latest version.

• Restore the camera to factory settings and check out the spotlight light

settings again.

If these won't work, contact Reolink Support https://support.reolink.com/.

Hardware Features

General

Spotlight is not On

Troubleshooting

If your camera is not powering on, please try the following solutions:

• Make sure your camera is powered properly. The PoE camera should

be powered by a PoE switch/injector, the Reolink NVR or a 12V power

adapter.

• If the camera is connected to a PoE device as listed above, connect the

camera to another PoE port and see if the camera will power on.

• Try again with another Ethernet cable.

If these won't work, contact Reolink Support https://support.reolink.com/.

If the picture from the camera is not clear, please try the following

solutions:

• Check the camera lens for dirt, dust or spiderwebs, please clean the

lens with a soft, clean cloth.

• Point the camera to a well-lit area, the lighting condition will aect the

picture quality a lot.

• Upgrade the ﬁrmware of your camera to the latest version.

• Restore the camera to factory settings and check out again.

Camera is not Powering On

Picture is not Clear

Altri manuali per RLC-812A

Indice

Altri manuali Reolink Telecamera di sicurezza

Reolink

Reolink B800 Manuale utente

Reolink

Reolink Go PT Manuale utente

Reolink

Reolink E1 Zoom Manuale utente

Reolink

Reolink Argus 2 Manuale utente

Reolink

Reolink E1 Series Manuale utente

Reolink

Reolink Duo 2 PoE Manuale utente

Reolink

Reolink Duo 2 WiFi Manuale utente

Reolink

Reolink Go PT Ultra Manuale utente

Reolink

Reolink E1 Series Manuale utente

Reolink

Reolink C1 Manuale utente

Reolink

Reolink Argus 2 Manuale utente

Reolink

Reolink RLC-820A Manuale utente

Reolink

Reolink TrackMix Guida rapida

Reolink

Reolink Argus 3 Manuale utente

Reolink

Reolink Duo 4G Manuale utente

Reolink

Reolink Duo 2 LTE Guida rapida

Reolink

Reolink C2 Manuale utente

Reolink

Reolink RLC-842A Guida rapida

Reolink

Reolink RLC-423 Guida rapida

Reolink

Reolink TrackMix WiFi Guida rapida

Reolink

Reolink Argus 2 Manuale utente

Reolink

Reolink Argus PT Manuale utente

Reolink

Reolink E1 Series Guida rapida

Reolink

Reolink E1 Series Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
