Reolink TrackMix WiFi Manuale utente

TrackMix WiFi

TrackMix WiFi with 4K 8MP Ultra HD resolution captures images with great details.

Discover more when zooming in. It can distinguish people, vehicles and pets* from

other objects, providing more accurate alerts. Plus, you can talk back via the

camera's built-in mic and speaker.

1. Specs

1

Infrared LED

2

Lens

3

Mic

4

Daylight Sensor

5

Spotlight

2. Setup and Install

Set up the Camera

What’s in the Box

Note: The package content may vary and update with different version and

platforms, please take the below information only for a reference. And the actual

package content are subject to the latest information on the product selling page.

TrackMix WiFi

1

Micro SD Card Slot

2

Reset Button

Surveillance Sticker*1

Reolink TrackMix

WiFi*1

Quick Start Guide*1

1m Network

Cable*1

Set up the Camera on the App

There are two methods to do the initial setup of the camera:

1. with a Wi-Fi connection; 2. with a network cable connection.

1. With Wi-Fi Connection

Step 1. Tap the icon in the top right corner to add the camera.

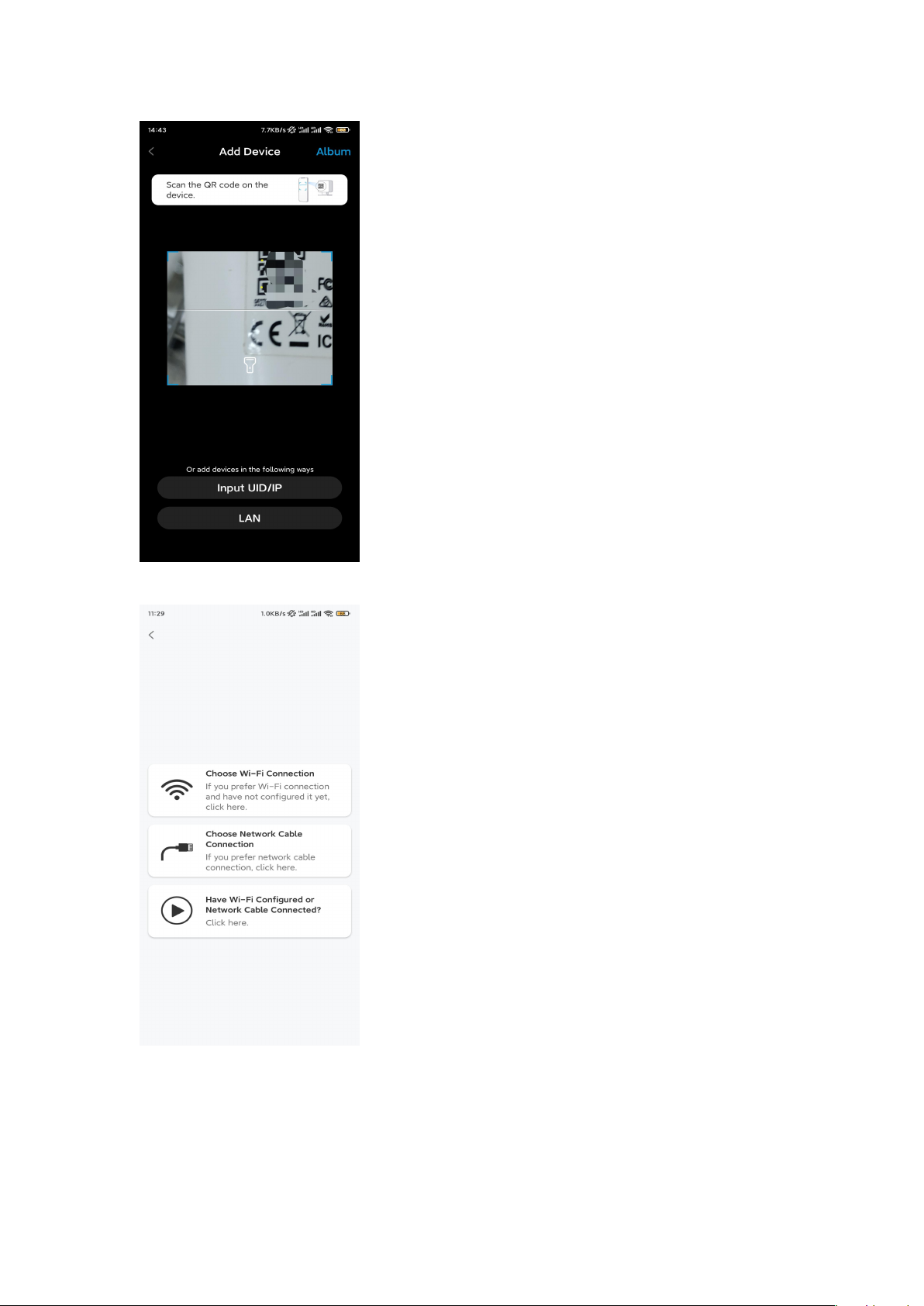

Step 2. Scan the QR code on the camera.

Pack of Screws*1

Mounting Template *1

Waterproof Lid *1

Power Adapter

12V/2A *1

4.5m Power Extension

Cable *1

Step 3. Tap Choose Wi-Fi Connection to configure the Wi-Fi settings.

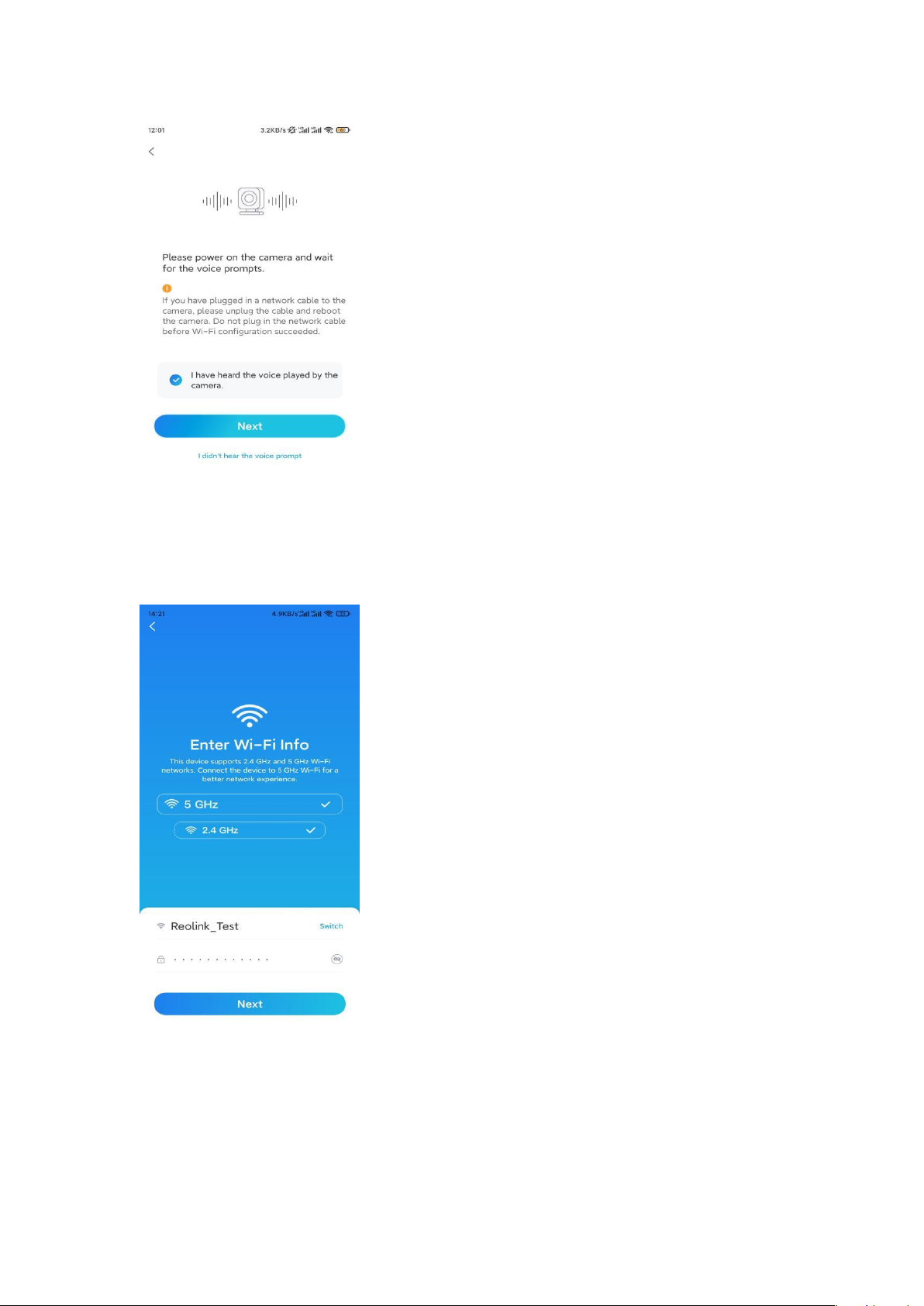

Step 4. After you hear the voice prompts from the camera, tick “I have heard the

voice played by the camera“ and tap Next.

Step 5. Select a WiFi network, enter the WiFi password, and tap Next.

Step 6. Scan the QR code on the app with the camera lens.

Tap Scan Now. The QR code will be generated and displayed on your phone.

Please hold your phone in front of the camera at a distance of about 20 cm (8

inches) and have the phone face the camera lens to let the camera scan the QR

code.

After you hear the beep sound, tick "I have heard a beep sound from the

camera" and tap Next.

Step 7. After you hear a voice prompt "Connection to the router succeeded" from

the camera, tick "I have heard the voice prompt" and tap Next.

Note: If you hear the voice prompt "Connection to the router failed", please

double-check if you have entered the Wi-Fi information correctly in the previous

step.

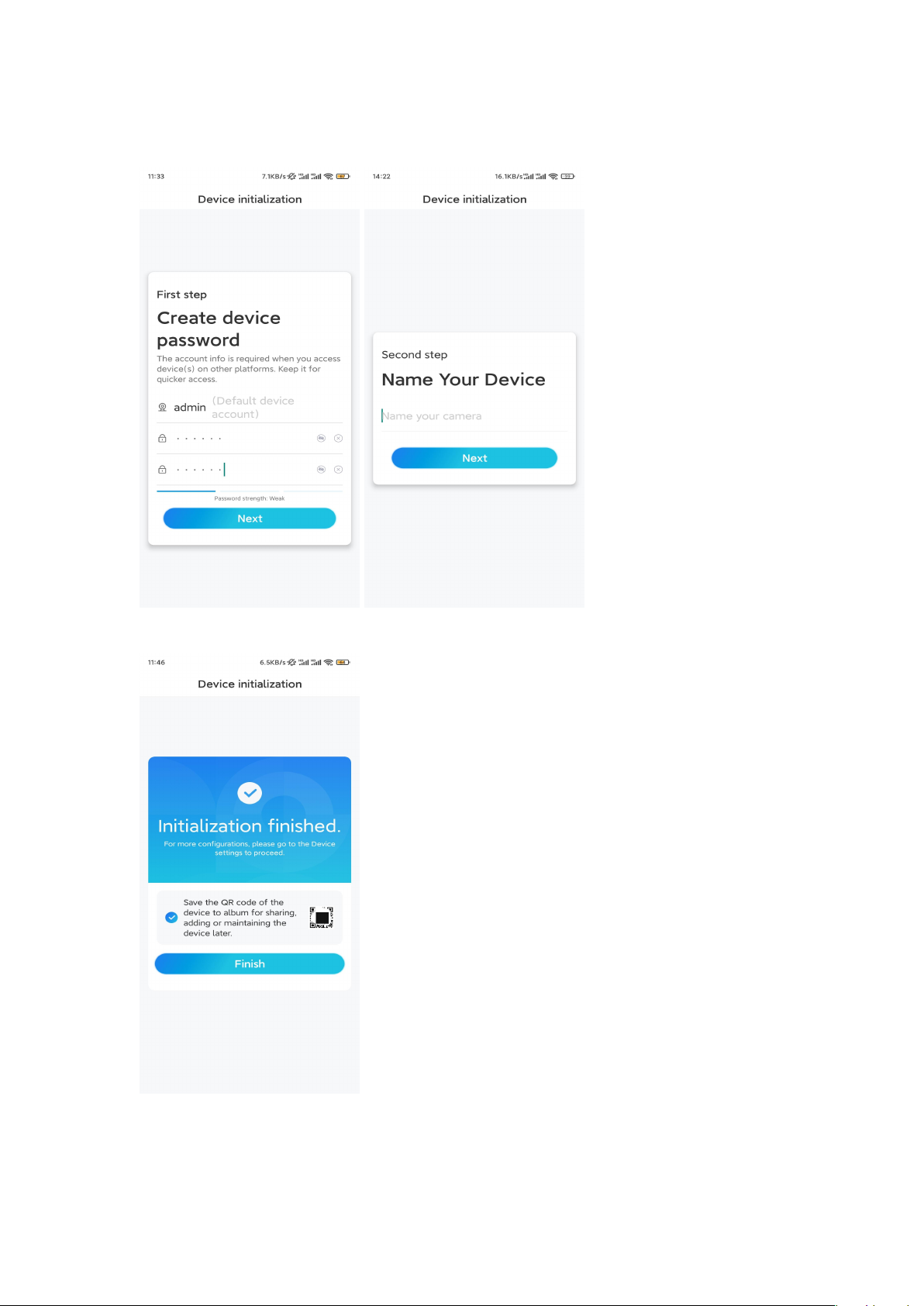

Step 8. Create a login password and name your camera.

Step 9. Initialization finished. Tap Finish, and you can start live viewing now.

2. With a Network Cable Connection

To do the initial setup, please power on the camera with the DC adapter, connect

the camera to your router's LAN port with an Ethernet cable, and follow the steps

below.

Step 1. If your phone, the camera, and the router are on the same network and

you've enabled the Add Device Automatically option in the App Settings, you

can tap and select this device on the Devices page and skip to Step 3.

Otherwise, you can tap the icon in the top right corner and scan the QR code

on the camera to add the camera.

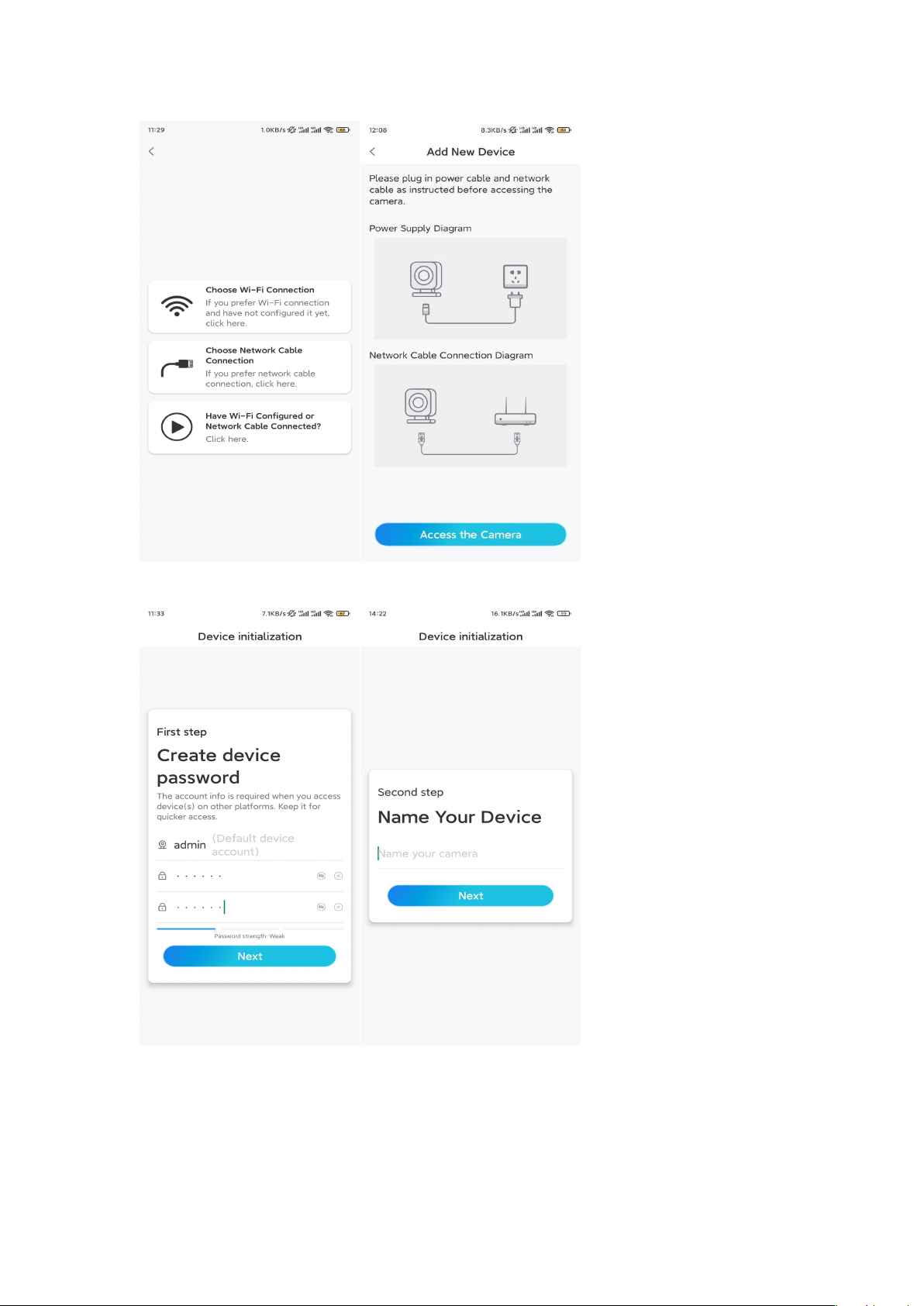

Step 2. Tap Choose Network Cable Connection.

Please make sure the camera is connected in the correct way, as shown in the

diagram, and then tap Access the Camera.

Step 3. Create a device password and name the device.

Step 4. Select the WiFi network that you want to join, enter the password of the

WiFi network, and tap Save to save the configuration.
