Reveal NE3613HSSV Manuale utente

Rev A Date: 02/24/2022

User Manuals\Reveal_NE(L)(H)HSSV_Slide-In Htd Self-Svc Case_User Manual_21-26059.pub

SCC P/N

21-26059

USER

MANUAL

REVEAL® SLIDE-IN SELF-SERVICE HEATED MERCHANDISERS

> REAR SLIDING DOOR UNITS WITH PERFORATED PLENUMS THAT SLIDE IN TANDEM WITH DOORS

> SOLID BACK UNITS WITH FIXED METAL PERFORATED PLENUMS

> CAUTION! DO NOT PUSH OR PULL ON UPPER GLASS ENCLOSURE!

> ONLY USE HANDLES (AT EACH END OF CASE) TO PUSH OR PULL CASE INTO POSITION!

Reveal

READ AND SAVE THESE INSTRUCTIONS

Model NE4835HSSV Slide-In Unit Shown With

Solid Perforated Metal Back and 3 Shelves

(Illustration Shown May Not Reflect Every

Feature Or Option of Your Particular Case)

Important! See Structural Concepts

Reveal® Self-Service Counter Guide

P/N 21-26260 (That Accompanies This

Manual) For Cabinetry Construction/

Design Requirements. Model NE4835HSSV Slide-In Unit Shown With

Rear Sliding Doors and 3 Shelves

(Illustration Shown May Not Reflect Every

Feature Or Option of Your Particular Case)

Structural Concepts Corporation ∙ 888 E. Porter Road ∙ Muskegon, MI 49441

Phone: 231.798.8888 ∙ Fax: 231.798.4960 ∙ www.structuralconcepts.com

TABLE OF CONTENTS

TABLE OF CONTENTS …………………………………………………………………………………...…...

REVEAL® FREE STANDING HEATED SELF-SERVICE MODEL APPLICABILITY &

DIMENSIONS ....………………………………………………………………………………………..

REVEAL® SLIDE-IN SELF-SERVICE HEATED MODEL APPLICABILITY & DIMENSIONS ....……..

INSTALLATION: DISCONNECTION/REMOVAL OF CASE FROM SKID / REVIEW CASE

SURROUNDINGS ……………………………………………………………………………….……..

INSTALLATION, CONT’D: SHELVING ASSEMBLIES / SHELVING RETAINER CLIP REMOVAL ...

INSTALLATION, CONT’D: PLUG IN UNIT / MAIN POWER SWITCH AND LED LIGHT SWITCH .....

CASE DESIGN & FIELD SERVICE PARTS LIST: CASE FRONT AND REAR VIEWS ……….………

CASE DESIGN & FIELD SERVICE PARTS LIST, CONT’D: ELECTRICAL BOX COMPONENTS ....

CASE DESIGN & FIELD SERVICE PARTS LIST, CONT’D: HEATER / DECKS / BAFFLE / AIR

DEFLECTOR ………………………………………………………………………………..….……….

CASE DESIGN & FIELD SERVICE PARTS LIST, CONT’D: SHELVING ASSEMBLY COMPONENTS

CASE DESIGN & FIELD SERVICE PARTS LIST, CONT’D: LED LIGHT / PLUG / THERMOMETER ..

CASE DESIGN & FIELD SERVICE PARTS LIST, CONT’D: REAR PIKE DOORS / REAR

PERFORATED PLENUM DOORS ………………………………………………...…….…….....….

CASE STARTUP / HEATER SETTINGS / LIGHTS SWITCH / SHUTTING DOWN CASE .……………

PRODUCT PLACEMENT / AIRFLOW CONSIDERATION / LOAD LINES ………………………….…..

CLEANING SCHEDULE (TO BE PERFORMED BY STORE PERSONNEL) ..…....…...…………...….

PREVENTIVE MAINTENANCE (TO BE PERFORMED BY TRAINED SERVICE PROVIDER) ……....

TROUBLESHOOTING (TO BE PERFORMED BY STORE PERSONNEL ONLY) ...………………......

TROUBLESHOOTING (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY) ……….

CAREL PROGRAMMABLE CONTROLLER INFORMATION …………………………………………….

SERIAL LABEL INFORMATION & LOCATION ..…………………………….……...…....……………..…

TECHNICAL SERVICE CONTACT INFORMATION & WARRANTY INFORMATION ...…...…...….....

4-5

19-20

21-22

23-25

REVEAL® SLIDE-IN SELF-SERVICE HEATED MODEL APPLICABILITY & DIMENSIONS

Model Upper Display Case

Height

Overall Case

Height Case Depth x Width

NE3613HSSV 13 5/8” 32 7/8” 33”D x 35 3/4”W

NE3620HSSV 20 3/8” 39 5/8” 33”D x 35 3/4”W

NE3627HSSV* 27 7/8” 47 1/8” 33”D x 35 3/4”W

NE3635HSSV* 35 1/4” 54 5/8” 33”D x 35 3/4”W

NE4813HSSV 13 5/8” 32 7/8 33”D x 47 3/4”W

NE4820HSSV 20 3/8” 39 5/8” 33”D x 47 3/4”W

NE4827HSSV* 27 7/8” 47 1/8” 33”D x 47 3/4”W

NE4835HSSV* 35 1/4” 54 5/8” 33”D x 47 3/4”W

*Taller units have a heater rod and additional fans in upper section as well as two (2) programmable controllers.

OVERVIEW / DISPLAY TYPE I vs. II / COMPLIANCE / WARNINGS / PRECAUTIONS - PAGE 1 of 2

WARNING

Risk of electric shock. Disconnect power before servicing unit.

CAUTION! More than one source of electrical supply may be

employed with units that have separate circuits.

Disconnect ALL ELECTRICAL SOURCES before servicing.

WARNING

ELECTRICAL

HAZARD

OVERVIEW

 These Structural Concepts Reveal® heated cases

are designed to hold pre-heated, perishable,

packaged foods at 140 °F to 180 °F (60 °C to 82 °C).

 Cases should be installed and operated according to

this operating manual’s instructions to insure proper

performance. Improper use will void warranty.

 Product must be pre-heated before placing in

merchandiser. This case is NOT designed to heat

product from cold or ambient conditions.

 All heating elements are thermostat controlled for

individual adjustment.

COMPLIANCE

This equipment MUST be installed in compliance with

all applicable NEC, federal, state and local

electrical and plumbing codes.

THERMOMETER

 Thermometers in equipment reflect internal air

temperature only (not actual food temperature).

 Use probe thermometers to determine actual product

temperatures.

COMPLIANCE

 Performance issues when in violation of applicable

NEC, federal, state and local electrical and plumbing

codes are not covered by warranty. See below.

WARNINGS

 Please read the important warnings in this document

carefully as they can prevent injury or death.

 See next page for PRECAUTIONS.

ATTENTION

CONTRACTORS

WARNING: This product can expose you to chemicals, including

Urethane (Ethyl Carbamate), which are known to the state of

California to cause cancer and birth defects or other reproductive

harm. For more information go to P65Warnings.ca.gov.

WARNING

Decks and shelves may be hot! Disconnect and allow to cool

before cleaning or removing from case.

WARNING

HOT

SURFACE

OVERVIEW / DISPLAY TYPE I vs. II / COMPLIANCE / WARNINGS / PRECAUTIONS - PAGE 2 of 2

PRECAUTIONS

 Following are important precautions to prevent damage to unit or merchandise.

 Please read carefully!

CAUTION! LAMP REPLACEMENT GUIDELINES

LED lamps reflect specific size, shape and overall design.

Any replacements must meet factory specifications.

CAUTION

WIRING DIAGRAM FORMAT & LOCATION

 Each case has its own wiring diagram folded & in its own packet.

 Wiring diagram placement may vary; it may be placed near field

wiring box, raceway, or other related location.

CAUTION!

DO NOT RELY ON THERMOMETERS OR THERMOSTATS

FOR ACTUAL PRODUCT (FOOD) TEMPERATURES.

 Thermometers and thermostats reflect air temperatures ONLY.

 For PRECISE food temperatures, use calibrated food

thermometers ONLY.

CAUTION! GFCI BREAKER USE REQUIREMENT

If N.E.C. (National Electric Code) or your local code

requires GFCI (Ground Fault Circuit Interrupter) protection,

you MUST use a GFCI breaker in lieu of a GFCI receptacle.

CAUTION!

 To prevent sagging or breakage, do not exceed 5 LBS (2.3 KG)

weight load per top glass section (between vertical supports).

 To prevent scratching or marring, do not place ANY items on glass.

LBS

CAUTION!

DO NOT RELY ON THERMOMETERS OR THERMOSTATS

FOR ACTUAL PRODUCT (FOOD) TEMPERATURES.

 Thermometers & thermostats reflect air temperature ONLY.

 For ACTUAL food temperatures, use a calibrated food

thermometer.

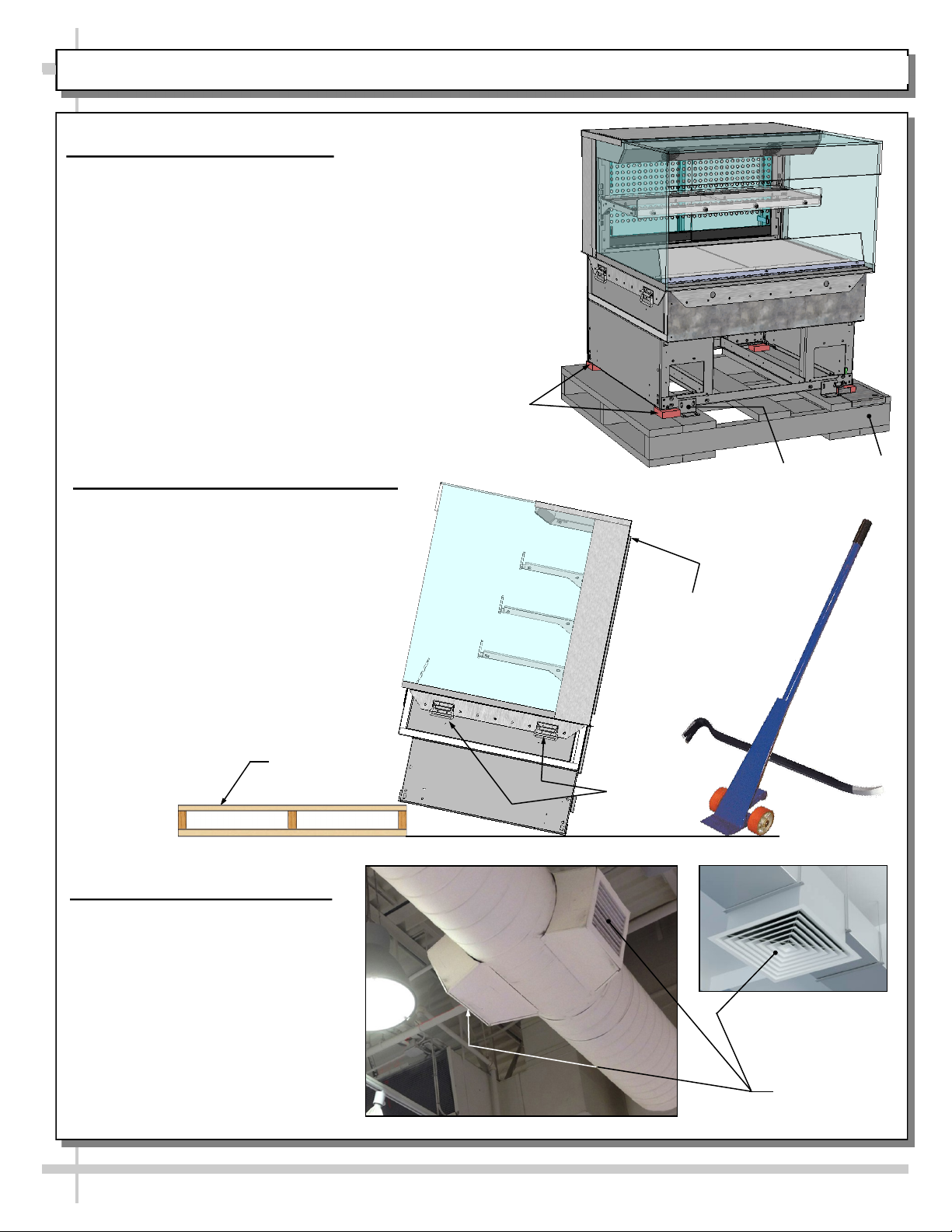

INSTALLATION: DISCONNECTION & REMOVAL OF CASE FROM SKID / REVIEW CASE SURROUNDINGS

1. Disconnect Case From Skid

 Remove screws from shipping brackets.

Remove and discard shipping brackets from

Skid.

 Place J-bar/pry under base frame.

Raise case up from Skid to take weight off

casters.

 With case raised, lower casters all the way

down against Skid (see next step for detailed

instructions on lowering or raising casters).

 Remove rubber shipping blocks.

Skid

Support case

while removing

from Skid

Handles

2. Carefully Remove Case From Skid

 Use handles to carefully slide case to

rear of Skid (see illustration at right).

 Caution! 4 people may be required

for this task!

 Carefully lower to floor. Slide Skid

from under case.

 Maintain support of case at all

times or center of gravity may

cause case to fall.

Skid

Rubber Shipping

Blocks (Typ.)

Shipping

Bracket (Typ.)

3. Review Case Surroundings

 Check if case is affected by

HVAC vents or outside door

airflow. If so, such airflow must

be prevented from entering the

case.

 Otherwise, the case’s ‘air

screen’ may be compromised

causing unsafe food

temperatures.

 See sample illustrations shown

at right.

Sample

HVAC Vents

INSTALLATION, CONT’D: SHELVING ASSEMBLIES / SHELVING RETAINER CLIP REMOVAL

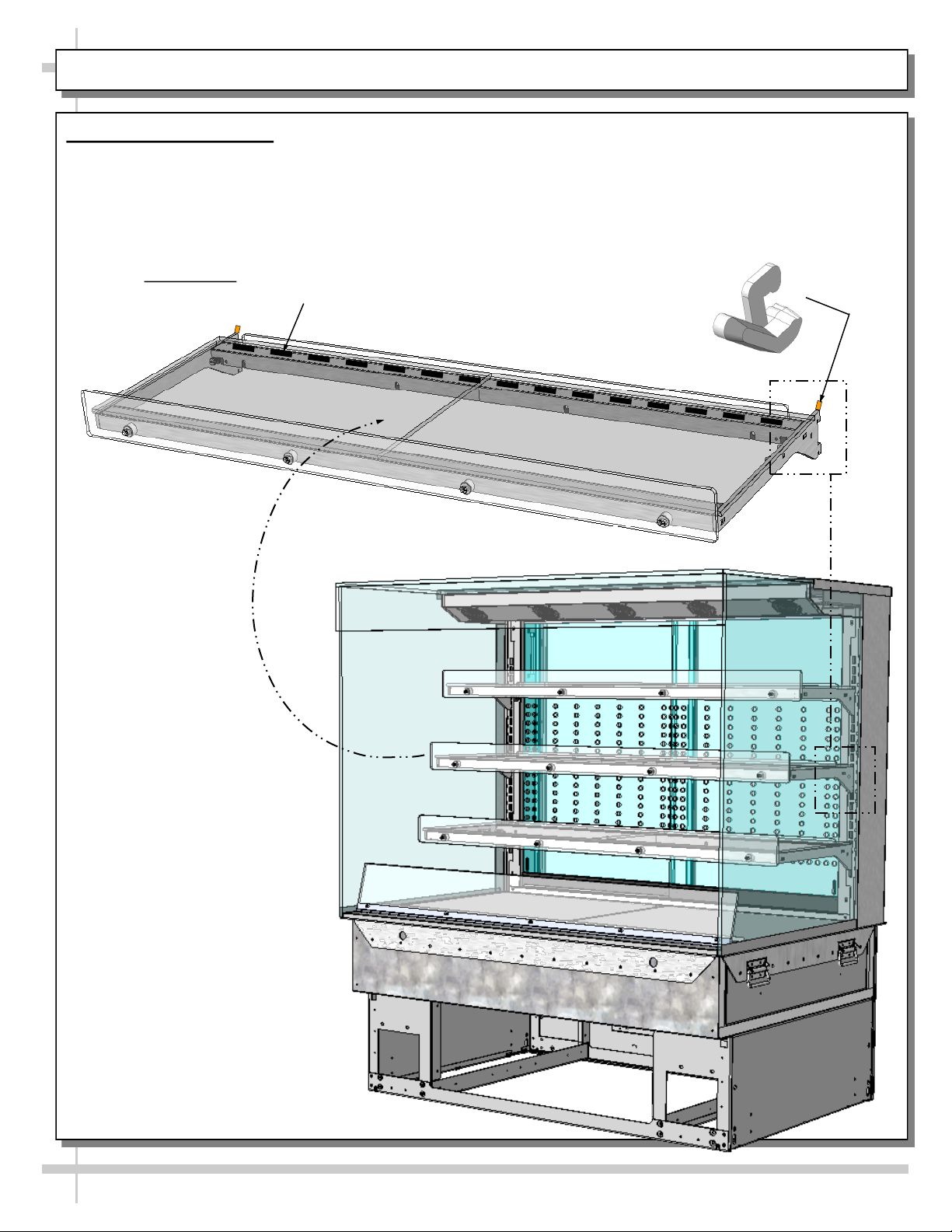

4. Shelving Assemblies

 Shelving retainer clips help secure shelves during

shipping

 After case is in place & level (before startup),

you must remove shelving retainer clips.

See illustration below.

 Check that glass shelving is in proper position before

placing product in case

 Shelves may be adjusted vertically or entirely removed

from merchandiser.

 Metal shelving brackets ARE NOT able to be angled.

From Factory: Transparent 2-Sided Tape Holds

Glass To Top Of Rear Shelf Support Rail Shelving Retainer Clip

(Typ.) Is To Be Removed

After Case Is In Place and

Level (Before Startup)

INSTALLATION, CONT’D: PLUG IN UNIT / MAIN POWER SWITCH AND LED LIGHTS SWITCH

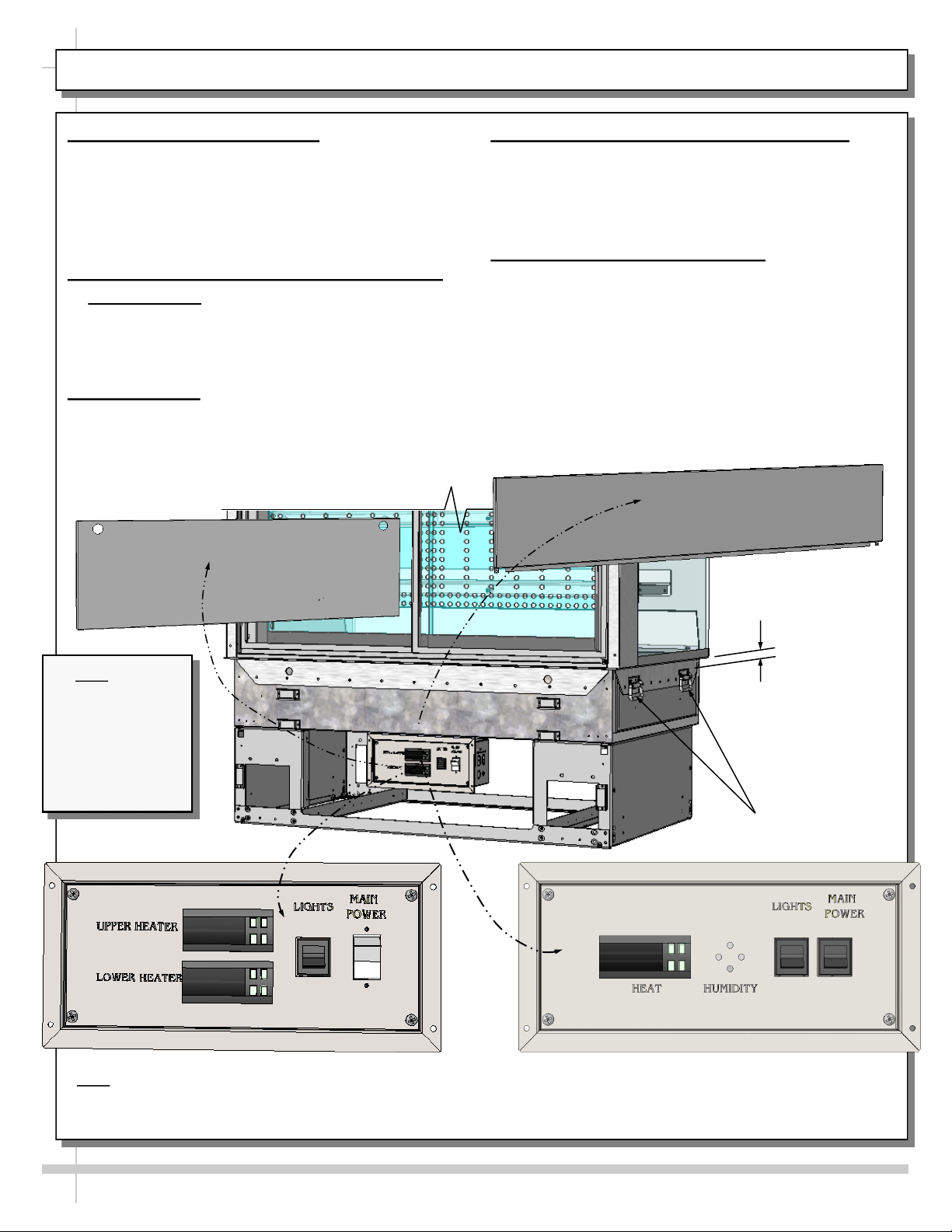

5. Handles On Sides of Case

 Side handles MAY remain on case if space

allows. Otherwise, they may be removed.

 See “Space For Countertop” specifics below.

 If removed from case, keep handles in safe place

for future possible case relocation use.

6. Shelving Retainer Clips To Be Removed

 Important Note: If you have not done so already,

after case is in place and level (before startup),

you must remove shelving retainer clips.

 See previous page for illustration.

7. Plug Case In

 Check field access box for factory-supplied

power cord.

 Plug case into electrical outlet.

 See illustration below.

8. Main Power Switch / LED Light Switch

 Main power switch and LED lights switch is

accessible at case rear electrical box.

 Depending upon model, heater configuration may

vary (as illustrated below).

9. Upper and Lower Rear Panel

 Upper rear panel may be lifted off magnets.

 Remove lower rear panel by using (2) finger

holes to grasp, lift up and off case.

 Return in rear panels in reverse order they were

removed.

 See illustration below.

Handles

Note: Model

NE4835HSSV

Slide-In Unit

(Shown) May Not

Exactly Reflect

Every Feature or

Option of Your

Particular Case.

Space For

Countertop

- OR -

Lower Rear

Panel

Upper Rear

Panel

*Note: Only taller units have upper and lower heaters (with two programmable controllers). All others have only ONE

heater (with ONE programmable controller).

**If “HUMIDITY” etching is on faceplate, simply ignore; such markings are not applicable to cases in manual.

CASE DESIGN & FIELD SERVICE PARTS LIST: CASE FRONT AND REAR VIEWS

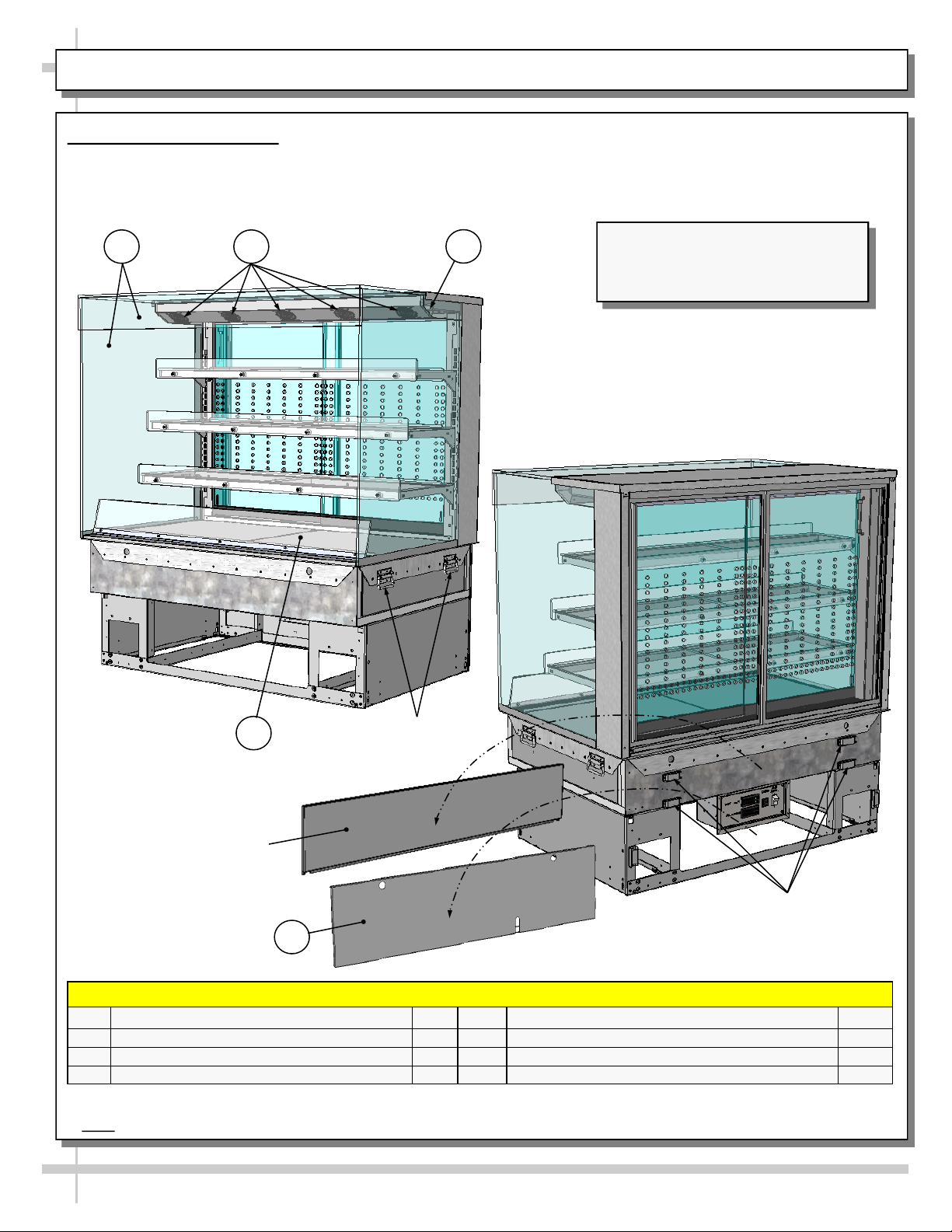

1. Front and Rear Views

 Model NE4835HSSV Slide-In unit with rear sliding doors is illustrated below.

 Solid back units differ from unit shown.

Model NE4835HSSV Slide-In Unit

(Shown) May Not Exactly Reflect

Every Feature or Option of Your

Particular Case.

FIELD SERVICE PARTS LIST: CASE FRONT AND REAR VIEWS

P/N COMPONENT NAME AMT P/N COMPONENT NAME AMT

1UV-BONDED GLASS ASSEMBLY 14AIR DEFLECTOR 1

2FAN (IN UPPER AIRFLOW SYSTEM)* 5* 5REAR LOWER PANEL 1

3HEATER ROD** 1**

Rear Upper

Panel

Handles (Typ.)

Magnets For Rear

Upper Panel (Typ.)

*Number of fans vary depending upon model.

**Note: Only taller models have a heater rod (accompanied by a separate programmable controller).

CASE DESIGN & FIELD SERVICE PARTS LIST, CONT’D: ELECTRICAL BOX COMPONENTS

2. Thermostat / LED Driver / Lights / Main

Power Switch

 Remove rear lower panel by lifting up and off; no

screw removal is required.

 Remove 4 screws from the controller/DC driver

box cover to access electrical components.

* Note: Only taller models have upper AND lower heaters (requiring two programmable controllers). All others have

only ONE heater (with ONE programmable controller).

Electrical Box

(With Faceplate Attached)

Electrical Box

(With Faceplate Removed)

 Note: Only certified electricians are to access

electrical components in case.

 After accessing controller, return components to

case in reverse order they were removed.

Model NE4835HSSV Slide-In Unit

(Shown) May Not Exactly Reflect

Every Feature or Option of

Your Particular Case.

FIELD SERVICE PARTS LIST: ELECTRICAL BOX COMPONENTS

P/N COMPONENT NAME AMT P/N COMPONENT NAME AMT

6RELAYS 29PROGRAMMABLE CONTROLLERS 2*

7DRIVER 110 LIGHTS SWITCH 1

8TERMINAL STRIP 111 MAIN POWER SWITCH 1

10 11

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Reveal Vetrina

Reveal

Reveal NR3633HSSV Manuale utente

Manuali Vetrina popolari di altre marche

Hatco

Hatco FLAV-R-SAVOR FSCD Series Manuale utente

Bonnet Neve

Bonnet Neve SKYLIGHT Manuale utente

True

True TCGD-50 Manuale utente

Tecnodom

Tecnodom EVO SELF Istruzioni operative

Delfield

Delfield F15SC48N Manuale utente

saro

saro FIONA Manuale utente

Hendi

Hendi 233962 Manuale utente

Hoshizaki

Hoshizaki HNC-120BE-L-BLH Manuale utente

Nordcap

Nordcap GENIUS 2 H145-L70 Manuale utente

Omcan

Omcan RS-CN-0140-D Manuale utente

Tecnodom

Tecnodom M Series Istruzioni operative

freor

freor MERCURY Manuale utente

Costan

Costan WHALE 2000 G LG300 Manuale utente

Costan

Costan IMPALA Manuale utente

True Manufacturing Company

True Manufacturing Company TCGD-50 Manuale utente

Bartscher

Bartscher 100L Manuale utente

Steelcase

Steelcase Opus Manuale utente

Hatco

Hatco Glo-Ray GRHD-2P Guida all'applicazione
