Revolabs Fusion™ Microphone System - Sony XG-80 Setup Guide

NOTES A ND CA UTIONS:

This setup guide will guide you through the steps needed to properly connect a

Revolabs Fusion System to a Sony XG-80 video codec.

1. Connecting the Cables

2. Configuring the XG-80 Video Codec

Note:

It is important to carefully follow these instructions in order and completely .

Otherwise your Fusion Microphone System and/or the video codec may not function

properly. Please read through these instructions completely before proceeding.

Contact Revolabs technical support if you have any questions.

Requirements for connecting systems:

1. Revolabs Fusion 4 or 8 channel microphone system

2. Sony XG-80 video codec

3. QTY 1 Female XLR –1/8” stereo male cable (i.e. Calrad 10-145)

4. QTY 1 RCA-RCA male cable

5. Amplified speakers

Connecting the Cables

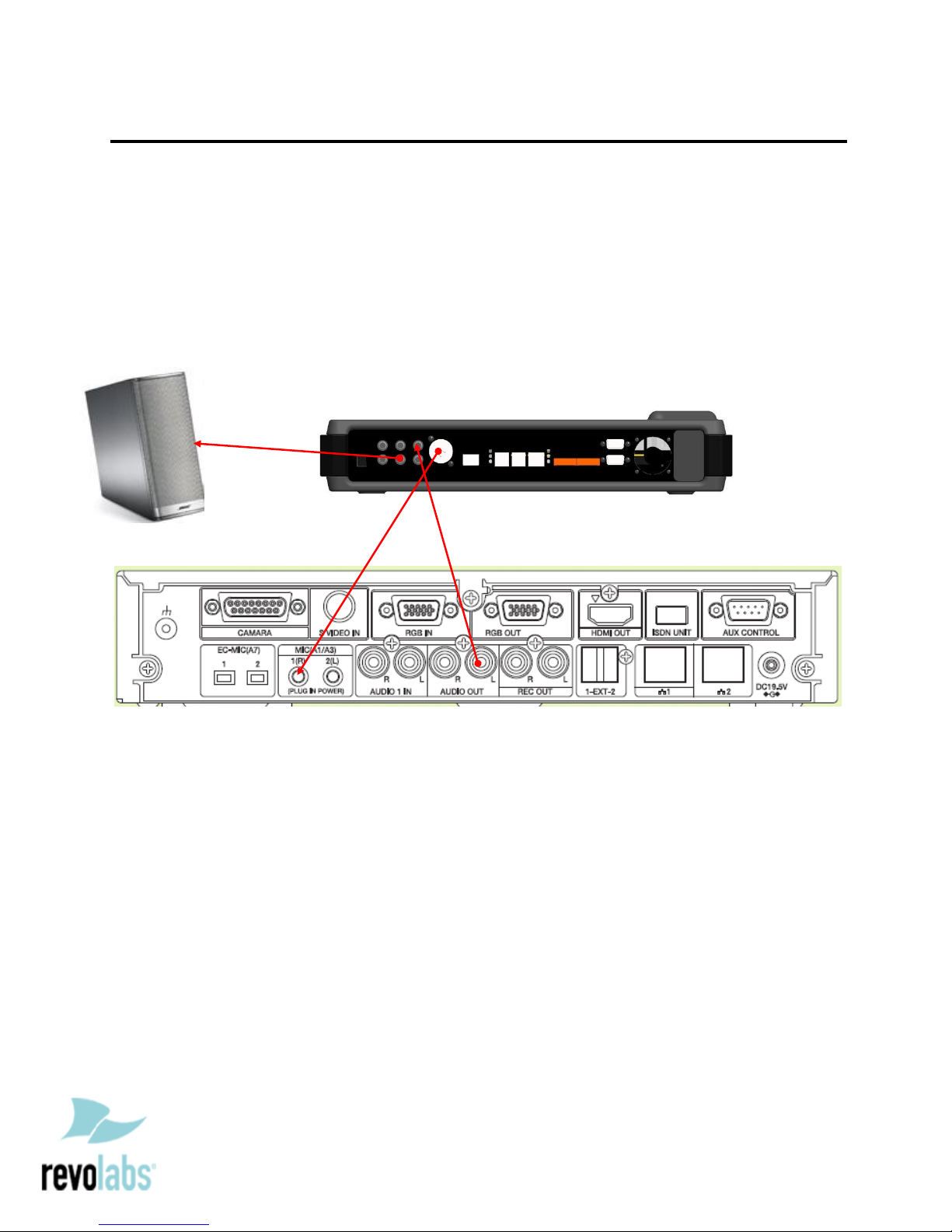

CONNECTING A REVOLABS FUSION TO SONY XG-80 VIDEO CODEC

1. Connect a Female XLR –1/8” audio cable between the XLR “CONF OUT” port on

the Fusion and the 1(R) “MIC (A1/A3)” port on the XG-80.

2. Connect a Male RCA-RCA audio cable between the “CONF IN” port on the Fusion

and the L “AUDIO OUT” port on the XG-80.

3. Connect a Male RCA audio cable between the “Room Out” port on the Fusion and

the Speakers.

Note: The speakers used for audio and video conferencing with this

configuration must be connected to the Fusion for proper echo cancellation.

Configuring the Sony XG-80 Video Codec

CONFIGURING THE A UDIO MENUS OF THE XG-80 VIDEO CODEC

1. Push the TOOLS button on the remote control

2. Select SETUP

3. Select AUDIO 1

4. Select AUDIO INPUT as MIC

5. Verify that Mic (A1/A3) has a checkmark

6. Turn ECHO CANCELLER to OFF

7. Verify INPUT as MONAURAL

8. Increase Sony volume level on remote to maximum

NOTE: You must use your Fusion remote control to control the room volume

for both the audio and video conference calls. Adjusting the volume in the

video codec will cause echo.
