Revopoint INSPIRE Manuale utente
Tutorials and Tips
INSPIRE 3D Scanner
V1.0
Contents
3
4
6
1.1 USB Cable Connection
1.2 Wi-Fi Connection
1.3 LED Indicators
1Connecting to an INSPIRE 3D Scanner
6
7
8
2.1 How to Use the Tripod
2.2 How to Place an Object
2.3 How to Setup the Scanning Environment
2Setting Up a Scan
9
11
13
3.1 Scan Accuracy
3.2 Tracking Modes
3.3 Object Type
3Scan Settings
16
17
4.1 Depth Camera
4.2 RGB Camera
4Depth and RGB Cameras' Exposure
Settings
18
19
19
5.1 Scan Preview
5.2 Sta!/Pause Scanning
5.3 Completing the Scan
5Scan Controls
20
20
21
6.1 Aim at the Object
6.2 Slow and Stable Movement
6.3 Scan Distance
6Scanning Tips
01
Contents
21
23
23
23
24
7.1 Insu"cient Point Clouds Captured
7.2 Tracking Lost
7.3 Noise and Holes on the Model
7.4 Deleting a Scan or Re-scanning
7.5 Frequent Tracking Failures
7Troubleshooting Scanning Errors
25Model Editing
8Model Editing
02
Scanning Work!ow
Connect an
INSPIRE 3D
Scanner
Select the correct
Scan Settings for
your object.
Sta!to scan after
checking and adjusting
the RGB and Depth
cameras' exposure.
Click the "Sta!/Pause"
button to sta!or pause
the scan.
Parameter
Settings
Preview
the scan
Sta"/Pause
Scanning Model Editing
Edit the scan to
generate point cloud,
mesh, and texture
mapping models.
1. Connecting to a 3D Scanner
1. Connecting to an INSPIRE 3D Scanner
Here's an example of how to connect to an INSPIRE 3D scanner using a USB cable.
Revopoint INSPIRE 3D scanner can connect to Windows and macOS devices with its 2-meter-long
USB cable.
1.1 USB Cable Connection
Plug into the INSPIRE's Type-C
po!.
Use the Type-A to Type-C
Adapter if there is no Type-A
po!on your PC.
Plug into the PC's USB 3.0 po!.
03
Connect to Revo
Scan via USB or Wi-Fi
on a compatible
Windows, macOS,
Android, or iOS device.
Revopoint INSPIRE 3D scanner can also connect to Windows and macOS devices over Wi-Fi.
1.2 Wi-Fi Connection

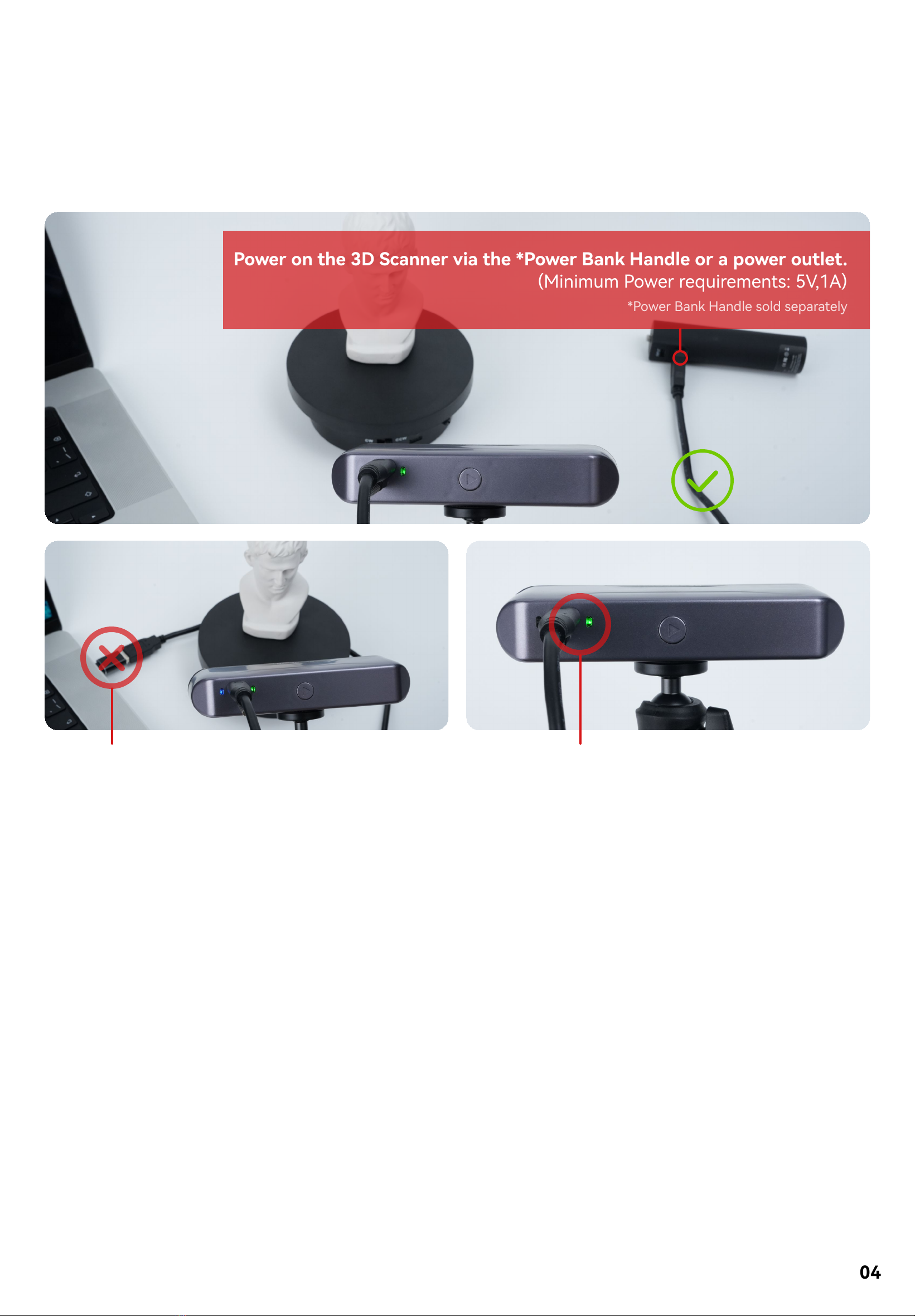

Step 1: Power on the 3D scanner.
Power on the 3D Scanner via the *Power Bank Handle or a power outlet.
(Minimum Power requirements: 5V,1A)
*Power Bank Handle sold separately
•Do not plug it into your PC, or it will be in USB
mode by default.
•To use the Wi-Fi connection the scanner must
be powered by a power bank or power outlet.
•When the power indicator turns solid green,
the scanner is successfully powered.
04
•Find the label on the scanner's bottom, and locate the Scanner Model and its SN.
•Go to your Wi-Fi setting, search for the network called: Model + REVO + the !rst eight characters.
For example: INSPIRE-REVO-A2340025
Click the network and wait for it to connect to the PC. (No password is required)
If using the Wi-Fi connection on your PC, please consider the following:
1. Check if your PC has Wi-Fi before connecting the scanner wirelessly. Older desktops may not
suppo!Wi-Fi.
2. Your PC won't have internet access when connected to the scanner's Wi-Fi. Disconnect from the
scanner's Wi-Fi network if you need to go online.
3. If your PC fails to connect to the scanner's Wi-Fi, check if other devices (including mobile devices)
are connected to the scanner or if your PC is linked to another scanner via USB. If none of these
scenarios apply, t#resta!ing the scanner or contact our Customer Se$ice Team for fu!her
assistance.
05
Connected, secured
Disconnect
Prope!ies
Step 2: Connect the 3D scanner to your PC via Wi-Fi.
No light: Not Connected No light: Not Powered
Connection Indicator Power Indicator
1.Flashing red light: Sta!ing (Lasts about 5s to 30s)
2.Solid red light: The scanner failed to sta!.
Please t#it again.
Solid blue light: Connected
Flashing blue light: Working correctly Solid green light: Powered successfully.
INSPIRE 3D Scanner
1.3 LED Indicators
2.1 How to Use the Tripod
1. Connecting to a 3D Scanner
2. Setting Up a Scan
06
Image 1: Clip the scanner to
the top and extend the tripod's
suppo!legs. Put it onto a desk
for %xed scanning.
Image 3: The tripod can extend
up to 30 cm.
Image 2: Hold the tripod for
handheld scanning.
1) Incorrect Examples
2.2 How to Place an Object (Using the Agrippa Bust as an Example)
Cluttered Background Don't hold the turntable by hand, as the object
will be unstable.
Incorrect Color Scans
- Dim lighting conditions are bad for color
scanning.
Incorrect Color Scans
- Uneven illumination will a&ect texture
mapping.
07
2) Correct Examples
The surroundings are clear of any clutter and
consistently lit.
Using Magic Mat or black bin bag as the
background, and ensuring consistent and even
illumination.
2.3 How to Setup the Scanning Environment
Connect the scanner to a PC
and attach it to its tripod.
Angle the scanner toward the
Agrippa and slightly above it.
Use the Magic Mat or black
bin bag as the background.
The scanner is angled down
towards the object at a
distance of about 25 cm.
Scan Distance
Power on the turntable and
adjust it to its maximum speed.
Put Agrippa on the turntable.
Check the bust to ensure that
there are no shadows on its
su'ace and that the overall
lighting is even and bright.
Note：Working distance of INSPIRE is 250-500 mm.
1. Connecting to a 3D Scanner3. Scan Settings
Before scanning, please ensure that the correct settings have been selected for your object.
08
3.1.1 Standard Accuracy
3.1 Scan Accuracy
1) In Standard Accuracy mode, the post-processing time will be longer, but the results are more
suitable for applications needing more detail.
2) Object Type Suppo!ed in Standard Accuracy Scans
General Object, Dark Object, and Face (Refer to the Object Type section for more details)
3) Advantages and Disadvantages
09
Advantages:
1. High scanning accuracy.
2. Captures much more of the object's details.
Disadvantages:
1. A lower scanning frame rate leads to lower scanning e"ciency.
2. The scanned model takes up a lot of memo#, and post-processing takes a long time.
1) In High-speed(18 fps) mode, the scanning speed can be up to 18 fps and is suitable for scanning
large objects and people.
3.1.2 High-speed(18 fps)
