RF-Link ACS-5820 Manuale utente
01
RF-Link/Araneus USA, Inc.
44845 Industrial Drive
Fremont, CA 94538 U.S.A.
Tel: 510-413-5885
Fax: 510-651-5995
www.rflinkusa.com
QUICK INSTALL GUIDE
Model: ACS-5820
5.8 GHz Cable Sender
1. Package Content……………………………………….……… 01
2. Panel Control and Function……...…………………….……… 02
3. Specification…………………............…………………………04
4. Setup Guide……………………..……………….……………..05
5. Orient Transmitter/Receiver for optimal performance…….…...06

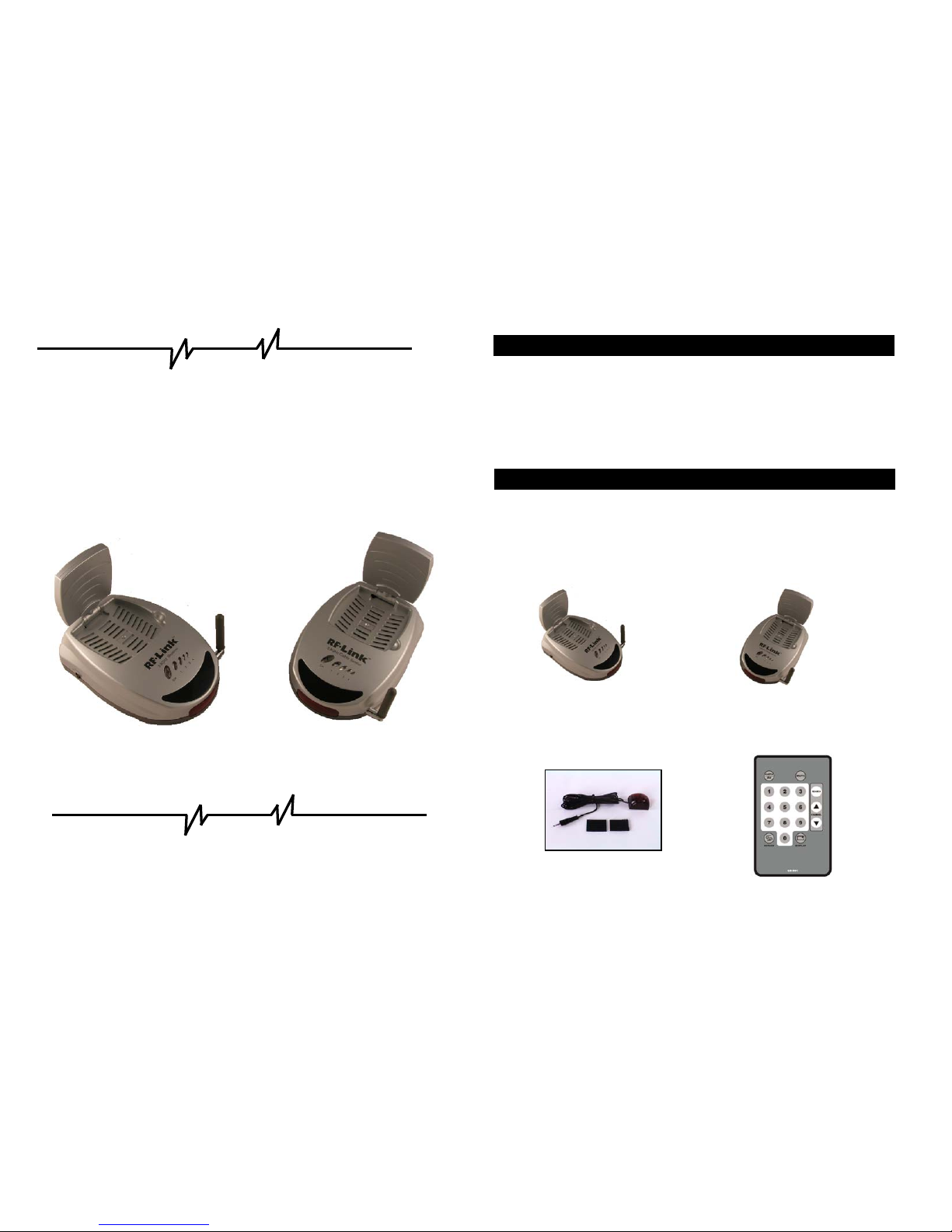

Check to make sure that all units shown as below are enclosed. If something
missed, please contact your dealer.
1. 5.8GHz Transmitter * 1 2. 5.8GHz Receiver * 1
UHF: 433.392MHz (European)
UHF: 418MHz (USA Standard)
3. IR Mouse * 1 / fasten strips * 2 4. IR Remote Controller * 1
Contents
1. Package Content

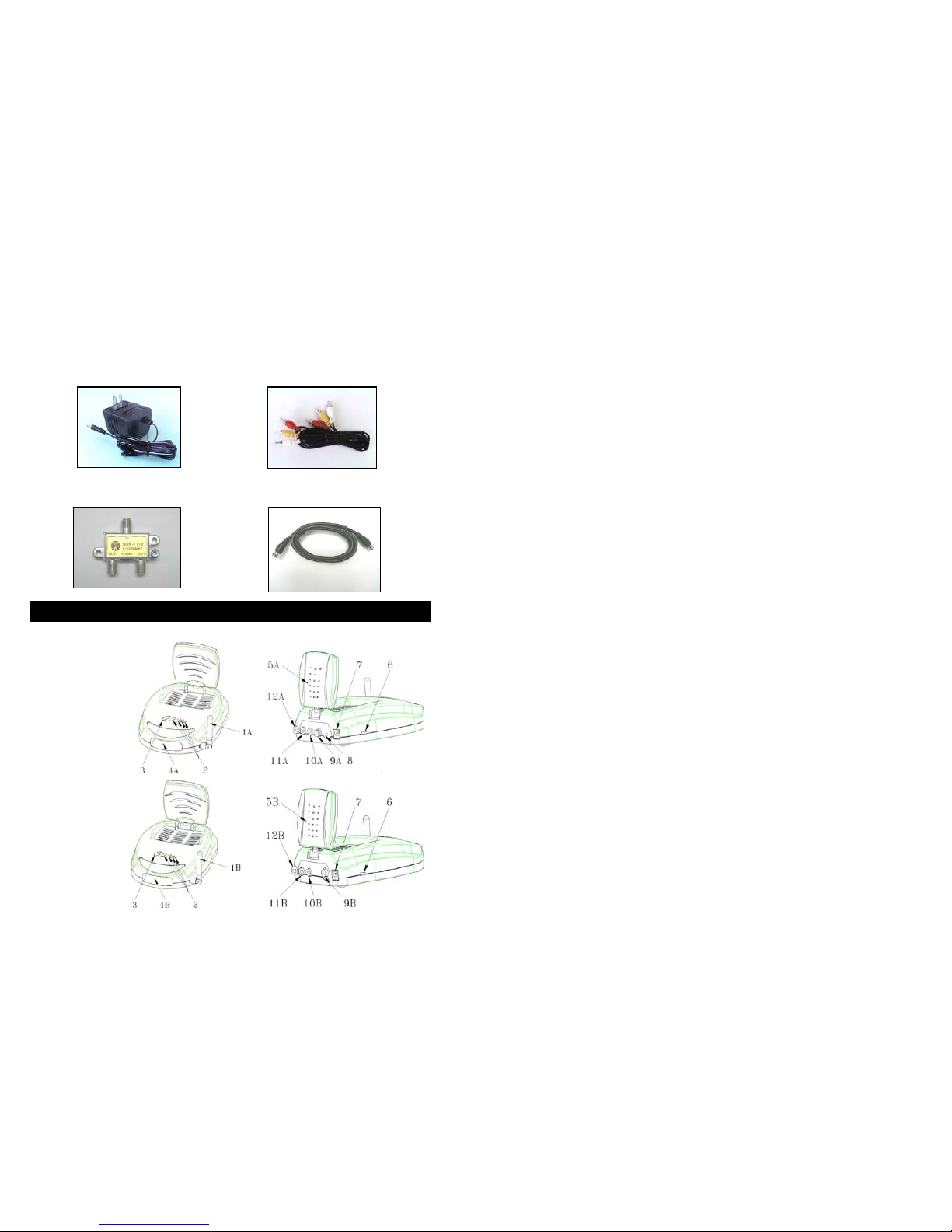

5. Accessories
(1) Power Adapters (120V) * 2 (2) RCA Cable * 2
(3) Coaxial 2-Way splitter*1 (4) Coaxial cable*1
1A – UHF antenna receives remote control signal.
1B – UHF antenna sends remote control signal.
2 – Indicator lights show the channel it configured as.
3 – Channel selection button to find optimal reception, the transmitter and
receiver must to be Configured as the same channel.
4A – Remote control window sends IR rays, to remotely control the source AV
equipment.
4B – Remote control window receives IR rays from remote controller.
5A – Directional 5.8GHz A/V antenna sends A/V signal from source equipment.
5B – Directional 5.8GHz A/V antenna receives audio and video signal.
6 – Power on/off switch.
7 – DC power input, connect to power supply. (9V).
8 – IR Mouse output, to remotely control source AV equipment.
9A – CABLE IN (75Ω), CATV Cable in.
9B – No available (To TV)
10A–Video Jack, (yellow), input from source AV equipment.
10B–Video Jack, (yellow), output to TV.
11A–Audio Jack, Right (red), input from source AV equipment.
11B–Audio Jack, Right (red), output to TV.
12A–Audio Jack, Left (white), input from source AV equipment.
12B–Audio Jack, Left (white), output to TV.
2. Panel Control and Function
5.8GHz
Transmitte
5.8GHz
Receiver
03
02
IR Remote Controller
1. CATV/AV : For switching Video signal and cable TV channels
2. CH + / CH - : For paging up and down through the cable TV Channels
3. SEARCH : Automatic search tuning for cable TV and memorize it
4. MUTE : Silent
5. DISPLAY : Displays the selected mode : Channel number or AV
6. RETURN : Switching back to the channel last selected
7. NUMBER BUTTONS : TV channel selection
3.1 Transmitter
Input Voltage DC 9V
Current Consumption < 350mA
Operation temperature & humidity 0℃~ +50℃less than 85%
Storage temperature & humidity -20℃~ +70℃less than 90%
3.2 Receiver
Input Voltage DC 9V
Current Consumption < 400mA
Operation temperature & humidity 0℃~ +50℃less than 85%
Storage temperature & humidity -20℃~ +70℃less than 90%
4.1 To enjoy a life of wireless video and audio, just connect the transmitter to any
A/V source you like and CATV cable, and connect the receiver to a TV,
monitor or speaker in another location.
□ Transmitter
□ Receiver
RETURN
NOTE: Make sure the ON/OFF switch is in the 「OFF」position before connection
4. Setup Guide
1. Connect one end of the RCA cable to the audio
and video jacks, and connect the other end to a
source device via its “AV output”.
2. Connect the CATV cable to the Cable IN jack.
3. Connect the DC plug of the adapter to the DC
jack, and connect the power supply to an outlet.
4. Fix IR mouse next to or in front of IR sensor of
source device, or alternatively have transmitter
facing directly toward the source device without
IR mouse plugged in.
1. Connect one end of the RCA cable to the
audio and video jacks and connect the other
end to a TV (or monitor, speakers) via its
“AV input”.
2. Connect the DC plug of the adapter to the
DC jack, and connect the power supply to
an outlet.
3. Keep the IR window oriented toward front
when using your source device remote
controller.
3. Specification
04 05
CH +
CATV/AV
NUMBER
BUTTONS
SEARCH
MUTE
CH -
DIAPLAY
4.2 After setup your transmitter and receiver，the first time to enjoy CATV on
CableSender，It needs to scan and find the available channels . Please
follow procedure below :
zThe first step : turn on your TV set and Switch to AV IN.
zThe step 2 : power on the cable sender (Transmitter and Receiver ) and
select the same channel you like .
zThe step 3 : push “CATV/AV “ button on IR Remote Controller to
switch Cable Sender to CATV mode.
zThe step 4 : Programming the cable tuner using “search” button
on IR Remote Controller to automatic scan and find the available
channels , and memorize it.
zThe step 5 : Using CH+/CH- button on IR Remote Controller for
paging up/down channel , using “NUMBER” button to select TV
channel you like.
For optimal performance, both the audio/video and remote control antennas should
be carefully oriented as described below. For maximum transmitting range, try to
minimize obstacles (e.g. your TV or other electronics, large furniture) where
between the transmitter and receiver.
Orients the 5.8GHz A/VAntennas
Orients the UHFAntennas
In order to obtain optimal performance of the remote control extender, the remote
control antennas should also be oriented at a right angle to an imaginary line
drawn between the transmitter and receiver. If your remote control extender is not
working satisfactorily, rotate the remote control antenna on either the transmitter
or receiver 90 degrees so that it is still perpendicular to the path between the units.
(See Fig-4)
If you notice improved performance, keep this orientation. Rotating the antenna on
both units should have no effect.

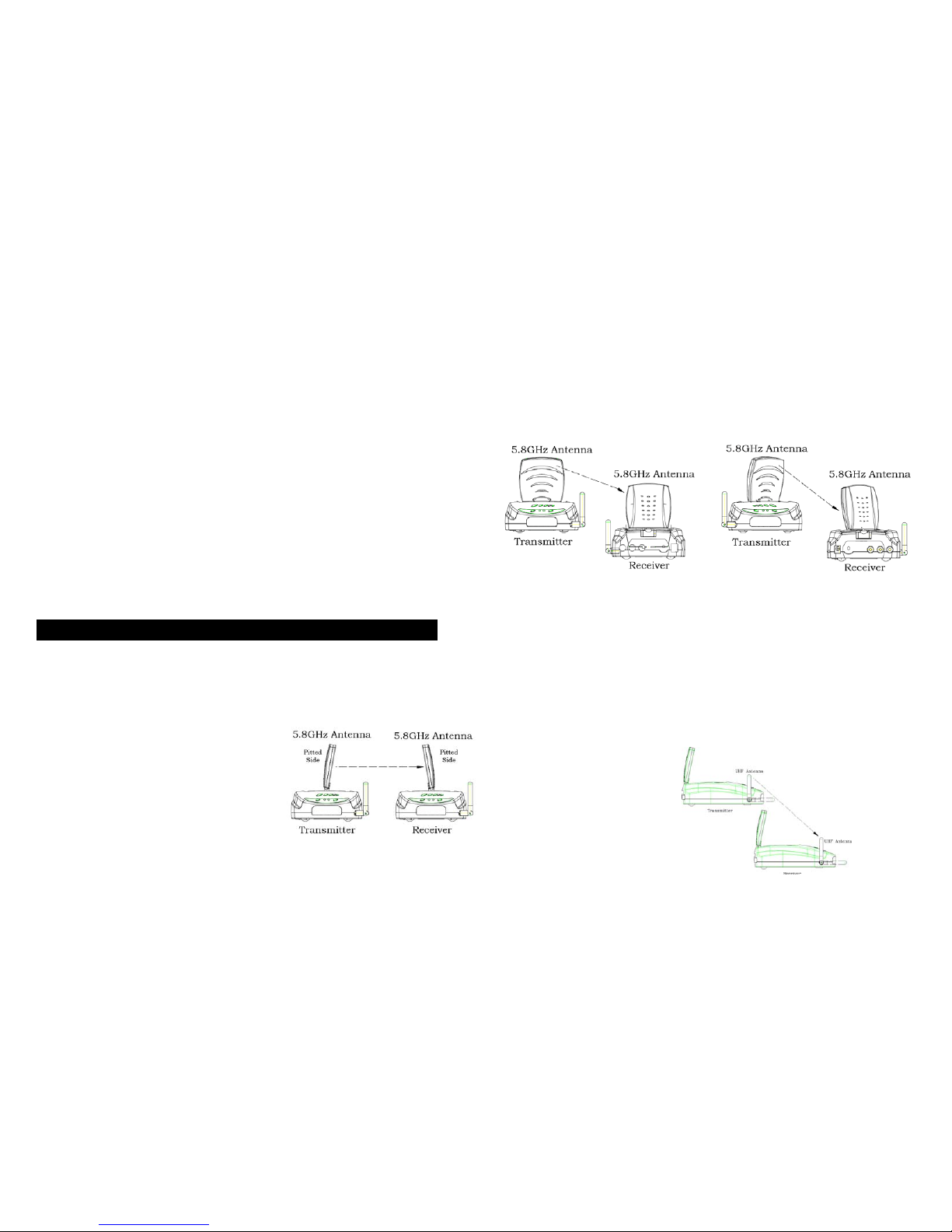

5. Orient Transmitter/Receiver for optimal performance
The system delivers high-quality audio and
video by using directional antennas, which must
be oriented in the best ways. The antennas are
designed to be able to vertically and horizontally
pivot and rotate in almost any direction.
In most situations, the flat-pitted face of the antennas on both the transmitter and
receiver should be facing one another and perpendicular (at a right angle) to an
Fig-2
Fig-3
Fig-1
imaginary line drawn between the two units. Three examples are shown as Fig-1,
Fig-2 and Fig-3. Since all homes are different, for optimal reception, additional
slight pivots or rotations may be necessary. If the transmitter and receiver are
less than 10 feet apart, suggest that the antennas are lying on their casings since
the distance is so short.
Fig-4
06 07
