RGBLE VWP-812 Manuale utente

Stock Code 873117 en.rgble.com 400-1661-021

2K@60Hz

8 DVI-U inputs and 12 HDMI outputs

Video Wall Processor with Preview function

VWP-812

User Manual

VER 1.0

Stock Code 873117 en.rgble.com 400-1661-021

Thank you for purchasing RGBLE product

For optimum performance and safety, please read these instructions carefully before

connecting, operating or adjusting this product. Please keep this manual for future reference.

Surge protection device recommended

This product contains sensitive electrical components that may be damaged by electrical

spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly

recommended in order to protect and extend the life of your equipment.

Table of Contents

1. Introduction............................................................................................................2

2. Features.................................................................................................................2

3. Package Contents................................................................................................. 2

4. Specifications........................................................................................................ 3

5. Operation Controls and Functions........................................................................ 4

5.1 Front Panel...................................................................................................... 4

5.2 Rear Panel....................................................................................................... 4

6. Device Debugging................................................................................................. 4

6.1 Device Connection........................................................................................... 4

6.2 Debugging Steps.............................................................................................. 5

6.3 Case Study....................................................................................................... 8

6.4 Function key..................................................................................................... 9

6.5 Advanced Menu..............................................................................................11

7. Software Control...................................................................................................12

Stock Code 873117 en.rgble.com 400-1661-021

8 DVI-U inputs and 12 HDMI outputs

Video Wall Processor with Preview function

1. Introduction

The RGBLE VWP -812 video wall processor is a high-end video processing equipment

developed and manufactured by our company for LCD large screen display and so on. It has

adopted the CrossInt smart splicing technology specially designed for splicing display and all

display modules are locked by FST technology before synchronous output, eliminating the

asynchronous display between contents of multiple modules.

2. Features

⚫Supports 8 DVI-U inputs Compatible with DVI/HDMI/VGA/CVBS).

⚫Up to 8 layouts/windows in total

⚫Colorful LCD screen for the real-time information and menu setting

⚫Supports sources real-time preview function (with 1000M LAN port)

⚫All 60Hz image processing, achieving smooth and non-tearing images

⚫Support output port mapping, allowing blind wire connections

⚫Support black/blue screen while wrong sources output

⚫Support mode and source switching effects (CUT of FADE effects)

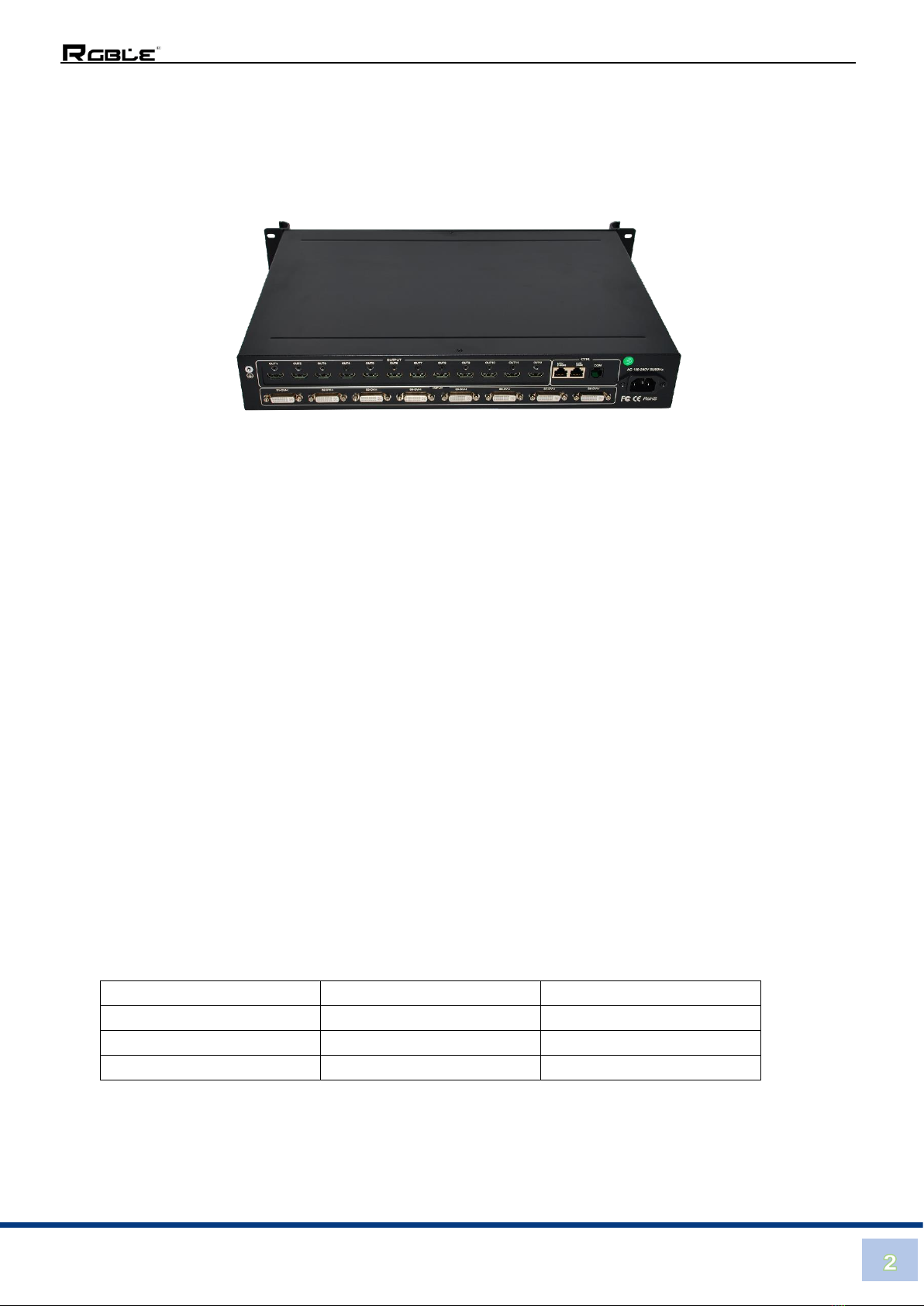

3. Package Contents

Item Name

QTY

Unit

Video Wall Processor

Unit

User Manual

Pcs

Power cord

Pcs

Stock Code 873117 en.rgble.com 400-1661-021

4. Specification

Brand Name

RGBLE

Model Number

VWP-812

Video Inputs

Type

Description

8 DVI-U

Support up to 1920×1200@60Hz, downward compatibility.

Support DVI/HDMI/VGA/CVBS with different connectors

Compatible with HDMI1.3 and lower version, EDID version 1.3

Video Outputs

Type

Description

12 HDMI

Resolutions: 1024×768@60Hz till 1920×1080@60Hz

Support 60Hz/50Hz/30Hz output frame rates

Function Description

Outputs

12 outputs support splicing mode of arbitrary form, such as:

3×4, 2×6 etc.

layouts/windows

Up to 8 windows or layouts in total

Each layout can be freely zoomed and adjusted. Images can

overlap each other.

1000M Preview

The signal image can be gained on computer at real time by

control software which includes both input signal and output

signal

Switching Effect

When switching signals or user-modes, users can set up

different effects and time

General

PC Control

RS232/RJ45 Ethernet

Weight

5.4kg

Operating

Temperature

0°C ~ 40°C / 32°F ~ 104°F

Storage

Temperature

-20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity

20~90% RH (non-condensing)

Dimension

440x290x66mm

Input Power

AC 110-220V 50/60Hz

Warranty

1 years

Stock Code 873117 en.rgble.com 400-1661-021

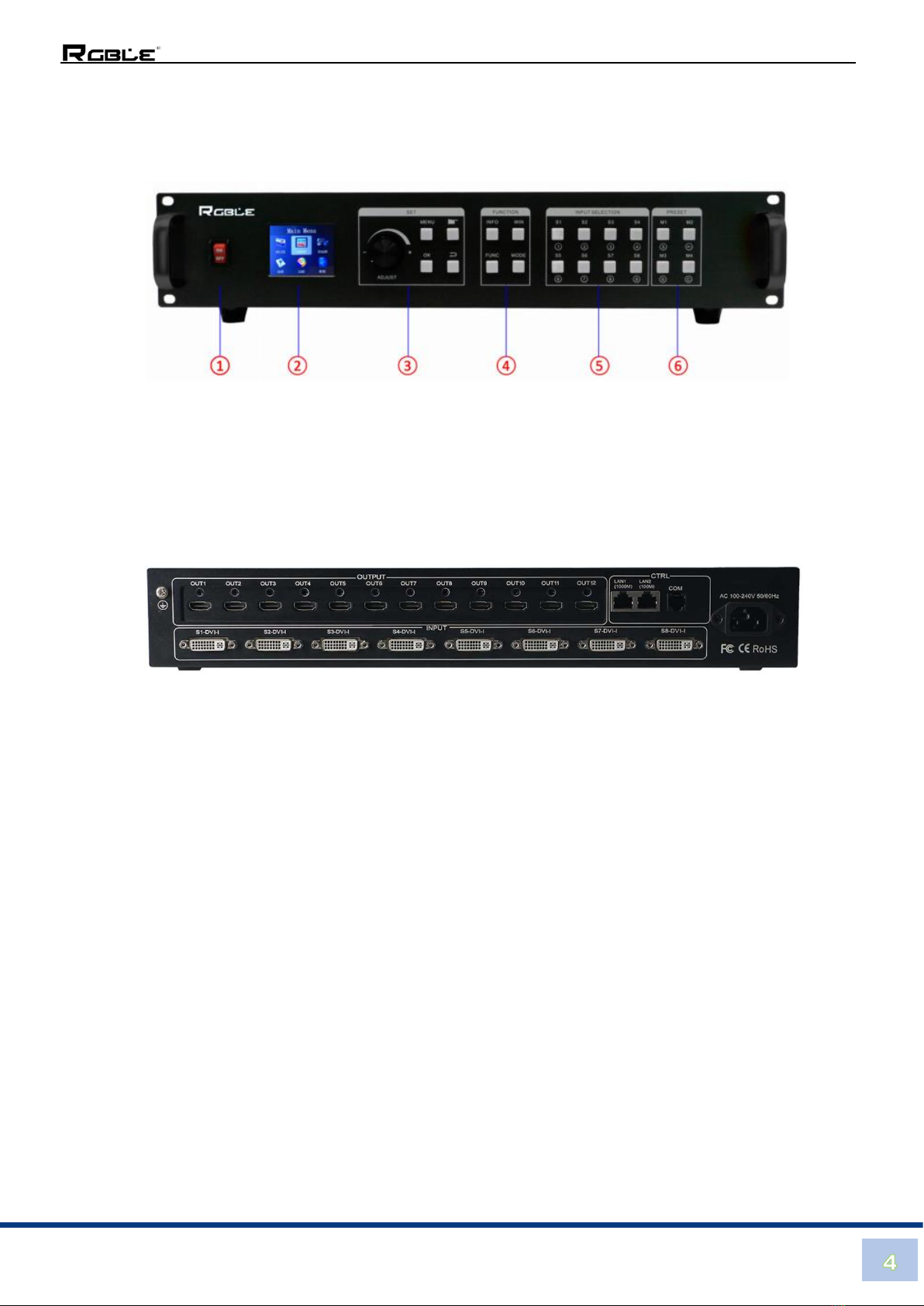

5. Operation Controls and Functions

5.1 Front Panel

①POWER: Power switch ON/OFF

②Colorful LCD screen: for fast setting, information viewing

③SET: including ADJUST knob, OK, MENU, BACK and CONFIRM

④FUNCTION: Function key area which includes INFO, WIN, FUNC, MODE

⑤INPUT SELECTION: 8 signal sources fast switching buttons

⑥PRESET: User-Mode recall buttons

5.2 Rear panel

①INPUT: 8 DVI-I input ports (Compatible with DVI/HDMI/VGA/CVBS)

②OUTPUT: 12*HDMI output ports

③CTRL: Control port which contains LAN (100M), LAN (1000M), COM (serial port)

④POWER: Power supply port, AC 110-220V 50/60Hz

6. Device Debugging

6.1 Device Connection

Device connection could be divided into three parts: power connection, signal connection

and control connection (used for software debugging).

Power connection: device power supply. Connection method: connect power cord to

power plug.

Signal connection: the method transferring signal from signal source to LED large screen,

method: signal source (e.g.: computer) →Mosaic Processor →LCD.

Control connection: connect control computer with device control port and debug device

connection method. There are three connection methods

(1) Connect 100MB network control port with splicer LAN (100M) port, which can set device

Stock Code 873117 en.rgble.com 400-1661-021

software

(2) Connect computer gigabit network port with splicer LAN (1000M) port, which can not only

set device but also echo signal source image.

(3) Connect one crystal head of serial port line which is randomly donated by device with

splicer COM port, and plug DB9 into computer serial port. Any kind of method among the

three can realize device software control.

Connection diagram:

6.2 Debugging Steps

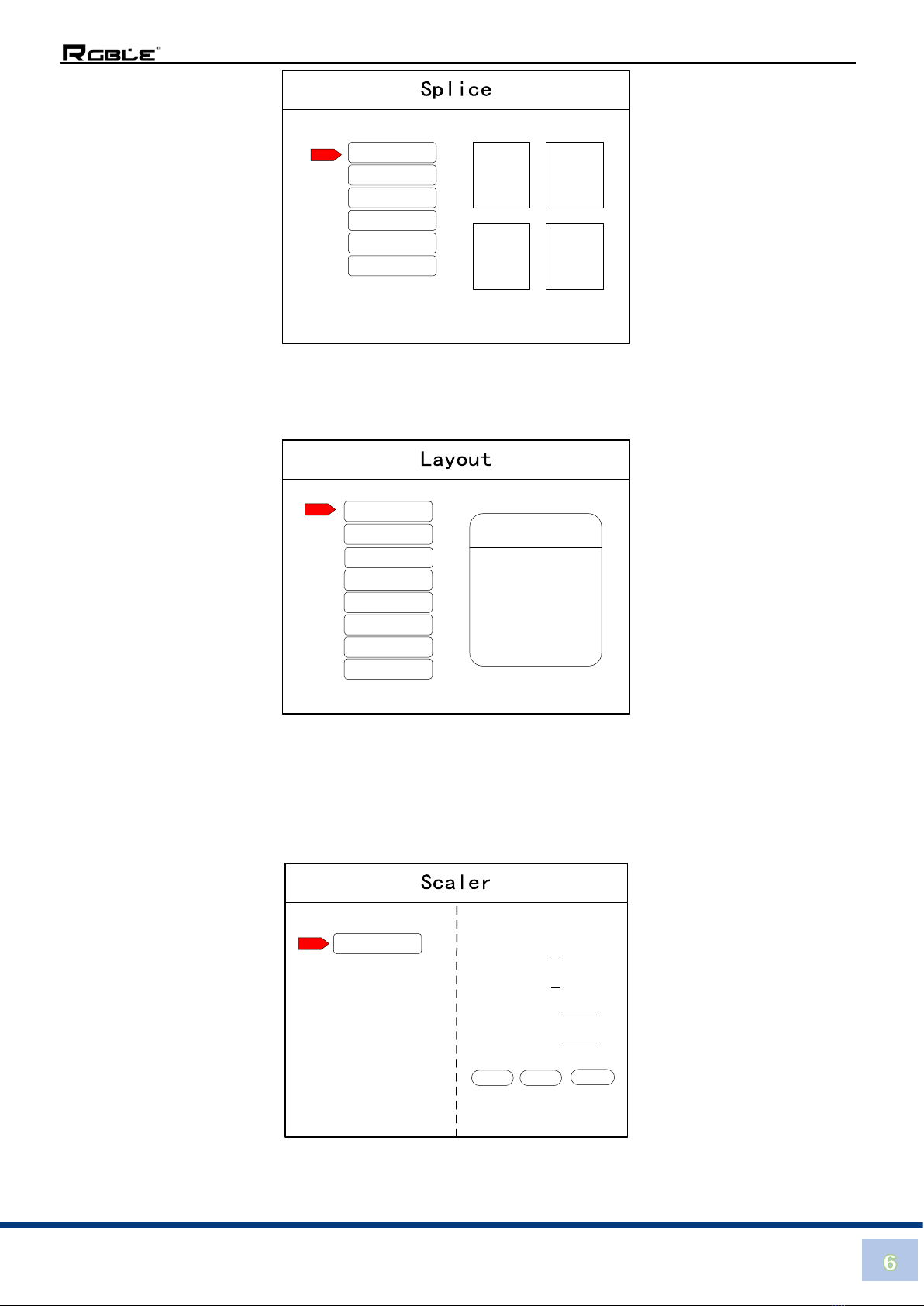

Step 1: Press “MENU” to enter into main menu interface and click “Splicing Mode” to select

splicing mode: 2×2、2×3、2×4、2×5、2×6、3×2、3×3、3×4、4×2、4×3、5×2、M×N.

Stock Code 873117 en.rgble.com 400-1661-021

Note: Select M * N to customize the stitching method

Step 2: To get back to main menu interface to select “Image layout” and enter into image

number selecting interface to select image number required to be set.

Note: This step can be skipped for signal image. For multi-image, it’s OK if image number

and item requirement are in consistent. Following operations can be taken to set when layout

is not in consistent.

Step 3: Press “OK” and return to main menu interface; select “Image parameter” and enter into

its setting interface to set size and position of each image.

Note: there are two ways for number input:

2×2

2×3

2×4

2×5

2×6

3×2

Num in box is PORT

OK 2 map INFO view

1 2

3 4

Layout 1

Layout 2

Layout 3

Layout 4

Layout 5

Layout 6

Layout 7

Layout 8

WIN1

Window 1

Select window

Click OK to next

H POS：0

V POS：0

H SIZE：1920

V SIZE：1080

×1 ×10 ×100

Press FiNGER select

Stock Code 873117 en.rgble.com 400-1661-021

(1) Adjust by rotate knob. Step length can be adjusted by “×1” “×10”“×100”, for instance,

“×100”means that number of rotate knob increases by 100 each time.

(2) Input by number of the front panel. For example,



of the key refers to figure 1.

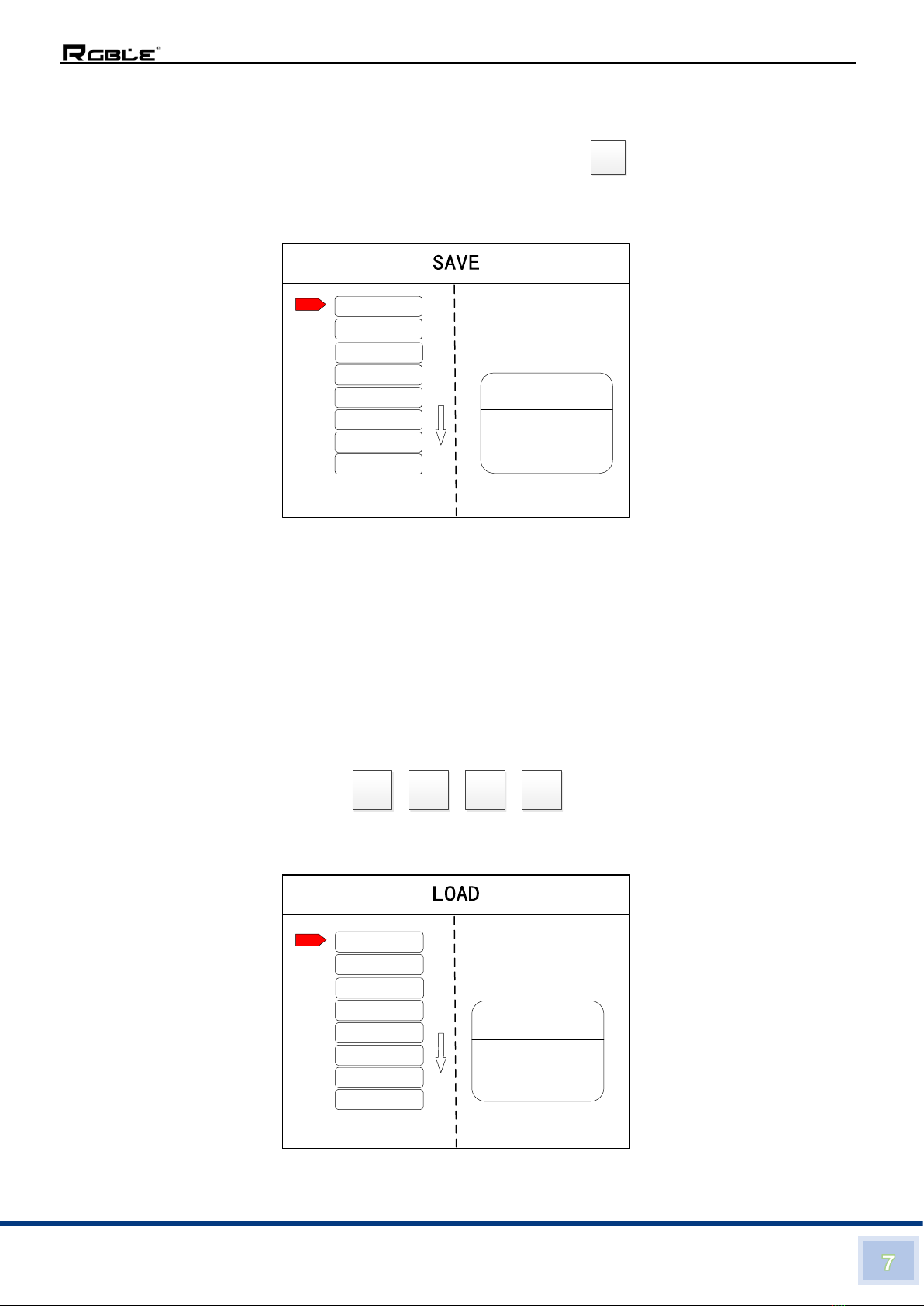

Step 4: Press “MENU” and return to main menu interface; select “Save setting” to enter into

Data storage interface; select any mode and click “OK” to save data.

Note: Mode 1 is default startup data of device boot; it’s suggested that the most common

mode or that required by device boot should be saved to Mode 1.

At this point, basic device debugging is completed. If there is other requirement, repeat the

operation and save it as other mode.

After device debugging, just recall saved data according to different condition requirements in

later stage.

Data recall is divided into forms:

(1) For Shortcut key call, only select and press the “M1-M4” buttons on the front panel which

is convenient when mode scenario is few.

(2) For users to recall from the Main Menu, press “MENU” and select “User Mode” to enter

into its extraction interface. Then select needed mode and click “OK”.

Mode 1

Mode 2

Mode 3

Mode 4

Mode 5

Mode 6

Mode 7

Mode 8

WIN 1

MODE 1

SPLICE 2×3

LAYOUT

M1 M2 M4M3

Mode 1

Mode 2

Mode 3

Mode 4

Mode 5

Mode 6

Mode 7

Mode 8

WIN 1

MODE 1

SPLICE 2×3

LAYOUT

Stock Code 873117 en.rgble.com 400-1661-021

6.3 Case Study

Device debugging steps are explained by following cases.

Case: There are 12 LCD screens arranged in 3 rows and 4 columns, as shown in the

following figure:

Requirement: all LCD screens are spliced together as a whole one:

Arrangement of LCD screen

Display chart

Debugging Steps:

Step 1: Press “MENU” and enter into main menu interface to select “Cross Mosaic” of the first

item “Device mode”.

Step 2: Press “OK” to return to main menu interface; The large screen splicing is finished,

select signal source needed to display on screen and click corresponding key(s1-s8).

3×3

3×4

4×2

4×3

5×2

M×N

1 2 3

5 6 7

910 11

½4

Num in box is PORT

OK 2 map INFO view

Stock Code 873117 en.rgble.com 400-1661-021

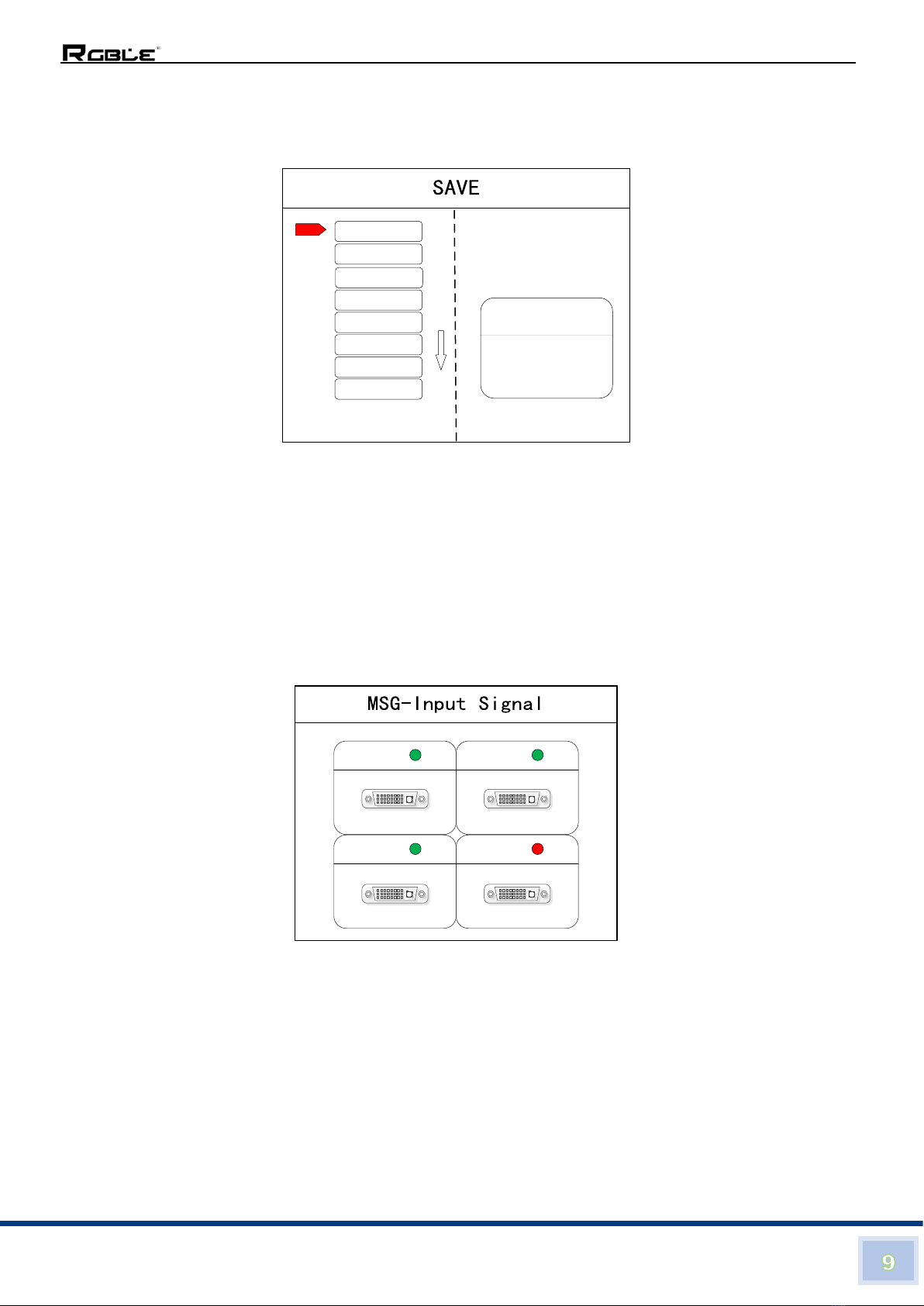

Step 3: After normal display of large screen, save all setting data. Press “Save setting” to

enter into “Save setting” interface to select “Mode 1” and click “OK”. Things will be fine when it

suggests saving successfully.

Note: Mode 1 is default startup data of device boot; it’s suggested that the most common

mode should be saved to Mode 1 and the device can save 32 kinds of modes at most.

6.4 Function key:

Brief explanation of function key:

INFO: Information query key. Click this key and enter into its interface showing whether all

signal sources are inputting normally. Its interface is shown as below. Red light means signal

is lost while green one shows signal is normal.

WIN: Image key. Click this key to enter into its interface and signal source selection can be

made in following interface.

Mode 1

Mode 2

Mode 3

Mode 4

Mode 5

Mode 6

Mode 7

Mode 8

WIN 1

MODE 1

SPLICE 2×3

LAYOUT

S1 S2

S3 S4
