Rheem EZ-Link Manuale utente

: :

Rheem Water Heating • 101 Bell Road • Montgomery, AL 36117 • 800-432-8373

Drawing Number:

Rheem Tankless Water Heaters • Preferred Piping Installations

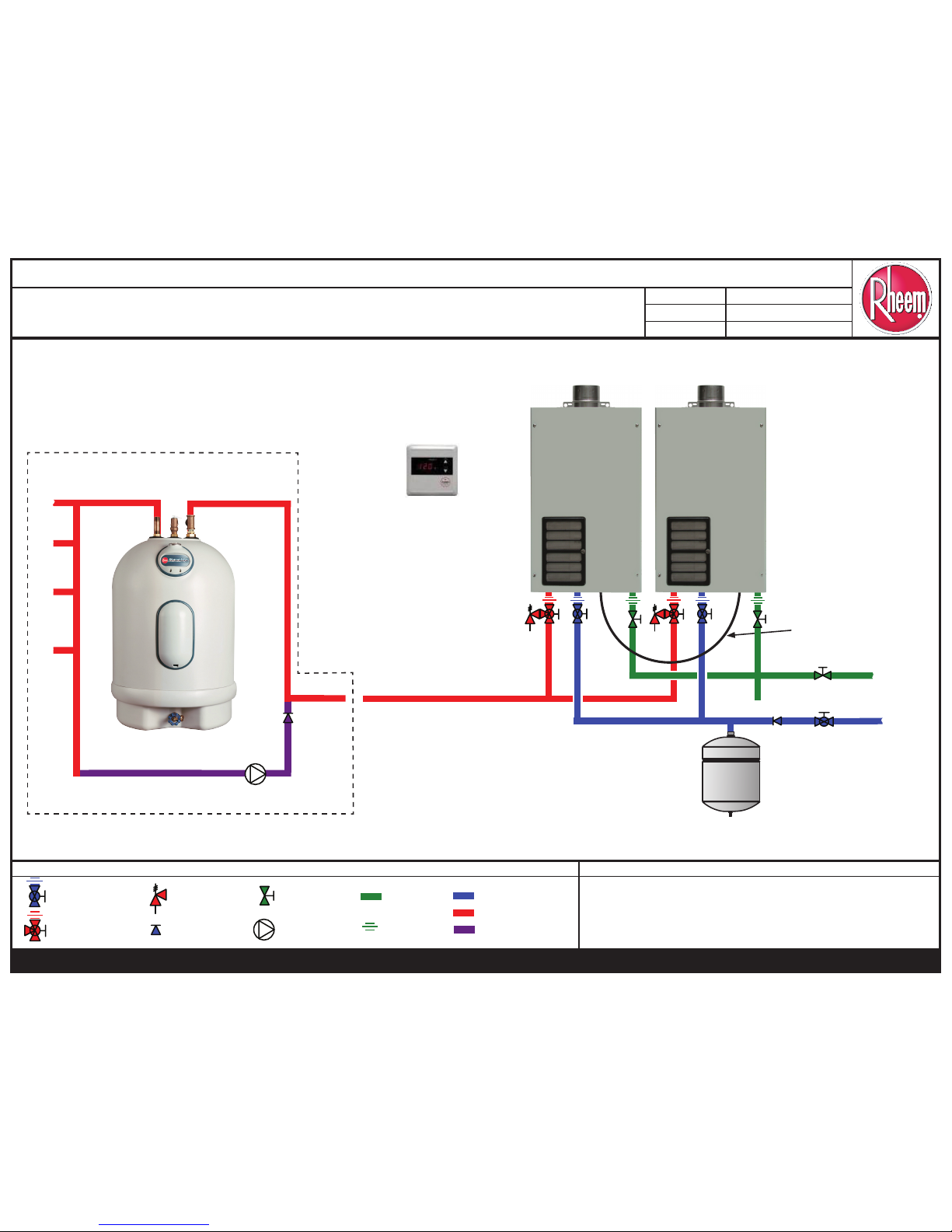

EZ-Link™ Manifold Installation

With Optional Return Circulation Drawing Date:

Drawing by:

11132

August 2006

SMT

KEY IMPORTANT

This drawing is intended as a guide only. It is not to be used as an alterna-

tive to a professionally engineered project drawing. This drawing does not

imply compliance with local building codes. Installation may vary, depend-

ing on installation location, and must be done in accordance with all local

building codes. Consult with local building ofcials prior to installation.

11132 (07/06)

Gas Pipe Line Cold Water Pipe

Hot Water Pipe

Return Circulation Line

Union

Shut-off Valve

Circulation Pump

Pressure Relief Valve

Check Valve

Cold Water Isolator

Valve Assembly

Hot Water Isolator

Valve Assembly

To Drain

To Drain

Cold Water Supply

Drip Leg

Expansion Tank

Gas Supply

To Hot Water Supply

Remote Control

Return Circulation Line

OPTIONAL RETURN CIRCULATION

To Hot Water Fixtures

Marathon Point of Use Water Heater with

Heating Element Thermostat set to

Manifold Temperature

Circulation Pump

EZ-Link™ Cable
