Rheem GN Manuale utente

Power Vent Kitsfor Gas Commercial Water Heaters

Manufactured by Tjernlund Products,* Rheem-Ruud

commercial gas water heater power vent kits are

your best choice for new construction, electric-to-gas

conversions and renovations.

Construction Features:

•Certified for use on natural and propane gas

models.

•Maximum venting length up to 50 feet equivalent

including the vent terminal.

•Vent terminal can be installed through combustible

or non-combustible surfaces – heat shield is

provided.

•Vent terminal is constructed from heavy-duty

corrosion resistant aluminum.

•Venter can be connected to a vent termination

on an exterior wall.

•Vibration isolators are supplied to provide quiet

operation.

•Safety interlocks standard.

•Complete with mounting hardware.

•Venter is pre-wired with 40 feet of #18-4 copper

wire (24 volt) to minimize field connections.

Certifications and Ratings

•

Power vent kits manufactured by Tjernlund Products,

Inc. are tested and certified by AGA for use on

Rheem-Ruud commercial gas heaters.

Continued on reverse.

Not for use with GN, GP or GX models.

Power Venter (from Tjernlund)

Vent Terminal

For technical assistance, please call the Tjernlund Help Line at

1-800-255-4208

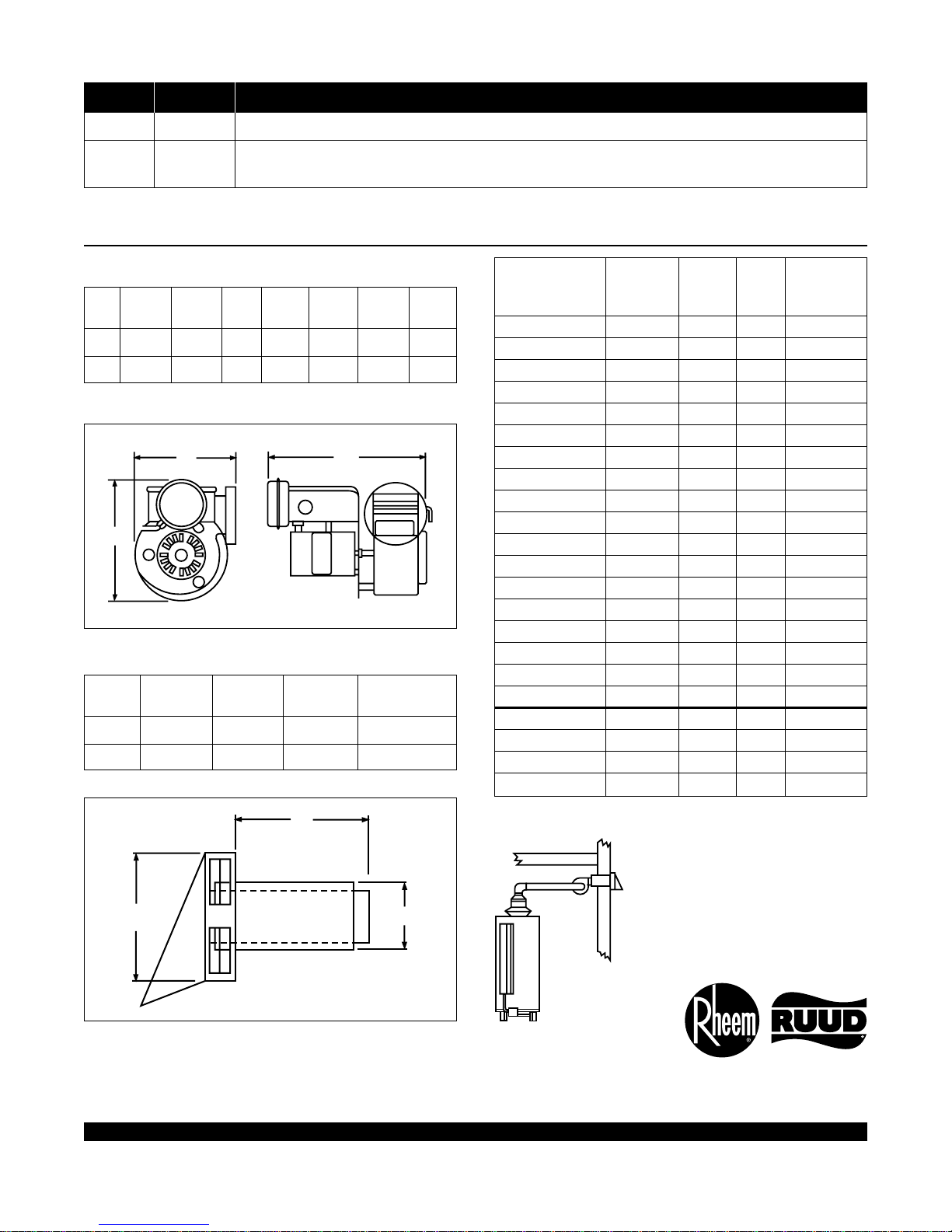

Power Vent Kits continued.

Vent Kits

Kit # Part # Applicable Rheem-Ruud Water Heater Model

PV Kit 4 AP11646 G50-98, G75-125, G82-156, G76-180

PV Kit 5 AP11645

G37-200, G76-200, G91-200, G100-200(A), G72-250(A), G(D)100-250(A), G(D)100-270(A), G72-300(A),

G85-300(A), G(D)100-310(A), G65-360(A), GD100-360(A), G65-400(A), G85-400(A), G100-400(A)

Dimensions

Not for use with GN, GP or GX models.

Power Venter

(from Tjernlund)

Motor Motor Max Height Width Depth Inlet

Kit# Watts Amps Vent (H) (W) (D) Outlet

4 95 1.26 50 ft 7-7/8" 11" 7" 4"

5 170 1.51 50 ft 9-1/4" 11-5/8" 8-5/8" 6"

Note: Max Vent Length based on total length of straight vent pipe plus 10

feet for each 90 degree elbow and 5 feet for each 45 degree elbow.

Vent Terminal

Rough in

Kit# AB CDimension

4 9" 9-1/2" 7" Sq. 8" Sq.

5 10-1/8" 9-1/2" 8-1/2" Dia. 9" Dia.

A Sq. C

Floor

Exterior

Wall

Draft

Vent Hood Vent Vent

Model Kit Outlet Size Adapter*

G50-98 PV Kit 4 5" 4" 5" x 4"

G75-125 PV Kit 4 5" 4" 5" x 4"

G82-156 PV Kit 4 6" 4" 6" x 4"

G76-180 PV Kit 4 6" 4" 6" x 4"

G37-200 PV Kit 5 6" 6" Not Required

G76-200 PV Kit 5 6" 6" Not Required

G91-200 PV Kit 5 6" 6" Not Required

G100-200(A) PV Kit 5 6" 6" Not Required

G72-250(A) PV Kit 5 6" 6" Not Required

G100-250(A) PV Kit 5 8" 6" 8" x 6"

G100-270(A) PV Kit 5 8" 6" 8" x 6"

G72-300(A) PV Kit 5 8" 6" 8" x 6"

G85-300(A) PV Kit 5 8" 6" 8" x 6"

G100-310(A) PV Kit 5 7" 6" 7" x 6"

G65-360(A) PV Kit 5 8" 6" 8" x 6"

G65-400(A) PV Kit 5 8" 6" 8" x 6"

G85-400(A) PV Kit 5 10" 6" 10" x 6"

G100-400(A) PV Kit 5 8" 6" 8" x 6"

GD100-250(A) PV Kit 5 6" 6" Not Required

GD100-270(A) PV Kit 5 6" 6" Not Required

GD100-310(A) PV Kit 5 6" 6" Not Required

GD100-360(A) PV Kit 5 6" 6" Not Required

*Note: Vent Pipe and Vent Adapter are NOT included.

Typical

Application

COMMERCIAL

WATER HEATERS

Rheem Water Heating •101 Bell Road, Montgomery, Alabama 36117-4305 •www.rheem.com

Rheem Canada Ltd./Ltée,128 Barton Street West, Hamilton, Ontario L8N 3P3

PRINTED IN U.S.A 12/06 WP FORM NO. RR102C-5 Rev.13

In keeping with its policy of continuous progress and product improvement, Rheem-Ruud reserves the right to make changes without notice.
