Operator’s Manual

RH 50 Washer

Australia Tel: 1300 347 944 | New Zealand Tel: 0800 902 054 | Singapore Tel: +65 9107 8943

INSTRUCTION MANUAL FOR DISHWASHERS

●The appliance must be connected to water and electrical supplies by qualified

tradespersons only and according to local regulations.

●The appliance must be used by adults only. Do not let children play with, or operate

this machine.

●Only persons trained to use this dishwasher are permitted to operate it.

●This appliance has been designed to wash food preparation and eating utensils. It has

NOT been designed to wash objects soiled with petrol, paint, remnants of steel or iron,

corrosive chemical products such as acids, alkalis, or solvents or any item that cannot be

immersed in water.

●Do not open the appliance door or lift hood while the appliance is operating. The

appliance has a safety device which stops operation if the door or hood is accidentally

opened.

●After using the appliance, isolate the electric and water supply.

●Do not attempt to repair the appliance. Repairs made by unqualified persons may cause

further damage and will void warranty.

●Repairs and servicing of this appliance must be carried out by Rhima personnel only.

GENERAL INSTRUCTIONS

It is important to keep this instruction manual near the appliance for

future consultation.

If the appliance is sold or transferred to another user, make sure this

manual remains with the appliance so that the new owner is informed

about the warnings and operation of the appliance. These instructions

are given for safety reasons and they must be read carefully before

installing or using the appliance.

IMPORTANT CUSTOMER INFORMATION

●To request a service, detergents or rinse additive contact your local Rhima Service centre

below:

Australia: 1300 347 944

New Zealand: 0800 902 054

Singapore: +65 9107 8943

ELECTRICAL INSTALLATION

The Australian installation shall be in accordance with The Plumbing Code of Australia (PCA).

This appliance should be connected to a hot water supply (Max 65°C ) for in accordance

with Australian Standard AS/NZS 3500.1. for optimum performance.

The water supply pressure should be a minimum 200 kPa at all times and flow rate should

be at least 10 litres per minute. A static pressure higher than 600 kPa (73.5 psi) requires a

pressure reducing valve upstream of the supply line. If water pressure is below 150 kPa,

the use of a rinse booster pump is recommended.

This appliance is designed to drain to a tundish. Waste connection to a spigot is not

recommended and may cause draining issues.

The drainpipe should withstand 70°C (158°F) in continuous duty conditions.

The grey water drain hose must have a fixed watertight seal above the tundish in

accordance with the Australian Standard AS/NZS 3500.2.

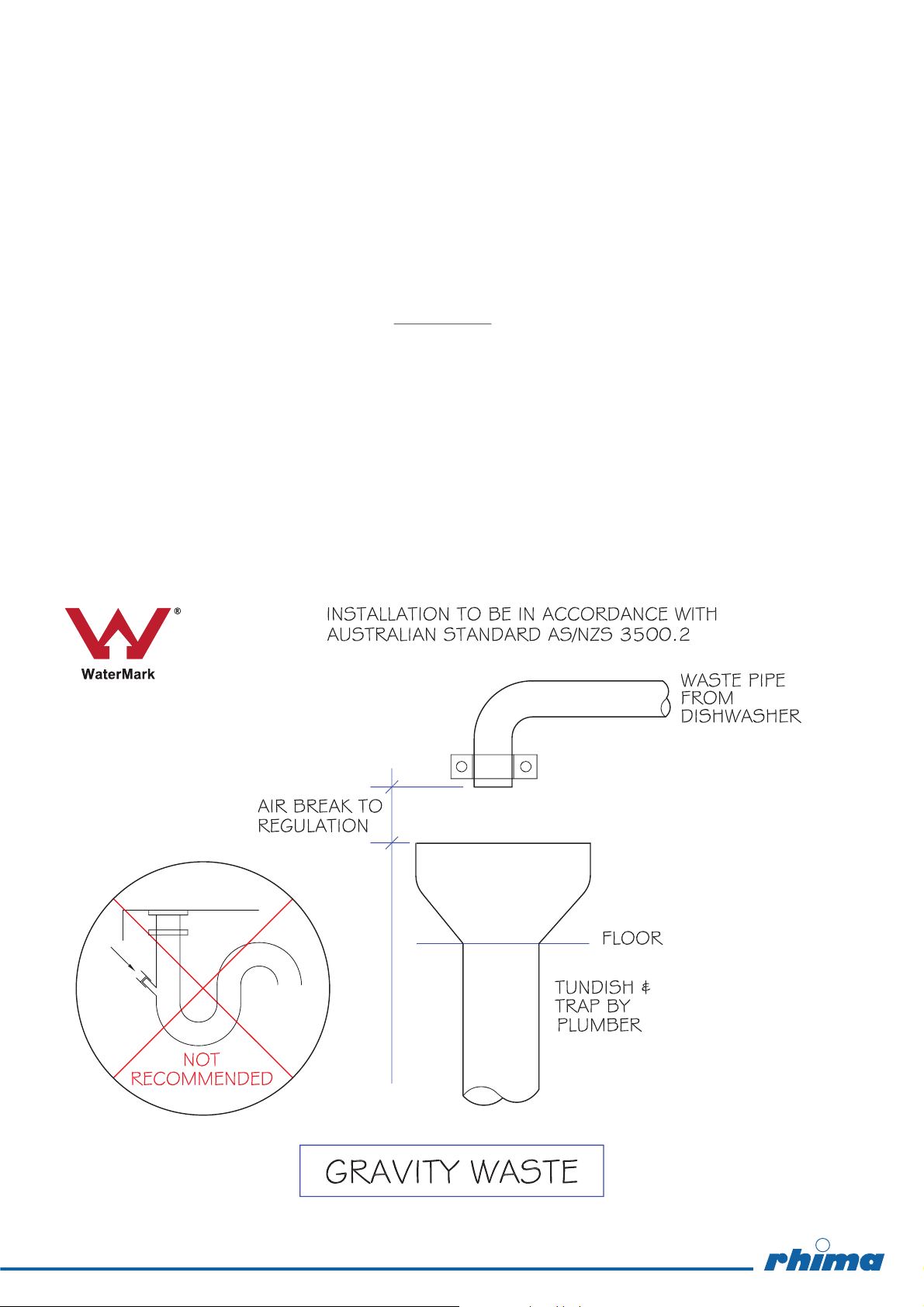

A DIAGRAM SHOWING THE CORRECT METHOD OF WASTE INSTALLATION IN ACCORDANCE

WITH THE AUSTRALIAN STANDARD AS/NZS 3500.2 IS BELOW

PLUMBING INSTALLATION

WMTS-101

WM-022203

This appliance is intended to be connected to a 3 x 16 Amps electrical supply and must be

earthed.

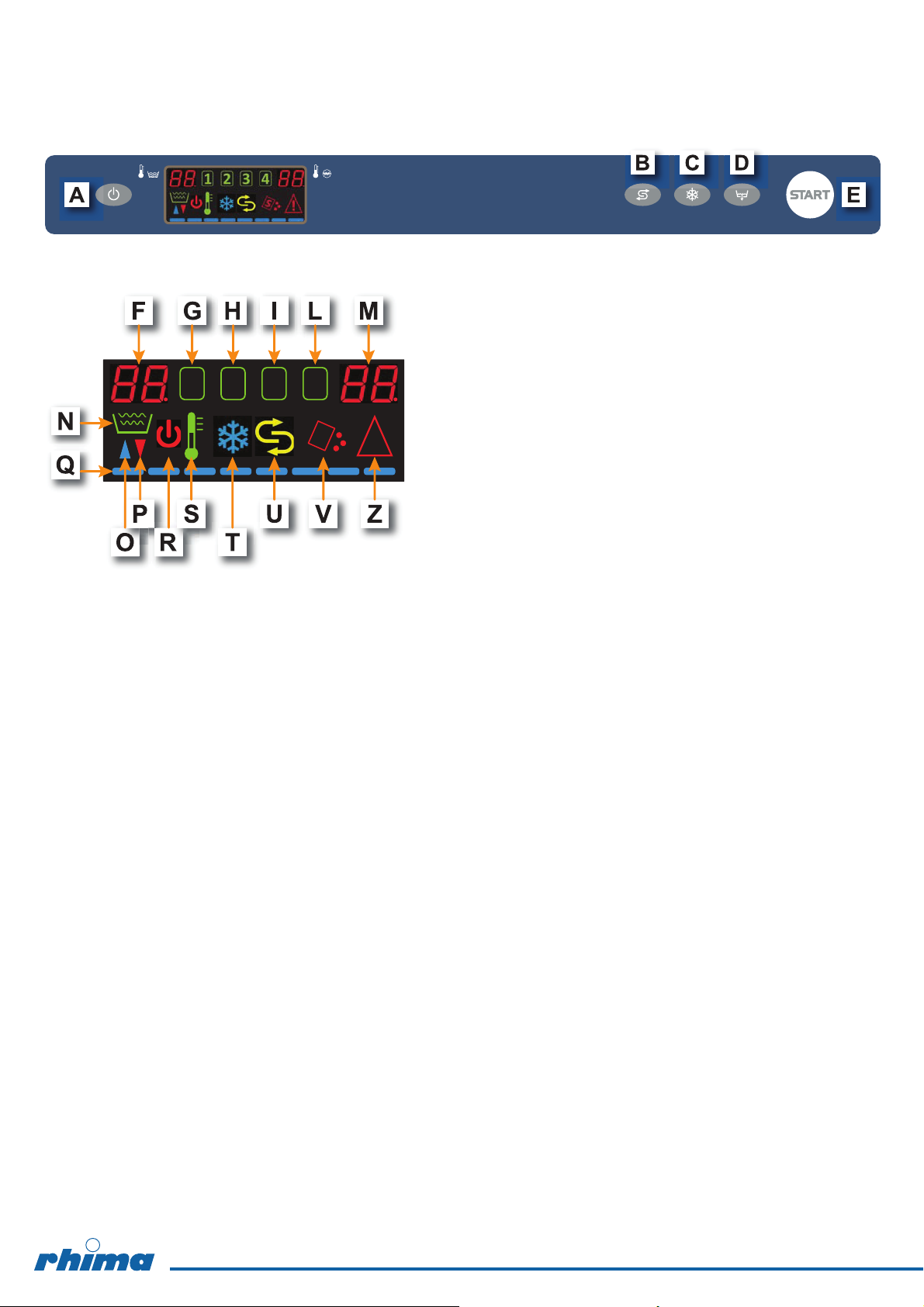

CONTROL PANEL AND RELATIVE SYMBOLS

pict. 2

pict. 1

1 32 4

A) Switching - On / STAND BY button

B) Regeneration push-button (Not Available)

C) Supplementary cold rinse push-button (Not Available)

D) Drain push-button (Not Available)

E) START push-button to start up cycle / select cycle

F) Tank temperature display

G) Washing type 1 (60 seconds)

H) Washing type 2 (90 seconds)

I) Washing type 3 (120 seconds)

L) Washing type 4 (180 seconds)

M) Boiler temperature display

N) Tank ﬁlling/draining indicator

O) Tank ﬁlling indicator

P) Tank draining indicator

Q) Cycle scrolling bar

R) STAND BY indicator

S) Set temperature reached indicator

T) Supplementary cold rinse indicator (Not Available)

U) Regeneration cycle indicator (Not Available)

V) Salt shortage indicator

Z) Machine alarm indicator

• Turn the button A(pict. 1). The power-on of the machine will be displayed by the indicator R switching OFF and by

the indicators F and M and by the one of the washing cycles switching ON.

Make sure that the overﬂow pipe is correctly inserted and that the hood is shut. The machine will automatically start ﬁlling

the sump. The indicators N, Oand the scrolling bar Qswitch on.

1 32 4

Then, when the sump is full, the push button START E swtich on and the heating step will start. Should the machines be

equipped with the WRAS certiﬁed Break Tank, the tank ﬁlling phase is extended.

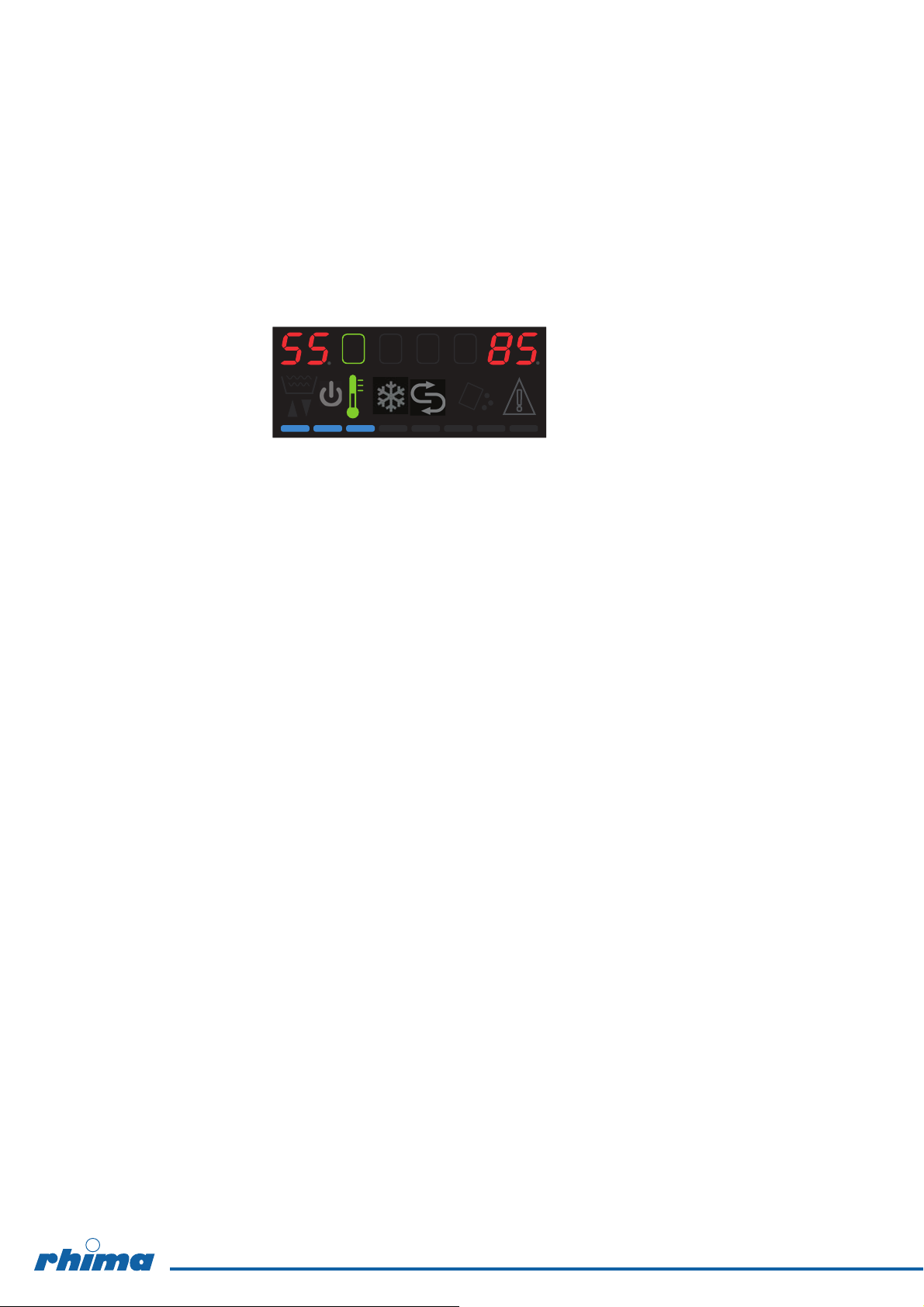

Indicator S(pict. 2) switches on when the washing and rinsing water temperature is reached.

The indicators Fand Mshow the tank and boiler temperatures, respectively.

1 32 4

pict. 3

OPERATION

• Check that the ﬁlter is correctly ﬁtted in its seat (pict. 3-4).

Filter must be cleaned every 20 wash-cycles or whenever necessary.

DO NOT use the appliance without the ﬁlter.

• Insert the overﬂow tube in the special seat inside the sump (pict. 3-4).

• Shut the dishwasher hood.

• Insert the special rinse aid dispenser tube in the canister and check that the quantity of additive

is enough for the day (see paragraph Use of rinse aid).

• Open the water supply valve.

• Turn the main power switch ON. The machine is on STAND-BY mode (indicator RON).

1 32 4

• Insert the rack ﬁlled with objects to wash. The objects must be correctly placed in the rack (see par. Cutlery and

• Select the wanted washing cycle (1-2-3-4) by pushing the button START E (pict. 2); after a few seconds (about

5 seconds) the indicators G, H, I, L (pict. 2) will start scrolling. Release the button when the cycle light indicator

desired is ON.

• Before starting the wash-cycle, in absence of an automatic dosing system, put the detergent in the sump. When the

temperature indicator Swill turn ON, press the START E button for at least a second. The beginning of the cycle is

indicated by the ﬂashing of the selected cycle indicator, by the increasing of the brightness of the button START E and

by the progress of the scroll bar Q.

1 32 4

• At the end of the day, clean the machine (see chap. MAINTENANCE).

• Switch the machine oﬀby pushing button Aand shut the water valve. When the indicator Rturns ON, the machine is on

STAND-BY mode.

• Switch the main power switch OFF.

At the end of the washing cycle, a hot rinse cycle will take place.

The button START E will ﬂash when the cycle is completed.

N.B.: At cycle-end, keeping the door closed, objects will not dry. Take out the rack or keep the door open to allow the

evaporation, helping the drying of the objects.

crockery loading

• Drain the water by removing the overﬂow pipe.

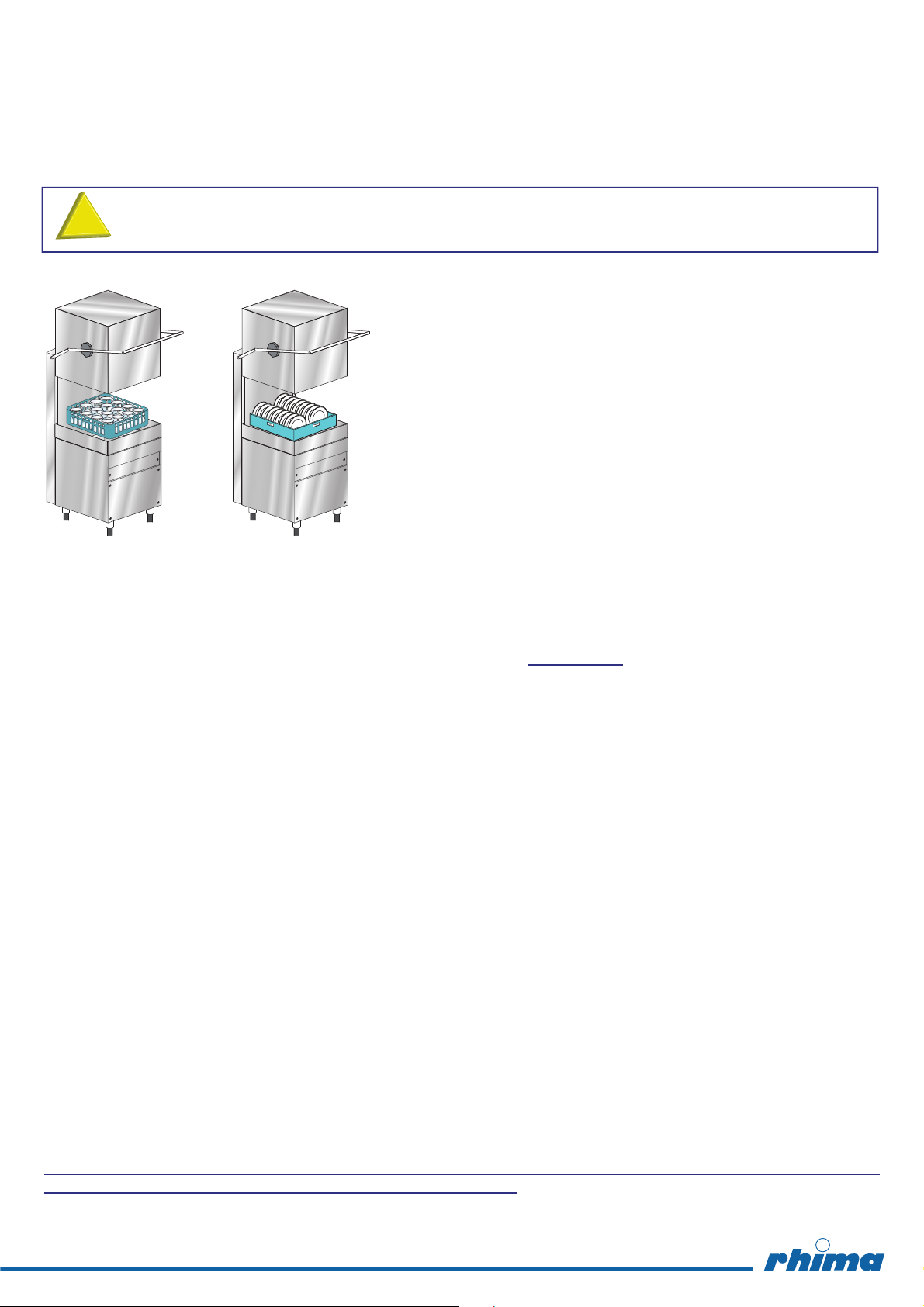

Cutlery and crockery loading

Before cutlery and crockery loading in the machine, coarsely clean them from the leftover food.

It isn't necessary to rinse the cutlery an crockery under water.

ATTENTION: Do not wash articles polluted with petrol, paint, chips of steel or iron, ash, sand, wax,

lubricant grease. These substances damage the machine. Do not wash fragile objects or material not

resistant to the washing process.

Note the following recommendations :

• Crockery and cutlery should not be inserted inside one another, covering each other.

• Place the crockery in order to all surfaces can be reached by water; otherwise the dishes are not washed.

• Make sure all the crockery are in a stable position and that the hollow containers don't overturn (cups, glasses, bowls,

etc.) .

• Place in the rack all the hollow containers such as cups, glass, etc. upside-down.

• Place the crockery with deep hollow with upper face downwards, so that water can ﬂow out.

• Make sure the smaller crockery do not fall from the rack.

• Check all the wash arms runs freely and they are not blocked by too tall or too prominent crockery. Eventually, run a

manual rotation of the arms to check it.

Some foods, such as carrots, tomatoes, and others, may contain some natural dyes substances, that in large amounts, can

alter the crockery and plastic parts colors.

Any discoloration does not mean that the plastic is not heat resistant.

Crockery and cutlery not suitable for dishwasher

Not suitable for dishwasher:

• Wooden crockery and cutlery or with wooden parts; water at high temperature causes deformation to wood. Also the

adhesives used are not suitable for treatment in the dishwasher; a consequence could be the handles detachment.

• Crafts, precious vases or decorated glasses.

• Not heat-resistant plastic crockery.

• Copper, brass, pewter or aluminum objects: they may become discolored or opaque.

• The decorations on glass, after a certain number of washes, can lose gloss.

• Fragile glasses or crystal items, if often washed, can become opaque.

We recommend to buy exclusively crockery and cutlery suitable for dishwashing.

After several washes, the glass can become opaque.

It is mandatory to repeat the washing cycle if at the end of the cycle the crockery are not well clean or if there are

washing residues (glasses, cups, bowls, etc. with liquid inside).

pict. 5pict. 4

Detergent use

The detergent shall be the NO FOAM type, suitable for industrial dishwashers.

The use of good quality liquid detergents is recommended.

The detergent shall be placed in the sump. Follow manufacturer recommendations for dosage. The machine can be ordered

with an adjustable automatic detergent dispenser (always recommended).

1cm of the product drawn into the tube is equal to about 0.15 g. A correct amount of detergent is very important for a

successful wash.

Lack or poor quality of detergent, in this machine will cause bad wash results and clogging.

Rinse aid use

The machine has a standard rinse aid dispenser. The machine automatically sucks the product.

The rinse-aid chemical, shall be suitable for professional glass and dishwashers. It is advisable to rely on specialized retailers

in the sector.

H.A.C.C.P. and hygiene regulations

• The machines are equipped with a temperature indicator (LED S - pict. 2) which lights up when the boiler and the tub

have reached the preset temperature (values set by the manufacturer). It is recommended to wait for this light to go on

before starting the next cycle.

• Scrape food from the dishes carefully in order not to clog the ﬁlters, nozzles and pipes.

• Unload the wash tub and clean the ﬁlters at least twice a day.

• Check that the amount of detergent and rinse aid dispensed is correct (as suggested by the supplier of the product). In

the morning before starting up the machine, check that there is enough product in the containers for daily use.

• Always clean the support ﬂoor of the dishes.

• Remove the rack from the dishwasher with clean hands or gloves so as not to dirty the cutlery.

• Do not dry or polish the dishes with non-sterilized cloths, brushes, or dusters.

Machine features

The machine’s sound level is Lpa = 70dBA ± 2.5dB(A)**

**test made according to EN 60335-2-58/A11

MAINTENANCE

Routine maintenance

Daily cleaning is needed to ensure that the machine runs perfectly. The following shall be carried out:

• Turn the machine in stand-by mode, by pressing the button A(pict. 1).

• Turn oﬀthe wall-mounted main switch.

• Drain the water by removing the overﬂow pipe.

• Remove the ﬁlter and clean it with a rigid brush underneath a powerful water jet.

WARNING: The machine is not protected against pressurized water jets. Do not use pressure cleaning

system against the machine.

It is recommended to contact seller for cleaning instructions, in order to have detailed indications on

methods and products for the correct periodical machine sanitation.

Do not use bleach or chlorine based detergents.

1 32 4

• Shut the water valve.

• Turned the machine oﬀby switching the main power switch OFF.

N.B.: It is recommended to change the water in the wash-tank at least every 20 wash cycles, or twice a day. Do not

use metal-wool for cleaning and/or corrosive products, which will damage the machine.

1 32 4

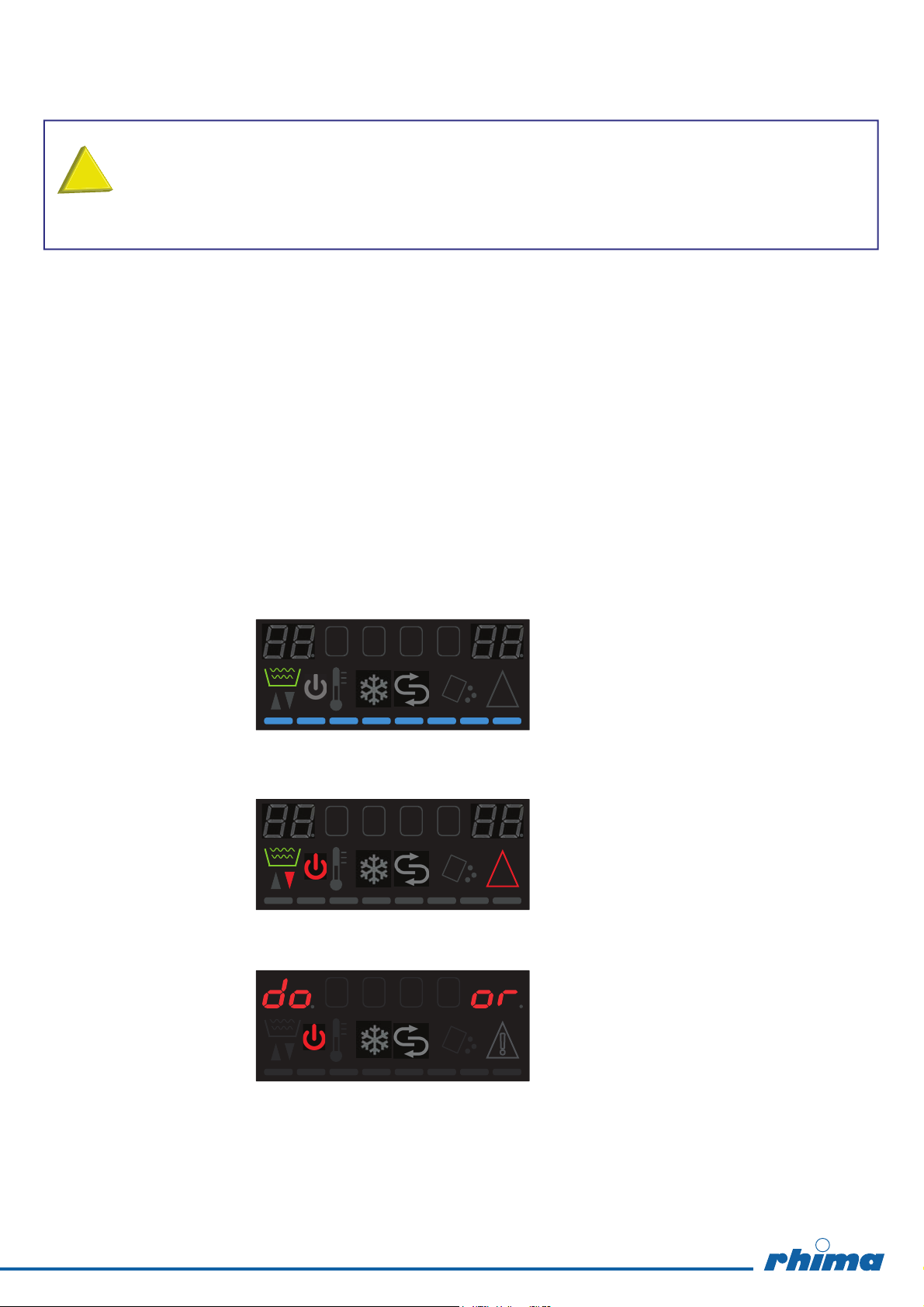

• When ﬂashing the indicators N - P - Z means that the tank is not empty.

• When displaying door means that the hood is open

• Remove the arms by loosening the ﬁxing screws. Thoroughly clean the wash and rinse arms and the nozzles

underneath running water.

• Reassemble all the parts and replace the arms in their seats,ﬁxing them with the relative screws. Take extreme care to

re-assemble the nozzles in the right position (open and / or closed nozzles) and that the arms are installed with the

right axial angle.

• Clean the tank very carefully, using a water shower.

• It is suggested to leave the door of the machine open at the end of the day.

• Automatic cycle of machine self-cleaning/ rinsing:

The machine should be in stand-by mode (red-lighted indicator R), remove the overﬂow pipe and close the door. Push

the button START E for 5 seconds. An automatic cycle of 15 seconds will start, after this the machine will be in stand-

by mode.

Extraordinary Maintenance – by qualiﬁed Service Personnel only

Once or twice per year, the machine should be checked by qualiﬁed Service Personnel:

1 Clean the intake ﬁlter of the solenoid valve

2 Remove scaling from the heating elements

3 Check the status and the tightness of all gaskets

4 Check the perfect state and/or wear of the components

5 Check the eﬃciency of the dispensers

6 Tighten ﬁrmly all electrical connections at least once per year.

ALARMS

Alarms will be displayed by the lighting of LEDs. according to their typology.

SEIDEMERESUACMRALAFOEPYT

DELIAFEBORPRELIOB2B

MRALAGNITAEHRELIOB3B

GNITAEHREVORELIOB5B

DELIAFDAOLRETAW1E Open the water supply valve and check the

overﬂow pipe

DELIAFEBORPKNAT2E

GNITAEHREVOKNAT5E

DELIAFGNINIARDKNAT6E Check the overflow pipe. Contact the Rhima

Service Department.

G FAILURENILLIFKNATKAERB01

ECOLOGICAL ASPECTS

Contact the Rhima Service Department.

Recommendations for optimal use of energy, water and additives

Chemical dosing: A pre-set (by the manufacturer) quantity of Chemical is injected in the resins at each cycle.

Use the machine fully loaded when possible: This shall prevent detergent, rinse aid, water and energy consumption

waste.

Detergent and rinse-aids: Use detergents and rinse-aid chemicals with high biodegradability, to best respect the environment.

Verify proper dosage in relation to water hardness at least once a year. Excess product pollutes rivers and seas while an

insuﬃcient dose results in unsatisfactory objects washing and/or hygiene.

Boiler and Wash-Tank temperatures: The boiler and tank temperatures are set by the manufacturer in order to obtain the best

washing results with detergents on the market. The temperatures can be reset by the installer in relation to your detergent.

Pre-washing: Carefully pre-wash with a moderate amount of water at room temperature to facilitate the removal of animal

fats. To remove encrusted materials warm water soaking is recommended.

Note: Wash objects as soon as possible to avoid deposits from drying and compromise eﬀective washing.

For eﬀective washing routine dishwasher cleaning and maintenance is advised (see chap. MAINTENANCE).

Disregarding the points listed above and of any the information contained in this manual can cause energy, water

and detergent waste with a subsequent increase in running costs and/or performance reduction.

Indice

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
