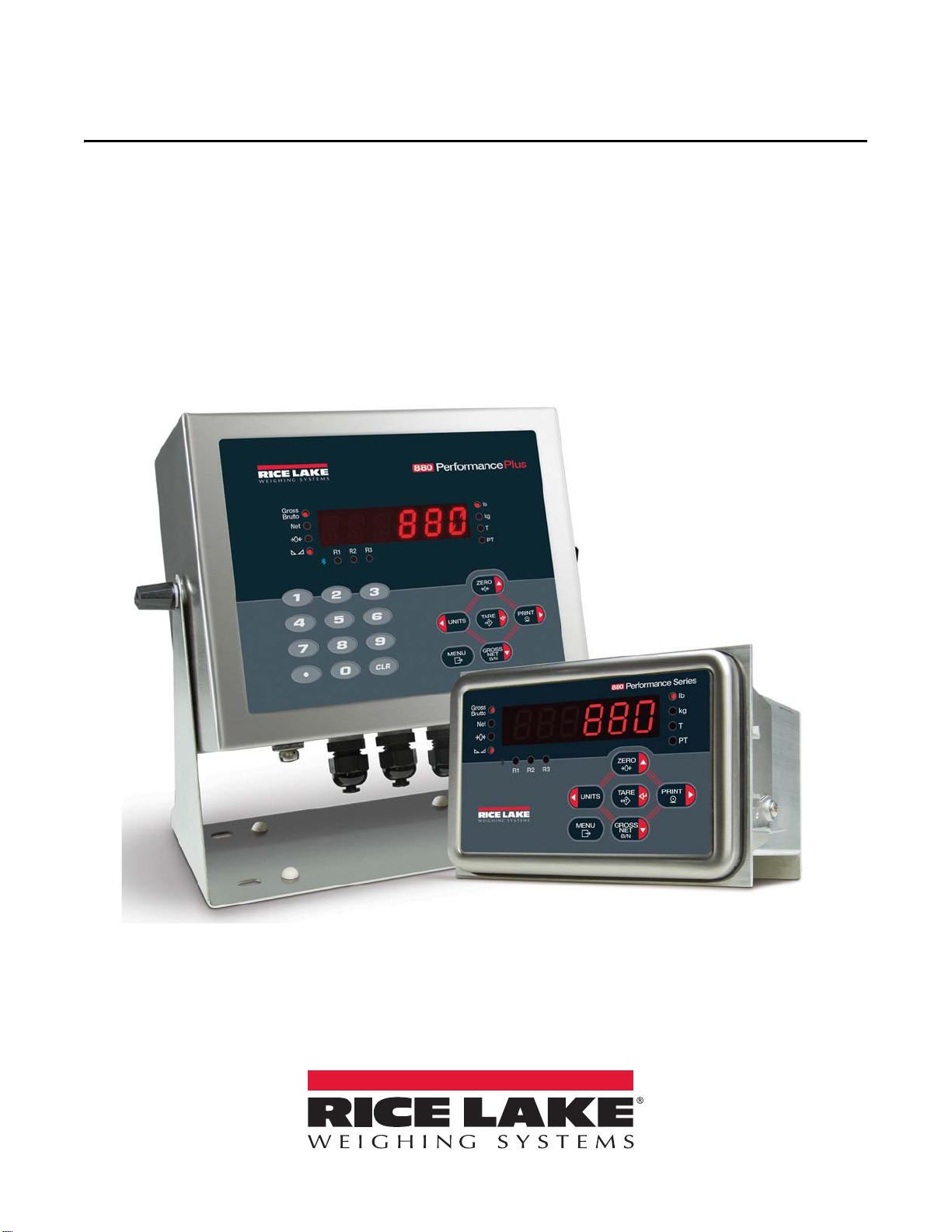

Rice Lake 880 Performance Series Manuale utente

880 Truck In/Out Program

Optional Software Application

Version 1

Operation Manual

PN 176050

An ISO 9001 registered company

Rice Lake Weighing Systems®is a registered trademark of

Rice Lake Weighing Systems.

All other brand or product names within this publication are trademarks or

registered trademarks of their respective companies.

All information contained within this publication is, to the best of our knowledge, complete

and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to

make changes to the technology, features, specifications and design of the equipment

without notice.

The most current version of this publication, software, firmware and all other product

updates can be found on our website:

www.ricelake.com

Contents i

Contents

1.0 Introduction..................................................................................................................................... 1

1.1 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

2.0 Truck Weigh In/Out Mode ............................................................................................................... 2

2.1 System Display Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2.2 View, Print and Clear Truck Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

3.0 Serial Communication.................................................................................................................... 3

3.1 Weigh In Ticket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3.2 Weigh Out Ticket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3.3 Ethernet Settings (if applicable) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

4.0 Setup ............................................................................................................................................... 4

4.1 Setpoint Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

4.2 Hardware Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Technical training seminars are available through Rice Lake Weighing Systems.

Course descriptions and dates can be viewed at www.ricelake.com/training

or obtained by calling 715-234-9171 and asking for the training department.

Specifications subject to change without notice.

Rice Lake Weighing Systems is an ISO 9001 registered company.

Version 1 September 9, 2016

ii 880 Truck In Truck Out Software Program

Rice Lake continually offers web-based video training on a growing selection

of product-related topics at no cost. Visit www.ricelake.com/webinars

Introduction 1

1.0 Introduction

The 880 Truck Weighing Program is a weigh in/out and fixed tare mode. After a successful download the 880

needs to be power cycled.

For more information about the 880 indicator, refer to the 880 Technical Manual.

This manual can be viewed or downloaded from the Rice Lake Weighing Systemswebsite at

www.ricelake.com/manuals

Warranty information can be found on the website at www.ricelake.com/warranties

1.1 Sa f e t y

Do not operate or work on this equipment unless you have read and understand the instructions and

warnings in this manual. Contact any Rice Lake Weighing Systems dealer for replacement manuals.

Proper care is your responsibility.

Do not open the indicator, all procedures that require work inside the indicator enclosure are to be

performed by qualified service personnel only.

WARNING

2880 Truck In/Truck Out Software Program

2.0 Truck Weigh In/Out Mode

2.1 System Display Weight

1. Atruck pulls on the scale exceeding the threshold weight and stops (Operator can optionally enter in a tare

weight).

2. Insert a blank ticket into the printer and press . System scrolls ENTER TRUCK ID.

3. Enter the Truck ID (up to 15 alphanumeric) and press .

If Not Found (No Tare)

• Ticket prints with truck ID, stable inbound weight, time and date.

• Stores inbound gross weight.

• Truck exits the scale to be filled or emptied.

• Display scrolls WEIGH IN COMPLETE – EXIT SCALE.

If Not Found (Key Tare)

• Ticket prints with truck ID, gross, tare (KEYED), net, and time and date.

• Display scrolls WEIGH OUT COMPLET – EXIT SCALE and then it displays the weight.

If Found

• Ticket prints with truck ID, gross, tare, net weights, time and date.

• System does one of the following:

System deletes inbound truck if setpoint 3 is set to 1 and decimal in ID

System deletes inbound truck if setpoint 3 is set to 0

System doesn’t delete inbound truck if setpoint 3 is set to 1 and no decimal in ID.

•SystemScrollsWEIGH OUT COMPLET – EXIT SCALE and then it displays the weight.

4. When the weight drops below threshold, the system is ready for next truck. If threshold setpoints are not

set to zero.

2.2 View, Print and Clear Truck Registers

Press and hold for three seconds to access viewing, printing, and clearing of the truck registers.

•Press to scroll to next ID number-Weight-Time date, shows first record if displaying last record.

•Press to scroll to previous ID number-Weight-Time date, shows last record is displaying first record.

•Press to print all the truck registers that are stored (Weigh In Format)

•Press to clear the current record.

•Press to exit.

A one time transaction can be entered by including a decimal place in the truck ID when using stored IDs. With a

decimal point at the end it can be entered it in as normal.

To enter a decimal in the middle of an ID, press after pressing . This includes configurable Truck

In/Out print ticket formats.

TAR E

GROSS

NET

B/N

ZERO

Serial Communication 3

3.0 Serial Communication

3.1 Weigh In Ticket

The program uses the configurable gross format so that the dealer may modify the print format through the 880

front panel or by using Revolution PC software.

Figure 3-1. Weigh In Ticket

3.2 Weigh Out Ticket

The program uses the configurable Net format so that the dealer may modify the print format through the 880 front

panel or by using Revolution PC software.

Figure 3-2. Weigh Out Ticket

3.3 Ethernet Settings (if applicable)

If a wireless card is being used, everything in Table 3-1 would be need required, plus the SSID of the access point or

router being used for wireless communication.

UDS2100 00-20-4A-E6-4B-74 PC

IP 99.9.9.999 99.9.9.999

Subnet 255.255.255.0 255.255.255.0

Gateway 99.9.9.999 99.9.9.999

Local Port 10001 10002

Remote Host 99.9.9.999 0.0.0.0

Remote Port 0 0

Connect Mode C1 (With Any Character) C1 (With Any Character)

Flush Mode Yes No

Pack Ctrl Disabled Disabled

Dis Con No (Hard Disconnect=Yes) No (Hard Disconnect=Yes)

Send Char Default Default

Table 3-1. Ethernet Settings (Test Settings)

Truck ID 123

Gross 45000 lb

10:21AM 12/04/2012

Truck ID 123

Gross 45000 lb

Tare 15000 lb RECALLED

Net 30000 lb

10:21AM 12/04/2012

4880 Truck In/Truck Out Software Program

4.0 Setup

4.1 Setpoint Setup

Threshold is disabled if the setpoints are set to zero.

4.1.1 Display or Edit Setpoint Value

1. Press . Audit is displayed.

2. Press or until

Setpts is displayed.

3. Press and the first available setpoint number is displayed.

4. Press or to toggle through each setpoint that is operator accessible.

5. Press .

Value is displayed.

6. Press again to display or edit the value.

7. Edit the value using the keypad on the 880Plus or use the following method for the panel mount.

•Press or to increment or decrement the value of the flashing digit.

•Press or to select the digit to edit.

•Press to move to the decimal point entry.

•Press or to adjust the decimal point placement.

8. Press to accept the displayed value.

9. Repeat the above steps to set Preact, if enabled.

10. When all settings have been made, press to return to weigh mode.

4.2 Hardware Setup

1 Threshold 5000 Minimum weight to process a truck

2 Threshold 5000 Minimum weight to know when truck left

3 Stored Tares 0 if Disable 1 if Enabled

Table 4-1. Setpoints

Port Type Description Setup

1 CMD Printer 9600,8,N,2

Table 4-2. Serial Port

TAR E

230 W. Coleman St. • Rice Lake, WI 54868 • USA

U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319

Rice Lake Weighing Systems is an ISO 9001 registered company.

www.ricelake.com

September 9, 2016 PN 176050
