Rice Lake Mechanical Physician Scale

Model RL-MPS, RL-MPS-10, RS-MPS-20

Operation Instructions

Contents

1.0 Introduction................................................................................................................................. 1

2.0 Installation Instructions............................................................................................................... 2

2.1 Pillar Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2.2 Steelyard Rod Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 3

2.3 Height Rod Installation (for those models equipped with height rod) . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.4 Wheel Installation (for those models equipped with wheels) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3.0 Zero Adjustment........................................................................................................................... 7

4.0 Troubleshooting ........................................................................................................................... 8

5.0 Specifications.............................................................................................................................. 8

Technical training seminars are available through Rice Lake Weighing Systems.

Course descriptions and dates can be viewed at www.ricelake.com or obtained

by calling 715-234-9171 and asking for the training department

Model RL-MPS, RL-MPS-10, RL-MPS-20, Rice Lake Weighing Systems is an ISO 9001 registered company.

November, 2012

ii Mechanical Physician Installation and Operation Instructions

Rice Lake continually offers web-based video training on a growing selection

of product-related topics at no cost. Visit www.ricelake.com/webinars.

1.0 Introduction

The Rice Lake Mechanical Physician Scale is ideal for use in health clinics and doctors’ practices for height and

weight measurement. The scale comes in a variety of configurations. Those configurations include:

• RL-MPS: Lb/kg model with height rod and rear wheels

• RL-MPS-10: Lb only model with height rod and rear wheels

• RL-MPS-20: Lb/kg model

The scale is durable, having a sturdy enameled steel body, removable slip resistant plastic cover and some

models come with a retractable aluminum height rod and rear wheels. These installation and operating

instructions will guide the user through basic instructions on pillar assembly, wheel installation, pillar height rod

installation, and the zero adjustment of the scale.

Figure 1-1. Mechanical Physician Scale Parts Breakdown (lb/kg version with height rod and rear wheels shown)

This manual can be viewed and downloaded from the Rice Lake Weighing Systems web site

at www.ricelake.com/health. Rice Lake Weighing Systems is an ISO 9001 registered

company.

Weight beam

Height rod (if

applicable to model

selected)

Pillar

Platform/Scale Base

Rear wheels (if

applicable to model

selected)

Frame

Poise weight (upper

small and lower large)

Internet

2Mechanical Physician Scale Installation and Operation Instructions

2.0 Installation Instructions

You will receive your Mechanical Physician Scale partially assembled. Those items that need additional

assembly are:

• Pillar assembly

• Steelyard rod connection

• Height rod installation (for models having a height rod)

• Wheel installation (for models having wheels)

Remove all components from the shipping box (shown in Figure 2-1) and lay out in a convenient place.

Figure 2-1. Box Contents

2.1 Pillar Installation

Prior to assembly, you’ll need the following tools to finish assembling the Mechanical Physician Scale.

• Phillips head screwdriver

• Wrench (included)

The pillar comes separate from the scale base and must be attached prior to use. Use the following steps to attach

the pillar to the scale base.

1. Set the scale base on a table or other convenient place.

2. Remove the twisty ties off the scale base as shown on the left hand side of Figure 2-2. Remove the cable

tie that holds the steelyard rod from shifting during transit (shown on right side of Figure 2-2).

Figure 2-2. Remove Twisty Ties and Cable Ties

Remove twisty ties from

scale parts

Remove cable tie from steelyard rod

Mechanical Physician Scale Installation and Operation Instructions - Installation Instructions 3

3. Insert the pillar into the scale base assembly ensuring that the RLWS logo located on the weight beam

faces the scale base.

Figure 2-3. Attach the Pillar to the Scale Base

4. Using a phillips head screwdriver, screw in the eight bolts and washers to secure the pillar to scale base.

Figure 2-4. Attach Eight Bolts and Washers to Secure the Pillar to the Scale Base

Scale base

Pillar

4Mechanical Physician Scale Installation and Operation Instructions

2.2 Steelyard Rod Connection

The steelyard rod is located inside the scale pillar. Once the pillar is attached to the scale base, the steelyard rod

must be attached to the bottom of the scale.

1. Lay the scale on a table as shown in Figure 2-5.

Figure 2-5. Lay Scale on Table to Access Bottom of Scale

2. There are tie wrap wires that prevent the underside of the scale carriage from shifting during shipping.

Remove and discard the wires on the levers as shown in Figure 2-5.

3. Insert the wrench (included) to the small hole in front of the steelyard rod, and pull the hook of the

steelyard rod with the hook of the wrench to connect it to the scale base as shown in Figure 2-6.

Figure 2-6. Connecting the Steelyard Rod to the Scale Base

4. Push the long lever frontward, then hook the bearing of the steelyard rod on the pivot of the long lever.

NOTE: Visually ensure that the force lever assembly linkage is centered and properly aligned. Occasionally during

shipping, the alignment will become skewed however a plug is installed to ensure that the linkage stays aligned. The

linkage must be free floating in order for the scale to weigh properly. The linkage can be seen by looking up underneath

Mechanical Physician Scale Installation and Operation Instructions - Installation Instructions 5

the top weigh beam if the scale is slightly tipped to one side.

Figure 2-7. View Looking up at Linkage up Underneath the Top Weigh Beam

5. Place the scale gently back on the floor.

Force lever

assembly

linkage must

be properly

aligned in

order to

weigh

Linkage

alignment

plug

6Mechanical Physician Scale Installation and Operation Instructions

2.3 Height Rod Installation (for those models equipped with height rods)

Some models of the Mechanical Physician Scale comes with height rods. Use the following steps to install the

height rod.

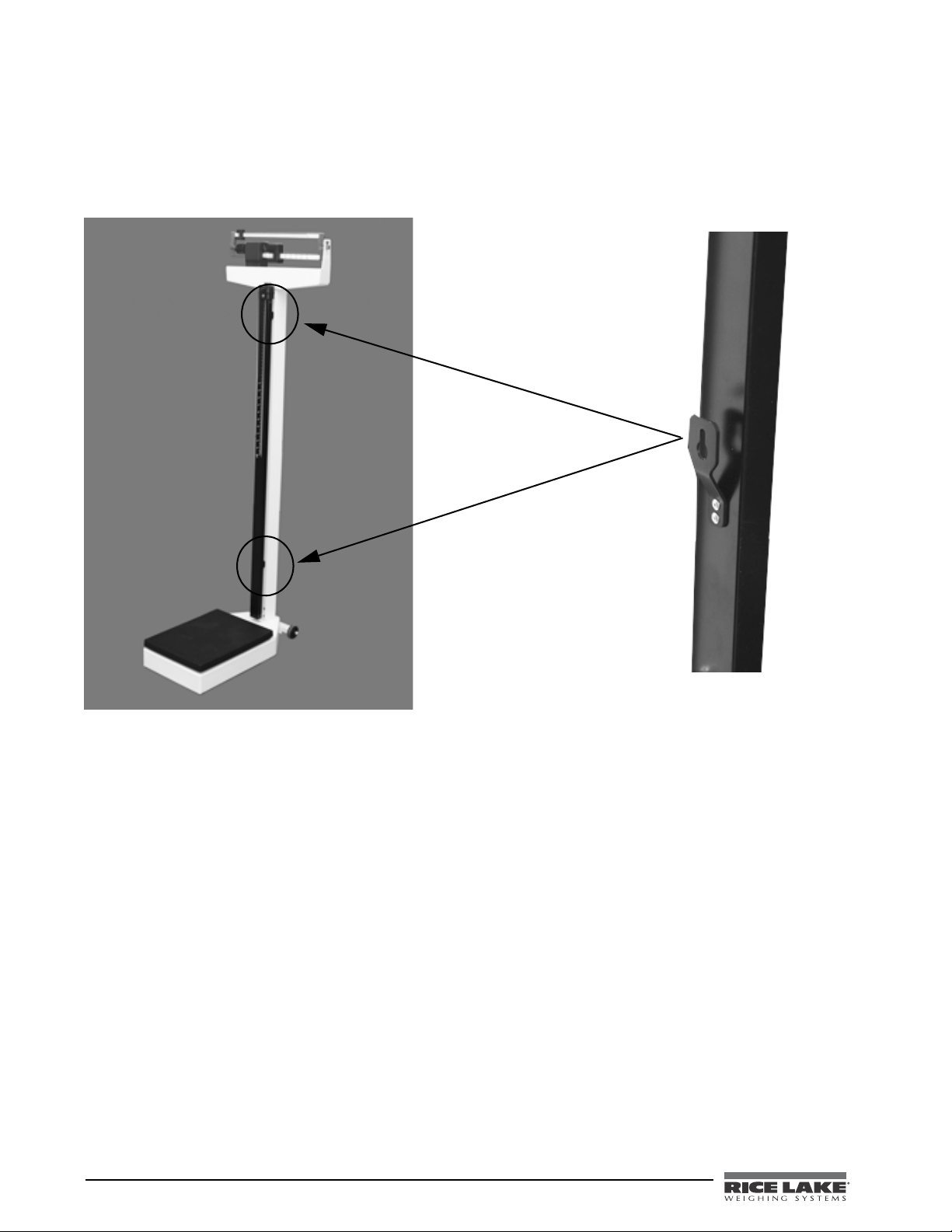

1. Insert the back side slotted holes of the height rod into the two bolts on the front side of the pillar as

shown in Figure 2-8. One is located at the top of the pillar and the other towards the bottom of the pillar.

Figure 2-8. Attach the Slotted Screw Location onto the Pillar Bolt Location

2. Use the enclosed wrench to tighten the two hex-head screws, but ensure not to over tighten.

3. To raise or lower the height rod, press the red button at the top of the height rod and raise up or down.

Slotted holes
