GTR197 Remote External Receiver Manual | Rev 03 1
Remote External
Receiver Users
Manual GTR197
12/24V AC DC
Power

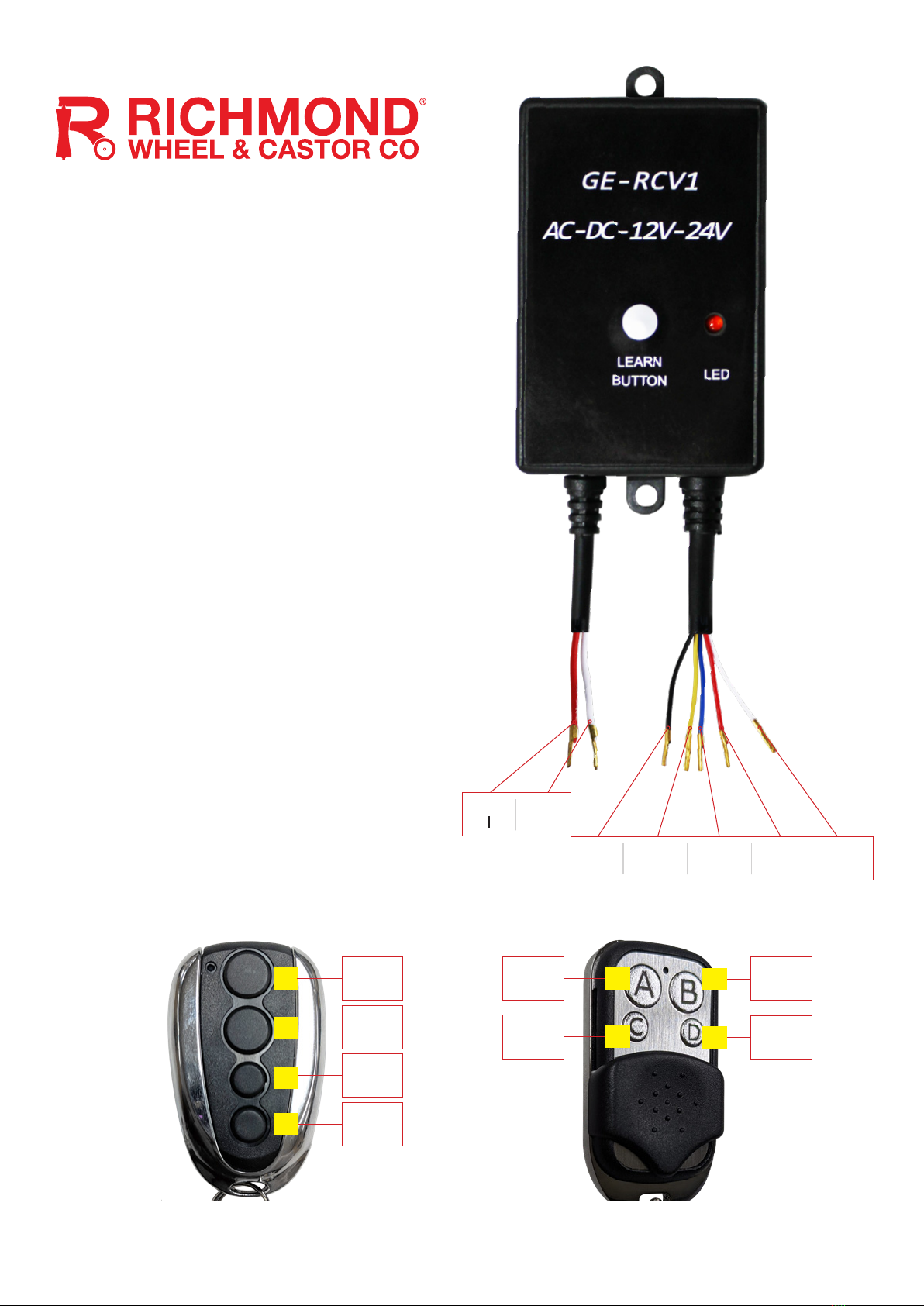

The GTR197 is an optional accessory
that allows you to use the Richmond
swing or sliding gate remotes on another
manufacturers garage or gate motor. This
allows you to operate multiple motors with
a single remote and can also be fitted to
replace remotes that are no longer available.
• It also allows up to 250 remotes to be paired
to your motor via the receiver
• This accessory is suitable for all Richmond
gate motors as well as a long list of other
manufacturers gate and garage motors.
• See following pages for a fitment guide,
along with a wiring example.
If you need assistance finding your
connection points, or are unsure if your
motor is suitable, please contact the
team at Richmond Wheel & Castor.
03 9070 5713 gatesupport.richmondau.com
Red White
GRN
Black
COM
Yellow
Channel 2
Blue
Channel 4
Red
Channel 3
White
Channel 1
GTR054
Remote to suit
GTR099, GTR058,
GTR062, and
GTR078 swing
gate motors
1Button 1
Channel 1
Button 2
Channel 2
Button 3
Channel 3
Button 4
Channel 4
2
3
4
GTR179
Remote to suit
GTR064, GTR061,
GTR156, GTR207,
and GTR212 sliding
gate motors
*Button 4 not available
if the remote is also
paired to a Richmond
sliding gate motor.
Pedestrian mode is
operated from button 4
Button A
Channel 1
Button C
Channel 3
AB
CD
Button B
Channel 2
Button D
Channel 4
GTR197 Remote External Receiver Manual | Rev 03 2

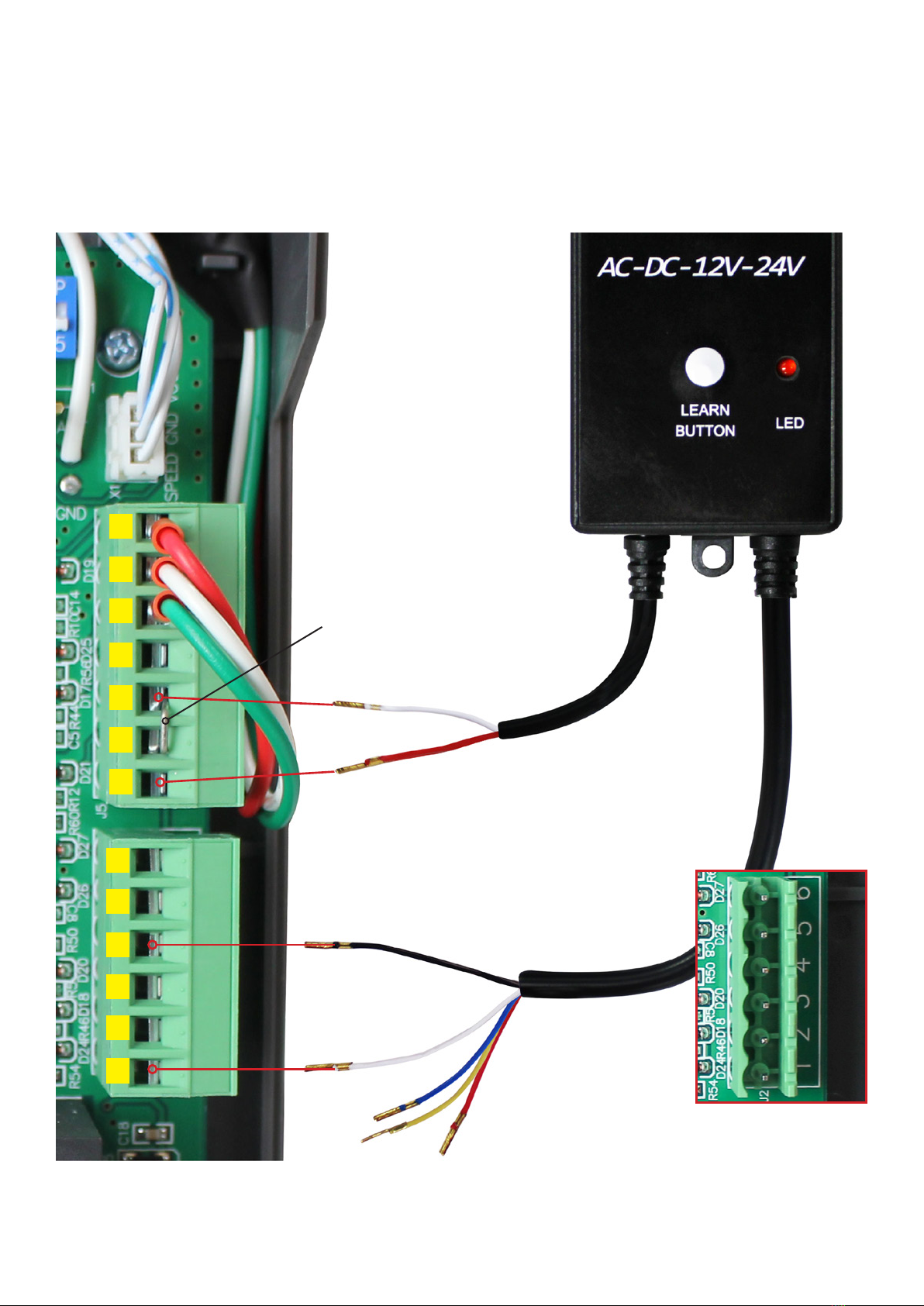

How to connect to the GTR156 and
GTR212 sliding gate motor control board:
All of the numbers in this diagram
can be found on the control board
of the gate opener.
7
1
8
2
9
3
10
4
11
5
12
6
13
White
REMOVE
THE JUMPER
CABLE
BETWEEN
TERMINALS
8 & 9
White
Black
Red, Blue, Yellow
NOT IN USE
please cover/cap off
Red
The below diagram shows how to connect the wires from the GTR197 external remote receiver
to the GTR156 & GTR212 Gate Openers. See following pages for pairing instructions.
GTR197 Remote External Receiver Manual | Rev 03 3

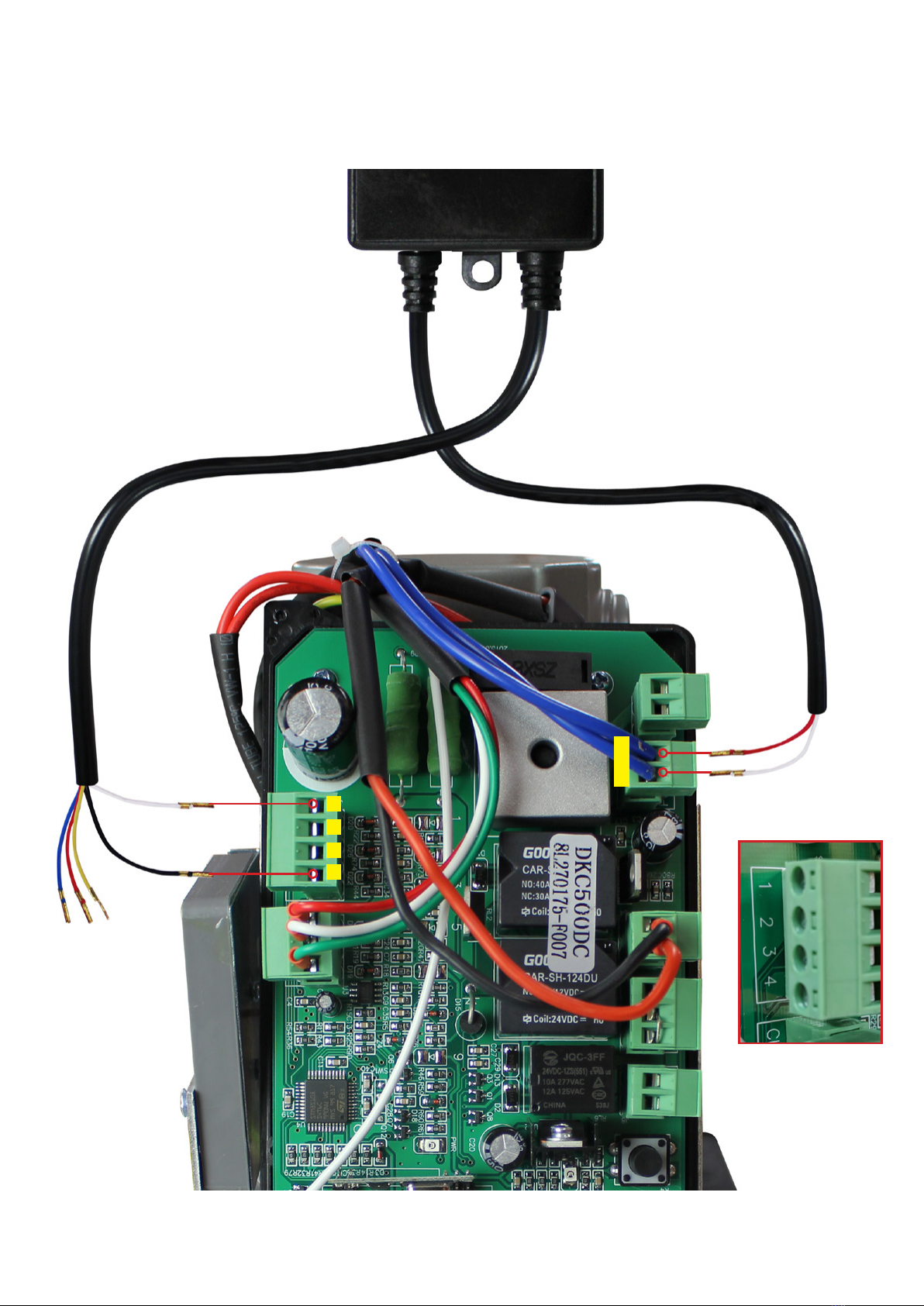

How to connect to the GTR064, GTR061 & GTR207
sliding gate motor control boards:
The below diagram shows
how to connect the wires
from the GTR197 external
remote receiver to the
GTR064, GTR061 and
GTR207 Automatic Gate
Openers. See following
pages for pairing instructions.
J2 POWER
1
2
3
4
Red, Blue, Yellow
NOT IN USE
please cover/
cap off
White
White
Black
Red
All of the numbers in this
diagram can be found on
the control board of the
gate opener.
*GTR064 model is shown. Other models may have the PC board upside down
GTR197 Remote External Receiver Manual | Rev 03 4

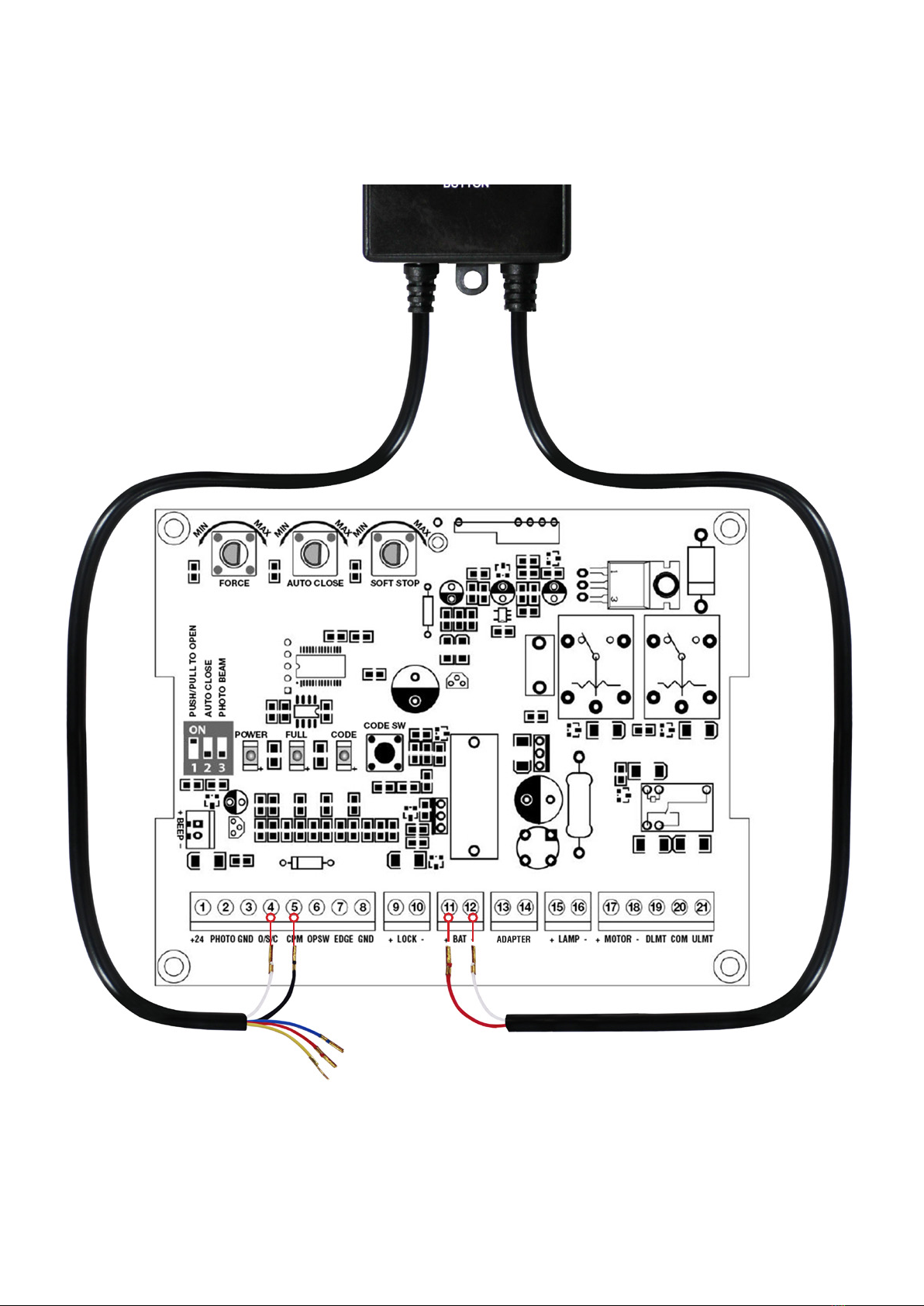

How to connect to the GTR099
swing gate motor control board:
White
White
Black
Red
The below diagram
shows how to connect
the wires from the
GTR197 external
remote receiver to the
GTR099 Gate Opener.
See following pages for
pairing instructions.
Red, Blue, Yellow
NOT IN USE
please cover/cap off
GTR197 Remote External Receiver Manual | Rev 03 5

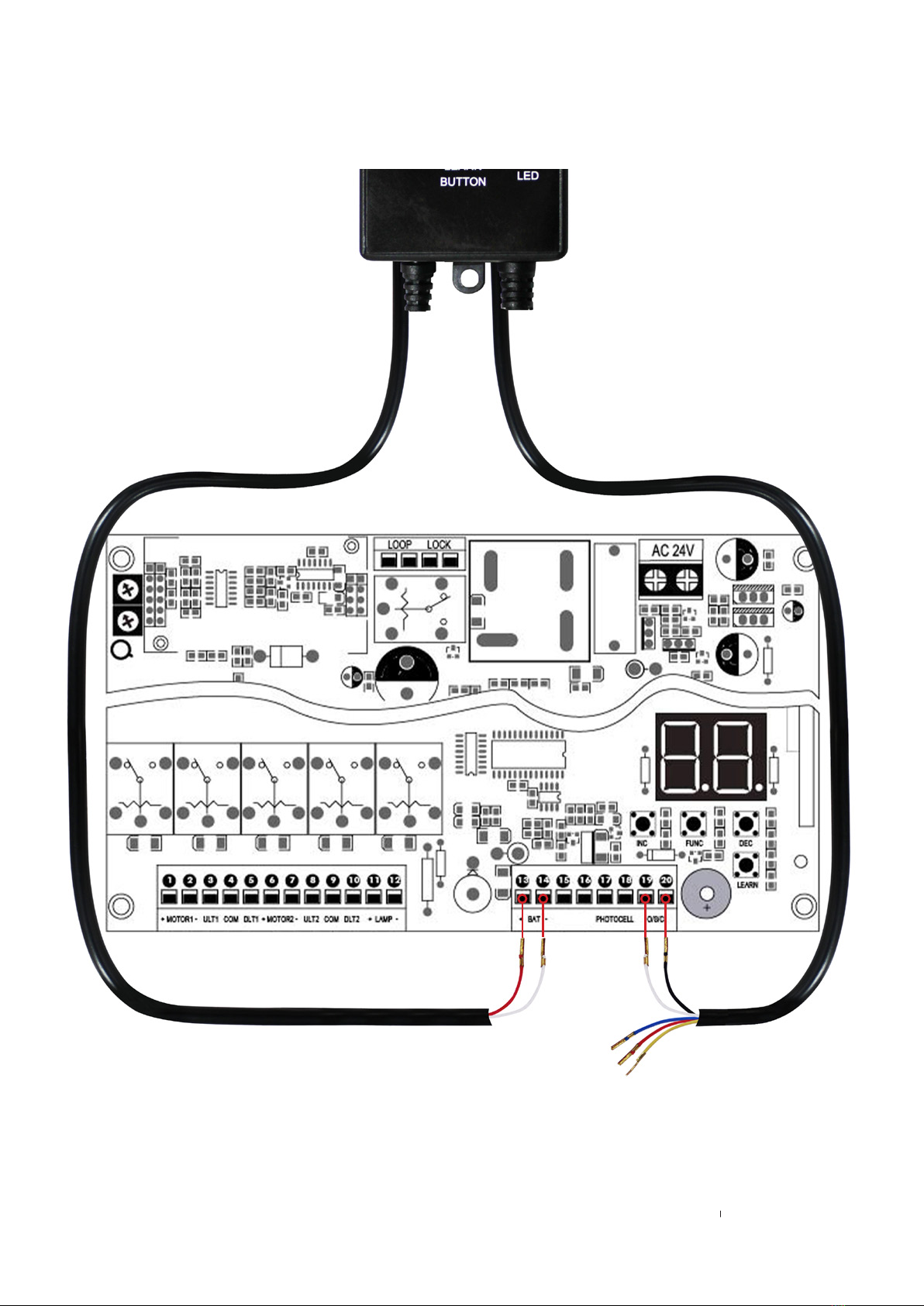

How to connect to the GTR058
swing Gate motor control board:
White
White
Black
Red
Red, Blue, Yellow
NOT IN USE
please cover/cap off
The below diagram shows
how to connect the wires
from the GTR197 external
remote receiver to the
GTR058 Double Swing
Gate Opener.
See following pages for
pairing instructions.
GTR197 Remote External Receiver Manual | Rev 03 6

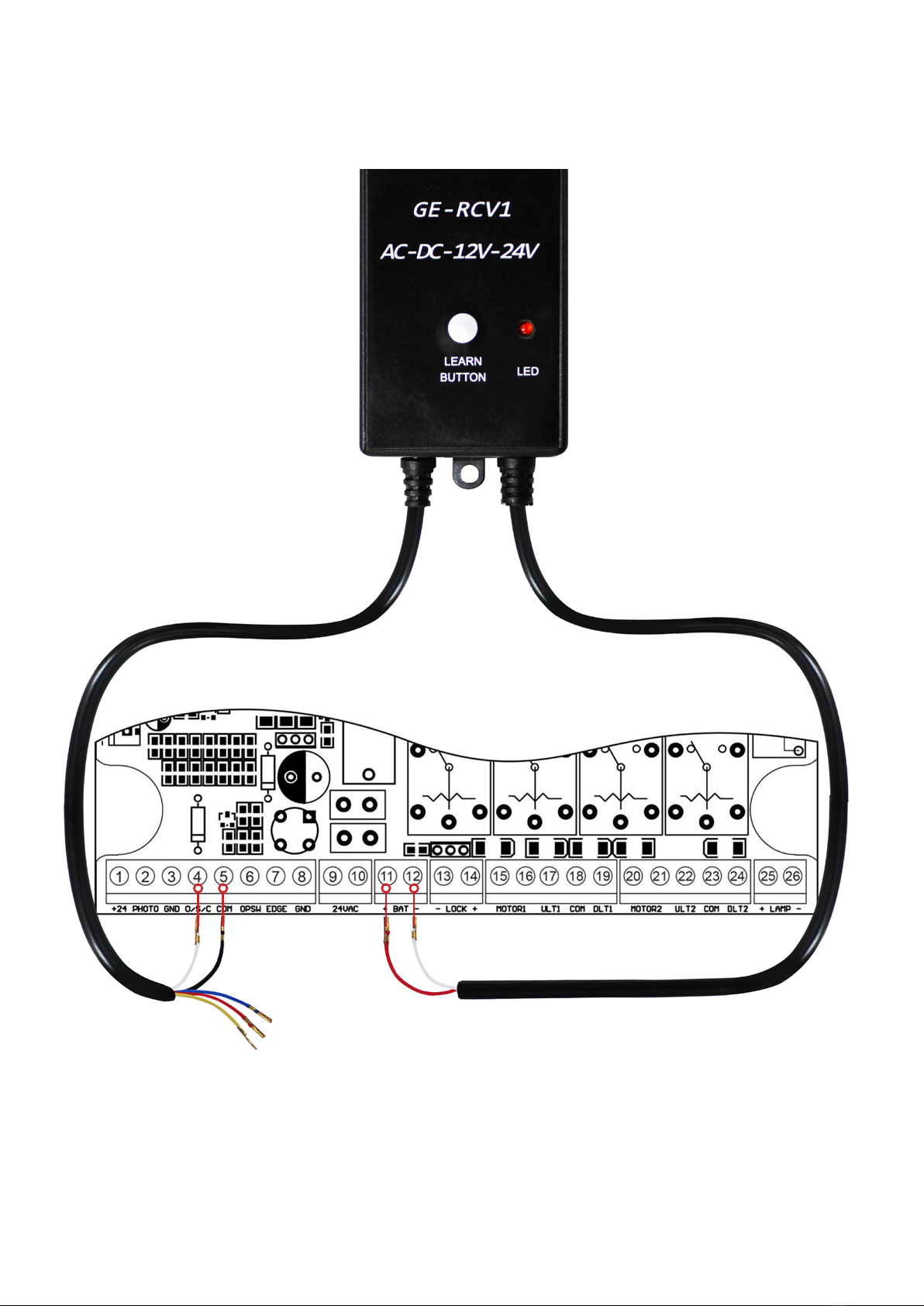

How to connect to the GTR062 and GTR078
solar swing gate motor control boards:
The below diagram
shows how to connect
the wires from the
GTR197 external remote
receiver to the GTR062
and GTR078 Solar
Swing Gate Openers.
See following pages for
pairing instructions.
White
White
Black
Red
Red, Blue, Yellow
NOT IN USE
please cover/cap off
GTR197 Remote External Receiver Manual | Rev 03 7

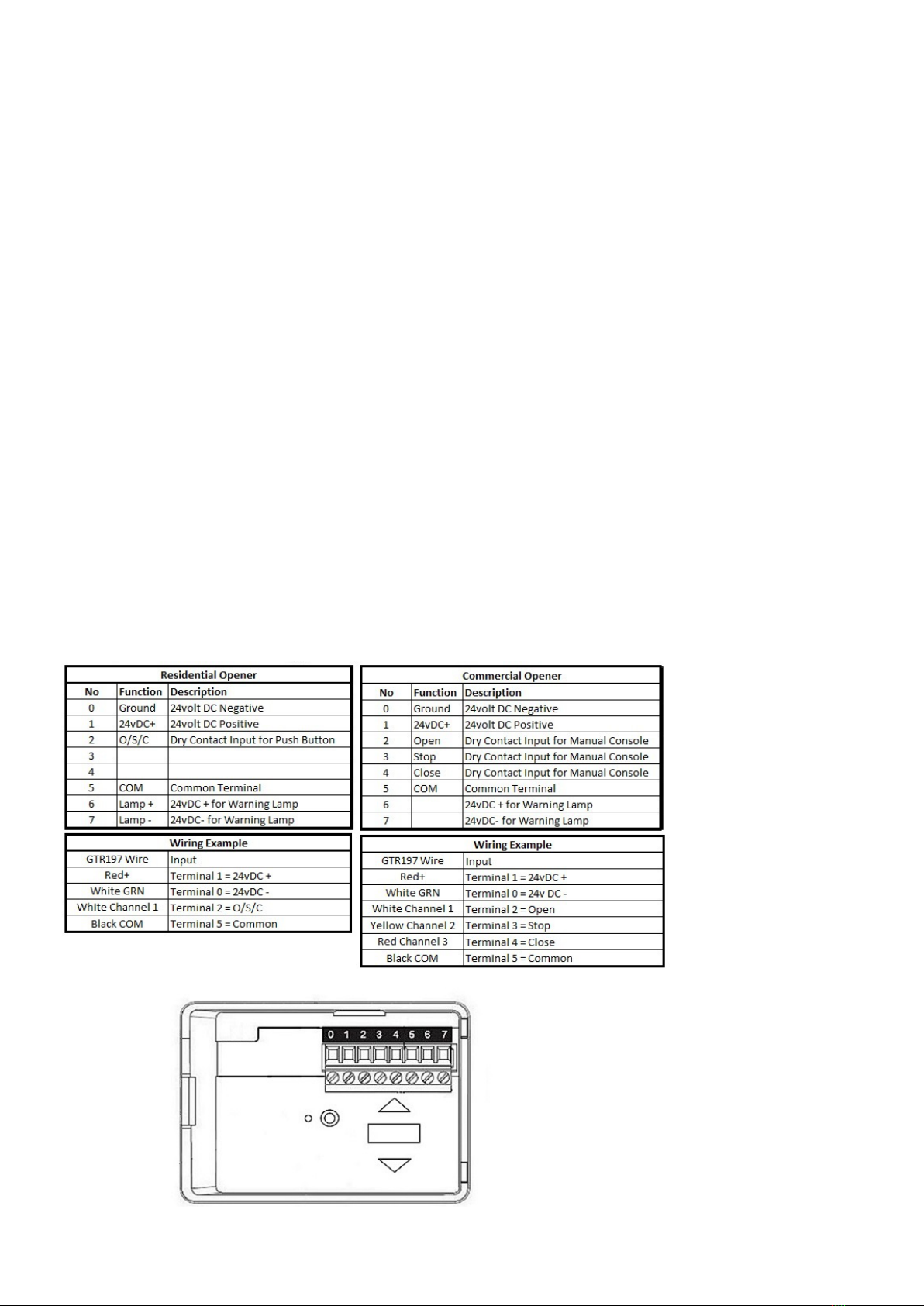

Below is an example of how the GTR197 external receiver will wire into a non-Richmond opener to
allow you to use your existing Richmond remote.
For the below example, the GTR197 external receiver would be wired as follows:
GTR197 Red + into External Accessory Power Terminal +
GTR197 White GRN into External Accessory Power Terminal –
GTR197 Black COM into Terminal Block Terminal 2
GTR197 White OPEN into Terminal Block Terminal 1
If you need assistance finding your connection points, or are unsure if your
motor is suitable, please contact the team at Richmond Wheel & Castor Co.
Control Panel:
1. To power the external receiver, you will need a 12 or 24 volt AC or DC power supply.
In the example below, this is marked as “External Accessory Power”
2. To operate the gate/garage opener, the external receiver will need to connect into the PC board.
For residential openers, most will have an input for an external push button. In the example below, terminals 2
& 5 are used for the push button. This will be the input for your external receiver.
For commercial openers, some may have separate functions for Open, Stop and Close.
The wiring example below will support this function
1. External Accessory Power: 30V dc 50 mA available for universal receiver
2. Terminal Block: Used for external accessories (see chart below)
Connecting the GTR197 to a non-Richmond Opener
GTR197 Remote External Receiver Manual | Rev 03 8
PLEASE NOTE: these instructions use the GTR179 remote which comes standard with the
following Richmond gate openers: GTR064, GTR061, GTR156, and GTR207

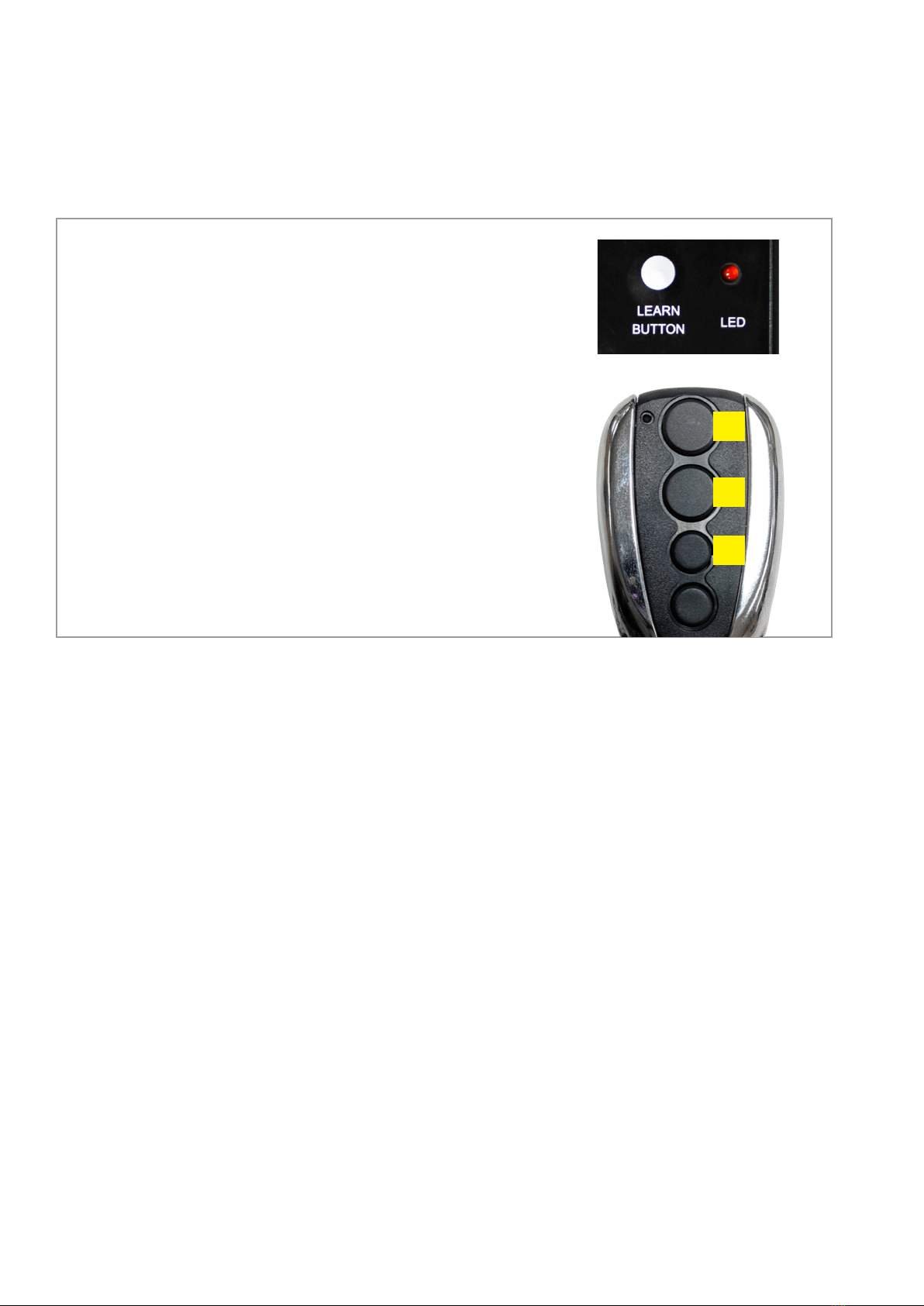

Step 01.
Press the learn button on the external
receiver once. The LED on the receiver will turn on.
Step 02.
Press the first button (1) on the remote twice.
The learn LED will flash and then turn off.
The remote is now paired
1
2
3
• Quantity of control channels: 1st 2nd 3rd 4th
• Operating supply voltage: 9V-35V DC / 8V-26V AC
• Current consumption (not more than): 30mA – standby mode / 70mA – output activation
• Operating frequency: 433.92MHz
• Quantity of receivable remotes: up to 250pcs
• Relay output: NO (normally-open)
• Load of relay output contact: 1A max., 24V DC / 0,5A max., 125V AC
• Case protection rating: IP40
• Environment temperature: -20° … +50°
• Overall dimensions (not more than): 78mm × 44mm × 25mm
• Length of connection cables (not less than): 450mm
• Weight: 80g
GTR197 Technical Specs
This process can be repeated using buttons 2 and 3
to pair to multiple motors or receivers.
Example: Button 1 - Gate Motor | Button 2 - Garage Motor
Pairing Remotes to the Remote External Reciever
