Ricoh DX 4542 Manuale utente

DX 4542

Operating Instructions

Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to read the

Safety Information before using the machine.

Operation

Optional Functions

User Tools

Replenishing Supplies

Troubleshooting

Remarks

Specifications

Introduction

This manual contains detailed instructions and notes on the operation and use of this machine. For your

safety and benefit, read this manual carefully before using the machine. Keep this manual in a handy

place for quick reference.

Important

Contents of this manual are subject to change without prior notice. In no event will the company be li-

able for direct, indirect, special, incidental, or consequential damages as a result of handling or oper-

ating the machine.

Notes:

Some illustrations in this manual might be slightly different from the machine.

Certain options might not be available in some countries. For details, please contact your local dealer.

Two kinds of size notation are employed in this manual. With this machine refer to the metric version.

For good print quality, the supplier recommends that you use genuine master and ink from the supplier.

The supplier shall not be responsible for any damage or expense that might result from the use of parts

other than genuine parts from the supplier with your office products.

Power Source

220 – 240V, 50/60Hz, 1.7A or more

Please be sure to connect the power cord to a power source as above. For details about power source,

see p.127 “Power Connection”.

Safety Information

When using this machine, the following safety precautions should always be fol-

lowed.

Safety During Operation

In this manual, the following important symbols are used:

RWARNING:

WARNING:

Indicates a potentially hazardous situation which, if instructions

are not followed, could result in death or serious injury.

CAUTION:

Indicates a potentially hazardous situation which, if instructions are not

followed, may result in minor or moderate injury or damage to property.

•Do not damage, break or make any modifications to the power cord.

Do not place heavy objects on it. Do not pull it hard nor bend it more

than necessary. These actions could cause an electric shock or fire.

•Disconnect the power plug (by pulling the plug, not the cable) if the

power cable or plug becomes frayed or otherwise damaged.

•To avoid hazardous electric shock, do not remove any covers or

screws other than those specified in this manual.

•Turn off the power and disconnect the power plug (by pulling the plug,

not the cable) if any of the following occurs:

•You spill something into the machine.

•You suspect that your machine needs service or repair.

•The external housing of your machine has been damaged.

•Keep the machine away from flammable liquids, gases, and aerosols.

A fire or an electric shock might occur.

•Connect the power cord directly into a wall outlet and never use an ex-

tension cord.

•Only connect the machine to the power source described in this man-

ual.

•Disposal can take place at our authorized dealer or at appropriate col-

lection sites.

RCAUTION:

•After you move the machine, use the caster fixture to fix it in place. Other-

wise the machine might move or come down to cause an injury.

•If you use the machine in a confined space, make sure there is a continuous

air turnover.

•Keep the machine away from humidity and dust. Otherwise a fire or an elec-

tric shock might occur.

•Protect the machine from dampness or wet weather, such as rain and snow.

•Do not place the machine on an unstable or tilted surface. If it topples over,

an injury might occur.

•Unplug the power cord from the wall outlet before you move the machine.

While moving the machine, you should take care that the power cord will not

be damaged under the machine.

•When you disconnect the power plug from the wall outlet, always pull the

plug (not the cable).

•Do not allow paper clips, staples, or other small metallic objects to fall inside

the machine.

•For environmental reasons, do not dispose of the machine or expended

supply waste at household waste collection points. Disposal can take place

at an authorized dealer.

•When disposing of a used ink container, reattach the cap to prevent ink from

splattering.

•Be careful not to get ink on your clothes when replacing an ink container. Ink

stains on clothes are hard to remove.

•Be careful not to cut yourself on any sharp edges when you reach inside the

machine to remove misfed sheets of paper or masters.

•If ink comes into contact with your eyes, rinse immediately in running water.

For other symptoms, consult a doctor.

•Keep the ink or ink container out of reach of children.

•If ink is ingested, induce vomiting by drinking a strong saline solution. Con-

sult a doctor immediately.

•If your skin comes into contact with ink, wash the affected area thoroughly

with soap and water.

•While printing, do not touch the belt at the end of the paper delivery tray or

the job separator. Otherwise, an injury might occur.

•Our products are engineered to meet the high standards of quality and func-

tionality, and we recommend that you only use the expendable supplies

available at an authorized dealer.

iii

Position of Label for RCAUTION

This machine has a RCAUTION label at the position indicated below. For your

own safety, always adhere to the instructions on the label.

ABL020D

User Information on Electrical & Electronic

Equipment

Users in the EU, Switzerland and Norway

Our Products contain high quality components and are designed to facilitate re-

cycling.

Our products or product packaging are marked with the symbol below.

The symbol indicates that the product must not be treated as municipal waste.

It must be disposed of separately via the appropriate return and collection sys-

tems available. By following these instructions you ensure that this product is

treated correctly and help to reduce potential impacts on the environment and

human health, which could otherwise result from inappropriate handling. Recy-

cling of products helps to conserve natural resources and protect the environ-

ment.

For more detailed information on collection and recycling systems for this prod-

uct, please contact the shop where you purchased it, your local dealer or

sales/service representatives.

All Other Users

If you wish to discard this product, please contact your local authorities, the

shop where you bought this product, your local dealer or sales/service repre-

sentatives.

How to Read This Manual

Symbols

In this manual, the following symbols are used:

WARNING:

This symbol indicates a potentially hazardous situation that might result in

death or serious injury when you misuse the machine without following the in-

structions under this symbol. Be sure to read the instructions, all of which are de-

scribed in the Safety Information section.

CAUTION:

This symbol indicates a potentially hazardous situation that might result in mi-

nor or moderate injury or property damage that does not involve personal injury

when you misuse the machine without following the instructions under this

symbol. Be sure to read the instructions, all of which are described in the Safety

Information section.

* The statements above are notes for your safety.

Important

If this instruction is not followed, paper might be misfed, originals might be

damaged, or data might be lost. Be sure to read this.

Preparation

This symbol indicates the prior knowledge or preparations required before op-

erating the machine.

Note

This symbol indicates precautions for operation, or actions to take after misop-

eration.

Limitation

This symbol indicates numerical limits, functions that cannot be used together,

or conditions in which a particular function cannot be used.

Reference

This symbol indicates a reference.

[]

Keys that appear on the machine's display panel.

{}

Keys built into the machine's control panel.

What You Can Do with this Machine

Below is a quick summary of this ma-

chine's features and where to look for

more information.

❖Standard Printing

See p.17 “Standard Printing”.

❖Saving Energy

See p.20 “Saving Energy”.

❖Adjusting the Print Image Position

See p.23 “Adjusting the Print Im-

age Position”.

* Paper feed direction

❖Adjusting the Print Image Density

See p.25 “Adjusting the Print Im-

age Density”.

❖Making Halftone Prints

See p.26 “Tint Mode”.

❖Changing the Printing Speed

See p.27 “Changing the Printing

Speed”.

❖Reducing and Enlarging by Preset Ra-

tios

See p.29 “Preset Reduce/Enlarge”.

❖Fine-tuning the Reproduction Ratio

See p.31 “Zoom”.

❖Erasing Margins

See p.32 “Edge Erase”.

❖Printing on Thick or Thin Paper

See p.34 “Printing on Thick or Thin

Paper”.

❖Selecting the Type of Original

See p.35 “Type of Original”.

❖Saving Ink

See p.37 “Economy Mode”.

❖Making Masters and Prints at One Go

See p.38 “Auto Cycle”.

GRPOSI0E

GRTINT0E

GRRATI0E

GRZOOM0E

GRERAS0E

AB AB

vii

❖Memory/Class Modes

See p.39 “Memory/Class”.

❖Combining Two Originals onto One

See p.53 “Combine”.

❖Repeating Images

See p.55 “Repeat”.

❖Skip Feed Printing

See p.56 “Skip Feed Printing”.

❖Storing Print Settings

See p.57 “Program”.

❖Printing Confidential Documents

See p.59 “Security Mode”.

❖Entering a User Code to Use the Ma-

chine

See p.60 “Entering a User Code to

Use the Machine”.

❖Restoring Image Quality

See p.61 “Quality Start Mode”.

❖On Line Printing

See p.62 “On Line Printing”.

❖Making Colour Prints

See p.72 “Making Colour Prints”.

❖Printing in Two Colours

See p.72 “Printing in Two Col-

ours”.

GRCOLO0E

viii

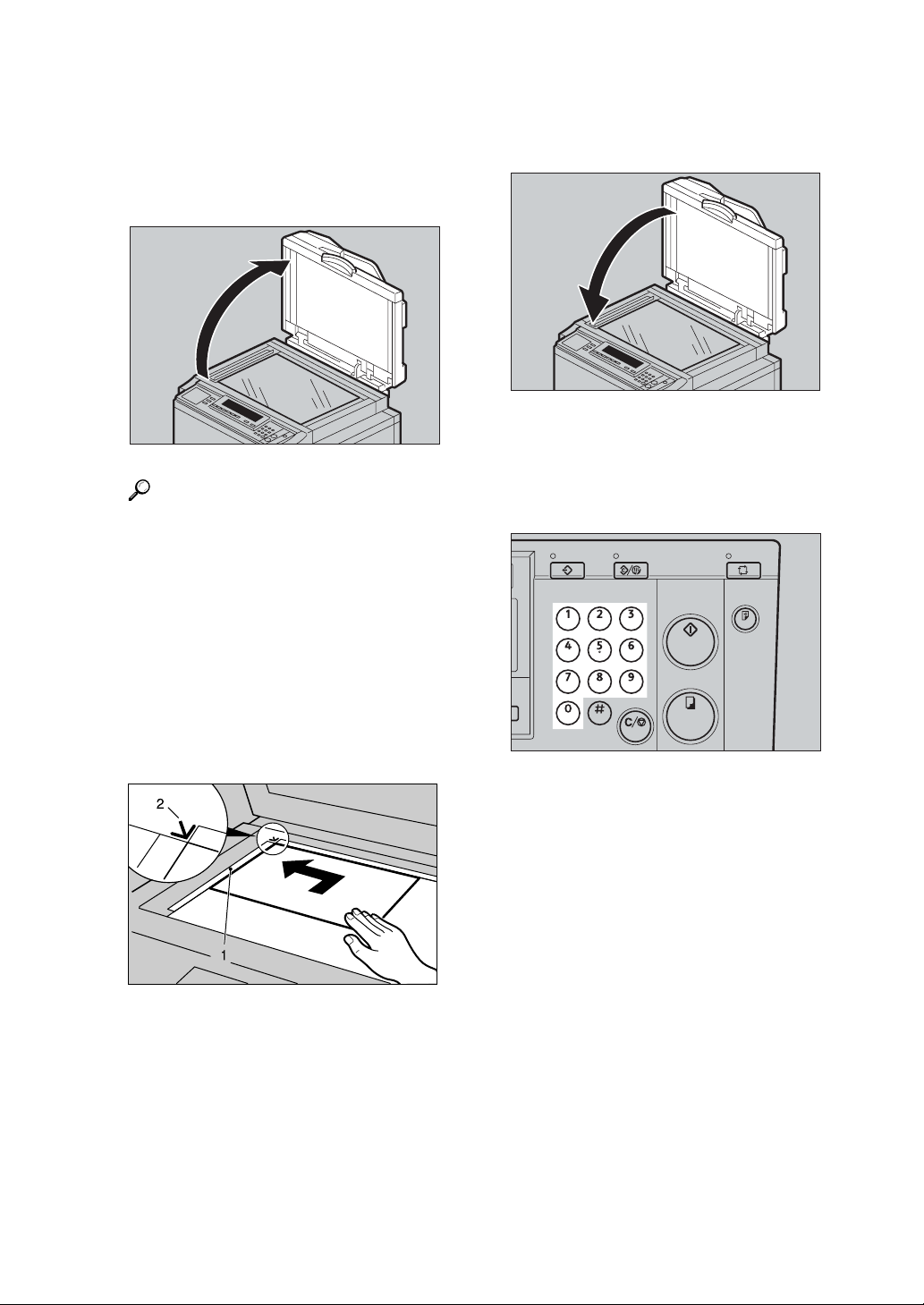

Making Prints

This section explains the basic proce-

dure for making prints.

ALift the exposure glass cover.

Reference

For details on how to place orig-

inals in the optional document

feeder, see p.66 “Placing Origi-

nals in the Document Feeder”.

BPlace the original face down on

the exposure glass. The original

should be aligned with the refer-

ence mark and the left corner

scale.

ALeft corner scale

BReference mark

CLower the exposure glass cover.

DSpecify your print settings.

EEnter the number of prints with

the number keys.

ZFRH060E

ACY058S

ZFRH061E

ZLKS032E
