Ricoh PB2030 Manuale operativo e di manutenzione
Paper Feed Unit PB2030/2040
Machine Code: D3F1
Installation Procedure
Initial Release: December, 2018
(c) 2018 Ricoh Co., Ltd.
NOTE: THIS UNIT MUST BE INSTALLED BY A CUSTOMER SERVICE
REPRESENTATIVE WHO HAS COMPLETED THE TRAINING COURSES ON THE
BASE MACHINE AND THE UNIT.
Printed in Japan
D3F18610
Symbols and Abbreviations
This manual uses the following symbols and abbreviations:
Symbols:
Screw
Black screw
Connector
Flexible flat cable (FFC)
Hook
Clamp
Clip ring
E-ring
C-ring
Timing belt
Spring
Location of a screw(s) to be tightened or loosened.
Location of a connector(s), clamp(s) or spring(s) to be removed
Direction (Rotating or moving)
Abbreviations:
Abbreviations such as (M1), (S1), or (TH1) after the names of some electrical components indicates
that those components are shown on a Point-to-Point diagram.
Abbreviation Meaning
SEF Short edge feed
LEF Long edge feed
[A] Short edge feed (SEF)
[B] Long edge feed (LEF)
1
Table of Contents
1. Installation Requirements ................................................................................................................... 2
Environment............................................................................................................................................ 2
Machine Level......................................................................................................................................... 3
Minimum Space Requirements .............................................................................................................. 4
Power Requirements.............................................................................................................................. 5
2. Accessory Check ................................................................................................................................ 6
3. Installation Procedure......................................................................................................................... 7
Installing the Single Paper Feed Unit..................................................................................................... 7
Installing the Double Paper Feed Unit ................................................................................................. 12
1.Installation Requirements
2
1. Installation Requirements
Environment
–Temperature and Humidity Chart–
•Standard temperature range: 10 - 32°C (50 - 89.6°F)
•Standard humidity range: 15% to 80% RH
•Extended temperature range: 10 - 38°C (50 - 100.4°F)
•Extended humidity range: 10% to 90% RH
•Ambient illumination: Less than 1,500 lux (do not expose to direct sunlight)
•Ventilation: 3 times/hr/person or more
•Ambient dust: Less than 0.075 mg/m3(2.0 x 10-6 oz/yd3)
•Avoid areas exposed to sudden temperature changes:
1) Areas directly exposed to cool air from an air conditioner.
2) Areas directly exposed to heat from a heater.
•Do not place the machine in areas where it can get exposed to corrosive gases and chemicals.
•Do not install the machine at any location over 2,000 m (6,500 ft.) above sea level.
•Place the machine on a sturdy and level base. (Inclination on any side should be no more than 5
mm.)
•Do not place the machine where it is subjected to strong vibrations.
1.Installation Requirements
3
Machine Level
Front to back: Within 5 mm (0.2") of level
Right to left: Within 5 mm (0.2") of level
1.Installation Requirements
4
Minimum Space Requirements
Place the machine near a power source, providing clearance as shown:
A (front): 750 mm (30")
B (left): 150 mm (6")
C (rear): 300 mm (12")
D (right): 450 mm (18")
The recommended 750 mm (30") front space is sufficient to allow the paper tray to be pulled out.
Additional front space is required to allow operators to stand at the front of the machine.
1.Installation Requirements
5
Power Requirements
•Make sure that the wall outlet is near the machine and easily accessible. After completing the
installation, make sure the plug is firmly inserted into the outlet.
•Avoid using extension cables.
Input voltage:
EU, AP, CHN 220V - 240V, 50/60Hz, 8A
2.Accessory Check
6
2. Accessory Check
Check the quantity and condition of the accessories against the following list.

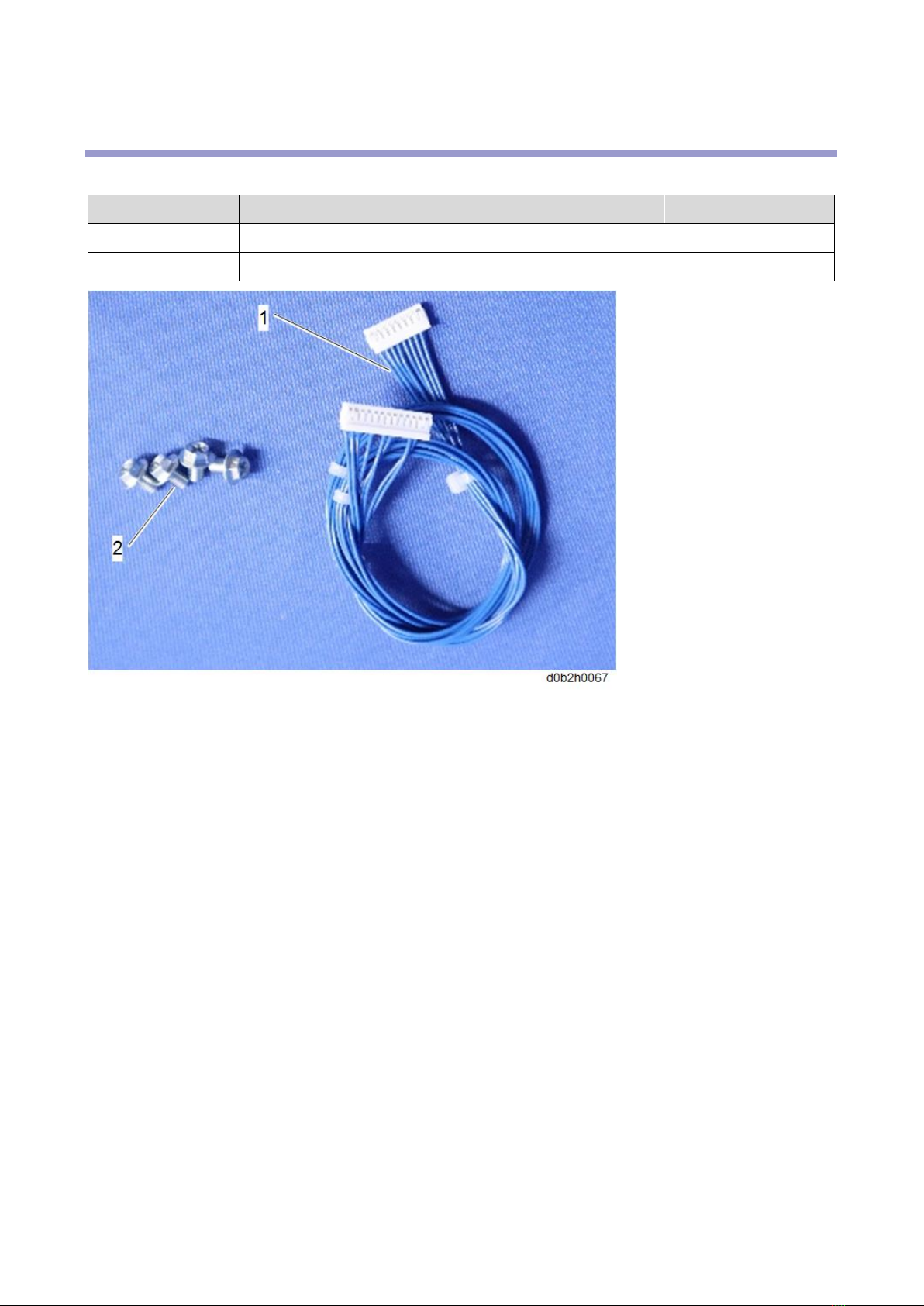

No. Description Q’ty
1 Relay harness 1
2 Screws 4
