RM-DS-1B Rack Mount Kit
This rack mount kit is designed to mount RIGOL DS1000B series digital oscilloscope into a
19-inch cabinet that conforms to the Electronic Industries Association (EIA) standard.
Kit Part Checklist
No. Name Qty. Description
1
Front Plate
1
--
2
Bottom Plate
1
--
3
Left Plate
1
--
4
Right Plate
1
--
5
Rear Bracket
1
--
6
M4 Screw
14
M4x8 Phillips Pan Head Screw
7
M6 Screw
4
M6x16 Phillips Pan Head Screw
8
M6 Nut
4
M6 Square Lock Cage Nut
Installation Tool
The PH2 Philips screwdriver is recommended.
RIGOL
6 7 8
1 2 4
3 6 5
7 8
Downloaded from Arrow.com.
Installation Guide RIGOL
2
Space Requirements
To mount the instrument into the cabinet correctly, please ensure that the following
requirements are met.
The cabinet must be a standard 19-inch one.
The available height of the cabinet should be at least 4U (177.8mm).
The depth of the cabinet should be at least 200mm.

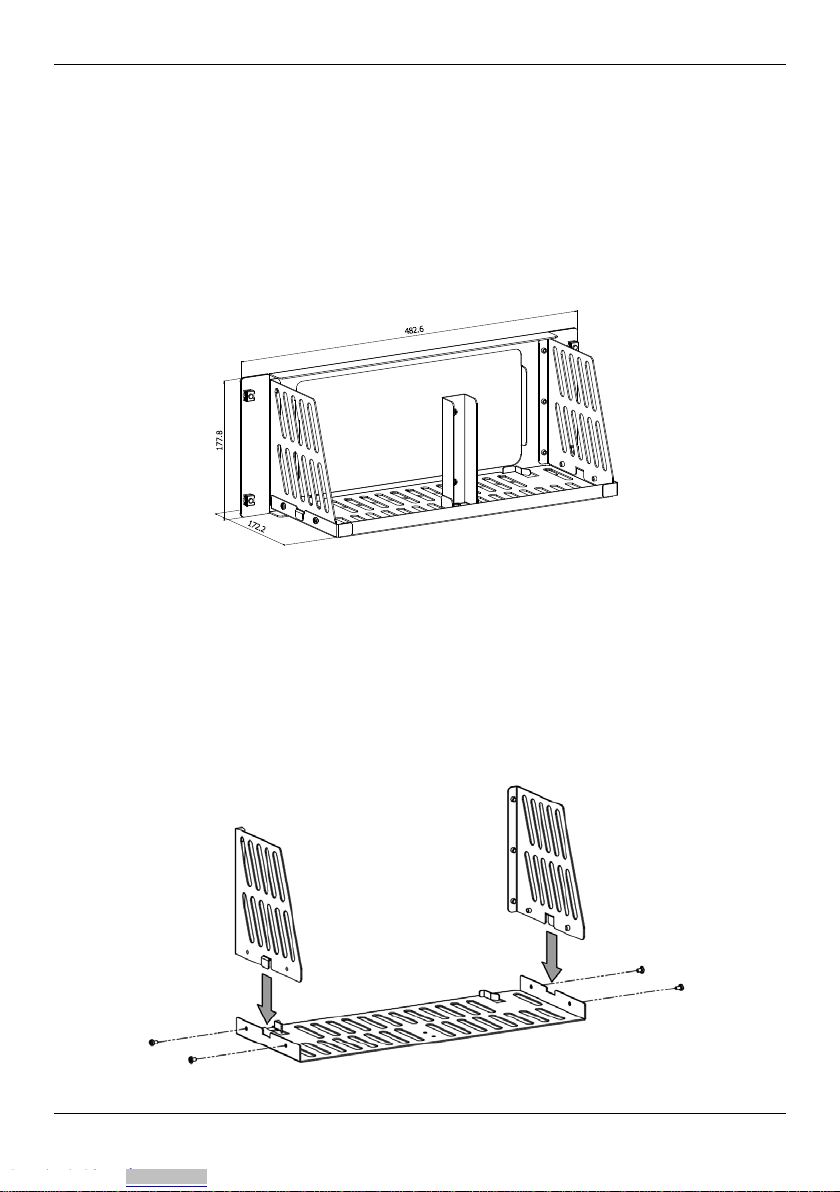

The dimensions of the rack are as shown below.
Unit: mm
Installation Procedures
Note: Only authorized operators are allowed to perform the installation. Improper
installation might cause damage to the instrument or an installation failure.
1. Mount the left and right plates
Align the detents of the left and right plates with the openings on both sides of the
bottom plate respectively and insert them into the bottom plate, then fasten them
using four M4 screws.
Downloaded from Arrow.com.Downloaded from Arrow.com.
Installation Guide RIGOL
3

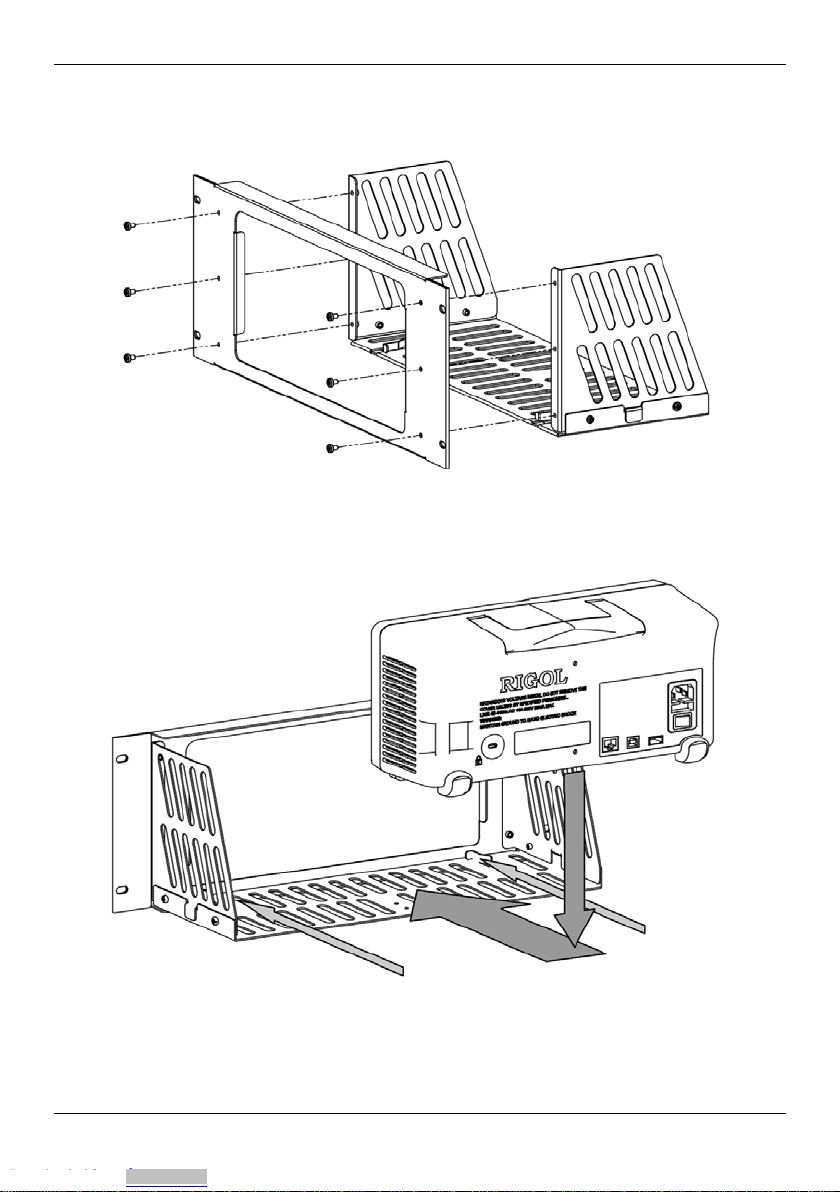

2. Mount the front plate
Attach the front plate to the assembled rack, and fasten the front plate with six M4
screws.
3. Place the instrument
Place the instrument onto the bottom plate and ensure that the tabs on the bottom
plate engage the front rubber pads of the instrument.
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.
Installation Guide RIGOL
4
4. Fasten the instrument
Push the rear bracket fully forward until it stops against the rear panel of the
instrument, then fasten the rear bracket to the instrument and the bottom plate with
four M4 screws.
5. Get encased in the cabinet
Mount the assembled instrument and rack into a standard 19-inch cabinet using four
M6 screws and four M6 square nuts.
-End-
