RIKA E15883 Manuale utente
REVIVO 140
REVIVO 125
Assembly instructions
2
Delivered parts E15883 Revivo 140 / E16078 Revivo 125
Q1x B18200 REVIVO 140 without shell black or
Q1x B18322 REVIVO 125 without shell black
Q1x B18181 Base complete
Q1x B18182 Base assembled
Q1x B18480 Flue pipe DM 100 mm / L 177 mm
Q1x E15884 Flue pipe DM 100 mm / L 800 mm
Q1x B18198 Flue collector
Q1x Z37505 Operating manuel REVIVO IT/EN
Q1x Z37509 Assembly instructions REVIVO IT/EN
Q4x N112132 Hexagon head wood screw
Q4x N112133 Reca multi-use dowel RMU D14
Q4x N112131 Washer
Q4x N111945 Self-locking nut
Q1x Z37305 Opener for convection grill
Q1x N112017 Key
Note
t is strongly recommended to use the “RIKA installation kit E16223”
for installation. Ask your local RIKA-dealer for it.
Supply range of control panel variants
E15886 consisting of:
QControl panel / flush mounting cover / bracket / flush mounting frame
QMagnet / Adjusting screws
Q4x Wall plug D6 / 4x flat washer D6 / 4x chipboard screw D4x40
E15887 consisting of:
QControl panel / wall mounting cover / wall bracket
QMagnet / Adjusting screws
Q4x Wall plug D6 / 4x flat washer D6 / 4x chipboard screw D4x40
Explanations to symbols
...Installation
works ...Manually 3...Three persons
#8
...Hex #07, #08,
#10
#2
...Allen key #2, #5 ...Adjust
horizontally # 10
...Open-end
wrench SW10,
SW13, SW17, SW19
...Mounting
adhesive
Note
Read the entire manual thoroughly before installing and putting the stove into service. Observe the national provisions and laws as well as
the regulations and rules applicable locally.
|3
EN
2
Safety clearances
Note
In the inside space the pellet stove insert must be surrounded by incombustible materials.
The following safety clearances must be observed in the inside space:
b-e > 50mm, c-e > 50mm
The following safety clearances must be observed from the front:
a > 400mm (to non-combustible objects)
a > 800mm (to combustible objects)
Note
When being installed in a recess, the overhang may be a maximum of 20cm.
Note
The sections for circulating air and supply air, as prescribed in the “Fachregeln des Ofen- und Luftheizungsbauerhandwerks TR-OL 2006”
(rules of the tiled stove and air heating system builder trade) must be observed. A supply air section of 200cm2, and a circulating air section
of 200cm2 have already been provided in the appliance.
Installation variants (minimum dimensions of inside space)
A
Left side flue connection
B
Rear side flue connection
C
Right side flue connection
>50cm
52,5cm
>30cm >43cm
52,5cm
>50cm
52,5cm
>50cm
>43cm >30cm
>30cm >30cm
31cm 31cm
Kamin
Anschluss
Kamin
Anschluss
Kamin
Anschluss
43cm
>64cm
>84cm
72cm
>64cm
43cm
Note
For any type of flue connection, the total height of the inner space must be a minimum of 140cm (Revivo 140), or 125cm (Revivo 125).
4
Dimensions Revivo 125
R O - S F - S
R O - H
H - P
T
F - H
F - T
R O - T
H
B
R -
R auchr o hr
100mm
L = 800mm
R auchr o hr
100mm
L = 177mm
F -
Dimensions
H Height [mm] 1263
B Width [mm] 525
T Corpus depth [mm] 663
H - P Pellet filling height [mm] 1278
Flue pipe connection
R - Ø Flue pipe outlet [mm] 100
RO - H Rear connection height [cm] 96
RO - S Rear connection side distance [cm] 31
RO - T Top connection, clearance from front [cm] 43
Fresh air connection
F - Ø Diameter [mm] 50
F - H Connection height [cm] 36
F - S Side distance [cm] 12
F - T Back side distance [cm] 7
|5
EN
4
Dimensions Revivo 140
T
R O - S
R O - H
R O - T
F - H
F - T
F - S
B
H
H - P
F -
R -
R auchr o hr
100mm
L = 177mm
R auchr o hr
100mm
L = 800mm
Dimensions
H Height [mm] 1386
B Width [mm] 525
T Corpus depth [mm] 663
H - P Pellet filling height [mm] 1.235
Flue pipe connection
R - Ø Flue pipe outlet [mm] 100
RO - H Rear connection height [cm] 96
RO - S Rear connection side distance [cm] 31
RO - T Top connection, clearance from front [cm] 43
Fresh air connection
F - Ø Diameter [mm] 50
F - H Connection height [cm] 36
F - S Side distance [cm] 12
F - T Back side distance [cm] 7
6
Preparing the warm-air tiled stove
When adapting an existent warm-air tiled stove, all steps, covers, bases and similar, if any, must be removed. The recess must be flush with
the floor.
* according to installation variant (see page 3 - installation variants)
Preparing the control panel variants
Flush-mounted variant Wall-mounted variant
Note
The floor clearance y1, respectively y2 must not exceed 1.3m. The maximum distance between control panel and pellet stove insert is
x1+y1≤300cm, respectively x2+y2≤250cm.
Preparing the electrical connection
Before installing the pellet stove insert, the electrical connection must be prepared by a qualified expert (for schuko plug 230V/50Hz).
#8
|7
EN
6
Mounting the lower base
Remove the four fastening bolts and lift the flue collector off the
base.
Both retaining sheets have only been required for transport
purposes.
Remove both transport securing screws and lift the complete base
unit off the pallet.
The installation variant C (RIGHT SIDE flue connection) is pre-
mounted:
For installation variant A (LEFT SIDE flue connection) or B REAR SIDE
flue connection), you need to interchange the flue pipe attachment
and the blind cover.
Be sure of leak tightness!
Remove the front cover.
Put the base module in place inside the warm-air tiled stove. The
front edge of the bottom plate must be flush with the front of the
tiled stove.
Adjust the base module horizontally by means of the adjusting
screws.
Secure the base module using the dowels, washers and screws
included in the shipment.
#8
#10
#8
#5
#19
8
Mounting the flue collector
Connect the upper base to the flue collector by means of the flue
pipe (l=177mm) included in the shipment. Be sure of leak tightness!
Attach the flue collector additionally to the upper base with two hex
screws.
Adjust the flue collector horizontally by means of the two adjustable
feet.
Flue connection
Slide the flue pipe with a heat protection jacket (l=800mm) onto the
flue collector.
Be sure of leak tightness!
Fasten the heat protection jacket to the flue collector using self-
tapping hex screws (4x).
Connect the flue pipe to your flue (according to available connection
possibilities). Be sure of leak tightness!
Mounting the stove module
Loosen the mechanical lock on the pull-out guide.
ZExtract the pull-out guide fully towards the front, securing it with
both lock screws.
Remove the four lock nuts securing the stove module on the
transport rack.
Note
CAUTION - now the stove module is not secured anymore!
Insert the lifting handles in the openings provided for that purpose.
Now lift the stove module onto the pull-out guide.
#8
#8
#8
3
#5
|9
EN
8
Remove the lifting handles and secure the stove module with the
lock nuts included in the shipment (4x).
Secure the drag chain on the stove module with two hex screws.
Attach the end of the drag chain to the base module.
Mount the bottom cover on the base module.
Lay the control panel cable alongside the lower base (behind the
cover), running it through the opening of the touch display.
Be sure that the On/Off (I/O) switch is in OFF (O) position and connect
the power cable to the mains supply.
Note
Be sure that no cable can touch a hot surface.
Adjusting the front panel
Turn the lock screws on the pull-out guide upwards again, carefully
pushing the stove module into the warm-air tiled stove.
Check the clearance between front panel and tiled stove.
Note
The minimum clearance between front panel and brickwork must
be 5mm!
The clearance between front panel and warm-air tiled stove can be
adjusted laterally over the fastening of the front panel to the stove
body.
#10
#8
#2
#8
#8
10

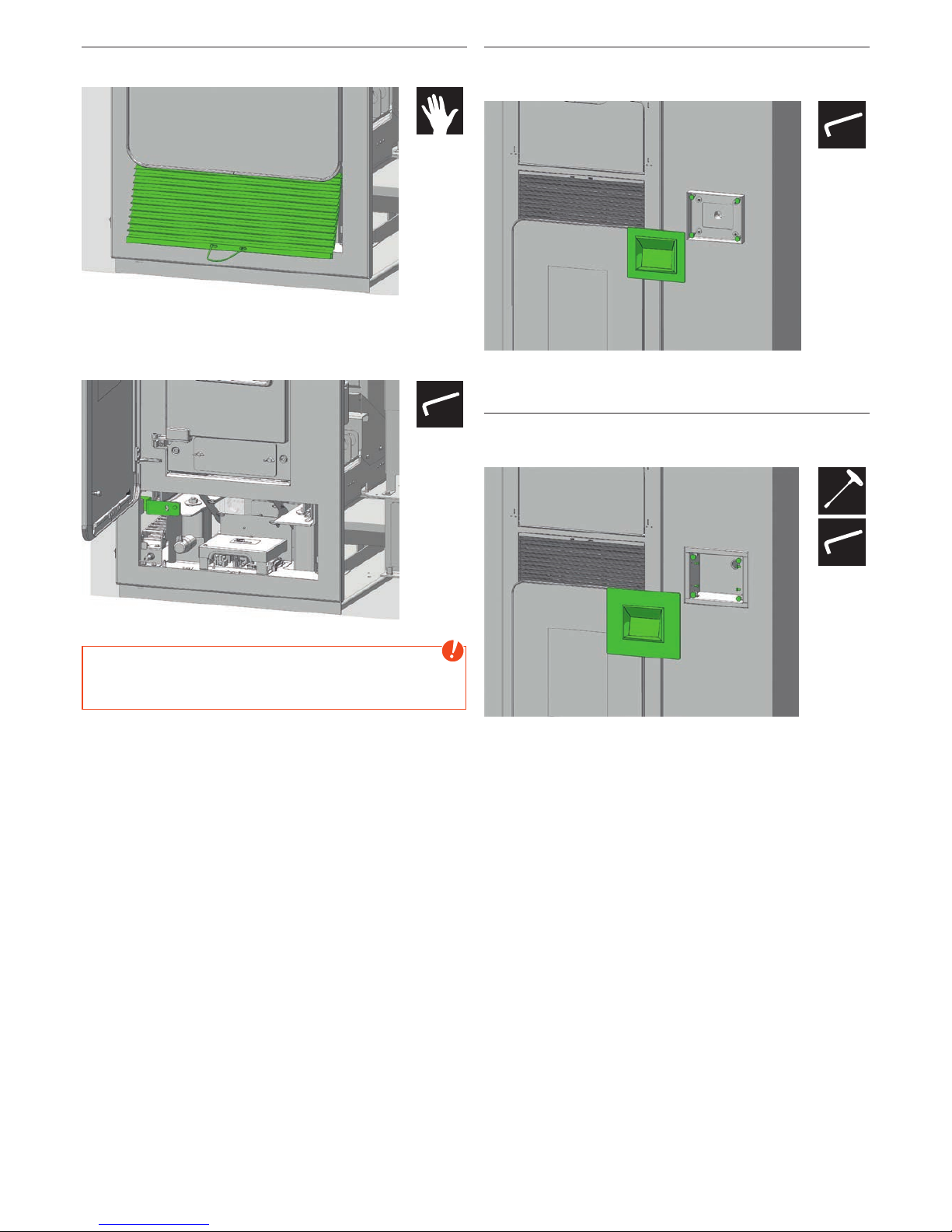

Securing the stove module
Remove the lower convection grill using the opener included in the
shipment.
Switch the mechanical lock of the pull-out guide into (horizontal)
operating position again.
Note
If the mechanical lock is not in (horizontal) operating position, an
error message “stove not in position” will be displayed once power
supply has been established again.
Wall mounted installation of control panel
Connect the control panel cable to the touch display and fasten the
wall mounting cover on the wall bracket using the magnets included
in the shipment.
Flush mounted installation of control
panel
Attach the bracket on the flush mounting frame, connect the control
display cable to the touch display and fasten the flush mounting
cover on the bracket using the magnets included in the shipment.
Activate the ON/OFF (I/O) switch and put the appliance into
operation.
#5
#2
#8
#2
