Riken Keiki GX-Force Manuale utente

MODEL GX-Force

(ATEX/UKEX/IECEx sepc.)

CONDENSED USER GUIDE

NOTE : Refer to the instruction manual for details.

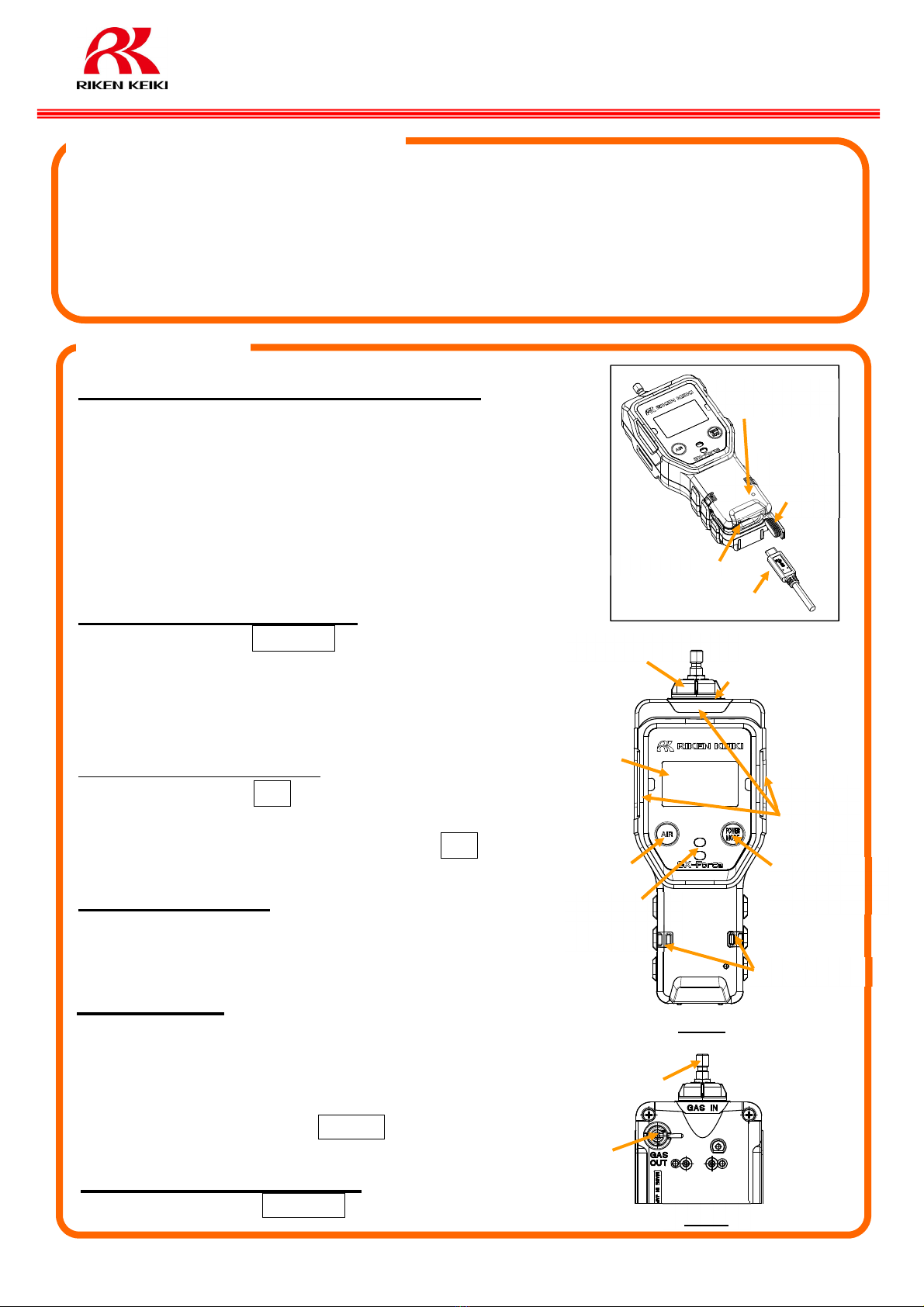

1. Charging the lithium ion battery

(1) Open the USB protective cover on the product.

(2) Insert the charger plug into the USB Type-C

connector of the main unit.

(3) Plug the charger into the outlet.

(Lights up to confirm charging. Fully recharged in

up to 10 hours, approximately 10 hours of use

with a 3-hour charge)

2. Turning on the power

Hold down the POWER button (for at least

three seconds) until the buzzer blips. The

power is turned on, and after the initial

operation, the measurement screen appears.

3. Fresh air adjustment

Hold down the AIR button in measurement

mode. When "RELEASE" appears at the

bottom of the screen, Release the AIR button.

4. Gas detection

Point the gas inlet at the detection location

and read the indication on the LCD display.

5. Gas alarm

A gas alarm is triggered if the concentration

of the detected gas reaches or exceeds the

alarm setpoints. If the gas concentration

falls below the set value, the alarm can be

reset by pressing the MODE button.

6. Turning off the power

Hold down the POWER button.

How to use

PT0E-2120

Check the following before starting gas detection:

The type and specifications and gas alarm setpoints of the particular product being used.

Confirm that the filters are present inside the product and are not contaminated or

clogged.

Confirm that the battery level is sufficient.

Confirm that the pump is operating normally.

(Check that a low flow rate alarm occurs when the gas inlet is blocked with a finger.)

Pre

arations for startu

USB

protective

cover

Charger plug

Connector

Charging

indicator lamp

LCD display

POWER/

MODE

button

AIR button

Alarm

LED

arrays

Light

Filter case

Buzzer

sound

opening

Strap holes

Front

Back

Gas inlet

Gas outlet

MODEL GX-Force

(ATEX/UKEX/IECEx sepc.)

CONDENSED USER GUIDE

NOTE : Refer to the instruction manual for details.

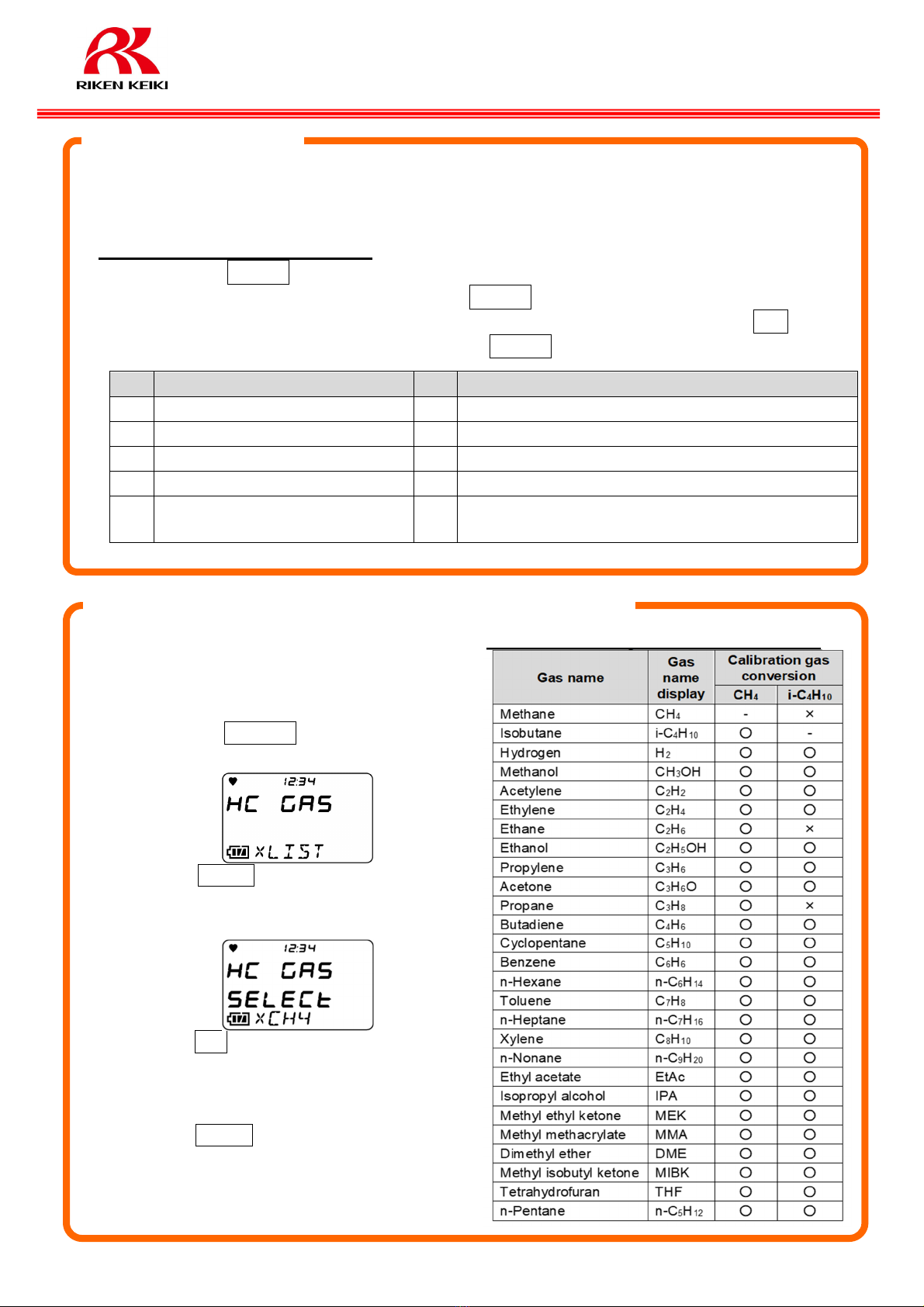

Display mode lets users review and change various display settings and

perform other operations. Changed settings are saved.

Switching to display mode

(1) Press the MODE button in measurement mode.

(Screen switching with each press of MODE button)

(2) Display the item to be displayed or change the setting, and press the AIR button.

(3) After completing the settings, press the MODE button.

No.

Contents（LCD display）

No.

Contents（LCD display）

1 Light ON/OFF（LIGHT）6 Adjustment data display（CAL DATA）

2 PEAK value display（PEAK）7 BUMP test data display（BUMPDATA）*

3 STEL value display（STEL）8 Snap log data display（REC.DATA）

4 TWA value display（TWA）9 Date and time and temperature display（DATE）

5 Combustible gas conversion

setting（HC GAS）10 Alarm setpoints display（ALARM-PT）

* It is not displayed by default. Please refer to the instruction manual for the display method.

Combustible gas measurements can

be displayed as a concentration of a

gas preregistered in the product.

(1)

Press the POWER button and turn on.

(2)

Press MODE button several times in

the measurement mode to display the

above screen.

(3)

Press AIR button to select the

combustible gas to be converted.

（Default：Calibration gas for the

combustible gas sensor）

(4)

Press MODE button.

Combustible gas conversion is set.

[END] appears and the display returns to the

screen in Step 2.

Combustible gas conversion list

Combustible gas conversion setting

Display mode
