Rilo REN Manuale utente
Instruction manual
More information go to www.rilo.com.ar/products
REN/PLUS
Versión: 3.0
Instruction manual Welcome to RILO
ENG
NOTE TO THE INSTALLER:
READ CAREFULLY.
The worksurface should have the apropiate size to place both the coffee machine
and grinder. It should also have enough space underneath the worksurface to acom-
modate the pump – in case that is is not a built-in pump- comfortably, the dechlori-
nating lter or water softener and the and the knock boxes.

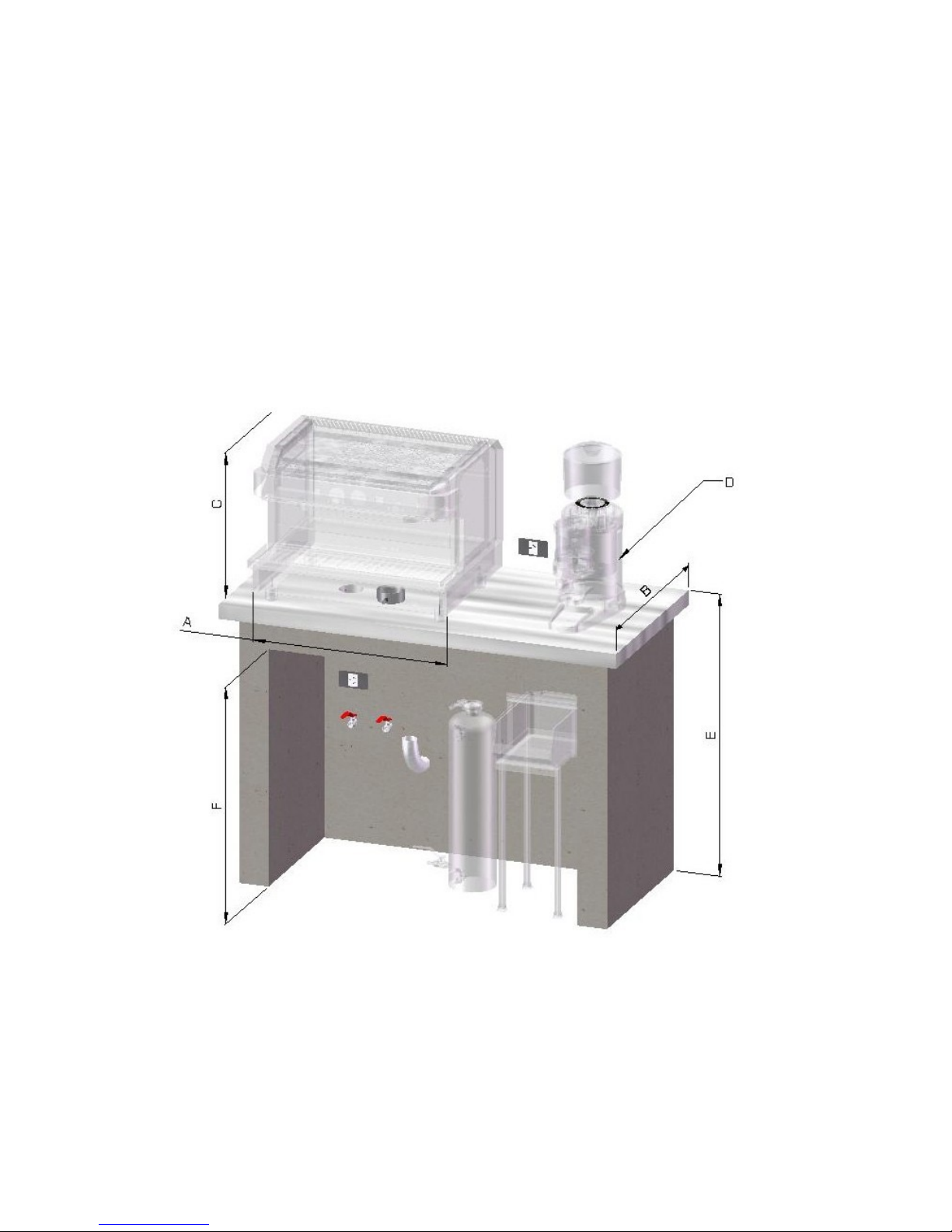

ESTIMATIVE MEASUREMENTS
1
1
Instruction manual Welcome to RILO
Instruction manual Welcome to RILO
2
B: MACHINE DEPTH: 510mm (51cm)
C: MACHINE HEIGHT: 480mm (48cm)
D: ROOM FOR GRINDER: 300mm (30cm)
E: MAXIMUM HEIGHT OF THE WORKSPACE: 950mm (95cm)
F: MINIMUM HEIGHT OF THE WORKSPACE: 850mm (85cm)
REN PLUS MACHINE
A: MACHINE WIDTH :2 gr. 670mm (67cm)
3 gr. 810mm (81cm)
B: MACHINE DEPTH: 570mm (57cm)
C: MACHINE HEIGHT: 550mm (55cm)
D: ROOM FOR GRINDER: 300mm (30cm)
E: MAXIMUM HEIGHT OF THE WORKSPACE: 1000mm (100cm)
F: MINIMUM HEIGHT OF THE WORKSPACE: 950mm (85cm)
Instruction manual Welcome to RILO
ENG

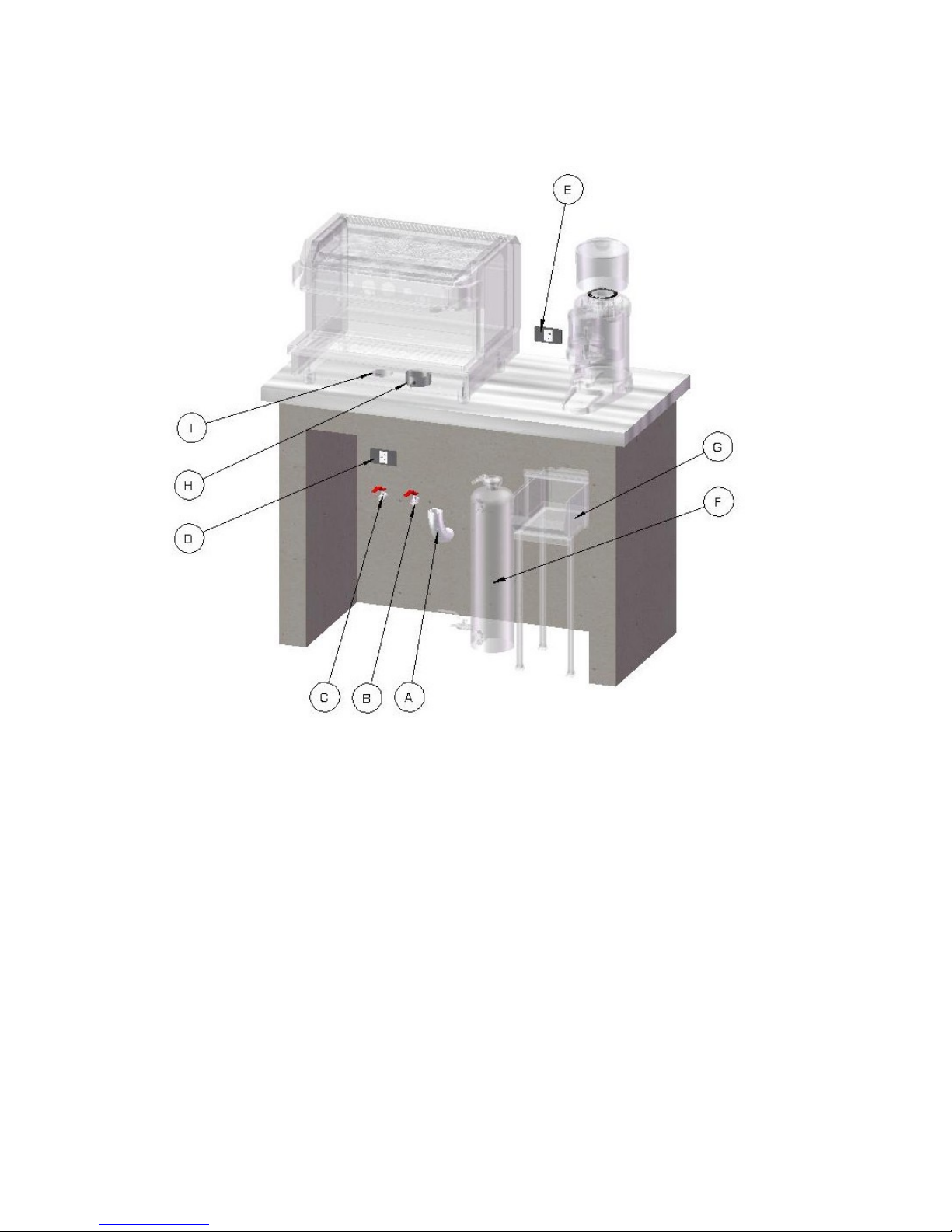

INSTALLATION
A. WATER DRAINING
A lead or plastic pipe of 1½” at least, should be attached to a ½” hose coming from
the drain box of the machine.
B. WATER SUPPLY
It Should end with a water valve with a screw top or a thread of ½”.If the machine has
a built-in pump connect to the valve an 8 mm rubber hose.In case the engine should
be separated, connect the hose to the pump entry.
ATTENTION: In every case you should let run plenty of water, before you start op-
erating the machine in order to dispose the pipes from any residue that could have
been left during the contruction.
3
Instruction manual Welcome to RILO
Instruction manual Welcome to RILO
C. GAS SUPPLY
It should be of a galvanized iron pipe, nished with a valve with a screw top or thread
of ½”. The connection from the gas main valve to the machine gas valve has to be
done with a 5/16” copper pipe and a female ¼” coupling.
ATTENTION: In every case you should let run plenty of water, before you start op-
erating the machine in order to dispose the pipes from any residue that could have
been left during the contruction.
D. ELECTRIC ENERGY (UNDER-COUNTER CABINET)
All machine and coffee grinder components fuction at 220V C.A. 50/60Hz with ground
connection. (110 V C.A. only upon request) Install a 4 plug electrical outlet of 10A
for the coffee machine if it is gas heated. If the heating is dual or electric it should
be 20A
E. ELECTRIC ENERGY (OVER-COUNTER CABINET)
Take notice to use a 10º ground connectionfor the grinder.
F. WATER PURIFIER
It should have enough space under the counter (see section for its mainteinance)
G. KNOCK BOX
It should have enough space under the counter
H. DRAINING BOX
The ½” hose coming from the draining pipe should be inserted into the draining box
(A).
I. DRILLING OF THE COUNTER (WORK SPACE)
Present the coffee machine on the counter top and make a 80 mm diammeter perfo-
ration placed 500mm from the left side and 150mm from the front of the baseboard
of the machine.
IMPORTANT
It might happen unexpectedly or for any reason, that your water supply service is in-
terrupted, what would affect the normal functioning of your RILO coffee machine.
In order to avoid that certain components suffer serious damages, your RILO ma-
chine has been equiped with the innovative BA-3 system.
4
Instruction manual Welcome to RILO
ENG
The BA-3 it’s an alarm system and cut-off time control, which interrupts the the fuc-
tioning of the pump and emits a sound signal when there is a lack of the water supply/
mains.
This system was programed to cutt off the lling process at 90 seconds. Hence, the
technician who makes the installation, while doing the rst load has to take into ac-
count , that he should turn on and off the coffee machine as many times as the boiler
reaches its proper level.
NOTE:
Take notice that the size of the boilers vary with each different model. This
means that the lling process of bigger models might requier that the turning on and
off it’s done many more times.
RECOMENDATIONS FOR THE INSTALLATION TECHNICIAN
WATER:
If possible connect the machine to a water supply with 1 bar/cm2
pressure, with ½”
water pipes and a lock water valve which is very important to check ii is in the “opne”
position.
DRAINAGE:
The fall of water it’s because of the level differences, therefore, it’ shouldn’t exist un-
dulations in the way of the drainage hose to the free fall.
5
Instruction manual Welcome to RILO
Instruction manual Welcome to RILO

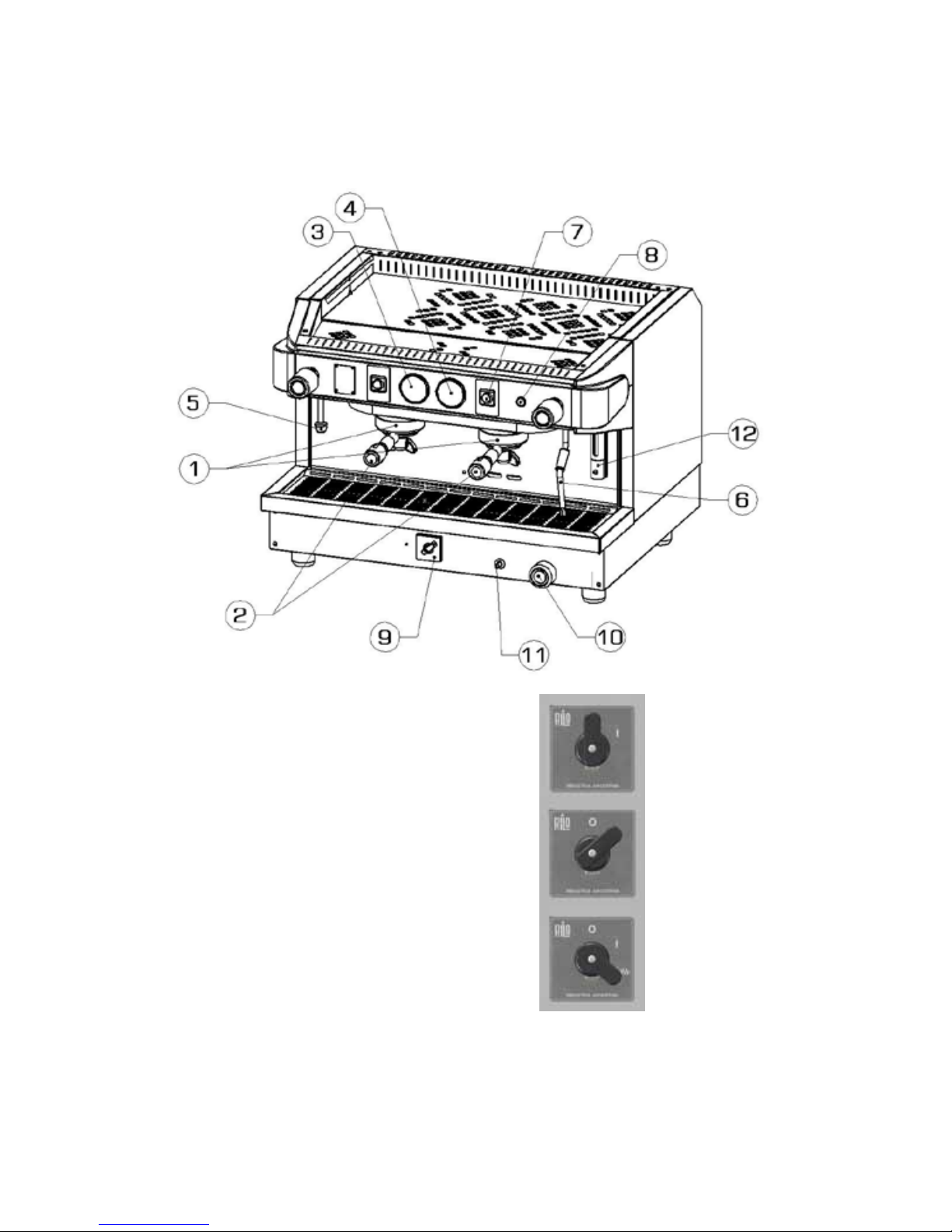

GET TO KNOW YOUR RILO COFFEE MACHINE
1. Coffee groups.
2. Coffee lter-holders
3. Boiler manomenter
4. Electropump manometer
5. Hot water tap
6. Steam wand
7. Group switch
8. Red light boiler resistance (**)
9. On/off Switch
10. Gas knob (*)
11. Switch on button(*)
12. Level tube indicator
(*): Only in gas and dual machines
(**): Only in electric and dual machines
OFF
ONN
RESISTANCE
6
Instruction manual Welcome to RILO
ENG
SPECIAL CARE AT THE BEGINING OF THE OPERATION
Verify that the water leve is always on the middle of the glass tube(12).
Before start the daily operation of the machine, let hot water run through the groups
(1) with the lter holders (2) on to promote the warming of the set and the rinsing of
them.
Verify that the grinding it’s just right and that the amount of ground coffee is the co-
rrect one. One stroke for the simple coffee lter and two for the double.
If you don’t operate or use the machine for more tan 10 (ten) minutes, when you re-
sume the operation let run some water through the groups (2).
GENERAL CONSIDERATIONS FOR THE MANTEINANCE OF THE RI-
LO COFFEE MACHINE.
Check the cleansing of the groups’ showers.
Checkthe cleansing of the lterholders and the coffee lters.
Check the cleansing of the boilers due to the inlay produced by the scale/fur/tartar.
For every machine that’s being permanently in use, is advisable that a specialized
technician makes a check up to evulate the possible manteinance tasks.
7
Instruction manual Welcome to RILO
Instruction manual Welcome to RILO
- PILOT
+ TEMPERA-
+ PI LOT
- TEMPERATURE

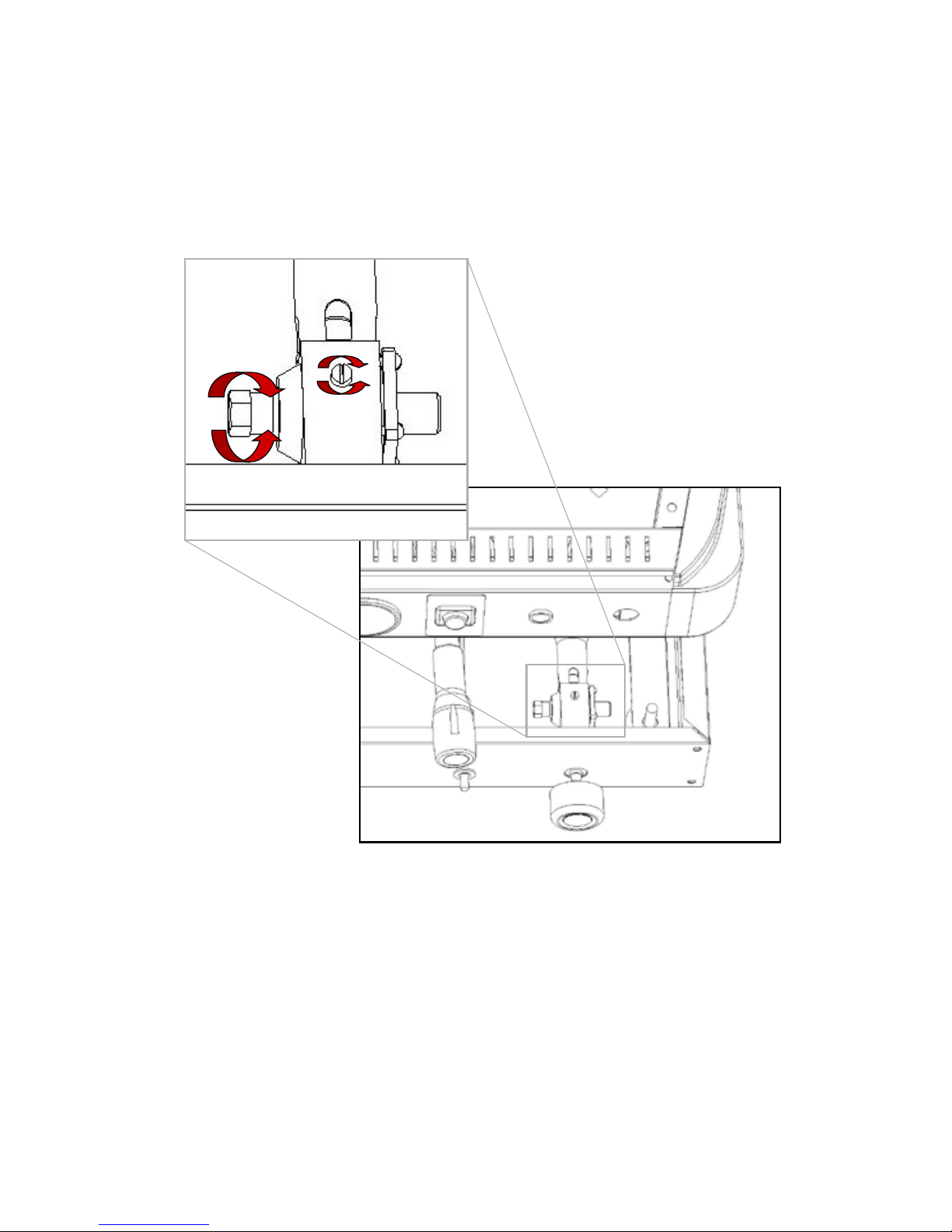

INSTRUCTIONS FOR THE TECHNICIAN
ON THE GAS REGULATION
8
Instruction manual Welcome to RILO
ENG
MAXIMUM TEMPERATURE CALIBRATION.
1. Cut off the electricity between the coffee machine and the main electricity sup-
ply.
2. Remove the lid of the pressure switch pulling from the superior edge of the lid.
3. Connect again the machine to the main electricity supply. At this point and after
some time the machine will start raising steam pressure in the boiler until it stops.
4. Two options might come up:
Option 1
If the cut were produced before the desired pressure, do the following: Cut the elec-
tricity supply and with a ½” box wrench, turn the nut to the right (clockwise), no more
than one turn at a time.
Connect again the machine to the main electricity supply and if you achieve to re-
ach the desirable pressure rise, cut again the electic supply and loosen the nut but
this time to the left (anti-clockwise) until you notice that the contacts triggers them-
selves, which means that the operation is complete.
Option 2
If after some time the machine started to raise steam and it supassed the desired
pressure by you with the regulation that comes from manufacturing, the main elec-
tric supply must be cut off, let it cool down and when the steam pressure is going
down a trhough the desired pressure, take a ½” box wrench and turn the nut anti-
clockwise softly until you fell the contacts trigger themselves, this means the opera-
tion is complete.

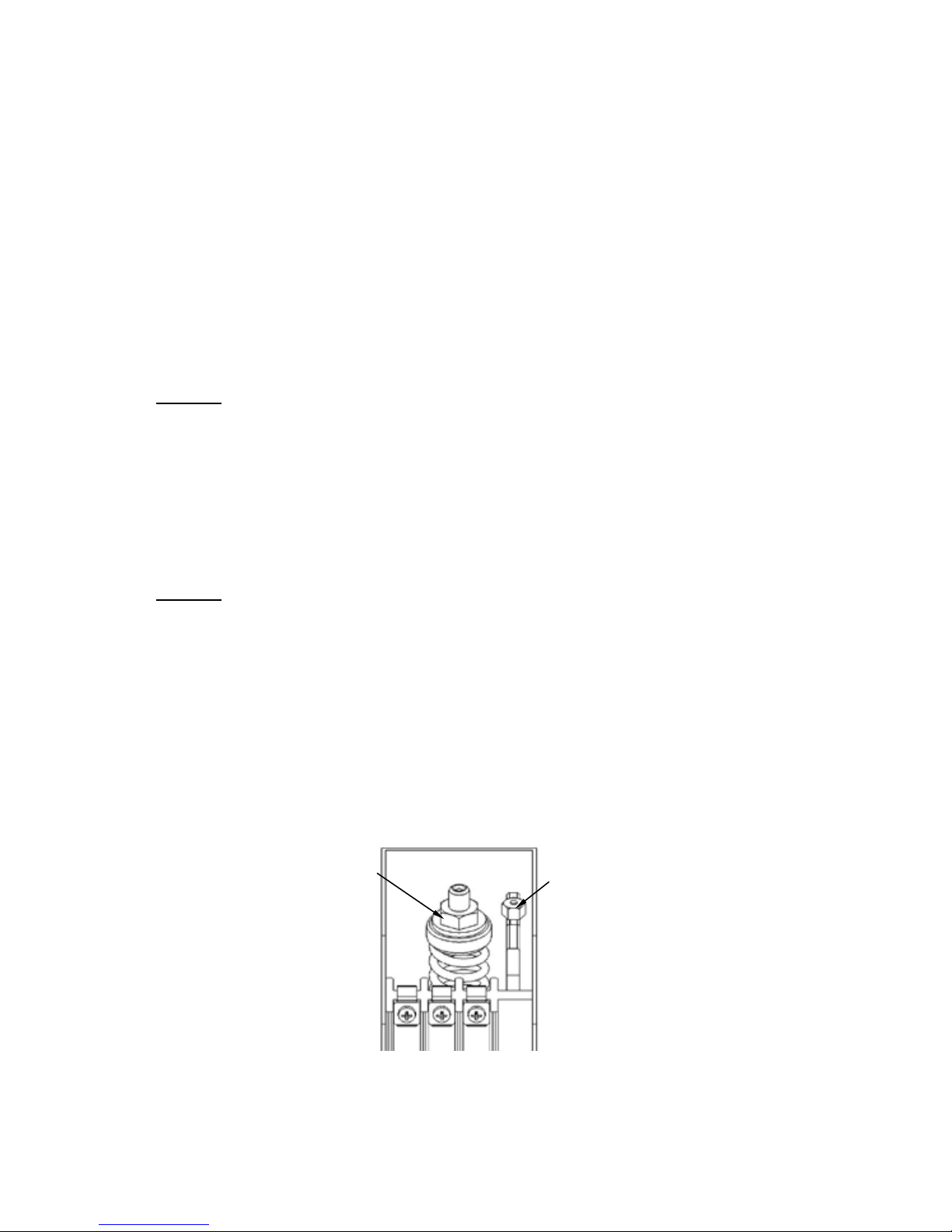

NUT 1/2” NUT 5/16”
9
