ring Pro 2 Manuale utente
User Guide
Doorbell Pro 2
2 3
Download the Ring App.
The Ring App walks you through
setting up and managing your
Ring Doorbell.
Search for “Ring” in one of the app
stores below, or visit ring.com/app
Set up your Ring Doorbell.
In the Ring app, select
Set Up a Device and follow
the in-app instructions.
Find your doorbell chime.
Your Doorbell Pro 2 is designed
to replace an existing doorbell
button, and gets its power from
the doorbell system.
Ring your existing doorbell and
listen for the chime. If it rings, we
know your existing doorbell
system is working.
Follow the sound to find your
chime and make a mental note
of the location. We’ll return to
your chime soon.
Included installation hardware.
Don’t have an existing doorbell?
You can power your Doorbell Pro 2
directly using our Plug-in Adapter. Visit
ring.com/accessories to learn more.
Bag Hardware
A
(2) 1-3/8" Long Mounting Screws
(2) Wall Anchors
B
(2) 3/16" Security Screws
C
(2) 5/8" Short Mounting Screws
D
(2) Wire Nuts
(2) Wire Extenders
(1) Alt Pro Power Kit Cables
4 5

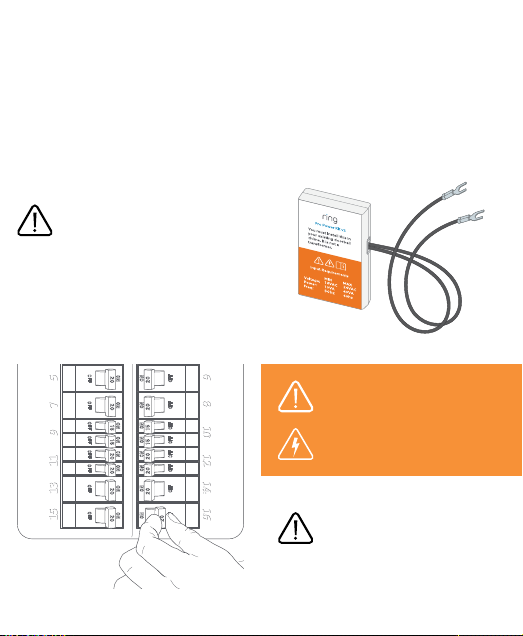

Turn o power at the breaker.
This is essential to keeping you and
your new Ring Doorbell safe.
If you’re not sure which breaker
controls your doorbell chime, turn
o the master breaker for your
home, or contact an electrician.
Grab the included Pro Power Kit.
You must install this in your
doorbell chime. It’s not a
transformer or power adapter.
Remove and replace any existing
Pro Power Kit.
CAUTION!
You’ll be working with electrical
wires during the install process.
If you are uncomfortable or
inexperienced with doing so,
consult with a licensed electrician.
WARNING.
Do not connect your Pro Power
Kit directly to the electrical main. Doing
so could result in FIRE, ELECTRIC SHOCK,
or OTHER INJURY or DAMAGE.
Input Requirements
Voltage:
Power:
Frequency:
MIN
16VAC
10VA
50Hz
MAX
24VAC
40VA
60Hz
6 7
Remove the cover from your
doorbell chime.
After you’ve turned o power at
the breaker, remove the cover from
your chime and set it aside for now.

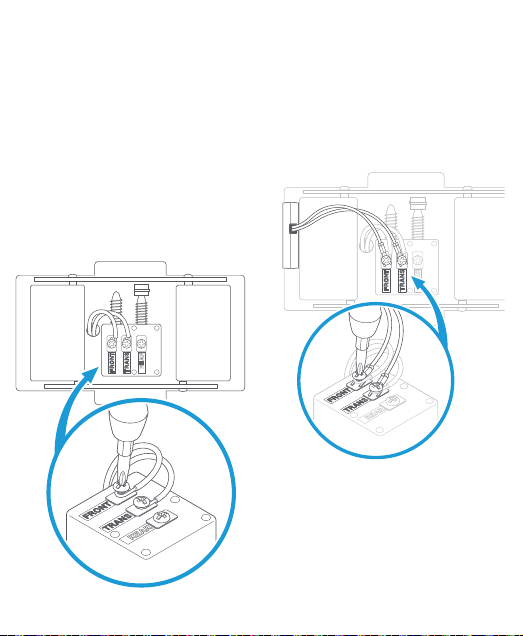

Loosen the “Front” and “Trans”
terminal screws.
Make sure to keep the existing
doorbell wires in place.
Connect the Pro Power Kit wires.
Connect one wire from the Pro
Power Kit to the “Front” terminal,
and the other to the “Trans”
terminal. It doesn’t matter which
wire you connect to which terminal.
Then re-tighten the terminal screws.
Position the Pro Power Kit
and replace the cover.
Place it within your internal
doorbell, away from any
moving parts.
8 9
Uninstall your existing
doorbell button.
Remove your doorbell from the
wall. Disconnect the wires. Make
sure they don’t fall back inside your
wall so you can access them later.
Remove the faceplate.
Grasp the bottom of the faceplate
and pull to remove.
Install the included Corner Mount.
(optional)
The Corner Mount can angle your
Ring Doorbell to improve motion
detection and provide a better view.
Mark two mounting holes on your
wall through the slots on your
Corner Mount (fig 1).
If you are replacing a Ring Doorbell,
align the two small screw holes with
two of the existing holes in your
wall (fig 2).
(Skip to page 15 if you don’t plan
on using the Corner Mount.)
fig. 1 fig. 2
10 11
Install the anchors.
(optional)
On stucco, brick, or concrete, use
a 1/4" masonry bit to drill holes in
your wall, then insert the included
wall anchors.
(If you’re installing on wood or
siding, you can skip this step.)
Screw in the Corner Mount.
Using the long mounting screws,
secure the Corner Mount to the wall
through the slots (fig. 3).
If you’re re-using existing holes,
secure it with the adjacent screw
holes (fig. 4).
fig. 3 fig. 4
3/16"
Security
screw
1-3/8" Long
mounting
screw
5/8" Short
mounting
screw
DO NOT USE any screw other than the
included long mounting screws when
securing your Ring Doorbell.
12 13
Mount your Ring Doorbell
to the Corner Mount.
Secure your Ring Doorbell to
the Corner Mount with the two
included short mounting screws.
Be sure to feed any excess wiring
back into the wall first. If you
used the wire nuts, push them
through the hole as well.
Once you’re done, skip
ahead to page 19.
Connect the doorbell wires.
Loop one doorbell wire around
each of the screw terminals on the
rear of your Ring Doorbell then
tighten the terminals to secure.
If your doorbell wires are too
short to reach your new Ring
Doorbell, you can attach the
included wire extenders using
the included wire nuts.
14 15
Mark the screw holes.
Using your Ring Doorbell as a
template, mark the location of the
two mounting holes on your wall.
3/16"
Security
screw
1-3/8" Long
mounting
screw
5/8" Short
mounting
screw
DO NOT USE any screw other than the
included short mounting screws when
securing your Ring Doorbell.
16 17
Install the anchors.
(optional)
On stucco, brick, or concrete, use
a 1/4" masonry bit to drill holes in
your wall, then insert the included
wall anchors.
(If you’re installing on wood or
siding, you can skip this step.)
Connect the doorbell wires.
Loop one doorbell wire around
each of the screw terminals on the
rear of your Ring Doorbell then
tighten the terminals to secure.
If your doorbell wires are too
short to reach your new Ring
Doorbell, you can attach the
included wire extenders using
the included wire nuts.
18 19
Restore power at the breaker.
It may take a moment for your
Ring Doorbell to power on.
You’ll know it’s ready once it
lights up and speaks to you.
Screw in your Ring Doorbell.
Mount your Ring Doorbell
with the two included long
mounting screws.
Be sure to feed any excess wiring
back into the wall first. If you
used the wire nuts, push them
through the hole as well.
3/16"
Security
screw
1-3/8" Long
mounting
screw
5/8" Short
mounting
screw
DO NOT USE any screw other than the
included long mounting screws when
securing your Ring Doorbell.
