1. Contents

2. Features

Inverter

Connecting cables

Battery clamps

Protective covers

(2000, 3000, 4000W models only)

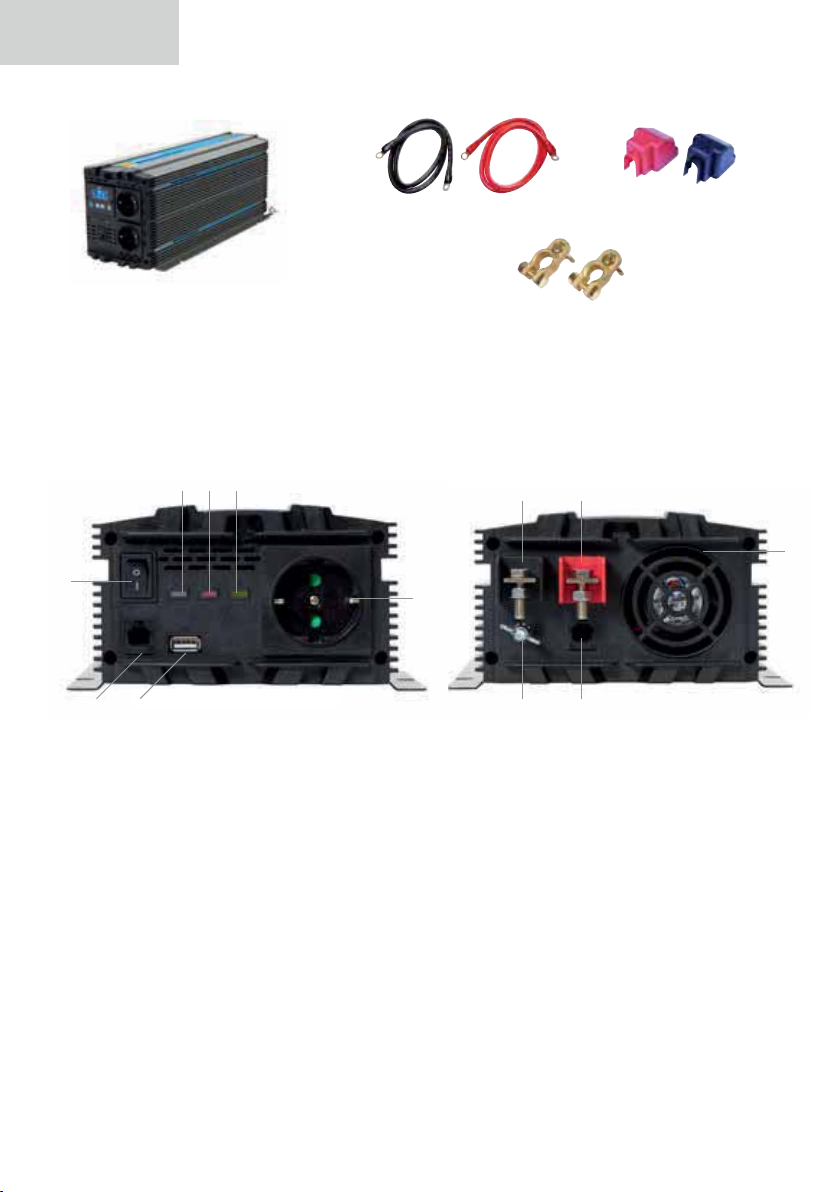

1000W Model

B- Mains 230V AC outlets(s) G- LCD display* L- Battery negative(-)

C- Power on/off switch H- USB port (2.1A)** M- Earth connection

D- Power indicator I- Display port (RJ-11)*** N- Cooling fan(s)

E- Over load indicator J- Sensor port (RJ-11)

F- Over temperature indicator K- Battery positive(+)

*Only ﬁtted on 3000/4000W models

**Only ﬁtted on 1000W models

***Display port is behind LCD display on 3000/4000W models

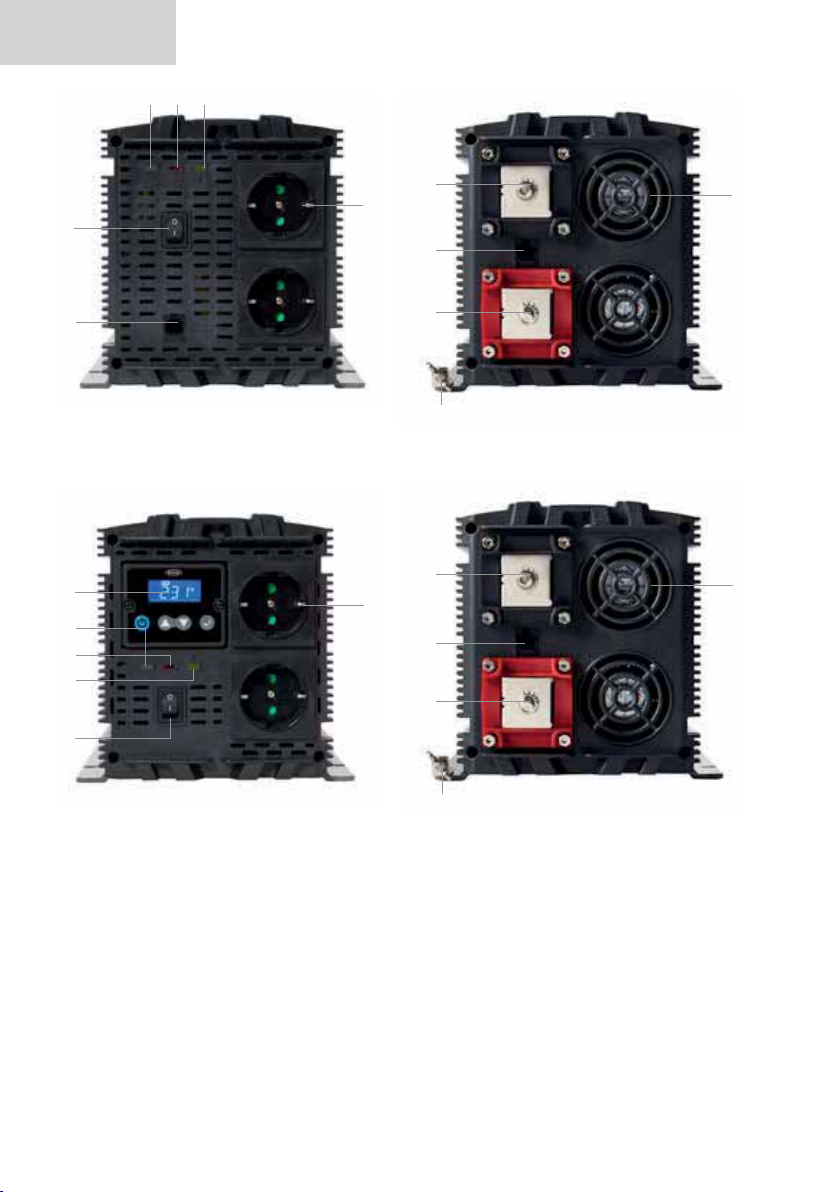

2000W Model

3000/4000W Models

4. Installation & Setup

1. Ensure that the inverter power on/off switch is in the OFF (O) position.

2. To protect inverter terminals against short circuit, protective covers should be ﬁtted where provided.

3. Attach the black (-) cable to the black (-) terminal on the rear face of the inverter and to the black (-)

terminal on the battery

4. Attach the red (+) cable to the red (+) terminal on the rear face of the inverter and to the red (+)

terminal on the battery

5. To further protect against short circuit, it is recommended an in-line fuse (F1) be ﬁtted near the

positive battery post.

5. Operation

Switching On

1. Ensure that the inverter power on/off switch is in the OFF (0) position.

2. Plug the appliance into the AC output socket on the inverter, ensuring it does not exceed the

maximum output power of the inverter

3. Turn the power on/off switch to the ON (I) position.

4. The Power indicator will illuminate green and mains power will be available from the AC output

socket(s). On models ﬁtted with a display the LCD screen will also illuminate.

3. Safety

- Installation should be carried out by a qualiﬁed electrician

- Do not expose the unit to moisture or ﬂammable materials

- Do not remove the unit cover, dangerous voltages are present

Supplied

cables

Inverter

Battery Vehicle

Chassis

Setup Mode

The inverter can be conﬁgured by entering the setup mode

To enter Setup Mode press & hold key

PressSTkeys to select item then press , chosen setting will then ﬂash

Adjust setting using STthen press to set

Press and hold key to exit back to Information Mode

Output Voltage Sets the AC output voltage. Only change if the application requires a different

voltage for optimum performance

Last Error Code Allows the last error code to be viewed

Battery Size Sets the Ah rating of the battery supplying the inverter. The value is used when

calculating input current and hours remaining in conjunction with the Current

Sensor

Setting Default

Last Error Code N/A N/A

Battery Size 90 – 540Ah

(in 30Ah steps) 90Ah

LCD display

Select key

Up/Down keys

Power On/Off

(Press and hold to turn

inverter on/off)

6. LCD Display and Indicators

Where ﬁtted the LCD display provides additional information to help monitor and manage power from

the inverter.

Information Mode

Various information modes are available by pressing ST buttons to move forward or backwards through

the screens.

DC Voltage Input voltage available from the battery supply.

DC Current Input current being used from the battery supply in order to power the load.

*The optional Current Sensor must be ﬁtted to enable measurement of

input current.

AC Voltage Output voltage available from the AC outlets.

Output Wattage Output power being consumed by the connected loads.

Hours Remaining An estimate of time remaining before the battery will be depleted based on

the current load.

*The optional Current Sensor must be ﬁtted to enable measurement of

hours remaining.

DC Voltage

DC Current

AC Voltage

Output Wattage

Hours Remaining

Indicator & Error modes

Power Illuminates green to show the unit is switched on and power is available from

the AC output socket(s)

Overload Illuminates red if the units has been overloaded due to excessive current or a

short circuit

Over Temperature Illuminates yellow if the unit has overheated

Audible Alarm An alarm sound will be heard if the unit has switched off due to a fault

Error code Description LEDs Inverter

Status Action

– Normal operation ON None

Battery low voltage

warning ON

Check for low battery voltage

Check cable connections are

not loose

Reduce load to extend

battery life

Battery low voltage

shutdown OFF Switch inverter off, recharge

battery then switch back on

Battery high voltage

shutdown OFF

Check battery voltage is

correct for inverter model e.g.

24volt battery for a 24volt

inverter

Overload shutdown OFF

Total load exceeded

continuous rating

Startup current exceeded

surge rating

Appliance short circuit fault

Over temperature

shutdown OFF

Check for adequate

ventilation around inverter

Check inverter cooling fans

are working

7. Speciﬁcations

Part No.

REINVMA10 REINVMB10 REINVMA20 REINVMB20

REINVMA30 REINVMA40

Voltage 12V 24V 12V 24V 12V 12V

Cont Power Rating

(up to 12 hrs) 1000 watts 2000 watts 3000 watts 4000 watts

Peak Power Rating

(up to 200ms) 2000 watts 4000 watts 6000 watts 8000 watts

Output Voltage 230V AC ±10% 230V AC ±10% 230V AC ±10%% 230V AC ±10%

Output Frequency 50Hz 50Hz 50Hz 50Hz

Output Waveform Modiﬁed Sine Wave Modiﬁed Sine Wave Modiﬁed Sine Wave Modiﬁed Sine Wave

Input Voltage Range 10V - 16V

(12V nom)

20V - 32V

(24V nom)

10V - 16V

(12V nom)

20V - 32V

(24V nom)

10V - 16V

(12V nom)

10V - 16V

12V nom)

Input Current 98amps

(max)

49amps

(max)

196amps

(max) 98amps 294amps (max) 392amps (max)

Efﬁciency @ 75%

load (max) 89% 89% 89% 89%

No Load Current < 0.7amp <0.45amp < 0.80amp <0.55amp <0.90amp < 1.0amp

Low Battery Alarm 10.5V

±0.5 volt

21.0V

±0.5 volt

10.5V

±0.5 volt

21.0V

±0.5 volt

10.5V

±0.5 volt

10.5V

±0.5 volt

Low Battery

Shutdown

10.0V

±0.5 volt

20.0V

±0.5 volt

10.0V

±0.5 volt

20.0V

±0.5 volt

10.0V

±0.5 volt

10.0V

±0.5 volt

Thermal Protection 60 ± 10°C 60 ± 10°C 60 ± 10°C 60 ± 10°C

USB Port 2.1amp No No No

Display Panel Port Yes Yes Yes Yes

Current Sensor Port Yes Yes Yes Yes

Dimensions (LxWxH) 340 x 170 x 81.5 340 x 170 x 162 400 x 170 x 162 460 x 170 x 162

Weight 2.7kg 4.6kg 5.7kg 7.0kg

Optional Parts

LCD Display & Frame

Kit RINVLCD RINVLCD N/A N/A

LCD Frame Kit N/A N/A RINVFRM RINVFRM

Current Sensor

Module RINVCM RINVCM RINVCM RINVCM

1. Contenu

2. Fonctionnalités

Onduleur

Câbles de branchement

Pinces de batterie

Couvercles de protection

(modèles 2000, 3000,

4000W uniquement)

Modèle 1000W

B- Prise(s) de secteur c.a. 230V G- ÉcranLCD* L- Plot négatif (-) de batterie

C- Interrupteur marche/arrêt H- Port USB (2,1A)** M- Raccordement à la terre

D- Témoin d’alimentation I- Port d’afﬁchage (RJ-11)*** N- Ventilateur(s) de refroidissement

E- Témoin de surcharge J- Port de capteur (RJ-11)

F- Témoin de surchauffe K- Plot positif (+) de batterie

*Uniquement sur les modèles 3000/4000W

**Uniquement sur les modèles 1000W

***Le port d’afﬁchage se situe derrière l’écran LCD sur les modèles 3000/4000W

Modèle 2000W

Modèles 3000/4000W
