WatchIN

Industrial Grade 3 Detector

Dual Technology Industrial Detector

Rivelatore Industriale a Doppia Tecnologia

Detector Industrial de Doble Tecnología

Détecteur Industriel à Double Technologie

Detector Industrial de Tecnologia Dupla

Model: RK325DT

Installation Instructions - Relay & BUS Modes

Istruzioni per l’installazione in modalità Relé e BUS

Instrucciones de Instalación - Modos Relé y BUS

Guide d'installation - Modes Relais et BUS

Instruções de Instalação - Modos Relé & BUS

2 WatchIN Installation Manual

WatchIN Installation Manual 3

English

Table of Contents

Relay Mode Installation ............................................................................................................... 4

Introduction ................................................................................................................................. 4

Mounting ..................................................................................................................................... 4

Mounting Considerations ........................................................................................................ 4

Wall Mount Installation............................................................................................................ 5

Flat Mounting: ......................................................................................................................... 5

45° angle Mounting (Left side mounting) ................................................................................ 5

Changing Back Tamper position ............................................................................................ 6

Terminal Wiring ........................................................................................................................... 6

DIP Switch Settings ..................................................................................................................... 7

Microwave Adjustment ................................................................................................................ 7

Walk test ..................................................................................................................................... 7

LEDs Display ............................................................................................................................... 8

Relay Mode / BUS Mode Jumper ................................................................................................ 8

TRIPLE EOL Jumpers ................................................................................................................. 9

Standard Swivel Installation ...................................................................................................... 10

Wall Mounting ....................................................................................................................... 10

Replacing Lenses ...................................................................................................................... 12

Lens Types ........................................................................................................................... 13

Technical Specification ............................................................................................................. 15

Ordering Information ................................................................................................................. 15

BUS Mode Installation ............................................................................................................... 16

Introduction ............................................................................................................................... 16

Terminal Wiring ......................................................................................................................... 16

Cover and Back Tamper ....................................................................................................... 16

Cover Tamper Only .............................................................................................................. 16

Cover Tamper to Zone Input................................................................................................. 16

DIP Switch Settings ................................................................................................................... 17

ProSYS Programming (from ProSYS software version 7.xx and above) .................................. 17

Adding / Deleting the WatchIN DT ........................................................................................ 17

Configuring the WatchIN DT Parameters ............................................................................. 18

System Parameters ................................................................................................................... 20

4 WatchIN Installation Manual

Relay Mode Installation

Introduction

RISCO Group's Dual Technology Grade 3 Industrial detector, WatchIN, is a unique detector with

signal processing based on two Passive Infrared (PIR) channels and two Microwave (MW)

channels. The detector can operate as a regular relay detector connected to any control panel, or

as a BUS accessory when connected to RISCO Group's ProSYS control panel via the RS485

BUS, thus having unique remote control and diagnostic capabilities.

The instructions describe herein, describe the WatchIN in Relay & BUS mode. For detailed

information regarding BUS mode installation, refer to BUS Mode installation chapter, page 16.

Mounting

Mounting Considerations

WatchIN Detector -

Optional Installation

Height:

2.4m – 3.7m

(7'10"-12'2")

Typical Height: 2.4m (7'10")

Default Lens: Wide angle 25m (88') 90°

(RL325)

2.4m

(7'10")

25m (88')

For optimum detection, select a location that is likely to intercept an intruder moving across

the coverage pattern at a 45° trajectory.

WatchIN Installation Manual 5

English

Wall Mount Installation

Note:

The installation knockouts numbering are marked on

the back plate.

1. Open WatchIN front cover

(unlock C1, Figure 1).

2. Release internal base (unlock I1, Figure 2).

3. Select mounting installation as follows:

Flat Mounting:

Open knockouts on external base (Figure 3).

 B1 - B4: Wall mounting knockouts

 T1: Back tamper knockout

 W2 / W3: Wires entry knockouts

45° angle Mounting (Left side

mounting):

a. Open knockouts on external base

(Figure 3)

 L1, L2: Left mounting knockouts

 T3: Left tamper knockout

 W5 / W6: Wire entry knockouts

b. Remove tamper spring

c. Replace tamper bracket (Item 1) with

supplied flat tamper bracket (Item 2).

Item 1

Item 2

d. Insert Tamper lever B onto T5 and T3

and secure screw A (Figure 3)

4. Insert external wires through external base

W2, W3 (Flat Mounting) or W5, W6 (Left

side mounting) (Figure 3).

5. Secure external base to the wall.

6. Insert external wires and tamper wires

through internal base (Figure 4).

7. Secure internal base to external base (lock

I1, Figure 2).

8. Close the front cover (Lock C1, Figure 1)

after wiring and setting DIP switches.

9. Walk test the detector.

Figure 1

Figure 2

Figure 3

Tamper

Lever

(not visible)

Figure 4

Note:

For 45° right side installation use the equivalent units on the external base as follows:

Knockouts Description Left Right

Mountin

Knockouts L1, L2 R1, R2

Tam

er s

rin

knockouts T1, T3 T2, T4

Tamper screw anchor T5 T6

Wiring Knockouts W5, W6 W7, W8

6 WatchIN Installation Manual

Changing Back Tamper position

The back tamper is by default secured on the right

side of the internal base (Rear view). If you wish to

move it to the left side (rear view), do the following

(Figure 5):

1. Remove tamper screw 1 in order to release the

tamper from position 7.

2. Ensure tamper spring 2 rests over tamper wire

base 4.

3. Ensure plastic tamper bracket 3 rests over both

2 and 4.

4. Secure tamper screw 1 into 3 over position 6.

Figure 5

Left Side

Tamper

Right Side

Tamper

Notes:

1. Verify that you hear a "Click" when attaching the tamper spring to the wall.

2. For pole installation, the tamper can be moved to the bottom right-hand side of the internal base.

Terminal Wiring

+-SET/

UNSET

TAMPER

FREE

(YEL)

12VDC

N.C. WatchIN - PCB

N.O . COM N.C. FREE

(GRN)

LED

ENBL TEST

N.O. N.C. N.C.

+,- 12 VDC

N.O Form C relay, 30VDC 1A

NORMAL

N.O COM N.C

ALARM

N.C

COM

N.O

COM

N.C

FREE YEL This terminal is a free pin that can be used to connect wires and EOL resistors

TAMPER N.C relay, 24VDC , 0.1A

FREE GRN This terminal is a free pin that can be used to connect wires and EOL resistors

AM Normally closed AM relay output (24VDC, 0.1A) indicates Anti Masking alarm or

any trouble in the detector.

Note:

When a vibration detector is installed and DIP 8 is defined as Enabled this relay also opens

momentarily when vibration event occurs.

LED ENBL Used to remotely control the LEDs when DIP 1 is set to ON.

Enable: input is +12V OR no terminal connection

Disable: Connect the input to 0V

TEST Used to perform remote alarm testing to the detector by applying 0 volts to this

terminal.

Success: Alarm relay is momentary opened

Failure: AM relay is opened

WatchIN Installation Manual 7

English

SET/

UNSET

This input enables to control Anti-masking and LEDs operation in accordance to

the system status, Set (Arm) / Unset (Disarm).

While the system is armed, this feature prevents an intruder from gaining

knowledge of the detector’s status and disables Anti-masking detection.

System Status Input Status

M Relay LEDs

Set (Arm) 0V Of

Unset (Disarm) 12V or no connection On* On**

* DIP 7 is ON (Anti masking enabled)

** DIP 1 is ON (LEDs enabled) and LEDs ENABLE input terminal is enabled

(+12V OR no terminal connection)

DIP Switch Settings

12345678

ON Factory

Default

910

DIP 1: LEDs operation

On: LEDs Enabled

Off: LEDs Disabled

DIP 2-3: Detection Sensitivity

Sensitivit

DIP2 DIP3

Low Off Off

Mid Off On

Normal

(

Default

)

On Off

ACT(Anti-Cloak™

Technolo

gy)

On On

DIP 4: Alarm condition

On: PIR or MW

Off: PIR + MW

DIP 5: Detector's optics

On: Barrier

Off: Wide angle

DIP 6: Red LED /3 LED

On: Red LED only

Off: 3 LEDs

DIP 7: Anti masking operation

On: Enabled

Off: Disabled

DIP 8: Vibration detection (applicable to versions

with Vibration sensor installed)

On: Enabled

Off: Disabled

DIP 9: Sway recognition Enable/Disable

On: Enabled

Off: Disabled

DIP 10: Green line

On: MW Off during Disarm (unset)

Off: MW On during Disarm (unset)

Note:

Green line is valid when connecting wire from the panel

output (arm follow) to the detector set/unset input.

Microwave Adjustment

Adjust Microwave coverage area by using the trimmer on the PCB.

MIN MAX

Walk test

Two minutes after applying power, walk test the protected area to

verify proper operation.

For installations on uneven surfaces slide the PCB inside the internal

base to the appropriate setting according to the desired height (2.4m,

3.0m, 3.7m) as printed on the bottom left corner of the PCB or use

the standard swivel accessory.

For reducing the detection range, slide the PCB up or tilt the swivel

down.

2.40M

3.00M

3.70M

8 WatchIN Installation Manual

LEDs Display

LED State Description

YELLOW Steady Indicates PIR detection

Flashing Indicates AM (Anti mask) detection

GREEN Steady Indicates MW detection

RED Steady Indicates ALARM

Flashing Indicates malfunctioned communication with ProSYS (BUS

mode only)

All LEDs Flashing (One after

another)

Unit initialization on power up

Notes:

1. DIP-Switch 1 should be in ON position to enable LED indications.

2. Only one LED is active at any one time. For example, in the case of both PIR and MW detection, either the

steady YELLOW LED or the steady GREEN LED is displayed (the first to detect), followed by the Alarm RED

LED.

Relay Mode / BUS Mode Jumper

J-BUS jumper (located on the PCB between the red and green LEDs)

is used to define the detector’s mode of operation as follows:

Relay

Mode

BUS

Mode

WatchIN Installation Manual 9

English

TRIPLE EOL Jumpers

TRIPLE

EOL Jumpers

TAMP ER E OL

ALARM EOL

2.2K

4.7K

6.8K

5.6K

AM EOL

12K

SHORT AM

Jumpers J4 and J5 allow the selection of Tamper

and Alarm resistance (1K, 2.2K, 4.7K, 5.6K, 6.8K)

according to the control panel (see Figure 6

below). Jumper J6 allows the selection of 12K for

Anti-Mask.

Follow the terminal block connection diagram in

Figure 6 when connecting the detector to a

Double/Triple End Of Line (DEOL/TEOL) Zone.

TAMPER EOL (J4) ALARM EOL (J5)

M EOL (J6)

No Resistor

(Factory Settings)

TAMPER EOL

JUMPERS

2.2K

4.7K

5.6K

6.8K

ALARM EOL

JUMPERS

No Resistor

(Factory Settings)

2.2K

4.7K

5.6K

6.8K

EOL

JUMPERS

12K

Open

SHORT AM

Short

Figure 6

10 WatchIN Installation Manual

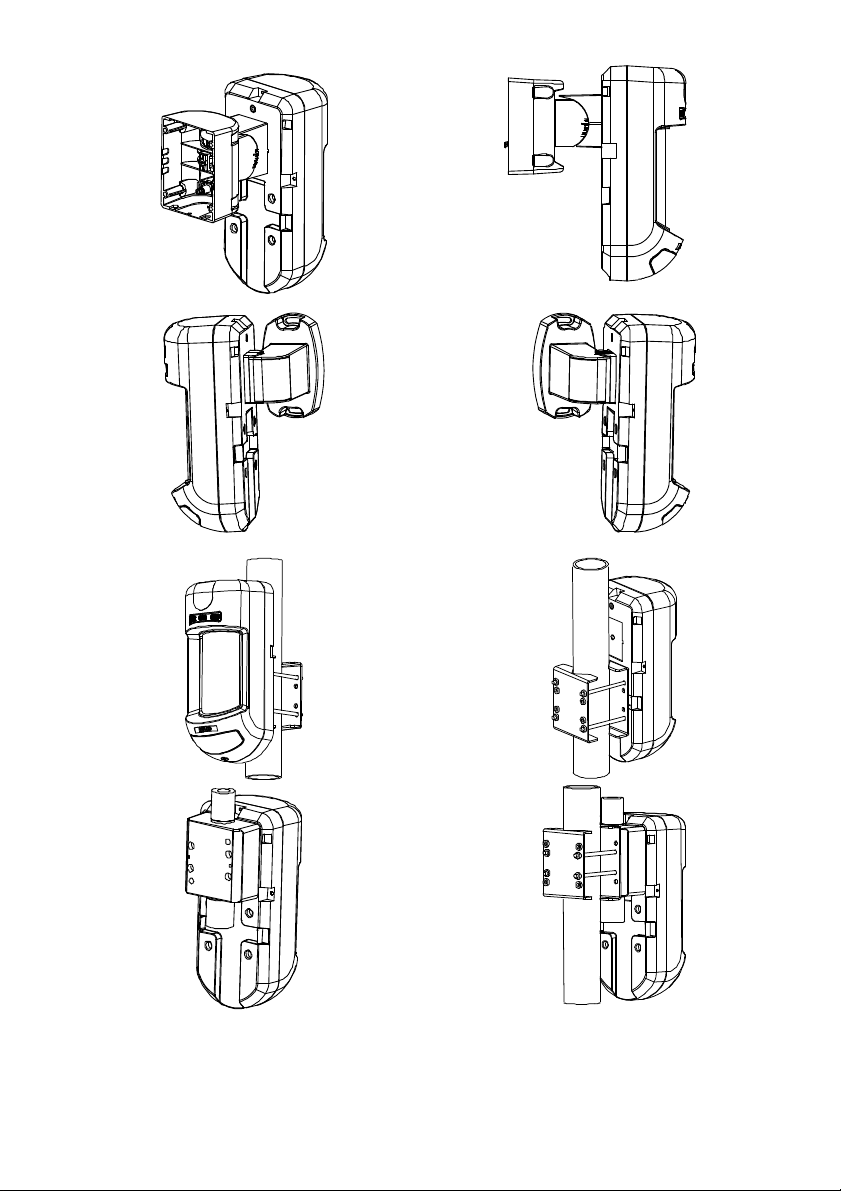

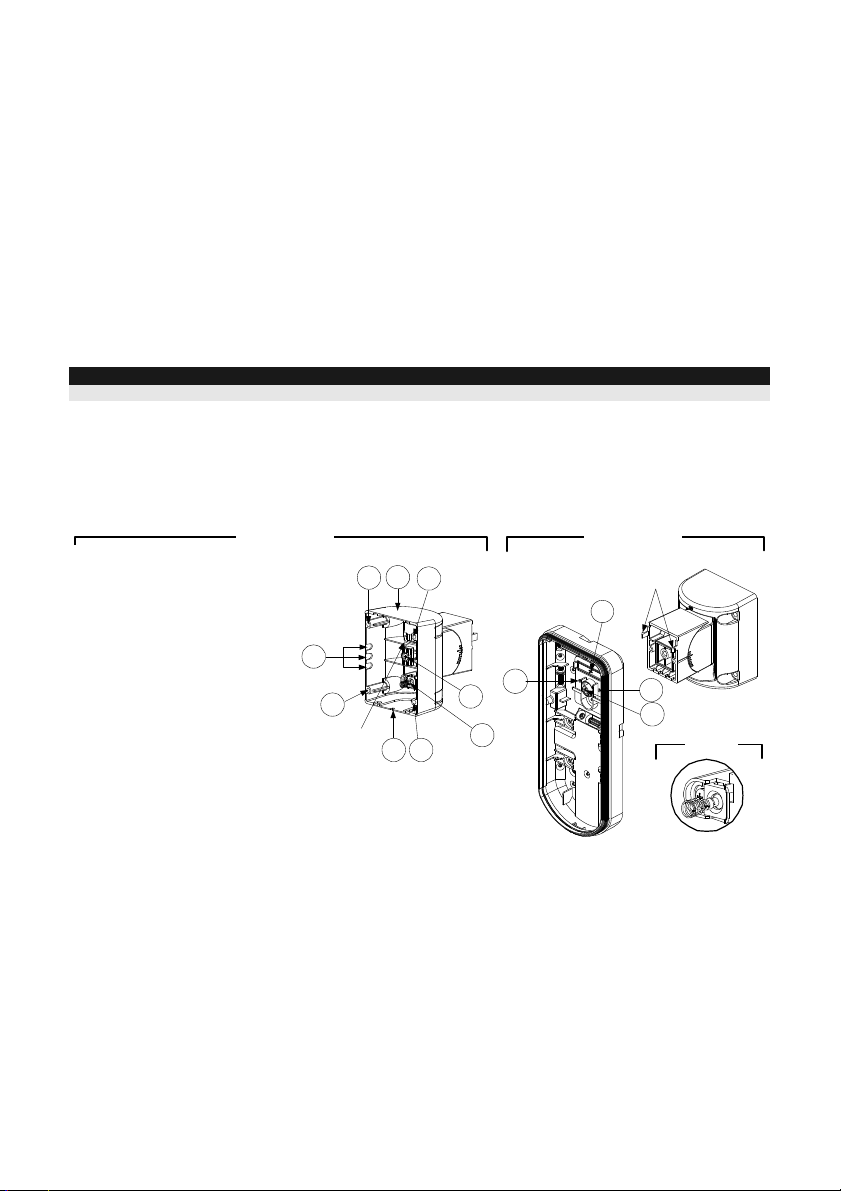

Standard Swivel Installation

The WatchIN detector package contains a standard swivel for flexible installation. Please follow

the instructions below for mounting the detector with the Standard Swivel:

1. Open WatchIN front cover (Unlock C1, Figure1).

2. Release internal base (Unlock I1, Figure2).

3. Open knockouts on external base (Figure 7, Detail B)

 W1: Wires knockout

 S1,S2: Knockouts for securing external base to Standard Swivel

 S3: External base locking screw knockout

4. On the swivel accessory remove the required swivel cable wiring knockout S2, S7 or S9

(Figure 7, Detail A).

5. Remove back tamper from the internal base (see “Changing Back Tamper Position"

paragraph) and connect it to S5 (Figure 7, Detail A) on the Standard Swivel.

Note:

Ensure that you see the engraved UP mark on the upper front face of the swivel.

6. Select the mounting installation type as follows:

Wall Mounting

a. Insert external cable wiring through knockouts S2, S7 or S9 and extract them (including the

tamper wires) through the Swivel Wires Passage (Figure 7, Detail B).

b. Secure swivel to the wall through holes S1, S3, S6 and S8.

S1 S2 S3

S7 S6

Tamper

(see Detail C)

Swivel Wires

Passage

Tamper

Spring

Holes

Ø 21 mm

Ø 16 mm

CSMA

Detail ADetail B

Snaps

Standard Swivel

Detail C

Figure 7

c. Secure swivel to the wall through holes S1, S3, S6 and S8.

7. Insert tamper wires and external cable wiring from Standard Swivel through knockout W1 on

the external base (Figure 7, Detail B).

8. Connect the external base to the swivel using the dedicated snaps (Figure 8).

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Risco Sensore di sicurezza

Risco

Risco DigiSense Digi-412DTPT Manuale utente

Risco

Risco BWare RK515DTGL Manuale utente

Risco

Risco Digi-415DT Manuale utente

Risco

Risco WatchIN 325DT Manuale utente

Risco

Risco WL T6S Manuale utente

Risco

Risco iWave RWX95 Manuale utente

Risco

Risco iWAVE T95 Manuale utente

Risco

Risco ShockTec Plus Grade 3 Manuale utente

Risco

Risco Wireless ViTRON Manuale utente

Risco

Risco Wirless WatchOUT RWX312PR800C Manuale utente

Risco

Risco iWave RWX95 Manuale utente

Risco

Risco EL-5835D Manuale utente

Risco

Risco Wireless VITRON RWT6G Manuale utente

Risco

Risco WatchOUT Manuale utente

Risco

Risco iWISE QUAD AM Grade 3 Manuale utente

Risco

Risco BWare RK500Q Manuale utente

Risco

Risco iWave DT Pet Series Manuale utente

Risco

Risco Industrial LuNAR RK200DTG3 Manuale utente

Risco

Risco ViTRON RWT6G Manuale utente

Risco

Risco WatchU Manuale utente

Risco

Risco Wireless WatchOUT PIR 868 Manuale utente

Risco

Risco Bware RWX515PR Manuale utente

Risco

Risco WarchIN RK325DT Manuale utente

Risco

Risco WiComm Pro Manuale di istruzioni

Manuali Sensore di sicurezza popolari di altre marche

THORLABS

THORLABS PDA10JT Manuale utente

Waeco

Waeco UV-DETECT Manuale utente

Intermatic

Intermatic IOS-DSIMF Manuale utente

urmet domus

urmet domus 1083 Manuale utente

Siemens

Siemens AZL66 Series Manuale utente

BTI

BTI Profiline Multi Finder Manuale utente

Challenger

Challenger SL01 Manuale utente

DMP Electronics

DMP Electronics 1122INT Manuale utente

Rielta

Rielta Ladoga MK-RK Manuale utente

Mirion Technologies

Mirion Technologies ACCURAD PRD Manuale utente

Bosch

Bosch DS835 Manuale utente

DBI SALA

DBI SALA EZ Stop Manuale dell'operatore

Lamptime

Lamptime ST05C Manuale utente

Ubiquiti

Ubiquiti MFI-MSC Manuale utente

Subsite

Subsite 910R Istruzioni per l'installazione

Satel

Satel OPAL Pro Manuale utente

Aleph

Aleph XC-1XTEU Manuale utente

Pima

Pima LARIS QUAD Manuale utente
