Rittal DK 5502.100 Manuale utente
Kabelkanal
Cable duct
Goulotte de câbles
Montageanleitung
Assembly instructions
Notice de montage
DK 5502.100
DK 5502.101
DK 5502.102

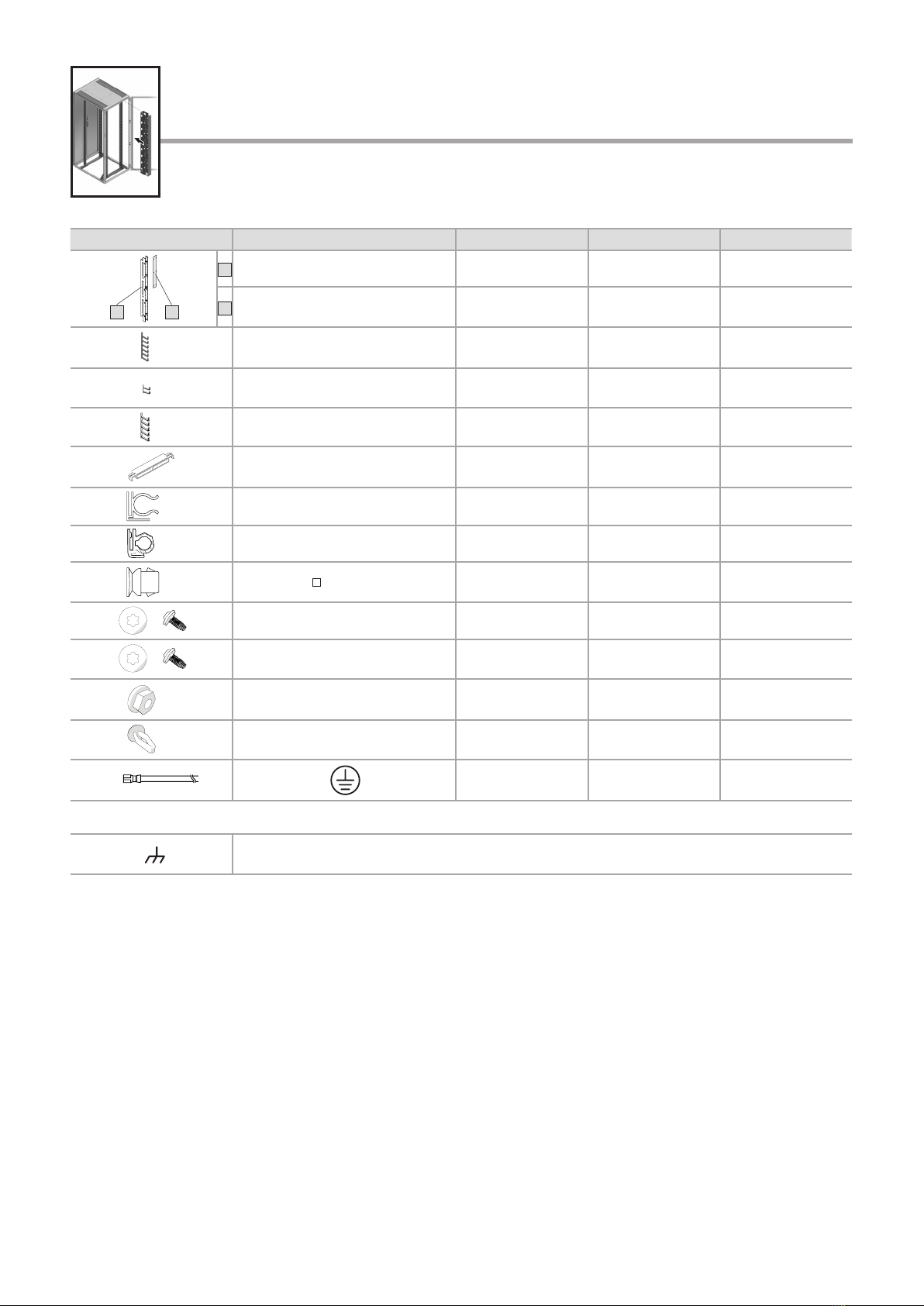

5502.100 (38 HE/U/U) 5502.101 (42 HE/U/U) 5502.102 (47 HE/U/U)
1 x 1 x 1 x
2 x 2 x 2 x
6 HE/U/U 12 x 14 x 14 x
2 HE/U/U 2 x -- --
5 HE/U/U -- -- 2 x
10 x 10 x 10 x
6 x 6 x 6 x
6 x 6 x 6 x
10,5 x 12,5 4 x 4 x 4 x
M 5 x 12 TX25 8 x 8 x 8 x
M 6 x 10 TX30 4 x 4 x 4 x
M 6 4 x 4 x 4 x
4 x 4 x 4 x
2 x 2 x 2 x
Potenzialausgleich
Potential equalisation
Équipotentialité
B
A
A
B
4 x 4x
MA= 5 Nm / M 5x12 TX25
Alternative
TX25
F
R
ABC
4 x
4x
MA= 5 Nm / M 5x12 TX25
Alternative
A/C
F
B/D
TS IT
19"-Montagerahmen vorne
19" mounting frame, front
Cadre de montage 19" avant
19"-Profilschienen an Tiefenstrebe vorne
19" mounting angles on depth stay, front
Montants 19" sur traverse latérale avant
19"-Montagerahmen hinten
19" mounting frame, rear
Cadre de montage 19" arrière
R
D
19"-Profilschienen an Tiefenstrebe hinten
19" mounting angles on depth stay, rear
Montants 19" sur traverse latérale arrière
10,5 x 12,5
10,5 x 12,5
4x 4x
MA= 5 Nm / M 5x12 TX25
Alternative
TX30
E
EF
F
4x
MA= 5 Nm / M 6x10 TX30
4x
TE 8000 / Data Rack
10,5 x 12,5
&DWDORJXH
Best.-Nr. / Model No. / Référence VE (St.) / Packs of / UE (p.)
7844.305 3 x 3 HE/U/U
Best.-Nr. / Model No. / Référence VE (St.) / Packs of / UE (p.)
5502.255 1 x 1 HE/U/U
Best.-Nr. / Model No. / Référence VE (St.) / Packs of / UE (p.)
5502.103 1
Optional: Abdeckung / Kabelführung / Luftführung
Optional: Cover / Cable routing / Air routing
En option : capot / guide-câbles / guidage de l'air
TS IT mit Montagerahmen / TS IT with mounting frame / TS IT avec cadre de montage
◾ Enclosures
◾ Power Distribution
◾ Climate Control
◾ IT Infrastructure
◾ Software & Services
www.rittal.com/contact
You can find the contact details of all
Rittal companies throughout the world here.
RITTAL GmbH & Co. KG
Postfach 1662 · D-35726 Herborn
Phone +49(0)2772 505-0 · Fax +49(0)2772 505-2319
11.2017/338020/D-0000-00001204REV00
