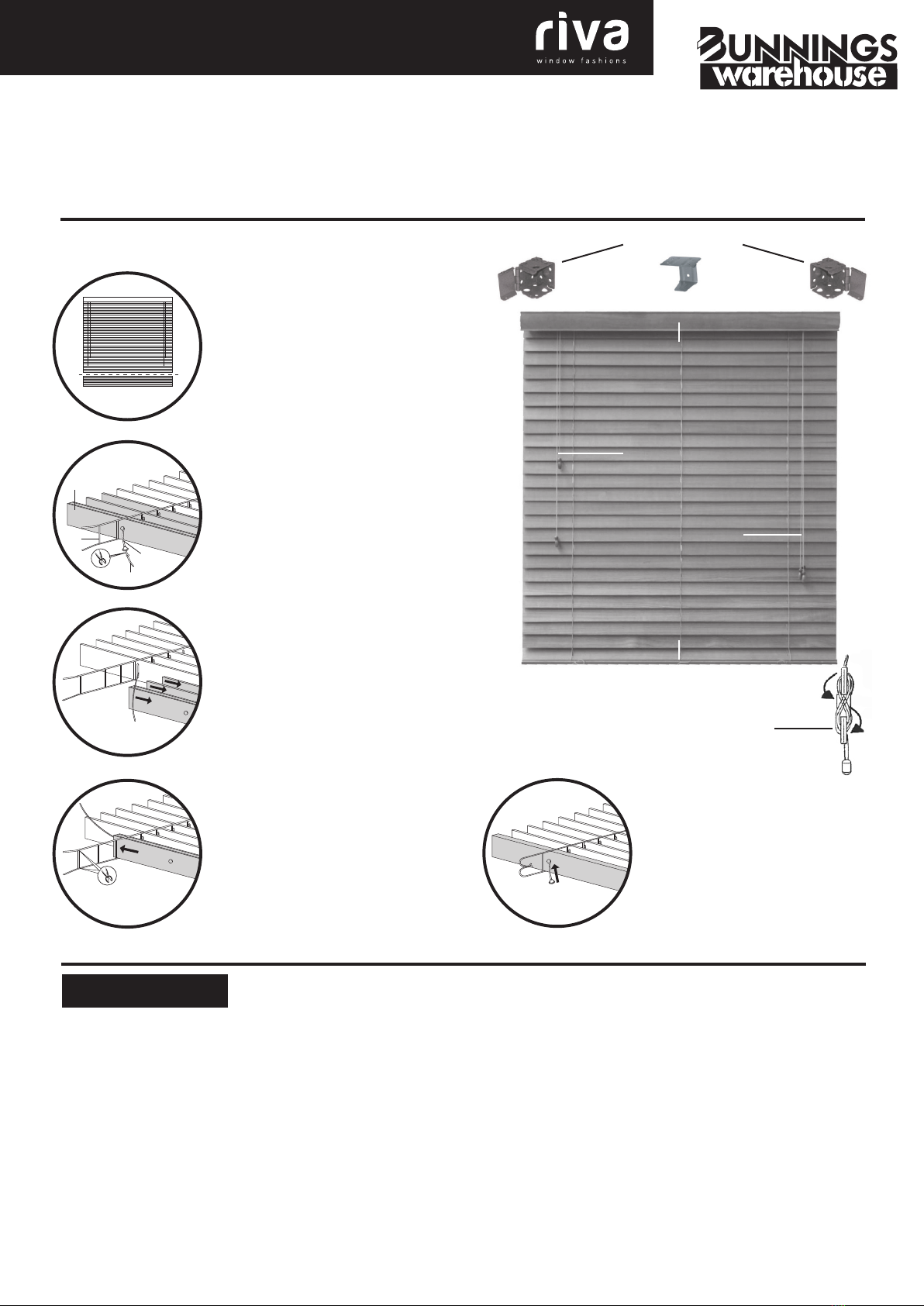

WARNING:
TILT CORD
BOTTOM RAIL
END BRACKETS
CENTRE BRACKET
PULL CORD
VALANCE
(Timber ventians only)
CHILD SAFETY
CORD CLEAT
Tilt Cord Slat Venetians
Installation Instructions
SHORTEN YOUR VENETIANS
If the blind is too long, it can be shortened.
To this with the blind in place and slats in a
level position. Count and mark the amount
of excess slats to be removed.
amount to be shortened
bottom
rail
ladder
tape
ladder caps
lift cord
Remove ladder caps from the bottom rail
with a small flat screwdriver being careful
not to damage rail. Cut the knots from the
lift cords.
Remove the bottom rail and excess slats by
first pulling the lift cords up through the slats
to be removed and sliding slats out of the
ladder tape.
Replace the bottom rail into the
ladder tape at the desired height
allowing one blank ladder rung to
remain between the last slat and the
bottom rail. This is necessary to allow
the last slat to tilt properly.
Re-insert the lift cords into the holes in
the bottom rail. Cut the excess
ladder tapes allowing approximately
12mm of excess tape to remain.
Thread the lift cords through the
ladder caps and tie knots to hold
them. Cut the excess cord. Push the
excess ladder tape into the holes in
the bottom rail. Replace the ladder
caps into the bottom rail.
To avoid creating a possible strangulation hazard for children, the corded internal window covering must
be installed in such a way that loose cord or ball chain cannot form a loop 220mm or longer as measured
along the perimeter of the cord. It should be secured at a height of more than 1600mm above floor level to
ensure child safety.
A cord or ball chain guide may be installed lower than 1600mm above floor level, if the cord or ball chain is
sufficiently secured or tensioned to prevent a loop of 220mm or longer being formed. If the cord or ball
chain guide is installed lower than 1600mm above floor level, it must be installed so as to:
A. prevent a child from being able to remove the cord or ball chain and;
B. prevent a loop of 220mm or longer from being formed.
If a cleat is used to secure the cord or ball chain, it must be at least 1600mm above floor level because a
child is capable of unwinding cord or ball chain from a cleat.
Timber Venetians
ITEM NO 0734
OPERATION
CHILD SAFETY
CORD CLEAT

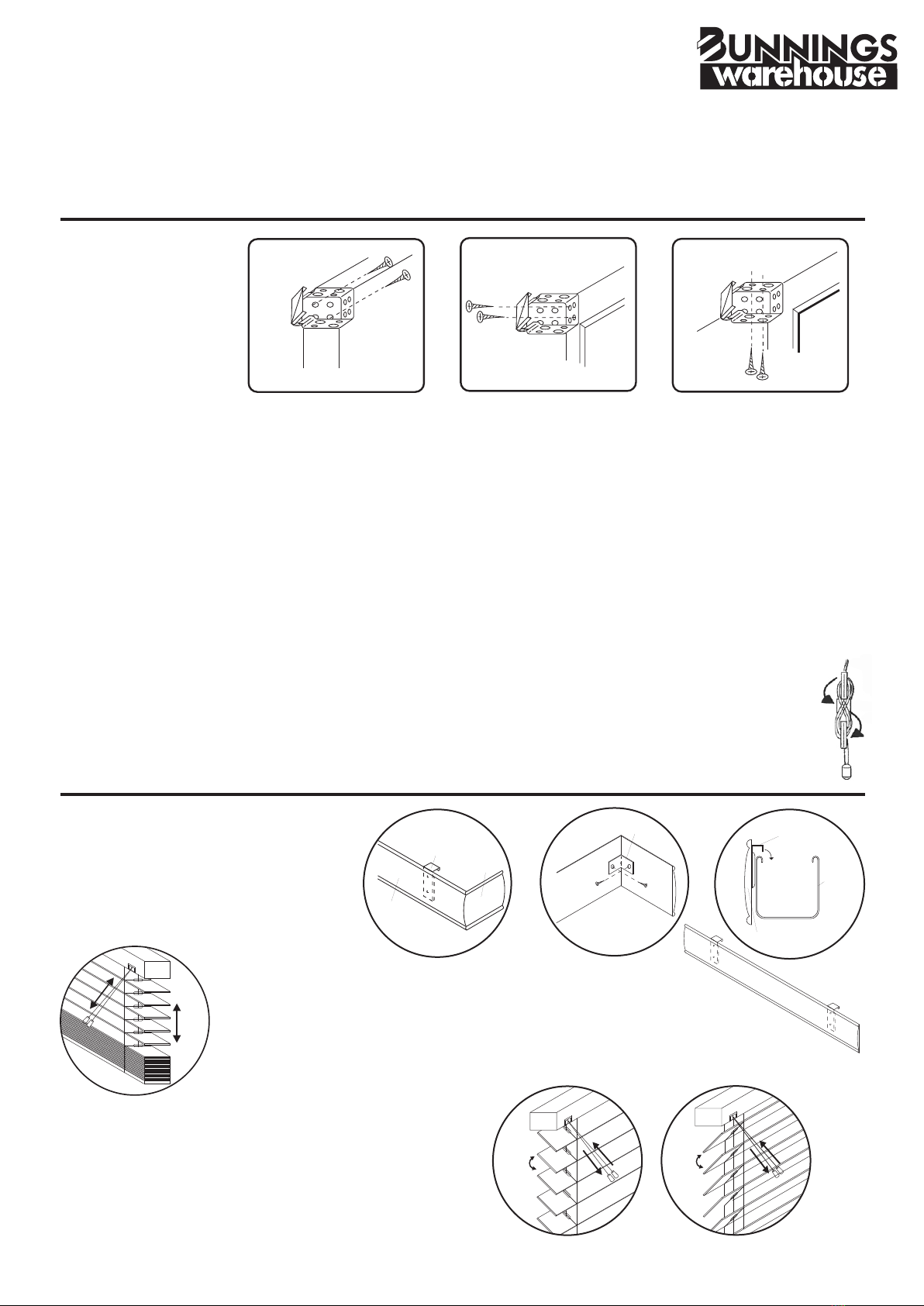

INSTALLING
A B C
A. Inside mounting to the
inside or between the sides
of window frame.
B. Outside mounting to the
face or outside the window
frame.
C. Ceiling mounting overhead
to a surface such as the top
inside of window frame or the
ceiling.
STEP 2. Measure where you want the blind to hang, make sure that the blind is centred and level.
Hold one bracket (large hole faces to the floor) at desired height and width you have chosen and
mark the screw holes with a pencil.
STEP 3. Drill pilot holes where you marked the screw holes. Use a screwdriver to attach the brackets
to the wall or roof using the necessary screws.
STEP 4. After the first bracket is mounted, carefully position and attach the second bracket. Double
check to be sure that it is level and aligned with the first bracket and that both are the correct
distance apart.
STEP 5. Pick up the blind and slide the head rail into the brackets. Make sure that the blind cord and
the tilt cord collar face toward you. Mark and fix centre bracket (if necessary) and close the front
cap on each bracket.
STEP 6. Attach Child Safety Cord Cleat where required to prevent tangling
or child strangulation.
STEP 1. Select
the method of
mounting that
best suits your
purpose
(A, B or C).
LOWERING: Pull cord downward until blind reaches desired
height and release the cord; blind will lock automatically.
RAISING: Hold cord at eye level and move to left gently until cord
lock releases. Allow cord to slip through fingers until blind reaches
desired level. Move pull cord to the right and release, blind will
lock automatically.
TILTING: For tilting the angle of the slats, pull either of
the tilt cords to adjust the amount of light or privacy
required.
Always tilt slats horizontally before raising or lowering
the blind to increase the life of your venetian.
ALL FITTINGS INCLUDED
VALANCE: After your blind has been
installed, attach brackets and
returns (included), to the valance
and hook brackets over the head
rail. Note: Return is supplied only for
Face Fix. Recess fix has no return.
Bracket
Return
Valance
Return Bracket
Valance
Valance
Bracket
Head Rail
