Riverlea Smartstore SS2020 Manuale utente

ASSEMBLY INSTRUCTIONS

SS2020

BASE SIZE: 2.020m x 2.020m

BEFORE YOU START:

 Read all instructions carefully

 Identify all parts and check quantities against parts list

 Select a level site

 Do not mark cladding with pencil as lead can cause corrosion to cladding

SAFETY:

 Do not attempt to build your shed in high winds

 Beware of sharp edges, recommend use of gloves

 Protect your eyes and ears

 For ease of assembly, use a friend to help

TOOLS REQUIRED:

WARRANTY REQUIREMENTS:

Following are the minimum requirements for cladding used in Smartstore Sheds.

 Wash all surfaces annually using a hose and soft nylon brush.

 Within 2 km of coast – wash every 3 months as above. After a storm, wash the cladding and the gutters as soon

as possible to remove any highly corrosive salt deposits.

 Volcanic Ash Fallout – wash as soon as possible, removing fall out from roof and gutters.

 Do not allow manures, chemicals or other corrosive materials to have direct contact with cladding.

DRILL RIVETER PHILLIPS DRILL BIT 3.5mm DRILL BIT

HAMMER

LADDER

TAPE MEASURE PEN

NAIL PUNCH

CONGRATULATIONS ON PURCHASING A DURATUF SMARTSTORE SHED.

BEFORE YOU BEGIN THE ASSEMBLY PLEASE NOTE SOME IMPORTANT POINTS

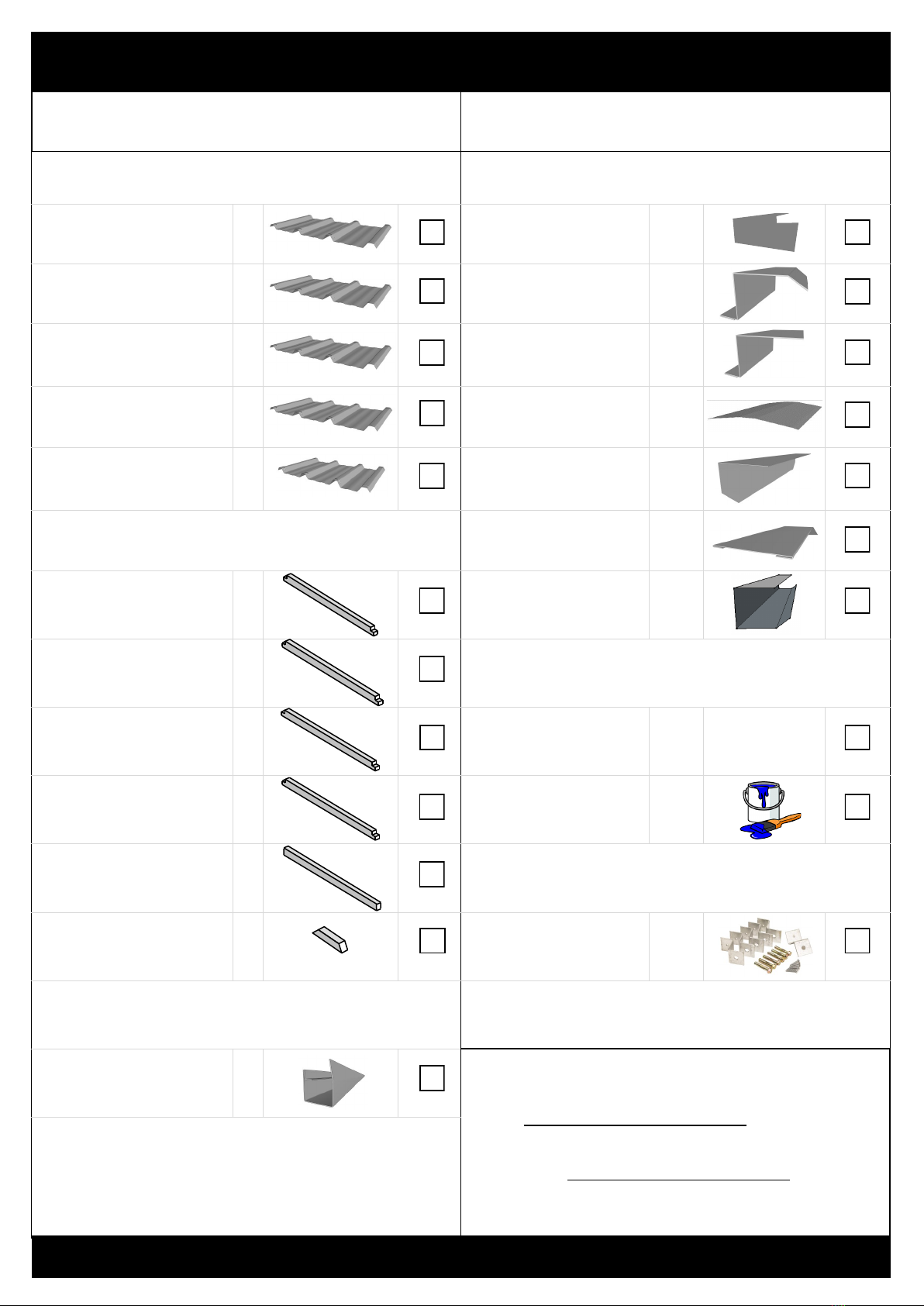

GCSS2020 PARTS LIST

DESCRIPTION QTY DIAGRAM DESCRIPTION QTY DIAGRAM

CLADDING FLASHINGS

Front/Back Wall

1.850 m 6

Door Side

1.810 m 2

Gable Wall Angled

1.880 m (Measurement along

centre of sheet)

Door Jamb

1.850 m 2

Gable Wall Angled

1.940 m (Measurement along

centre of sheet)

Door Brace

1.255 m 2

Roof

2.200 m 4

Ridge Flashing

2.050 m 1

Door 3/4 Sheet

1.810 m 2

Barge

1.100 m 4

TIMBER

Padbolt Support

0.140 m 1

Bottom Plates - H4 (Green)

Front/Back

2.020 m

Spouting

2.050 m 2

Bottom Plates - H4 (Green)

Sides

2.020 m

HARDWARE

Top Plate - H1 (Red)

Front/Back

2.020 m

2Hardware Pack 1

Top Plate - H1 (Red)

Sides

2.020 m

Paint & Brush 1

Ridge Beam - H1

90 x 45

2.020 m

OPTIONAL

Jack Studs - H1

45 x 30mm

0.200 m

2Bolt Down Kit 1

CHANNELS

Door Top/Bottom

0.945 m 2

DATE:

PACKED BY:

CHECKED CHECKED

PARTS LOCATION

Top Plate Back

Side Wall Sheets

Barge Flashing

Spouting

Roof Sheets

Top Plate Side

Top Plate Front

Bottom Plate Front

Bottom Plate Side

Back Wall Sheets

Front Wall Sheet

Door Jambs

Front Wall Sheet Door Side Flashing

Hinge

Door Brace

Door Top/Bottom Channel

Ridge Beam

Jack Stud

Ridge Flashing

ASSEMBLE FRONT

PANEL

ASSEMBLE WALLS

ASSEMBLE ROOF

SECURE SHED

ASSEMBLE BACK

PANEL

ASSEMBLE SIDE

PANELS

LAY FOUNDATION

ASSEMBLE DOOR

Door Sheets

Padbolt Support

QUICK OVERVIEW

FOUNDATION

SMARTSTORE WOODEN FLOOR

 The optional Smartstore kitset wooden floor is precut and de-

signed to be fitted into the shed after the shed is assembled.

 Assemble shed as per instructions and fit floor last.

(see page 13 for details).

CONCRETE SLAB FOR RAISED BASE PLATE SHED

To build a raised concrete slab for your shed to sit on, we recom-

mend the following:

 The raised slab size should be 15mm smaller than the base

size of the shed and at least 30mm above ground line.

 The slab should be 80mm thick in the middle and 100mm

thick around the edges.

 The slab should be laid on a solid or compacted base.

 Plastic sheeting under slab will prevent moisture coming

through from underneath.

 During construction, you may raise the bottom timber

plate to allow the wall cladding to protrude 20mm below

the bottom plate. This will stop water flowing between

the bottom plate and the concrete floor.

See note on page 7.

80mm

100mm

7.5mm

20mm

Concrete Floor

Base Plate

Wall Cladding

RAISED BASE PLATE OPTION

(For sheds placed on a raised concrete floor)

No doubt by now you will have decided what sort of base you are putting down.

Please read the section that applies to your situation.

If you choose to pour a concrete base you will need to decide whether you wish to raise the base plate of your shed.

This allows the cladding to protrude below the surface of the concrete and ensures a water tight pad.

See concrete pad specifications below

By choosing this option you will need to make the pad to the specification below.

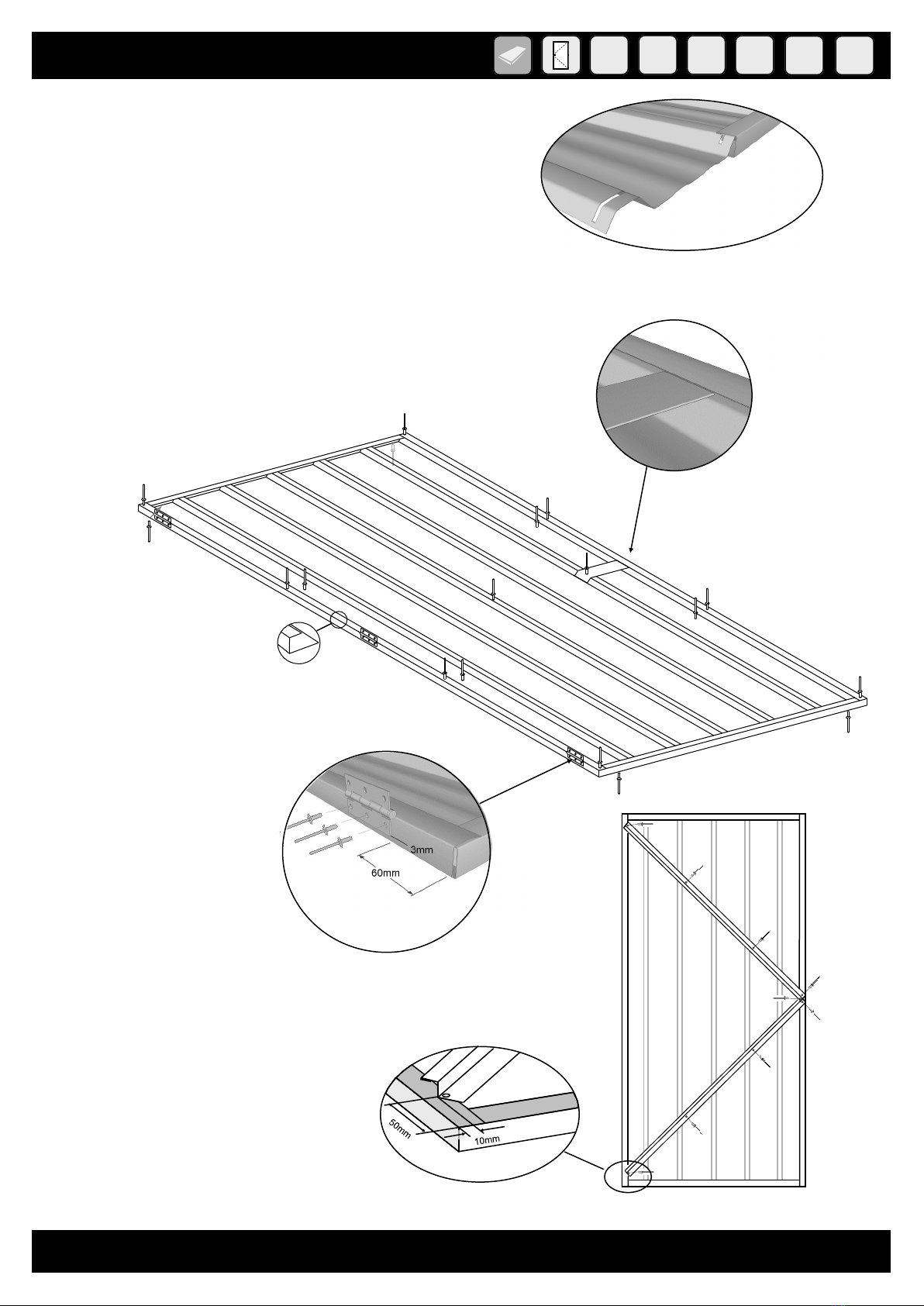

ASSEMBLE DOOR

SELECT:

2 x 1.810 m Door Sheets

2 x 0.945 m Door Top/Bottom Channels

2 x 1.810 m Door Side Flashings

3 x Hinges

1 x Padbolt Support Flashing

2 x 1.255 m Door Brace Flashings

36 x Rivets

STEP 1:

 Lay out door sheets on a flat surface making sure narrow pans

are on the outside.

 Slide door top and bottom channels on each end as shown in

fig. 1

 Rivet sheets together.

STEP 2:

 Position door side flash-

ings and assemble door

as shown.

 Drill and rivet as per dia-

gram, ensuring rivets

penetrate into door sheet.

STEP 4:

 Rivet door brace flashings onto back

of door as shown. Where possible,

rivet from front of door.

 Ensure the door brace flashings are

at least 50mm from top and bottom of

door, and 10mm from the side to

clear top and bottom timber plate,

when hung.

fig.2

fig.1

STEP 3:

 Attach hinges to door side

channel using rivets provided.

 Using one rivet, attach padbolt

support as shown in fig. 2

NARROW PANS

ASSEMBLE SIDE PANELS

SELECT:

4 x 1.880 m Gable Wall Sheets (Angled)

4 x 1.940 m Gable Wall Sheets (Angled)

2 x 2.020 m Top Plates (Red)

2 x 2.020 m Bottom Plates (Green)

96 x 30mm Galv Clouts

12 x Rivets

IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER

BASE PLATE –READ THE FOLLOWING;

For sheds with Raised Base Plate option only (see page 5), deduct

30mm from measurement shown between Top and Bottom Plates on

all wall panels, so cladding protrudes 20mm below bottom plate.

STEP 1:

 Lay out 1 x Top plate and 1 x Bottom plate on a flat surface as shown

(corner cut-outs to face outwards). Measurements between Top and

Bottom plates are critical to ensure wall panels fit together.

STEP 2:

 Place 2 x 1.880 m wall sheets and 2 x 1.940 m wall sheets on top

of timber plates with bottom of sheets flush with each other.

 Rivet sheets together on overlaps as shown.

STEP 3:

 Nail wall sheets to the Top Plate at each end making

sure that the top corners of the sheets are flush with

the top of the Top Plate and that the sides of the

wall sheet overhang the Top Plate by approx 15mm

as shown.

 Check that the Top Plate is straight then nail the

Wall sheet to the Top Plate, 2 clouts per pan.

(see fig. 1).

Std Shed — Bottom Plate will protrude below

wall sheet by approximately 10mm.

Raised base plate shed — Wall sheet will protrude

below the Bottom Plate by 20mm.

STEP 4:

 Nail the wall sheets to the Bottom Plate at each end ensuring each side

of wall sheets overhangs the end of Bottom Plate by 15mm. Check that

the distance between the Top and Bottom Plates is correct. (As per

diagram in step 1)

 Check that the Bottom Plate is straight then nail the wall sheets to the

Bottom Plate, two clouts per pan (see fig. 1).

fig.1

RIB

PAN

CLOUT

TIMBER PLATE

TOP PLATE

BOTTOM PLATE

RIVETRIVET RIVET

RIVET

RIVET RIVET

TOP PLATE

15mm 15mm

BOTTOM PLATE

1810mm 1810mm

TOP PLATE

BOTTOM PLATE

15mm 15mm

1810mm 1810mm

TOP PLATE

REPEAT THESE STEPS TO MAKE SECOND SIDE WALL PANEL

15mm

ASSEMBLE BACK PANEL

SELECT:

4 x 1.850 m Wall Sheets

1 x 2.020 m Top Plate (Red)

1 x 2.020 m Bottom Plate (Green)

48 x 30mm Galv Clouts

6 x Rivets

STEP 1:

 Lay out 1 x Top Plate and 1 x Bottom Plate on a

flat surface as shown (corner cutouts to face in-

wards).

STEP 2:

 Place 4 x 1.850 m wall sheets on top of timber

Plates with bottom of sheets flush with each oth-

er.

 Rivet the sheets together on overlaps as shown.

STEP 3:

 Nail the wall sheets to the Top Plate at each end making sure

that the top of the sheets are flush with the top of the Top

Plate and that the sides of the wall sheets overhang the Top

Plate by 15mm as shown.

 Check that the Top Plate is straight then nail wall sheets to

the Top Plate, using two clouts per pan.

STEP 4:

 Nail the wall sheets to the Bottom Plate at each end,

ensuring that each side of the wall sheets overhangs the

Bottom Plate by 15mm and that the distance between

the Top and Bottom Plates is correct. (As shown)

 Check that the Bottom Plate is straight then nail

wall sheets to the Bottom Plate, using two clouts per pan.

BOTTOM PLATE

1811mm 1811mm

TOP PLATE

1811mm

TOP PLATE

15mm 15mm

BOTTOM PLATE

TOP PLATE

1811mm

BOTTOM PLATE

15mm 15mm

TOP PLATE

Std Shed — Bottom Plate will protrude below wall sheet by

approximately 10mm.

Raised base plate shed — Wall sheet will protrude below

the Bottom Plate by 20mm.

IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER

BASE PLATE –READ THE FOLLOWING;

For sheds with Raised Base Plate option only (see page 5), deduct

30mm from measurement shown between Top and Bottom Plates on

all wall panels, so cladding protrudes 20mm below bottom plate.

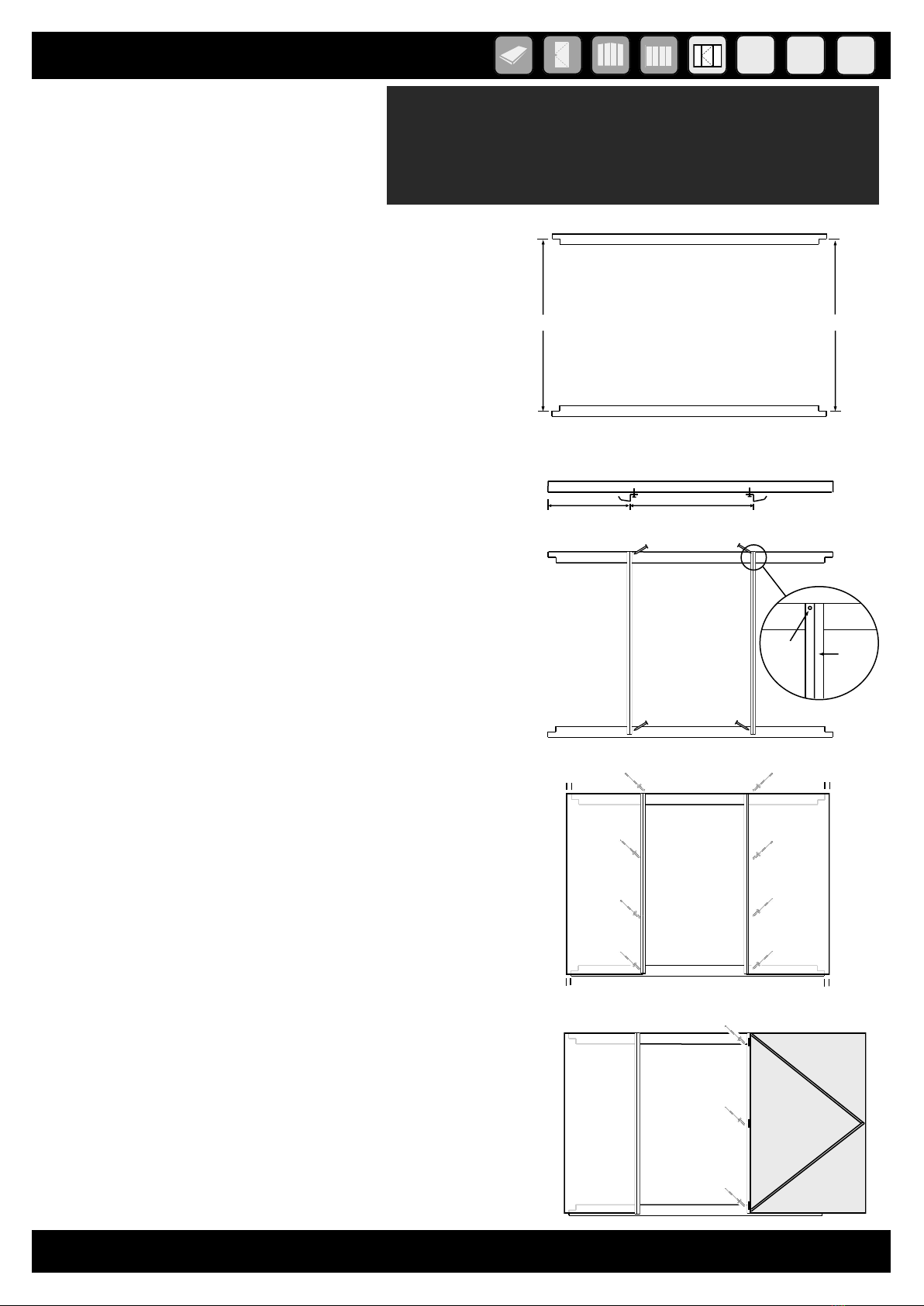

ASSEMBLE FRONT PANEL

15mm 15mm

BOTTOM PLATE

1811mm 1811mm

TOP PLATE

530mm 960mm

TOP PLATE

DOOR OPENING

Plan View

TOP

PLATE

DOOR

JAMB

NAIL

SELECT:

2 x 1.850 Wall Sheets

1 x 2.020 Top Plate (Red)

1 x 2.020 Bottom Plate (Green)

2 x 1.850 Door Jamb Flashings

28 x 30mm Galv Clouts

17 x Rivets

STEP 1:

 Lay out 1 x Top Plate and 1 x Bottom Plate on a flat

surface as shown

STEP 2:

 Using 2 x 30mm clouts, nail the Door Jamb Flashing flush with

the top of the Top Plate at the correct measurement as shown

in plan view. Pre drill holes using a 3.5mm drill bit

 Check the distance between the top and bottom plates then use

a further 2 x 30mm clouts to nail the Door Jamb Flashings to

the bottom Plate. Pre drill holes.

STEP 4:

 Place the door on the panel (In open position, approx

20mm below top plate). Using two rivets, rivet the top and

bottom hinges to the Door Jamb Flashing.

 Ensure the door closes properly, then fit remaining rivets.

STEP 3:

 Place 2 x Wall Sheets on timber.

 Ensure that the top of the sheets are flush with the top of the

Top Plate and that the sides of the wall sheets overhang the

Top Plate by 15mm as shown. Nail wall sheets to Top Plate

(two clouts per pan)

 Nail the wall sheets to the Bottom Plate making sure that the

Plates are the correct distance apart and that the sides of the

wall sheets overhang the Bottom Plate by 15mm.

 Drill & rivet Door Jamb Flashings to wall sheets using four

rivets equally spaced on each side.

NOTE: The Doorway is standard at 530mm from left-hand end.

To shift the doorway to the right-hand side of the front

wall, simply measure 530mm from the right-hand end.

NOTE: Door can be hinged on either side.

IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER

BASE PLATE –READ THE FOLLOWING;

For sheds with Raised Base Plate option only (see page 5), deduct

30mm from measurement shown between Top and Bottom Plates on

all wall panels, so cladding protrudes 20mm below bottom plate.

Indice

Altri manuali Riverlea Deposito all'aperto

Riverlea

Riverlea Duratuf Gurdian Sheds GS62 Manuale utente

Riverlea

Riverlea SmartStore SS2520 Manuale utente

Riverlea

Riverlea Duratuf Garrison Sheds PL84 Manuale utente

Riverlea

Riverlea SmartStore SM2007 Manuale utente

Riverlea

Riverlea Smart Store SM2010 Manuale utente

Riverlea

Riverlea Duratuf KIWI SHEDS MK3A Manuale utente

Riverlea

Riverlea Duratuf KIWI KS3 Manuale utente

Riverlea

Riverlea SmartStore SM3015 Manuale utente

Riverlea

Riverlea SmartStore SM2515 Manuale utente

Riverlea

Riverlea SmartStore SM2020 Manuale utente

Riverlea

Riverlea SmartStore SM3020 Manuale utente

Riverlea

Riverlea Duratuf KIWI SHEDS MK4C Manuale utente

Riverlea

Riverlea Duratuf SENTRY SHEDS SG2020 Manuale utente

Riverlea

Riverlea SmartStore SM1520 Manuale utente

Riverlea

Riverlea Duratuf Guardian Sheds GL57 Manuale utente

Riverlea

Riverlea DURATUF Sentry SL2015 Manuale utente

Riverlea

Riverlea Duratuf Guardian SHED SGS73 Manuale utente

Riverlea

Riverlea Rustics NEBRASKA Manuale utente

Riverlea

Riverlea Smart Store SM1510 Manuale utente

Riverlea

Riverlea Duratuf Sentry Sheds SL1520 Manuale utente

Riverlea

Riverlea Duratuf Garrison Sheds PL63 Manuale utente

Riverlea

Riverlea Duratuf Garrison Sheds PL43 Manuale utente

Riverlea

Riverlea Duratuf Guardian SHED SG3025 Manuale utente

Riverlea

Riverlea SmartStore SM2525 Manuale utente

Manuali Deposito all'aperto popolari di altre marche

USP

USP DURAMAX 10 Ft x 8 Ft StoreMax Plus Manuale utente

TYGO

TYGO Nyland Manuale utente

Duratuf

Duratuf GL105 Manuale utente

Viking

Viking SD5300SS Manuale tecnico

USP

USP DURAMAX Apex Pro 10.5 Ft x 8 Ft 40116 Manuale utente

ModuLaro

ModuLaro Lojo WC202200 Manuale utente

Lifetime

Lifetime 6418 Manuale utente

rollaway container

rollaway container ARPCA24 Manuale utente

Duratuf

Duratuf Havelock Manuale utente

X-METAL

X-METAL 4065 Manuale utente

Outdoor Life Products

Outdoor Life Products FP2030 F Manuale utente

Royalcraft

Royalcraft Faro 295L Storage Box Manuale utente

OLT

OLT GS84D-FJ-Plywood Manuale utente

Rubbermaid

Rubbermaid 5L45 Manuale utente

garofalo

garofalo TUSCANY EVO Manuale utente

Duratuf

Duratuf Kiwi MK1 Manuale utente

Eden

Eden CA2988 Manuale utente

Palram

Palram CANOPIA RUBICON 6x10 Guida per l'amministratore
