Riverside Double Hang Basic 2 Manuale utente

Installation Instruction

Page 1 of 19

Closet Installation Instructions

Table of Contents

Introduction ................................................................................................................................................ 2

Tools and Materials Needed .................................................................................................................. 2

Pre-Installation Checklist..................................................................................................................... 3

Closets and Materials

Double Hang (Included in Models: Basic 2,4,6 & 10).............................................................................. 4

Long Hang (Included in Closet Models: Basic 1,4,5,6,10 and Standard 1).......................................... 6

Tall Double Hang (Included in Models: Basic 8,11 and Standard 2,3,4,5 & 6)........................................ 8

Tall Shelf (Included in Closet Models: Basic 8,9 & 11) ..................................................................... 10

Tall Hang Shoe (Included in Models: Basic 11 and Standard 5)............................................................ 12

Tall 4 Drawer Hang (Included in Closet Models: Standard 1-6) ........................................................ 14

Floor Standing Closet Installation Guide ............................................................................................ 16

Installing Drawer Boxes and Fronts......................................................................................................... 17

Hanging Closet Installation Guide ........................................................................................................... 17

Installation Instruction

Page 2 of 19

Welcome to Riverside Millwork's Closet Installation Instruction Guide

Hello and thank you for choosing Riverside Millwork for your closet installation needs! We are thrilled to assist

you in bringing a new level of organization and style to your space. This guide is your comprehensive resource

for installing Riverside Millwork's closets, designed to provide clear, step-by-step instructions to make your

installation process as smooth and successful as possible.

In this guide, you'll find:

Detailed instructions for various closet components.

User-friendly language and a step-by-step approach.

Helpful tips to ensure a successful installation.

We encourage you to read through the instructions thoroughly before beginning and gather all the necessary

tools and materials. Remember, a well-planned installation is key to achieving the best results. If at any point

you need additional support, our team at Riverside Millwork is just a call or email away, ready to assist you.

Tools and Materials Needed

Before embarking on your closet installation journey, it's essential to gather all the necessary tools and materials

to ensure a smooth and efficient process. Start with basic hand tools such as a hammer, screwdriver set

(including Phillips and flathead), a power drill with various drill bits, a level, a tape measure, and a stud finder. If

you’re comfortable using one. Additionally, have a set of wrenches and pliers at hand for any adjustments. In

terms of materials, ensure you have all the closet components, including shelves, rods, gables, drawer boxes,

and hardware like screws, nails, and brackets. It’s also wise to have some extra items like wood glue, sandpaper,

and double-sided tape for minor fixes. Safety equipment is paramount, so include protective eyewear, gloves,

and possibly a dust mask. By being prepared with these tools and materials, you're setting yourself up for a

successful and hassle-free installation.

Installation Instruction

Page 3 of 19

Preinstallation Checklist

Read Through the Instructions: Before beginning, take the time to thoroughly read through the installation

guide. Understanding each step in advance will help streamline the process.

Check All Components: Ensure you have received all necessary components for your closet installation. Cross-

reference the parts with the inventory list provided in the guide.

Prepare Your Tools: Gather all the tools listed in the "Tools and Materials Needed" section. Make sure your

power tools are charged or you have access to an electrical outlet.

Measure Your Space: Carefully measure the area where you plan to install the closet. Verify these dimensions

against the specifications of the closet system to ensure a proper fit.

Inspect the Area: Check the walls for levelness and the floor for evenness. Identify any potential obstacles such

as outlets, switches, or vents that might affect the installation.

Locate Wall Studs: Use a stud finder to locate the studs in the walls where you will be securing the closet

components. Marking these will be crucial for a secure installation.

Clear the Workspace: Remove any existing furniture, decorations, or obstacles from the installation area. Ensure

you have enough room to work comfortably.

Protect the Area: Consider laying down drop cloths or protective sheets to safeguard your flooring and nearby

furniture from dust or damage during the installation process.

Safety First: Prepare your safety gear, including protective eyewear and gloves. Ensure your work area is well-lit

and ventilated.

Ask for Assistance: Some steps in the installation may require an extra pair of hands. Plan ahead and ask a

friend or family member for help if needed.

Installation Instruction

Page 4 of 19

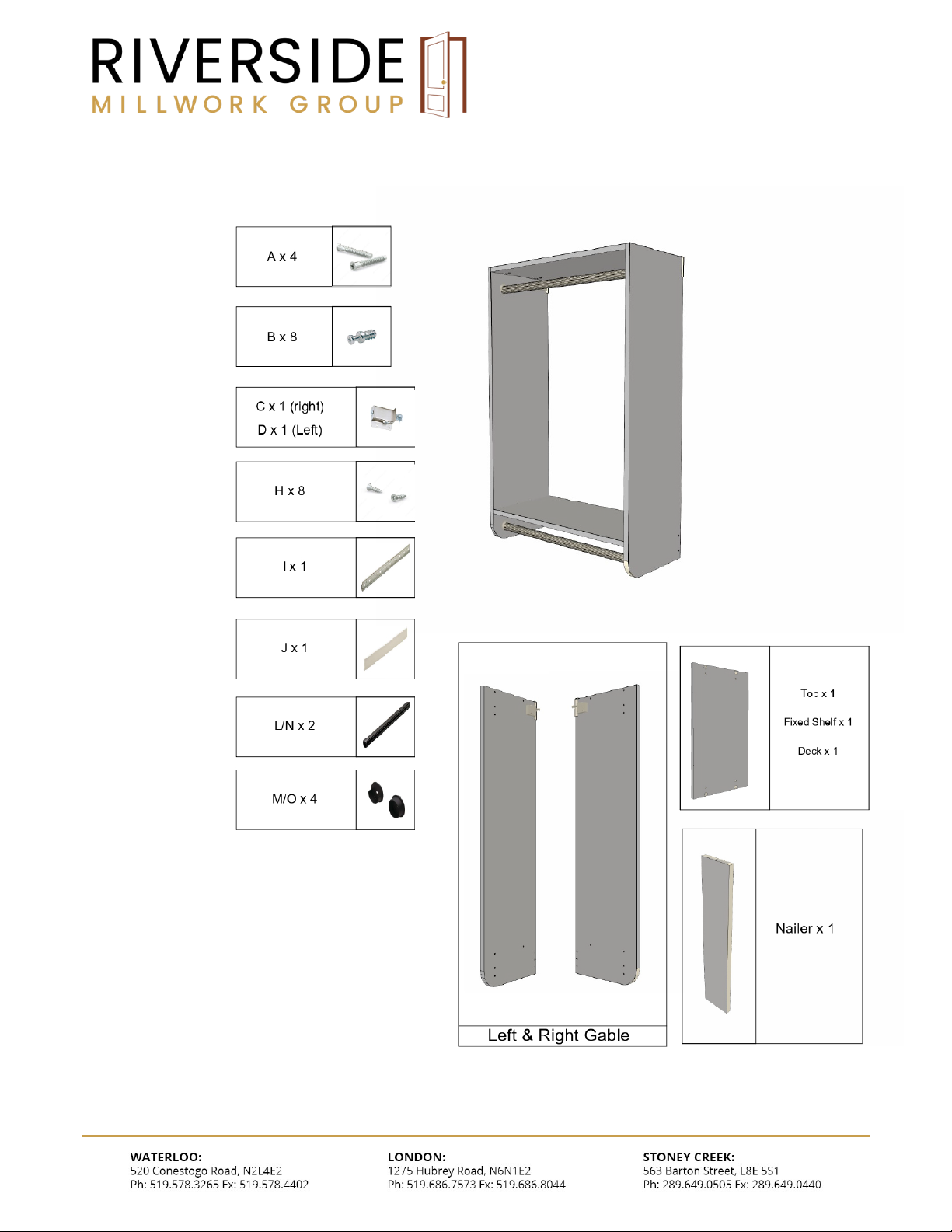

Double Hang (DH) Included in Models: Basic 2,4,6 & 10

Installation Instruction

Page 5 of 19

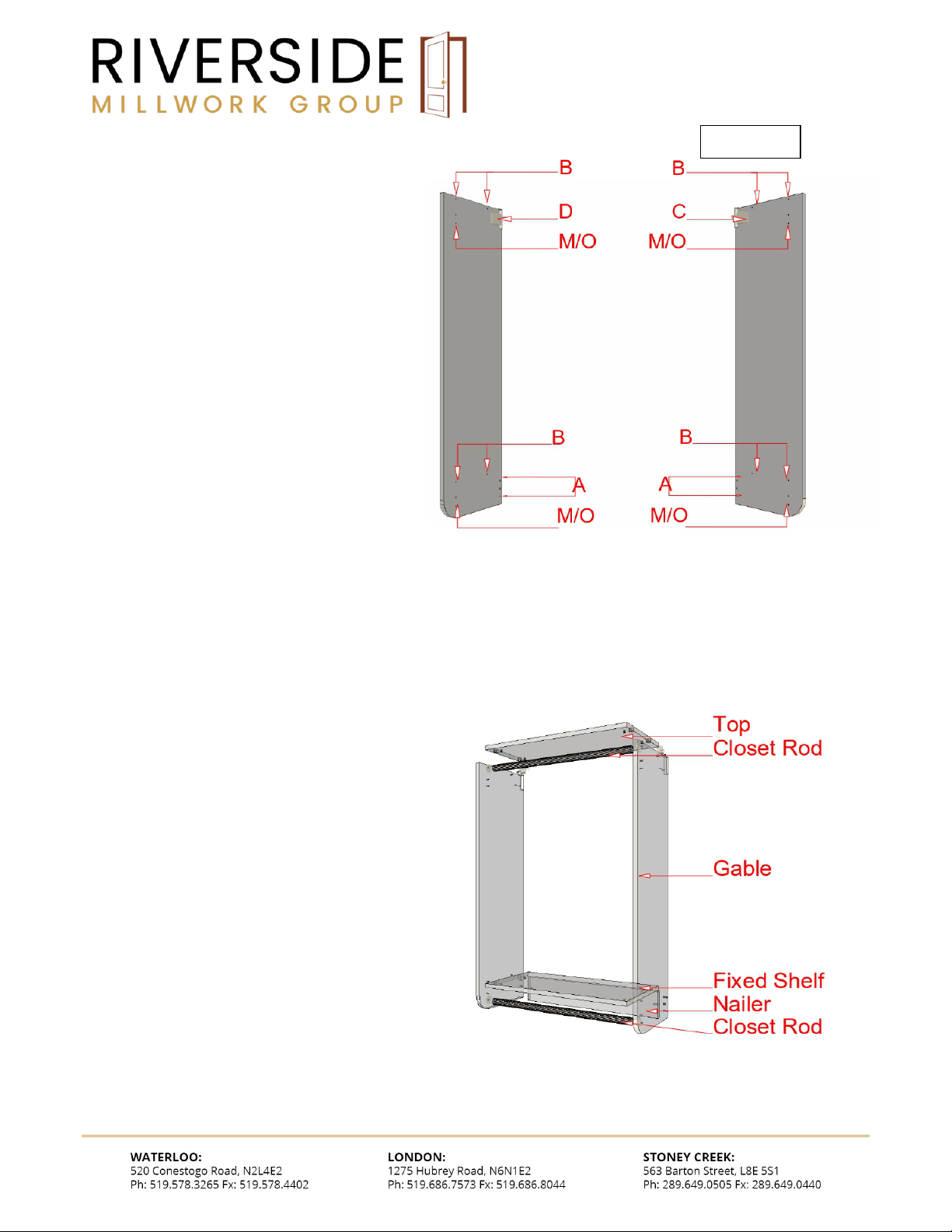

ORDER OF ASSEMBLY/STEPS

Prepare the Gables: Start by placing both gables (left

and right) face up on a soft cloth or cardboard. This

will help protect your floor and the cabinet panels

from scratches. Now, attach Screw B to each gable as

shown in Diagram A.

Attaching Additional Parts: Next, use Screw H to

attach parts M/O, C, and D to both the left and right

gables, following the guidance in Diagram A.

Working with One Gable: Pick one gable and lay its

front edge on the floor. Now, securely fasten the

nailer in place using Screw A.

Assembling the Top Shelf: On the same gable you just

worked on, keep it laid down and attach the Top,

Fixed Shelf to it using Screw B.

Next Steps After Assembly: Once you've assembled

all the cabinets for this room, please refer to the

installation drawing and follow the instructions

provided for the subsequent steps.

Remember, taking your time and ensuring each part

is correctly aligned and firmly attached is key to a

successful assembly.

Note: the closet rod should be installed after the

unit is has been affixed to wall.

Diagram A

Installation Instruction

Page 6 of 19

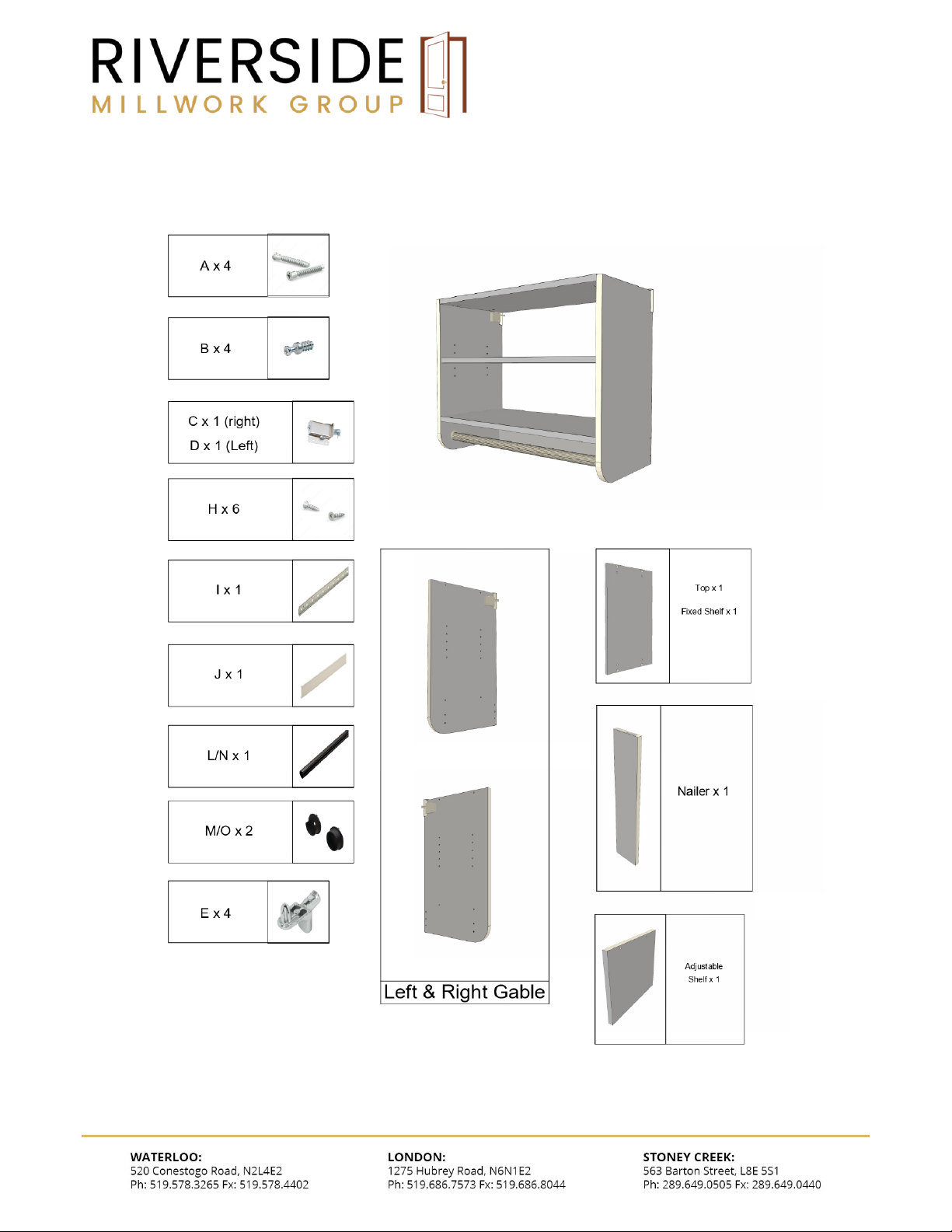

Long Hang (LH) Included in Closet Models: Basic 1,4,5,6,10 and Standard 1

Installation Instruction

Page 7 of 19

Tall Double Hang (TDH)

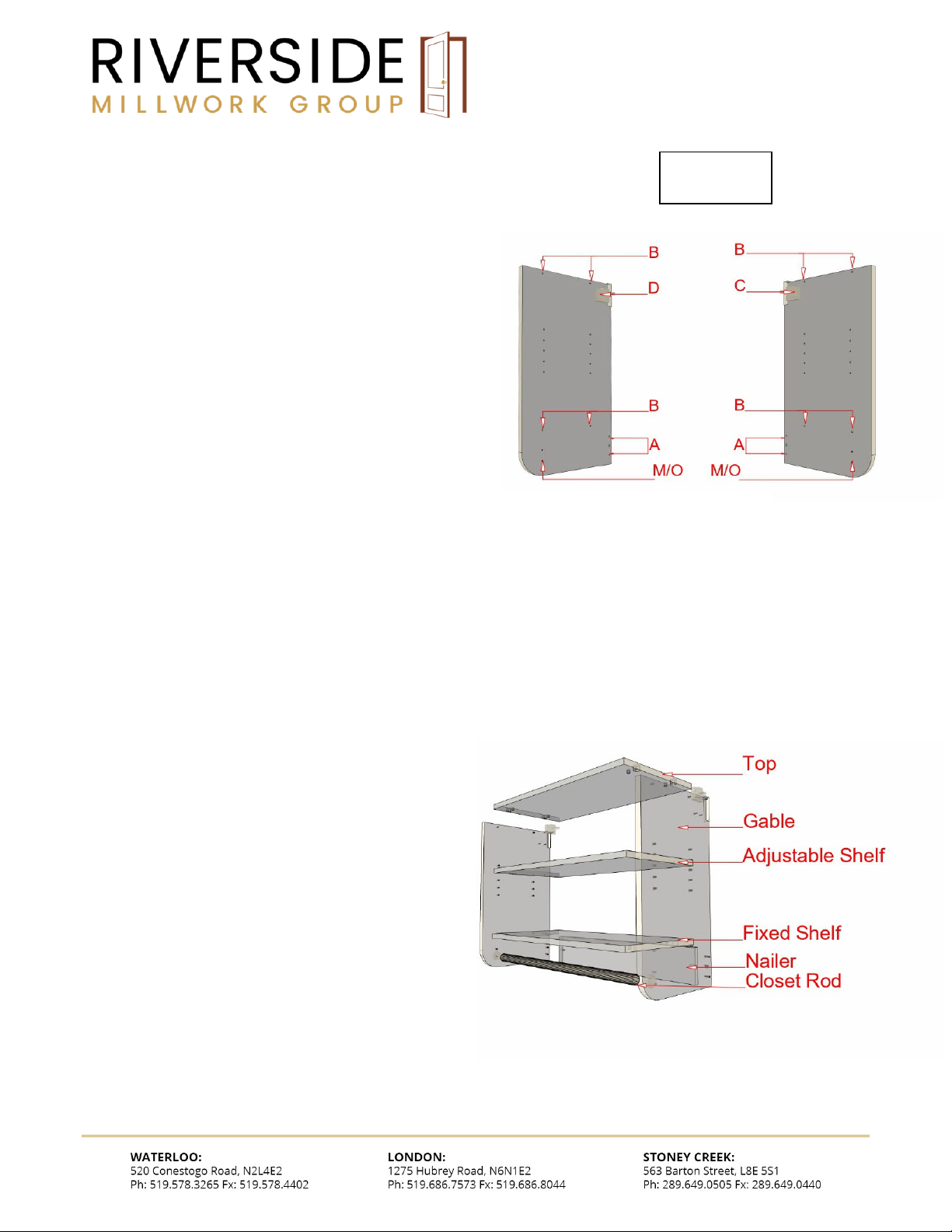

ORDER OF ASSEMBLY/STEPS

Starting Off: Begin by laying both gables face up on a piece

of cardboard or cloth. This is a smart move to avoid any

scratches or damage to the unit.

Attaching Screws to Gables: Now, grab Screw B and attach it

to both the left and right gables. You can see exactly how to

do this in Diagram B.

Attaching Additional Parts:Next, take parts M/O, C, and D,

and using Screw H, attach them to both the left and right

gables. Diagram B will show you the way!

Working on the Nailer: Choose one of the gables and turn its

front edge towards the floor. Then, use Screw A to attach the

Nailer in place.

Assembling the Top Shelf: On the same gable, lay it down

again and now it’s time to attach the Top, Fixed Shelf. Do this

using Screw B.

What's Next: Once you've successfully assembled all the

cabinets for this room, take a look at the installation

drawing. It, along with the instructions, will guide you on

what to do next.

Note: the closet rod and adjustable shelve should be

installed after the unit is affixed to the wall.

Diagram B

Installation Instruction

Page 8 of 19

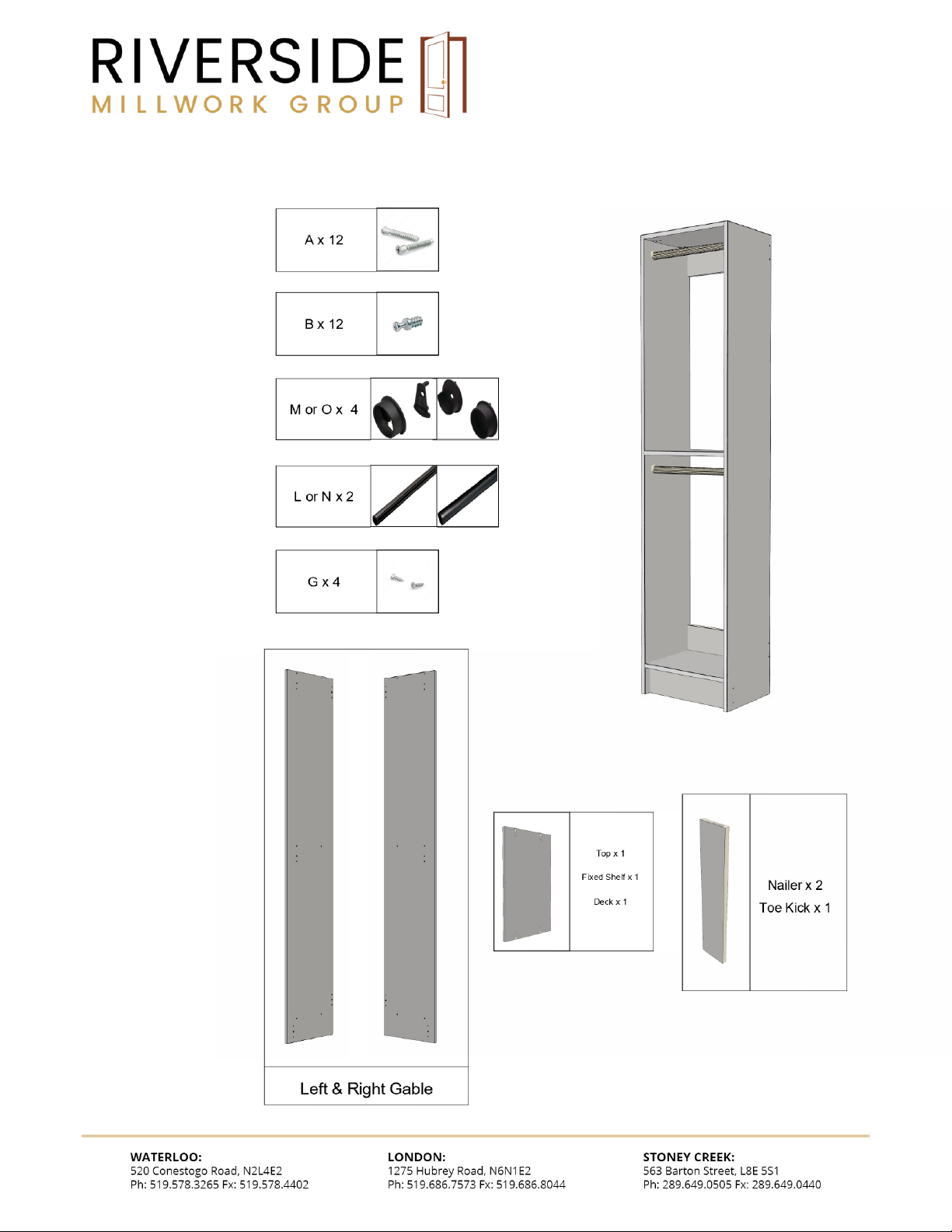

Tall Double Hang (TDH) Included in Models: Basic 8,11 and Standard 2,3,4,5 & 6

Installation Instruction

Page 9 of 19

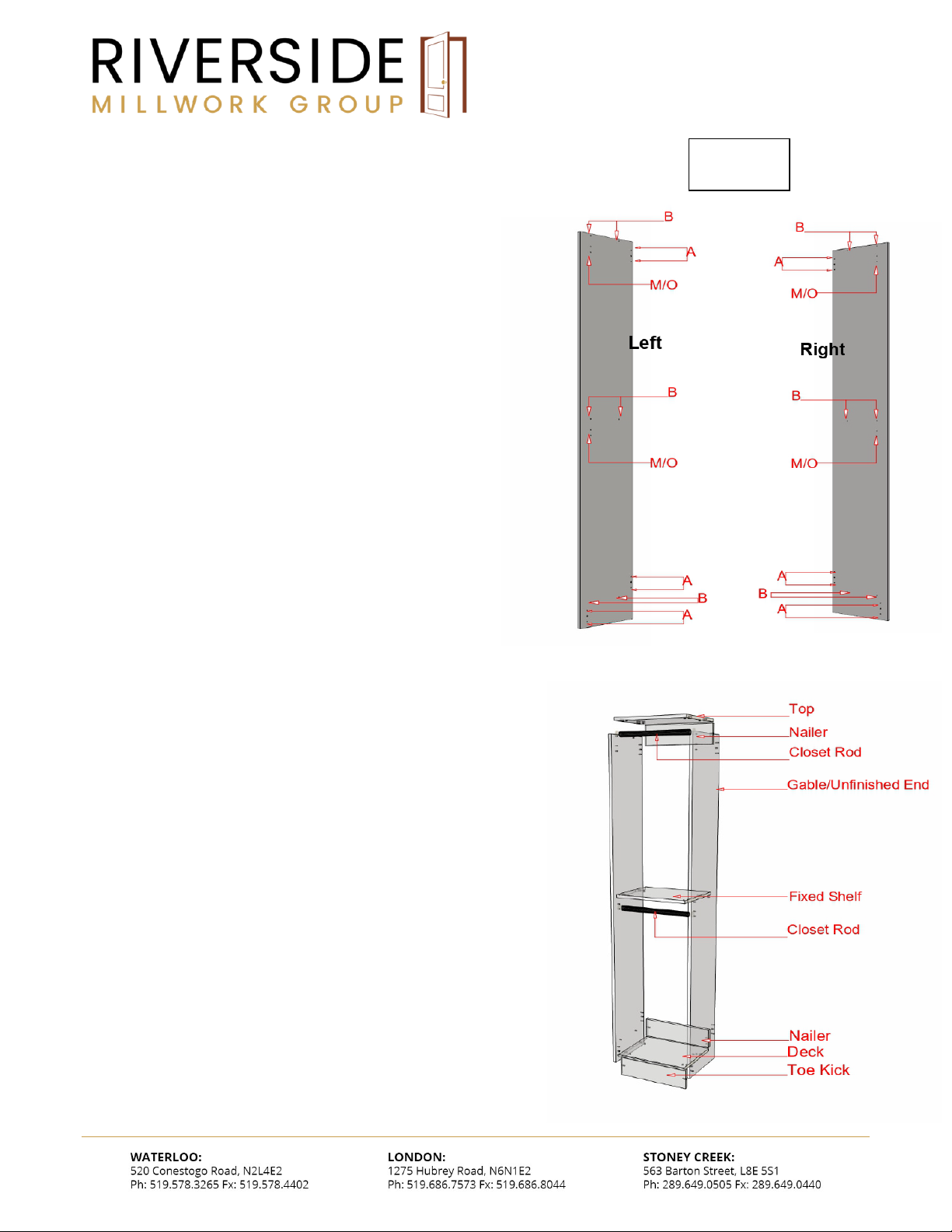

ORDER OF ASSEMBLY/STEPS

Prepare the Gables: Begin by laying both gables face up on

cardboard or cloth. This is to make sure you don’t scratch or

damage the unit. Safety first!

Attaching Screws to Gables: Now, take Screw B and attach it

to both the right and left Gables as shown in Diagram C. This is

your first big step in assembly!

Adding More Parts: Using Screw G, attach part M/O to both

the left and right Gables. You'll find the specifics in Diagram C.

Toe Kick and Nailer Installation: Choose one of the gables and

lay its front edge on the floor. Then, attach the Toe Kick and

Nailer using Screw A.

Assembling the Top Shelf: Keep the same gable laid down and

attach the Top, Fixed Shelf using Screw B and a screwdriver.

Attaching the Second Gable: Take the second Gable and place

it on top of the Fixed Shelf, Top, Nailer. Tighten it to Screw B

using your screwdriver.

Securing the Toe Kick and Nailer: Again, use Screw A to attach

the Toe Kick and Nailer.

Deck Attachment: Attach the Deck to Screw B and tighten it

with the screwdriver.

Upright Positioning: Carefully stand the cabinet upright

against the wall.

Final Steps: After assembling all the cabinets for this room,

refer to the installation drawing and follow the instructions for

the next steps.

Note: the closet cod should be installed after the

unit is affixed to the wall.

Diagram C

Installation Instruction

Page 10 of 19

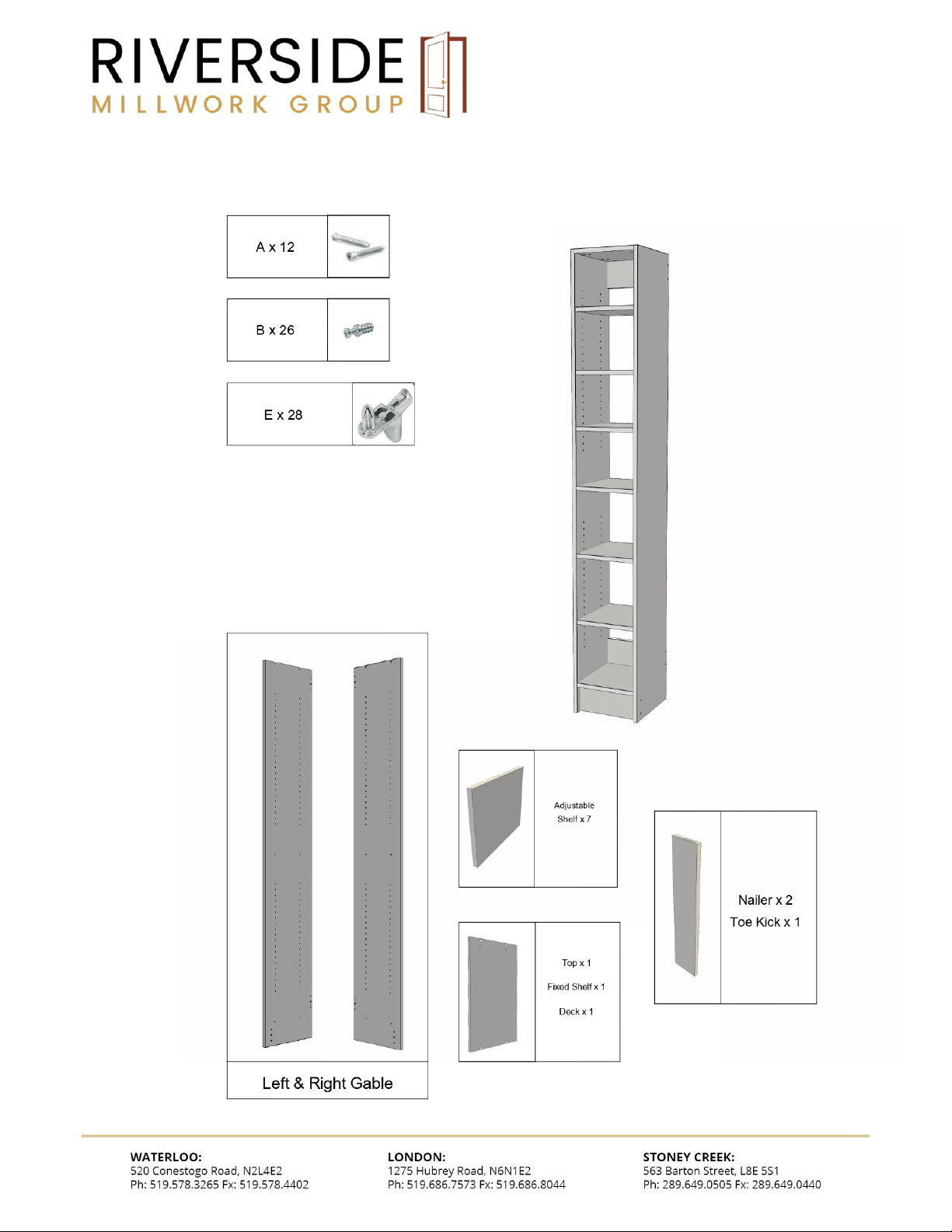

Tall Shelf (TSHF) Included in Closet Models: Basic 8,9 & 11
