35-3001-01H

Hydrogen Sample-Draw Detector

Operator’s Manual

Part Number: 71-0320RK

Revision: A

Released: 8/3/17

35-3001-01H Hydrogen Sample-Draw Detector

WARNING

Read and understand this instruction manual before operating

detector. Improper use of the detector could result in bodily harm

or death.

Periodic calibration and maintenance of the detector is essential

for proper operation and correct readings. Please calibrate and

maintain this detector regularly! Frequency of calibration

depends upon the type of use you have and the sensor types.

Typical calibration frequencies for most applications are between

3 and 6 months, but can be required more often or less often

based on your usage.

35-3001-01H Hydrogen Sample-Draw Detector

Product Warranty

RKI Instruments, Inc. warrants gas alarm equipment sold by us to be free from defects in materials,

workmanship, and performance for a period of one year from date of shipment from RKI

Instruments, Inc. Any parts found defective within that period will be repaired or replaced, at our

option, free of charge. This warranty does not apply to those items which by their nature are subject

to deterioration or consumption in normal service, and which must be cleaned, repaired, or replaced

on a routine basis. Examples of such items are:

Warranty is voided by abuse including mechanical damage, alteration, rough handling, or repair

procedures not in accordance with the operator’s manual. This warranty indicates the full extent of

our liability, and we are not responsible for removal or replacement costs, local repair costs,

transportation costs, or contingent expenses incurred without our prior approval.

THIS WARRANTY IS EXPRESSLY IN LIEU OF ANY AND ALL OTHER

WARRANTIES AND REPRESENTATIONS, EXPRESSED OR IMPLIED, AND

ALL OTHER OBLIGATIONS OR LIABILITIES ON THE PART OF RKI

INSTRUMENTS, INC. INCLUDING BUT NOT LIMITED TO, THE WARRANTY

OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN

NO EVENT SHALL RKI INSTRUMENTS, INC. BE LIABLE FOR INDIRECT,

INCIDENTAL, OR CONSEQUENTIAL LOSS OR DAMAGE OF ANY KIND

CONNECTED WITH THE USE OF ITS PRODUCTS OR FAILURE OF ITS

PRODUCTS TO FUNCTION OR OPERATE PROPERLY.

This warranty covers instruments and parts sold to users by authorized distributors, dealers, and

representatives as appointed by RKI Instruments, Inc.

We do not assume indemnification for any accident or damage caused by the operation of this gas

monitor, and our warranty is limited to the replacement of parts or our complete goods.

a) Absorbent cartridges d) Batteries

b) Pump diaphragms and valves e) Filter elements

c) Fuses

35-3001-01H Hydrogen Sample-Draw Detector

Table of Contents

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

External Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Internal Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Mounting the Hydrogen Sample-Draw Detector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Connecting the Sample Lines to the Sample-Draw Detector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Wiring the Hydrogen Sample-Draw Detector to a Controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Introducing Incoming Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Setting the Zero Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Preventive Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Replacing Components of the Hydrogen Sample-Draw Detector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Adjusting the Low Flow Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Removing the Particle Filter’s Tubing Stub, if Necessary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Calibration Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Preparing for Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Setting the Zero Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Setting the Response Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Returning to Normal Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

35-3001-01H Hydrogen Sample-Draw Detector • 1

Overview

This operator’s manual describes the 35-3001-01H hydrogen sample-draw detector. This manual

also describes how to install, start up, maintain, and calibrate the sample-draw detector when using

it with a gas monitoring controller. A parts list at the end of this manual lists replacement parts and

accessories for the sample-draw detector.

Specifications

Table 1 lists specifications for the hydrogen sample-draw detector. See the controller Operator’s

Manual for information specific to the controller.

WARNING: When using the 35-3001-01H, you must follow the instructions and warnings in

this manual to assure proper and safe operation of the 35-3001-01H and to

minimize the risk of personal injury. Be sure to maintain and periodically

calibrate the 35-3001-01H as described in this manual.

Table 1: Specifications

Target Gas and Detection Range Hydrogen: 0 - 100% LEL

Input Power 24 VDC Nominal (18.5 VDC - 30 VDC)

Construction (housing) Fiberglass/polyester (NEMA 4X)

Dimensions 8.5 in. H x 6.5 in. W x 4.25 in. D

Weight 4.5 lbs.

Sampling Method Sample-draw

Sample Flow 3.0 SCFH typical, with no inlet or exhaust line

Flow to Sensor 1.0 SCFH (nominal)

Low Flow Setpoint 0.6 ± 0.1 SCFH

Maximum Recommended Inlet/

Exhaust Line Length for

1/4” O.D. x 1/8” I.D. Tubing

Inlet Exhaust

100 feet 0 feet

50 feet 50 feet

Maximum Recommended Inlet/

Exhaust Line Length for

1/4” O.D. x 0.170” I.D. Tubing

Inlet Exhaust

100 feet 100 feet

Response Time 90% in 30 seconds

Accuracy ± 5% of reading or ± 2% LEL (whichever is greater)

2 • 35-3001-01H Hydrogen Sample-Draw Detector

Description

This section describes the components of the hydrogen sample-draw detector.

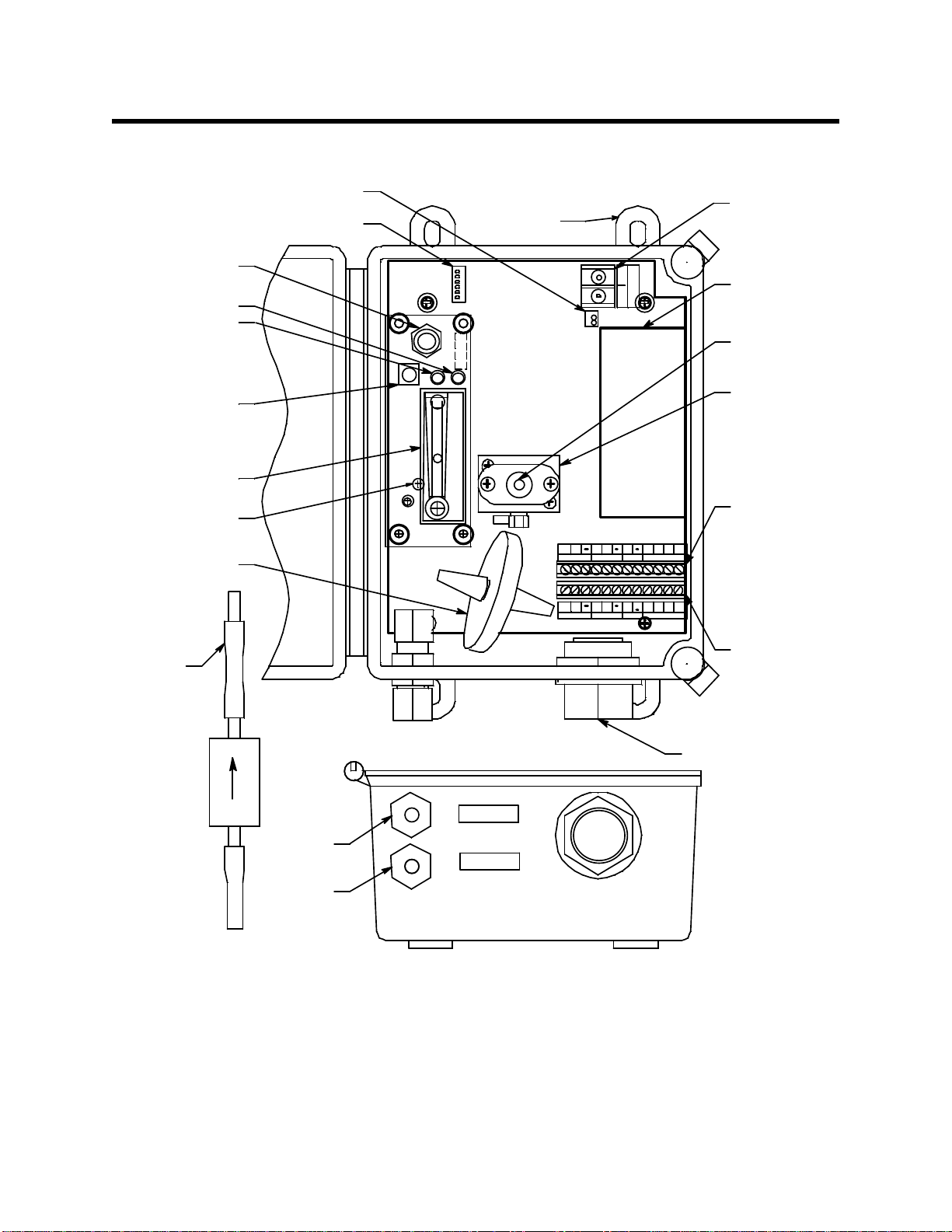

Figure 1: Hydrogen Sample-Draw Detector Component Location

External Components

This section describes the sample-draw detector’s external components.

Housing

The sample-draw detector’s fiberglass housing is weather- and corrosion-resistant. It is suitable for

installation where general purpose equipment is in use.

Hydrogen

Sensor

Oxygen

Sensor

Terminal

Strip

Pump

Hydrogen

FlowBlock

Detector/Amp

Terminal Strip

(Factory Wired)

Mounting

Foot, 4X

AMP 2

OXY

+ RS

AMP

FailLED

Pilot LED

Sensor Flow

Control Valve

Flowmeter

Pressure Switch

Adjustment Screw

(behind PCB)

Interconnect

Terminal

Strip

Pump Reset

Switch

OXY

+ R

AMP 1

AMP 2

ThisEnd To

Inlet Fitting

Flowmeter Circuit

Board Connector

Pump Connector

LEL/ IR

Particle Filter

LEL/ IR

Exhaust

Fitting

Inlet

Fitting

3/4" Conduit Hub

EXHAUST

INLET

Hydrophobic

Filter

35-3001-01H Hydrogen Sample-Draw Detector • 3

The housing door is hinged on the left side and is secured by two latches on the right side. The

flowmeter and status LEDs are visible through a window in the housing door.

Four mounting feet are attached to the back of the housing (one at each corner). Use the mounting

feet to install the housing to a vertical surface.

Sample Fittings

The sample fittings are located on the left side of the bottom of the housing. The inlet fitting is near

the front of the housing and the exhaust fitting is near the back of the housing. The sample fittings

accept 1/4 in. rigid tubing. See the Installation section on page 6 to connect tubing to the sample

fittings.

Particle Filter

A particle filter with a tubing stub on one end is shipped with the instrument but it is not factory

installed. If the particle filter is installed directly to the inlet fitting, the tubing stub must be used. If

the particle filter is installed somewhere else, like at the end of the inlet line, the tubing stub can be

used or removed.

Conduit Hub

One 3/4” conduit hub is located on the right side of the bottom of the housing. It is used for routing

wiring into the housing by using conduit or an appropriate cable bushing.

Internal Components

This section describes the sample-draw detector’s internal components (see Figure 1). Figure 2

illustrates how the gas sample moves through the flow system.

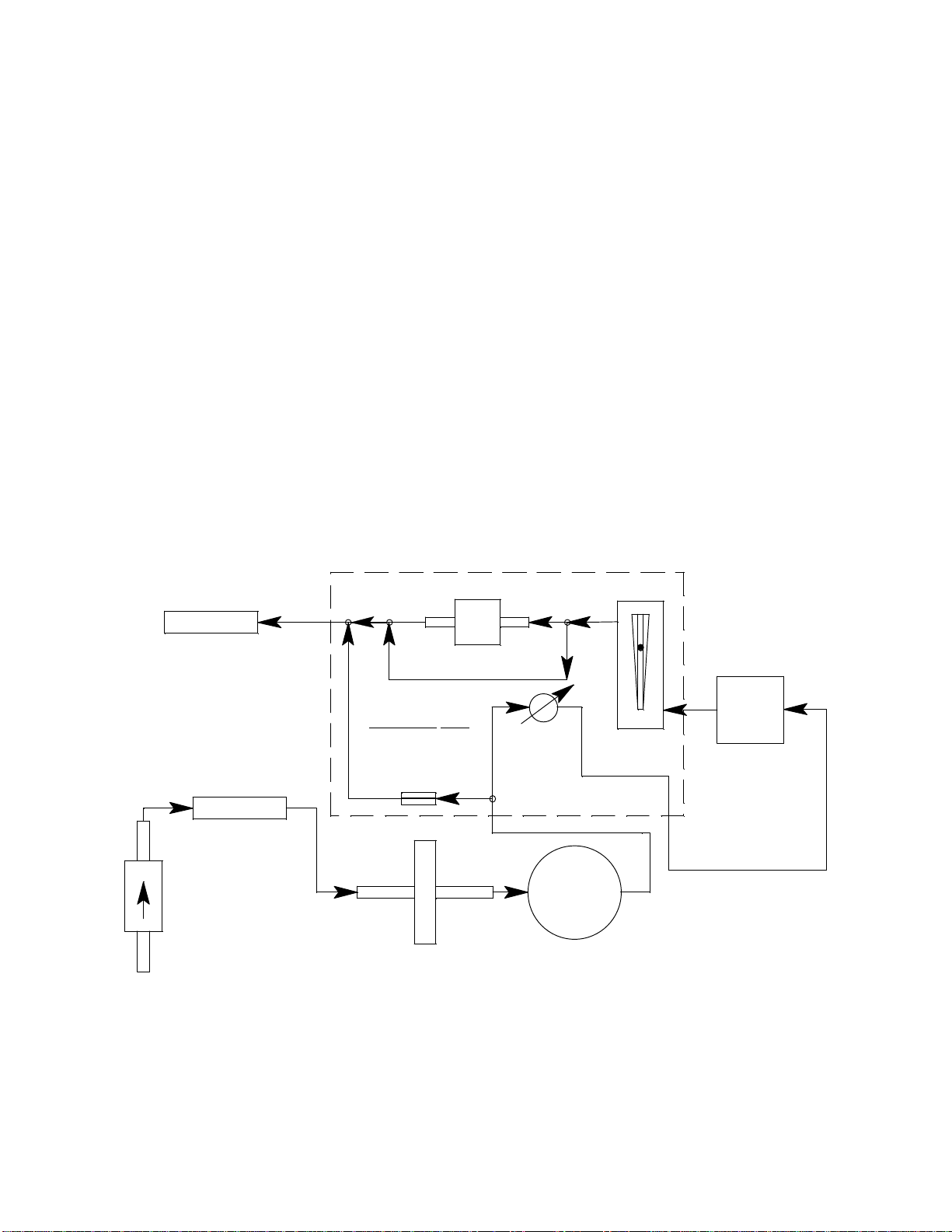

Figure 2: Hydrogen Sample-Draw Detector Flow Diagram

Main Circuit Board

The main circuit board includes the detector/amp terminal strip, interconnect terminal strip, oxygen

sensor terminal strip, pump connector, and flowmeter circuit board connector (see Figure 1).

Flowmeter

Pump

Hydrogen

Sensor

Particle Filter

Exhaust

Flowmeter PCB

Hydrophobic Filter

Pressure Switch

Restrictor

Inlet

Sensor

Flow

Control

Valve

4 • 35-3001-01H Hydrogen Sample-Draw Detector

Detector/Amp Terminal Strip

The detector/amp terminal strip is the upper twelve-point terminal strip in the bottom right corner

of the main circuit board. Use the detector/amp terminal strip to connect the hydrogen sensor to the

main circuit board.

NOTE: The hydrogen sensor is factory-wired to the main circuit board. See the “Installation”

section on page 6 for all wiring procedures related to the sample-draw detector.

Interconnect Terminal Strip

The interconnect terminal strip is the lower twelve-point terminal strip in the bottom right corner of

the main circuit board. Use the interconnect terminal strip to connect the sample-draw detector to a

controller.

Oxygen Sensor Terminal Strip

The oxygen sensor terminal strip is a two-point terminal strip in the upper right corner of the main

circuit board. This terminal strip is not used in this version of the sample-draw detector.

Pump Connector

The pump connector is the two-point connector below the oxygen terminal strip in the upper right

corner of the main circuit board. Use the pump connector to connect the pump to the main circuit

board.

NOTE: The pump is factory-wired to the main circuit board. See “Installation” on page 6 for all

wiring procedures related to the sample-draw detector.

Flowmeter Circuit Board Connector

The flowmeter circuit board connector is a six-position connector in the upper left corner of the

main circuit board. Use the flowmeter circuit board connector to connect the flowmeter circuit

board to the main circuit board.

NOTE: The flowmeter circuit board is factory wired to the main circuit board. See “Installation”

on page 6 for all wiring procedures related to the sample-draw detector.

Flowmeter Circuit Board

The flowmeter circuit board is mounted to the left side of the main circuit board using standoffs. It

includes the flowmeter, sensor flow control valve, status LEDs, pressure switch, and pump reset

switch.

Flowmeter

The flowmeter is mounted to the right side of the flowmeter circuit board. You can see it through

the window in the door. A ball in the flowmeter column indicates the flow rate to the sensor. The

flowmeter measures the flow in the range 0.2 to 2.0 SCFH (Standard Cubic Feet per Hour). The

optimum flow rate is 1.0 SCFH.

Sensor Flow Control Valve

The sensor flow control valve is mounted to the flowmeter circuit board above the flowmeter. The

sensor flow control valve adjusts the flow rate to the detector. Turn the valve’s knob

counterclockwise to increase the flow and clockwise to decrease the flow.

35-3001-01H Hydrogen Sample-Draw Detector • 5

Status LEDs

Two status LEDs are above the flowmeter. They are also visible through the window in the housing

door. The green Pilot LED is on when the sample-draw detector is receiving power from the

controller. The red Fail LED is on when the sample flow rate is below the low flow level.

Pressure Switch

The pressure switch is mounted to the back of the flowmeter circuit board. The pressure switch

monitors the flow rate of the incoming gas sample.

If the flow rate falls below the preset low flow level, the pressure switch causes the Fail LED to

turn on and interrupts the signal from the detector. The interrupted detector signal causes a fail

condition at the controller. The low flow level is factory-set at 0.6 SCFH (±0.1 SCFH). See

“Adjusting the Low Flow Setting” on page 14 to adjust this setting.

Pump Reset Switch

The pump reset switch is located to the left of the status LEDs. When a low flow condition occurs,

the pump will be shut off. To reset the low flow condition and start the pump again, press and hold

the pump reset switch for about 2 seconds, then release.

Hydrophobic Filter

The hydrophobic filter is located toward the bottom left of the main circuit board. The filter

prevents particulates and water in the incoming gas sample from damaging the flow and detection

systems. Replace the filter when it appears dirty, discolored, or clogged.

Pump

The pump is mounted to the right side of the main circuit board. The pump pulls the gas sample

into the sample-draw detector. The pump operates on 24 VAC, which is generated from the 24

VDC supplied by the controller.

Hydrogen Sensor

The catalytic hydrogen sensor detects hydrogen in the %LEL range. It uses a catalytic element for

detection. The reaction of gas with oxygen on the catalyst causes a change in the resistance of the

element which changes the current flowing through it. The current is proportional to the detection

range of the sample-draw detector.

The hydrogen sensor is installed in the flow block and the flow block is mounted to the middle of

the main circuit board. The sensor housing includes a sintered metal flame arrestor on one end that

allows gas to diffuse into the sensor. The sensor has a built in molecular sieve that only allows

hydrogen to diffuse into the detector. On the other end, five pins extend from the sensor and plug

into the socket connector. The connector allows you to replace the sensor without disconnecting the

wiring. Four leads extending from the connector allow you to connect the hydrogen sensor to the

main circuit board.

6 • 35-3001-01H Hydrogen Sample-Draw Detector

Installation

This section describes procedures to mount the sample-draw detector in the monitoring

environment and wire the sample-draw detector to a controller.

Mounting the Sample-Draw Hydrogen Detector

1. Select the mounting site. Consider the following when you select the mounting site:

• Is there enough room to open the housing door and make wiring and tubing connections at

the bottom of the housing?

• Make sure there is sufficient room to perform start-up, maintenance, and calibration

procedures.

• Are the flowmeter and status LEDs visible?

Figure 3: Outline and Mounting Dimensions

Ø.30x.50(4X)MOUNTING

.78

1.13

.40

Pilot Fail

.85

.80

4.50

NOTE: Housing is4.3 inchesdeep

8.88

4.00

6.50

35-3001

www.rkiinstruments.com

Sample Drawing

Gas Detector

8.50

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali RKI Instruments Sensore di sicurezza

RKI Instruments

RKI Instruments 35-3010RKA-07 Manuale utente

RKI Instruments

RKI Instruments GX-2012 Manuale utente

RKI Instruments

RKI Instruments 35-3001A-01 1 Series Manuale utente

RKI Instruments

RKI Instruments 35-3001A-09 Manuale utente

RKI Instruments

RKI Instruments 35-3001A-12-02 Manuale utente

RKI Instruments

RKI Instruments 65-2495RK Manuale utente

RKI Instruments

RKI Instruments 65-2427RK-05 Manuale utente

RKI Instruments

RKI Instruments 35-3001-13 Series Manuale utente

RKI Instruments

RKI Instruments 35-3010RK-05 Manuale utente

RKI Instruments

RKI Instruments 35-3001A-07-03 Manuale utente

RKI Instruments

RKI Instruments 35-3010RK-03 Manuale utente

RKI Instruments

RKI Instruments 35-3010RKA-01 Manuale utente

RKI Instruments

RKI Instruments 65-2427-05-01 Manuale utente

RKI Instruments

RKI Instruments 35-3001A-01-02 Manuale utente

RKI Instruments

RKI Instruments Eagle Series Manuale utente

RKI Instruments

RKI Instruments 61-1000RK-05 Manuale utente

RKI Instruments

RKI Instruments 65-2425 Manuale utente

RKI Instruments

RKI Instruments 65-2423RK-05 Manuale utente

RKI Instruments

RKI Instruments 35-3001A-01-03 Manuale utente

RKI Instruments

RKI Instruments 65-2301RKSS Series Manuale utente

RKI Instruments

RKI Instruments 35-3001-06H-DIL Manuale utente

RKI Instruments

RKI Instruments 61-1001RKSS Manuale utente

RKI Instruments

RKI Instruments 35-3010RK-04 Manuale utente

RKI Instruments

RKI Instruments 65-2515RK Manuale utente

Manuali Sensore di sicurezza popolari di altre marche

THORLABS

THORLABS PDA10JT Manuale utente

Waeco

Waeco UV-DETECT Manuale utente

Intermatic

Intermatic IOS-DSIMF Manuale utente

urmet domus

urmet domus 1083 Manuale utente

Siemens

Siemens AZL66 Series Manuale utente

BTI

BTI Profiline Multi Finder Manuale utente

Challenger

Challenger SL01 Manuale utente

DMP Electronics

DMP Electronics 1122INT Manuale utente

Rielta

Rielta Ladoga MK-RK Manuale utente

Mirion Technologies

Mirion Technologies ACCURAD PRD Manuale utente

Bosch

Bosch DS835 Manuale utente

DBI SALA

DBI SALA EZ Stop Manuale dell'operatore

Lamptime

Lamptime ST05C Manuale utente

Ubiquiti

Ubiquiti MFI-MSC Manuale utente

Subsite

Subsite 910R Istruzioni per l'installazione

Satel

Satel OPAL Pro Manuale utente

Aleph

Aleph XC-1XTEU Manuale utente

Pima

Pima LARIS QUAD Manuale utente
