RKM MK 802 IV LE Manuale utente

RKM MK802 IV User Manual

Page 0

RKM MK802 IV User Manual

Page 1

Table of Contents

Declaration ....................................................................................................................................... 2

1.Connector ...................................................................................................................................... 3

2. Device connection Instruction ................................................................................................... 4

3. Boot state ..................................................................................................................................... 4

4. Main Screen Introduction .......................................................................................................... 6

4.1 Move/Delete desktop icon ................................................................................................ 6

4.2 Function column ................................................................................................................. 7

4.3 Status bar ............................................................................................................................ 8

4.4 Application ........................................................................................................................... 9

5. Settings ...................................................................................................................................... 10

5.1 WIFI Setting ......................................................................................................................

5.2 Ethernet Setting ................................................................................................................

5.3 Portable host pot ..............................................................................................................

5.4 Bluetooth ...........................................................................................................................

5.5 PPPOE Setting ................................................................................................................. 12

5.6 USB .................................................................................................................................... 12

5.7 Sound ................................................................................................................................ 12

5.8 Display ............................................................................................................................... 12

5.9 Screen ............................................................................................................................... 12

5.10 Storage ............................................................................................................................ 13

5.11 Apps ................................................................................................................................. 13

5.12 Security ........................................................................................................................... 13

5.13 Language & input .......................................................................................................... 13

5.14 Backup & reset ............................................................................................................... 14

5.15 Date & time ..................................................................................................................... 14

5.16 Developer options ......................................................................................................... 14

5.17 About device ................................................................................................................... 14

6. Browse /Copy Files .................................................................................................................. 14

7. Install/Uninstall Apps ................................................................................................................ 15

7.1 Online installation ............................................................................................................ 15

7.2 Local installation .............................................................................................................. 15

7.3 Uninstall Apps ................................................................................................................... 15

8. Airplay/DLNA ............................................................................................................................. 16

9 . Web Browsing ........................................................................................................................... 16

1 0 . Local audio & video playback ............................................................................................... 17

1 . Use soft keyboard .................................................................................................................. 1 8

1 2 . Switch input methods ............................................................................................................ 1 8

Question & Answer ....................................................................................................................... 1 9

Specifications ................................................................................................................................ 1 9

RKM MK802 IV User Manual

Page 2

Declaration

The user manual includes all the information of safe and correct operation

instruction.

avoid accident and product damaged, please make sure go through

all the content carefully before using the product.

Please keep the product away from high temperature, humid and dusty

environment.

Do not drop or crash the product.

Do not cut off the device when it is formatting, or upgrading, otherwise it will cause

operation system error.

Do not dismantle the device. Do not clean it by alcohol, thinner and Benzene.

We keep the right to upgrade and modify the product.

Disclaimer: we only take the responsibility to provide the warranty and after service.

The users have to take care of their data in the device by themselves. We do not

responsible for any data or related lost.

The product is not water-proof.

All the pictures in the instruction are just for reference.

RKM MK802 IV User Manual

Page 3

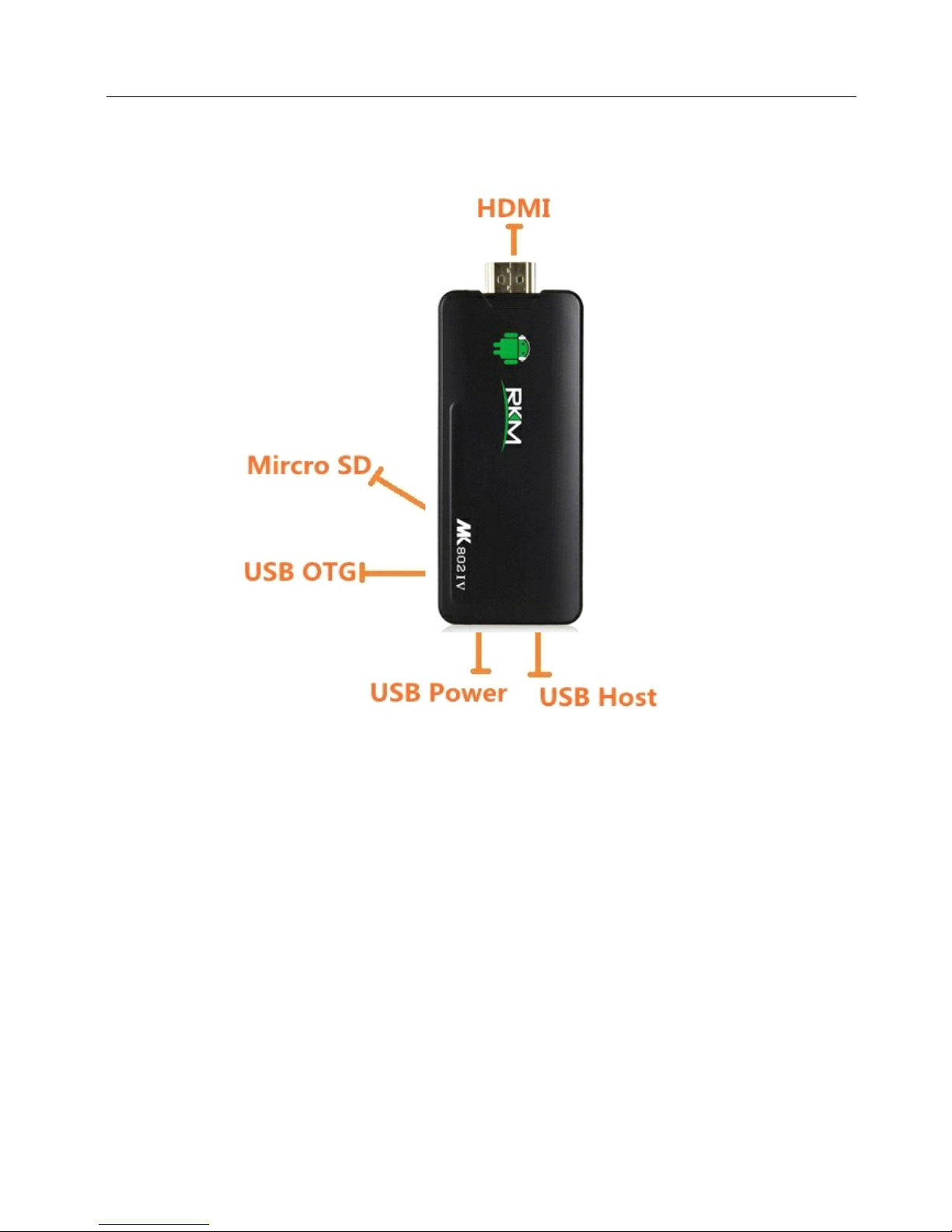

1.Connector

Micro-USB

Micro-USB Power:

Power:

Power: Connect with TV USB port for charge the unit.

USB

USB 2.0

2.0

2.0 HOST:

HOST:

HOST: Connect with other USB device.

USB

USB OTG:

OTG:

OTG: Date transfer with PC, or connect USB device.

HDMI

HDMI : High Definition Multimedia Interface Output

Micro

Micro SD

SD : Support expanded 2GB-32GB TF card

RKM MK802 IV User Manual

Page 4

2. Device

Device

Device connection

connection

connection Instruction

Instruction

a) Take out the device insert into your TV HDMI port(if there is no enough space

around HDMI interface for MK802

, please use HDMI extend cable ), make sure

source is HDMI input mode. (Refer to TV set user manual).

b) Power supply connection: take out Micro USB cable to USB cable , connect the

MK802IV with TV via this cable; If the TV USB port can ’ t provide enough current,

please take USB power supply.(Any USB power supply among 5V/1A to 5V/2A are

available).

c) S uggest using 2.4G wireless keyboard or mouse. Plug 2.4G receiver on USB Host

connector , if only mouse plugged, the device will provide soft keyboard during

operation ; If the device detected the physical keyboard, the soft keyboard will be

hidden automatically.

d) Mouse left button for “ ok ” , right button for “ return ” , rolling for page up and page

down, Keep h old ing left button to drag icon or copy / paste file. K eep h old ing middle

button to pop up p roperties.

3. Boot

Boot

Boot state

state

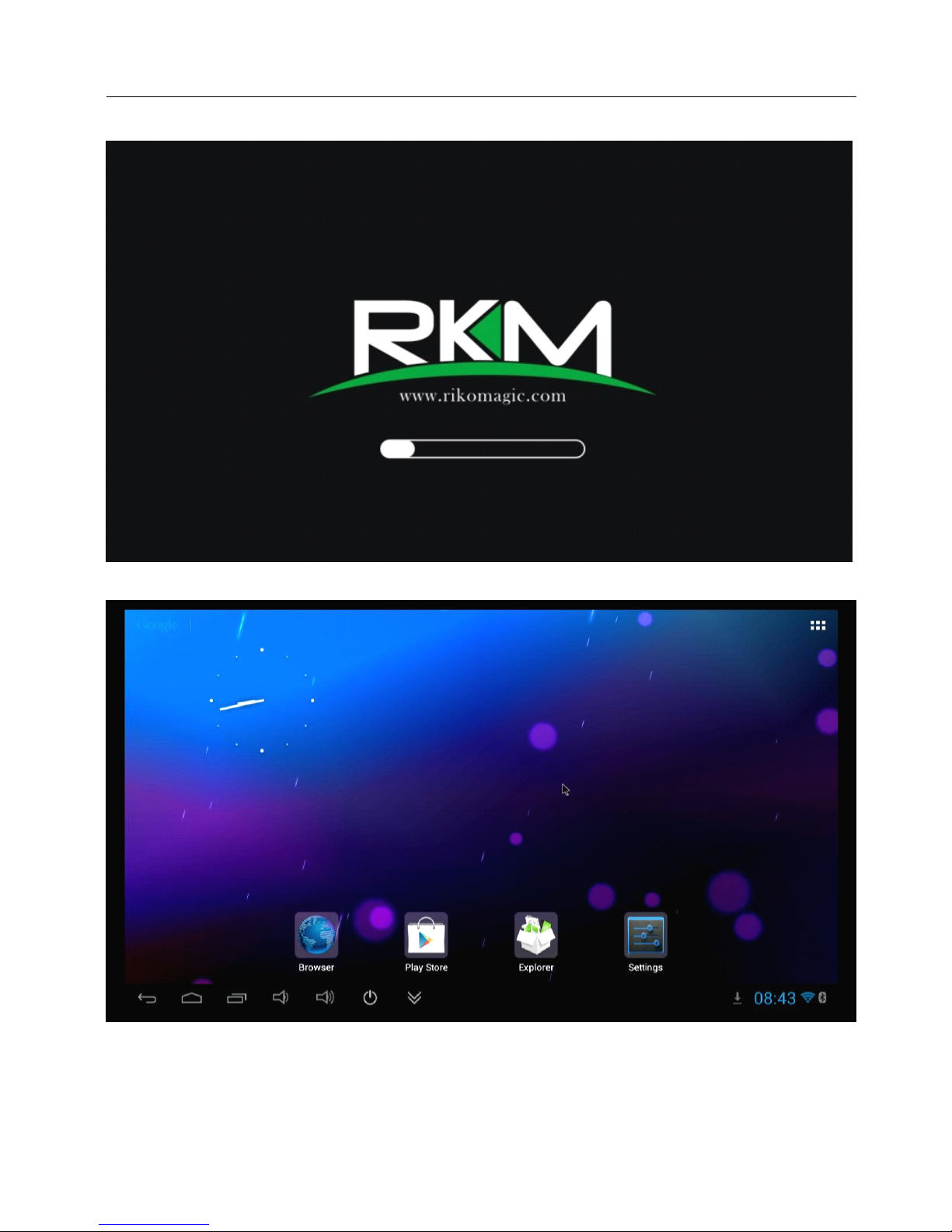

After powered around 10 seconds, the boot image w ill appear.

RKM MK802 IV User Manual

Page 5

Then access to boot animation ;

After around 30 seconds, device would access to main screen;

RKM MK802 IV User Manual

Page 6

4. Main

Main

Main Screen

Screen

Screen Introduction

Introduction

4.1

4.1 Move/Delete

Move/Delete

Move/Delete desktop

desktop

desktop icon

icon

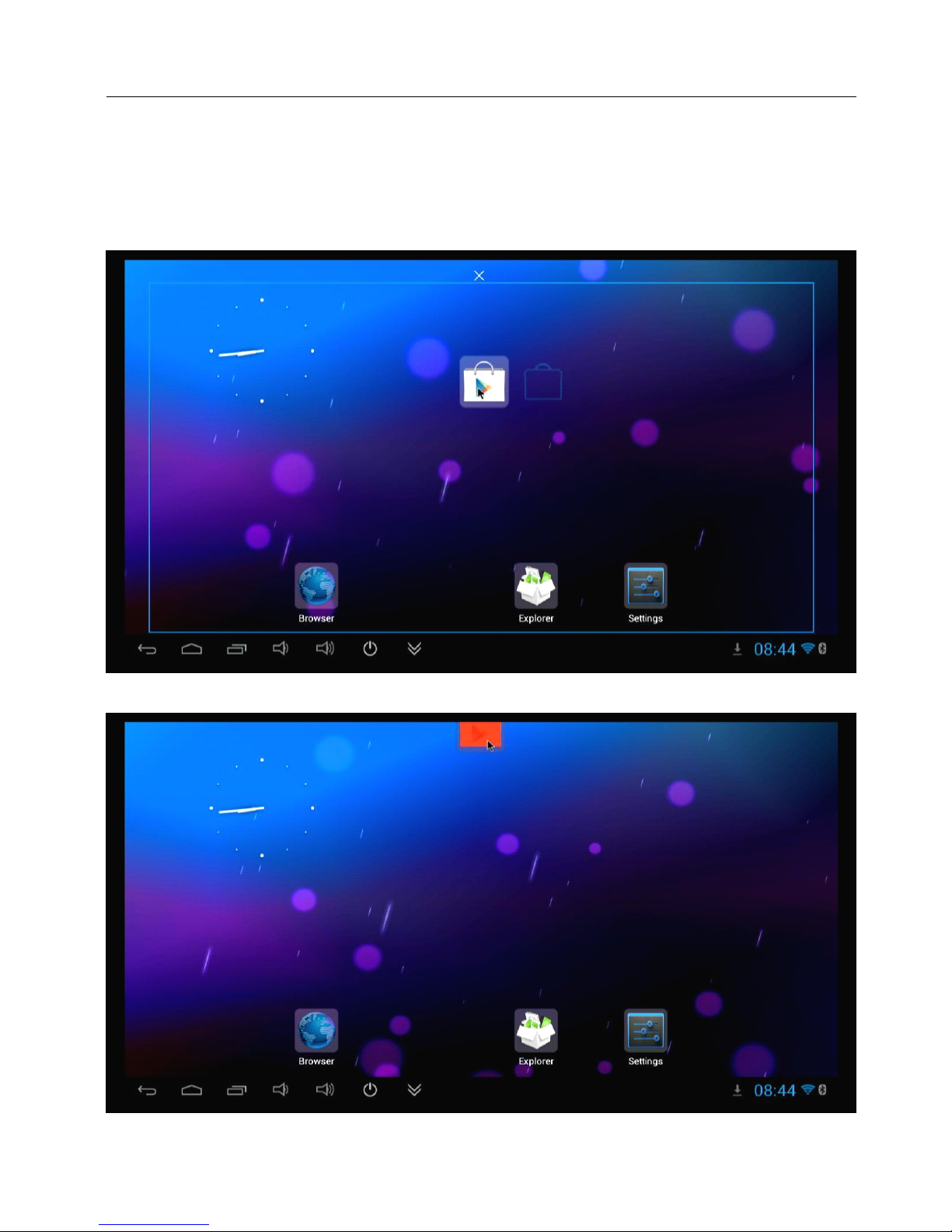

Long-press any icon in the main menu , you could put it in any position as you like, at the

same time you could put the other apps shortcut to the desktop .

Long press the icon and move it to the right above “×” and loosen, then you could delete it

RKM MK802 IV User Manual

Page 7

Move your cursor to any space and drag towards left or right for page rolling.

Also you can use the mouse wheel for rolling page.

4.2

4.2 Function

Function

Function column

column

Return button: click to return to previous directory ;

Homepage button: click it anytime to return to main menu ;

Program button: Click to check all the running program;

Volume decrease button: Click to decrease volume;

RKM MK802 IV User Manual

Page 8

Volume increase button: Click to increase volume;

Properties button: in different apps, it shows different contents. It ′ s equivalent to

W i ndows properties button;

Soft turn off button.

Hide icon: click for hide this function bar.

Search button: Located in the top left corner of the main menu , click this icon to

pop up webpage screen, user can input any website here.

Program tools button: Located in the right top corner of the desktop, click this icon

to pop up all the apps which has been installed.

4.3

4.3 Status

Status

Status bar

bar

Located on the right bottom, display T-Flash Card, USB connection, Time, Wifi and

Download status.

Click status bar, the hide menu will pop up :

RKM MK802 IV User Manual

Page 9

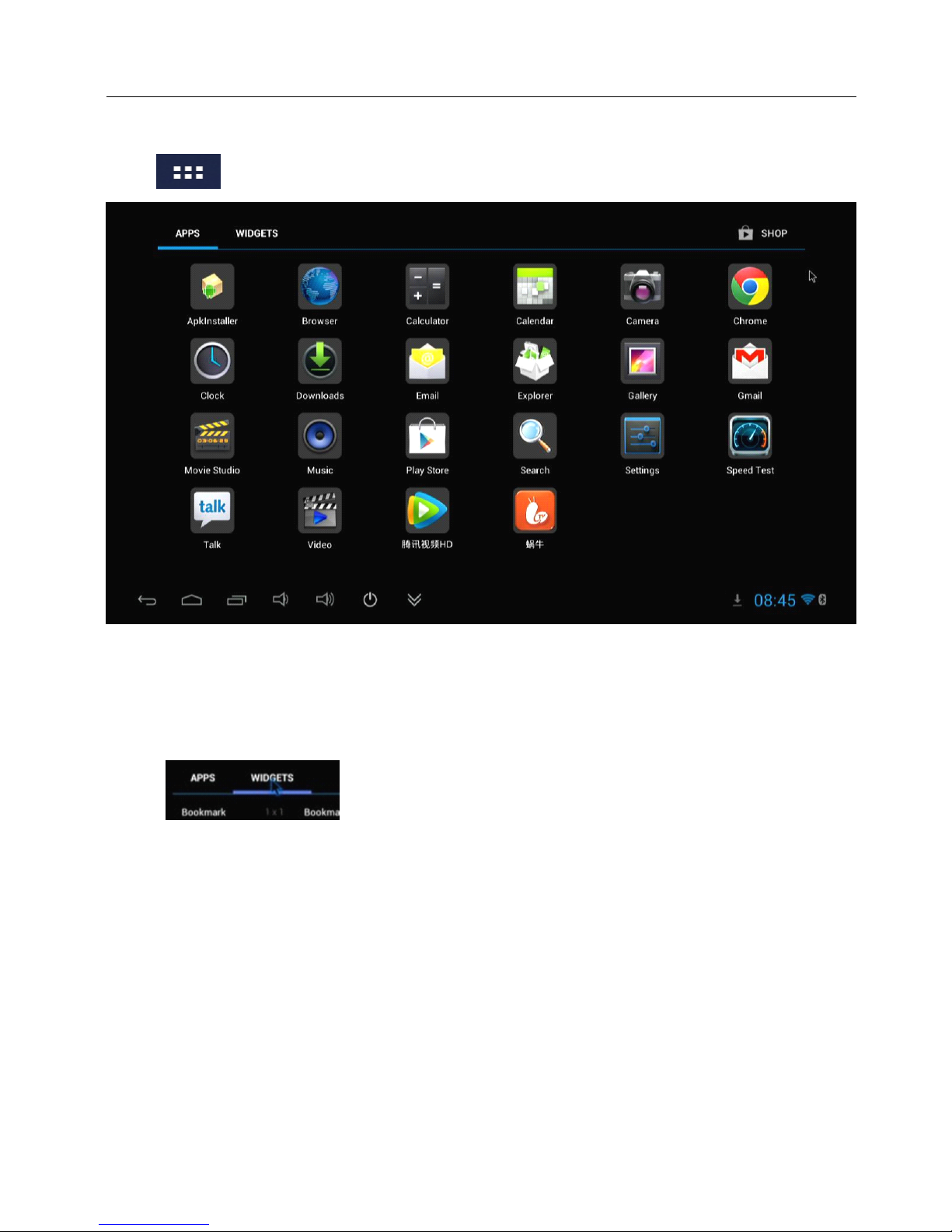

4.4

4.4 Application

Application

Click to pop up all the installed app and setup tools icon.

if the installed APP beyond the first page, drag the page or rolling the mouse roller will

display the second page of APP ;

You can directly use the se APPs , or set up related tools , or long-press those

commonly used APP to drag onto the desktop.

Click to access widgets, long press any widgets to form

corresponding shortcut on the desktop.
