CONTENTS
2
1. PREFACE AND INTRODUCTION 3
2. SAFETY NOTICE 4
»2.1 Before driving
»2.2 While driving
»2.3 Labelling
3. PARTS INTRODUCTION 9
»Parts description
4. OPERATION 10
»4.1 Control panel
»4.2 How to operate your scooter
5. BATTERY CHARGING AND CARE 15
»5.1 Charging the battery
»5.2 Battery
6. INSPECTION AND MAINTENANCE 18
»6.1 Inspection
»6.2 Regular checking record
»6.3 Battery, fuse and tire
»6.4 Storage
»6.5 Moving about
7. TROUBLE SHOOTING AND SPECIFICATION 21
8. WARRANTY 22
3
Please carefully read this owner’s manual before using the vehicle. Improper use of the vehicle could
result in harm, injury or trac accidents. For maximum safety while using the vehicle please read
this owner’s manual.
Our scooters have been designed and manufactured to provide a comfortable and secure yet
aordable solution for some mobility requirements.
1. PREFACE AND INTRODUCTION
»This owner’s manual includes operation instructions for every aspect of the vehicle, assembly
instructions, and instructions for how to deal with possible accidents.
»The symbols used in this manual are explained below. Read especially the notes marked with
these symbols:
»This manual includes a copy of repair and maintenance record chart and warranty
information. Please keep it in a safe place or with the scooter.
»If someone else uses the scooter, please make sure that you provide them with the
instruction manual for his or her consideration.
»As designs change some illustrations and pictures in the manual may not correspond to the
vehicle that you purchased. We reserve the right to make design modications.
Warning Improper usage could result in serious injury or death.
Attention Improper usage could lead to injury and/or damage to your scooter.
Suggestion Follow these instructions to keep your vehicle in a good operating order.
SUGGESTION
To maximise your batteries eciency and service life, please fully recharge your new
battery before rst use.
2. SAFETY NOTICE
4
2.1 BEFORE DRIVING
The user needs to be familiar with the usage and operation of this vehicle before driving. Therefore,
please always keep the following safety notices in mind.
The same trac rules apply to the use of this vehicle as apply to pedestrians
For your safety, please therefore follow the rules that apply to pedestrians.
»Ride on the pavement, single carriage roads, or pedestrian areas only. Never ride on
motorways or dual carriageways.
»Please do not drive your scooter after consuming alcohol or when you are tired.
»Please be careful when driving your scooter in low light. It has not been designed for use at
night.
»The scooter may be used on single carriage roads in the 8mph (12.8kp/h) switch speed
mode.
Practice operating your vehicle
Before using the scooter in busy or potentially dangerous areas, familiarise yourself with the
operation of your scooter. Please practise in a wide and open area like a park. In order to avoid
accidents with your scooter while driving, please bear in mind driving motions, such as accelerating,
stopping, turning, reversing, and driving up-and down ramps.
»Please turn the speed dial to value 3 for your initial practice.
»Be sure someone accompanies you for safety when driving on the roads for the rst time.
»Only use higher speed settings when you are condent that you can easily operate and
control your scooter.
Do not use this vehicle to carry or haul goods
»As only the maximum weight can be carried please refer to MAX USER WEIGHT on page 19.
»Maximum loading weight for basket is 3 kg.
Tyres
Correct air pressure in the tyres is essential for optimal steering and stability of the scooter.
»Check air pressure every two weeks. Inate to the proper air pressure (30-35 psi).
»Maximum tyre pressure is 50 psi.
The scooter is only to be used by one person at a time
Do not carry passengers on your scooter (including children)
5
2. SAFETY NOTICE
2.2 WHILE DRIVING
Please carry out daily inspections. Refer to the section entitled INSPECTION AND MAINTENANCE.
Do not move your body out of the vehicle while moving
»Such action may cause you to lose balance and risk injury from falling.
»Pay attention that your clothes do not tangle in the wheels.
Do not use your vehicle under the circumstances below.
»On roads with heavy trac or roads that are muddy, gravelly, bumpy, narrow, snowed over,
icy, or canal towpaths not guarded by any fence or hedge. Keep away from places where you
might get the wheels stuck.
»Do not drive at night or when it is raining, snowing, misty, or windy.
»Do not drive your vehicle in an “S” pattern or make erratic turnings.
»Do not take the scooter onto escalators.
»UNDER NO CIRCUMSTANCES SHOULD THE SCOOTER BE USED AS A SEAT IN A MOTOR
VEHICLE (E.G. CARS, BUSES, TRAINS, ETC).
About Mobile Phones and other electrical equipment
»Do not use a mobile phone or other wireless communication device while driving.
»Always switch o the scooter and remove the ignition key before using a mobile phone.
»Do not charge the mobile phone or any other electrical devices from your scooter’s battery.
Ramps, inclines and drops
»Do not drive onto steep ramps greater than the specied gradient. Refer to the section
entitled CLIMBING ANGLE.
»Always use a low speed setting when ascending or descending a gradient.
»Do not drive on roads with large drops or potholes.
»Please slow down when driving on roads with inclines.
»Do not make sudden turns when driving on gravel roads or ramps.
»Always lean forward when climbing a steep gradient.
Automatic Power Shut Down
In order to avoid accidental battery run down, your scooter is equipped with an automatic power
shut down facility. If the scooter is switched on, after remaining undisturbed for a period of thirty
minutes it will automatically turn o. Should this occur, simply switch your scooter o and back on
and it will be ready to use once again.
2. SAFETY NOTICE
6
STARTING AND DRIVING
»Make sure the seat is installed properly.
»Make sure the tiller has been secured properly.
»Fold down the armrests so you can rest your arms on them.
»Turn the power switch to ON. If necessary, turn on the headlights.
»Check battery indicator to see whether there is enough power for your journey. If you have any
doubt about the remaining power, please recharge the batteries before departure.
»Set the speed dial to a position you feel safe and comfortable with.
»Check the forward/reverse speed lever works correctly.
»Make sure the electromagnetic brake works correctly.
»Make sure it is safe around you before you drive on the street. Engage the 8mph (12.8kp/h)
switch if you are driving on the pavement.
WARNING
»Do not set in the freewheel mode when driving on a gradient.
»Always re-engage the anti-freewheel device before use. Failure to do so may result in
injury.
»To protect your safety, the power will automatically cut o and electromagnetic brake
system will activate while you are driving down a steep gradient. This will limit the speed
to a safe level. Turn the power on again to re-start your scooter.
»Maximum User Weight Limit - Refer to section entitled MAX. USER WEIGHT. Overloading
the weight limit may lead to damage of your scooter or cause it to malfunction and will
endanger your safety. The warranty does not cover this type of damage.
ATTENTION
»Do not push both RH & LH sides of the speed control lever simultaneously. This might
leave you unable to control your scooter.
»Do not turn the power switch to OFF while driving as this will lead to an emergency stop
and possible risk of accident and injury.
»Do not set to the highest speeds while driving indoors.
»Do not adjust the speed dial while driving, a sudden change in speed may cause danger
to you and others, and may cause damage to your scooter.
»Do not place magnetic devices near the area of the operation handle as this could aect
the safe operation of your scooter.
»Do be careful while driving in heavy trac or crowded areas.
»While reversing the vehicle, beware of people or objects behind you.
7
2. SAFETY NOTICE
DRIVING ON THE PAVEMENT
»Ensure the 8mph (12.8kp/h) limit switch is set to the slowest setting when using the scooter
on the pavement.
»This will limit the scooter to a maximum speed of 8mph (12.8kp/h).
»The limit switch can be set to the fastest setting for use on the road or on private ground.
STOPPING
»Release the speed control lever completely. The vehicle will naturally brake and stop.
»Turn the power switch to (OFF). Then pull out the key.
2. SAFETY NOTICE
8
2.3 LABELLING
Please carefully read all labels on the scooter before driving it. For your future reference, do not
remove them.
WARNING
»Do not operate the scooter unless the handle bar is
in a lock position.
»Do not lean against or pull forward on the handle
bar while mounting or dismounting from the
scooter. Serious harm or injury can occur.
The manufacturer disclaims all responsibility for any
personal injury or property damage which may occur as
a result of improper use of its products.
»Never lift the scooter up by the front or rear shroud
WARNING
Radio waves may aect scooter control.
Radio wave sources, such as radio stations, amateur radio (HAM) transmitters, two-way
radios, and cellular phones, can aect powered motorised scooters. Following the warning
listed below should reduce the chance of unintended brake release or powered scooter
movement which could result in serious injury.
1. Do not turn ON hand-held personal communication devices, such as citizens band (CB)
radios and cellular phones, while the powered scooter is turned ON.
2. Be aware of nearby transmitters, such as radio or TV stations, and try to avoid coming
close to them.
3. If unintended movement or brake release occurs, turn the powered scooter OFF as
soon as it is safe.
4. Be aware that adding accessories or components, or modifying the powered scooter,
may make it more susceptible to interference from radio wave sources. (Note: There is
no easy way to evaluate their eect on powered scooter.)
5. Report all incidents of unintended movement or brake release to the powered scooter
manufacturer, and note whether there is a radio wave source nearby.
3. PARTS INTRODUCTION
9

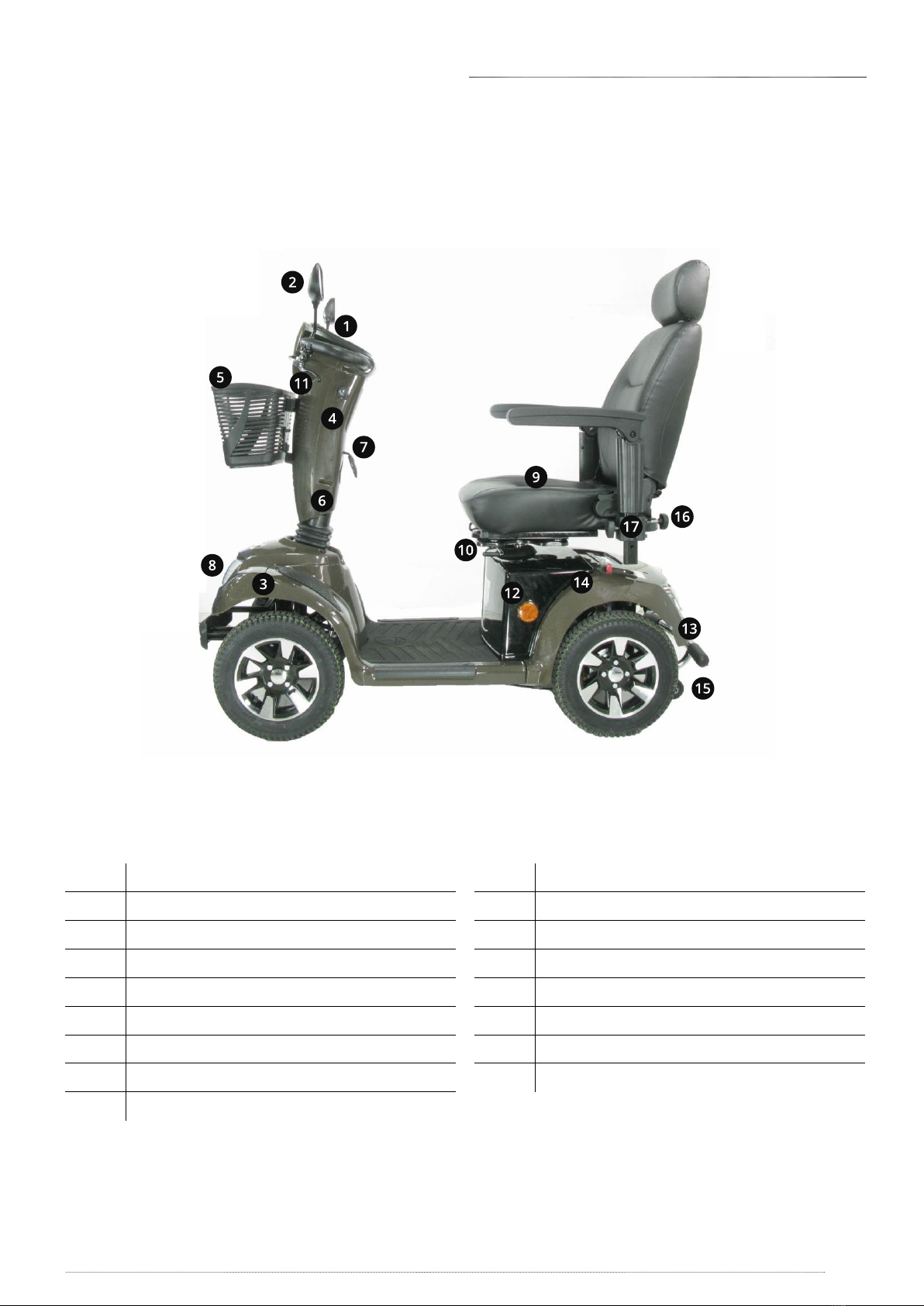

01 Control Panel
02 Rear Mirror
03 Indicator Lamp
04 Charger Socket Cover
05 Basket
06 Tiller
07 Tiller Adjust Lever
08 Head Lamp
09 Seat
10 Seat Rotation Lever
11 Hand Brake Lever
12 Side Reector
13 Rear Lamp
14 Freewheel Lever
15 Anti-tip Wheel
16 Width Adjustable Armrests Knob
17 Height Adjustable Armrests Knob
4. OPERATION
10

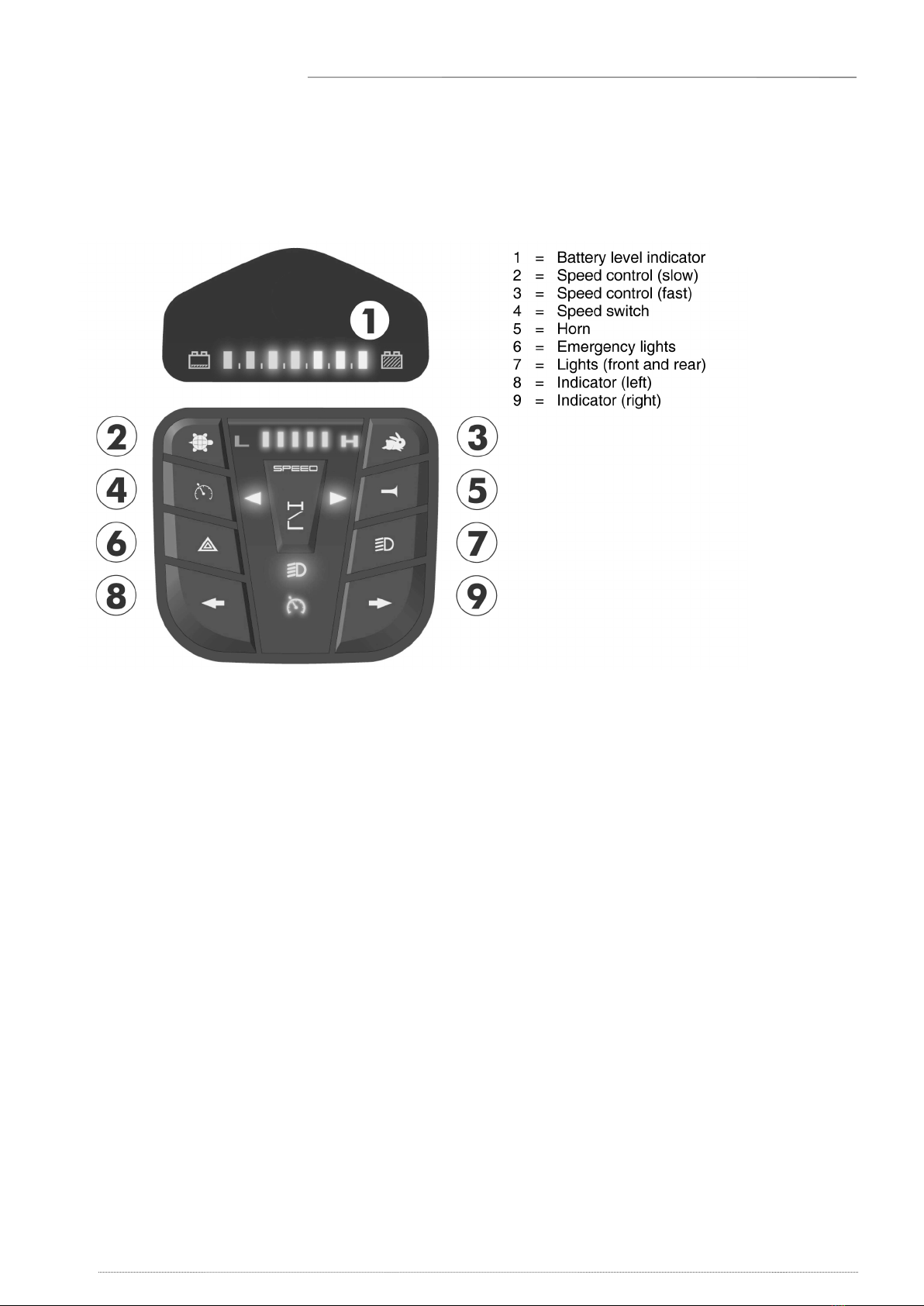

4.1 CONTROL PANEL
»Put the ON/OFF key switch on.
»The battery level indicator shows the current level of your batteries
»Now turn the speed control to the desired driving speed.
»Pull the drive lever with your ngers toward the handle bars (right lever for forward
movement, left lever for backward movement).
»To sound the horn, press the horn button.
»To put on the front and back lights, press the lights button (7).
»To put on the emergency ashers, press button (6).
»To put on the indicator lights, press the desired button (8-9)
(left = left indicator, right = right indicator).
