Robe Image Spot 250 AT Manuale utente

USER MANUAL

Version: 2.4

ROBE

Show Lighting s.r.o. Czech Republic www.robe.cz

® Show Lighting s.r.o. Czech Republic www.robe.cz

Show Lighting s.r.o. Czech Republic www.robe.cz

Color

Spot

250

Table of contents

1. Safety instructions

2. Operating determinations

3. Description of the device

4. Installation

4.1 Fitting the lamp

4.2 Lamp adjustment

4.2 Lamp adjustment 4.2 Lamp adjustment

4.3 Inserting/Exchanging gobos and colours

4.3 Inserting/Exchanging gobos and colours 4.3 Inserting/Exchanging gobos and colours

4.4 Replacing the 3-facet prism

4.4 Replacing the 3-facet prism 4.4 Replacing the 3-facet prism

4.5 Installation of an optional lens

4.5 Installation of an optional lens 4.5 Installation of an optional lens

4.6 Rigging the  xture

4.6 Rigging the  xture 4.6 Rigging the  xture

4.7 Connection to the mains

4.7 Connection to the mains 4.7 Connection to the mains

4.8 Changing the power supply settings-magnetic ballast

4.8 Changing the power supply settings-magnetic ballast 4.8 Changing the power supply settings-magnetic ballast

4.9 DMX-512 connection/connection between  xtures

4.9 DMX-512 connection/connection between  xtures 4.9 DMX-512 connection/connection between  xtures

5. DMX protocol

6. Controller mode

6.1 DMX addressing

6.1 DMX addressing 6.1 DMX addressing

6.2 Remotely controllable functions

6.2 Remotely controllable functions 6.2 Remotely controllable functions

7. Stand - alone mode

8. Functions of the control panel

8.1 Addressing

8.1 Addressing 8.1 Addressing

8.2 Slave control

8.2 Slave control 8.2 Slave control

8.3 Fixture informations

8.3 Fixture informations 8.3 Fixture informations

8.4 Fixture temperatures

8.5 Personality options

8.6 Switching On/Off the lamp

8.6 Switching On/Off the lamp 8.6 Switching On/Off the lamp

8.7 Manual mode

8.7 Manual mode 8.7 Manual mode

8.8 Test sequences

8.8 Test sequences 8.8 Test sequences

8.9 Stand-alone setting

8.9 Stand-alone setting 8.9 Stand-alone setting

8.10 Reset function

8.10 Reset function 8.10 Reset function

8.11 Special functions

8.11 Special functions 8.11 Special functions

9. Power down mode

10. Error and information messages

11. Technical speci cations

12. Maintenance and cleaning

Color

Spot

250

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOU INITIAL START - UP!

1. Safety instructions

Every person involved with installation and maintenance of this device have to:

- be qualil ed

- follow the instructions of this manual

CAUTION!

Be careful with your operations. With a high voltage you can suffer

a dangerous electric shock when touching the wires!

This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe ope-

ration, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.

Important:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any

unauthorized modi cation to the device.

Please consider that damages caused by manual modi cations to the device are not subject to warranty.

Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains

with particular caution!

Make sure that the available voltage is not higher than stated on the rear panel.

Always plug in the power plug least. Make sure that the power-switch is set to off -position before you connect the device

to the mains. The power-plug has to be accessable after installing the device.

Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power-cord from

time to time.

Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power-cord by the

plug. Never pull out the plug by tugging the power-cord.

This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth.

The electric connection, repairs and servicing must be carried out by a quali ed employee.

Do not connect this device to a dimmer pack.

Do not switch the  xture on and off in short intervals as this would reduce the lamp’s life.

During the initial start-up some smoke or smell may arise. This is a normal process and does not necessarily mean that

the device is defective.

Do not touch the device’s housing bare hands during its operation (housing becomes hot)!

For replacement use lamps and fuses of same type and rating only.

CAUTION ! EYEDAMAGES !

Avoid looking directly into the light source (meant especially for epileptics) !

2. Operating determinations

This device is a moving-head spot for creating decorative effects and was designed for indoor use only.

If the device has been exposed to drastic temperature  uctuation (e.g. after transportation), do not switch it on immedia-

tely. The arising condensation water might damage your device. Leave the device switched off until it has reached room

temperature.

Never run the device without lamp!

Do not shake the device. Avoid brute force when installing or operating the device.

Never lift the  xture by holding it at the projector-head, as the mechanics may be damaged. Always hold the  xture at the

transport handles.

When choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or dust.

There should not be any cables lying around. You endanger your own and the safety of others!

The minimum distance between light-output and the illuminated surface must be more than 1,3 meter.

Make sure that the area below the installation place is blocked when rigging, derigging or servicing the  xture.

Always  x the  xture with an appropriate safety-rope. Fix the safety-rope at the correct holes only.

Only operate the  xture after having checked that the housing is  rmly closed and all screws are tightly fastened.

The lamp must never be ignited if the objective-lens or any housing-cover is open, as discharge lamps may explose and

emit a high ultraviolet radiation, which may cause burns.

The maximum ambient temperature 45° C must never be exceeded. Otherwise, the lamp is switched off and the  xture

is out of operation for 5 minutes.

CAUTION!

The lens has to be replaced when it is obviously damaged,

so that its function is impaired, e. g. due to cracks or deep scratches!

Operate the device only after having familiarized with its functions. Do not permit operation by persons not quali ed for

operating the device. Most damages are the result of unprofessional operation!

CAUTION!

The lamp has to be replaced when it is damaged

or deformed due to the heat!

Please use the original packaging if the device is to be transported.

Please consider that unauthorized modi cations on the device are forbidden due to safety reasons!

If this device will be operated in any way different to the one described in this manual, the product may suffer damages

and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-circuit, burns, electric

shock, burns due to ultraviolet radiation, lamp explosion, crash etc.

3. Description of the device

- Moving head

- Yoke

- Base

- Handle

4. Installation

4.1 Fitting the lamp

DANGER !

Install the lamps with the device switched off only.

Unplug from mains before !

To insert the lamp MSD 250W/2 open

the top cover of the projector-head by

loosening the 3 quarter-turn fasteners on

the cover.

Then open the small lamp cover by

loosening 2 fastening screws (see the

drawing).

If changing the lamp, remove the old lamp from the socket. Insert the

lamp to the socket.

Do not install a lamp with a higher wattage! A lamp like this generates

temperatures the device is not designed for.

Damages caused by non-observance are not subject to warranty. Please

follow the lamp manufacturer‘s notes!

Do not touch the glass bulb with bare hands during the installation! Make

sure that the lamp is installed tightly into the lampholder system.

Adjust the optimal distance 1-1,5 mm from the lens by turning the screw

„A” (see the drawings „Lamp adjustment” below) on the rear panel of

the head.

Then close the small lamp cover by tighten 2 fastening screws again.

Reclose the top cover of the head and tighten the 3 quarter-turn fas-

teners.

Before striking the lamp, reset the „LAti/rSEt” and „LASt/rSEt”counters in

the „InFO” menu on the control panel, by pressing the „Up” and „Down”

buttons in one time and then con rming with the „Enter”-button.

Do not operate this  xture with opened housing-cover!

Rear panel of the base

1 -

5-pin DMX output

2 -

5-pin DMX input

- 3-pin DMX output

- 3-pin DMX input

- Power switch

6 -

Power cord

- fuse holder

Front panel of the base

1 -

Display

- Mode-button

- Enter-button

- Up-button

- Down-button

1 -

Top cover

- Quater-turn fasteners

- Lamp cover

- Fastening screws

- Lamp

4.2 Lamp adjustment

The lampholder is aligned at the factory. Due to differences between lamps,  ne adjustment may improve light performance.

Strike the lamp, cancel all effects, open the shutter and set the dimmer intensity onto 100 % and focus the light on a  at

surface (wall) or use function

„LAAd”

in the

Special functions

. As the optimum distance of the lamp from lens was

adjusted during the installing or changing the lamp (by turning the screw

„A”

), it is necessary to adjust only the second

position by turning the screw

„B”

, in order to center the hot-spot (the brightest part of the beam).

If the hot spot seems to be too bright, you can lower its intensity by moving the lamp closer to the re ector. Do so by

turning the srew

„A”

until the light is evenly distributed.

If the light on the edge seems to be brighter as in the center, the lamp is too close at the re ector. In this case, you need

to move the lamp away from the re ector until the light is evenly distributed and the beam appears bright enough.

4.3 Inserting/Exchanging gobos and colours

DANGER!

Install the colours and gobos with the device switched off only.

Unplug from mains before!

Turn off the lamp and allow it to cool for at least 10 mi-

nutes. Disconnect the  xture from power.

To insert the gobos or colours, open the top cover of the

moving-head by loosening the 3 quarter-turn fasteners on

the top cover and follow the instructions below:

Rotating gobo-wheel:

1. Gently bend out the gobo module to release it from the

distance holes and eject it from the pressing snap.

2. Press the ends of the  xation ring together with an

appropriate tool and remove it from the gobo holder.

Remove the gobo and insert the new gobo. Press the

ends of the  xation ring together and insert it in the

front of the gobo.

3. Put the gobo module back under the pressing snap

and push it to the 2 distance holes.

CAUTION!

The gobo module with the magnet must be placed

in the same position as it was placed before gobo

replacement!

CAUTION!

All Gobos were designed for 250 W lamp only.

Do not use them in the  xture with more powerful lamp!

Never unscrew the screws of the rotating gobo

as the ball bearing will otherwise be opened!

Colour-wheel:

Gently bend out the colour-module to release it

from the 2 distance holes and eject it from the

pressing snap.

Put the new colour-module back under the pres-

sing snap and push it to the 2 distance holes.

4.4 Replacing the 3-facet prism

Gently bend out the prism holder to release it from the  xative holes of prism/frost fastener and eject it from the pressing snap.

Put the frost holder back under the pressing snap and push it to the 3  xative holes.

prism/frost fastener

prism holder

4.5 Installation of an optional lens

The device is delivered with a 15°-standard lens. If you wish to insert an optional 12° or 18°-lens (it is not the standard

part of delivery), please follow the instructions below:

Optional 12°-lens:

Remove the  xation-ring of the 15°-lens with an appropriate tool. Remove the lens. Install the optional 12°-lens and  x it

with the  xation-ring.

Optional 18°-lens:

Unscrew the knurled-head screw on the plate of the

light-output. Install the optional 18°-lens and  x it with

the knurled-head screw.

4.6 Rigging the  xture

Danger of  re !

When installing the device, make sure there is no highly

in ammable material (decoration articles, etc.)

in between a distance of min. 0,5 m.

Warning !

Use 2 clamps to rig the  xture on the truss.

Follow the instructions mentioned at the bottom of the base.

Make sure that the device is  xed properly!

Ensure that the structure (truss) to which you are attaching

the  xtures is secure.

The installation of the projector has to be built and constructed in a way that it can hold 10 times the weight for 1 hour

without any harming deformation.

The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary

safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.

When rigging, derigging or servicing the  xture staying in the area below the installation place, on bridges, under high

working places and other endangered areas is forbidden.

The moving-head can be placed directly on the stage  oor or rigged in any orientation on a truss without altering its ope-

ration characte ristics (see the drawing).

For overhead use, always install a safety-rope that can hold at least 10 times the weight of the  xture. You must only use

safety-ropes with screw-on carabines. Pull the safety-rope through the two apertures on the bottom of the base and over

the trussing system etc. Insert the end in the carabine and tighten the  xation screw.

Fixation via Omega holders

1. Bolt each clamp (1) to the omega holder (4) with M12 bolt and lock nut through the hole in the holder.

2. Fasten the omega holders on the bottom of the base by inserting both quick-lock fasteners (3) into the holes of the

base and tighten fully clockwise.

3. Fasten the safety-rope (2) through the two apertures on the bottom of the base and over the trussing system.

4.7 Connection to the mains

Verify the power supply settings before applying power!

If you wish to change the power supply settings, see the chapter below.

Connect the  xture to the mains with the enclosed power cord and plug.

The earth has to be connected!

The occupation of the connection-cables is as follows:

Cable (EU)

Cable (US)

International

Brown

Black

Live

Liht blue

White

Neutral

Yellow/

Green

Earth

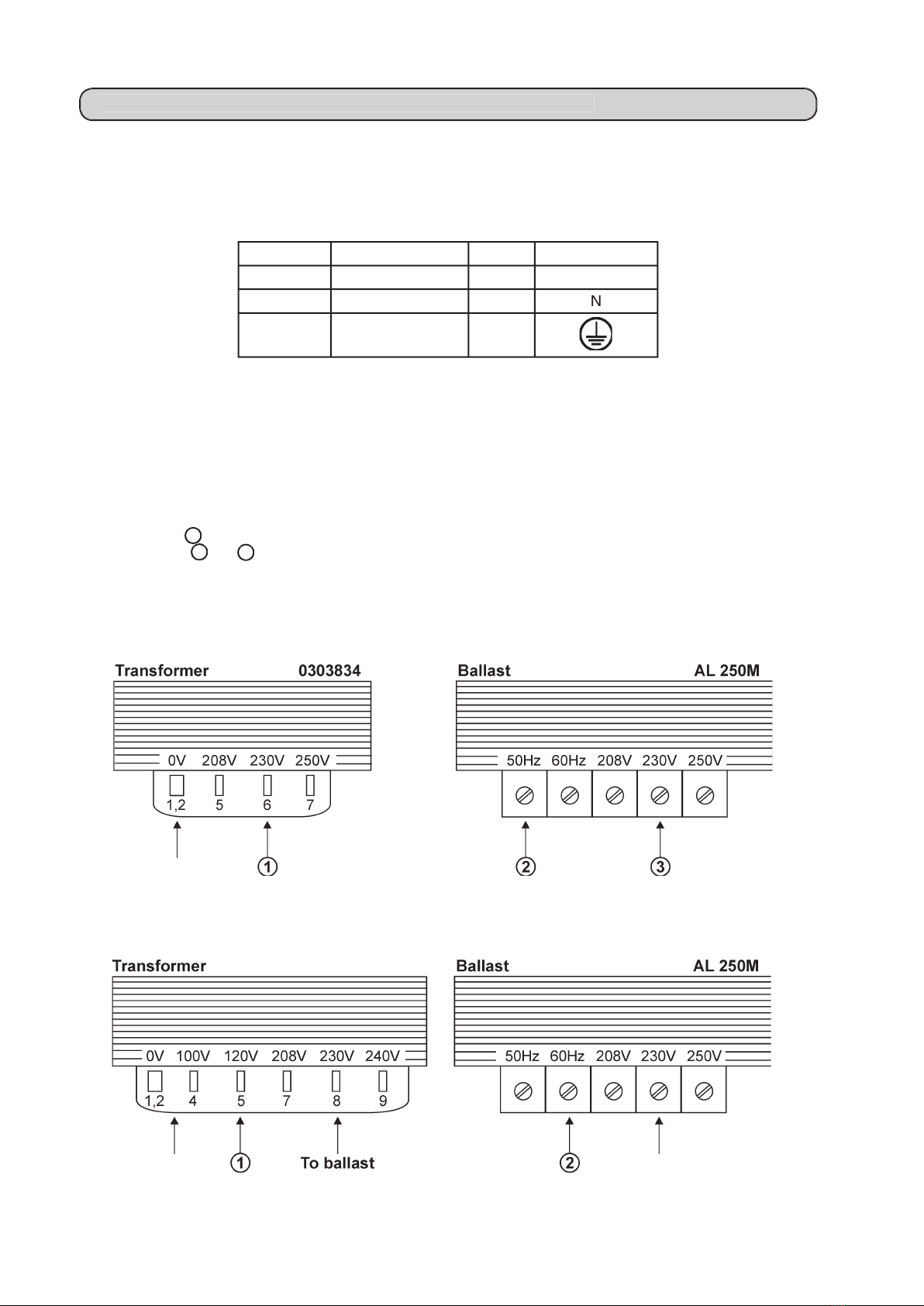

4.8 Changing the power supply settings-magnetic ballast

Both the transformer and the ballast must be connected correctly for the local AC voltage and frequency.

The wrong settings can cause poor performance or demage of the moving head. The factory settings are printed next to

the power switch.

If you want to change the power supply settings, follow the instructions:

1. Disconnect the  xture from AC power.

2. Remove the 2 top base covers by loosening 10 screws.

3. Move the wire 1 on the transformer connection block to the position according to the desired voltage.

Move the wires 2 and 3 on the ballast connection block to the position according to the desired frequency (voltage).

5. Close the base before applying AC power.

Examples:

EU-version

(

power supply settings: 230V/50Hz)

US-version

(

power supply settings: 120V/60Hz)

Move the wires 2 and 3 on the ballast connection block to the position according to the desired frequency (voltage).

3. Move the wire 1 on the transformer connection block to the position according to the desired voltage.

Move the wires 2 and 3 on the ballast connection block to the position according to the desired frequency (voltage).

Altri manuali per Image Spot 250 AT

Indice

Altri manuali Robe Riflettore

Robe

Robe ColorSpot 1200E AT Manuale utente

Robe

Robe PATT 2013 Manuale utente

Robe

Robe CitySkape Xtreme Manuale utente

Robe

Robe Color Spot 1200 AT Manuale utente

Robe

Robe Digital Spot 5000 DT Manuale utente

Robe

Robe Spot 575 XT Manuale utente

Robe

Robe Color Wash 575E AT Manuale utente

Robe

Robe Robin BFML Manuale utente

Manuali Riflettore popolari di altre marche

Guangzhou Yinhe Lighting&Sound Equipment Factory

Guangzhou Yinhe Lighting&Sound Equipment Factory NE-204 Manuale utente

LIVARNO home

LIVARNO home 375304 2101 Istruzioni originali

Cameo

Cameo CLQS40WW Manuale utente

Leviton

Leviton Ellipsoid 5/50 Manuale utente

Monacor

Monacor img Stage Line PARL-56PDX/CR Manuale utente

Vector

Vector SL3AKV Manuale utente

Quantum

Quantum Q262 Manuale operativo

Philips

Philips Vari-lite VL3015LT Manuale utente

EUROSPOT

EUROSPOT C51 Manuale utente

DTS

DTS MINI BRICK ARC Manuale utente

Federal Signal Corporation

Federal Signal Corporation VISIBEAM II Manuale

ACME

ACME LED-MS350B Manuale utente

EuroLite

EuroLite Akku flat light 1 Manuale utente

Commercial Electric

Commercial Electric SPTM-1401 Manuale utente

Vision & Control

Vision & Control SLB-500-W5K7-P-SL Manuale utente

Teknik

Teknik FLEXI Manuale utente

Craftsman

Craftsman CMXLSB10 Manuale utente

EuroLite

EuroLite LED SLS-144 UV Floor Spot Manuale utente
