Roberts RC9907 Manuale utente
RC9907
3 Band Radio Cassette
Recorder
Please read this manual before use
ROBERTS
Sound for Generations
Mains
540
150
600
180160 2 00
800
220 240
100 0
260
1200 1600
kHz
kHz
MW
LW
FM
88 94 96 100 104 106 108
MHz
Alarm off Mode Set
3 Band Ra dio Cassette Re corder
with P rogrammable Clock Al arm
RC 9907
ROBERTS
RC9907 Issue 3.pmd 1/26/2007, 1:35 PM1

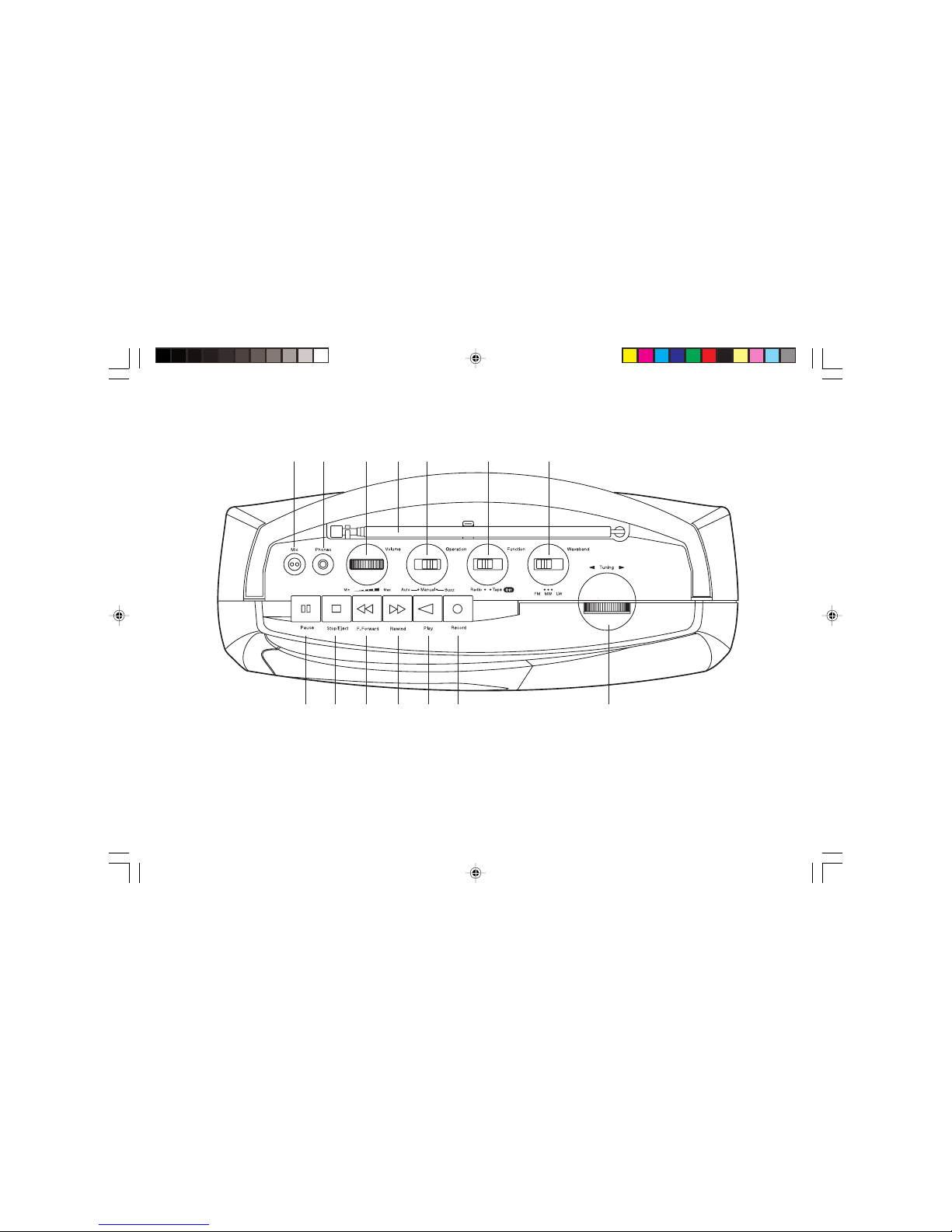

Controls
1. Microphone
2. Headphone socket
3. Volume control
4. Telescopic aerial
5. Operation switch
11. Rewind button
12. Fast forward button
13. Stop/eject button
14. Pause button
(Right side)
(Top)
1
1
6. Function switch
7. Waveband switch
8. Tuning control
9. Record button
10. Play button
2345 6 7
891011121314
RC9907 Issue 3.pmd 1/26/2007, 1:35 PM2
If you need any further advice, please call our Technical Helpline on :-
0208 758 0338 (Mon-Fri)
Controls (Front)
15. Cassette door
16. Set button
17. Mode button
18. Alarm off button
19. Mains indicator
20. Clock display.
2
18
17
16
19
20
15
RC9907 Issue 3.pmd 1/26/2007, 1:35 PM3
Battery operation
IMPORTANT - The LR6 (AA size battery) must be fitted at all times to
provide power for the clock.
1. Remove the Battery cover on the rear of the unit by pushing the
catches in the direction of the arrow.
2. Insert one LR6 (AA size) battery into the small space in the battery
compartment. The clock display will now appear. The LR6 (AA size)
battery provides power for the clock and must remain fitted
at all times.
3. Insert four LR14 (C size) batteries into the remaining spaces in the
battery compartment. Take care to ensure all batteries are inserted
with the correct polarity as shown inside the battery compartment.
Replace the battery cover.
4. Reduced power, distortion, and a ‘stuttering’ sound are all signs that
the batteries may need replacing.
5. If your radio cassette is not to be used for any extended period of
time it is recommended that the batteries are removed from the radio.
We would recommend for economy, that the RC9907 is used on the
mains whenever possible with battery operation for occasional or
stand-by use only.
IMPORTANT: The batteries should not be exposed to excessive
heat such as sunshine, fire or the like. After use, disposable
batteries should if possible be taken to a suitable recycling centre.
On no account should batteries be disposed of by incineration.
Mains operation
1. Place your radio cassette on a flat surface.
2. Plug the mains lead into the Mains socket located on the rear of your
radio cassette ensuring that the plug is pushed fully into the socket.
3. Plug the other end into a wall socket and switch on. The Mains
indicator will light up indicating that the radio is connected to the
mains supply. The batteries will be automatically disconnected.
3
11
RC9907 Issue 3.pmd 1/26/2007, 1:35 PM4
If you need any further advice, please call our Technical Helpline on :-
0208 758 0338 (Mon-Fri)
IMPORTANT: The mains plug is used as the means of connecting
the radio to the mains supply. The mains socket used for the radio
must remain accessible during normal use. In order to disconnect the
radio from the mains completely, the mains plug should be removed
from the mains socket outlet completely.
4. When the mains LED is off, it indicates that the radio is completely
disconnected from the mains.
Listening to the radio
FM operation
1. Ensure that the Operation switch is in the 'Manual' position.
2. Set the Function switch to the 'Radio' position.
3. Select 'FM' using the Waveband switch.
4. Adjust the Volume control until a hissing sound is heard.
5. The Telescopic aerial (17) which is only operational on FM, should
be fully extended.
6. Carefully tune to the desired station using the Tuning control.
7. Angle and rotate the Telescopic aerial to a position giving the best
reception. A knuckle joint at the base of the aerial allows this movement
and an angle of 45 degrees will usually be satisfactory. The FM band is
marked in Megahertz (MHz).
8. To switch off the radio set the Function switch to the 'Tape Off '
position.
FM MW LW
Waveband
Volume
MaxMi
n
Tuning
Function
Radio
Tape
Off
Power
540
150
600
180160 2 00
800
220 240
1000
260
1200 160 0
kHz
kHz
MW
LW
FM
88 94 96 100 104 106 108
MHz
Alarm off Mode Set
3B and Radio Cassette Recorder
with Programmable Cl ock Alarm
RC 9907
ROBERTS
4
RC9907 Issue 3.pmd 1/26/2007, 1:35 PM5
5
Medium and long wave operation
1. Ensure that the Operation switch is in the 'Manual' position.
2. Set the Function switch to the 'Radio' position.
3. Select 'MW' or 'LW' using the Waveband switch.
4. Adjust the Volume control until a hissing sound is heard.
5. Carefully tune to the desired station using the Tuning control.
6. Rotate your radio cassette for optimum reception.
7. The MW and LW bands are marked in kilohertz (kHz).
8. To switch off the radio set the Function switch to the 'Tape Off '
position.
Operation
Auto
Buzz
Manual
Function
Radio
Tape
Off
FM MW LW
Waveband
Volume
MaxMi
n
Tuning
Function
Radio
Tape
Off
Power
540
150
600
180160 2 00
800
220 240
1000
260
1200 160 0
kHz
kHz
MW
LW
FM
88 94 96 100 104 106 108
MHz
Alarm off Mode Set
3B and Radio Cassette Recorder
with Programmable Clock Al arm
RC 9907
ROBERTS
RC9907 Issue 3.pmd 1/26/2007, 1:35 PM6
If you need any further advice, please call our Technical Helpline on :-
0208 758 0338 (Mon-Fri)
Listening to cassette tapes
1. Ensure that the Operation switch is in the 'Manual' position.
2. Set the Function switch to the 'Tape' position.
3. Press the Stop eject button to open the Cassette compartment .
4. Insert a pre-recorded cassette with the tape surface uppermost and the
side with the desired recording facing towards you.
5. Close the Cassette compartment.
6. Depress the Play button and adjust the Volume control to suit your
personal taste.
7. Use the Fast forward or Rewind buttons to locate a specific part of
the tape.
8. If you wish to temporarily stop the playback depress the Pause button.
When you are ready to resume playback press the Pause button a
second time.
9. To stop the tape and switch off your radio cassette press the Stop/Eject
button.
Operation
Auto
Buzz
Manual
Function
Radio
Tap e
Off
Volume
Max
Min
Play
RewindF. F or wa r d Record
Stop/Eject
Pause
Play
RewindF. F or w a rd Record
Stop/Eject
Pause
Play
RewindF. Fo rw a r d Record
Stop/Eject
Pause
6
RC9907 Issue 3.pmd 1/26/2007, 1:35 PM7
7
Recording from the Radio
1. Ensure that the Operation switch is in the 'Manual' position.
2. Set the Function switch to the 'Radio' position.
3. Tune in to the desired station.
4. Adjust the Volume control to suit your requirements.
6. Insert a blank cassette with the tape surface uppermost.
7. Depress the Record button to commence recording.
8. The recording level is set automatically and is not affected by the
setting of the Volume control.
9. To stop the recording press the Stop/Eject button.
Beat cut switch
When making a recording from MW and LW broadcasts, there may be
a lot of background noise. Set the Beat cut switch located at the back
of the cabinet to position 0, 1, or 2 in which noise is less prominent.
Operation
Auto
Buzz
Manual
Function
Radio
Tape
Off
Tuning
Volume
Max
Min
Play
RewindF. F or wa r d Record
Stop/Eject
Pause
Play
RewindF. F or wa r d Record
Stop/Eject
Pause
RC9907 Issue 3.pmd 1/26/2007, 1:35 PM8
If you need any further advice, please call our Technical Helpline on :-
0208 758 0338 (Mon-Fri)
Recording from the Internal Microphone
1. Ensure that the Operation switch is in the 'Manual' position.
2. Set the Function switch to the 'Tape' position.
3. Insert a blank cassette with the tape surface uppermost.
4. Press the Record button to commence recording.
Note : to reduce background noise it is important to speak as close as
possible to the Internal microphone .
Operation
Auto
Buzz
Manual
Function
Radio
Tape
Off
Play
RewindF. F or wa r d Record
Stop/Eject
Pause
Mic
8
RC9907 Issue 3.pmd 1/26/2007, 1:35 PM9

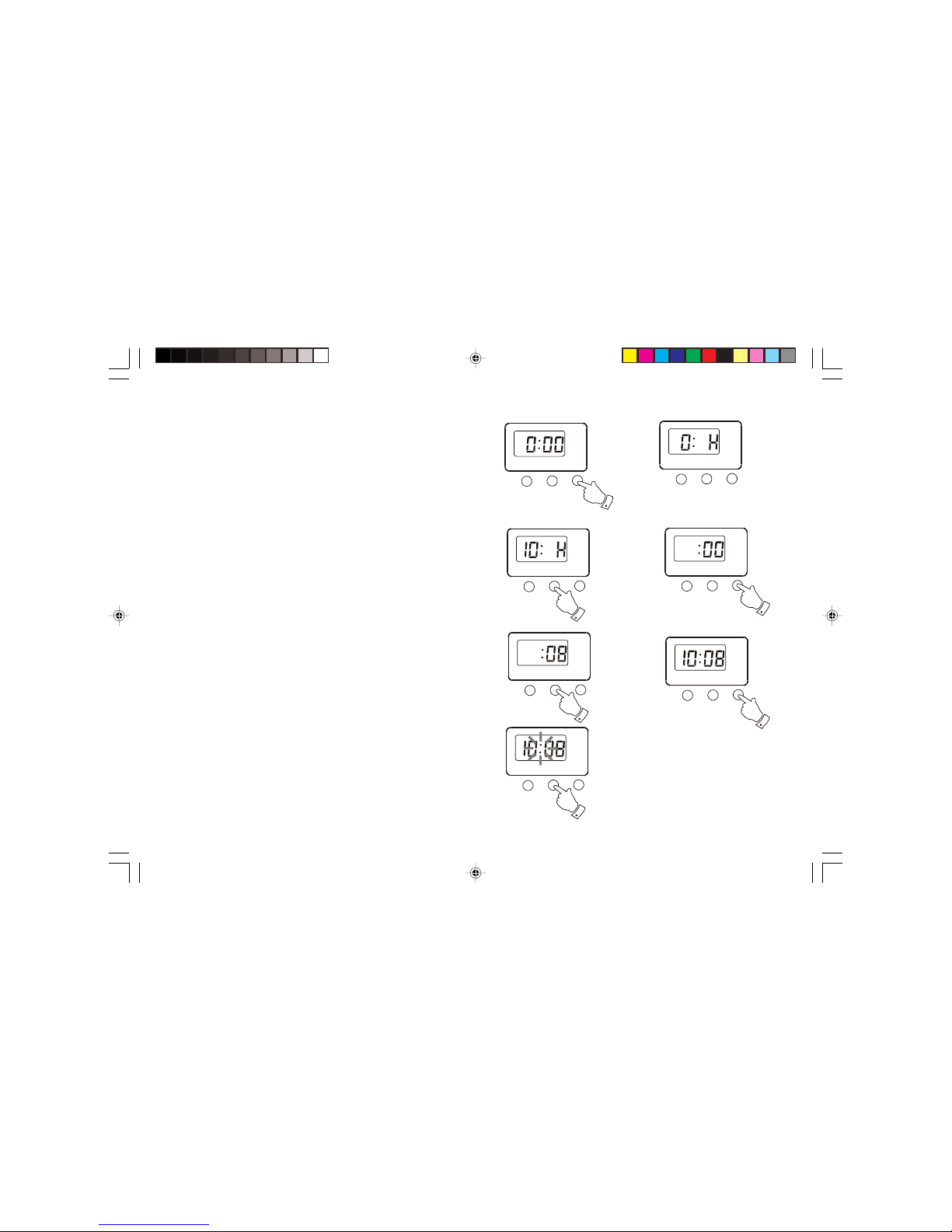

Setting the clock
1. Press the Set button six times, the display will show the hours digit.
2. Press the Mode button until the required hour is displayed.
3. Press the Set button, the display will show the minutes digit.
4. Press the Mode button until the required minute is displayed.
5. Press the Set button to return to the normal clock display.
6. Press the Mode button to start the clock at the selected time. The colon
between the hours and minutes digit will flash showing that the clock is
running.
Note : When setting the hours digit pressing and holding down the mode
button until the hours digit has gone through midnight will change the
clock to 24hr mode, this is indicated by the letter 'H' after the hours digit.
To change back to 12hr mode repeat the procedure. 12hr mode is
indicated by the letter 'A' for AM or 'P' for PM after the hours digit.
Alarm off
Mode Set
Alarm off Mode Set
Alarm off
Mode Set
Alarm off
Mode Set
Alarm off
Mode Set
Alarm off
Mode Set
Alarm off
Mode Set
9
