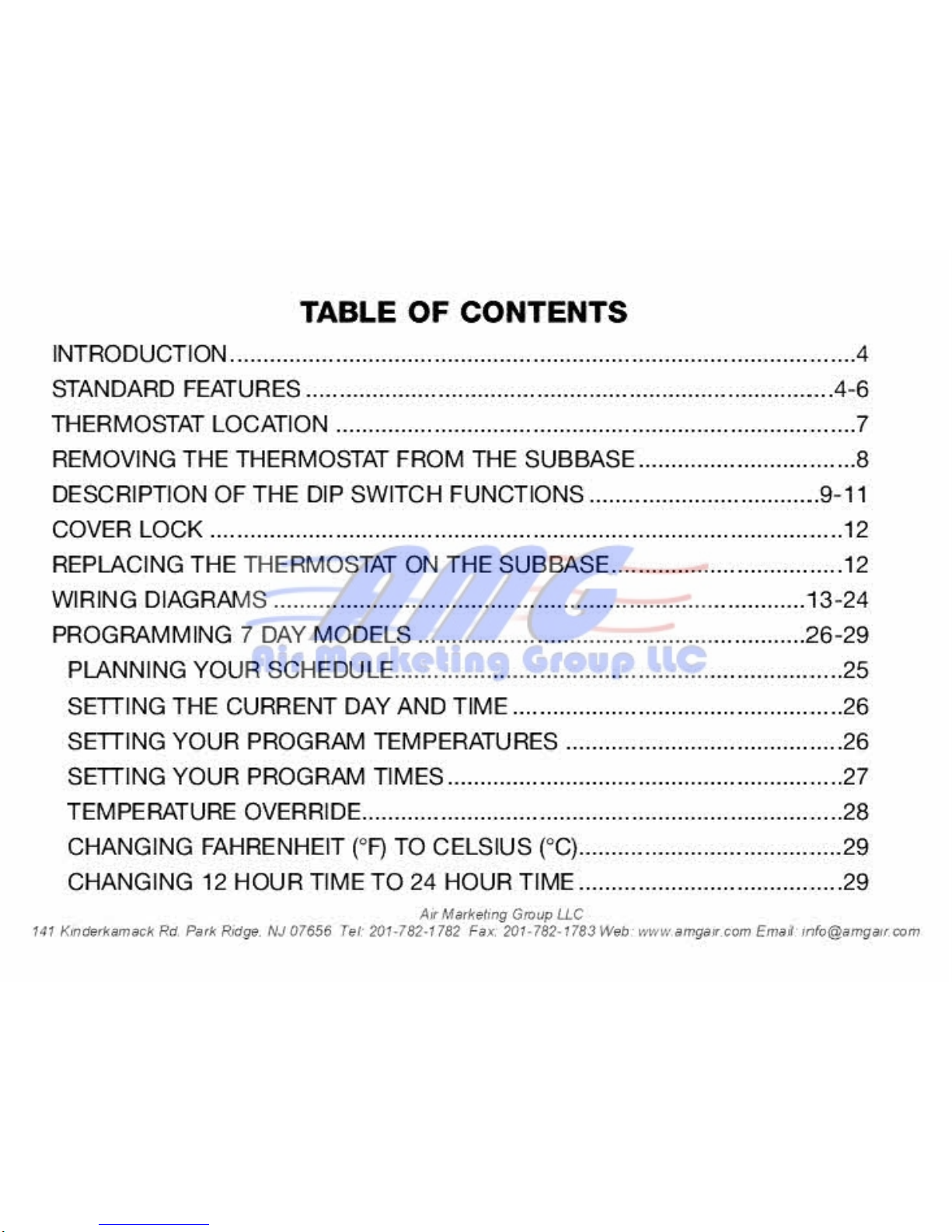

TABLE OF CONTENTS

INTRODUCTION

................................................................

STANDARD FEATURES

......................................................

4-6

THERMOSTAT LOCATION

..................................................

REMOVING THE THERMOSTAT FROM THE SUBBASE

..........

DESCRIPTION OF THE DIP SWITCH FUNCTIONS

.................

9-11

COVER LOCK

...................................................................

REPLACING THE THERMOSTAT ON THE SUBBASE

..............

WIRING DIAGRAMS

..........................................................

13-24

PROGRAMMING 7 DAY MODELS

.......................................

26-29

PLANNING YOUR SCHEDULE

..........................................

SETTING THE CURRENT DAY AND TIME

...........................

SETTING YOUR PROGRAM TEMPERATURES

....................

SETTING YOUR PROGRAM TIMES

...................................

TEMPERATURE OVERRIDE

...............................................

CHANGING FAHRENHEIT (F) TO CELSIUS ('C)

..................

CHANGING 12 HOUR TIME TO 24

HOUR TIME

......................

Markering Grnup

LLC

141

KV7derkarnack

Rci Park Rrcrge. NJ 0765 ref: 201-782

782 Fax.

21-762-1783

Weh • mew arogam.com

ErnaJf • rorofgamgar.

cam

POWER FAILURES

..........................................................................

OUTDOOR TEMPERATURE INDICATOR (OPTIONAL)

...........................

PROGRAMMING 5/2 DAY MODELS

................................................

30-34

TYPICAL RESIDENTIAL SCHEDULE

.................................................

PLANNING YOUR SCHEDULE

..........................................................

SETTING THE CURRENT DAY AND TIME

...........................................

SETTING THE VVEEKDAY PROGRAM TIMES AND HEATING TEMPERATUPES ......32-33

=NG THE VVEEKEND PROGRAM TIMES AND HEATING

TEMPERATURES.

SETTING THE WEEKDAY AND WEEKEND COOLING TEMPERATURES

......

33-34

REVIEWING SCHEDULED TIMES AND TEMPERATURES

........................

CHANGING SCHEDULED TIMES AND TEMPERATURES

........................

SPECIFICATIONS

.........................................................................

36-37

IMPORTANT INSTALLER'S NOTE

...................................................

38-39

IMPORTANT;

Read this manual thoroughly to understand all

the features of your deluxe

programmable thermostat.

Air Morrroftug Group LLC

141 KinarIcamack Rd. Park Ridge.

07656

Tet 237-7824782 Fax: 237-782- 7783 Web: www.amgart.eornEr

irdidigamg

air.

to,

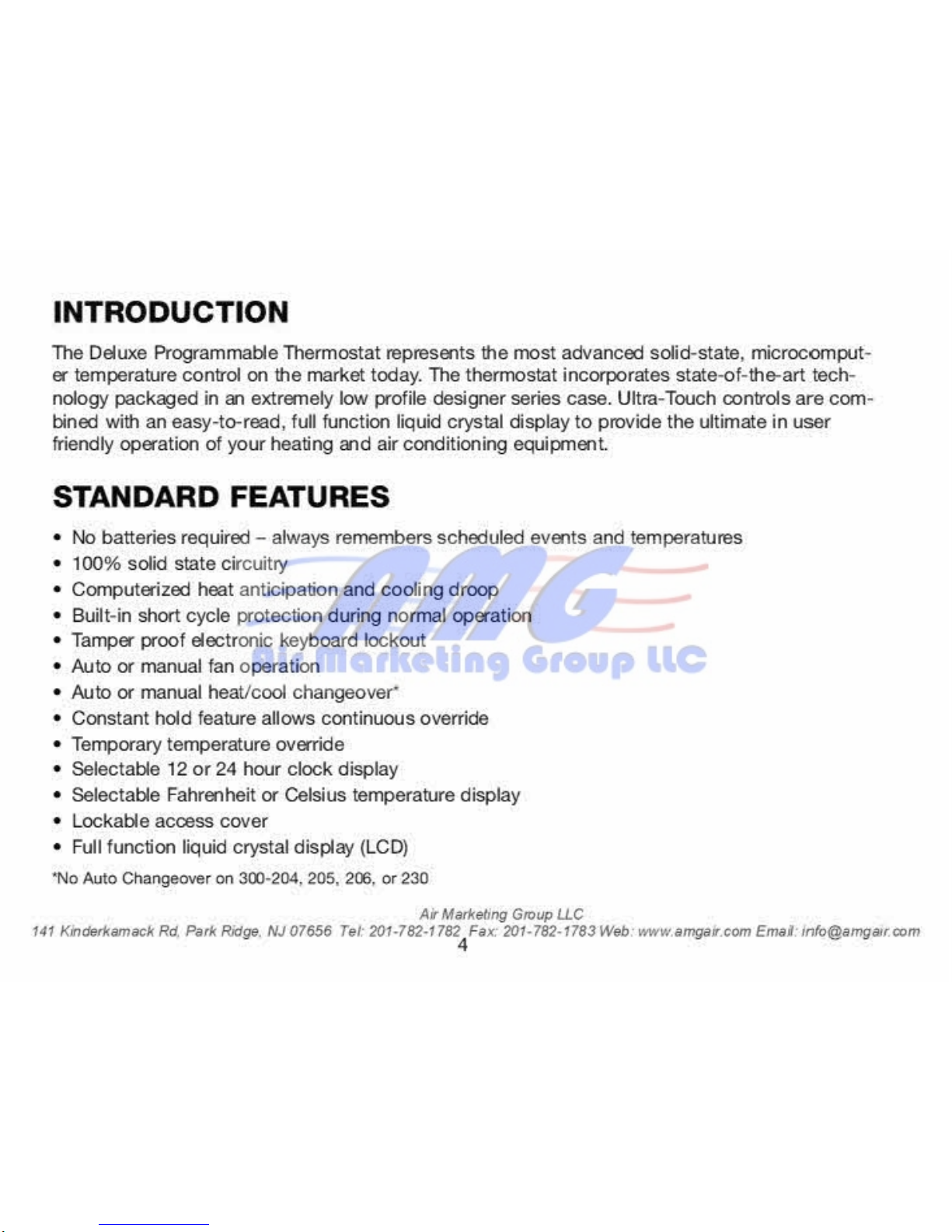

INTRODUCTION

The Deluxe Programmable Thermostat represents the most advanced solid-state, microcomput-

er temperature control on the market today. The thermostat incorporates state-of-the-art tech-

nology packaged in an extremely low profile designer series case. Ultra-Touch controls are com-

bined with an easy-to-read, full function liquid crystal display to provide the ultimate in user

friendly operation of your heating and air conditioning equipment.

STANDARD FEATURES

•

Na batteries required - always remembers scheduled events and temperatures

•

100% solid state circuitry

•

Computerized heat anticipation and cooling droop

•

Built-in short cycle protection during normal operation

•

Tampa proof electronic keyboard lockout

•

Auto or manual fan operation

•

Auto or manual heat/cool changeover

•

Constant hold feature allows continuous override

• Temporary temperature override

•

Selectable 12 or 24 hour clock display

•

Selectable Fahrenheit or Celsius temperature display

•

Lockable access cover

•

Full function liquid crystal display (LCD)

No Auto Changeover on

300-204. 205.

208,

or 230

Air Markering Grr2up LLC

141

Knderrramack

Rd.

Park Prdge.

07656

TI 207-7824782 Fax: 2-732-7783W !arm amgarr cornEr

faigamgarr.corn

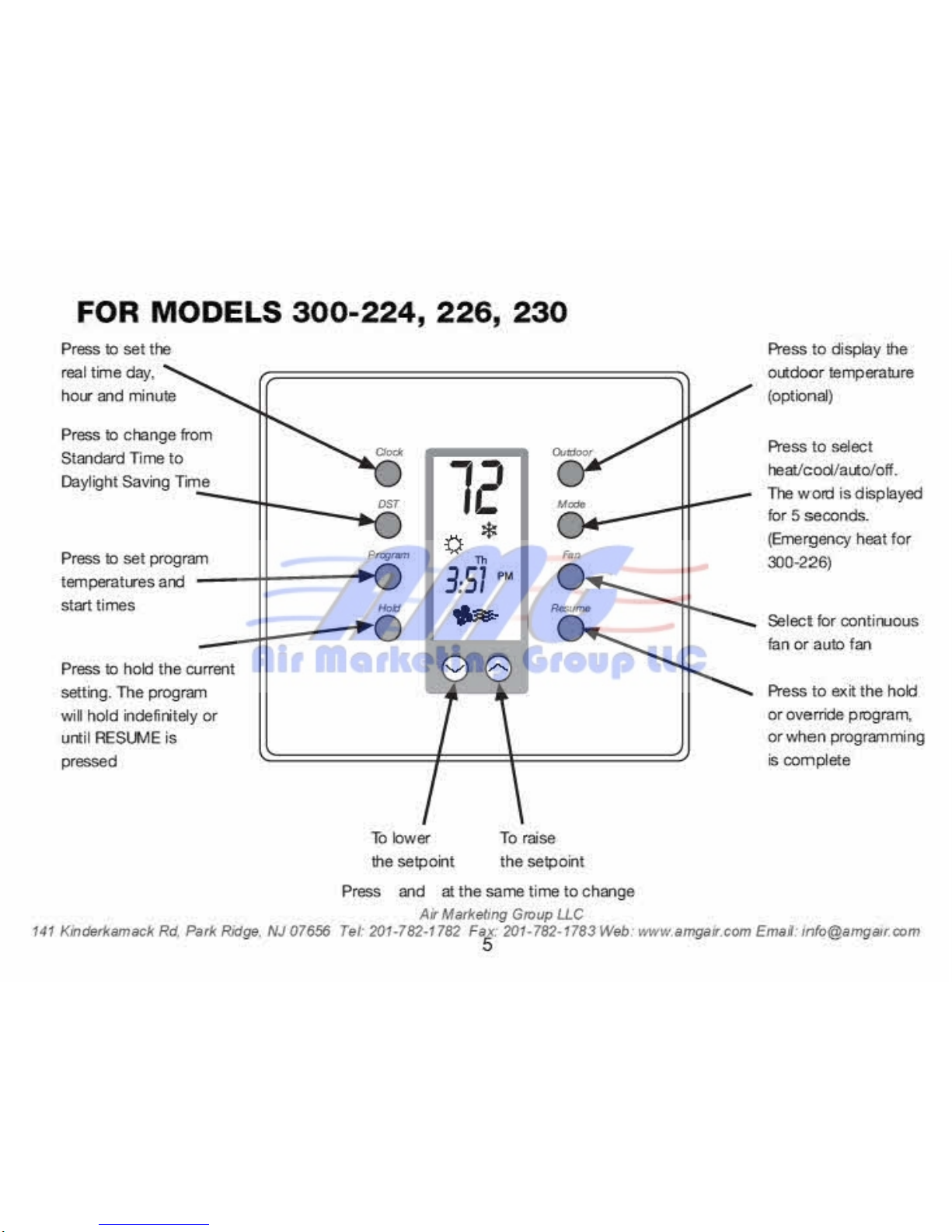

FOR MODELS

300-224, 226, 230

Press fp hold the current

setting. The program

will hold indefinitely or

until RESUME is

pressed

Press to

display the

outdoor

temperature

(optional)

Press to select

heat/cod/auto/off.

The word is displayed

For 5 seconds.

(Emergency heat for

300-22*

Select for continuous

fan or auto fan

Press to

eXii

the hold

or override program,

or when programming

is complete

To lower

rase

Sue

SEtpoint

the selpoint

Press and at the same time to change

Air

Marketing

Group LW

545 Kinarrramack Rd Park Ridge. NJ 07856 Tel 201-7824782 Fag: 201-782-7783 Web: wermamgarreern Ewe inkspamgair.aarn

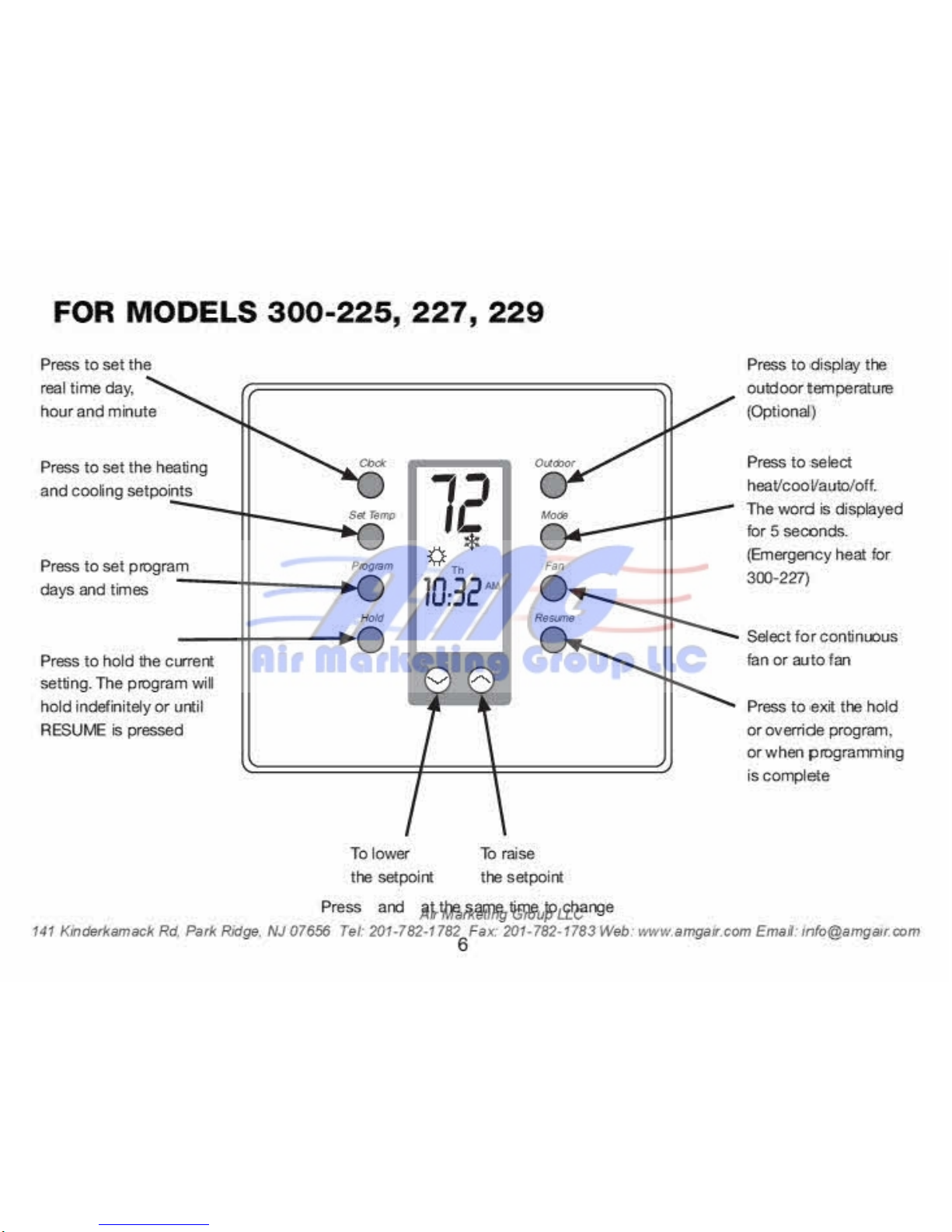

FOR MODELS 300-225, 227, 229

1O:32

Press to hold tre

CUrrent

setting. The program will

hold indefinitely or

RESUME

is pressed

Press ED

display the

DLItd Der

temperature

(Optional}

PS.9

select

heac

DO lre

uto/off.

The word is displayed

for

5:3

seconds.

(Emergency heat for

300-227)

Select f

COntiRLIOLES

fall Or

auto tan

eSS to

the hold

Or ov

erride program.

or when programming

is complete

lower

raise

the setpoint the setpoint

Pres$

ark

MAiirfillM4PLAange

141

Kinti r1ramack

Rd. Park Ridge.

07858 TI 231-782-1782 Fax: 201- 782-1783 Wb I

rr.

tors

Email: infaigamgarr.carrp

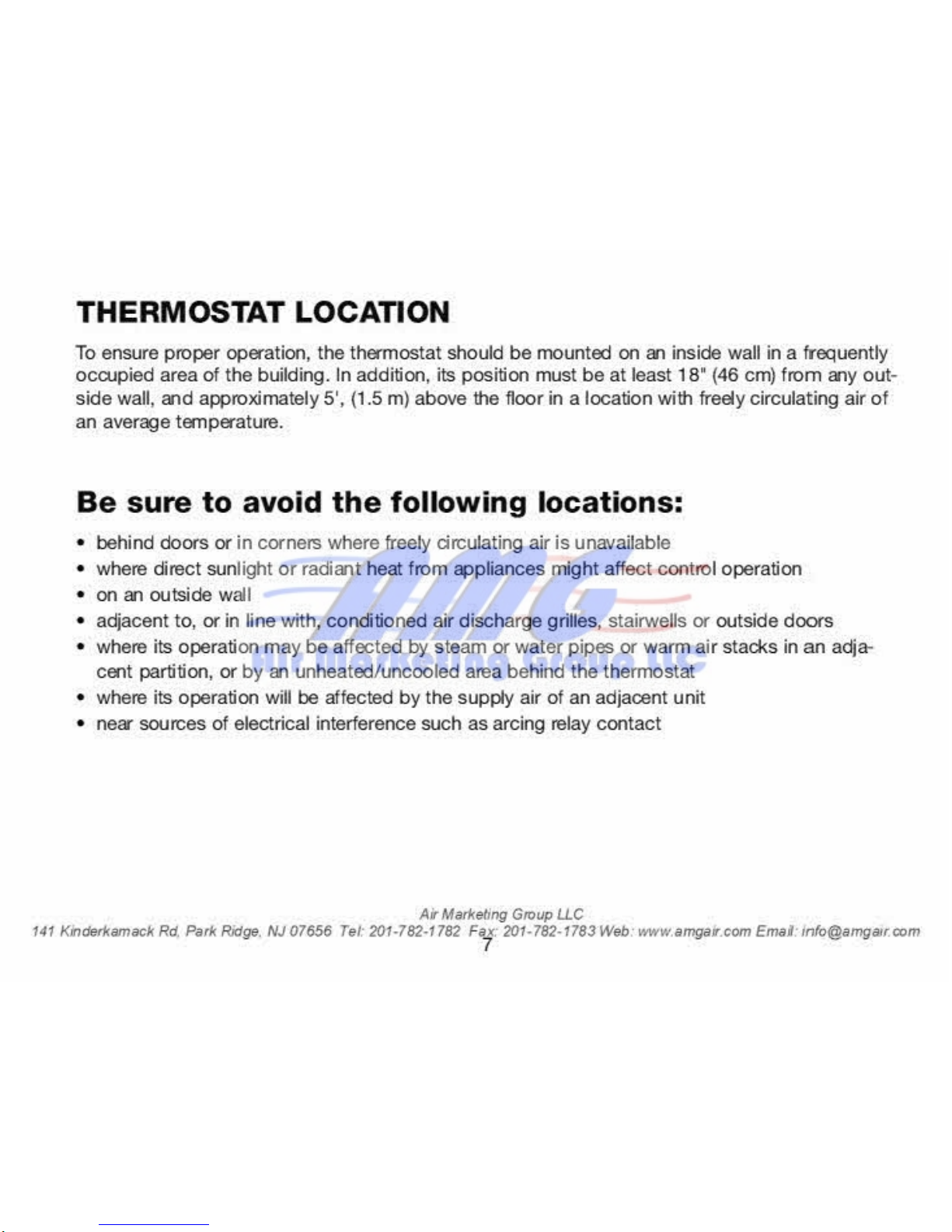

THERMOSTAT LOCATION

To ensure proper operation, the thermostat should be mounted on an inside wall in a frequently

occupied area of the building. In addition, its position must be at least 18" (46 cm) from

any

out-

side wall, and approximately 5', (1.5 m} above the floor in a location with freely circulating air of

an average temperature.

Be sure to avoid the following locations:

•

behind doors or in corners where freely circulating air is unavailable

•

where direct sunlight or radiant heat from appliances might affect control operation

•

on an outside wall

•

adjacent to, or in line with, conditioned air discharge grilles, stairwells or outside doors

•

where its operation may be affected by steam or water pipes or warm air stacks in an adja-

cent partition, or by an unheateci/uncooled area behind the thermostat

•

where its operation will be affected by the supply air of an adjacent unit

•

near sources of electrical interference such as arcing relay contact

Air Meriseri

Greup LLC

747 KinerIcamack Rd. Perk Ridge.

97858

Tet

297-7824 782

Fy:

207

782-7783W wrememgert.eorn Ere

fusgemgair.carrp

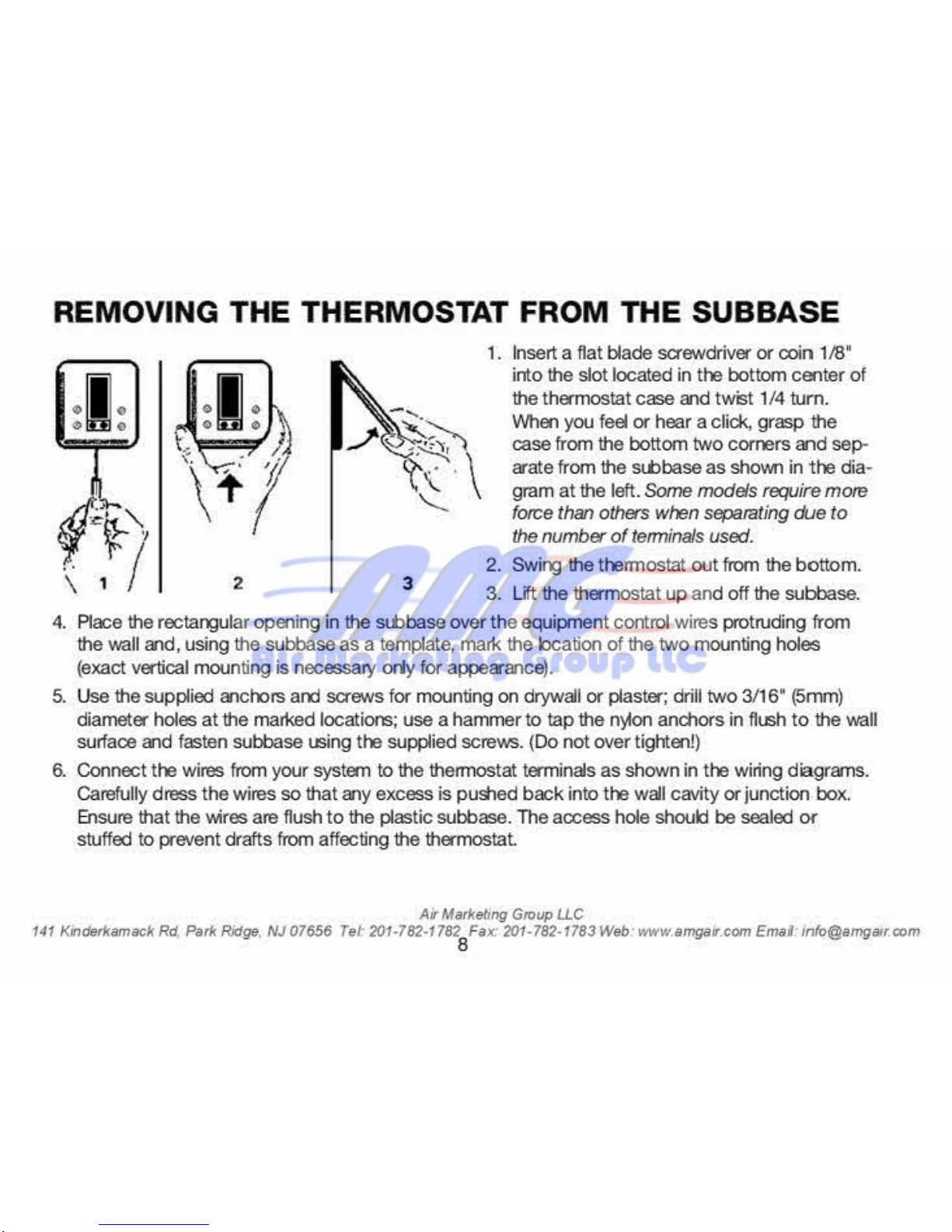

REMOVING THE THERMOSTAT FROM THE SUBBASE

Insert a flat blade screwdriver or coin 1/8"

into the slot located in the bottom center of

the thermostat case and twist 1/4 turn.

When you feel or hear a click, grasp the

case from the bottom two corners and sep-

arate from the sibbase as shown in the dia-

gram at the left.

Some models require more

force

than others when separating due to

the number of terminals used.

Swing the thermostat out from the bottom.

Lift the thermostat up and off the subbase.

Place the ectangular opening in the sibbase over the equipment control wires protruding from

the wall and using the subbase as a template, mark the location of the two mounting holes

(exact vertical mounting is necessary only for appearance).

Use the supplied anchors and screws for mounting on drywall or plaster; drill two 3/16" (5mm)

diameter holes at the marked locations; use a hammer to tap the nylon anchors in flush to the wall

surface and fasten subbase using the supplied screws. (Do not over tighten])

Connect the wires from your system to the thermostat terminals as shown in the wiring diagrams.

Carefully dress the wires so that any excess is pushed back into the wail cavity or junction box.

Ensure that the wires are flush to the plastic subbase. The access hole should be sealed or

stuffed to prevent drafts from affecting the thermostat.

Air Markefing Grr2up LLC

141

KinarIcamack Rd. Park Ridge.

97858

Tet

297-7824

782

Fax: 2

-782-7783W www.amgart.corn Erer inkigamgarroarn

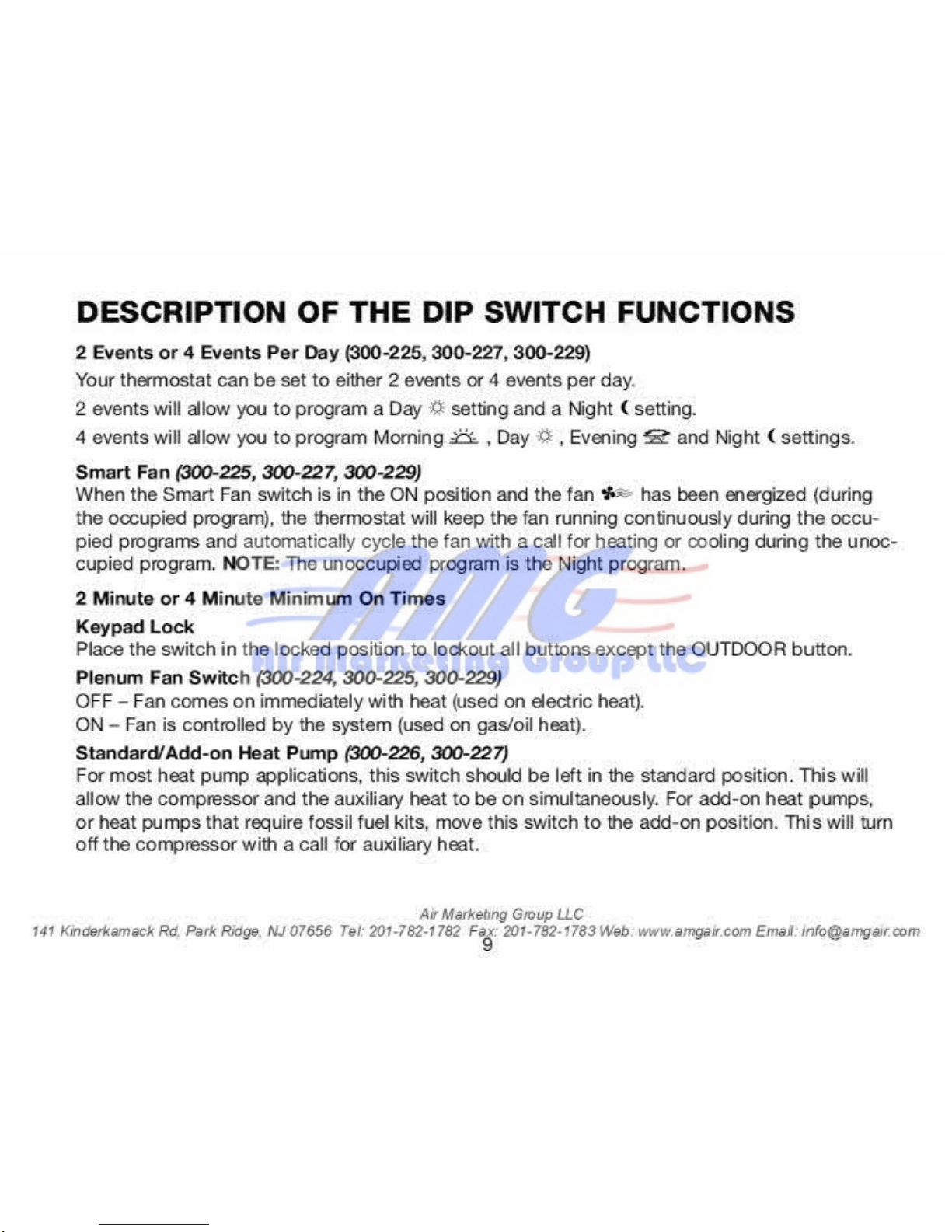

DESCRIPTION OF THE DIP SWITCH FUNCTIONS

2 Events or 4 Events Per Day

-225, 300-227. 300-229)

Your thermostat can be set to either 2 events or 4 events per day.

2 events will allow you to program a Day

setting and a Night ( setting.

4 events will allow you to program Morning ñ Day 0, , Evening

and Night ( settings.

Smart Fan

(300-225, 300-227, 300-229)

When the Smart Fan switch is in the ON position and the fan

has been energized (during

the occupied program), the thermostat will keep the fan running continuously during the occu-

pied programs and automatically cycle the fan with a call for heating or cooling during the unoc-

cupied program. NOTE The unoccupied program is the Night program.

2 Minute or 4 Minute Minimum On Times

Keypad Lock

Place the switch in the locked position to lockout all buttons except the OUTDOOR button.

Plenum Fan Switch

(300-224, 300-225, 300-229)

OFF - Fan comes on immediately with heat (used on electric heat).

ON - Fan is controlled by the system (used on gas/ail heat).

Standard/Add-on Heat Pump

(300-226,300-227)

For most heat pump applications, this switch should be left in the standard position. This will

allow the compressor and the auxiliary heat to be on simultaneously. For add-on heat pumps.

or heat pumps that require fossil fuel kits, move this switch to the add-on position. This will turn

off the compressor with a call for auxiliary heat.

Air Merkeri

g Greup LLC

747 Kiner1ramack Rd. Perk Ridge.

07858

Tet

207-7824

782

Fad:

207-782-7783W www.emgert.eorn Erna: infaspetngairoarn

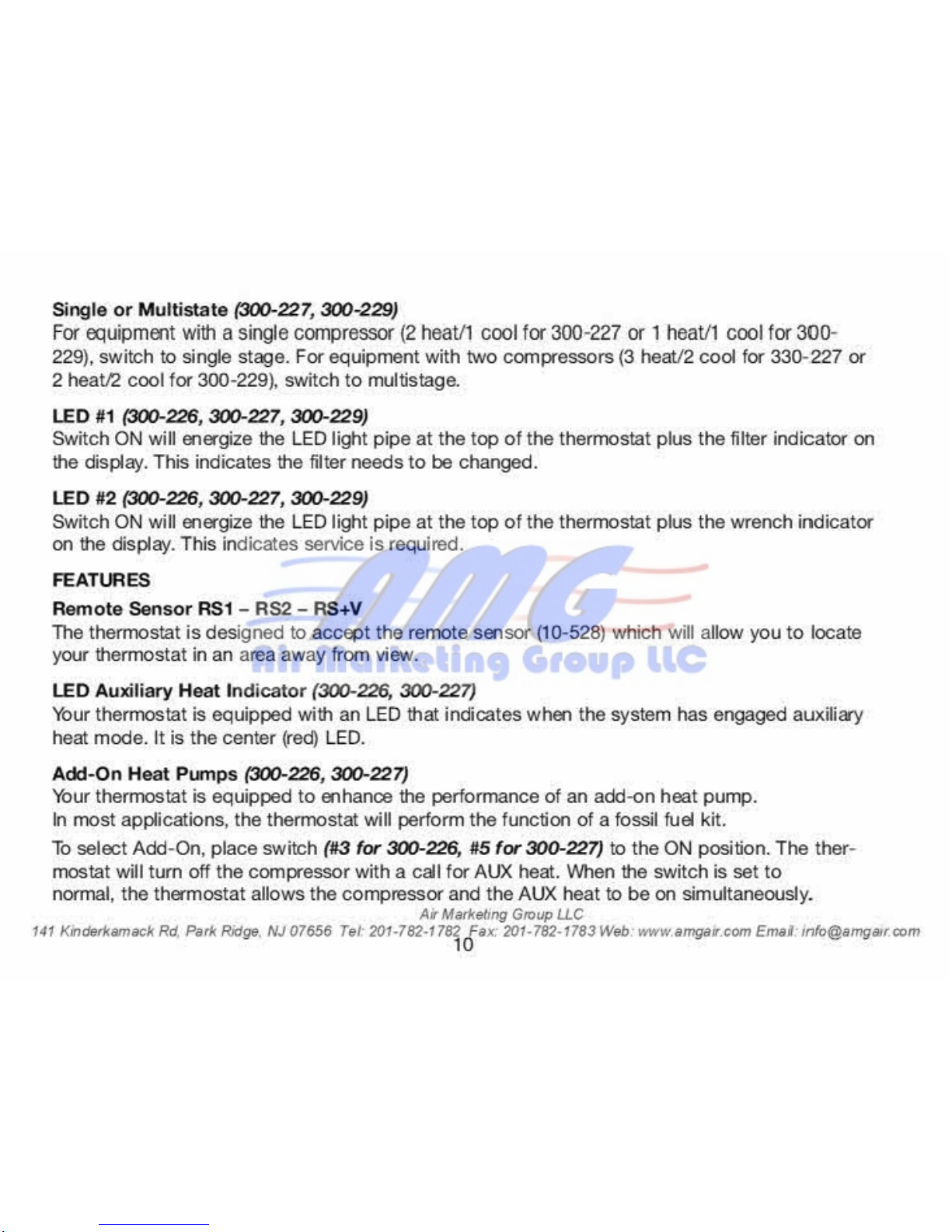

Single or Multistate

(300-227, 300-229)

For eguipmtht with a single compressor 12 heat/1 cool for 300-227 or 1 heatil cool for 300-

229}, switch to single stage. For equipment with two compressors (3 heat/2 cool for 330-227 or

2 heat/2 cool for 300-229), switch to multistage.

LED #1 (300-226,

300-227, 300-229)

Switch ON will energize the LED light pipe at the top of the thermostat plus the filter indicator on

the display. This indicates the filter needs to be changed.

LED #2 (300-226, 300-227, 300-229)

Switch ON will energize the LED light pipe at the top of the thermostat plus the wrench indicator

on the display. This indicates service is required.

FEATURES

Remote

Sensor RS1 — R52 -

RS+V

The thermostat is designed to accept the remote sensor (10-528) which will allow you to locate

your thermostat in an area away from view.

LED Auxiliary Heat Indicator

(300-226, 300-227)

Your thermostat is equipped with an LED that indicates when the system has engaged auxiliary

heat mode. It is the center (red) LED.

Add-On Heat Pumps

(300-226,

300-227)

Your thermostat is equipped to enhance the performance of an add-on heat pump.

In most applications, the thermostat will perform the function of a fossil fuel kit.

To select Add-On, place switch

(#3 for 300-226,

for 300-227)

to the ON position. The ther-

mostat will turn off the compressor with a call for AUX heat. When the switch is set to

normal, the thermostat allows the compressor and the AUX heat to be on simultaneously.

Markeil

rtgr Group

11 Km

derframaok Rd.

Park Maga.

07856

201-782-1782 Fax: 201-782-7783 Wela: Div

mgarr aom Ernar1: plusgamgarroarP

101

Altri manuali per 300-224

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Robertshaw Termostato

Robertshaw

Robertshaw 7700 Manuale utente

Robertshaw

Robertshaw 9851i Manuale utente

Robertshaw

Robertshaw 9610 Manuale utente

Robertshaw

Robertshaw RS9110 Manuale utente

Robertshaw

Robertshaw RS4110 Manuale utente

Robertshaw

Robertshaw 9200 Manuale utente

Robertshaw

Robertshaw HOMEOWNER FRIENDLY 9715I Manuale utente

Robertshaw

Robertshaw RS3110 SERIES Manuale operativo

Robertshaw

Robertshaw 200 Series Manuale di installazione e d'uso

Robertshaw

Robertshaw 9915i Manuale utente

Robertshaw

Robertshaw RS456-WIFI Manuale utente

Robertshaw

Robertshaw 9600 Manuale utente

Robertshaw

Robertshaw 7610 Manuale utente

Robertshaw

Robertshaw 8601 Manuale utente

Robertshaw

Robertshaw 9915i Manuale utente

Robertshaw

Robertshaw RS8110 Manuale utente

Robertshaw

Robertshaw smart 3000 Manuale utente

Robertshaw

Robertshaw 200-403 Manuale utente

Robertshaw

Robertshaw RS4000C Series Manuale utente

Robertshaw

Robertshaw Smart Sense Series Manuale utente

Robertshaw

Robertshaw 9405 Manuale utente

Robertshaw

Robertshaw 9915i Manuale utente

Robertshaw

Robertshaw 8600 Manuale utente

Robertshaw

Robertshaw RS311N Manuale del proprietario

Manuali Termostato popolari di altre marche

EWELLY

EWELLY EW-181 Manuale utente

Prolon

Prolon T1100 Istruzioni per l'installazione

Computherm

Computherm Q20 Manuale utente

Heatmiser

Heatmiser neoStat Manuale utente

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuale utente

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuale utente

Saswell

Saswell SAS920XWHB-7-S-RF Guida

Aircalo

Aircalo TFP1-ET85P2 Manuale utente

Honeywell

Honeywell CM721 Manuale utente

Carrier

Carrier DEBONAIR 33CS Manuale utente

Lennox

Lennox iHarmony Zone Thermostat Istruzioni per il montaggio

Gemtech

Gemtech GT7000 Manuale di istruzioni

Rollei

Rollei Smartes 45000 Manuale utente

Sinope

Sinope TH1300RF Manuale utente

Honeywell

Honeywell RLV4305 Manuale utente

Honeywell

Honeywell Prestige 2.0 THX9421 Manuale utente

NuTone

NuTone NTBZ48 Istruzioni operative originali

Stelpro

Stelpro MAESTRO ASMT402AD Manuale utente
