110-1060

7 Day Programmable

1 Heat / 1 Cool

User’s Manual

Quick Start

Installation and

Programming

ELECTRIC

GAS

DIGITAL

PROGRAMMABLE

THERMOSTATS

7610

Installation Guide

IMPORTANT SAFETY INFORMATION WARNING:

•Always turn off power at the main power source by unscrewing

fuse or switching circuit breaker to the off position before installing,

removing, cleaning or servicing thermostat.

•Read all of the information in this manual before installing or

programming this thermostat.

•This is a 24V AC low-voltage thermostat. Do not install on voltages

higher than 30V AC.

•All wiring must conform to local and national building and electrical

codes and ordinances.

•Do not short (jumper) across terminals on the gas valve or at the

system control to test installation. This will damage the thermostat

and void the warranty.

As an Energy Star partner, Climate Controls Americas has determined

that this thermostat product meets the Energy Star guide lines for

energy efficiency.

110-1060.qxd 3/27/03 10:51 AM Page 1 (Black plate)

All manuals and user guides at all-guides.com

all-guides.com

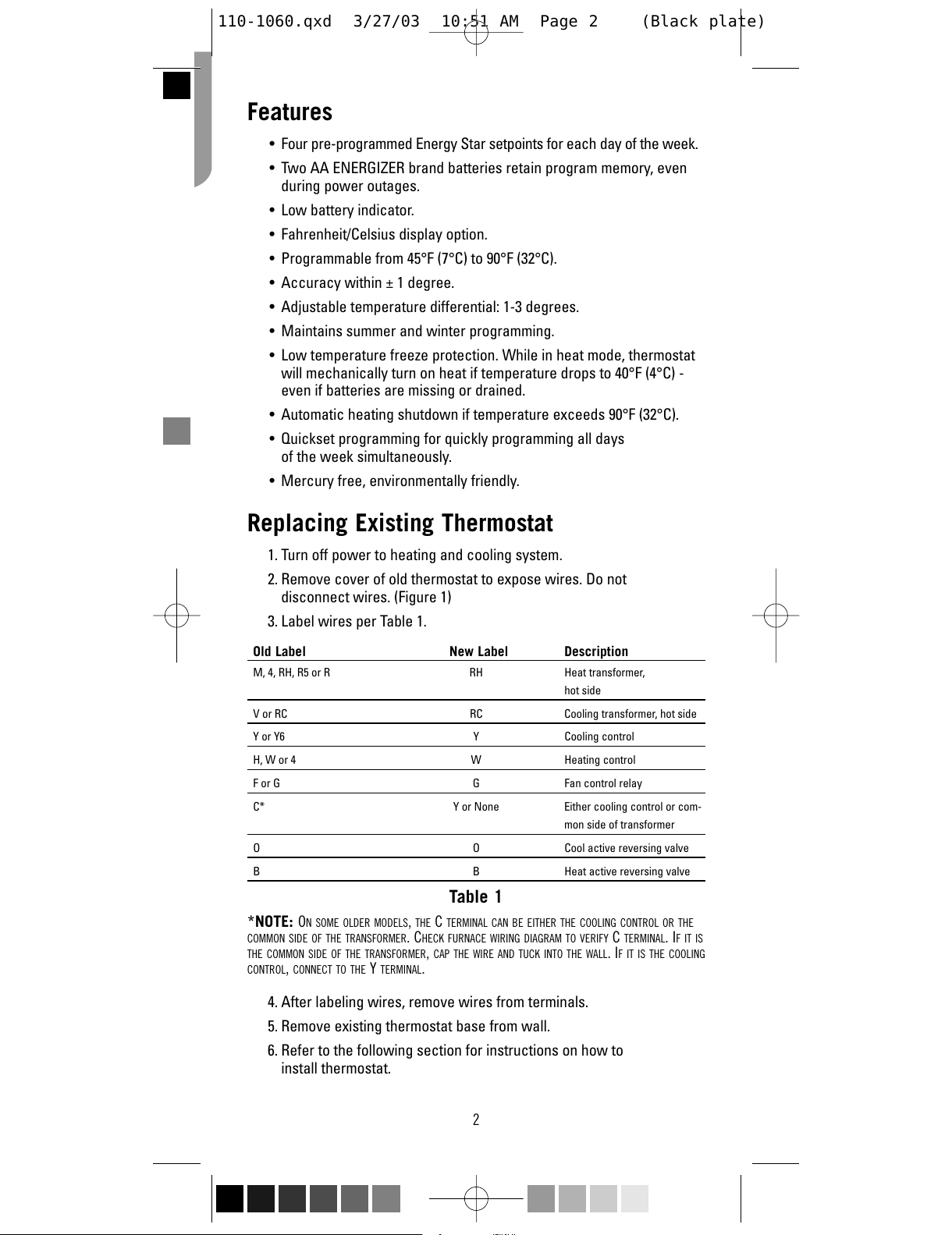

Features

•Four pre-programmed Energy Star setpoints for each day of the week.

•Two AA ENERGIZER brand batteries retain program memory, even

during power outages.

•Low battery indicator.

•Fahrenheit/Celsius display option.

•Programmable from 45°F (7°C) to 90°F (32°C).

•Accuracy within ± 1 degree.

•Adjustable temperature differential: 1-3 degrees.

•Maintains summer and winter programming.

•Low temperature freeze protection. While in heat mode, thermostat

will mechanically turn on heat if temperature drops to 40°F (4°C) -

even if batteries are missing or drained.

•Automatic heating shutdown if temperature exceeds 90°F (32°C).

•Quickset programming for quickly programming all days

of the week simultaneously.

•Mercury free, environmentally friendly.

Replacing Existing Thermostat

1. Turn off power to heating and cooling system.

2. Remove cover of old thermostat to expose wires. Do not

disconnect wires. (Figure 1)

3. Label wires per Table 1.

Old Label New Label Description

M, 4, RH, R5 or R RH Heat transformer,

hot side

V or RC RC Cooling transformer, hot side

Y or Y6 Y Cooling control

H, W or 4 W Heating control

F or G G Fan control relay

C* Y or None Either cooling control or com-

mon side of transformer

OOCool active reversing valve

BBHeat active reversing valve

Table 1

*NOTE: ONSOME OLDER MODELS, THE C TERMINAL CAN BE EITHER THE COOLING CONTROL OR THE

COMMON SIDE OF THE TRANSFORMER. CHECK FURNACE WIRING DIAGRAM TO VERIFY C TERMINAL. IFITIS

THE COMMON SIDE OF THE TRANSFORMER, CAP THE WIRE AND TUCK INTO THE WALL. IFITISTHE COOLING

CONTROL, CONNECT TO THE Y TERMINAL.

4. After labeling wires, remove wires from terminals.

5. Remove existing thermostat base from wall.

6. Refer to the following section for instructions on how to

install thermostat.

110-1060.qxd 3/27/03 10:51 AM Page 2 (Black plate)

All manuals and user guides at all-guides.com

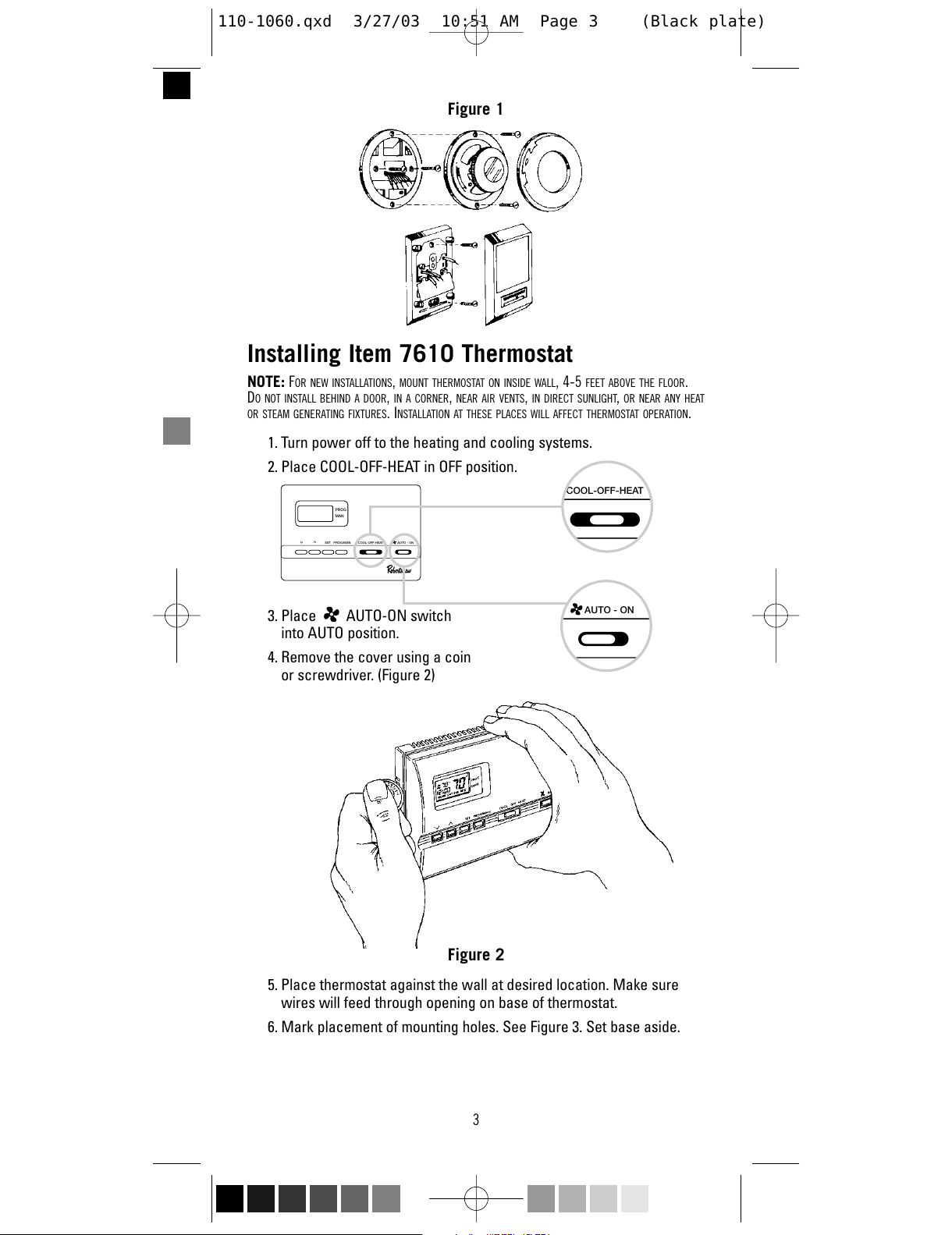

Figure 1

Installing Item 7610 Thermostat

NOTE: FOR NEW INSTALLATIONS, MOUNT THERMOSTAT ON INSIDE WALL, 4-5 FEET ABOVE THE FLOOR.

DONOT INSTALL BEHIND A DOOR, IN A CORNER, NEAR AIR VENTS, IN DIRECT SUNLIGHT, OR NEAR ANY HEAT

OR STEAM GENERATING FIXTURES. INSTALLATION AT THESE PLACES WILL AFFECT THERMOSTAT OPERATION.

1. Turn power off to the heating and cooling systems.

2. Place COOL-OFF-HEAT in OFF position.

3. Place AUTO-ON switch

into AUTO position.

4. Remove the cover using a coin

or screwdriver. (Figure 2)

Figure 2

5. Place thermostat against the wall at desired location. Make sure

wires will feed through opening on base of thermostat.

6. Mark placement of mounting holes. See Figure 3. Set base aside.

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

COOL-OFF-HEAT

AUTO - ON

110-1060.qxd 3/27/03 10:51 AM Page 3 (Black plate)

All manuals and user guides at all-guides.com

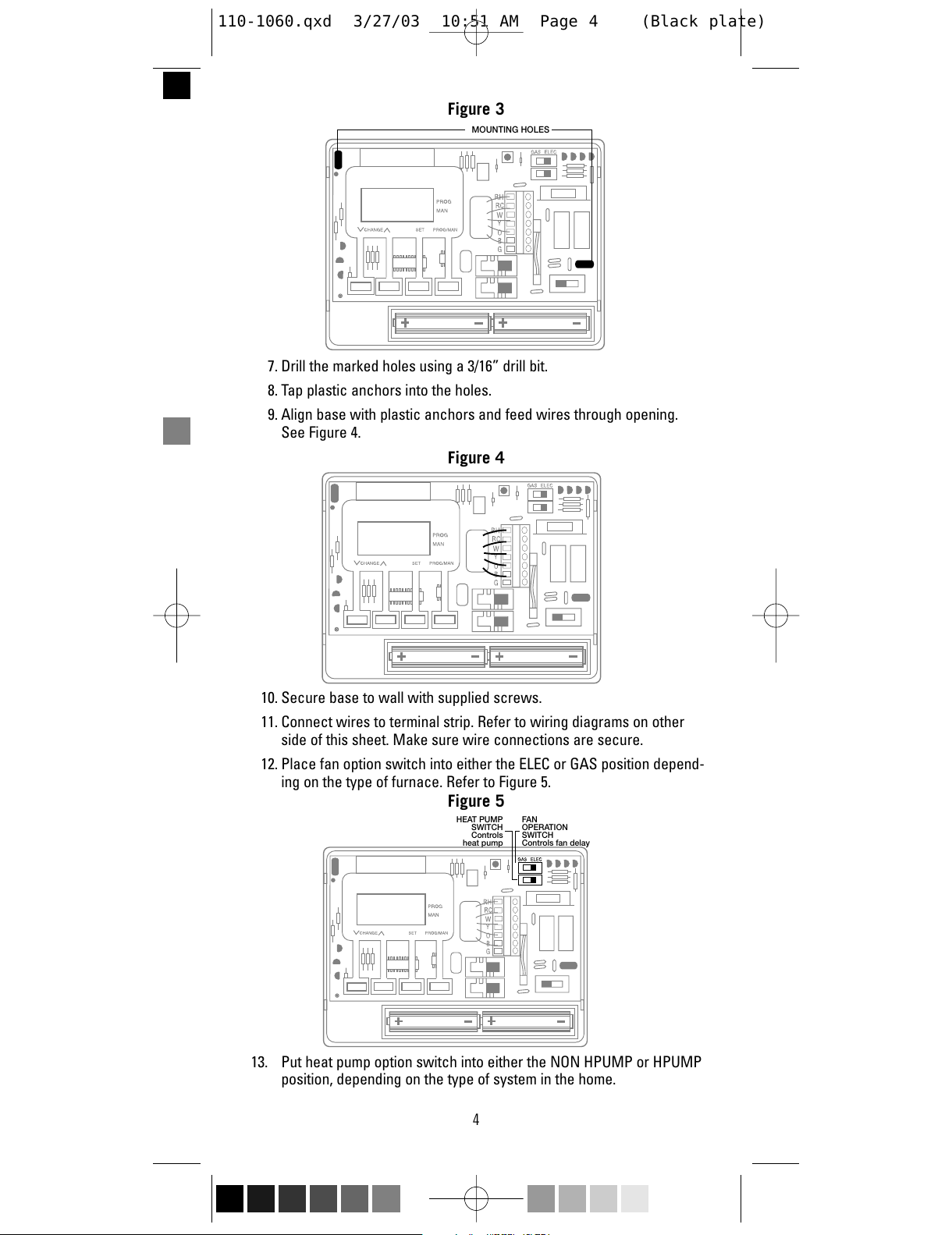

Figure 3

7. Drill the marked holes using a 3/16” drill bit.

8. Tap plastic anchors into the holes.

9. Align base with plastic anchors and feed wires through opening.

See Figure 4.

Figure 4

10. Secure base to wall with supplied screws.

11. Connect wires to terminal strip. Refer to wiring diagrams on other

side of this sheet. Make sure wire connections are secure.

12. Place fan option switch into either the ELEC or GAS position depend-

ing on the type of furnace. Refer to Figure 5.

Figure 5

13. Put heat pump option switch into either the NON HPUMP or HPUMP

position, depending on the type of system in the home.

MOUNTING HOLES

FAN

OPERATION

SWITCH

Controls fan delay

HEAT PUMP

SWITCH

Controls

heat pump

110-1060.qxd 3/27/03 10:51 AM Page 4 (Black plate)

All manuals and user guides at all-guides.com

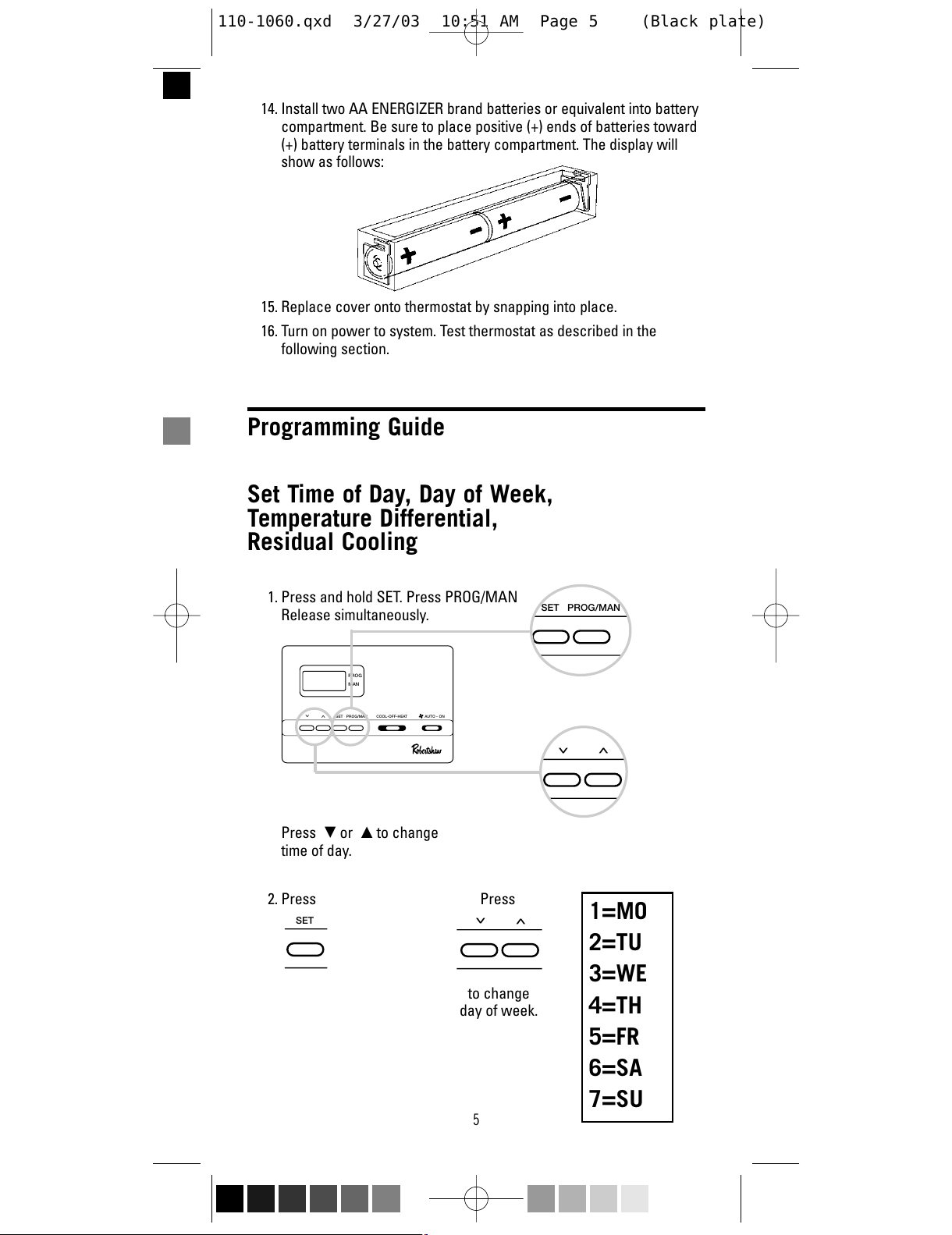

14. Install two AA ENERGIZER brand batteries or equivalent into battery

compartment. Be sure to place positive (+) ends of batteries toward

(+) battery terminals in the battery compartment. The display will

show as follows:

15. Replace cover onto thermostat by snapping into place.

16. Turn on power to system. Test thermostat as described in the

following section.

Programming Guide

Set Time of Day, Day of Week,

Temperature Differential,

Residual Cooling

1. Press and hold SET. Press PROG/MAN

Release simultaneously.

Press or to change

time of day.

2. Press Press

to change

day of week.

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

SET PROG/MAN

SET P

1=MO

2=TU

3=WE

4=TH

5=FR

6=SA

7=SU

110-1060.qxd 3/27/03 10:51 AM Page 5 (Black plate)

All manuals and user guides at all-guides.com

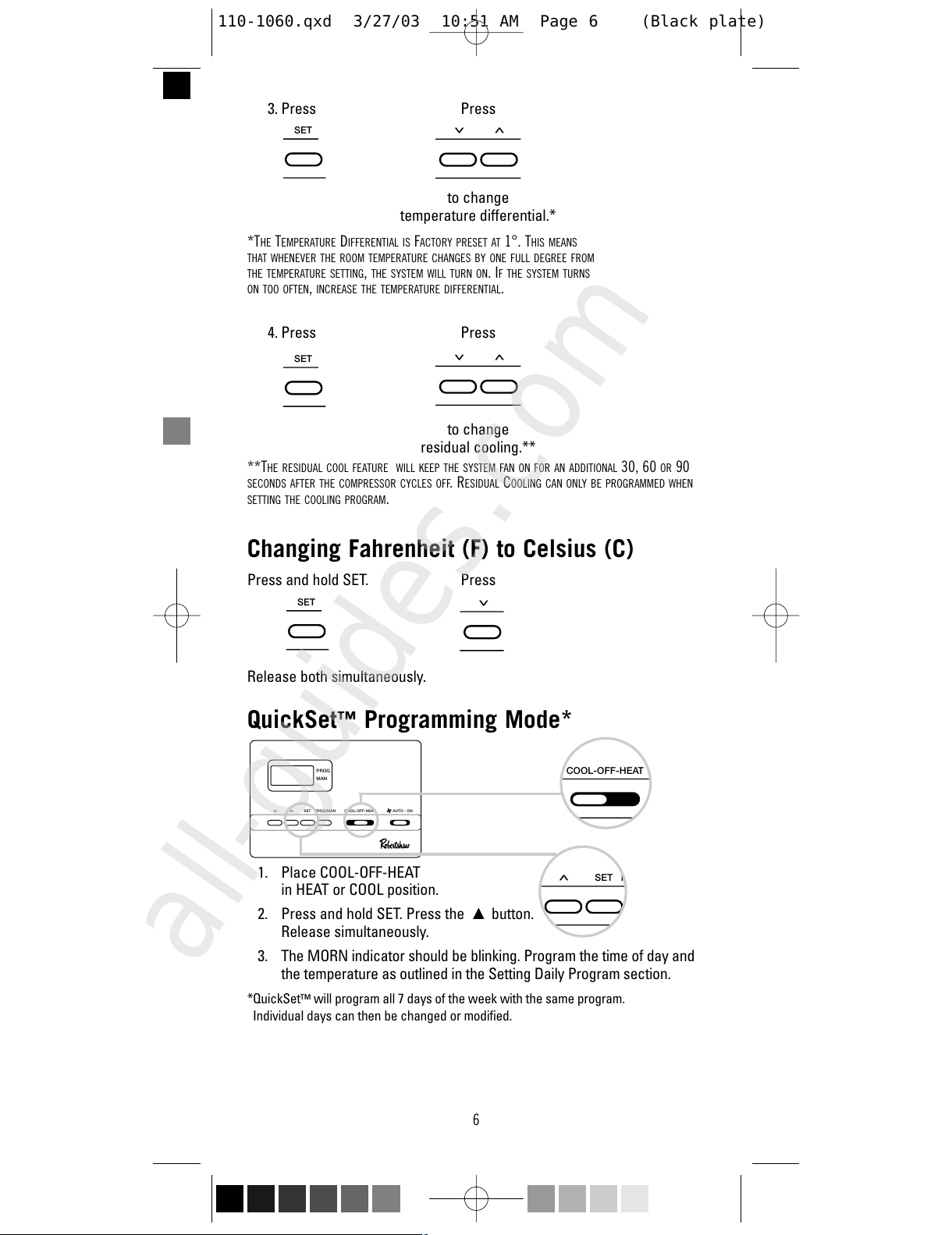

3. Press Press

to change

temperature differential.*

*THE TEMPERATURE DIFFERENTIAL IS FACTORY PRESET AT 1°. THIS MEANS

THAT WHENEVER THE ROOM TEMPERATURE CHANGES BY ONE FULL DEGREE FROM

THE TEMPERATURE SETTING, THE SYSTEM WILL TURN ON. IFTHE SYSTEM TURNS

ON TOO OFTEN, INCREASE THE TEMPERATURE DIFFERENTIAL.

4. Press Press

to change

residual cooling.**

**THE RESIDUAL COOL FEATURE WILL KEEP THE SYSTEM FAN ON FOR AN ADDITIONAL 30, 60 OR 90

SECONDS AFTER THE COMPRESSOR CYCLES OFF. RESIDUAL COOLING CAN ONLY BE PROGRAMMED WHEN

SETTING THE COOLING PROGRAM.

Changing Fahrenheit (F) to Celsius (C)

Press and hold SET. Press

Release both simultaneously.

QuickSet™Programming Mode*

1. Place COOL-OFF-HEAT

in HEAT or COOL position.

2. Press and hold SET. Press the button.

Release simultaneously.

3. The MORN indicator should be blinking. Program the time of day and

the temperature as outlined in the Setting Daily Program section.

*QuickSet™will program all 7 days of the week with the same program.

Individual days can then be changed or modified.

SET P

SET

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

COOL-OFF-HEAT

SET P

110-1060.qxd 3/27/03 10:51 AM Page 6 (Black plate)

All manuals and user guides at all-guides.com

all-guides.com

Setting Daily Programming

Summer (Cool) Settings:

1. Place COOL-OFF-HEAT in COOL position.

2. Press SET button. The display will show a

number from 1 to 7. This number represents

the day of the week to be programmed. If

programming individual days, press either

or button to adjust the day of the

week to program.

3. Press SET. Press or to change MORN time.

4. Press SET.

5. Press or to change MORN temperature.

6. Repeat Steps 2-5 for DAY, EVE, and NITE.

7. Repeat Steps 2-6 above to program

any other day of the week.

Winter (Heat) Settings:

1. Shift COOL-OFF-HEAT to HEAT position.

2. Repeat steps 2-6 to program HEAT (winter) settings.

Begin Programmed Operation

1. Place AUTO-ON into AUTO.

2. Place COOL-OFF-HEAT into COOL

or HEAT depending on the season.

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

COOL-OFF-HEAT

SET PR

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

SET PR

COOL-OFF-HEAT

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

AUTO - ON

COOL-OFF-HEAT

SUMMER

WINTER

110-1060.qxd 3/27/03 10:51 AM Page 7 (Black plate)

All manuals and user guides at all-guides.com

3. Press PROG/MAN button

until indicator is in PROG position.

Temporary Program Override

To temporarily increase or decrease temperature:

Press or 

The thermostat will automatically return to the program at the next

scheduled setting change.

Manual Operation

1. Press PROG/MAN until indicator is in MAN position.

2. Press or to adjust temperature settings.

Reset

To reset the thermostat to factory pre-programmed

conditions, press the reset button located directly

above the wiring terminal block.

ET PROG/MAN

PROG

MAN

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

NOTE: O

NCE THE THERMOSTAT TURNS THE SYSTEM OFF WHILE IN COOL MODE

(

COOL AND HEAT FOR SINGLE STAGE HEAT

PUMP SYSTEM

ABUILT

IN DELAY KEEPS THE COMPRESSOR FROM TURNING ON FOR ABOUT

MINUTES

. T

HIS PROTECTS THE

COMPRESSOR

. N

OADDITIONAL TIME DELAY RELAY

(

DELAY ON BREAK

)

IS NECESSARY

. T

OP OVERRIDE THE

MINUTE DELAY

FOR INSTALLATION

PRESS

RESET. T

HIS WILL ERASE THE DELAY AND CHANGE PROGRAMMING TO FACTORY PRE

SETS

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

T PROG/MAN

PROG

MAN

RESET

Clears all memory

110-1060.qxd 3/27/03 10:51 AM Page 8 (Black plate)

All manuals and user guides at all-guides.com

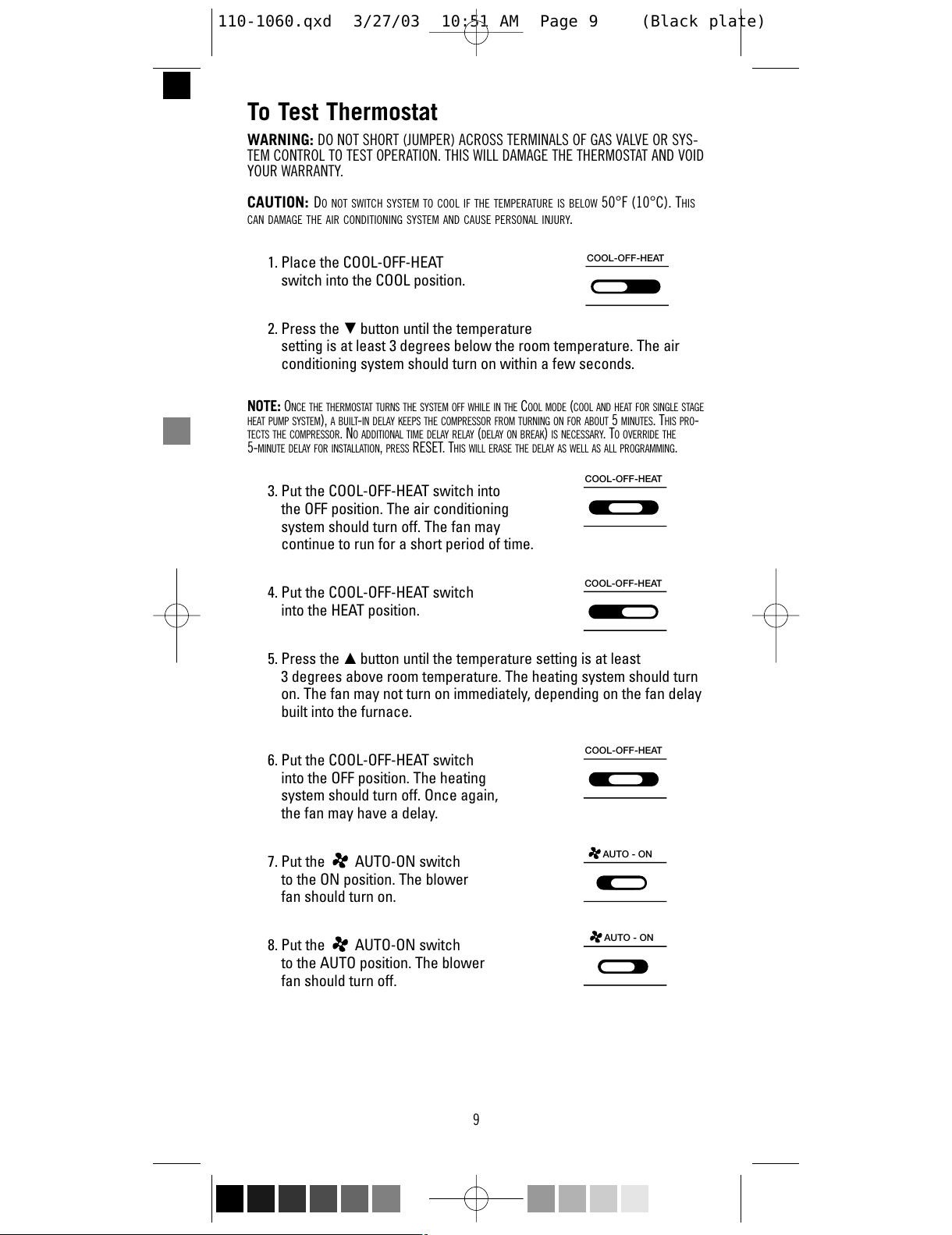

To Test Thermostat

WARNING: DO NOT SHORT (JUMPER) ACROSS TERMINALS OF GAS VALVE OR SYS-

TEM CONTROL TO TEST OPERATION. THIS WILL DAMAGE THE THERMOSTAT AND VOID

YOUR WARRANTY.

CAUTION: DONOT SWITCH SYSTEM TO COOL IF THE TEMPERATURE IS BELOW 50°F (10°C). THIS

CAN DAMAGE THE AIR CONDITIONING SYSTEM AND CAUSE PERSONAL INJURY.

1. Place the COOL-OFF-HEAT

switch into the COOL position.

2. Press the button until the temperature

setting is at least 3 degrees below the room temperature. The air

conditioning system should turn on within a few seconds.

NOTE: O

NCE THE THERMOSTAT TURNS THE SYSTEM OFF WHILE IN THE

OOL MODE

(

COOL AND HEAT FOR SINGLE STAGE

HEAT PUMP SYSTEM

ABUILT

IN DELAY KEEPS THE COMPRESSOR FROM TURNING ON FOR ABOUT

MINUTES

. T

HIS PRO

TECTS THE COMPRESSOR

. N

OADDITIONAL TIME DELAY RELAY

(

DELAY ON BREAK

)

IS NECESSARY

. T

OOVERRIDE THE

MINUTE DELAY FOR INSTALLATION

PRESS

RESET. T

HIS WILL ERASE THE DELAY AS WELL AS ALL PROGRAMMING

3. Put the COOL-OFF-HEAT switch into

the OFF position. The air conditioning

system should turn off. The fan may

continue to run for a short period of time.

4. Put the COOL-OFF-HEAT switch

into the HEAT position.

5. Press the button until the temperature setting is at least

3 degrees above room temperature. The heating system should turn

on. The fan may not turn on immediately, depending on the fan delay

built into the furnace.

6. Put the COOL-OFF-HEAT switch

into the OFF position. The heating

system should turn off. Once again,

the fan may have a delay.

7. Put the AUTO-ON switch

to the ON position. The blower

fan should turn on.

8. Put the AUTO-ON switch

to the AUTO position. The blower

fan should turn off.

COOL-OFF-HEAT

AUTO - ON

110-1060.qxd 3/27/03 10:51 AM Page 9 (Black plate)

All manuals and user guides at all-guides.com

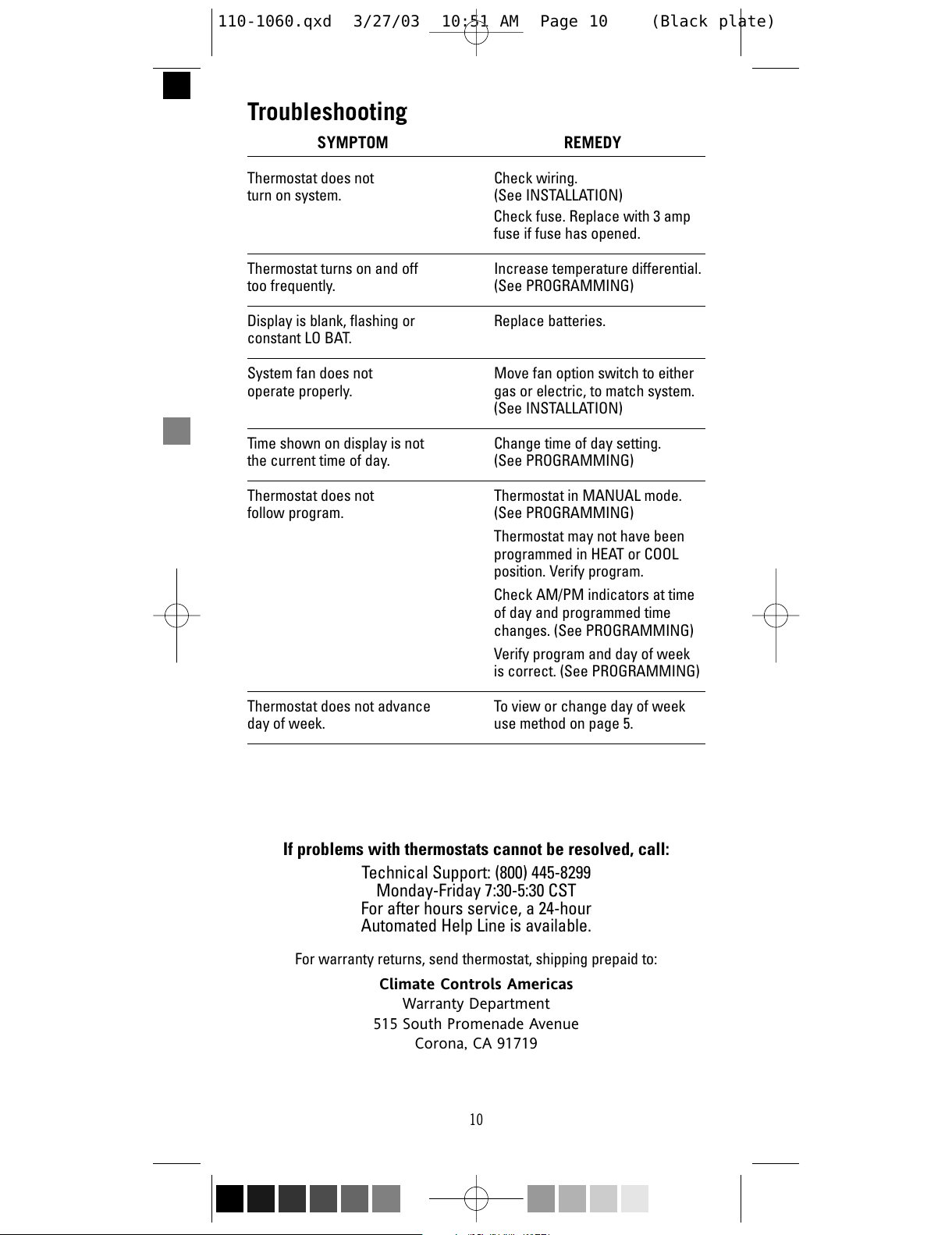

Troubleshooting

SYMPTOM REMEDY

Thermostat does not Check wiring.

turn on system. (See INSTALLATION)

Check fuse. Replace with 3 amp

fuse if fuse has opened.

Thermostat turns on and off Increase temperature differential.

too frequently. (See PROGRAMMING)

Display is blank, flashing or Replace batteries.

constant LO BAT.

System fan does not Move fan option switch to either

operate properly. gas or electric, to match system.

(See INSTALLATION)

Time shown on display is not Change time of day setting.

the current time of day. (See PROGRAMMING)

Thermostat does not Thermostat in MANUAL mode.

follow program. (See PROGRAMMING)

Thermostat may not have been

programmed in HEAT or COOL

position. Verify program.

Check AM/PM indicators at time

of day and programmed time

changes. (See PROGRAMMING)

Verify program and day of week

is correct. (See PROGRAMMING)

Thermostat does not advance To view or change day of week

day of week. use method on page 5.

If problems with thermostats cannot be resolved, call:

Technical Support: (800) 445-8299

Monday-Friday 7:30-5:30 CST

For after hours service, a 24-hour

Automated Help Line is available.

For warranty returns, send thermostat, shipping prepaid to:

Climate Controls Americas

Warranty Department

515 South Promenade Avenue

Corona, CA 91719

110-1060.qxd 3/27/03 10:51 AM Page 10 (Black plate)

All manuals and user guides at all-guides.com

Altri manuali per 7610

Indice

Altri manuali Robertshaw Termostato

Robertshaw

Robertshaw RS8210 Manuale utente

Robertshaw

Robertshaw RS5110 Manuale utente

Robertshaw

Robertshaw RS6110 Manuale utente

Robertshaw

Robertshaw 5300 Series Manuale di installazione e d'uso

Robertshaw

Robertshaw 9801i2 Manuale utente

Robertshaw

Robertshaw 9415 Manuale utente

Robertshaw

Robertshaw 9560 Manuale utente

Robertshaw

Robertshaw 9801i2 Manuale utente

Robertshaw

Robertshaw RS4110 Manuale utente

Robertshaw

Robertshaw RS9220 Manuale utente

Robertshaw

Robertshaw 8425 Manuale utente

Robertshaw

Robertshaw RS9110 Manuale utente

Robertshaw

Robertshaw 8625 Manuale utente

Robertshaw

Robertshaw 9700i Manuale utente

Robertshaw

Robertshaw RS4220C Manuale utente

Robertshaw

Robertshaw RS3110 Manuale utente

Robertshaw

Robertshaw 9720 Manuale utente

Robertshaw

Robertshaw 900 series Manuale

Robertshaw

Robertshaw 9620 Manuale utente

Robertshaw

Robertshaw 8400 Manuale utente

Robertshaw

Robertshaw 8625 Manuale utente

Robertshaw

Robertshaw 9555 Manuale utente

Robertshaw

Robertshaw 9600 Manuale utente

Robertshaw

Robertshaw RS4110 Manuale utente

Manuali Termostato popolari di altre marche

EWELLY

EWELLY EW-181 Manuale utente

Prolon

Prolon T1100 Istruzioni per l'installazione

Computherm

Computherm Q20 Manuale utente

Heatmiser

Heatmiser neoStat Manuale utente

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuale utente

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuale utente

Saswell

Saswell SAS920XWHB-7-S-RF Guida

Aircalo

Aircalo TFP1-ET85P2 Manuale utente

Honeywell

Honeywell CM721 Manuale utente

Carrier

Carrier DEBONAIR 33CS Manuale utente

Lennox

Lennox iHarmony Zone Thermostat Istruzioni per il montaggio

Gemtech

Gemtech GT7000 Manuale di istruzioni

Rollei

Rollei Smartes 45000 Manuale utente

Sinope

Sinope TH1300RF Manuale utente

Honeywell

Honeywell RLV4305 Manuale utente

Honeywell

Honeywell Prestige 2.0 THX9421 Manuale utente

NuTone

NuTone NTBZ48 Istruzioni operative originali

Stelpro

Stelpro MAESTRO ASMT402AD Manuale utente
