ISSUE EMD-ES1724
EH36/41
Air-cooled, 4-cycle Gasoline Engine
CONTENTS
Section Title Page
1. SPECIFICATIONS....................................................................................................... 1
2. PERFORMANCE ........................................................................................................ 3
2-1 MAXIMUM OUTPUT........................................................................................................ 3
2-2 CONTINUOUS RATED OUTPUT .................................................................................... 3
2-3 MAXIMUM TORQUE ....................................................................................................... 3
2-4 PERFORMANCE CURVES ............................................................................................. 4
3. FEATURES.................................................................................................................. 6
4. GENERAL DESCRIPTION OF ENGINE COMPONENTS .......................................... 7
4-1 CYLINDER AND CRANKCASE ....................................................................................... 7
4-2 MAIN BEARING COVER ................................................................................................. 7
4-3 CRANKSHAFT.................................................................................................................7
4-4 CONNECTING ROD AND PISTON ................................................................................. 8
4-5 PISTON RINGS ...............................................................................................................8
4-6 CAMSHAFT ..................................................................................................................... 8
4-7 VALVE ARRANGEMENT ................................................................................................. 9
4-8 CYLINDER HEAD............................................................................................................ 9
4-9 GOVERNOR SYSTEM .................................................................................................... 9
4-10 COOLING SYSTEM..................................................................................................... 10
4-11 LUBRICATION SYSTEM.............................................................................................. 10
4-12 IGNITION SYSTEM ..................................................................................................... 10
4-13 CARBURETOR.............................................................................................................11
4-14 AIR CLEANER ..............................................................................................................11
4-15 BALANCER...................................................................................................................11
4-16 DECOMPRESSION SYSTEM ..................................................................................... 12
4-17 SECTIONAL VIEW OF ENGINE.................................................................................. 13
5. DISASSEMBLY AND REASSEMBLY....................................................................... 15
5-1 PREPARATIONS AND SUGGESTIONS........................................................................ 15
5-2 SPECIAL TOOLS ........................................................................................................... 15
5-3 DISASSEMBLY PROCEDURES.................................................................................... 16
5-4 REASSEMBLY PROCEDURES..................................................................................... 31
5-5 BREAK-IN OPERATION ................................................................................................ 43
6. MAGNETO ................................................................................................................ 43
6-1 FLYWHEEL MAGNETO................................................................................................. 43
6-2 BASIC THEORY ............................................................................................................ 43
6-3 WIRING DIAGRAM........................................................................................................ 45
Section Title Page
7. AUTOMATIC DECOMPRESSION SYSTEM............................................................ 46
8. CARBURETOR ........................................................................................................ 47
8-1 OPERATION AND CONSTRUCTION............................................................................47
8-2 DISASSEMBLY AND REASSEMBLY.............................................................................48
9. STARTING SYSTEM................................................................................................ 50
9-1 RECOIL STARTER ........................................................................................................50
9-2 ELECTRIC STARTER....................................................................................................54
10. TROUBLESHOOTING ........................................................................................... 56
10-1 STARTING DIFFICULTIES ..........................................................................................56
10-2 ENGINE MISFIRES .....................................................................................................57
10-3 ENGINE STOPS ..........................................................................................................57
10-4 ENGINE OVERHEATS ................................................................................................58
10-5 ENGINE KNOCKS .......................................................................................................58
10-6 ENGINE BACKFIRES THROUGH CARBURETOR.....................................................58
11. INSTALLATION ..................................................................................................... 59
11-1 INSTALLING.................................................................................................................59
11-2 VENTILATION ..............................................................................................................59
11-3 EXHAUST GAS DISCHARGE .....................................................................................59
11-4 POWER TRANSMISSION TO DRIVEN MACHINES ...................................................59
12. SERVICE DATA...................................................................................................... 60
12-1 CLEARANCE DATAAND LIMITS ................................................................................60
12-2 TORQUE SPECIFICATIONS .......................................................................................66
12-3 OIL GRADE CHART ....................................................................................................66
13. MAINTENANCE AND STORAGE.......................................................................... 67
13-1 DAILY MAINTENANCE................................................................................................67
13-2 INITIAL 20 HRS. MAINTENANCE ...............................................................................67
13-3 EVERY 50 HRS. (10 DAYS) MAINTENANCE .............................................................67
13-4 EVERY 100-200 HRS. (MONTHLY) MAINTENANCE .................................................68
13-5 EVERY 500-600 HRS. MAINTENANCE ......................................................................68
13-6 EVERY 1000 HRS. (YEARLY) MAINTENANCE..........................................................68
13-7 ENGINE STORAGE.....................................................................................................68
-
1
-
1. SPECIFICATIONS
Specifications are subject to change without notice.
MODEL EH36
EH36B EH36BS EH36D EH36DS
Type Air-Cooled, 4-Cycle, Single-Cylinder,
Horizontal P.T.O. Shaft, OHV Gasoline Engine
Bore x Stroke 89 x 65 mm (3.50 x 2.56 in.)
Piston Displacement 404 cm
3
(24.65 cu.in.)
Compression Ratio 8.3
Output Continuous 6.3 kW (8.5 HP) /1800 r.p.m. 6.3 kW (8.5 HP) /3600 r.p.m.
Max. 8.5 kW (11.5 HP) /1800 r.p.m. 8.5 kW (11.5 HP) /3600 r.p.m.
Max. Torque 54.9 N
・
m(5.60kgf
・
m)
/1250 r.p.m. 27.4 N
・
m(2.80 kgf
・
m)
/2500 r.p.m.
Direction of Rotation Counterclockwise As Viewed From P.T.O. Shaft Side
Cooling system Forced Air Cooling
Valve Arrangement Overhead Valve
Lubrication Splash Type
Lubricant Automobile Oil SAE #20, #30 or 10W-30 ; Class SE or higher
Capacity of Lubricant 1.2 liters (0.32 U.S. gal.)
Carburetor Horizontal Draft, Float Type
Fuel Automobile Unleaded Gasoline
Fuel Consumption Ratio 310 g/kW
・
h(230g/HP
・
h) At Continuous Rated Output
Fuel Feed System Gravity Type
Fuel Tank Capacity 7.0 liters (1.85 U.S. gal.)
Ignition System Flywheel Magneto (Solid State)
Spark Plug NGK BP6ES
Charging Capacity ---------- 12V-1.3A ---------- 12V-1.3A
Starting System Recoil Starter Electric Starter
&Recoil Starter Recoil Starter Electric Starter
&Recoil Starter
Speed Reduction 1/2 Camshaft Drive ----------
Governor System Centrifugal Flyweight Type
Air Cleaner Double Element Type
Dry Weight 32.0 kg (70.6 lb.) 35.0 kg (77.2 lb.) 31.0 kg (68.4 lb.) 34.0 kg (75.0 lb.)
Dimensions (L x W x H) 389 mm x 431 mm x 433 mm (15.31 in. x 16.97 in. x 17.05 in.)
-
2
-
Specifications are subject to change without notice.
MODEL EH41
EH41B EH41BS EH41D EH41DS
Type Air-Cooled, 4-Cycle, Single-Cylinder,
Horizontal P.T.O. Shaft, OHV Gasoline Engine
Bore x Stroke 89 x 65 mm (3.50 x 2.56 in.)
Piston Displacement 404 cm
3
(24.65 cu.in.)
Compression Ratio 8.3
Output Continuous 7.0 kW (9.5 HP) /1800 r.p.m. 7.0 kW (9.5 HP) /3600 r.p.m.
Max. 9.9 kW (13.5 HP) /1800 r.p.m. 9.9 kW (13.5 HP) /3600 r.p.m.
Max. Torque 56.8 N
・
m(5.80 kgf
・
m)
/1250 r.p.m. 28.4 N
・
m(2.90kgf
・
m)
/2500 r.p.m.
Direction of Rotation Counterclockwise As Viewed From P.T.O. Shaft Side
Cooling system Forced Air Cooling
Valve Arrangement Overhead Valve
Lubrication Splash Type
Lubricant Automobile Oil SAE #20, #30 or 10W-30 ; Class SE or higher
Capacity of Lubricant 1.2 liters (0.32 U.S. gal.)
Carburetor Horizontal Draft, Float Type
Fuel Automobile Unleaded Gasoline
Fuel Consumption Ratio 310 g/kW
・
h(230 g/HP
・
h) At Continuous Rated Output
Fuel Feed System Gravity Type
Fuel Tank Capacity 7.0 liters (1.85 U.S. gal.)
Ignition System Flywheel Magneto (Solid State)
Spark Plug NGK BP6ES
Charging Capacity ---------- 12V-1.3A ---------- 12V-1.3A
Starting System Recoil Starter Electric Starter
&Recoil Starter Recoil Starter Electric Starter
&Recoil Starter
Speed Reduction 1/2 Camshaft Drive ----------
Governor System Centrifugal Flyweight Type
Air Cleaner Double Element Type
Dry Weight 32.0 kg (70.6 lb.) 35.0 kg (77.2 lb.) 31.0 kg (68.4 lb.) 34.0 kg (75.0 lb.)
Dimensions (L x W x H) 389 mm x 431 mm x 433 mm (15.31 in. x 16.97 in. x 17.05 in.)
-
3
-
2. PERFORMANCE
2-1 MAXIMUM OUTPUT
The maximum output is the output of an engine with its throttle valve fully opened under the condition that
all the moving parts are properly broken in after the initial break-in period.
A new engine may not produce full maximum output while its moving parts are still not broken-in.
NOTE :
Power curves shown in the following charts are made in conformity with SAE internal combustion engine
standard test code J1349.
2-2 CONTINUOUS RATED OUTPUT
The continuous rated output is the output of an engine at optimum governed speed which is most favor-
able from the view point of engine's life and fuel consumption.
When the engine is installed on a certain equipment, it is recommended that the continuous output
required from the engine be kept below this continuous rated output.
2-3 MAXIMUM TORQUE
The maximum torque is the torque at the output shaft when the engine is producing maximum output at
certain revolution.
-
4
-

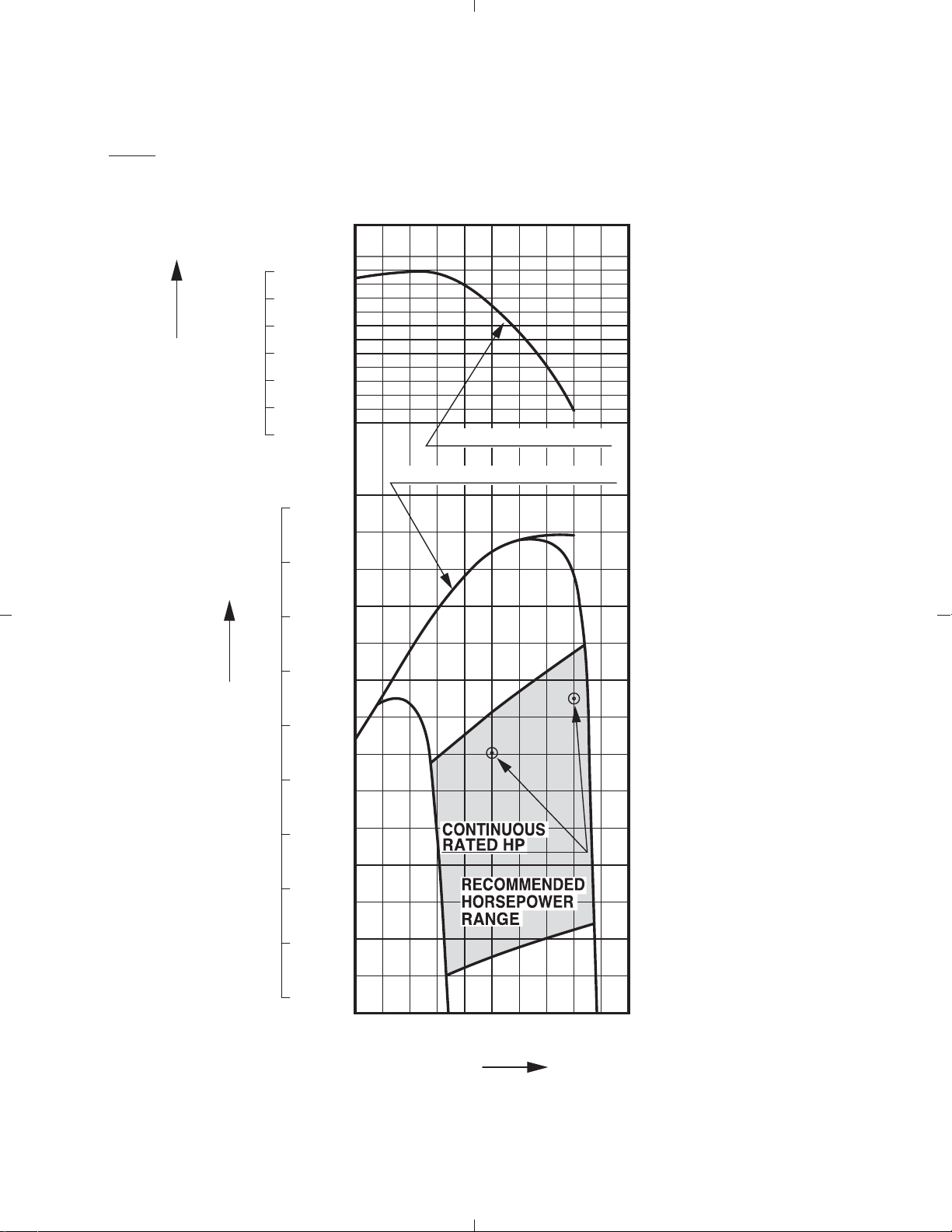

2-4 PERFORMANCE CURVES
EH36
11
6
7
8
9
10
REVOLUTION
OUTPUT
TORQUE
5
4
3
20 24 28 32 36 x10
2
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
kWHP
12
N
•
mkgf
•
m
(52) 26
(54) 27
(5.2) 2.6
(5.4) 2.7
(5.0) 2.5
(4.8) 2.4
(4.6) 2.3
(4.4) 2.2
(50) 25
(48) 24
(46) 23
(44) 22
(5.6) 2.8
(10)(
12)(
14)(
16)(
18)
( ) for type B
MAXIMUM TORQUE
MAXIMUM HORSEPOWER
r.p.m.
-
5
-
EH41
MAXIMUM TORQUE
MAXIMUM HORSEPOWER
11
6
7
8
9
10
REVOLUTION r.p.m.
OUTPUT
TORQUE
5
4
3
20 24 28 32 36 x10
2
2.0
3.0
4.0
5.0
6.0
7.0
8.0
kWHP
12
13
9.0
N
•
mkgf
•
m
(52) 26
(54) 27
(5.2) 2.6
(5.4) 2.7
14 10.0
(5.6) 2.8
(5.8) 2.9 (56) 28
(10)(
12)(
14)(
16)(
18)
( ) for type B
-
6
-
3. FEATURES
1. The overhead valve design offers a compactness, light weight and ideal combustion characteristics
resulting in more power from less fuel and prolonged engine life.
2. The adoption of an inclined cylinder offers low height of engine, making the arrangements for installing
the engine much easier for various powered equipments.
3. The vibration free design with a balancer system and lighter reciprocating parts.
4. Combustion and mechanical noises have been analized acoustically and improved for better tonal
quality and lower engine noise.
5. The automatic decompression system lightens the recoil pull force by 50% comparing to the conven-
tional SV engine.
-
7
-
4. GENERAL DESCRIPTION OF ENGINE COMPONENTS
4-1 CYLINDER AND CRANKCASE
The cylinder and crankcase is a single piece alu-
minum die-casting.
The cylinder liner, made of special cast iron, is
molded into the aluminum casting.
The crankcase has a mounting surface on the out-
put shaft side, where the main bearing cover is
attached.
4-2 MAIN BEARING COVER
The main bearing cover is an aluminum die-cast-
ing, which is mounted on the output shaft side of
the crankcase.
Remove the main bearing cover to inspect inside
of the engine.
Pilots and bosses are machined on the cover for
direct mounting of the engine onto such machines
as generators and pumps.
Oil gauges (fillers) are on both sides of the cover
for easy maintenance.
4-3 CRANKSHAFT
The crankshaft is forged carbon steel, and the
crank pin is induction-hardened.
The output end of the shaft has a crankshaft gear
and balancer gear that are pressed into position.

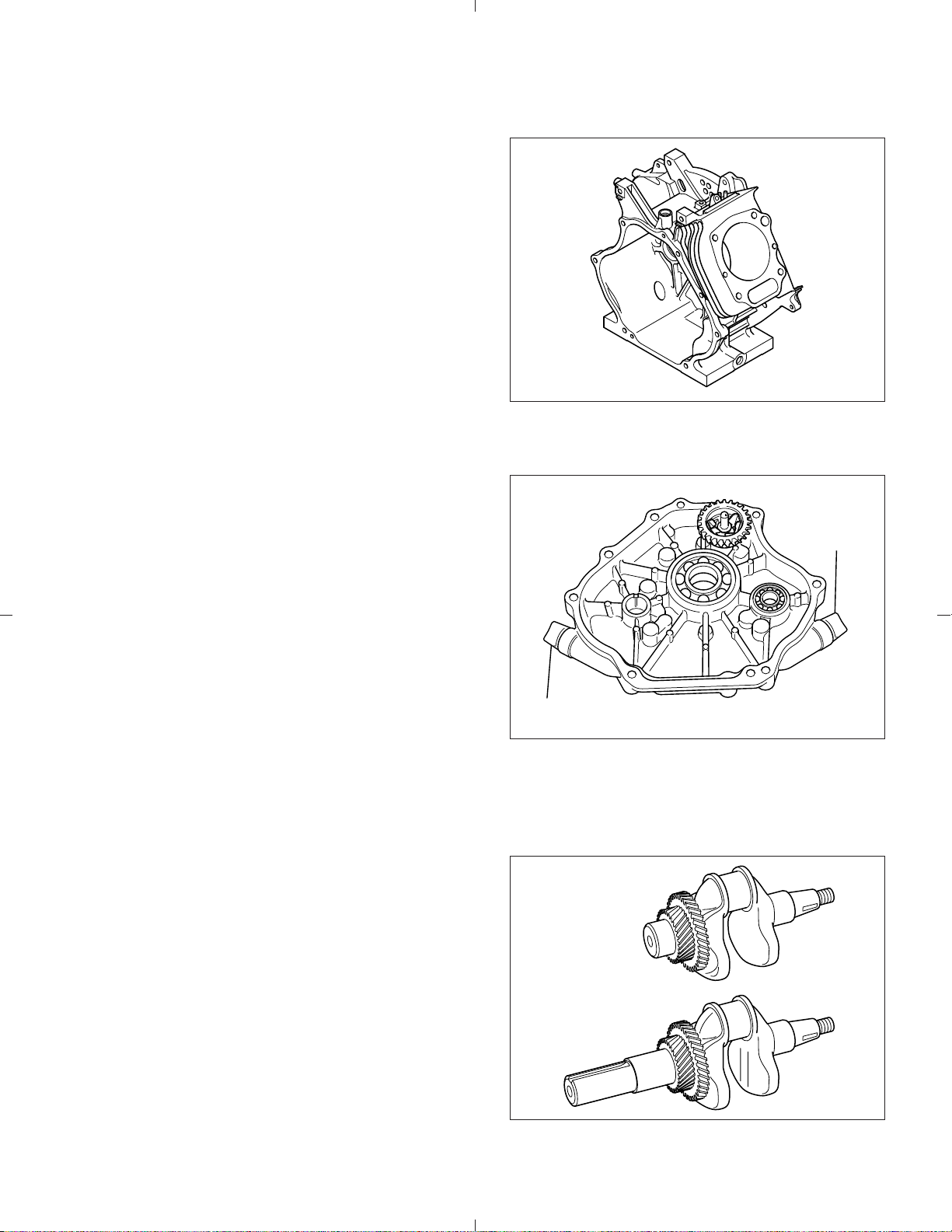

Fig. 4-1
Fig. 4-2
Fig. 4-3
OIL GAUGE
OIL GAUGE
TYPE D
TYPE B
Questo manuale è adatto per i seguenti modelli
9
Indice
Altri manuali Robin Motore
Robin
Robin EY08D Manuale utente
Robin
Robin EC05-2 Manuale utente
Robin
Robin EX13D Manuale utente
Robin
Robin EH11/W01-115 Istruzioni operative
Robin
Robin EX13D Manuale utente
Robin
Robin EH12 Manuale utente
Robin
Robin EH12-2D Manuale utente
Robin
Robin DY23-2D Manuale utente
Robin
Robin EC12 Manuale utente
Robin
Robin EH63D Manuale utente
Robin
Robin EY35 Manuale utente
Robin
Robin PKX301 Manuale utente
Robin
Robin EY15 Manuale utente
Robin
Robin Subaru EY15-3D Manuale utente
Robin
Robin EC1O Manuale utente
Robin
Robin EX13D Manuale utente
Robin
Robin PKX201T Manuale utente
Robin
Robin EH12-2D Manuale utente
Robin
Robin ECO2 Manuale utente
Robin
Robin DY41D Manuale utente
