Robit R3000 Manuale utente
R3000
Robot Vacuum Cleaner
User Manual
Table of Contents
Important Safety Instructions ......................................................P2-P4
About Your Robit R3000 Robot ...................................................P5-P8
Package Contents ...........................................................................P5
Product Diagram .............................................................................P6
Specifications ..................................................................................P8
Instructions of Indicator Light ..........................................................P8
Using Your Robit R3000 Robot .................................................P9-P17
Note Before Use .............................................................................P9
Preparation Before Use ..................................................................P10
Operation ....................................................................................... P13
Cleaning Mode ...............................................................................P14
Reservation Setting ........................................................................P15
Cleaning and Maintenance ..........................................................P18-P20
Clean Dust Collector and Filter ......................................................P18
Clean Side Brushes ........................................................................P19
Clean Universal Wheel ...................................................................P19
Clean Downward Sensor ................................................................P20
Clean Dust Suction Port .................................................................P20
Clean Electrode Contact Pins and Charging Base .........................P20
Trouble Shooting ..........................................................................P21-P22
Robit Customer Care ....................................................................P23
1
Important Safety Instructions
To reduce the risk of injury or damage, please kindly read these safety
instructions before using, and carefully keep it for further reference.
Cautions
1.1 Please use this product according to the instructions. Any operation that
is not in accordance with this manual may cause damage to this product.
1.2 The product cannot be operated and used by children under 8 years old
or mentally impaired people. If it is necessary, please make sure you are
under the supervision of the guardian or somebody else. Please do not allow
children to ride on the product, or use the product as a toy.
1.3 Before using the product, please place the power cord and small items
on the floor to avoid the product being blocked during cleaning. The edges of
the carpet should be folded under the carpet. The hanging curtains, table-
cloths, things like that, should not touch the floor.
1.4 If there is a suspended environment such as a stair, please firstly test
whether the product can detect the edge of the suspended area without
falling. If a protective fence is required at the edge of the suspended area to
prevent the product from falling, Please ensure that the protective facility will
not cause personal injury such as tripping.
1.5 Please ensure that the power supply voltage matches the voltage
marked on the charging base.
1.6 This product is an indoor and household item. Do not use it in outdoors.
1.7 Only use the original rechargeable battery and charging base provided
by the manufacturer. Non-rechargeable batteries are strictly prohibited. For
battery specifications, please refer to "Specifications".
1.8 When using the product, please ensure that the dust collector and filter
are installed in place.
1.9 Do not use the machine to clean objects more than 0.63inch/ 16mm in
diameter to prevent the suction port from being blocked.
2
Dangerous
2.1 Do not use the product in an environment with open flames or fragile
items.
2.2 The working temperature range is -10℃- 50℃, do not use it in low
temperature or high temperature environment.
2.3 Please do not place the hair, clothes, fingers and other parts of the
human body near the openings and moving parts of the product.
2.4 When in suction mode, do not use the product in a wet or stagnant
environment.
2.5 Do not allow the product to pick up any flammable items, such as
gasoline, printers or photocopiers and toner. Do not use the product in
cleaning areas with flammable items.
2.6 Do not allow the product to pick up any burning products, such as
cigarettes, matches, ashes and other items that may cause fire.
2.7 Do not place items on the suction port. Do not use it when the suction
port is blocked. Please clean up the dust, cotton wool and hair around the
suction port in time to ensure smooth air circulation of the suction port.
2.8 Please use the power cord carefully to avoid damage, do not use the
power cable to drag or lift the product and product charging base, do not use
the power cord as a handle, do not clamp the power cord in the door gap, do
not pull the power cord at sharp corners, do not allow the product to run on
the power cord, and the power cord should be kept away from any heat
sources.
Cautions
3.1 If the power cord is damaged, it should be replaced by a professional In
the manufacturer's maintenance department or similar department in order
to avoid danger.
3.2 Do not use a damaged charging stand.
3.3 Do not use damaged power cord or power socket to charge the product.
Do not use the product when it cannot work properly due to drop, damage,
outdoor use or water ingress. To avoid injury, the product should be repaired
by the manufacturer or its service department.
3
Cautions
4.1 Before cleaning and maintaining the product, be sure to unplug it from
the power outlet and turn off the power switch.
4.2 Do not allow the robot to inhale liquids such as water, otherwise the
product may be damaged.
4.3 Do not disassemble the battery of this machine without permission.
4.4 Please clean up the tangled hair on the universal wheel and side brush
in time.
4.5 Please clean up the garbage in the dust box in time to prevent the
High-efficiency filter from being blocked, affecting the vacuuming effect.
4.6. Before discarding the product, please remove the product from the
charging base, turn off the power switch and remove the battery. Please
remove and discard the product battery according to the local laws and
regulations.
Dangerous
5.1 Even if the product is severely damaged, it is forbidden to incinerate the
product because the battery of the product may cause explosion.
5.2 If the product is not used for a long time, please power off the product.
5.3 Please check whether the charger and socket are properly connected,
other-wise, it may cause fire.
5.4 The power cord of the charger must be plugged and fastened, otherwise
it may cause electric shock, short circuit, smoke or fire.
5.5 Do not stand or sit on the robot, otherwise it may cause damage to the
robot or cause personal injury.
5.6 Do not touch the power cord of the appliance when your hands are wet,
otherwise it may cause electric shock.
5.7 Only authorized technicians can disassemble this product. Users are not
recommended to disassemble this product by themselves.
4
Product Diagram

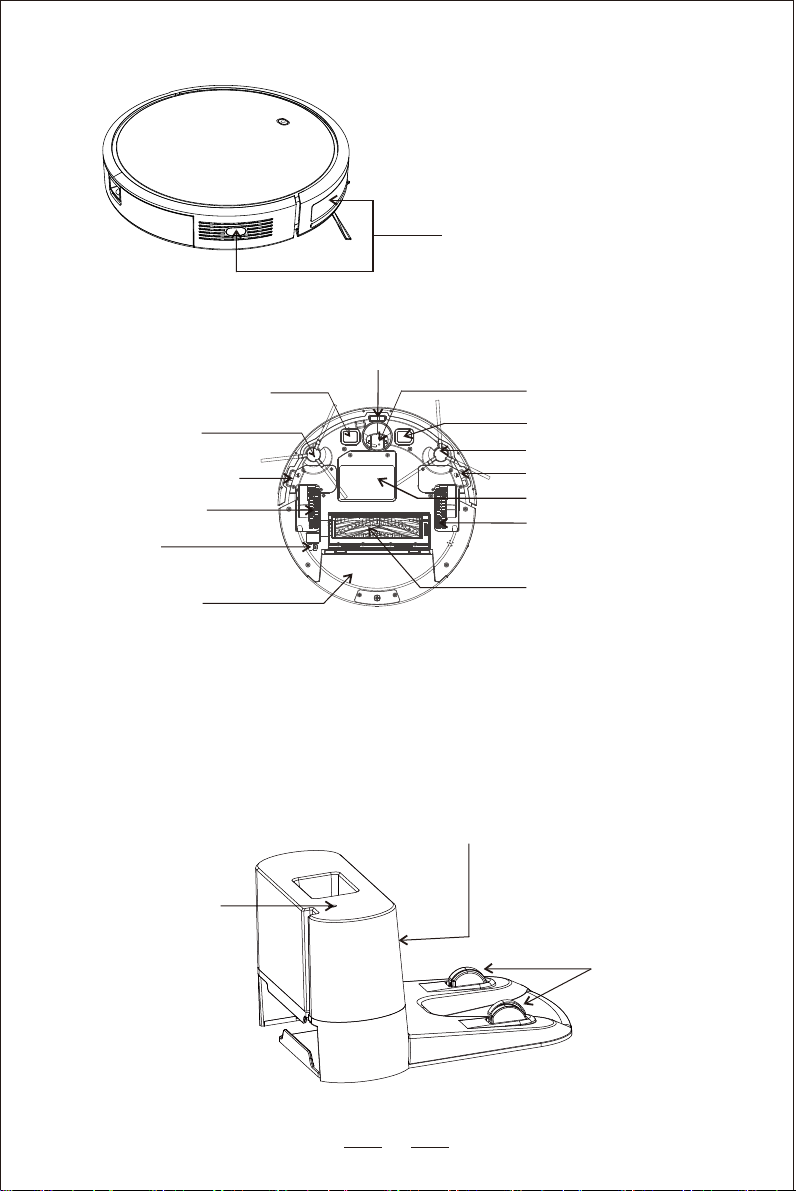

Host chart
About Your R3000 Robot Vacuum Cleaner

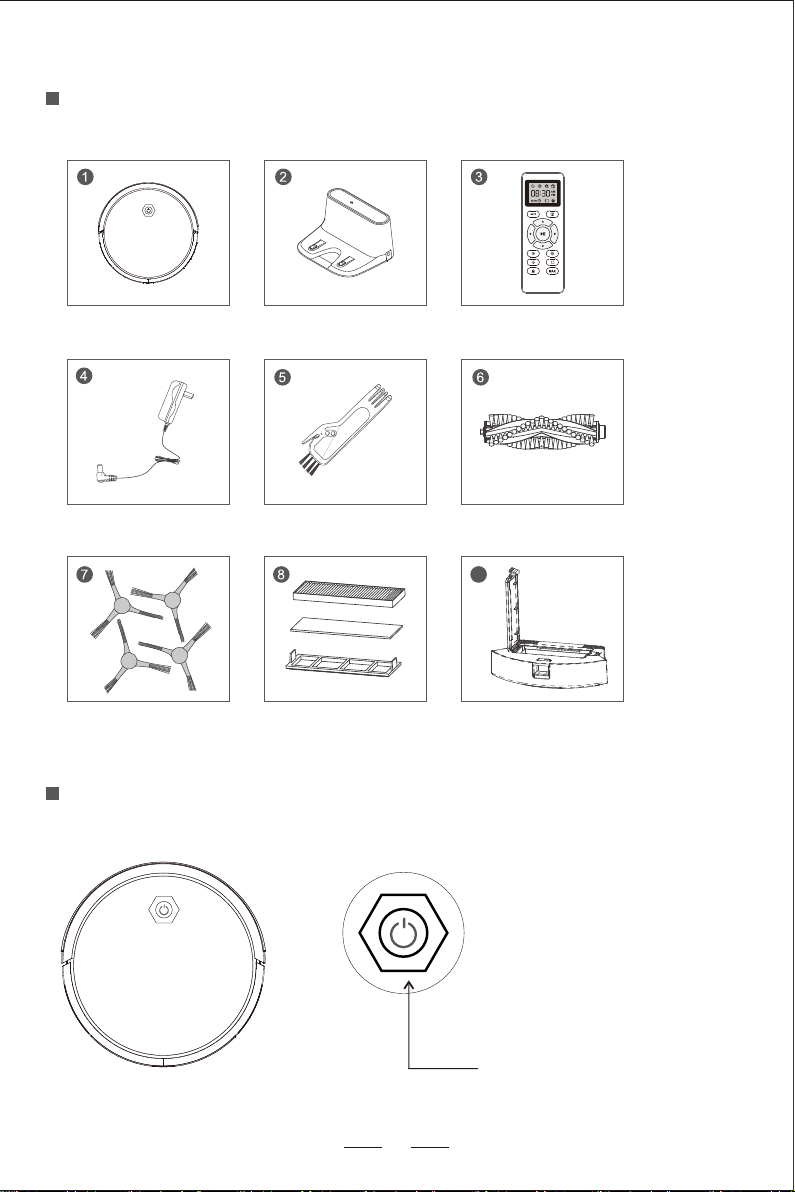

Package Contents
Robit R3000 Charging Base Remote Control
Adapter Cleaning Brush
Side Brushes Filter Dust Collector
9
Roller Brush
ON/OFF
5
Signal Emission Area
Charging Indicator
Electrode Contact
Pins
6
Infrared Receiving Sensor
Side Brushes
Side Brushes
Universal Wheel
Electrode Contact Pins
Electrode Contact Pins
Downward Sensor
Downward Sensor Downward Sensor
Battery Cover
Driving Wheel Driving Wheel
Roller Brush
ON/OFF
Dust Collector
OFF
Charging Dock
Specifications
7
Host
Model R3000
19V 0.6AInput
Rated Voltage 14.4V
Rated Power 25W
Battery DC14.4V Li-ion battery 2600mAh
Dust Box Capacity 500ML
Cleaning Time 120mins
Charging Time 5-6h
Input DC19V 0.6A
Output DC19V 0.6A
NOTE: Install a pair of AAA batteries before using the remote control for the first time, please make
sure the polarity of the battery is installed correctly. When using the remote control, please point to the robot
vacuum, the working distance is 0-5 meters.

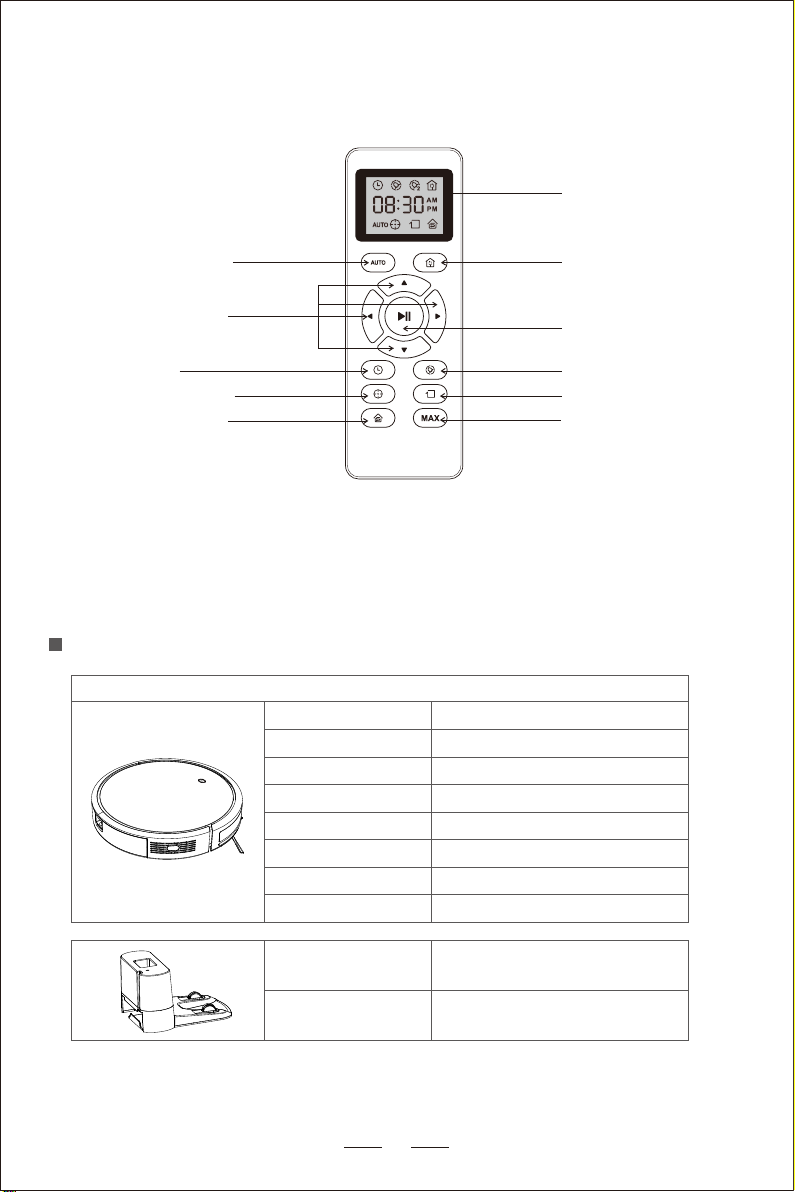

Auto Cleaning Mode
Direction and Time
Setting
Clock Setting
Spot Cleaning Mode
Single Room
Cleaning Mode
Display
Back to Charge
ON/OFF
Reservation Cleaning
Edge Cleaning Mode
Choosing Suction
(Under Single Room Cleaning and
Auto Cleaning Mode)
Remote Contorl
8
Instruction of indicator light
LED indicator Status
Breathing Orange Charging
Solid Blue Stand by/ Cleaning/ Fully Charged
Light off
Power Off
When the product is not on the charging base
and inactive within 5 minutes, the indicator
light will automatically turn off
Solid Orange Low Power/ Searching Charging Dock
Breathing Red or Solid Red The robot has a problem
Using Your R3000 Robot
Note Before Use
9

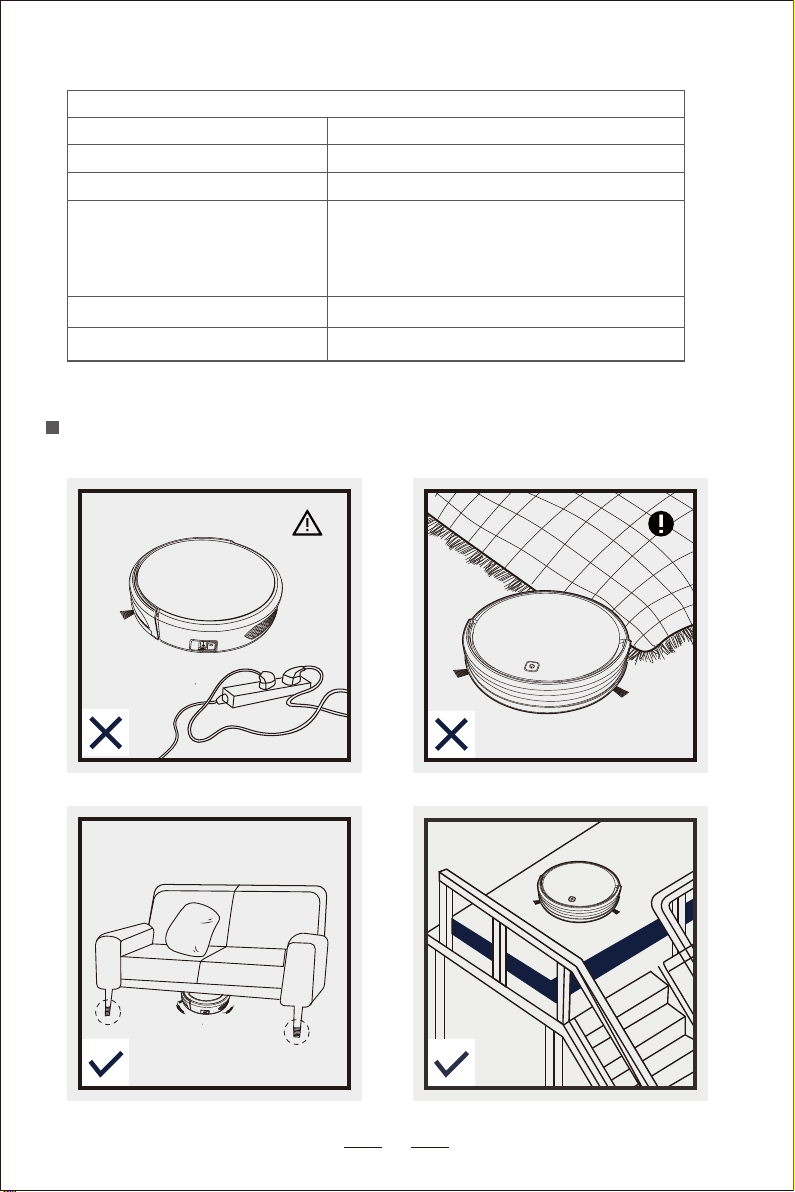

Remove the power cords and small objects from the floor that may entangle
the robot.
The robot can cross the floor of 0.59inch/ 15mm heights and 15° inclination,
but it is not suitable for long-pile carpet. It is recommended to use on the
floor, tile and thin carpet. (Thinner than 0.3inch/ 0.8mm)
Keep the robot away from space lower than 2.4inch/ 80mm to prevent it from
being stuck.
R3000 robot has anti-drop sensors to prevent it from falling down from
heights. It is recommended to set up physical barriers to block off areas
where the robot may fall.
Preparations Before Use
Quick Start
Connect the charging base and put the remaining cables into the cable
storage box at the bottom of the charging base.

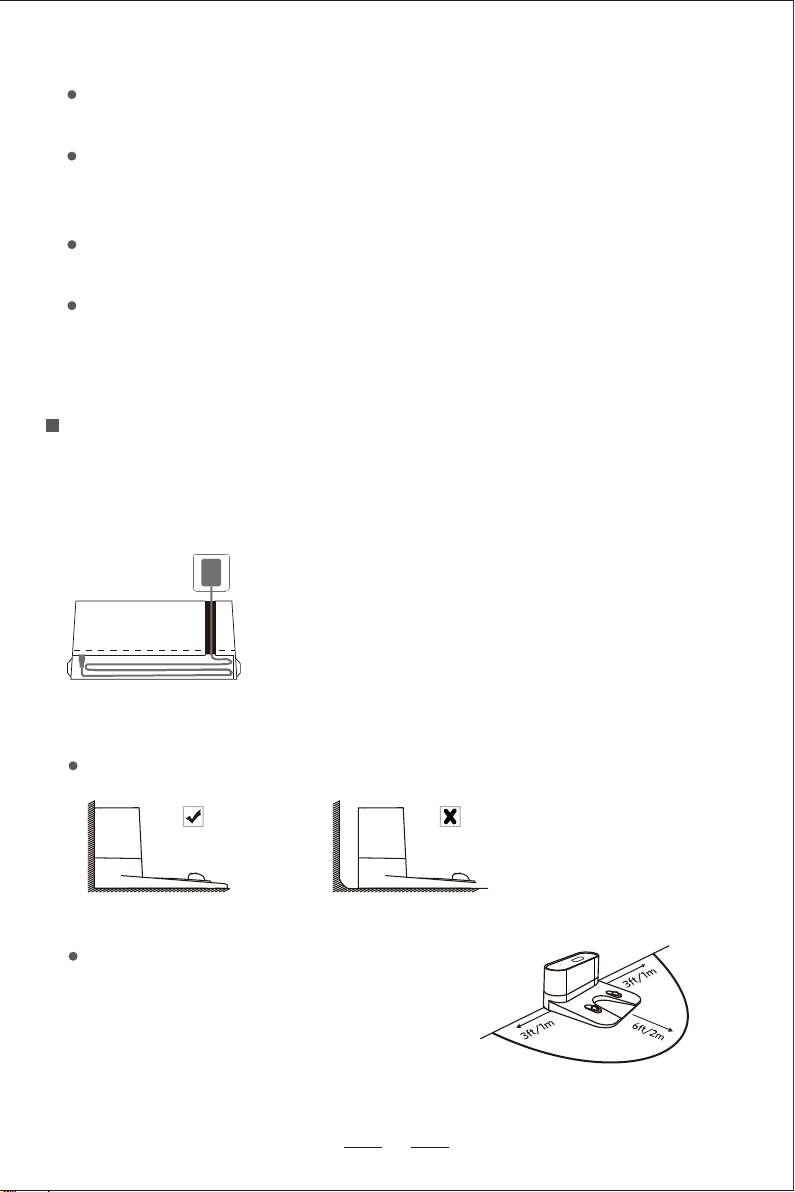

Place the Charging Base
Place the charging base on a hard, level surface and let it against the wall.
Warm Reminder: Unsaved cables may trap the host
being cleaned or retrieved.
Remove objects within 3ft/ 1m
of the left and right side and
within 6ft/ 2m
*
