Roche Accu-Chek Active Manuale utente

ACCU‑CHEK is a trademark of Roche.

M Roche Diagnostics GmbH

Sandhofer Strasse 116

68305 Mannheim, Germany

www.accu‑chek.com

06658768001(02) – 2013‑09 M_Version01_Rev2

User’s Manual

Blood Glucose Meter

ONR 4285 – 4all 4468 V1/1 – man_cover_06658768001_02_EN_ Format 127 x 154 mm – Black

(2013) Frau Ritzerfeld

Prüfmittelnummer n/a R2/1 – man_cover_06658768001_02_EN_ Format 127 x 154 mm – Black

R2/2 – man_cover_06658768001_02_EN_ Format 127 x 154 mm – PMS 287 CVC

man_cover_06658768001_02_EN.indd 4-1 03.09.2013 15:40:52

This User’s Manual features three types of warning:

This symbol indicates a possible risk of injury

or of damage to your own health or the health

of others.

This symbol draws attention to actions that could

result in damage to the meter.

This symbol draws your attention to important

information.

Last update: 2013‑08

Explanation of symbols

Various symbols are featured on the packaging and type plate of the meter. Their meanings are as

follows:

Symbol Meaning

BConsult instructions for use

WCaution, refer to safety‑related notes in the instructions for use accompanying this

product.

Biohazard risks – used meters carry a risk of infection.

2Temperature limitation (store at)

EUse by

MManufacturer

RCatalogue number

LBatch code

IIn vitro diagnostic medical device

CThis product fulﬁls the requirements of the European Directive 98/79/EC on in vitro

diagnostic medical devices.

The explanation of any other symbols can be found in the instructions for use and inserts accompanying

components within the packaging.

man_cover_06658768001_02_EN.indd 2-3 03.09.2013 15:40:52

Contents

Intended use � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2

About this User’s Manual � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3

1 Getting to know the blood glucose monitoring system � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4

2 Steps before testing � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7

3 Changing settings � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10

4 Testing blood glucose � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 16

5 Using the meter as a diary � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 30

6 Analysing test results on the PC � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 35

7 Checking your meter � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 38

8 Cleaning the meter � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 44

9 Changing the battery� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 46

10 Testing blood glucose in more than one patient � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 48

11 Test and storage conditions � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 50

12 Symbols, problems and error messages � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 52

13 Disposing of your meter � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 59

14 Technical data and system components � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 60

15 Customer Support and Service Centre � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 63

16 Alphabetical index � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 65

Explanation of symbols � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � III

man_06658768001_02_EN.indb 1 14.08.2013 10:16:25

Intended use

The Accu-Chek Active blood glucose meter

The Accu‑Chek Active blood glucose meter is

intended to be used for quantitative blood

glucose tests in fresh capillary blood. The

meter may only be used together with

Accu‑Chek Active test strips. Consult the

package insert of the test strips if you intend to

use dierent sample material.

The blood glucose monitoring system

comprises the meter and test strips and is

suitable for self‑testing and for professional

use. People with diabetes can use this system

to self‑test their blood glucose. Healthcare

professionals can use this system to check

patients’ blood glucose values and they can

use it in suspected cases of diabetes and in

emergency diagnostics.

The system is suitable for testing blood glucose

with blood obtained from alternative sites.

The system must not be used to diagnose or

rule out diabetes.

The system is only suitable for use outside the

body.

Visually impaired persons must not use the

meter.

The meter must only be used for its intended

purpose; if used otherwise preventive

measures could be ineective.

• Healthcare professionals must also read the

instructions and notes in Chapter 10 “Testing

blood glucose in more than one patient”.

• All objects that could come into contact with

human blood are potential sources of

infection.

There is a risk of infections (e.g. hepatitis B,

hepatitis C, HIV) being transmitted if the meter

is used by other people, even family members,

or if healthcare professionals use the same

meter to test blood glucose in more than one

person.

• Only use the Accu‑Chek Active meter with

Accu‑Chek Active test strips that are approved

by Roche Diagnostics. Other test strips deliver

incorrect results.

• Keep the blood glucose monitoring system

with all its components away from children

under the age of 3. There is a risk of

suocation if small parts (e.g. covers, caps or

similar objects) are swallowed.

man_06658768001_02_EN.indb 2 14.08.2013 10:16:25

About this User’s Manual

Read this User’s Manual carefully and completely before testing blood glucose for the ﬁrst time. If you

have any questions, please contact your customer support and service centre (see page 63).

This User’s Manual will provide you with all the information you need to operate, troubleshoot and care

for your blood glucose meter. Follow the correct operating procedures for the meter and comply with all

instructions for use. You can turn the beep tone of the meter on or o. This User’s Manual assumes that

the beep is on.

Actions to be taken appear as shown in the example below:

Gently slide the test strip into

the test strip guide in the

direction of the arrow until you

feel it lock into place.

The meter turns on and ﬁrst

performs a default display check

(approx. 2 seconds).

Title bar of the ﬁgure

with a number or ﬁgure

caption

Figure displaying actions

to be taken

Action to be taken (blue

text)

Information on action to

be taken (black text)

1Flashing elements

In this User’s Manual you will see

examples of display screens.

Elements that are surrounded by

a halo in these examples actually

ﬂash on the meter’s display.

Please note: All dates, times or

results shown on the display

screens in this User’s Manual are

intended only as examples.

man_06658768001_02_EN.indb 3 14.08.2013 10:16:28

Getting to know the blood glucose monitoring system

The Accu-Chek Active blood glucose meter and its components

1. Display

displays the current and saved test results or

device messages

2. Buttons

see “Buttons of the blood glucose meter”

overview

3. Cover

covers the measurement window

4. Measurement window

underneath the cover

5. Test strip guide

slide the test strip in here

6. Locking catch

opens the battery compartment cover

7. USB port

the USB cable is inserted here in order to

transfer data to a computer

8. Code chip

code chip inserted in the code chip slot

9. Battery compartment

right: open battery compartment, battery type

CR2032

10. Type plate

man_06658768001_02_EN.indb 4 14.08.2013 10:16:31

Getting to know the blood glucose monitoring system

11. Test strip container

12. Test strip

13. Control solutions

14. Code chip

15. Battery

Buttons of the blood glucose meter

Overview of the M and S button functions:

11 12 13

14 15

M button S button

Press the M button to Press the S button to

turn the meter on and call up

saved values

turn the meter on and call up

settings, e.g. for the time

mark the test result after a test mark the test result after a test

change settings go to the next setting

call up the previous saved test

result

call up the next saved test result

change from the earliest saved

test result to the averages

change from the averages to the

saved test results

call up the previous average call up the next average

Press the M and S buttons at the same time to

perform a display check

save settings after the ﬁnal display is shown on the display and

turn the meter o

Press the M or S button to

turn the test reminder beep o

man_06658768001_02_EN.indb 5 14.08.2013 10:16:38

Getting to know the blood glucose monitoring system

The main features

• Short testing time

The meter needs only approximately 5 seconds

for each test.

• Testing without pressing buttons

For testing, you do not need to press a single

button.

• Additional dosing option

To perform a test, the meter requires 1–2 µL

blood (1 µL (microlitre) = 1 thousandth of a

millilitre). The meter detects if the amount of

blood is insucient, and more blood can be

applied.

• Marking test results

You can mark test results with dierent symbols

which indicate particular situations during the

test.

• Memory

The meter automatically saves up to 500 test

results with the time and date of the test and all

other information that is important for the test.

• Integrated data analysis

From the stored test results your meter can

calculate your average values for the last 7, 14,

30 and 90 days.

• Data transfer

The meter has a USB port. You can transfer

saved test results to a computer.

• Flexible blood application

You can apply blood to the test strip while the

test strip is in the meter or after you have

removed it from the meter.

man_06658768001_02_EN.indb 6 14.08.2013 10:16:38

Steps before testing

Unpacking the contents

Check that the contents of the package are complete. You will ﬁnd a list with the contents on the box.

If anything is missing, please contact your customer support and service centre (see page 63).

Checking the unit of measurement

Test results can be displayed in two dierent units of measurement (mg/dL or mmol/L). Two dierent

versions of the same meter are therefore available. Check if your meter displays the unit of measurement

you are accustomed to. You can ﬁnd the unit of measurement that your meter displays on the type plate

on the back of your meter 1. If you do not know which is the right unit for you, ask your healthcare

professional.

The unit of measurement that

your meter displays cannot be

changed. If the wrong unit of

measurement is printed on the

type plate, ask your healthcare

professional to exchange the

meter or contact your

customer support and service

centre. Using the wrong unit of

measurement may cause

misinterpretation of your actual

blood glucose level and may

lead to improper therapy.

man_06658768001_02_EN.indb 7 14.08.2013 10:16:39

Steps before testing

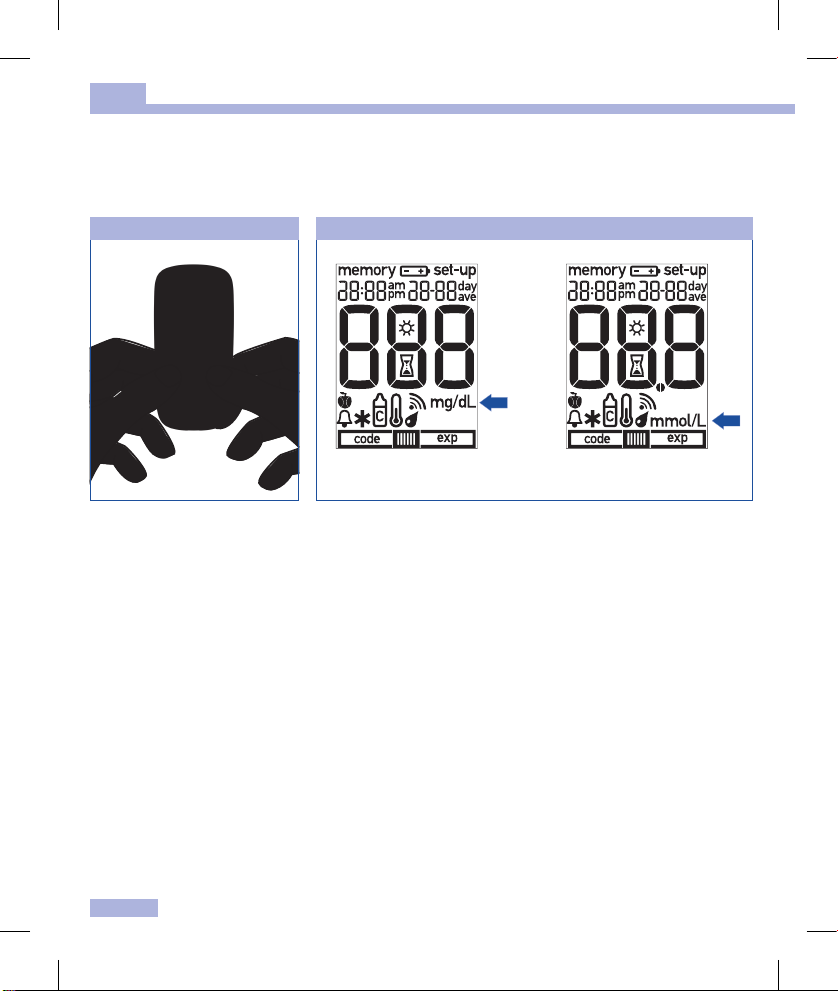

Checking the display

You can check if all of the display elements are properly displayed, by carrying out a full display check.

Compare the elements displayed on your meter with the display

shown here.

If any of the display elements are missing or the unit of measurement

shown for the blood glucose results is not the correct one, please ask

your healthcare professional to exchange the meter.

Press the M and S buttons at the same time to end the display check

and turn the meter o.

With the meter turned o, press

the M and S buttons at the same

time for approximately 2 seconds

until the meter is switched on.

mg/dL meter mmol/L meter

man_06658768001_02_EN.indb 8 14.08.2013 10:16:41

Altri manuali per Accu-Chek Active

Indice

Altri manuali Roche Misuratore di glicemia

Roche

Roche CoaguChek XS System Manuale utente

Roche

Roche Accu-Chek Mobile Manuale utente

Roche

Roche Accu-Chek Aviva Combo Manuale utente

Roche

Roche Accu-Chek Instant Manuale utente

Roche

Roche ACCU-CHEK Inform II Manuale utente

Roche

Roche Accu-Chek Instant Manuale utente

Roche

Roche ACCU-Chek Guide Me Manuale utente

Roche

Roche Accu-Chek Aviva Insight Manuale utente

Roche

Roche Accu-Chek Aviva Combo Manuale utente

Roche

Roche CoaguChek Pro II Manuale utente

Roche

Roche ACCU-CHEK Inform II Manuale utente

Roche

Roche Accu-chek Performa Manuale utente

Roche

Roche Accu-Check Glucotrend 2 Manuale utente

Roche

Roche ACCU-Chek Guide Me Manuale utente

Roche

Roche Accu-Chek Performa Nano Manuale utente

Roche

Roche ACCU-CHECK Active Manuale utente

Roche

Roche ACCU-CHEK Inform II Manuale utente

Roche

Roche ACCU-CHEK Inform II Manuale utente

Roche

Roche ACCU-Chek Guide Me Manuale utente

Roche

Roche Accu-Chek Mobile Manuale utente

Roche

Roche Accu-Chek Mobile Manuale utente

Roche

Roche Accu-Chek Aviva Expert Manuale utente

Roche

Roche Accu-chek Performa Manuale utente

Roche

Roche ACCU-CHECK Manuale utente

Manuali Misuratore di glicemia popolari di altre marche

ReliOn

ReliOn Prime Manuale dell'operatore

AgaMatrix

AgaMatrix Presto Manuale utente

Polymer Technology Systems

Polymer Technology Systems A1C Now Self Check Manuale utente

Medisana

Medisana GlucoDock Manuale utente

Arkray

Arkray ASSURE PLATINUM Manuale utente

Dexcom

Dexcom G4 Professional Manuale utente

Acon

Acon On Call Manuale utente

veri-Q

veri-Q BALANCE PRO Manuale utente

Medisana

Medisana MediTouch 2 Manuale utente

Infopia

Infopia Element Manuale utente

Abbott

Abbott Optimum Xceed Manuale utente

Contour

Contour TS Manuale utente

LabStyle

LabStyle Dario Manuale utente

ACONLABS

ACONLABS ON CALL EXPRESS Manuale utente

Higi Technology

Higi Technology iGlucose Manuale utente

Bayer HealthCare

Bayer HealthCare CONTOUR NEXT Manuale utente

Accu-Chek

Accu-Chek ADVANTAGE Manuale utente

Sanofi-aventis

Sanofi-aventis BG STAR Specifiche tecniche
