Rocket Fish RF-AC9023 Manuale utente

User Guide

Rocketfish Laptop AC Power

Adapter

RF-AC9023

RF-AC9023 11-1018_MAN_V1.fm Page 1 Monday, October 3, 2011 4:29 PM

Rocketfish RF-AC9023

Laptop AC Power Adapter

Contents

Introduction............................................................................2

Safety information................................................................3

Features ....................................................................................4

Using the AC power adapter.............................................5

FAQ for Rocketfish Adapters .............................................7

Specifications ...................................................................... 10

Legal notices........................................................................ 10

Three-year limited warranty........................................... 13

Introduction

Thank you for purchasing a Rocketfish universal laptop power

adapter. This adapter plugs into any AC power outlet anywhere

in the world, and provides a reliable power source to run your

laptop computer and charge its internal battery. Rocketfish

adapters are made using the highest quality components and

feature all of the necessary voltage and heat protection circuits

to ensure maximum levels of safety and efficiency.

NOTE: A physical adapter plug may be necessary to plug into

some AC power outlets outside of the United States, but no

voltage converter is needed anywhere in the world.

This adapter comes with a variety of numbered tips which

connect to the output cable of the adapter and control the

output voltage. To make sure that the proper voltage is

delivered to your laptop, you must always make sure that you

are using the correct tip for your specific laptop model. Read

the following instructions and refer to the Tip Compatibility

RF-AC9023 11-1018_MAN_V1.fm Page 2 Monday, October 3, 2011 4:29 PM

RF-AC9023

Guide included with this adapter to make sure you select the

correct tip for your laptop. You can also go to the Tip Wizard at

www.rocketfishproducts.com for a complete listing of

compatible models.

CAUTION: This AC power adapter is not compatible with Mac

computers or laptops requiring more than 90 watts of power.

Safety information

• Do not expose the power adapter to rain, moisture, or

excessive dust. It may cause shock hazards.

• Do not operate the adapter in direct sunlight.

• Operate the adapter in a well ventilated area. Maximum

ambient temperature around the power adapter must not

exceed 105° Fahrenheit (40° Celsius).

• Do not open the power adapter under any circumstances.

The power adapter is not intended to be repaired in case of

failure or component defect. There are no internal

serviceable parts.

• Discontinue use and contact our toll free help line for

assistance (800) 620-2790 if any of the following should

occur:

• The adapter shuts down when it is plugged into the

device (LED turns off).

• The adapter's LED light blinks when the adapter is

plugged into an AC power outlet.

• A cord or plug is damaged or frayed.

• Do not use with laptops that require more than 90 watts of

power.

• Make sure to use the correct tip for your laptop listed in the

Tip Compatibility Guide. You can also go to the Tip Wizard at

www.rocketfishproducts.com for a complete listing of

compatible models. Do not use a tip that is not listed for

your laptop.

• Keep away from children.

RF-AC9023 11-1018_MAN_V1.fm Page 3 Monday, October 3, 2011 4:29 PM

Features

•Providesupto90wattsofpower

• Includes over-voltage, over-temperature, and short circuit

protection

• Powers laptops using a standard AC wall outlet

• Can be used anywhere in the world - no voltage converter

needed (an adapter plug may be necessary)

Package contents

• 90 Watt universal laptop power adapter

•Eighttips

•ACpowercord

• Tip Compatibility Guide

• User Guide

RF-AC9023 11-1018_MAN_V1.fm Page 4 Monday, October 3, 2011 4:29 PM

RF-AC9023

Using the AC power adapter

To use the AC power adapter:

1Locate your laptop manufacturer and model from the Tip

Compatibility Guide, or go to www.rocketfishproducts.com

and go to RF-AC9023 to find the Tip Wizard.

2Identify the correct tip number for your laptop model.

CAUTION: The use of an incorrect tip may damage your laptop.

Do not use this product if you cannot locate your laptop model

in the Tip Compatibility Guide included with this AC adapter

or by using the Tip Wizard at www.rocketfishproducts.com. If

you still have questions, contact our toll-free help line for

assistance at (800) 620-2790.

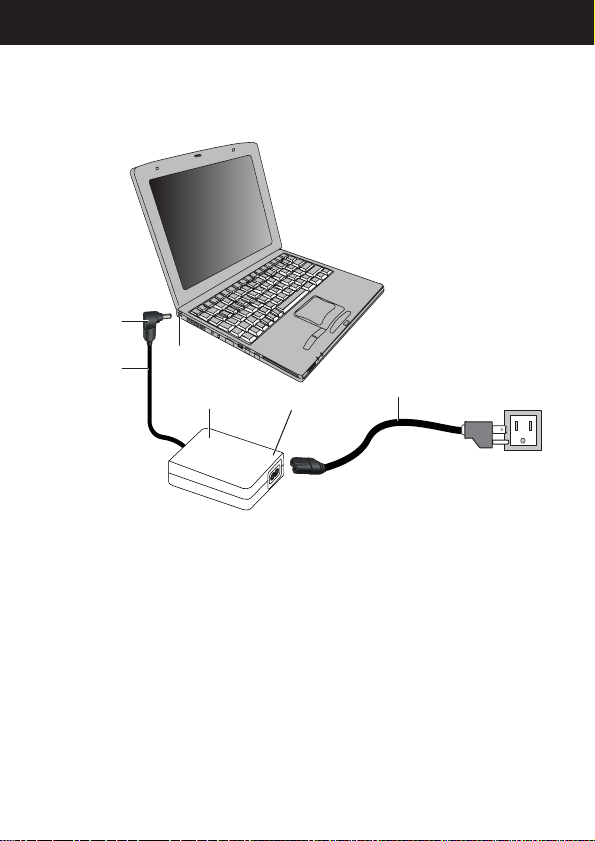

DC input

jack

Tip

Output

cable

AC adapter

AC cord

power

outlet

LED

RF-AC9023 11-1018_MAN_V1.fm Page 5 Monday, October 3, 2011 4:29 PM

This AC power adapter is not compatible with Mac computers

or laptops requiring more than 90 watts of power.

NOTE: If the compatible tip for your device is not included in

the adapter package, one free tip can be ordered through the

Tip Wizard at www.rocketfishproducts.com. Use the Tip Wizard

to locate the manufacturer and model and you can order your

complementary tip. If you are unable to locate your laptop on

the Tip Wizard or need assistance please contact Rocketfish

customer service at (800) 620-2790.

3Locate the specified tip from the tip bundle provided. Each

tip is clearly numbered.

4Connect the selected tip to the end of the output cable,

making sure that the pins on the tip are aligned with the

holes in the cable. The ridge on the inside of the tip should

align with the groove in the output cable connector. Make

sure that the tip is pushed all the way into the output

cable's connector.

RF-AC9023 11-1018_MAN_V1.fm Page 6 Monday, October 3, 2011 4:29 PM

RF-AC9023

5Connect the AC cord to the socket on the AC adapter.

6Plug the AC cord into an AC power outlet. The LED on the

adapter turns on, indicating that the adapter is powered and

ready.

IMPORTANT: If the adapter's LED does not turn on, or if it

blinks, discontinue use and contact our toll free help line for

assistance at (800) 620-2790.

7Plug the tip connected to the output cable into the DC input

jack on the side or back of your laptop. The adapter powers

the laptop and charges its battery.

FAQ for Rocketfish Adapters

What tip should I use for my laptop?

You can determine the correct tip for your laptop by referencing

the Tip Compatibility Guide included with the adapter or by

visiting the Tip Wizard at www.rocketfishproducts.com. Locate

your laptop manufacturer and model and the correct tip will be

listed.

If you cannot find your specific laptop model please contact

Rocketfish customer service at (800) 620-2790 for additional

assistance.

My tip is not included, how do I order a new one?

First review the included Tip Compatibility Guide to locate the

correct tip for your specific laptop. You can also go to the Tip

Wizard at www.rocketfishproducts.com for a complete listing of

compatible models. If the compatible tip for your laptop is not

included in the adapter package, one free tip can be ordered

through the Tip Wizard at www.rocketfishproducts.com. Use the

Tip Wizard to locate your laptop manufacturer and model and

you can order your complimentary tip. If you are unable to

locate your laptop in the Tip Wizard please contact Rocketfish

customer service at (800) 620-2790.

RF-AC9023 11-1018_MAN_V1.fm Page 7 Monday, October 3, 2011 4:29 PM

How do I connect the tip to the adapter cable?

After you have selected the correct tip for your laptop, connect

the tip to the output cable, making sure that the ridge on the

inside of the tip aligns properly with the groove in the output

cable connector. Additionally, the pins on the inside of the tip

should be in line with the holes in the output cable. The tip

should be pushed firmly onto the cable until the tip and cable

meet and there is no gap.

What other laptops can I use this adapter for?

The Rocketfish Universal Power Adapter is compatible with

thousands of laptop models. A complete list of compatible

laptops can be viewed through the Tip Wizard at

www.rocketfishproducts.com.

Why doesn't the tip fit into my laptop?

If the tip does not appear to fit into your laptop you may have

selected the incorrect tip for your laptop. The tip should fit

snugly inside the DC input jack on the side or back of your

laptop. If the tip does not fit into the jack, do not force the tip.

Confirm you have selected the correct tip for your laptop by

referencing the included Tip Compatibility Guide or visiting the

Tip Wizard at www.rocketfishproducts.com. If you need

additional assistance please contact Rocketfish customer

service at (800) 620-2790.

Will using an incorrect tip damage my laptop?

The tips are designed to be used with specific laptops and so

you should only use the tip that is designated specifically for

your laptop. The correct tip can be identified by using the

online Tip Wizard at www.rocketfishproducts.com or by

locating your specific laptop in the included Tip Compatibility

Guide.

The use of an incorrect tip may cause performance issues,

including the inability to charge the internal battery or power

the laptop, or the display of an error message on the laptop

RF-AC9023 11-1018_MAN_V1.fm Page 8 Monday, October 3, 2011 4:29 PM

RF-AC9023

screen. It is also possible that the use of an incorrect tip could

damage your laptop. For these reasons, it is necessary to use the

tip designed specifically for your laptop.

The label on my Rocketfish adapter says DC OUTPUT:

15-20V but my laptop is only 19V. Will the adapter

damage my laptop?

The 15-20V rating refers to the capability of the adapter and it

signifies that it can safely provide power to laptops with

voltages within this range. After the correct tip has been

selected, the laptop and tip combination will output the

appropriate voltage for your laptop. Please refer to the included

Tip Compatibility Guide or online Tip Wizard at

www.rocketfishproducts.com to find the correct tip for your

laptop.

My laptop is less than 90 watts (e.g. 65 watts). Will this

adapter damage my laptop?

No, using this power adapter will not damage your laptop. This

adapter only supplies as much power as required by the laptop,

up to a maximum of 90 watts.

My laptop is more than 90 watts (e.g. 120 watts). Will

this adapter damage my laptop?

This is a 90 watt adapter and it should NOT be used with laptops

that require more than 90 watts of power.

I notice that the adapter is warm when I use it. Is this a

problem?

During standard operation the adapter body may feel warm,

and this is normal. The adapter should always be placed in a

ventilated area in order to prevent over-heating.

How long is the cord from the wall to the laptop?

The AC input cord is 6 feet (172 cm) and the DC output cord is

3.8 feet (116 cm).

RF-AC9023 11-1018_MAN_V1.fm Page 9 Monday, October 3, 2011 4:29 PM

If I leave the adapter plugged in when I'm not using it

does it waste energy?

This Rocketfish adapter meets EnergyStar and CEC V energy

requirements which means it is an energy-efficient product

designed to conserve power. When the adapter is plugged in

and not being used it draws less than 0.5W of power.

Specifications

Legal notices

FCC Part 15

This device complies with Part 15 of the FCC Rules. Operation of

this product is subject to the following two conditions: (1) this

device may not cause harmful interference, and (2) this device

must accept any interference received, including interference

that may cause undesired operation.

AC wall socket input cable 6’ (172 cm)

DC power output cable 3.8’ (116 cm)

AC input voltage 100~240V AC, 50-60Hz ~2.5 A

DC output voltage 16-19 Volts DC (depending on the tip used)

Output current Up to 4.7 Amps maximum continuous

(depending on the tip used)

Output power 90 W maximum (AC)

Weight 6.5 oz. (185 g)

Adapter dimensions

(LxWxH)

3.94 x 2.76 x .79 inches

(100 x 70 x 20 mm)

RF-AC9023 11-1018_MAN_V1.fm Page 10 Monday, October 3, 2011 4:29 PM

Altri manuali per RF-AC9023

Indice

Altri manuali Rocket Fish Adattatore

Rocket Fish

Rocket Fish ND-GDS1207 Manuale del proprietario

Rocket Fish

Rocket Fish RF-BSLAC Guida rapida

Rocket Fish

Rocket Fish RF-BPRAC2 Manuale utente

Rocket Fish

Rocket Fish RF-GUV1124 Manuale utente

Rocket Fish

Rocket Fish RF-BTAPDT RF-BTDGLE Guida rapida

Rocket Fish

Rocket Fish RF-GWII008 Manuale utente

Rocket Fish

Rocket Fish RF-GWII008 Manuale utente

Rocket Fish

Rocket Fish RF-PRAC Manuale utente

Rocket Fish

Rocket Fish RF-BCDM4 Manuale utente

Rocket Fish

Rocket Fish RF-MRBTAD Manuale utente

Rocket Fish

Rocket Fish RF-G1174 Manuale utente

Rocket Fish

Rocket Fish RF-BSLAC Manuale utente

Rocket Fish

Rocket Fish RF-G1175 Manuale utente

Rocket Fish

Rocket Fish RF-BPRAC3 Manuale utente

Rocket Fish

Rocket Fish RF-FLBTAD Manuale utente

Rocket Fish

Rocket Fish RF-GWII012 Manuale di installazione e funzionamento

Rocket Fish

Rocket Fish RF-ACU12002 Manuale utente

Rocket Fish

Rocket Fish RF-AC9021 Manuale utente

Rocket Fish

Rocket Fish RF-BPRACEX Manuale utente

Rocket Fish

Rocket Fish RF-AC9021 Guida rapida

Rocket Fish

Rocket Fish RF-BSLAC Guida rapida

Rocket Fish

Rocket Fish RF-G1175 Manuale di installazione e funzionamento

Rocket Fish

Rocket Fish RF-MRBTAD Manuale utente

Rocket Fish

Rocket Fish RF-BCDM4 Manuale utente

Manuali Adattatore popolari di altre marche

PCB Piezotronics

PCB Piezotronics 090B274 Manuale utente

Auvidea

Auvidea J20 Manuale del prodotto

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manuale utente

Akribis

Akribis ITF-21-BISS-MIT Manuale utente

Tenda

Tenda W54U Manuale utente

ROHO

ROHO AGILITY Manuale utente

PROLiNK

PROLiNK WN2001 Manuale utente

Hawking

Hawking HUF2 Manuale utente

Airlink101

Airlink101 AWLC4030 Manuale utente

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manuale utente

Philips

Philips SWA4554S/10 Manuale utente

JVC

JVC TS-C9D2B Manuale di istruzioni

NETGEAR

NETGEAR A6100 Manuale utente

D-Link

D-Link DWA-121 Manuale utente

Philips

Philips SWA2037 Manuale utente

Basalte

Basalte 0610-20 Manuale utente

Yealink

Yealink EHS40 Manuale utente

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manuale utente
