Rocket Fish RF-TVMFM03V2 Manuale utente

RF-TVMFM03V2

TV Wall Mount

Assembly Guide

Safety information and specifications .................................2

Tools needed.................................................................................3

Package contents: parts............................................................4

Package contents: hardware ...................................................5

Assembly instructions................................................................6

For wood-stud

installation only

Before using your new product, please read these instructions to prevent any damage.

RF-TVMFM03V2_13-0190_MAN_V2_ENG - GIF.fm Page 1 Thursday, March 14, 2013 11:27 AM

2Need help? Call 800-620-2790

RF-TVMFM03V2 TV Wall Mount

Safety information and specifications

IMPORTANT SAFETY INSTRUCTIONS -

SAVE THESE INSTRUCTIONS

CAUTION: Do not use this product for

any purpose not explicitly specified by

Rocketfish.

Improper installation may cause

property damage or personal injury. If

you do not understand these directions, or have doubts

about the safety of the installation, contact Customer

Service or call a qualified contractor. Rocketfish is not

responsible for damage or injury caused by incorrect

installation or use.

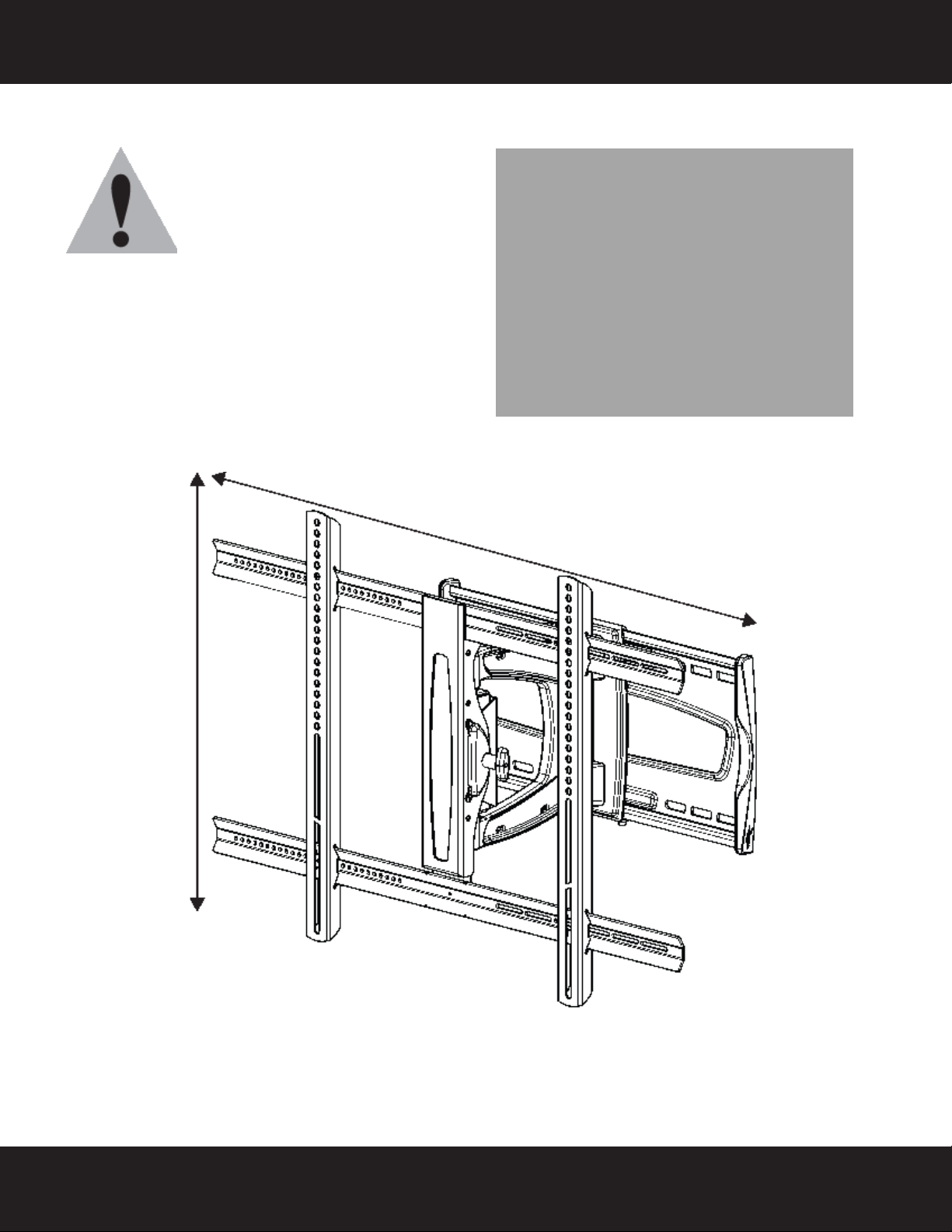

The weight of your TV must not exceed 130 lbs. (58.9 kg).

The wall must be capable of supporting five times the

weight of your TV and wall mount combined.

This product contains small items that could be a choking

hazard if swallowed. Keep these items away from young children!

Maximum TV weight: 130 lbs. (58.9 kg)

Screen size: 40" to 60" diagonal

Overall dimensions (H × W × D):

19.5 × 29.5 × 3 in. (50 × 75 × 7.6 cm)

Wall-mount weight: 17 lbs. (7.7 kg)

We’re here for you

www.rocketfishproducts.com

For customer service, call:

800-620-2790 (U.S./Canada markets)

19.5" (50 cm)

29.5" (75 cm)

RF-TVMFM03V2_13-0190_MAN_V2_ENG - GIF.fm Page 2 Thursday, March 14, 2013 11:27 AM

Need help? Call 800-620-2790

RF-TVMFM03V2 TV Wall Mount

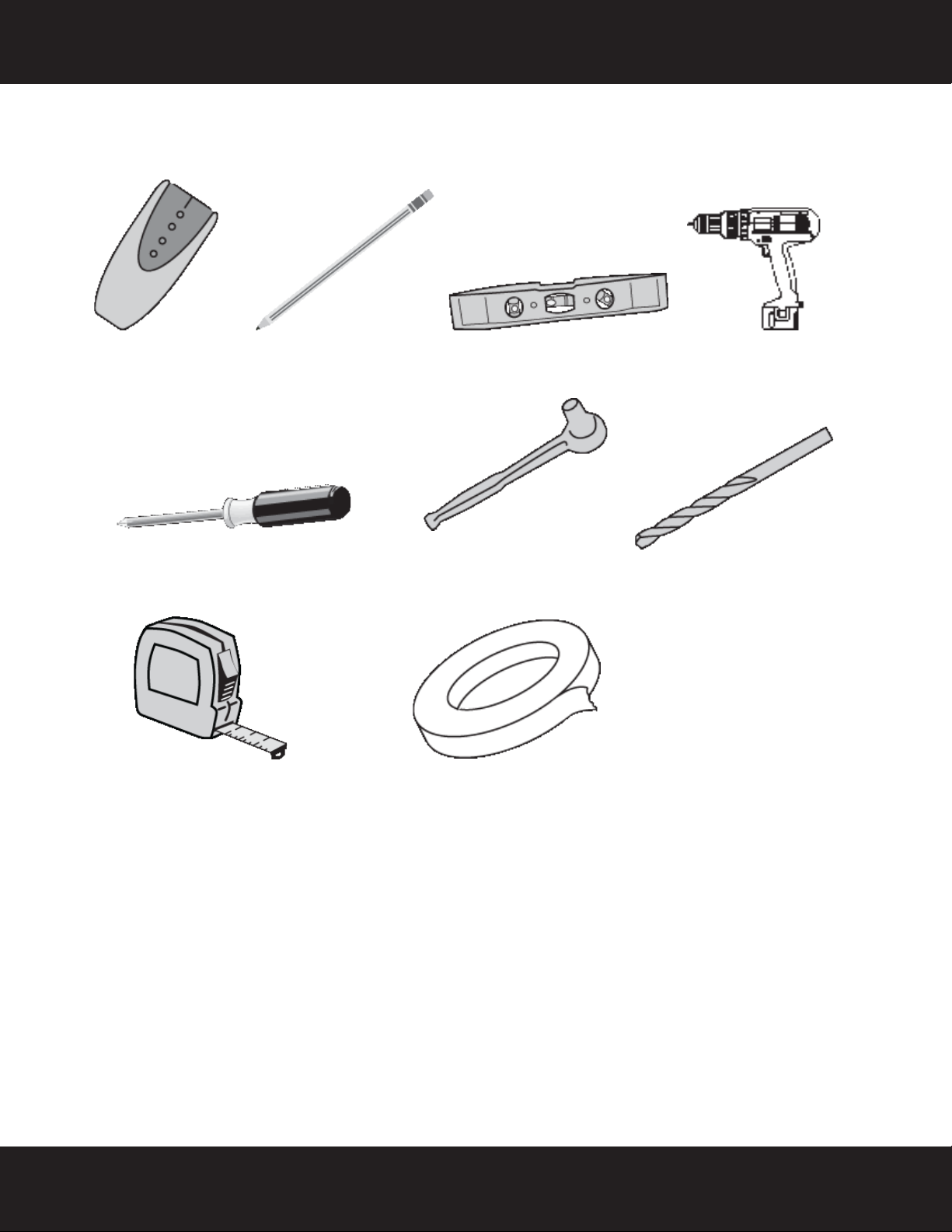

Tools needed

You will need the following tools to assemble your new TV wall mount:

Edge-to-edge

stud finder

Pencil Level

Phillips screwdriver Socket wrench with

1/2" (13 mm) socket or

adjustable wrench

Measuring tape

Drill

7/32" (5.5 mm) wood

drill bit for wood stud

wall

Tape

RF-TVMFM03V2_13-0190_MAN_V2_ENG - GIF.fm Page 3 Thursday, March 14, 2013 11:27 AM

4Need help? Call 800-620-2790

RF-TVMFM03V2 TV Wall Mount

Parts

Package contents: parts

Make sure that you have all the parts necessary to assemble your new TV wall mount:

Hardware

ARight vertical TV

bracket (1)

BLeft vertical TV

bracket (1)

CHorizontal TV bracket (2)

DArm assembly (1) EWall plate (1)

F Template (1)

GCable cover (1)

RF-TVMFM03V2_13-0190_MAN_V2_ENG - GIF.fm Page 4 Thursday, March 14, 2013 11:27 AM

Need help? Call 800-620-2790

RF-TVMFM03V2 TV Wall Mount

Package contents: hardware

Make sure that you have all the hardware necessary to assemble your new TV wall mount:

TV Hardware Bag

Label Hardware Qty.

M4 × 12 mm

screw

M4 × 35 mm

screw

M4/M5 washer

M6/M8 washers

Universal spacers

M5 × 12 mm

screw

M5 × 35 mm

screw

M6 × 12 mm

screw

M6 × 35 mm

screw

M8 × 16 mm

screw

M8 × 20 mm screw

Label Hardware Qty.

Zz 2

M8 × 35 mm screw

Lag bolt washer

5/16" × 2 3/4" lag bolt

8-32 x 9/16"

Phillips head

screw

8-32 x 3/8"

Phillips head screw

Cable ties (8"/20.5 cm nylon)

5/32" hex key

3/16" hex key

Cap screw

RF-TVMFM03V2_13-0190_MAN_V2_ENG - GIF.fm Page 5 Thursday, March 14, 2013 11:27 AM

6Need help? Call 800-620-2790

RF-TVMFM03V2 TV Wall Mount

Assembly instructions

Step 1 Determine whether your TV has a flat back or an irregular or obstructed

back

1Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages

and scratches.

2If your TV has a table-top stand attached, remove the stand. See the documentation that came with your TV

for instructions.

3Temporarily lay the vertical mounting TV brackets (Aand B) on the back of your TV.

4Temporarily slide the horizontal brackets (C) through the vertical brackets (Aand B).

5Align the screw holes in the brackets with the mounting screw holes on your TV.

6Position the brackets so they do not extend above or below your TV and do not cover any connectors or

jacks. Make note of which bracket screw holes you will use.

• If the brackets lay flush against the back of your TV and do not block any jacks, your TV has a flat back

and you do not need spacers.

• If a bracket blocks any jacks, your TV has an obstructed back. In that case, you need spacers.

• If there is a gap between a bracket and some part of the back of your TV, your TV has an

irregularly-shaped back. In that case, you need spacers.

7Remove the brackets, then separate the horizontal brackets from the vertical brackets.

Flat back (no spacers needed)

Obstructed back (spacers needed)

Irregular back (spacers needed)

RF-TVMFM03V2_13-0190_MAN_V2_ENG - GIF.fm Page 6 Thursday, March 14, 2013 11:27 AM

Need help? Call 800-620-2790

RF-TVMFM03V2 TV Wall Mount

Step 2 Select screws, washers, and spacers

1Select the hardware for your TV (screws, washers, and spacers). A limited number of TVs come with

mounting hardware included. (If there are screws that came with the TV, they are almost always in the holes

on the back of the TV.) If you don't know the correct length and diameter of the mounting screws your TV

requires, test various sizes by hand threading the screws.

Select one of the following types of screws:

Select one of the following types of washers:

For an irregular or obstructed TV back, use the following spacers:

CAUTION: To avoid potential personal injuries and property damage, make sure that there are

adequate threads to secure the brackets to your TV. If you encounter resistance, stop immediately and

contact customer service. Use the shortest screw and spacer combination to accommodate your TV.

Using hardware that is too long may damage your TV. However, using a screw that is too short may

cause your TV to fall from the mount.

2Remove the screws.

3For a flat back TV, go to “Step 3 - Option 1: Attaching the mounting hardware to TVs with a flat back” on

page 8.

-OR-

For an irregular or obstructed back, go to “Step 3 - Option 2: Attaching the hardware to TVs with an irregular

or obstructed back” on page 9.

M4 × 12 mm screws (H)M6×12mmscrews(O)

M4 × 35 mm screws (I)M6×35mmscrews(P)

M5 × 12 mm screws (M)M8×16mmscrews(Q)

M5 × 35 mm screws (N)M8×20mmscrews(R)

M8 × 35 mm screws (S)

M4/M5 washers (J) M6/M8 washers (K)

Universal spacers (L)

Screw is

too long

Screw fits

correctly

Screw is

too short

RF-TVMFM03V2_13-0190_MAN_V2_ENG - GIF.fm Page 7 Thursday, March 14, 2013 11:27 AM

8Need help? Call 800-620-2790

RF-TVMFM03V2 TV Wall Mount

Step 3 - Option 1: Attaching the mounting hardware to TVs with a flat back

1Center the brackets vertically on the back of your TV, then align the holes you noted on the right vertical TV

bracket (A) and left vertical TV bracket (B) with the screw holes on the back of your TV. The brackets are

marked “R” for the right bracket and “L” for the left bracket.

2Place the M4/M5 washers (J) or M6/M8 washers (K) over the holes in the TV brackets that align with the

screw holes on the back of your TV, then insert the M4 screws (H), M5 screw (M), M6 screws (O), or M8 screws

(Qor R) through the washers. Make sure that the brackets are level.

3Tighten the screws until they are snug against the TV bracket. Do not over tighten.

You’ll need

J(4) K(4)

H (4) M(4) O(4)

Phillips screwdriver

OROR OR

Screws

Q(4)

Washers

Level Vertical brackets

(Aand B)

R(4)

RF-TVMFM03V2_13-0190_MAN_V2_ENG - GIF.fm Page 8 Thursday, March 14, 2013 11:27 AM

Need help? Call 800-620-2790

RF-TVMFM03V2 TV Wall Mount

Step 3 - Option 2: Attaching the hardware to TVs with an irregular or obstructed

back

1Place the spacers (L) into the screw holes on the back of your TV.

2Align the holes you noted on the right vertical TV bracket (A) and left vertical TV bracket (B) with the spacers

and washers on the back of your TV. The brackets are marked “R” for the right bracket and “L” for the left

bracket.

3Place the M4/M5 washers (J) or M6/M8 washers (K) over the holes in the TV brackets that align with the

screw holes on the back of your TV, then insert the M4 screws (I), M5 screws (N), M6 screws (P), or M8 screws

(S) through the washers. Make sure that the brackets are level.

4Tighten the screws until they are snug against the TV bracket. Do not over tighten.

You’ll need

J(4) K(4)

I(4) N(4) P(4)

Phillips screwdriver

Screws Washers

Spacers

L(4)

S(4)

Level

Vertical brackets

(Aand B)

RF-TVMFM03V2_13-0190_MAN_V2_ENG - GIF.fm Page 9 Thursday, March 14, 2013 11:27 AM

10 Need help? Call 800-620-2790

RF-TVMFM03V2 TV Wall Mount

Step 4 Install the horizontal TV brackets

1Slide the horizontal brackets (C) through the metal guides on the vertical TV brackets until they are centered.

2Secure the horizontal TV brackets to the vertical TV brackets using the 8-32 x 9/16" Phillips head screws (V).

Tighten the screws until they are snug, but do not over tighten.

Note: Make sure that the brackets are not covering any jacks or connectors.

You’l l need

V(4) Phillips screwdriver

Horizontal brackets (C)
