Rocket RD-5G31-AC Manuale utente

DishAntennawithRadome MountingBracket ProtectiveShroud

PoleClamps(Qty.2) StabilizerBrackets(Qty.2) RFCables(Qty.2)

ElevationRod M10x170CarriageBolts(Qty.

M10x100Bolts(Qty.2)

M10x25CarriageBolts(Qty.

PackageContents

RD5G31ACQuickStartGuide

InstallationRequirements

5GHzRocket®radio(soldseparately)

16mmor5/8"wrench

24mmor15/16"wrench

ShieldedCategory5(orabove)cablingshouldbeusedforallwiredEthernet

connectionsandshouldbegroundedthroughtheACgroundofthePoE.

Werecommendthatyouprotectyournetworksfromharmfuloutdoor

environmentsanddestructiveESDeventswithindustrialgrade,shielded

EthernetcablefromUbiquiti.Formoredetails,visitui.com/toughcable

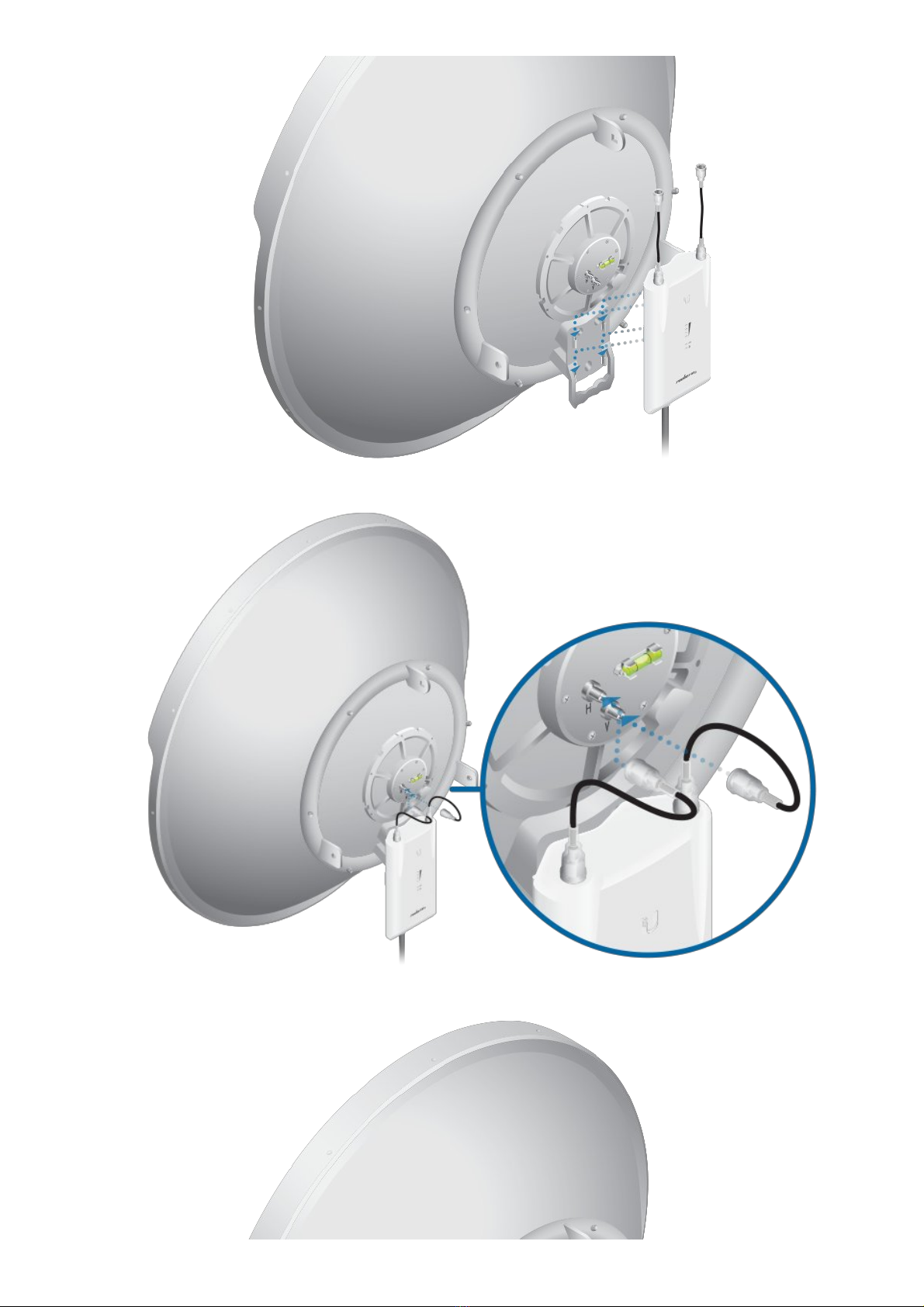

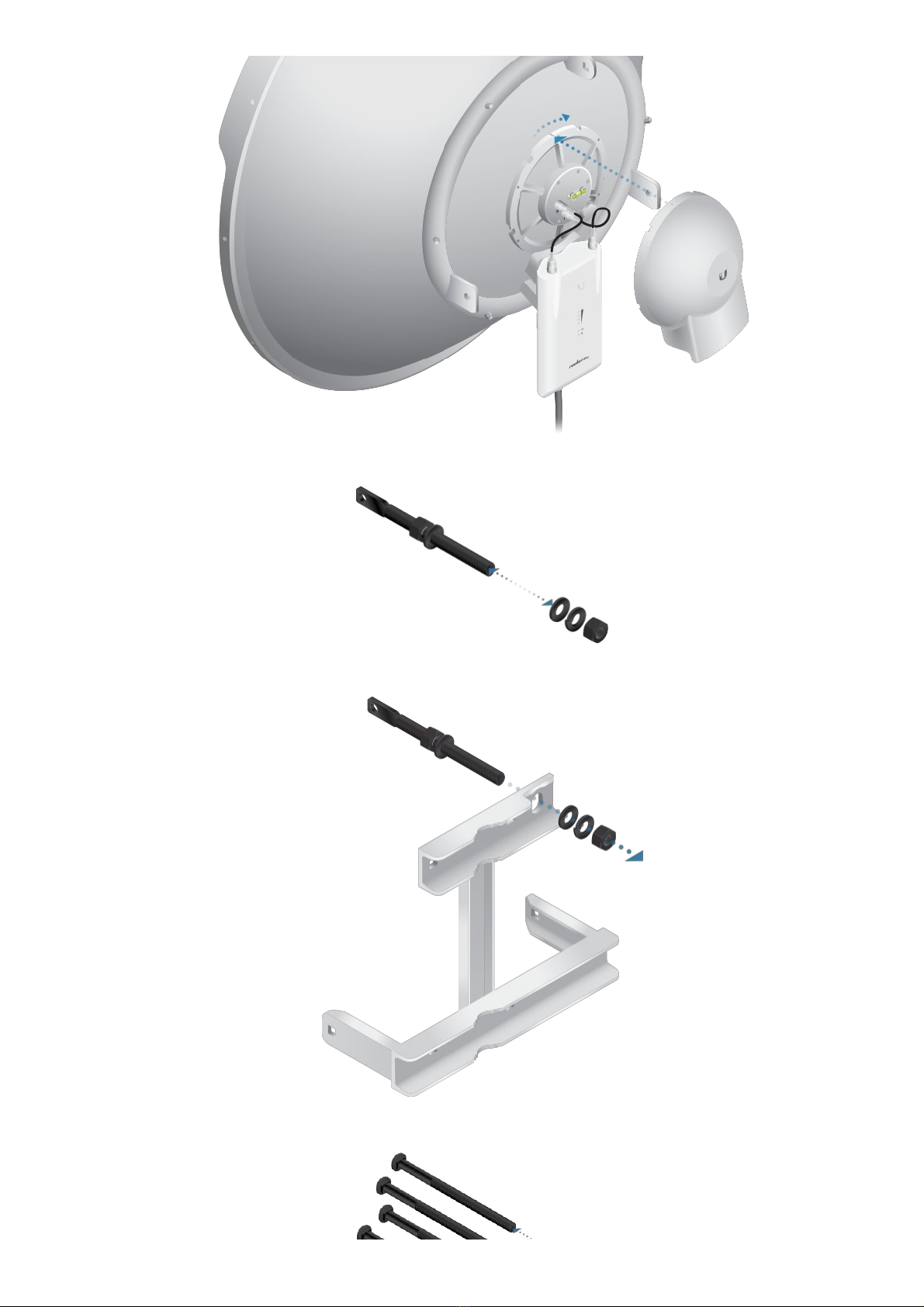

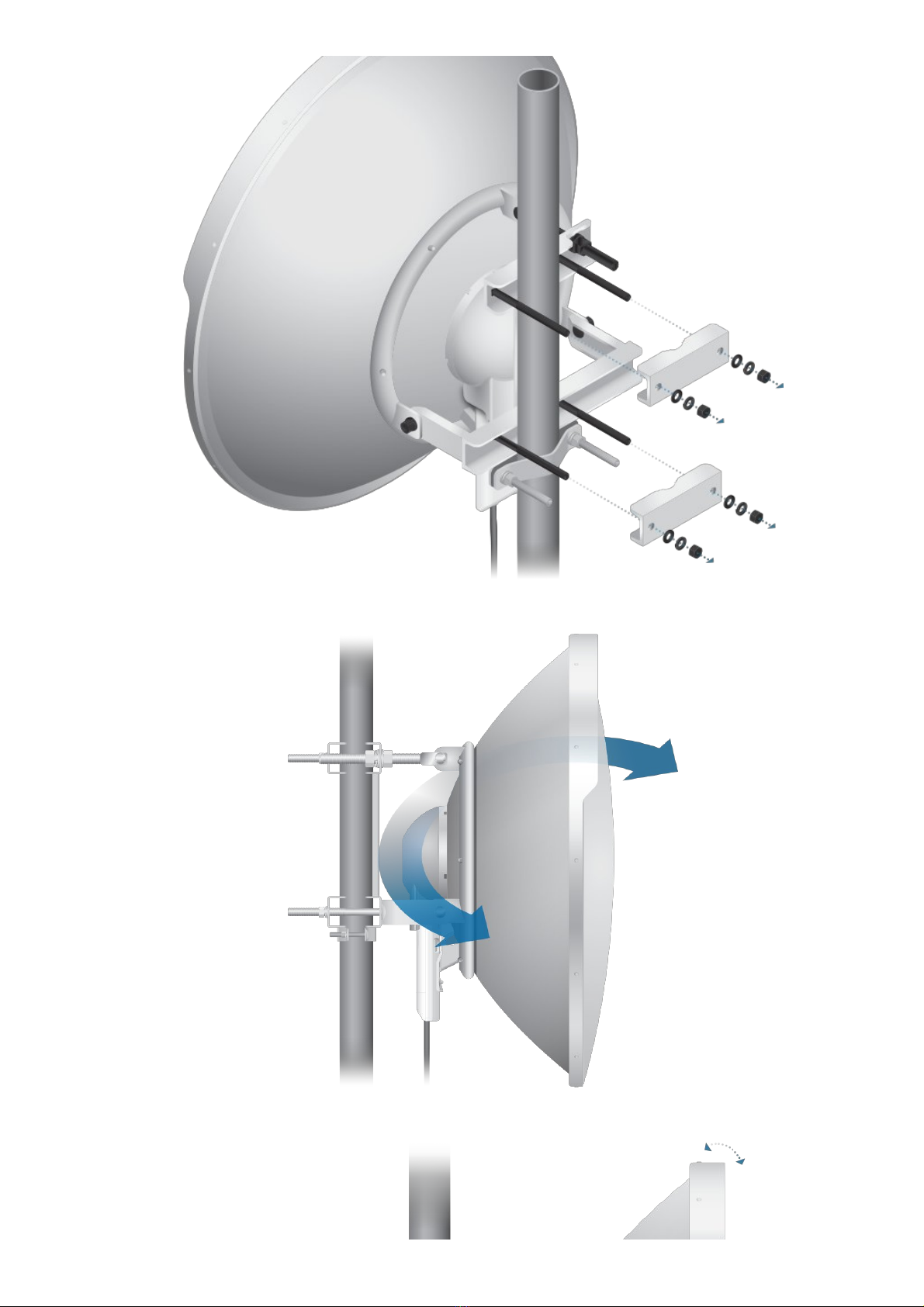

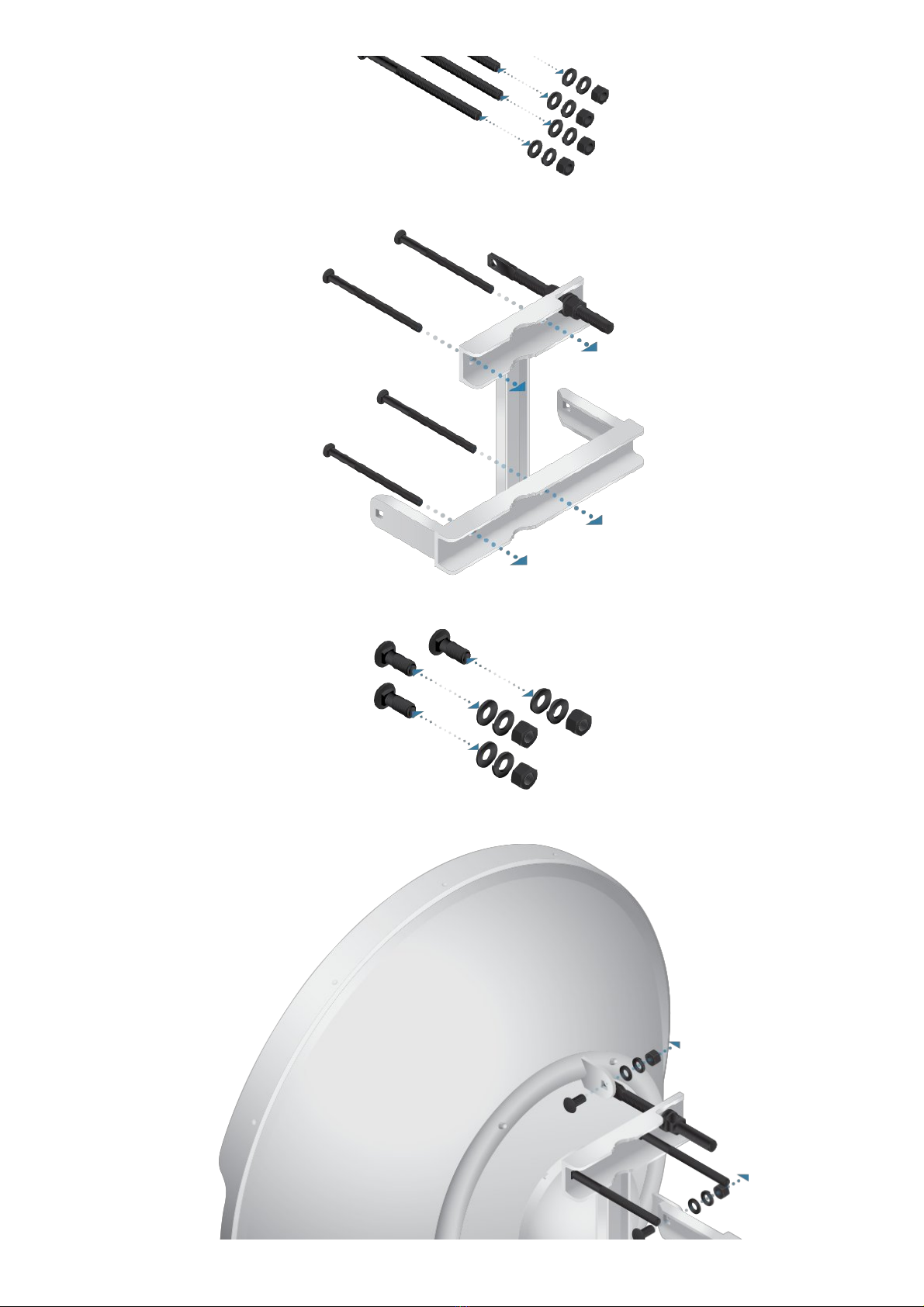

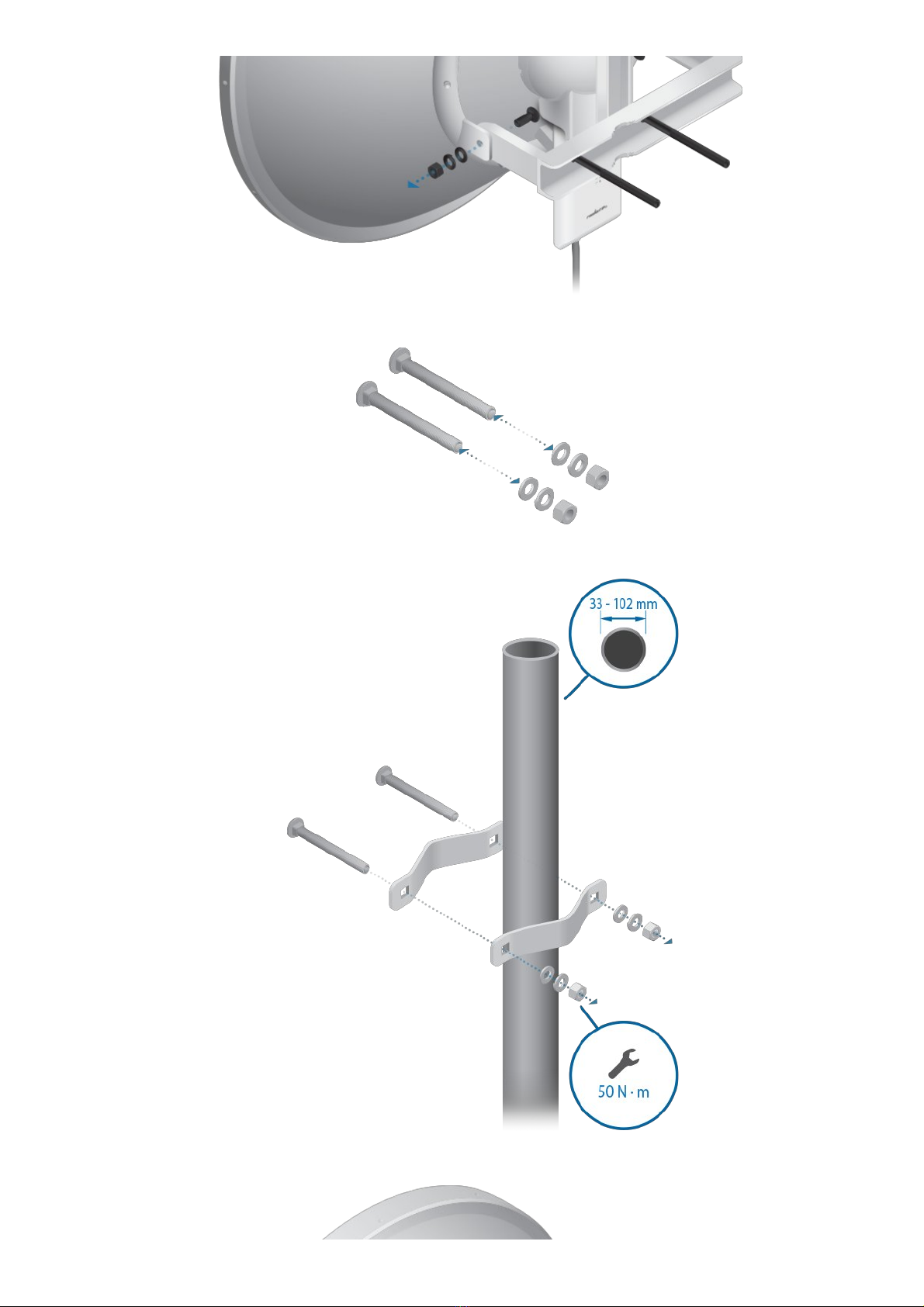

HardwareInstallation

IMPORTANT:CarefullyhandletheDishAntennawithRadome.

Deformationsinitsshapemayreducetheantenna'seffectiveness.

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

Specifications

RocketDishRD5G31AC

Dimensions 748x748x349mm(29.45x29.45x13.74")

Weight 7.6kg(16.76lb)

(MountIncluded)

Frequency 5.15.8GHz

Gain 31dBi

Max.VSWR 1.4:1

WindSurvivability 200km/h(125mph)

WindLoading 1,028N@200km/h(231lbf@125mph)

Polarization DualLinear

CrossPolIsolation 35dBMin.

ETSISpecification EN302326DN2

Mounting UniversalPoleMount,RocketMBracket,and

WeatherproofRFJumpersIncluded

SafetyNotices

1.Read,follow,andkeeptheseinstructions.

2.Heedallwarnings.

3.Onlyuseattachments/accessoriesspecifiedbythemanufacturer.

WARNING:Donotusethisproductinlocationthatcanbesubmergedbywater.

WARNING:Avoidusingthisproductduringanelectricalstorm.Theremaybea

remoteriskofelectricshockfromlightning.

ElectricalSafetyInformation

1.Complianceisrequiredwithrespecttovoltage,frequency,andcurrentrequirements

indicatedonthemanufacturer’slabel.Connectiontoadifferentpowersourcethanthose

specifiedmayresultinimproperoperation,damagetotheequipmentorposeafirehazardif

thelimitationsarenotfollowed.

2.Therearenooperatorserviceablepartsinsidethisequipment.Serviceshouldbeprovided

onlybyaqualifiedservicetechnician.

LimitedWarranty

ui.com/support/warranty

Thelimitedwarrantyrequirestheuseofarbitrationtoresolvedisputesonanindividualbasis,

and,whereapplicable,specifyarbitrationinsteadofjurytrialsorclassactions.

Compliance

RFExposureWarning

Theantennaandtransmittermustbeinstalledtoprovideaseparationdistancefromallpersons

andmustnotbelocatedoroperatinginconjunctionwithanyotherantennaortransmitter.For

thespecificseparationdistance,refertotheQuickStartGuideforyourRocketdevice

(transmitter).

L’antenneetl’émetteurdoitêtreinstallépourfournirunedistancedeséparationdetouteles

personnesetnedoitpasêtresituéouopérantenconjonctionavecuneautreantenneouun

autreémetteur.Pourladistancespécifiquedeséparation,seréférerauGuidededémarrage

rapidepourvotreappareilRocket(l’émetteur).

WEEEComplianceStatement

DeclarationofConformity

OnlineResources

©2021UbiquitiInc.Allrightsreserved.
