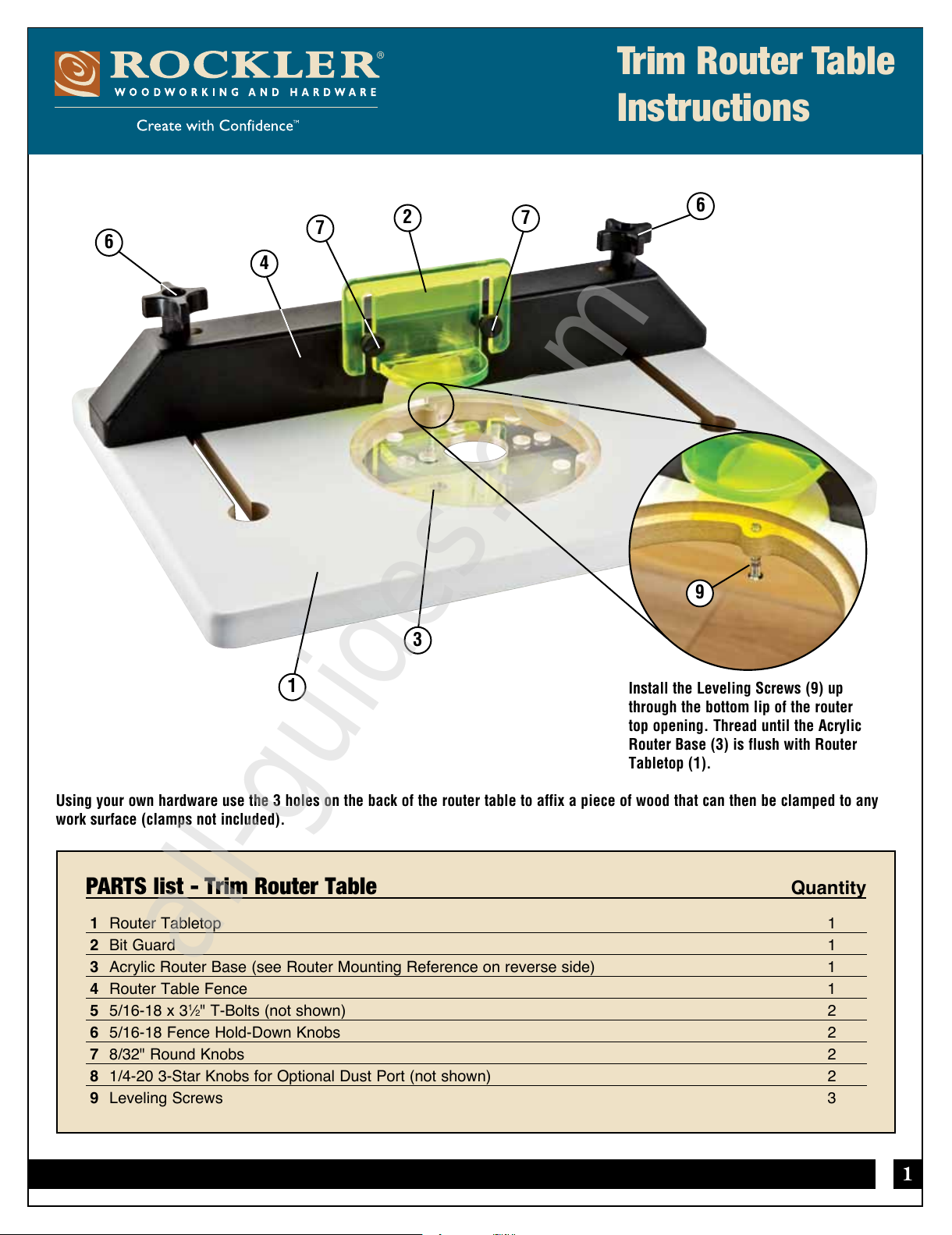

Trim Router Table
Instructions
Install the Leveling Screws (9) up
through the bottom lip of the router
top opening. Thread until the Acrylic
Router Base (3) is flush with Router
Tabletop (1).
1 RouterTabletop 1
2 BitGuard 1
3 AcrylicRouterBase(seeRouterMountingReferenceonreverseside) 1
4 RouterTableFence 1
5 5/16-18x31⁄2"T-Bolts(notshown) 2
6 5/16-18FenceHold-DownKnobs 2
7 8/32"RoundKnobs 2
8 1/4-203-StarKnobsforOptionalDustPort(notshown) 2
9 LevelingScrews 3
PARTS list - Trim Router Table Quantity
9
6
4
26
1
3
77
Using your own hardware use the 3 holes on the back of the router table to affix a piece of wood that can then be clamped to any
work surface (clamps not included).
All manuals and user guides at all-guides.com
all-guides.com
2
43550
Rev11/12
Distributed by Rockler Companies, Inc.
©2012 Rockler Woodworking and Hardware

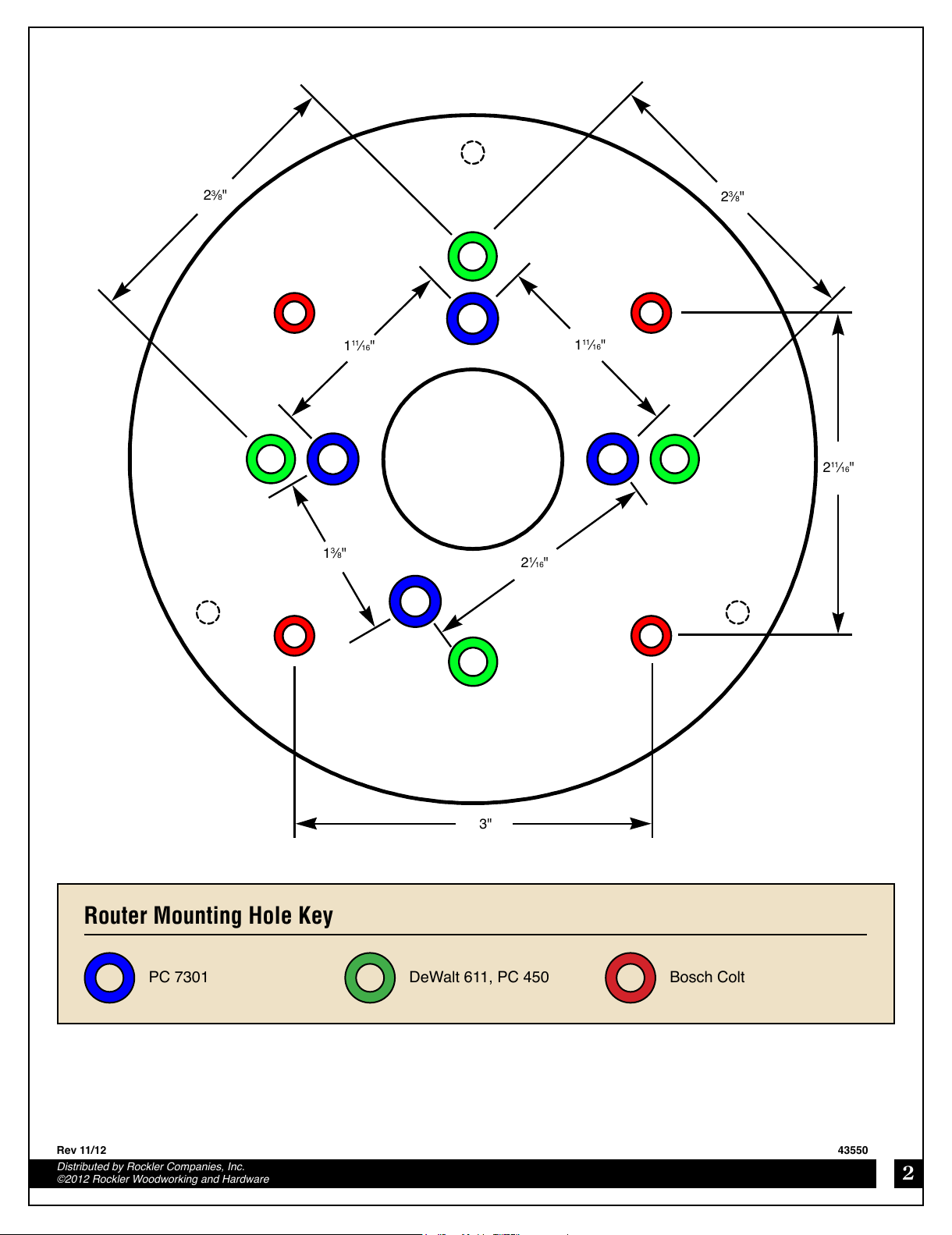

Router Mounting Hole Key
PC7301 DeWalt611,PC450 BoschColt
23⁄8"23⁄8"
111⁄16"
111⁄16"
13⁄8"21⁄16"
211⁄16"
3"
