INSTRUCTION MANUAL

www.rodemic.com

122-950-1-3_PinMic_manual_newspec.indd 1122-950-1-3_PinMic_manual_newspec.indd 1 1/27/2011 3:13:39 PM1/27/2011 3:13:39 PM

122-950-1-3_PinMic_manual_newspec.indd 2122-950-1-3_PinMic_manual_newspec.indd 2 1/27/2011 3:14:14 PM1/27/2011 3:14:14 PM

- 3 -- 3 -

INTRODUCTION

Thank you for investing in the PinMic™.

Whether you’re presenting for television or live on-stage,

in a 20,000 seat auditorium or in a house of worship,

has your needs covered with the intuitive and subtle PinMic™.

Featuring innovative, industry-leading design, the

PinMic™ is the ﬁrst of its kind. The pin-on placement of the

microphone provides an ultra discreet appearance, while also

simplifying cable management.

The included mini-furry for high wind protection ensures

quality recordings in adverse environments, while the anti-

trauma water resistant case provides rugged and secure

protection for the microphone, cable and accessories.

Knowing that versatility is paramount in any product, we at

have developed the MiCon™ connector system

which provides seamless integration between the PinMic™

and a wide range of wireless systems.

Please take the time to visit www.rodemic.com and register

your microphone for warranty.

Peter Freedman

Microphones

Sydney, Australia

122-950-1-3_PinMic_manual_newspec.indd 3122-950-1-3_PinMic_manual_newspec.indd 3 1/27/2011 3:14:15 PM1/27/2011 3:14:15 PM

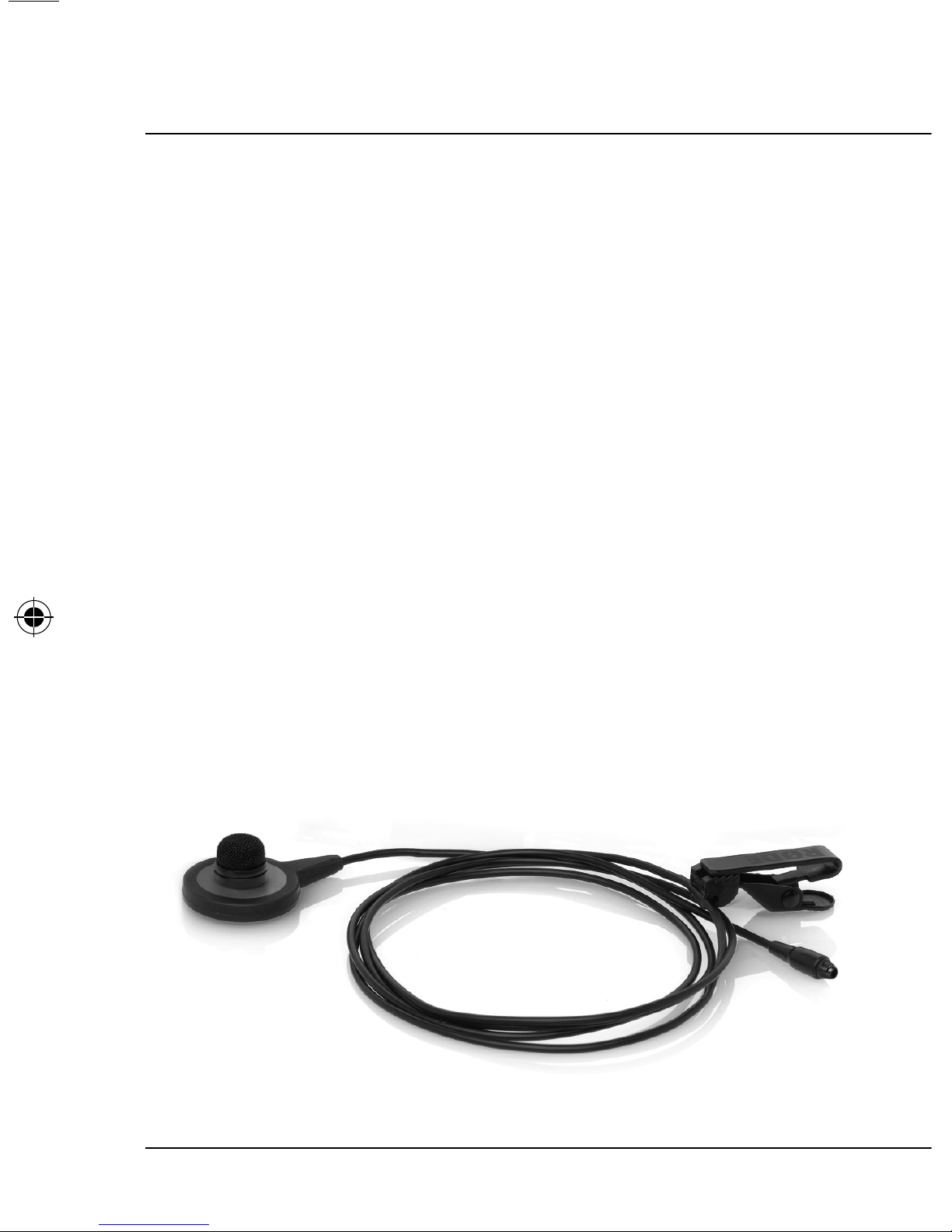

FEATURES

- 4 -

INTUITIVE AND SUBTLE

• Ultra discreet appearance

• Lightweight and easy to position

• Pins through clothing up to approximately 1.5mm (0.006”)

thick (standard model) or approximately 1.5 ~ 3.5mm

(0.006 ~ 0.14”) thick (heavy duty model)

• Removable mesh head

HIGH QUALITY PERFORMANCE

• Low noise miniature microphone capsule

• Low handling noise

UNIVERSAL COMPATIBILITY

• RØDE MiCon™ connector system provides seamless

integration with a wide range of wireless systems while

maintaining discreet and unobtrusive appearance

122-950-1-3_PinMic_manual_newspec.indd 4122-950-1-3_PinMic_manual_newspec.indd 4 1/27/2011 3:14:15 PM1/27/2011 3:14:15 PM

- 5 -

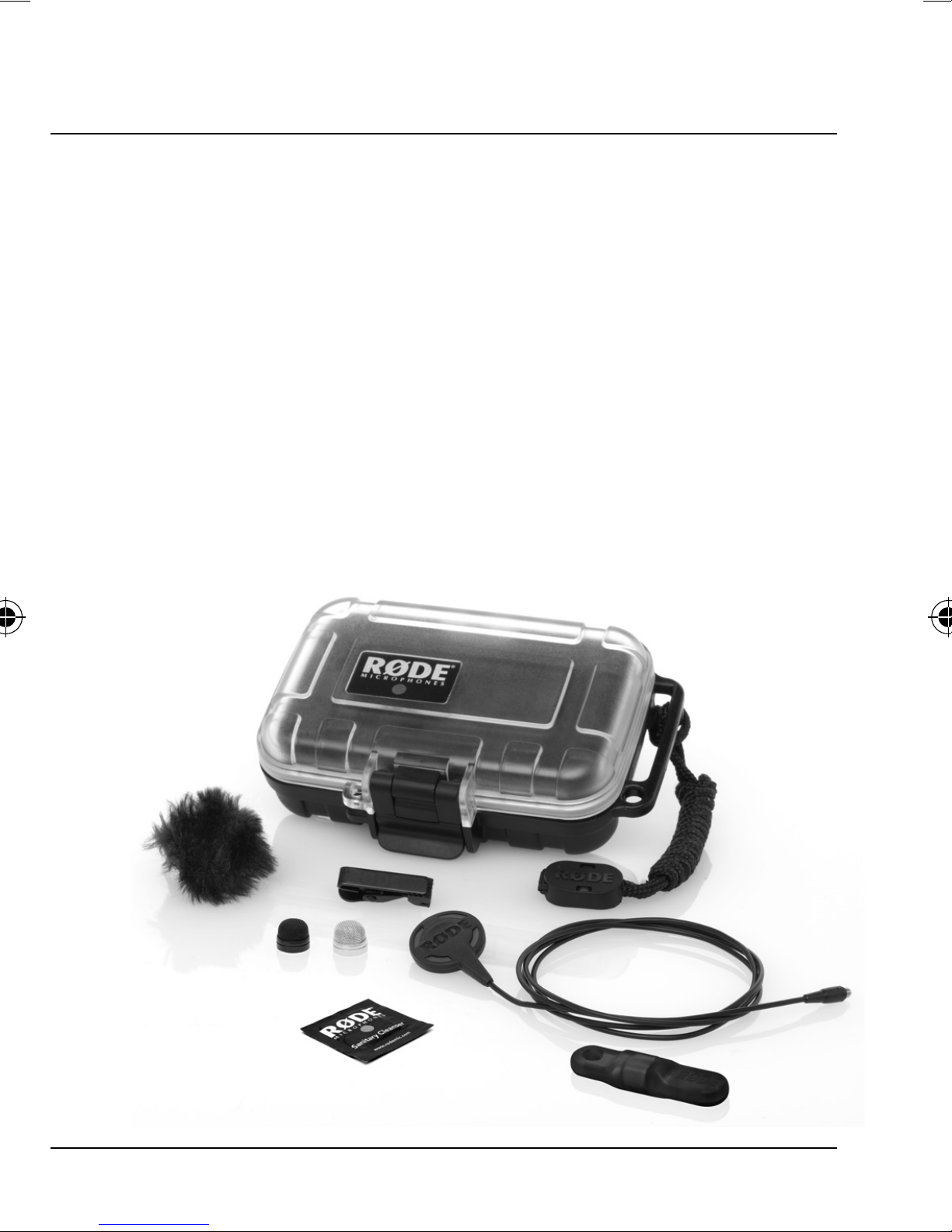

PINMIC™& ACCESSORIES

- 5 -

1. RØDE PinMic™

2. Supplementary mesh head (silver) suitable for

spray paint customisation to fully match clothing

3. Anti-trauma water resistant storage case

4. Mini-furry for high wind protection

5. Shielded Kevlar® reinforced cable with

moulded backplate

6. Lapel-style cable management clip

7. Adjustment tools

8. Sanitary cleansing wipes

Compact, interchangeable MiCon™ adaptors available to

suit industry standard wireless systems*

*MiCon™ adaptors sold separately -

see rodemic.com/pinmic for a full list of compatibility

1. 2. 5.

122-950-1-3_PinMic_manual_newspec.indd 5122-950-1-3_PinMic_manual_newspec.indd 5 1/27/2011 3:14:15 PM1/27/2011 3:14:15 PM

SPECIFICATIONS

- 6 -

Acoustic Principle: Permanently polarised condenser

Directional Pattern: Omni-directional (see graph)

Frequency Range: 60 Hz ~ 18 kHz

(see graph)

Output Impedence: 3k Typical

Signal To Noise Ratio: 69 dBA

Equivalent Noise: 25 dBA SPL

(per IEC651)

Clipping SPL: 110 dB

Maximum Output: 189 mV*

Sensitivity: -33.5 dB re 1 V/Pa

(21 mV @ 94 dB SPL)

± 3 dB @ 1 kHz

Dynamic Range: 85 dB Typical*

Power Requirements: Min 2 V ~ Max 5 V through RØDE

wireless adaptors

P48 through RØDE XLR adaptor

Output Connection: RØDE MiCon™ connector

122-950-1-3_PinMic_manual_newspec.indd 6122-950-1-3_PinMic_manual_newspec.indd 6 1/27/2011 3:14:16 PM1/27/2011 3:14:16 PM

- 7 -

SPECIFICATIONS

- 7 -

* Calculated from maximum SPL peak before clipping.

All measurements are calculated when powered at 5 V or P48 (RØDE XLR adaptor)

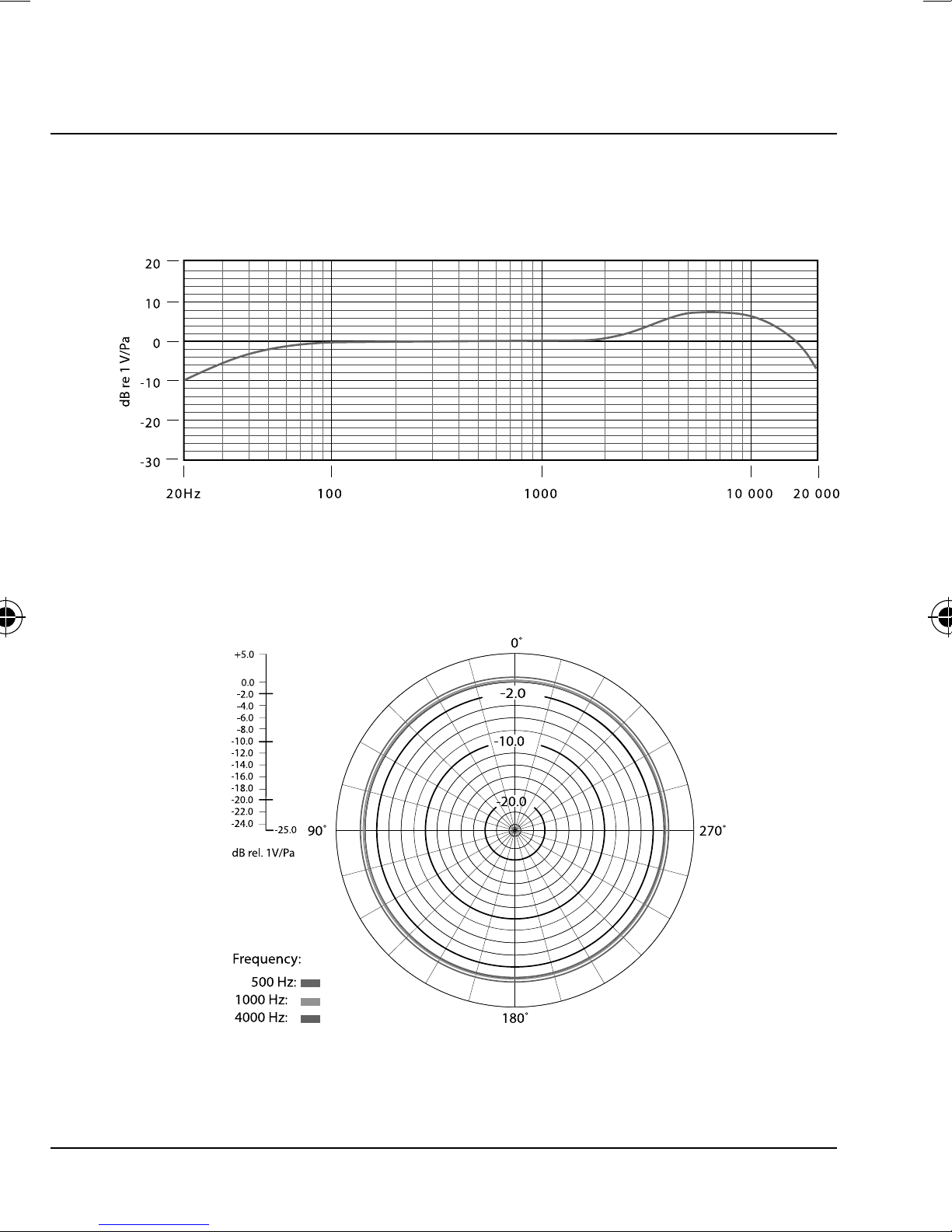

FREQUENCY RANGE

POLAR RESPONSE

122-950-1-3_PinMic_manual_newspec.indd 7122-950-1-3_PinMic_manual_newspec.indd 7 1/27/2011 3:14:16 PM1/27/2011 3:14:16 PM

PINMIC™STRUCTURE

- 8 -

PinMic™

BACKPLATE

MESH HEAD GROOVE

MESH HEAD

CAPSULE CAP

PinMic™ CAPSULE

PINMIC™ CAPSULE

PINMIC™ ASSEMBLY

Kevlar®

REINFORCED

CABLE

PINS

RECEPTACLES

MiCon™

CONNECTION

122-950-1-3_PinMic_manual_newspec.indd 8122-950-1-3_PinMic_manual_newspec.indd 8 1/27/2011 3:14:16 PM1/27/2011 3:14:16 PM

- 9 -

MIC PLACEMENT

- 9 -

For the best performance, the PinMic™ should be

positioned as close as possible to the sound source, without

being subject to clothing rustle, gusts of air or dust.

At times it may be best to test different placements to

provide the optimal combination of sound quality and

discretion.

Position the microphone close to the sound source

122-950-1-3_PinMic_manual_newspec.indd 9122-950-1-3_PinMic_manual_newspec.indd 9 1/27/2011 3:14:17 PM1/27/2011 3:14:17 PM

To ﬁt your PinMic™ and connect to your wireless system, ﬁrst

pin the backplate of the microphone to your clothing, close

to the sound source.

You may do this by weaving the backplate and cable up from

underneath the user’s clothing, or placing it just behind the

lapel on a jacket. Ensure the backplate is hidden underneath

the fabric, then press through until the pins are exposed on

the other side.

(The standard PinMic™’s backplate pins are able to comfortably pin

through clothing up to approximately 1.5mm thick (0.006 ~ 0.14”).

The heavy duty model is recommended for fabric from around 1.5mm

up to 3.5mm (0.006 ~ 0.14”) thick.)

FITTING YOUR PINMIC™

- 10 -

Bring the backplate up underneath the user’s clothing, then press the pins

through to the other side of the fabric

BACKPLATE

UNDERNEATH

CLOTHING

PinMic™

ABOVE

CLOTHING
