RODE Microphones PSA-1 Manuale utente

PSA-1

Instruction Manual

www.rodemic.com

Designed in Australia

Made in China

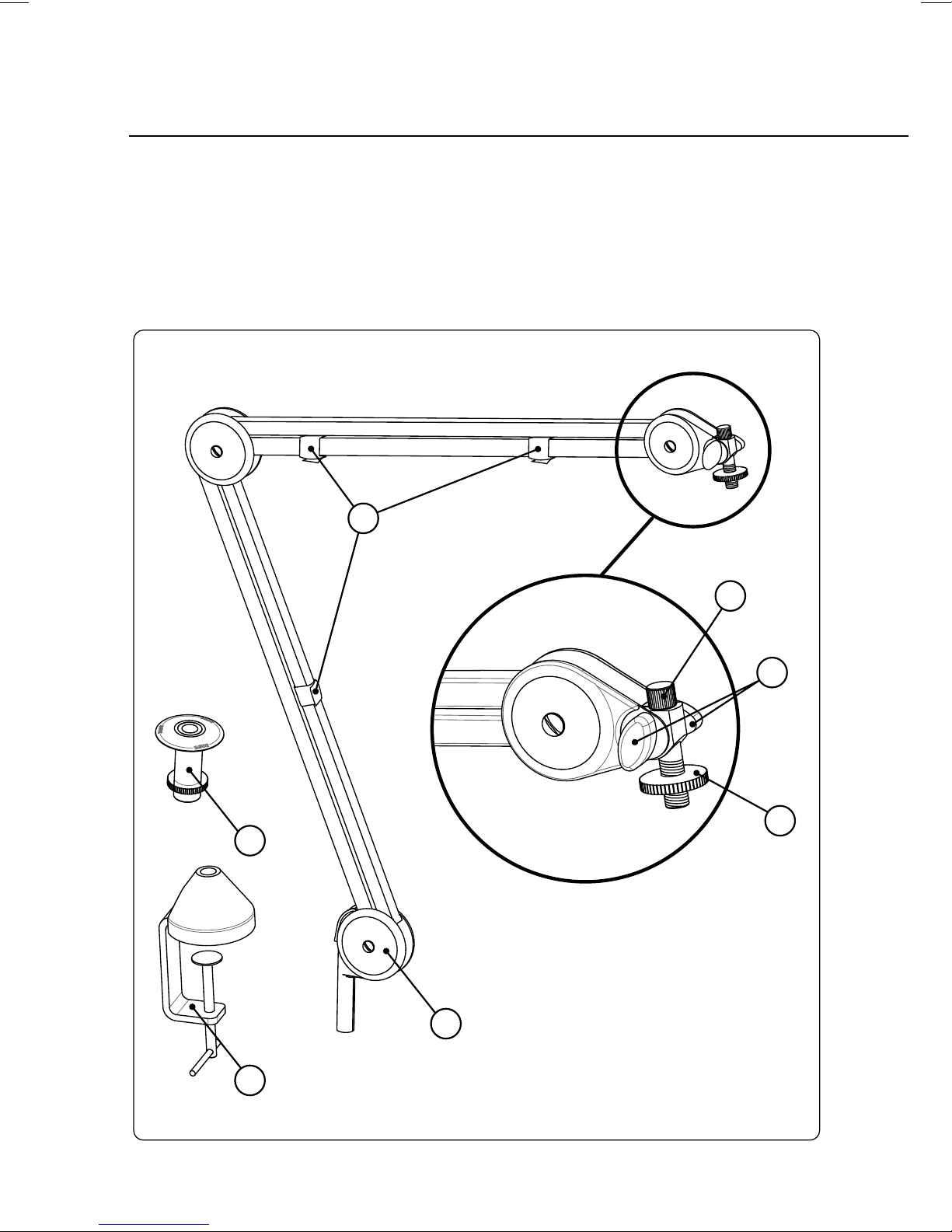

1 - DESK INSERT

3 - ARM

5 - ATTACHMENT PIN

7 - LOCKING NUT

6 - THUMB SCREWS

4 - VELCRO TAGS

2 - DESK CLAMP

Product Speciﬁcations

Approximate reach: Horizontal- 820mm (32.5”).

Vertical- 840mm (33”).

Adapter: 3/8” thread adaptor. (3/8” to 5/8” adaptor included)

Weight: 1.74kg (3.84lbs) - 2.15kg (4.73lbs) boxed

The PSA1 offers a choice of two desk mounting options, using either the

desk clamp or desk insert.

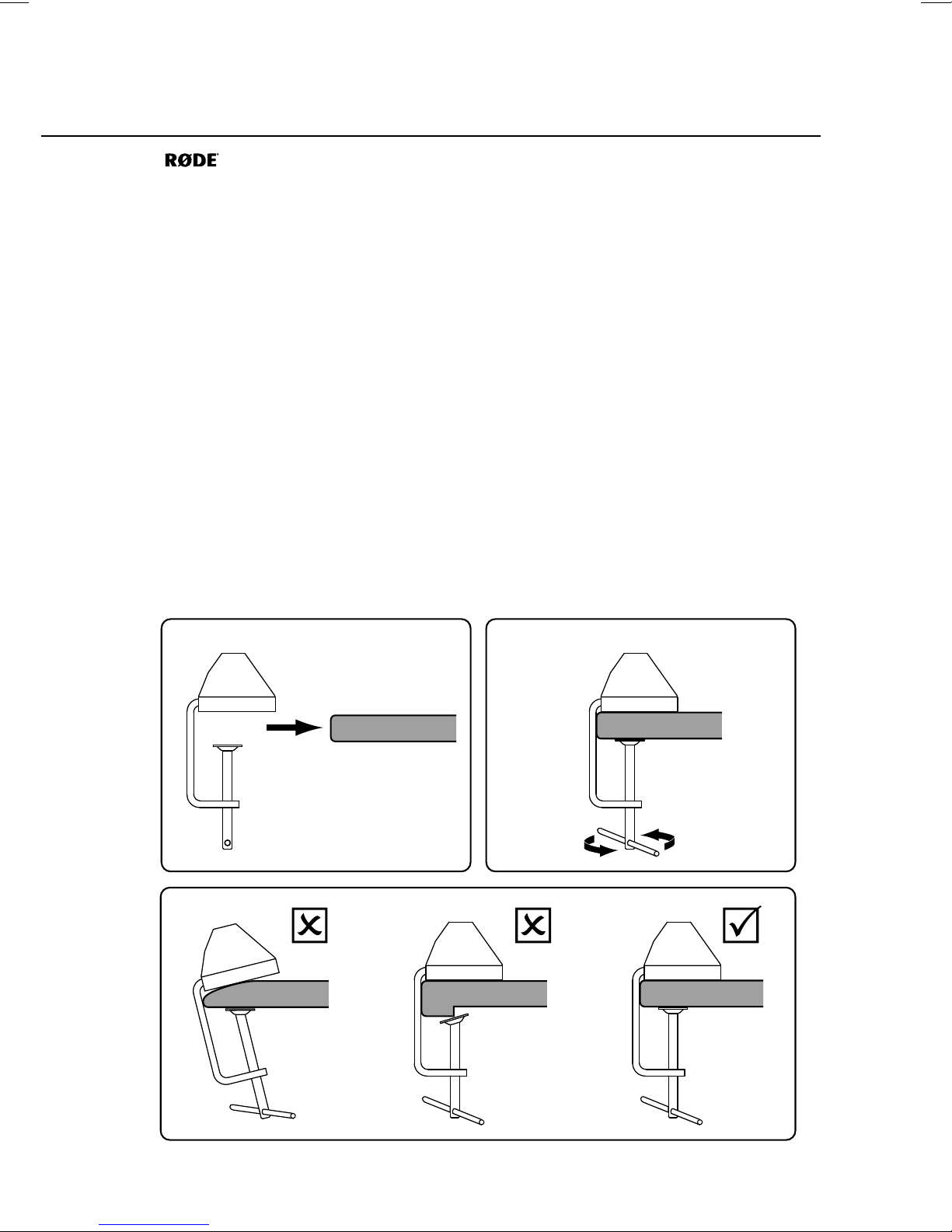

Mounting via the Desk Clamp

1- Unscrew the clamp so that the opening is large enough to ﬁt over the edge of

your table.

2- Push the clamp all the way onto the table edge for maximum security.

3- Fasten the clamp to the desk by turning the handle so that it is tight against the

underside of the table.

Note: Make sure that the clamp sits ﬂush on both the top and bottom surfaces

of the table. If this can not be achieved, we recommend you mount the studio

arm via the desk insert (refer to ‘Mounting via desk insert’).

4- Test that you have mounted the clamp securely by seeing if you can pull it off

the edge of the table. Tables with round edges provide less security than those

with square edges. If the clamp comes off easily, try reattaching it tighter and

repeat the test. If it still removes easily, we recommend that you mount the

studio arm via the desk insert (refer to ‘Mounting via desk insert’).

5- Insert the arm into the hole at the top of the clamp. You are now ready to attach

your microphone.

STEP 1 & 2 STEP 3

STEP 4

Setting up the PSA-1 studio arm

MINIMUM

64mm

(2.5”)

25mm

(1”)

22mm (7/8”) OR

25mm (1”)

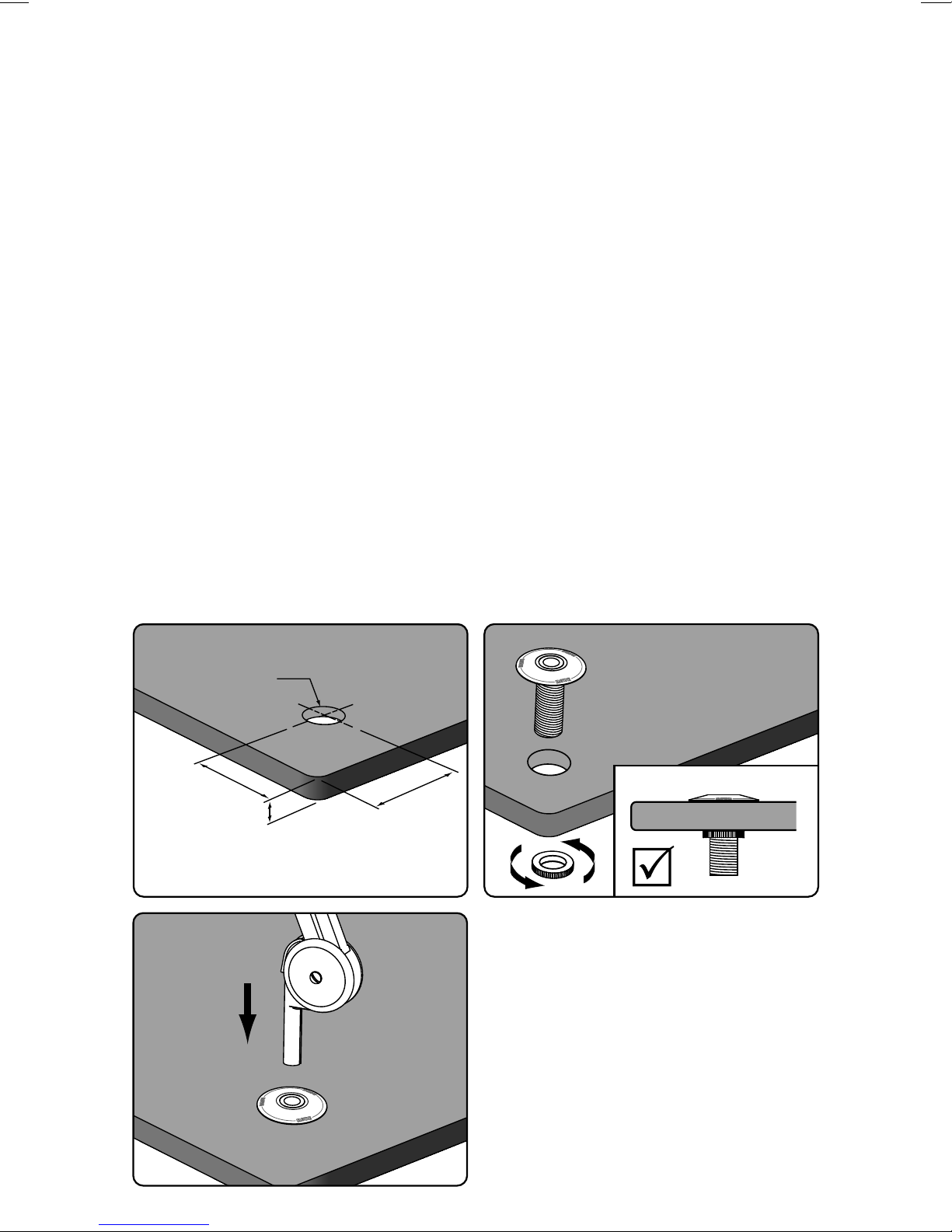

Mounting via the Desk Insert

You will need to drill a hole into your work desk for this mounting options and

therefore will require the tools to do so.

1- Take the time to choose the best location for your new studio arm. Try different

positions using the desk clamp ﬁrst so you are comfortable with the location you

have chosen. You should also refer to your microphones user manual for details

on the correct relationship between microphone and user.

2- Mark the location you wish to position the desk insert and check that it meets

the minimum and maximum recommended distances (refer to illustration)

3- Use either a 7/8” or 1” hole cutter and drill out a hole in the location you have

marked.

4- Remove the nut from the desk insert and drop it into the hole you have just

made.

5- Replace the nut onto the desk insert from the underside of the table and tighten

it up against the table.

6- Test that you have tighten the desk insert securely to the table so that it does not

move.

7- Insert the arm into the hole in the top of the desk insert. You are now ready to

attach your microphone.

STEP 1 & 2 STEP 3 & 4

STEP 5

STEP 6 RØDE Microphones

International:

107 Carnarvon Street

Silverwater NSW 2128 Australia

Ph: +61 2 9648 5855

Fax: +61 2 9648 2455

USA:

P.O. Box 4189

Santa Barbara, CA 93140-4189

Ph: 805-566-7777 (toll free in the US)

Fax: 805-566-0071

www.rodemic.com
