PALAOS Digital vertical radiator / Radiador digital vertical / Radiador
digital vertical / Verticale digitale radiator
GUARANTEE / GARANTÍA
/ GARANTIA / GARANTIE
ON THE BODY
EN EL CUERPO
NO CORPO
IN HET LICHAAM
YEARS / AÑOS
/ ANOS / JAAR
YEARS / AÑOS
/ ANOS / JAAR
ON ELECTRONICS
EN ELECTRÓNICA
NA ELECTRÓNICA
IN ELEKTRONICA
EN
PALAOS VERTICAL DIGITAL RADIATOR
3

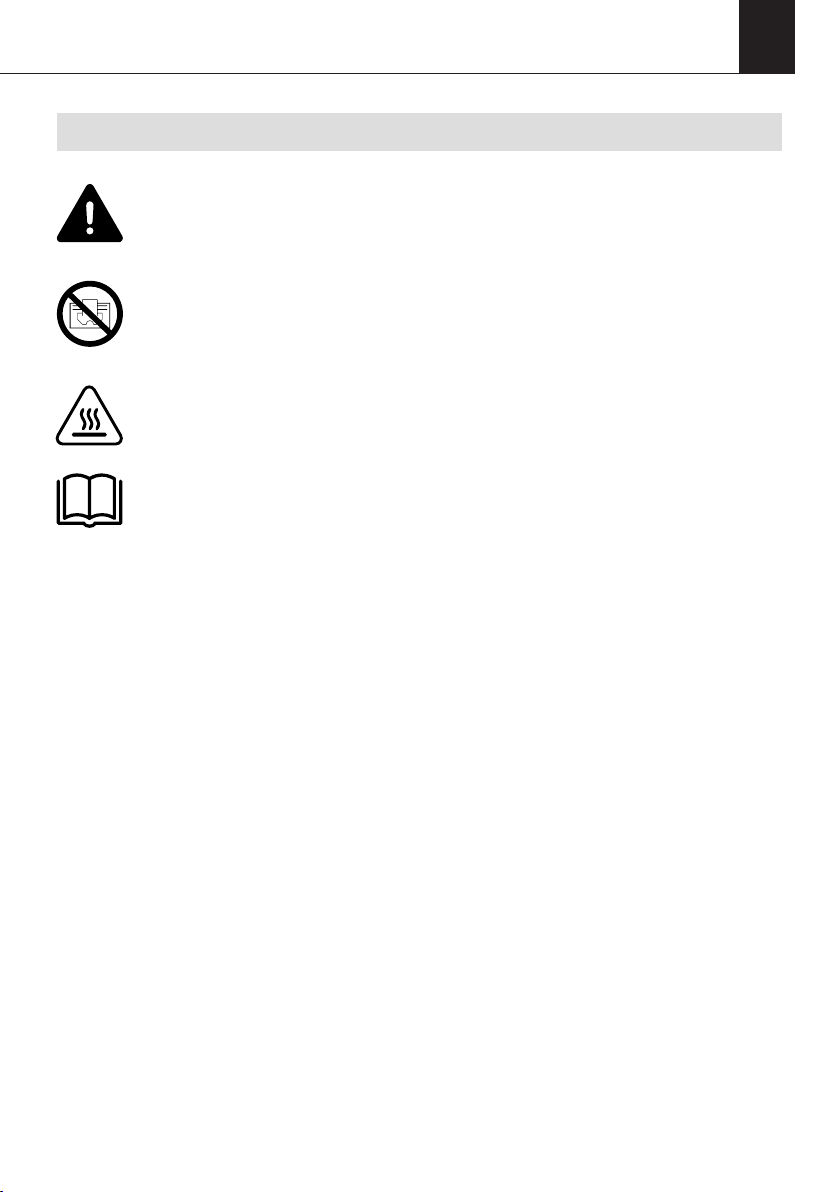

SYMBOLS
DANGER. This symbol indicates a medium-high risk hazard which can result in
serious injury or even death.
DO NOT COVER. Do not dry or leave clothes or towels on the radiator. Do not
leave or place magazines, spray cans, volatile substances, or similar objects
within 250 mm of the radiator.
HOT SURFACE. This symbol indicates that your surfaces are hot during and
immediately after use. These must not be touched: danger of burns.
OBSERVE THE INSTRUCTIONS IN THE MANUAL. Please read this manual
carefully before installing and using the product. Keep it for later use. Read all
instructions and safety warnings. Failure to follow these can result in electric
shock, re or serious injuries.
4
INDEX
1. General Warnings ..........................................................................................................5
2. Technical information ..................................................................................................8
3. Installation......................................................................................................................9
4. Screen & Keypad ..........................................................................................................15
5. Functionality and programming .................................................................................16
5.1. Features & functions ............................................................................................16
5.2. ON & OFF...............................................................................................................16
5.3. Setting the time & dates ......................................................................................17
5.4. Manual modes......................................................................................................17
5.5. Automatic modes.................................................................................................19
5.5.1. Weekly programming modes ........................................................................19
6. Maintenance and cleaning .........................................................................................21
7. European Regulation (WEEE) 2012/19/EU ...............................................................21
8. Guarantee ....................................................................................................................21
9. How to register your product guarantee ................................................................ .24
Directive ERP Commission Regulation ........................................................................91
Declaration of conformity ...............................................................................................92
EN
PALAOS VERTICAL DIGITAL RADIATOR
5
1. GENERAL WARNINGS
WARNINGS
This product may be used by children over 8 years of age
and by persons with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge under strict
supervision or instruction in the safe use of the product and
if they understand the hazards involved. Children should not
plug, adjust, clean, play with, or perform maintenance on
this product. Children under 3 years of age should be kept
away from this product unless supervised.
DO NOT use the product in enclosed spaces if the persons
present cannot leave the room independently and are not
under constant supervision.
DO NOT COVER. To avoid overheating, do not cover the
radiator.
DO NOT place spray cans, volatile substances, or similar
objects within 250mm of the product.
DO NOT use insecticides, paints, or chemicals on or near the
product.
Some parts of this product could reach high temperatures
and cause burns. DO NOT touch the external parts of the
product when in operation.
DO NOT install near curtains or other ammable materials.
Particular attention should be paid when children and
vulnerable people are present.
6
When using electrical appliances, precautions should be
taken to reduce the risk of re, electric shock and injury.
Never insert ngers, body parts or objects inside the
product.
Make sure that the voltage indicated on the product’s
technical information corresponds to the voltage output you
have at your socket.
Any repair or maintenance that requires the product to
be opened the product must be carried out by personnel
authorised by ROINTE, who must also be notied if a leak
is observed. Only ocial spare parts approved by ROINTE
should be used. Please observe the current and relevant
regulations when disposing of this product and its thermal
uid.
If the power cable is damaged, it must be replaced by
personnel authorised by ROINTE to prevent any damage.
To avoid the risk of suffocation, do not leave the packaging
including bags and other items within reach of babies or
children.
The product has an IPX4 degree of protection and can be
used in bathrooms, but not in the vicinity of bathtubs, taps,
showers, water connections, toilets, swimming pools or other
masses of water. The product must never be installed where
it, the switches or the control panel are within the reach of
people in the water. Never use the product with wet hands.
Do not place any water containers (glasses, vases, etc.) on or
near the product.
EN
PALAOS VERTICAL DIGITAL RADIATOR
7
IMPORTANT
Disconnect the product from the power supply and make
sure the product is at room temperature before any cleaning
or maintenance. Do not use any abrasive substances on
the product, such as (but not limited to) chemicals, coarse
cloths, brushes, hard bristle, or wire/steel wool.
To disconnect the product from the power source, remove
the mains plug from the socket. Do not pull on the cable.
ROINTE cannot be held responsible for incorrect sizing of
the product unless it has been followed by an ocial ROINTE
technical study.
Before the rst start-up, or before the start of winter, or when
the product has not been used for many days, the appliance
should be cleaned (follow the steps in the “maintenance”
section of this manual).
Do not sit or lean on the product.
Temperature contrasts can generate “clicks” or noises in
the device. This is not a fault of the product, but due to the
expansion/contraction of the materials.
When disposing of the product, the requirements set out in
the legislation for the waste treatment and recycling must
be followed. See WEEE in section 7.
!
8
2. TECHNICAL INFORMATION
MODELS WHITE PIW1000RAD PIW1500RAD PIW2000RAD
GRAPHITE PIB1000RAD PIB1500RAD PIB2000RAD
Number of elements 2 3 4
MATERIALS
High purity aluminium body
Control panel with mechanical keypad
DIMENSIONS, WEIGHTS & FINISHES
Width (mm) 236 356 476
Height (mm) 1,800 1,800 1,800
Depth (mm) 40 40 40
Installed depth (mm) 90 90 90
Weight (kg) 11 15.5 20.5
Finishes White RAL 9016
Graphite textured
ELECTRICAL CHARACTERISTICS
Nominal power (W) 1,000 1,500 2,000
Voltage (V) 230 ~V 230 ~V 230 ~V
Current (A) 4.3 6.5 8.7
SAFETY & INSTALLATION
Safety thermostat
Template & Installation Kit
Grade of protection IPX4 IPX4 IPX4
EAN code
White 8435556135494 8435556135500 8435556135517
Black 8435556135586 8435556135593 8435556135609
EN
PALAOS VERTICAL DIGITAL RADIATOR
9
3. INSTALLATION
We recommend using a trusted Rointe supplier for installation of the product. Find the
nearest one by calling us on 0203 321 5929 or using the locator on www.rointe.co.uk.
IMPORTANT: Prior to installation, please locate the metal tag located at the back of the
product and note the product reference and serial number. You will need this information
to register your guarantee. See section 9 for help on how to register the guarantee.
WARNING: Do not install the product directly over an electrical outlet or junction box.
Do not install the product or use it outdoors. Do not install directly under a shelf. This
product is designed to be installed on an interior wall using the ROINTE template, the
installation kit and the xings supplied. Do not install the product in such a way that it
encounters the power cable.
The product must be mounted on the wall in the position shown in the accompanying
image using the brackets and with the xings supplied.
Our products transfer heat through the natural air convection. If the product is covered,
this will disrupt the airow and could cause overheating. It must be positioned in
accordance with the minimum distances shown in the accompanying picture.
10

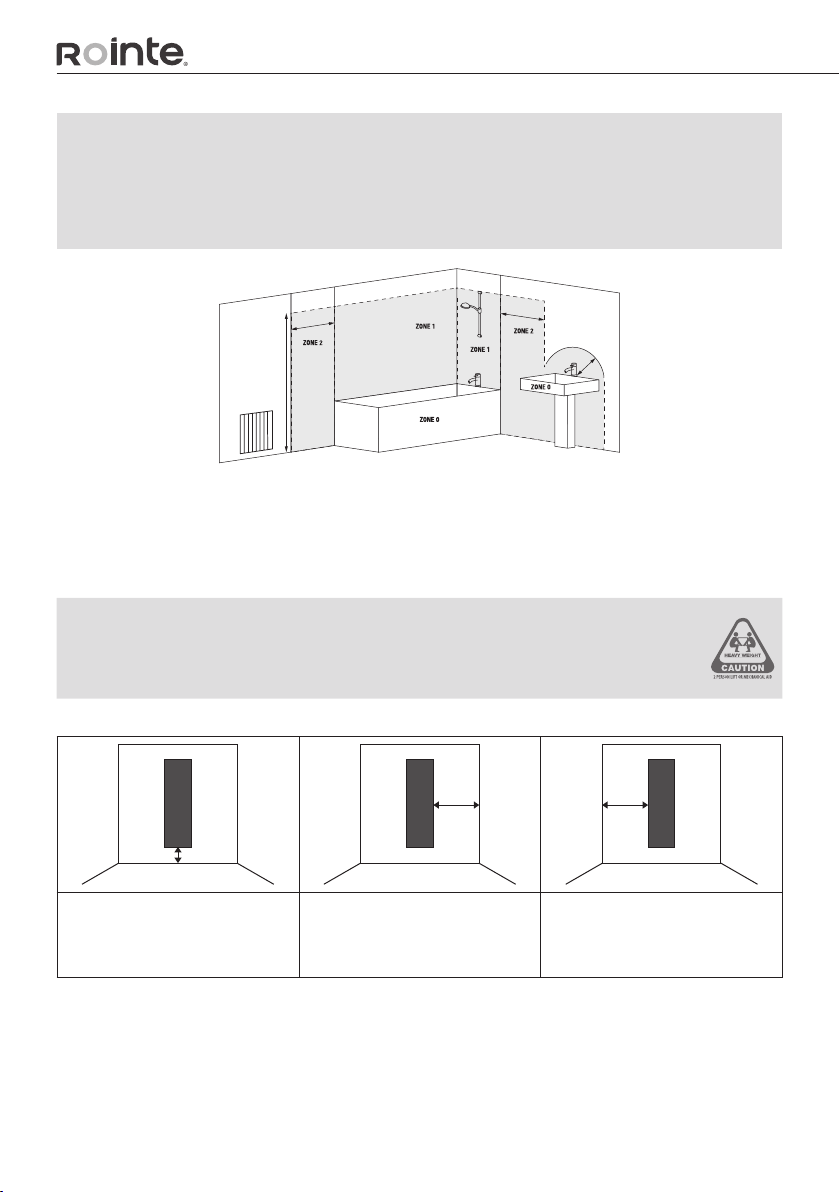

WARNING: The product has an IPX4 degree of protection and may be used in bathrooms,
but not in the vicinity of bathtubs, showers, water connections, washbasins or other bodies
of water. It may only be installed in zone 3. The product must never be installed where it
or the switches/control panel are within reach of people in water.
ZONA EXTERIOR ZONA EXTERIOR
2.25 m
0.6 m 0.6 m
0.6 m
An installation kit is included in the product packaging. You will need a drill, a rubber mallet,
a spirit level and a pencil to complete the installation.
WARNING: The weight of some of the products may be heavy. The
installation may require two people.
IMPORTANT: Please follow these instructions carefully.
1. Install the radiator at least
20 cm from the oor.
2. The minimum distance from
the wall on the right must be
at least 30 cm.
3. The minimum distance from
the wall on the left must be at
least 10 cm.
