Roland TD-6SX Istruzioni per il montaggio

Mesh Pads:

Although the TD-6SX features mesh V-pads for the snare (PD-105) and toms (PD-85 x 3), only the Snare input

of the TD-6V Percussion Module has dual trigger capabilities for mesh V-Pads.

In other words, rim triggering is not supported on MESH V-pads when connected to any of the tom inputs on

the TD-6V Percussion Module.

Note: When performing a factory reset on the TD-6V, the snare input pad type defaults to PD-80R which will

work for the PD-105. The tom inputs default to pad type PD-8. Changing the tom pad type to PD-80R may in-

crease sensitivity of the mesh head pad, but will not support independent rim triggering from mesh head tom

pads.

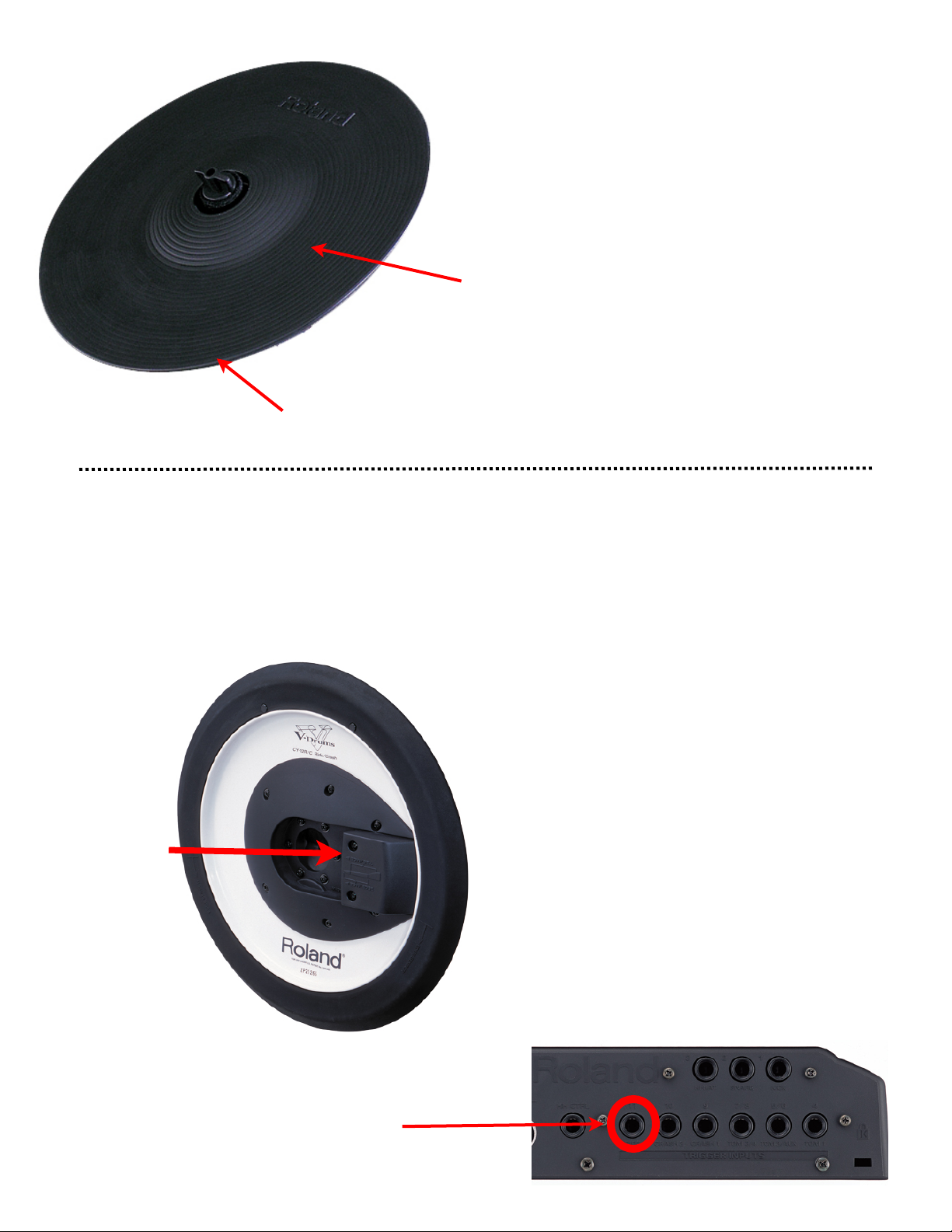

CY-12R/C-C V-Cymbal:

The TD-6V does not support 3-way triggering with the CY-12R/C-C. However there are two ways to use

the CY-12R/C with the TD-6V module:

1. This method uses Factory settings on the TD-6V:

•Connect one end of the cable labeled “RD” to the Bow/Edge jack of the CY-12R/C. This is the jack

closest to the player (opposite the top Roland logo) on the CY-12R/C-C.

Bow/Edge

Ride Input

•Connect the other end of the cable

labeled “RD” to the Ride Trigger input

on the rear of the TD-6V Percussion

Module.

Roland TD-6SX Tips

Mesh V-Pads and using the CY-12R/C-C V-Cymbal

Edge area

Bow area

•A ride sound will be produced when playing

the bow area at a normal level.

•By striking the bow area harder, a bell sound

will be produced.

•A different sound is produced by striking

the edge area.

2. This method uses ‘modified’ kits for the TD-6V.

•These kits are contained in the MIDI file TD6SX_CY12RC.mid which is included in this download pack-

age. You will need to transfer this file via MIDI into the TD-6V.

•If you prefer to program your own kits, refer to step #3 (on page 3).

•Connect one end of the cable labeled “RD” to the Bow/Bell jack of the CY-12R/C. This is the jack furthest

from the player (closer to the top Roland logo) on the CY-12R/C-C.

Bow/Bell Jack

•Connect the other end of the cable labeled

“RD” to the Ride Trigger input on the rear of

the TD-6V Percussion Module.

Ride Input

Bow area

Bell area

3. You can also program your own cymbal sound assignments for both Bow/Edge & Bow/Bell:

•Press KIT and use the [+] or [-] buttons to select the kit you want to edit.

•Press [EDIT] (KIT & EDIT buttons light).

•Press ENTER (The instrument (INST) selection screen appears).

•Strike the Bow area of the CY-12R/C, (display indicates trigger input H11, and the currently assigned

sound).

•Use the [+] or [-] buttons to select the desired ride cymbal sound.*

•Strike the Bell or Edge area of the CY-12R/C,(display indicates trigger input R11,and the currently

assigned sound).

•Use the [+] or [-] buttons to select the desired ride cymbal sound. *

*Key: Rd = Bow Ride Cymbal Sound Rde = Edge Ride Cymbal Sound

Rdb = Bell Ride Cymbal Sound Rdx = Bow/Bell ‘Cross-faded’ Cymbal Sound

Please refer to the TD-6V Owner’s Manual for more detailed editing instructions.

Roland Drum & Percussion Division

V-Drums.com

RolandUS.com

•Strike the bow area for a ‘bow’ ride sound.

•Strike the bell area for a ‘bell’ ride sound.
