ROLAND CUBE-40GX

TRAINING GUIDE

Contents

1. FEATURES & BENEFITS

2. QUICK DEMO

3. FIVE FEATURES TO KNOW AND SHOW

4. ACCESSORIES

5. CUBE-40GX COSM AMPS AND EFFECTS

Roland CUBE-40GX Training Guide

1. FEATURES & BENEFITS

Compact but very powerful 40 watt, 1 x 10” combo amp

Three switchable channels: JC CLEAN, LEAD and SOLO

Eleven COSM amp tones: JC Clean, Acoustic Sim, Black

Panel, DLX Combo, Brit Combo, Tweed, Classic Stack,

Metal Stack, R-Fier Stack, Extreme, Dyna Amp

Three sets of COSM FX: EFX (Chorus, Flanger, Phaser,

Tremolo, Heavy Octave), DELAY (Warm, Clear) with tap

tempo, REVERB (Spring, Plate)

SOLO channel stores and recalls favorite settings for

CLEAN or LEAD tones

Three band EQ: Bass, Middle, Treble

Unique i-CUBE Link provides bi-directional connectivity to

iOS devices for recording, audio playback and more

Footswitchable channel select w/ standard FS-5U type

footswitches

1/4” headphone/line out

Compatible with GA-FC footswitch for direct switching of

channels and effects and EXP pedal control of volume and

gain

Roland CUBE-40GX Training Guide

2. QUICK DEMO

The Quick Demo is a way to get a customer interested in a product in less than

60 seconds.

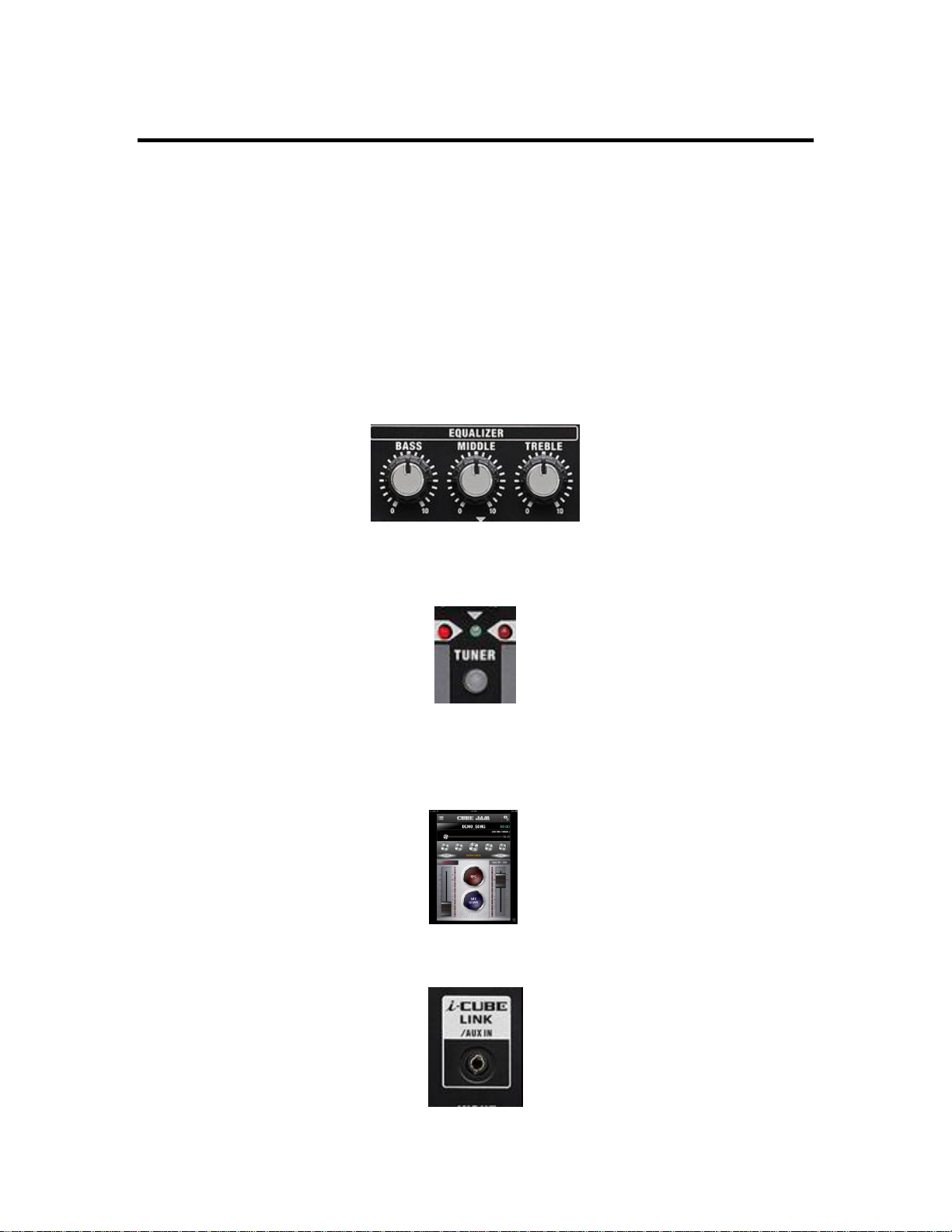

Before You Start

1. Connect a decent guitar to the input of the amp.

2. The CUBE-40GX is very powerful for its size. Set the Volume and Master

controls to an appropriate level.

3. Set the tone controls to 12:00 (straight up).

4. Press the TUNER Button.

5. Tune the guitar.

6. If you have access to an iOS device (iPhone, iPad, etc.), download the

free CUBE JAM app from the App store. Take some time to get familiar

with it.

7. Connect the iOS device to the i-CUBE Link with the included cable.

Roland CUBE-40GX Training Guide

The Quick Demo: Show the Sound and Features

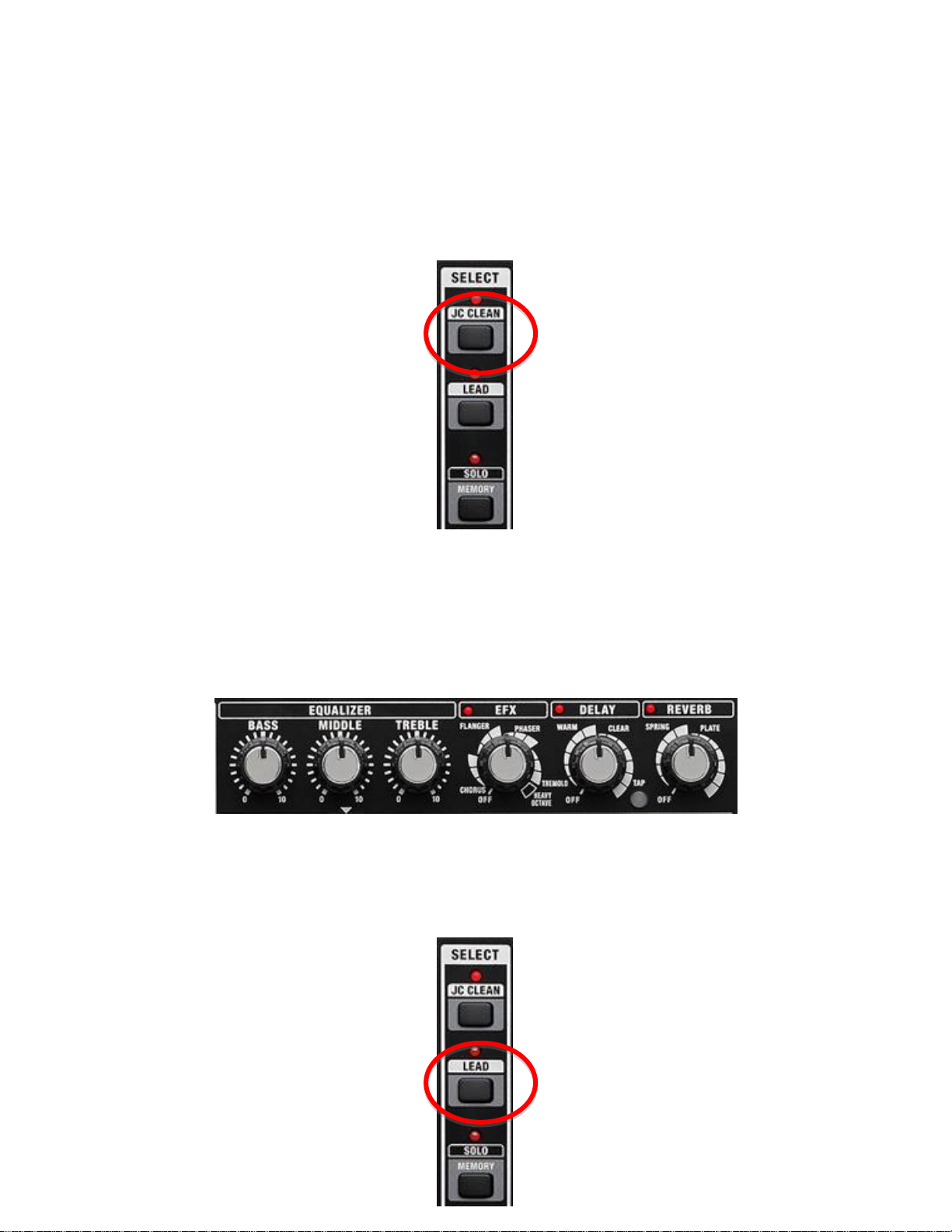

STEP ONE: Show the JC CLEAN Channel

1. Press the JC CLEAN button. This is the sound of the famous Roland JC-

120 amp. If you use this amp to demo external effects, use this channel.

2. Play (or have the customer play) some chords and leads appropriate for a

clean guitar sound.

3. Experiment with the EQUALIZER, EFX, DELAY and REVERB to check

out their sounds.

STEP TWO: Show the LEAD Channel

1. Press the LEAD channel button.

Roland CUBE-40GX Training Guide

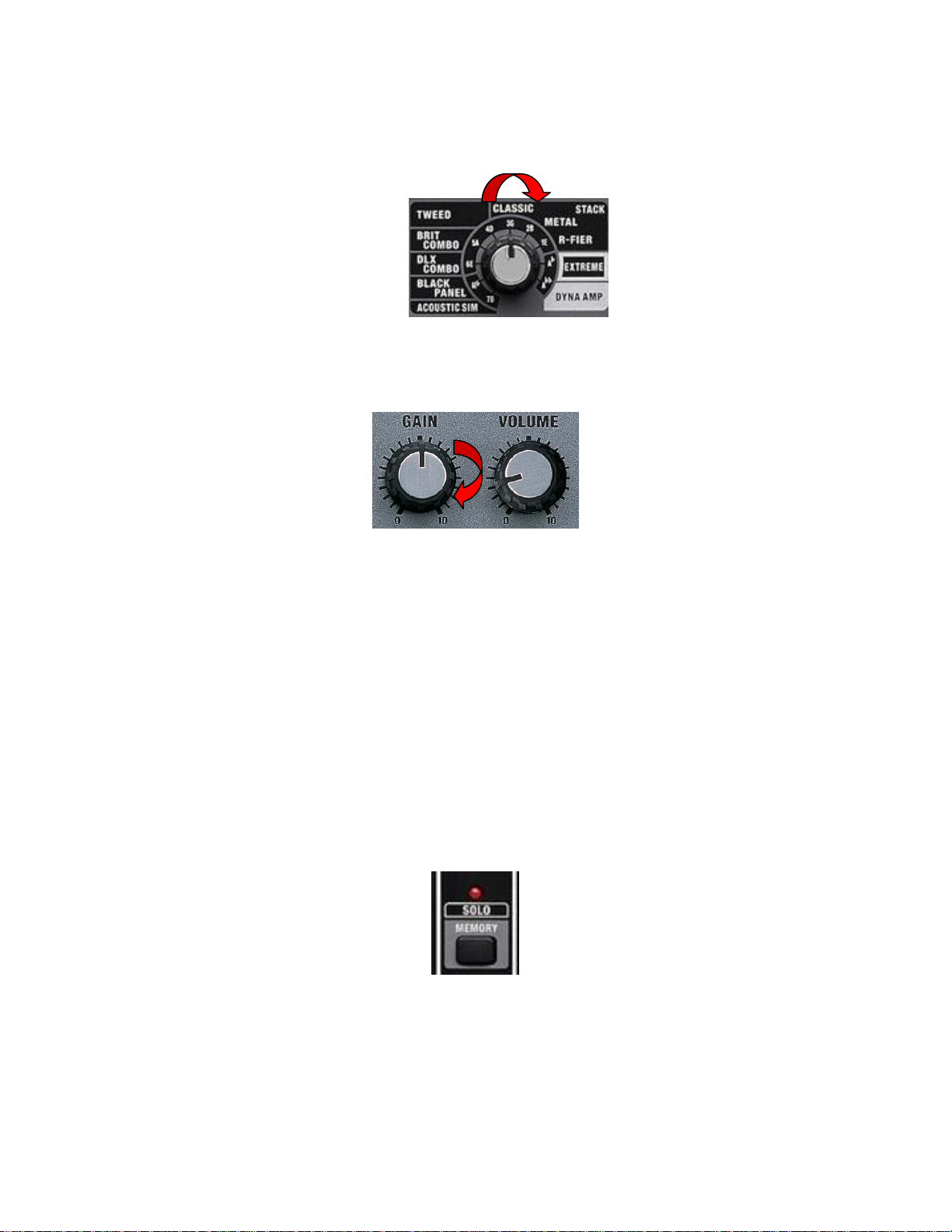

2. Select a LEAD amp tone such as BRIT COMBO, CLASSIC STACK or

EXTREME, depending on the kind of music the customer wants to play.

3. Set the GAIN knob to about 5 to start out. Turn it clockwise for more

distortion and gain.

4. Play (or have the customer play) some chords and leads appropriate for a

lead guitar sound,

5. Experiment with the EQUALIZER, EFX, DELAY and REVERB to check

out their sounds.

STEP THREE: Show the SOLO Channel

SOLO is a memory channel. It can store and recall the settings of the other

knobs.

1. Press the SOLO channel button.

2. Play some chords or lead appropriate to the SOLO sound.

Roland CUBE-40GX Training Guide

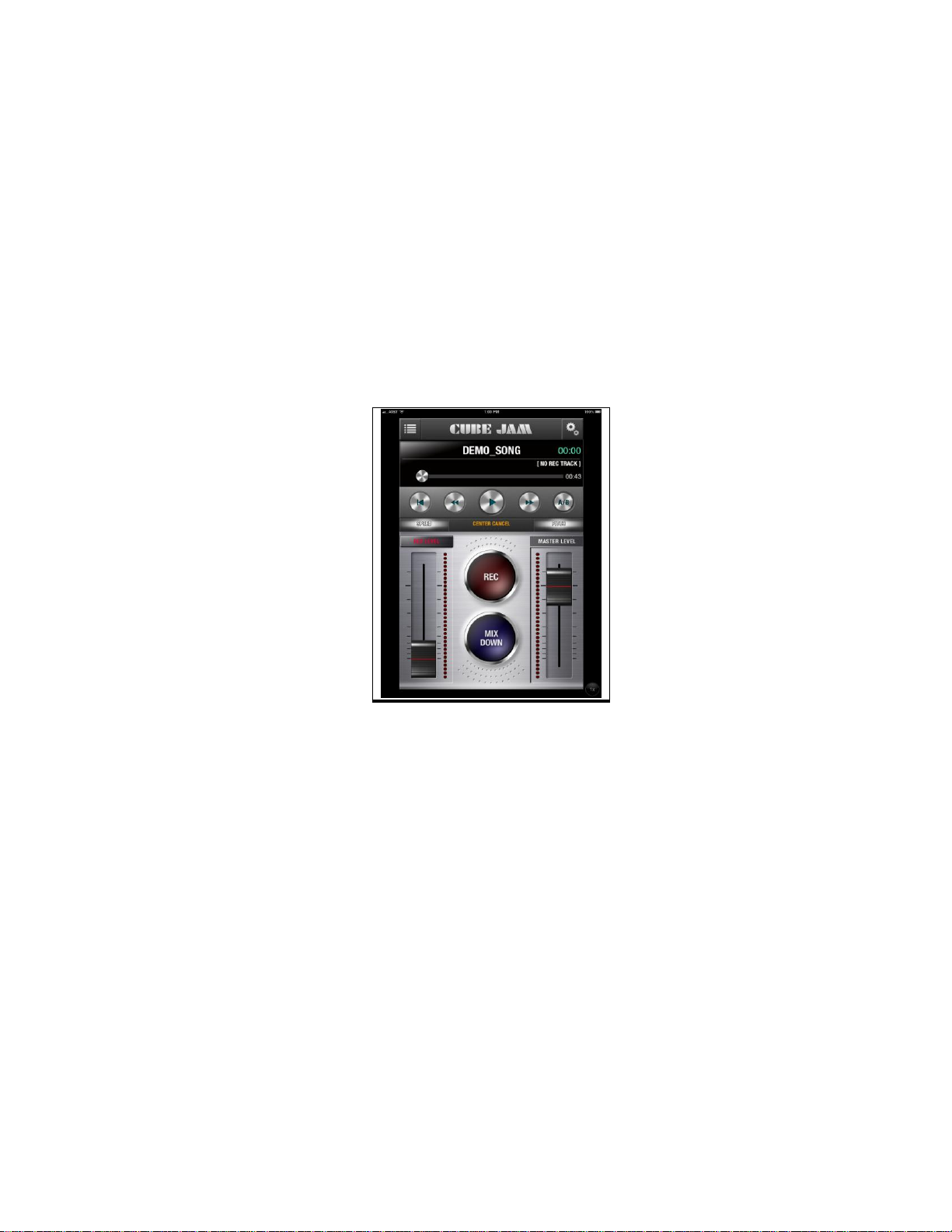

STEP FOUR: Show i-CUBE Link and CUBE JAM app

About i-CUBE Link and the CUBE JAM App

CUBE JAM is a free app for iOS that allows playback of audio from any iOS

audio library through an i-CUBE link equipped amp or any other compatible audio

playback device. Its many features make it perfect for jamming to your favorite

music or practicing new songs or lessons. It can manipulate the speed, pitch and

center content of the audio to suit the player just by tapping and swiping the

icons, and set A/B start/stop loop points for practicing selected sections of songs.

It also can record from any i-CUBE Link amp, including performances along with

the audio library.

1. If you have the CUBE JAM App on an iOS device, play along to the

demo song, and show the A/B, SPEED, PITCH and CENTER

CANCEL features.

Roland CUBE-40GX Training Guide

3. FIVE THINGS to KNOW and SHOW

1. Incredibly powerful but compact three channel 40 watt

combo amp

2. Eleven COSM modeled amp tones from clean to mean

3. SOLO channel stores favorite tones

4. Three sets of effects: EFX, Delay, Reverb

5. i-CUBE Link for bi-directional connection to iOS devices

4. ACCESSORIES

1. 2 x BOSS FS-5U, 1 x BOSS FS-6 or 1 x Roland GA-FC footswitch

2. 1 x TRS-2 ¼” insert cable such as a Roland PCS-31

3. Roland RH-20, RH-50, RH-200 or other headphones

5. COSM AMPS and EFFECTS

COSM AMPS ORIGINAL

JC CLEAN Roland JC-120

ACOUSTIC SIM Roland AC-60 w/ BOSS AC-3

BLACK PANEL Fender Twin Reverb

DLX COMBO Fender Deluxe Reverb

BRIT COMBO Vox AC-30TB

TWEED Fender Bassman 410

CLASSIC STACK Marshall JMP 1987 “Plexi”

METAL STACK Peavey EVH 5150

R-FIER STACK Mesa Boogie Rectifier

EXTREME Roland original super heavy amp

DYNA AMP Roland original touch sensitive amp

EFFECTS

EFX: Chorus, Flanger, Phaser, Tremolo, Heavy Octave

DELAY: Warm, Clear

REVERB: Spring, Plate
