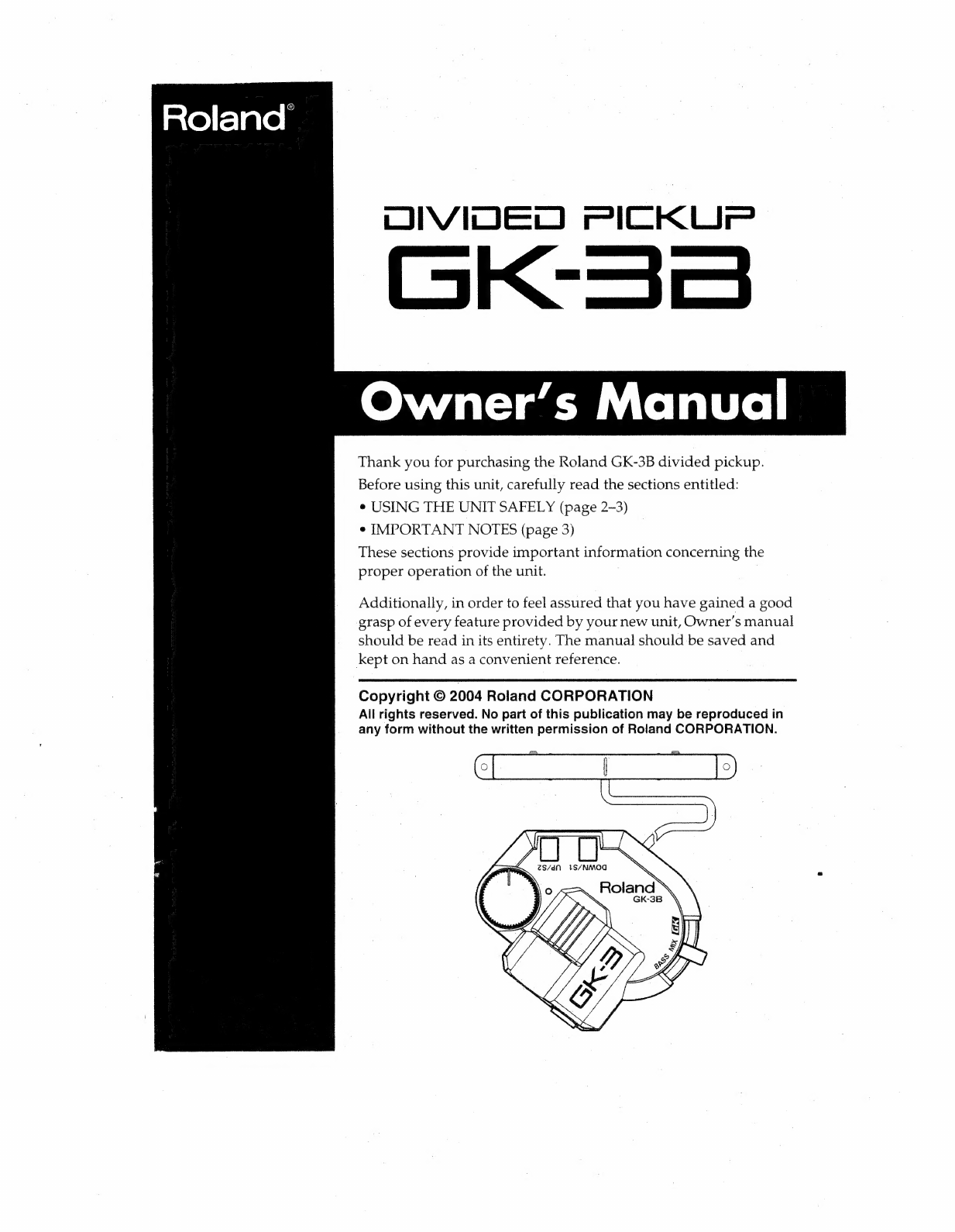

DIVIDED

PICKUP

DK3Ə3Z

Owner’s

Manual

Thank

you

for

purchasing

the

Roland

GK-3B

divided

pickup.

Before

using

this

unit,

carefully

read

the

sections

entitled:

e

USING

THE

UNIT

SAFELY

(page

2-3)

e

IMPORTANT

NOTES

(page

3)

These

sections

provide

important

information

concerning

the

proper

operation

of

the

unit.

Additionally,

in

order

to

feel

assured

that

you

have

gained

a

good

grasp

of

every

feature

provided

by

your

new

unit,

Owner’s

manual

should

be

read

in

its

entirety.

The

manual

should

be

saved

and

kept

on

hand

as

a

convenient

reference.

Copyright

©

2004

Roland

CORPORATION

All

rights

reserved.

No

part

of

this

publication

may

be

reproduced

in

any

form

without

the

written

permission

of

Roland

CORPORATION.

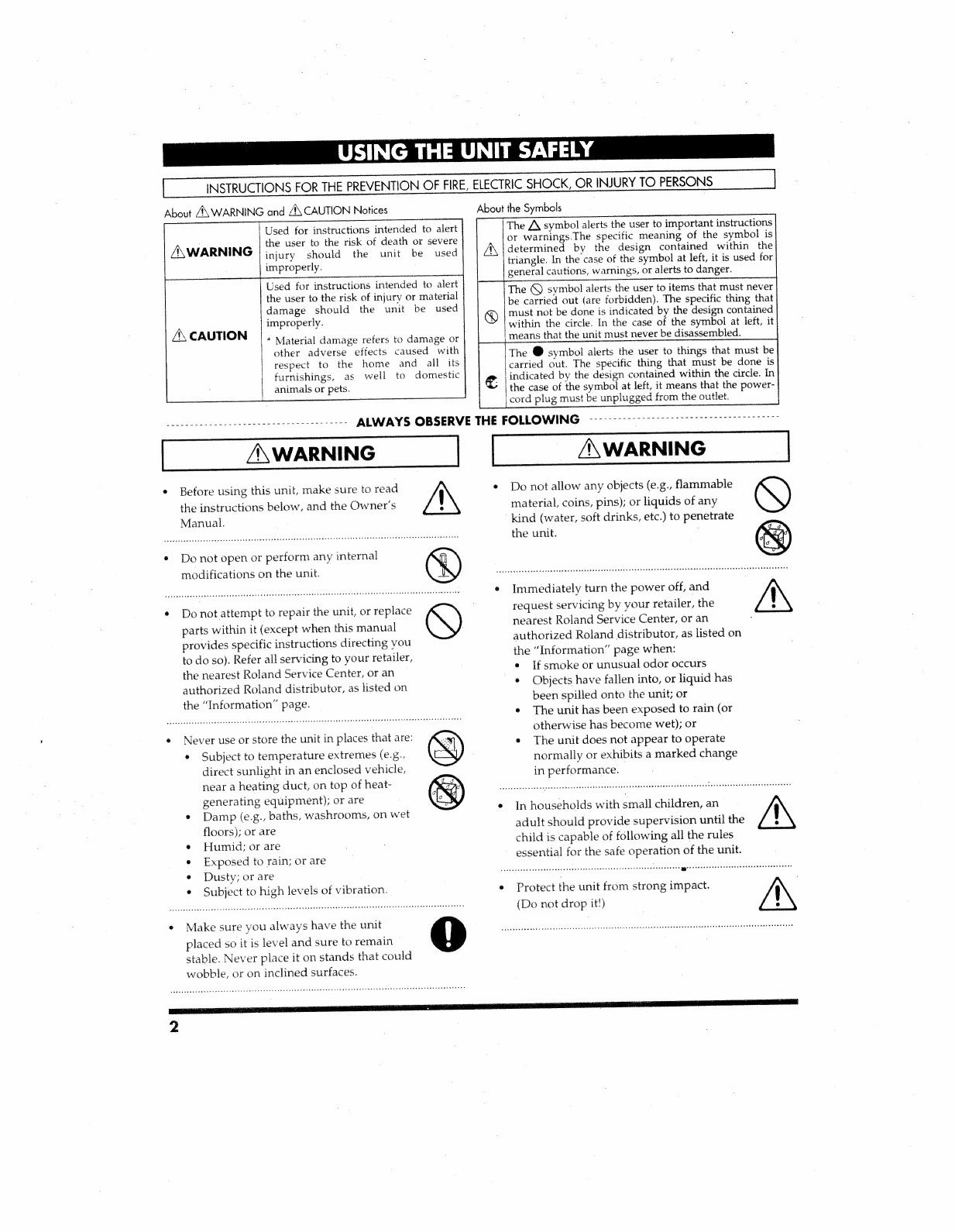

INSTRUCTIONS

FOR

THE

PREVENTION

OF

FIRE,

ELECTRIC

SHOCK,

OR

INJURY

TO

PERSONS

About

A\

WARNING

and

ÆA

CAUTION

Notices

Used

for

instructions

intended

to

alert

the

user

to

the

risk

of

death

or

severe

injury

should

the

unit

be

used

improperly.

A

WARNING

Used

for

instructions

intended

to

alert

the

user

to

the

risk

of

injury

or

material

damage

should

the

unit

be

used

improperly.

Â

CAUTION

*

Material

damage

refers

to

damage

or

other

adverse

effects

caused

“with

respect

to

the

home

and

all

its

furnishings,

as

well

to

domestic

animals

or

pets.

a

OBSERVE

THE

FOLLOWING

About

the

Symbols

general

cautions,

warnings,

or

alerts

to

danger.

means

that

the

unit

must

never

be

disassembled.

cord

plug

must

be

unplugged

from

the

outlet.

The

A

symbol

alerts

the

user

to

important

instructions

or

warnings.The

specific

meaning

of

the

symbol

is

ÆA

|

determined

by

the

design

contained

within

the

triangle.

In

the

case

of

the

symbol

at

left,

it

is

used

for

The

©

symbol

alerts

the

user

to

items

that

must

never

be

carried

out

(are

forbidden).

The

specific

thing

that

©

must

not

be

done

is

indicated

by

the

design

contained

within

the

circle.

In

the

case

of

the

symbol

at

left,

it

The

@

symbol

alerts

the

user

to

things

that

must

be

carried

out.

The

specific

thing

that

must

be

done

is

ee

indicated

by

the

design

contained

within

the

circle.

In

Ù

|

the

case

of

the

symbol

at

left,

it

means

that

the

power-

[Ss

Z\WARNING

O|

~

7AWARNING__

Before

using

this

unit,

make

sure

to

read

the

instructions

below,

and

the

Owner's

Manual.

Do

not

open

or

perform

any

internal

modifications

on

the

unit.

Do

not

attempt

to

repair

the

unit,

or

replace

parts

within

it

(except

when

this

manual

provides

specific

instructions

directing

you

to

do

so).

Refer

all

servicing

to

your

retailer,

the

nearest

Roland

Service

Center,

or

an

authorized

Roland

distributor,

as

listed

on

the

“Information”

page.

Never

use

or

store

the

unit

in

places

that

are:

¢

Subject

to

temperature

extremes

(e.g.

direct

sunlight

in

an

enclosed

vehicle,

near

a

heating

duct,

on

top

of

heat-

Sey,

generating

equipment),

or

are

A

>

Damp

(e.g.,

baths,

washrooms,

on

wet

floors);

or

are

e

Humid;

or

are

*

Exposed

to

rain;

or

are

e

Dusty;

or

are

e

Subject

to

high

levels

of

vibration.

Make

sure

you

always

have

the

unit

placed

so

it

is

level

and

sure

to

remain

stable.

Never

place

it

on

stands

that

could

wobble,

or

on

inclined

surfaces.

*

Do

not

allow

any

objects

(e.g.,

flammable

material,

coins,

pins);

or

liquids

of

any

kind

(water,

soft

drinks,

etc.)

to

penetrate

the

unit.

e

Immediately

turn

the

power

off,

and

request

servicing

by

your

retailer,

the

nearest

Roland

Service

Center,

or

an

authorized

Roland

distributor,

as

listed

on

the

“Information”

page

when:

e

If

smoke

or

unusual

odor

occurs

©

Objects

have

fallen

into,

or

liquid

has

been

spilled

onto

the

unit;

or

e

The

unit

has

been

exposed

to

rain

(or

otherwise

has

become

wet);

or

e

The

unit

does

not

appear

to

operate

normally

or

exhibits

a

marked

change

in

performance.

ə

In

households

with

small

children,

an

adult

should

provide

supervision

until

the

child

is

capable

of

following

all

the

rules

essential

for

the

safe

operation

of

the

unit.

e

Protect

the

unit

from

strong

impact.

(Do

not

drop

it!)

l

A

CAUTION

|

*

Try

to

prevent

cords

and

cables

from

becoming

entangled.

Also,

all

cords

and

cables

should

be

placed

so

they

are

out

of

the

reach

of

children.

e

Never

climb

on

top

of,

nor

place

heavy

objects

on

the

unit.

e

Disconnect

all

cords

coming

from

external

devices

before

moving

the

unit.

e

Should

you

remove

the

parts

of

installation

(screws,

washers

and

springs),

make

sure

to

put

them

in

a

safe

place

out

of

children's

reach,

so

there

is

no

chance

of

them

being

swallowed

accidentally.

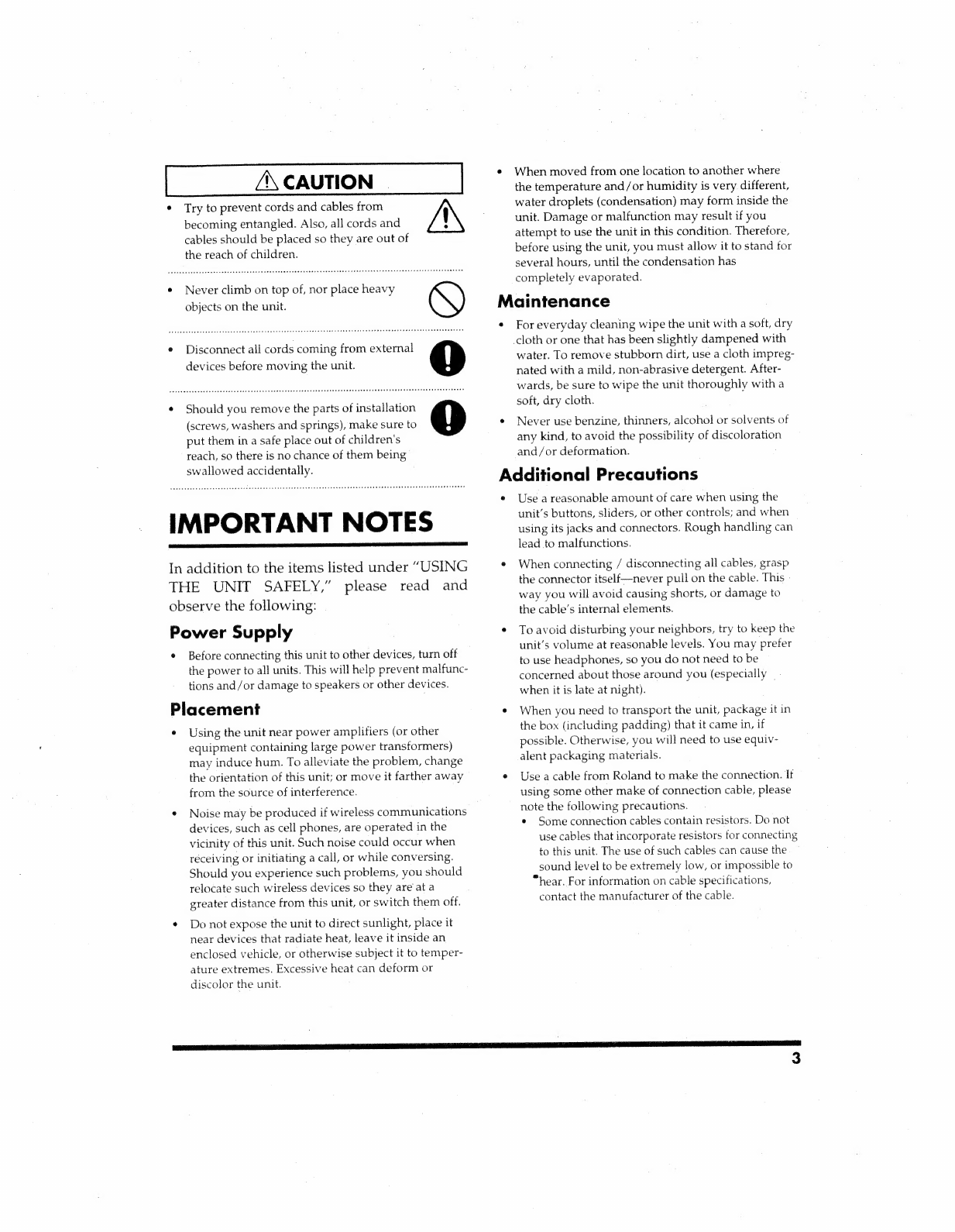

IMPORTANT

NOTES

In

addition

to

the

items

listed

under

“USING

THE

UNIT

SAFELY,”

please

read

and

observe

the

following:

.

Power

Supply

©

Before

connecting

this

unit

to

other

devices,

turn

off

the

power

to

all

units.

This

will

help

prevent

malfunc-

tions

and/or

damage

to

speakers

or

other

devices.

Placement

e

Using

the

unit

near

power

amplifiers

(or

other

equipment

containing

large

power

transformers)

may

induce

hum.

To

alleviate

the

problem,

change

the

orientation

of

this

unit;

or

move

it

farther

away

from

the

source

of

interference.

¢

Noise

may

be

produced

if

wireless

communications

devices,

such

as

cell

phones,

are

operated

in

the

vicinity

of

this

unit.

Such

noise

could

occur

when

receiving

or

initiating

a

call,

or

while

conversing.

Should

you

experience

such

problems,

you

should

relocate

such

wireless

devices

so

they

are

at

a

greater

distance

from

this

unit,

or

switch

them

off.

*

Do

not

expose

the

unit

to

direct

sunlight,

place

it

near

devices

that

radiate

heat,

leave

it

inside

an

enclosed

vehicle,

or

otherwise

subject

it

to

temper-

ature

extremes.

Excessive

heat

can

deform

or

discolor

the

unit.

e

When

moved

from

one

location

to

another

where

the

temperature

and/or

humidity

is

very

different,

water

droplets

(condensation)

may

form

inside

the

unit.

Damage

or

malfunction

may

result

if

you

attempt

to

use

the

unit

in

this

condition.

Therefore,

before

using

the

unit,

you

must

allow

it

to

stand

for

several

hours,

until

the

condensation

has

completely

evaporated.

Maintenance

¢

For

everyday

cleaning

wipe

the

unit

with

a

soft,

dry

cloth

or

one

that

has

been

slightly

dampened

with

water.

To

remove

stubborn

dirt,

use

a

cloth

impreg-

nated

with

a

mild,

non-abrasive

detergent.

After-

wards,

be

sure

to

wipe

the

unit

thoroughly

with

a

soft,

dry

cloth.

ə

Never

use

benzine,

thinners,

alcohol

or

solvents

of

any

kind,

to

avoid

the

possibility

of

discoloration

and/or

deformation.

Additional

Precautions

e

Use

a

reasonable

amount

of

care

when

using

the

unit’s

buttons,

sliders,

or

other

controls;

and

when

using

its

jacks

and

connectors.

Rough

handling

can

lead

to

malfunctions.

e

When

connecting

/

disconnecting

all

cables,

grasp

the

connector

itself—never

pull

on

the

cable.

This

-

way

you

will

avoid

causing

shorts,

or

damage

to

the

cable’s

internal

elements.

*

To

avoid

disturbing

your

neighbors,

try

to

keep

the

unit’s

volume

at

reasonable

levels.

You

may

prefer

to

use

headphones,

so

you

do

not

need

to

be

concerned

about

those

around

you

(especially

_-

when

it

is

late

at

night).

e

When

you

need

to

transport

the

unit,

package

it

in

the

box

(including

padding)

that

it

came

in,

if

possible.

Otherwise,

you

will

need

to

use

equiv-

alent

packaging

materials.

e

Use

a

cable

from

Roland

to

make

the

connection.

It

using

some

other

make

of

connection

cable,

please

note

the

following

precautions.

¢

Some

connection

cables

contain

resistors.

Do

not

use

cables

that

incorporate

resistors

for

connecting

to

this

unit.

The

use

of

such

cables

can

cause

the

sound

level

to

be

extremely

low,

or

impossible

to

“hear.

For

information

on

cable

specifications,

contact

the

manufacturer

of

the

cable.

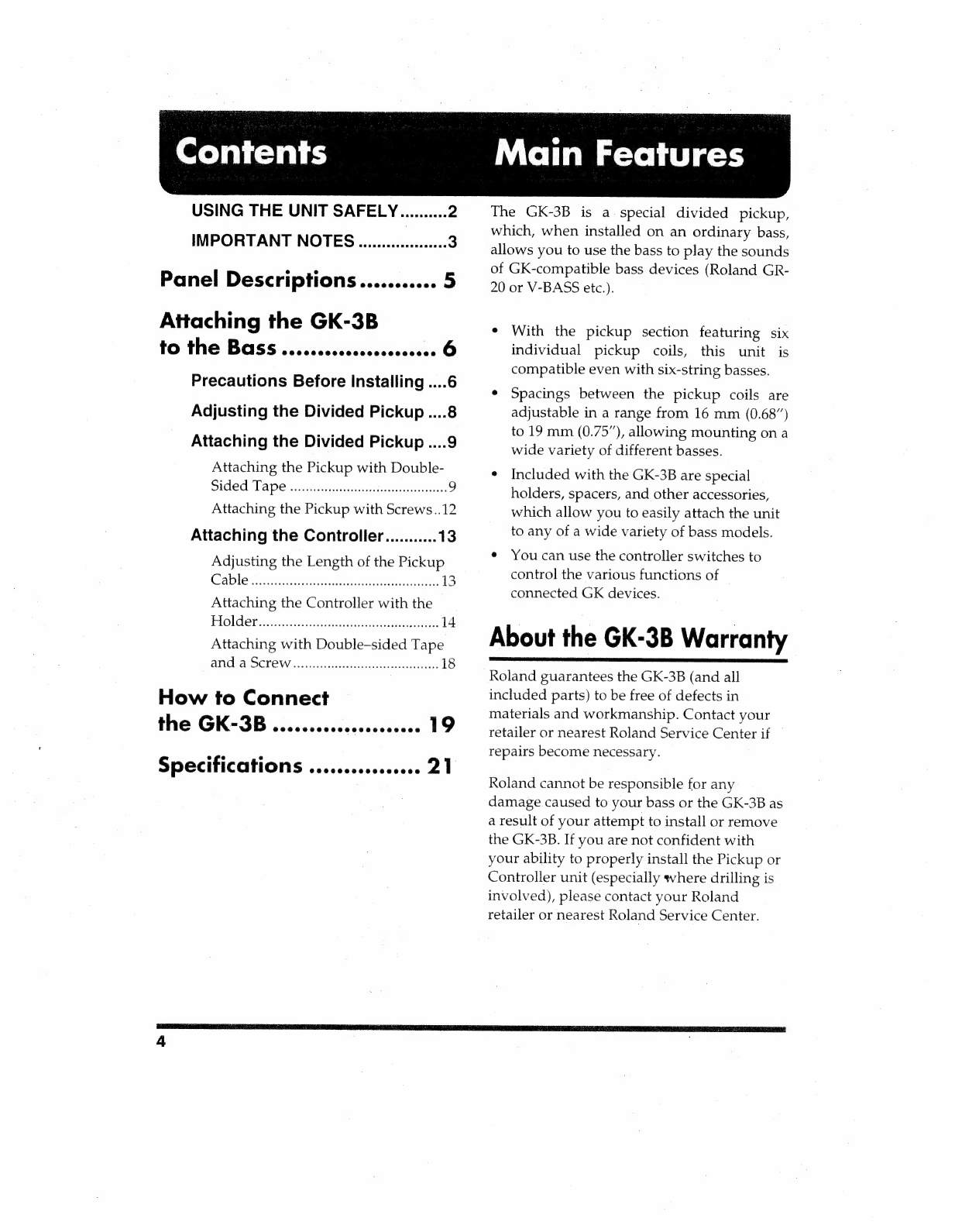

Contents

Main

Features

USING

THE

UNIT

SAFELY..........

2

IMPORTANT

NOTES

.............:0000

3

Panel

Descriptions...........

5

Attaching

the

GK-3B

to

the

Bass

......ccccccccccsesece

Ó

Precautions

Before

Installing

....6

Adjusting

the

Divided

Pickup

....8

Attaching

the

Divided

Pickup

....9

Attaching

the

Pickup

with

Double-

Sided

Tape

ticteadniseaceis

steeds

neat

9

Attaching

the

Pickup

with

Screws..12

Attaching

the

Controller...........

13

Adjusting

the

Length

of

the

Pickup

Cablen

asanarea

ncaah

sails

13

Attaching

the

Controller

with

the

—

Holdet

r

a

a

14

Attaching

with

Double-sided

Tape

oand

a

CreW

hetincriadoraist

cetursasinan,

Sauce

18

How

to

Connect

the

GK-3B

.......cccccescsssees

19

Specifications

........cccccece

21

The

GK-3B

is

a

special

divided

pickup,

which,

when

installed

on

an

ordinary

bass,

allows

you

to

use

the

bass

to

play

the

sounds

of

GK-compatible

bass

devices

(Roland

GR-

20

or

V-BASS

etc.).

e

With

the

pickup

section

featuring

six

individual

pickup

coils,

this

unit

is

compatible

even

with

six-string

basses.

e

Spacings

between

the

pickup

coils

are

adjustable

in

a

range

from

16

mm

(0.68”)

to

19

mm

(0.75”),

allowing

mounting

on

a

wide

variety

of

different

basses.

*

Included

with

the

GK-3B

are

special

holders,

spacers,

and

other

accessories,

which

allow

you

to

easily

attach

the

unit

to

any

of

a

wide

variety

of

bass

models.

e

You

can

use

the

controller

switches

to

control

the

various

functions

of

—

connected

GK

devices.

About

the

GK-3B

Warranty

Roland

guarantees

the

GK-3B

(and

all

included

parts)

to

be

free

of

defects

in

materials

and

workmanship.

Contact

your

retailer

or

nearest

Roland

Service

Center

if

—

repairs

become

necessary.

Roland

cannot

be

responsible

for

any

damage

caused

to

your

bass

or

the

GK-3B

as

a

result

of

your

attempt

to

install

or

remove

the

GK-3B.

If

you

are

not

confident

with

your

ability

to

properly

install

the

Pickup

or

Controller

unit

(especially

where

drilling

is

involved),

please

contact

your

Roland

retailer

or

nearest

Roland

Service

Center.

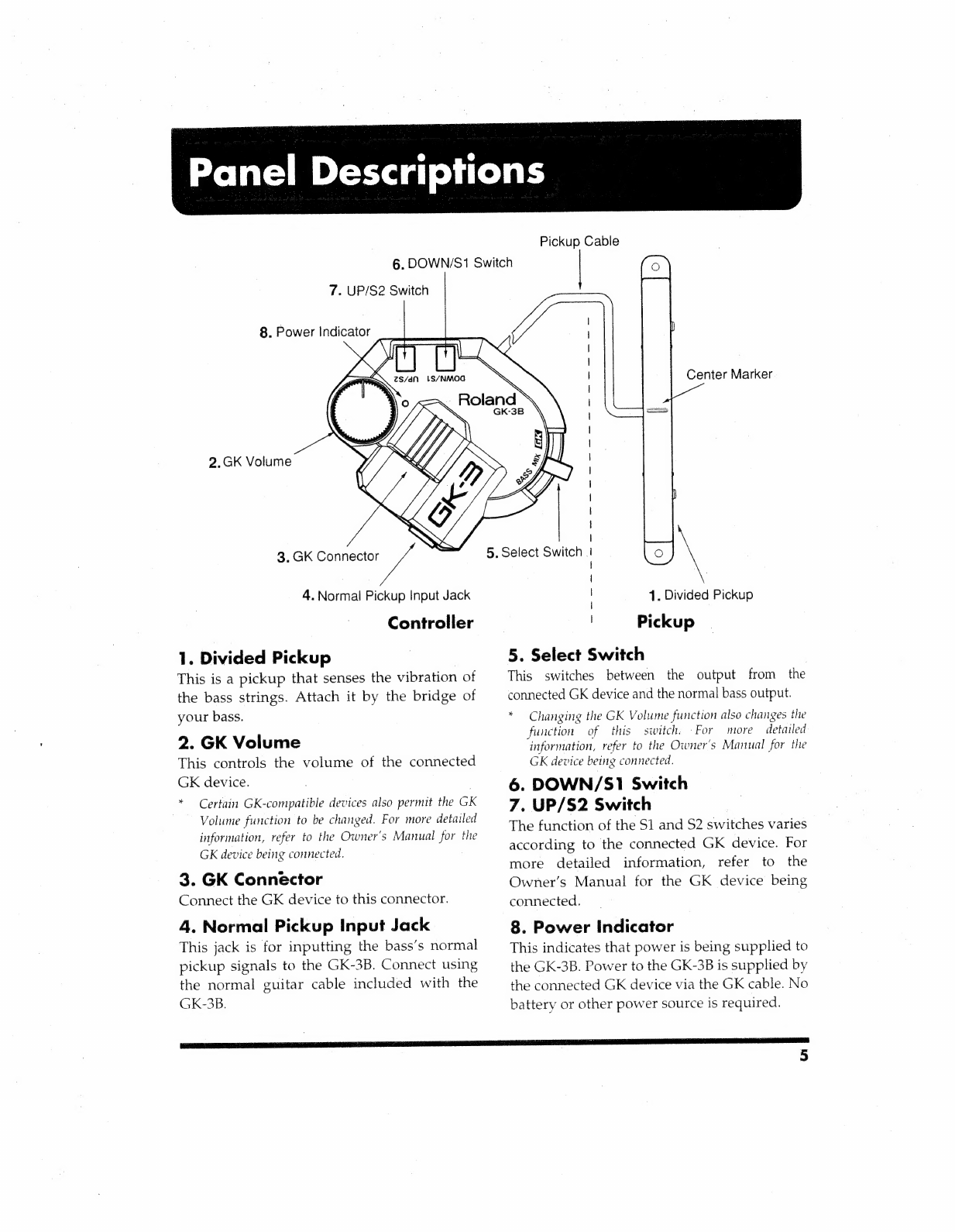

Panel

Descriptions

6.

DOWN/S1

Switch

7.

UP/S2

Switch

2.GK

Volume

4.

Normal

Pickup

Input

Jack

Controller

1.

Divided

Pickup

|

This

is

a

pickup

that

senses

the

vibration

of

the

bass

strings.

Attach

it

by

the

bridge

of

your

bass.

2.

GK

Volume

This

controls

the

volume

of

the

connected

GK

device.

.

*

Certain

GK-compatible

devices

also

permit

the

GK

Volume

function

to

be

changed.

For

more

detailed

information,

refer

to

the

Owner's

Manual

for

the

GK

device

being

connected.

3.

GK

Connector

Connect

the

GK

device

to

this

connector.

4.

Normal

Pickup

Input

Jack

This

jack

is

for

inputting

the

bass’s

normal

pickup

signals

to

the

GK-3B.

Connect

using

the

normal

guitar

cable

included

with

the

GK-3B.

Pickup

Cable

Center

Marker

GAN

1.

Divided

Pickup

Pickup

5.

Select

Switch

|

This

switches

between

the

output

from

the

connected

GK

device

and

the

normal

bass

output.

*

Changing

the

GK

Volume

function

also

changes

the

function

of

this

switch.

For

more

detailed

information,

refer

to

the

Owner's

Manual

for

the

GK

device

being

connected.

6.

DOWN/S1

Switch

7.

UP/S2

Switch

The

function

of

the

$1

and

S2

switches

varies

according

to

the

connected

GK

device.

For

more

detailed

information,

refer

to

the

Owner’s

Manual

for

the

GK

device

being

connected.

8.

Power

Indicator

This

indicates

that

power

is

being

supplied

to

the

GK-3B.

Power

to

the

GK-3B

is

supplied

by

the

connected

GK

device

via

the

GK

cable.

No

batterv

or

other

power

source

is

required.

2

5

Attaching

the

GK-3B

to

the

Bass

The

GK-3B

can

be

attached

to

and

used

with

conventional

electric

basses.

Please

read

the

following

precautions

before

installing

the

GK-3B.

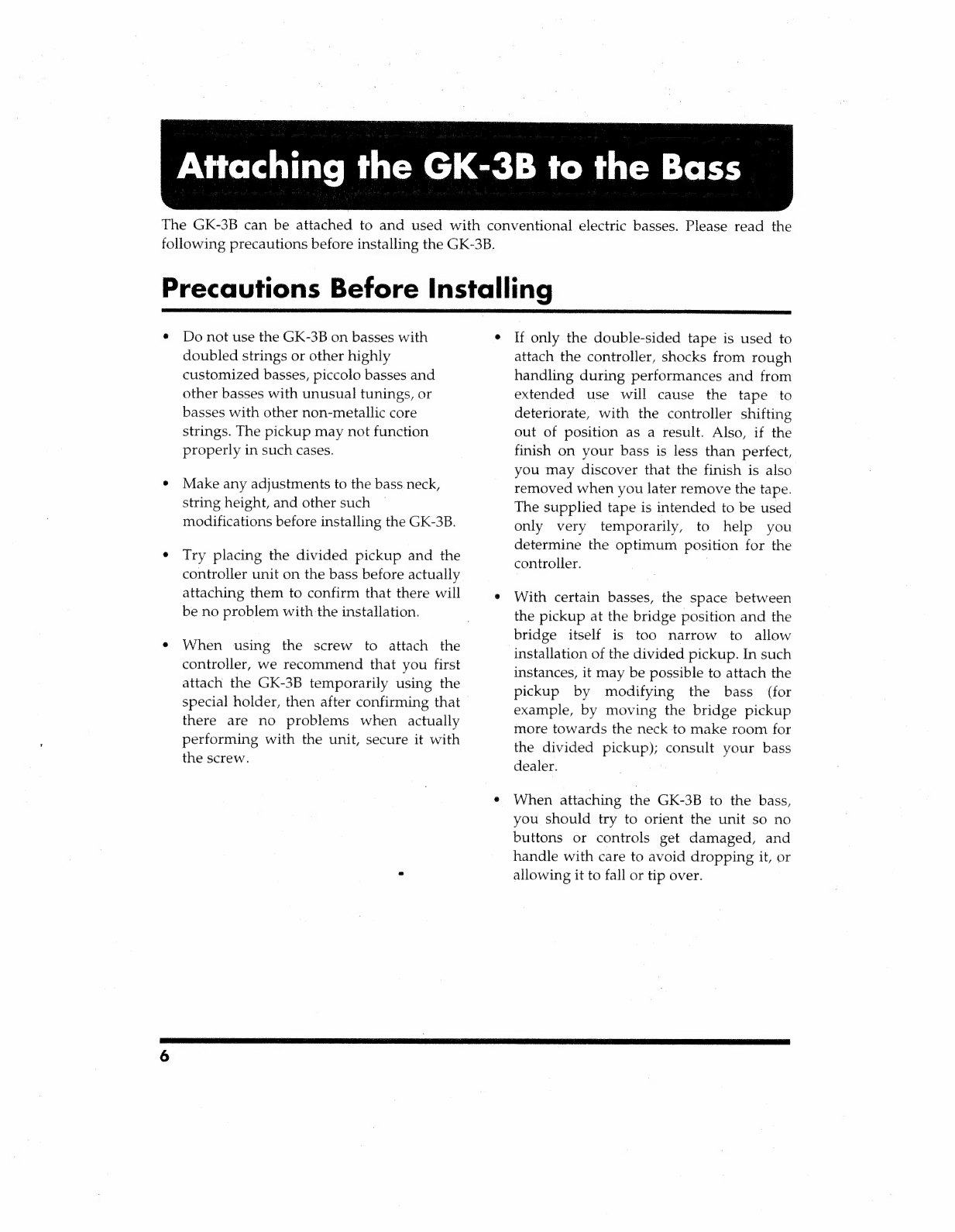

Precautions

Before

Installing

Do

not

use

the

GK-3B

on

basses

with

doubled

strings

or

other

highly

customized

basses,

piccolo

basses

and

other

basses

with

unusual

tunings,

or

basses

with

other

non-metallic

core

strings.

The

pickup

may

not

function

properly

in

such

cases.

Make

any

adjustments

to

the

bass

neck,

string

height,

and

other

such

modifications

before

installing

the

GK-3B.

Try

placing

the

divided

pickup

and

the

controller

unit

on

the

bass

before

actually

attaching

them

to

confirm

that

there

will

be

no

problem

with

the

installation.

When

using

the

screw

to

attach

the

controller,

we

recommend

that

you

first

attach

the

GK-3B

temporarily

using

the

special

holder,

then

after

confirming

that

there

are

no

problems

when

actually

performing

with

the

unit,

secure

it

with

the

screw.

If

only

the

double-sided

tape

is

used

to

attach

the

controller,

shocks

from

rough

handling

during

performances

and

from

extended

use

will

cause

the

tape

to

deteriorate,

with

the

controller

shifting

out

of

position

as

a

result.

Also,

if

the

finish

on

your

bass

is

less

than

perfect,

you

may

discover

that

the

finish

is

also

removed

when

you

later

remove

the

tape.

The

supplied

tape

is

intended

to

be

used

only

very

temporarily,

to

help

you

determine

the

optimum

position

for

the

controller.

.

With

certain

basses,

the

space

between

the

pickup

at

the

bridge

position

and

the

bridge

itself

is

too

narrow

to

allow

installation

of

the

divided

pickup.

In

such

instances,

it

may

be

possible

to

attach

the

pickup

by

modifying

the

bass

(for

example,

by

moving

the

bridge

pickup

more

towards

the

neck

to

make

room

for

the

divided

pickup);

consult

your

bass

dealer.

When

attaching

the

GK-3B

to

the

bass,

you

should

try

to

orient

the

unit

so

no

buttons

or

controls

get

damaged,

and

handle

with

care

to

avoid

dropping

it,

or

allowing

it

to

fall

or

tip

over.

Attaching

the

GK-3B

to

the

Bass

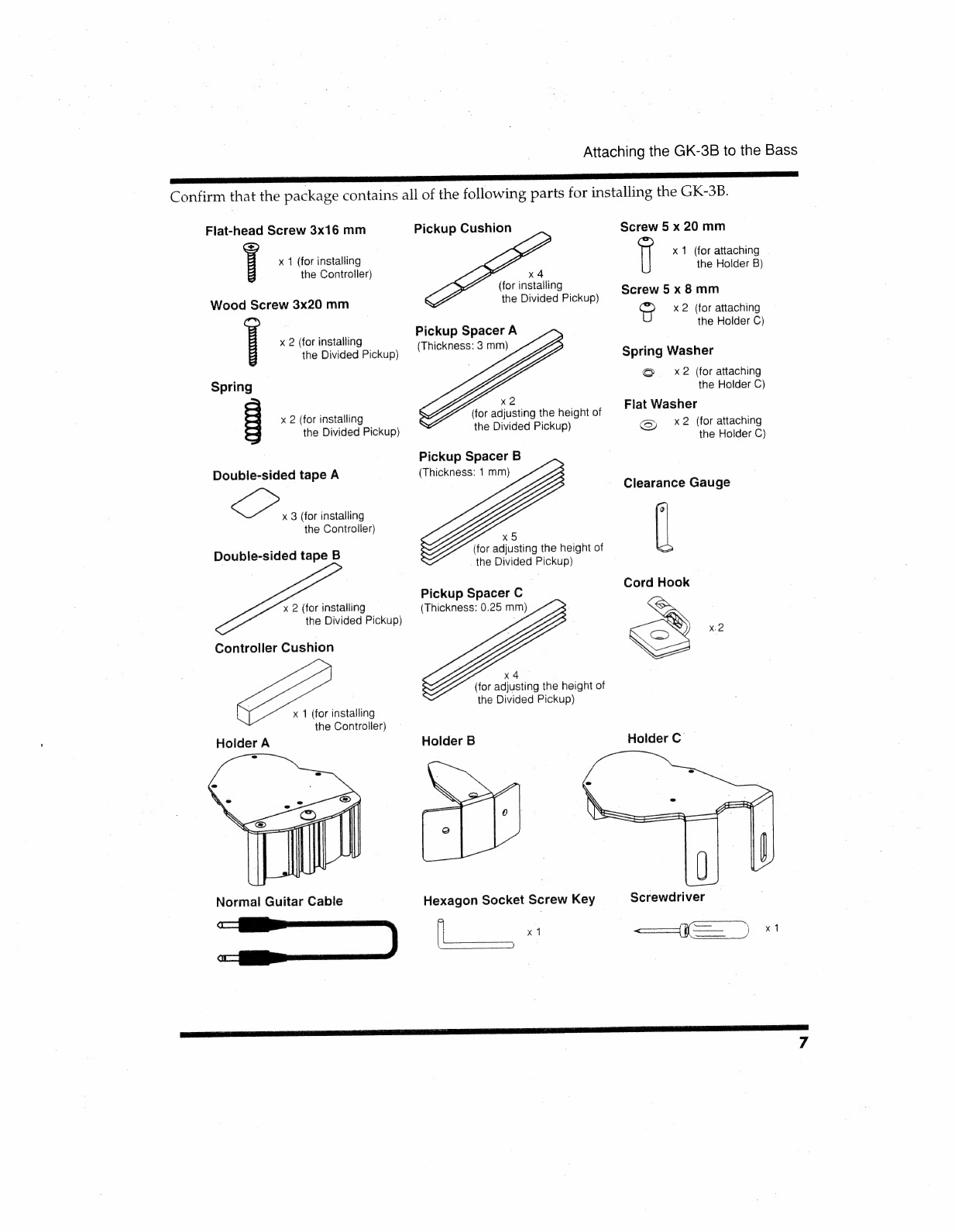

Confirm

that

the

package

contains

all

of

the

following

parts

for

installing

the

GK-3B.

Flat-head

Screw

3x16

mm

x

1

(for

installing

the

Controller)

Wood

Screw

3x20

mm

x

2

(for

installing

the

Divided

Pickup)

Spring

x

2

(for

installing

the

Divided

Pickup)

Double-sided

tape

A

4

x

3

(for

installing

the

Controller)

Double-sided

tape

B

x

2

(for

installing

the

Divided

Pickup)

Controller

Cushion

x

1

(tor

installing

the

Controller)

Hoider

A

Normal

Guitar

Cable

oneal

Pickup

Cushion

x4

(for

installing

the

Divided

Pickup)

Pickup

Spacer

A

(Thickness:

3

mm)

x2

(for

adjusting

the

height

of

the

Divided

Pickup)

Pickup

Spacer

B

(Thickness:

1

mm)

x5

(for

adjusting

the

height

of

the

Divided

Pickup)

Pickup

Spacer

C

(Thickness:

0.25

mm)

x4

(for

adjusting

the

height

of

the

Divided

Pickup)

Holder

B

Hexagon

Socket

Screw

Key

x1

—

Screw

5

x

20

mm

x

1

(for

attaching

the

Holder

B)

Screw

5

x

8

mm

F

x2

(for

attaching

the

Holder

C)

Spring

Washer

@.

x2

(for

attaching

the

Hoider

C)

Flat

Washer

eB,

x2

(for

attaching

re

the

Holder

C)

Clearance

Gauge

Holder

C

Screwdriver

Attaching

the

GK-3B

to

the

Bass

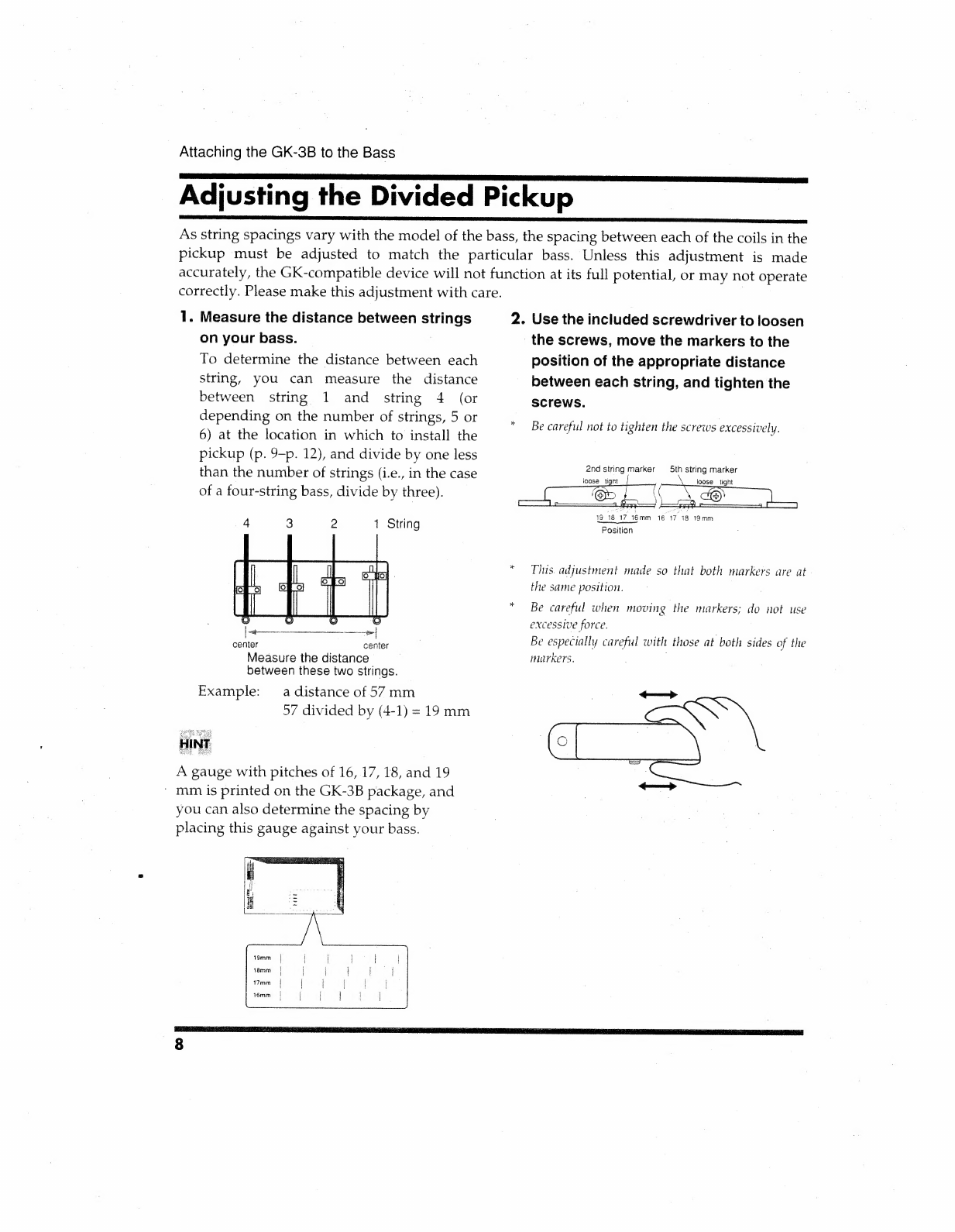

Adjusting

the

Divided

Pickup

As

string

spacings

vary

with

the

model

of

the

bass,

the

spacing

between

each

of

the

coils

in

the

pickup

must

be

adjusted

to

match

the

particular

bass.

Unless

this

adjustment

is

made

accurately,

the

GK-compatible

device

will

not

function

at

its

full

potential,

or

may

not

operate

correctly.

Please

make

this

adjustment

with

care.

1.

Measure

the

distance

between

strings

2.

Use

the

included

screwdriver

to

loosen

on

your

bass.

the

screws,

move

the

markers

to

the

To

determine

the

distance

between

each

position

of

the

appropriate

distance

string,

you

can

measure

the

distance

between

each

string,

and

tighten

the

between

string

1

and

string

4

(or

screws.

depending

on

the

number

of

strings,

5

or

6)

at

the

location

in

which

to

install

the

pickup

(p.

9-p.

12),

and

divide

by

one

less

Be

careful

not

to

tighten

the

screws

excessively.

. :

:

2nd

st

k

Sth

st

k

than

the

number

of

strings

(i.e.,

in

the

case

ee

a

eae

ose

aS

aose.

CAO

of

a

four-string

bass,

divide

by

three).

=

>

r

19

18 17 16

18

37

16mm

16

7

8

19mm

4

3 2

1

String

“Position

etal-

j

LT

rT

9

e,

excessive

force.

Senter

pale

Be

especially

careful

with

those

at

both

sides

of

the

Measure

the

distance

l

markers.

between

these

two

strings.

This.

adjustment

made

so

that

both

markers

are

at-

the

same

position.

*

Be

careful

when

moving

the

markers;

do

not

use

Example:

a

distance

of

57

mm

57

divided

by

(4-1)

=

19

mm

A

gauge

with

pitches

of

16,

17,

18,

and

19

"

mm

is

printed

on

the

GK-3B

package,

and

you

can

also

determine

the

spacing

by

placing

this

gauge

against

your

bass.

Attaching

the

GK-3B

to

the

Bass

Attaching

the

Divided

Pickup

There

are

two

ways

to

attach

the

divided

pickup.

©

Attaching

the

Pickup

with

Double-

Sided

Tape

(p.

9)

This

provides

the

simplest

way

to

attach

the

pickup

to

flat-top

basses.

*

*

@

Attaching

the

Pickup

with

Screws

(p.

12)

This

method

features

the

benefit

of

allowing

the

pickups

to

be

finely

adjusted

later

on,

but

it

is

somewhat

difficult

to

carry

out.

Do

not

place

any

unnecessary

strain

on

the

cable

connecting

the

pickup

and

the

controller.

This

may

result

in

breaking.

Do

not

bend

or

twist

the

pickup.

Use

particular

care

when

removing

the

pickup.

E

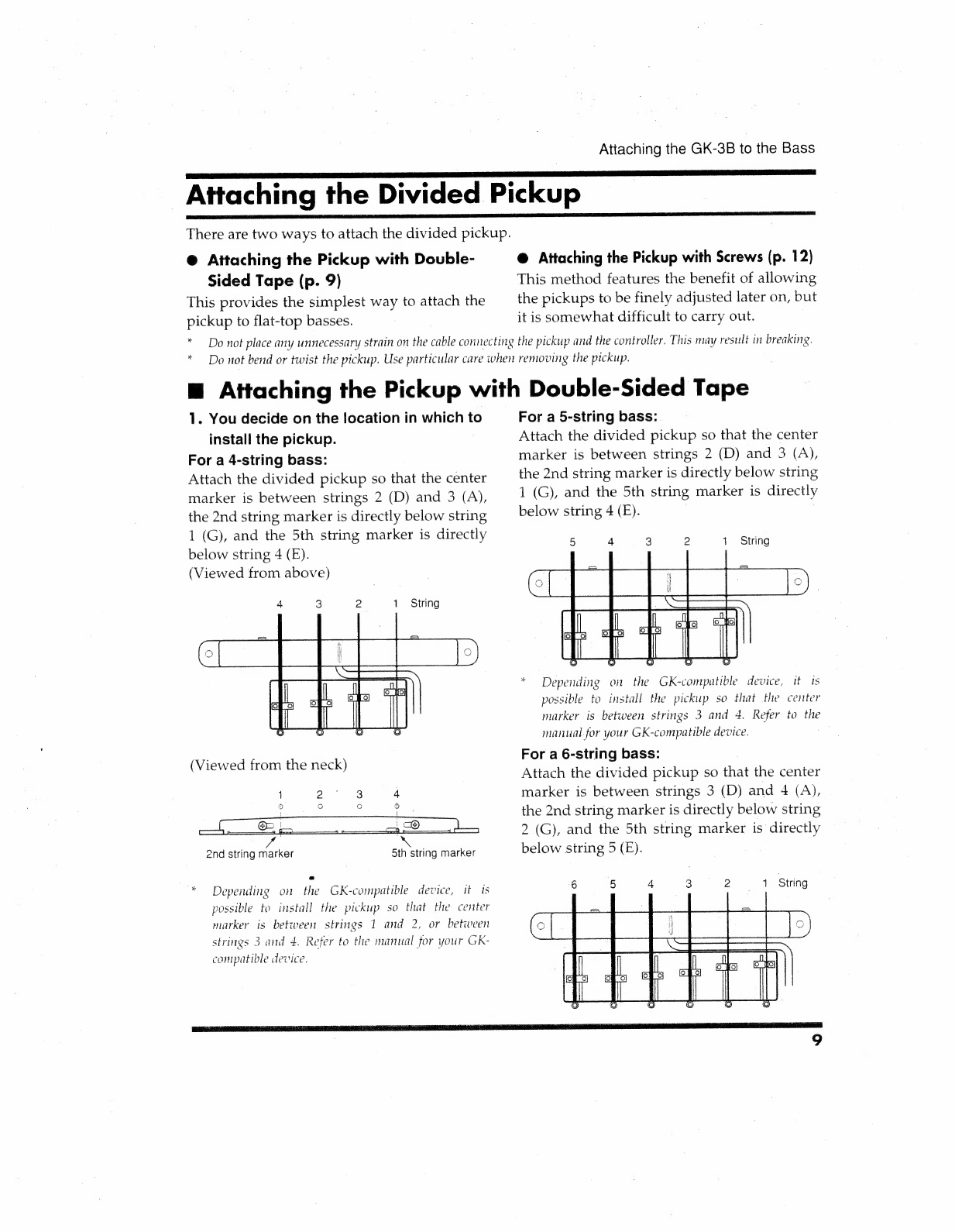

Attaching

the

Pickup

with

Double-Sided

Tape

1.

You

decide

on

the

location

in

which

to

install

the

pickup.

|

For

a

4-string

bass:

Attach

the

divided

pickup

so

that

the

center

marker

is

between

strings

2

(D)

and

3

(A),

the

2nd

string

marker

is

directly

below

string

1

(G),

and

the

5th

string

marker

is

directly

below

string

4

(E).

(Viewed

from

above)

4

3

2-

1

String

2nd

string

marker

5th

string

marker

»

Depending

on

the

GK-compatible

device,

it

is

possible

to

install

the

pickup

so

that

the

center

marker

is

between

strings

1

and

2,

or

between

strings

3

and

4.

Refer

to

the

manual

for

your

GK-

compatible

device.

For

a

5-string

bass:

Attach

the

divided

pickup

so

that

the

center

marker

is

between

strings

2

(D)

and

3

(A),

the

2nd

string

marker

is

directly

below

string

1

(G),

and

the

5th

string

marker

is

directly

below

string

4

(E).

5

4

3

2

1

String

Q

©

C

Depending

on

the

GK-compatible

device,

it

ts

possible

to

install

the

pickup

so

that

the

center

marker

is

between

strings

3

and

4.

Refer

to

the

manual

for

your

GK-compatible

device.

i

For

a

6-string

bass:

Attach

the

divided

pickup

so

that

the

center

marker

is

between

strings

3

(D)

and

4

(A),

the

2nd

string

marker

is

directly

below

string

2

(G),

and

the

5th

string

marker

is

directly

below

string

5

(E).

1

String

Attaching

the

GK-3B

to

the

Bass

a

A

I

TE

BN

IRE

eT

ET EE

EEE

DS

TT

SEE

TS oe

*

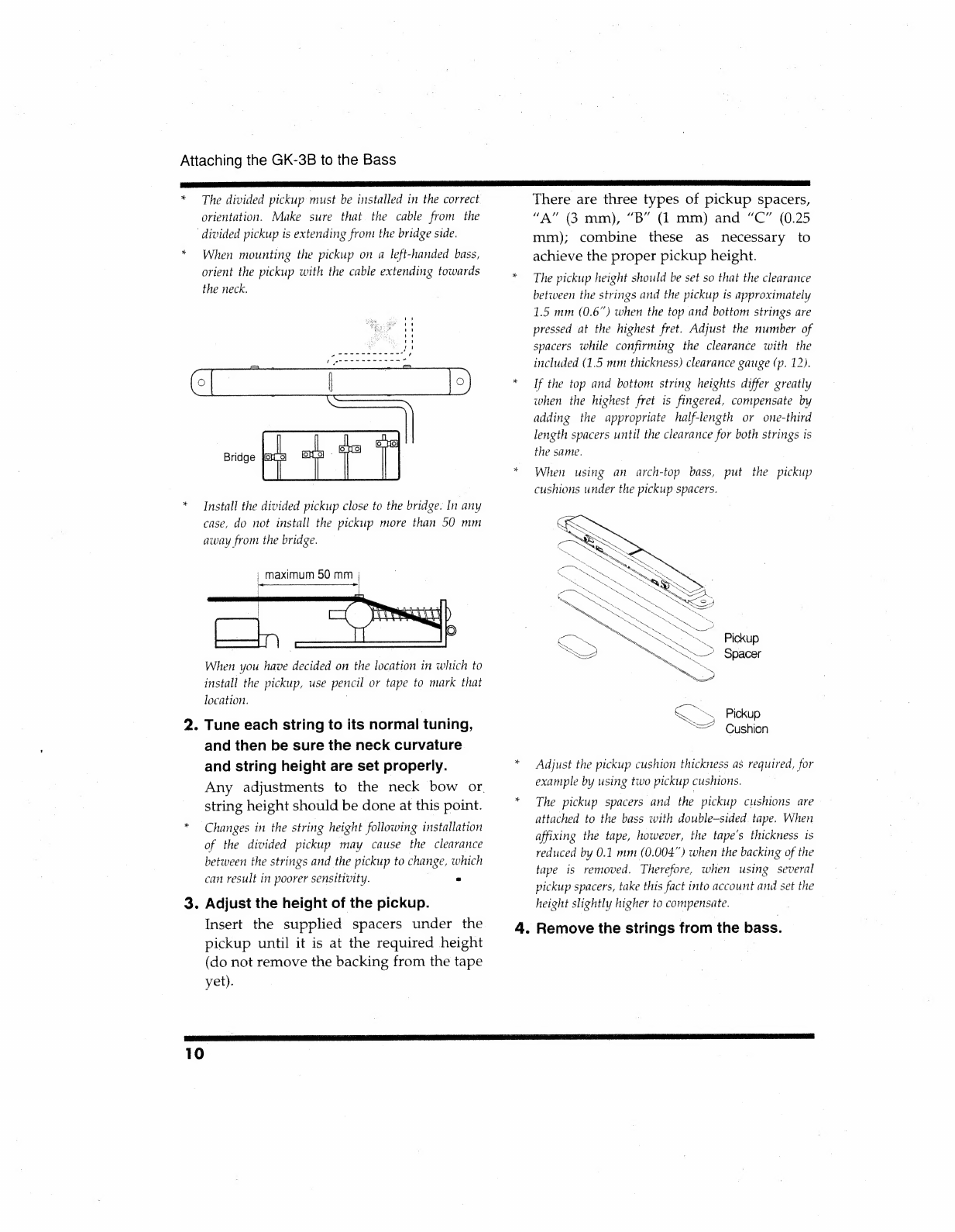

The

divided

pickup

must

be

installed

in

the

correct

orientation.

Make

sure

that

the

cable

from

the

divided

pickup

is

extending

from

the

bridge

side.

When

mounting

the

pickup

on

a

left-handed

bass,

orient

the

pickup

with

the

cable

extending

towards

the

neck.

10

Install

the

divided

pickup

close

to

the

bridge.

In

any

case,

do

not

install

the

pickup

more

than

50

mm

away

from

the

bridge.

|

maximum

50

mm

|

When

you

have

decided

on

the

location

in

which

to

install

the

pickup,

use

pencil

or

tape

to

mark

that

location.

l

Tune

each

string

to

its

normal

tuning,

and

then

be

sure

the

neck

curvature

and

string

height

are

set

properly.

Any

adjustments

to

the

neck

bow

or.

string

height

should

be

done

at

this

point.

Changes

in

the

string

height

following

installation

of

the

divided

pickup

may

cause

the

clearance

between

the

strings

and

the

pickup

to

change,

which

can

result

in

poorer

sensitivity.

«

Adjust

the

height

of

the

pickup.

Insert

the

supplied

spacers

under

the

pickup

until

it

is

at

the

required

height

(do

not

remove

the

backing

from

the

tape

yet).

There

are

three

types

of

pickup

spacers,

“A”

(3

mm),

“B”

(1

mm)

and

“C”

(0.25

mm);

combine

these

as

necessary

to

achieve

the

proper

pickup

height.

The

pickup

height

should

be

set

so

that

the

clearance

between

the

strings

and

the

pickup

is

approximately

1.5

mm

(0.6")

when

the

top

and

bottom

strings

are

pressed

at

the

highest

fret.

Adjust

the

number

of

spacers

while

confirming

the

clearance

with

the

included

(1.5

mm

thickness)

clearance

gauge

(p.

12).

If

the

top

and

bottom

string

heights

differ

greatly

when

the

highest

fret

is

fingered,

compensate

by

adding

the

appropriate

half-length

or

one-third

length

spacers

until

the

clearance

for

both

strings

is

the

same.

When

using

an

arch-top

bass,

put

the

pickup

cushions

under

the

pickup

spacers.

_

Pickup

—~

Spacer

QO

Pickup

Cushion

Adjust

the

pickup

cushion

thickness

as

required,

for

example

by

using

two

pickup

cushions.

The

pickup

spacers

and

the

pickup

cushions

are

attached

to

the

bass

with

double-sided.

tape.

When

affixing

the

tape,

however,

the

tape’s

thickness

ts

reduced

by

0.1

mm

(0.004")

when

the

backing

of

the

tape

is

removed.

Therefore,

when

using

several

pickup

spacers,

take

this

fact

into

account

and

set

the

height

slightly

higher

to

compensate.

4.

Remove

the

strings

from

the

bass.
