Roland D-50 Manuale utente

fSRoland

MSI LINEAR SYNTHESIZER

D-5D

Owner's Manual

ADVANCED

ADVANCED COURSE

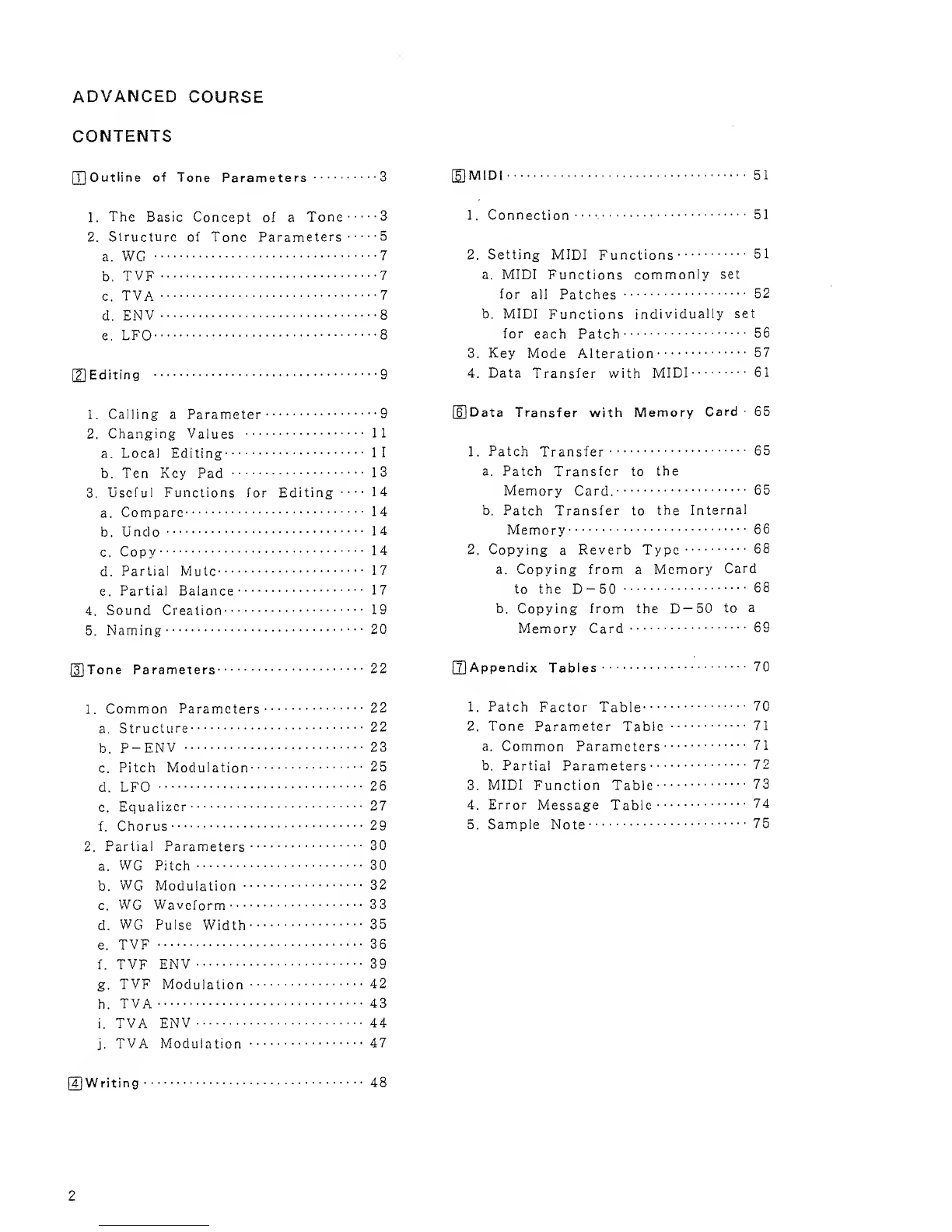

CONTENTS

(TJOutline of Tone Parameters 3

1. The Basic Concept of aTone 3

2. Structure of Tone Parameters 5

a. WG 7

b. TVF 7

c. TVA 7

d. ENV 8

e. LFO 8

[2]Editing 9

1. Calling aParameter 9

2. Changing Values 11

a. Local Editing 11

b. Ten Key Pad 13

3. Useful Functions for Editing 14

a. Compare 14

Undo 14

c. Copy 14

d. Partial Mute 17

e. Partial Balance 17

4. Sound Creation 19

5. Naming 20

[3] Tone Parameters 22

1. Common Parameters 22

a. Structure 22

b. P-ENV 23

c. Pitch Modulation 25

d. LFO 26

e. Equalizer 27

f. Chorus 29

2. Partial Parameters 30

a. WG Pitch 30

b. WG Modulation 32

c. WG Waveform 33

d. WG Pulse Width 35

e. TVF 36

f. TVF ENV 39

g. TVF Modulation 42

h. TVA 43

i. TVA ENV 44

j. TVA Modulation 47

(4) Writing 48

G3M1D! 51

1. Connection 51

2. Setting MIDI Functions 51

a. MIDI Functions commonly set

for all Patches 52

b. MIDI Functions individually set

for each Patch 56

3. Key Mode Alteration 57

4. Data Transfer with MIDI 61

H]Data Transfer with Memory Card 65

1. Patch Transfer 65

a. Patch Transfer to the

Memory Card. 65

b. Patch Transfer to the Internal

Memory 66

2. Copying aReverb Type 68

a. Copying from aMemory Card

to the D-50 68

b. Copying from the D—50 to a

Memory Card 69

jTjAppendix Tables 70

1. Patch Factor Table 70

2. Tone Parameter Table 71

a. Common Parameters 71

b. Partial Parameters 72

3. MIDI Function Table 73

4. Error Message Table 74

5. Sample Note 75

OUTLINE OF TONE PARAMETERS

UOUTLINE OF TONE PARAMETERS

1. THE BASIC CONCEPT OF ATONE

ATone consists of two Partials (Partials 1and 2) and aCommon

block.

Partial 1

Partial 2

Tone

<^*1 (Structure

(ENV for pitch control]

Common

<t=D \3LFO'<

y[ Equalizer )^>{ Chorus

Tone Name

„>

Each Partial (Partial 1and Partial 2) can have one of two sound

generators (a Synthesizer sound source or aPCM sound source). So

you can think of the D-50 having powerful synthesizers built in.

Each of these hypothetical synthesizers could behave like a

conventional analog synthesizer, or aPCM sampled synthesizer. Any

combination of two synthesizers can achieve some remarkable cross

—modulation effects, so characteristic of today's purely digital

sounds.

Some Common parameters apply to both Partials (Partial 1and 2),

"Structure" is one of the Common parameters. It decides which of

the two sound generators is used for each Partial. Other Common

parameters are an ENV for pitch, three LFO modules, equalizer,

chorus, etc.

OUTLINE OF TONE PARAMETERS

[STRUCTURE] Structure, which is one of the Common parameters, determines which

two of the hypothetical synthesizers (a synthesizer sound generator

or aPCM sound generator) are to be used as Partial 1and Partial

A"Synthesizer sound generator" works like aconventional analog

type synthesizer with an oscillator, afilter, an amplifier and two

ENV's. APCM sound generator provides 100 different PCM sampled

sounds.

These two Partial sounds (Partial 1and Partial 2) can simply be

mixed as shown below.

Partial 1

Partial 2

By mixing two Partials, fatter sounds can be obtained. This is

effective for making strings or organ type sounds.

Or Partial 1can be mixed with the ring- modulated sound of

Partiais 1and 2.

Partial 1h

Ring

Modulator

'—

Mixer

Partial 2]

L-V

J"I

OUTLINE OF TONE PARAMETERS

The Ring Modulator multiplies two sounds, creating an unusual and

metallic sound that contains complicated harmonics. For instance, two

waveforms (® and ©) are multipled and waveform ®is created.

This is effective for making metallic sounds.

2. STRUCTURE OF TONE PARAMETERS

Depending on which generators are selected in the Partial Block,

greatly different Tone Parameters will be used .Some Tone

Parameters used for the Synthesizer sound generators are irrelevant

to the PCM generator (see the diagram below).

In aStructure with Ring modulation, some parameters of Partial 2

are automatically set to those of Partial 1. See page 22 "Tone

Parameters" for adetailed explanation.

OUTLINE OF TONE PARAMETERS

Synthesizer Sound Generator

Partial

"~l

©Pitch

©Waveform

TVF

DPulse

Width

(©Cutoff

Frequency y

TVA

)TVF

ENV

)Resonance

©Level

)TVA

ENV

©P-ENV

for pitch

controlling

)LF0-1

)LF0-2

)LFO-3

PCM Sound Generator

T' TVA "~i

)Level

)TVA

ENV

f f

OUTLINE OF TONE PARAMETERS

a. WG (Wave Generator)

b. TVF (Time Variant Filter)

In the WG (Wave Generator), the pitch and waveform are controlled.

©Pitch

The basic pitch of aPartial (sound generator) can be set here.

The pitch is aCommon parameter, and is therefore controlled by

©P-ENV and ©LFO-1.

©Waveform (PCM Wave Number)

This selects the waveform of the sound source. When asynthesizer

sound generator is selected, the waveform can be controlled by the

©Pulse Width controls.

©Pulse Width

This changes the waveform of the sound source. The pulse width

is controlled by any LFO (=Common parameter).

This filter passes lower frequency harmonics and cuts off the higher

ones. By changing the cutoff point and the resonance, the waveform

changes.

©Cutoff Frequency

This sets the cutoff point. The cutoff point can be controlled by

©TVF ENV and any LFO (=Common parameter).

©Resonance

This emphasizes the cutoff point, making more unusual or electronic

sounds.

c. TVA (Time Variant Amplifier)

This controls the volume of the Partial.

DLevel

This determines the volume of the sound. When asynthesizer

sound generator is used, the level can be controlled with the ®

TVA ENV and any LFO (Common parameter). When aPCM sound

generator is used, the ©TVA ENV controls the level.

OUTLINE OF TONE PARAMETERS

d. ENV (Envelope Generator)

This generators acontrol signal (envelope curve) which controls the

pitch, timbre and volume of each Partial (sound generator).

©P-ENV

This is the ENV which controls pitch. It can be set for two

selected Partial at once.

®TVF ENV

This ENV controls the cutoff point, and can be set for each Partial

separately.

(DTVA ENV

This ENV controls the volume level. This can be set for each

Partial separately.

e. LFO (Low Frequency Oscillator)

This oscillator generates low frequencies only.

Any of the three LFO's can be used for the two Partials, Vibrato,

PWM growl or tremolo effects can be obtained using these LFO's.

*A different LFO can be used for each section or aPARTIAL.

®LFO-1

This can control ©Pitch, ©Pulse Width, ©Cutoff Frequency

or ©Level.

©LFO-2

This can control ©Pulse Width, ©Cutoff Frequency or ©Level,

©LFO-3

This can control ©Pulse Width, ©Cutoff Frequency or ©Level.

EDITING

21 EDITING

The D-50 features various parameters which can be edited, thereby-

synthesizing new sounds. However, it does not feature knobs or

switches on its front panel. Instead, there are two methods of

editing :one is achieved by calling each parameter with the relevant

buttons, and changing the value with the Joystick, or Increment and

Decrement Buttons, the other is by using the optional programmer

PG —1000, which has all the necessary panel controls.

For quicker and easier editing or synthesizing from scratch, the PG

—1000 may be essential.

*The editing procedure does not automatically rewrite the existing

program, the appropriate writing procedure, on page 18 must be taken.

1. CALLING APARAMETER

Anumber of Patch Factors and Tone Parameters are shown in a

Menu Display at the same time. There are several Menu Displays as

shown below. Each parameter shown in aMenu Display contains

Tone Menu Display

(Lower)

Play Mode Display

Common

Menu Display

Partial 1's

Menu Display

v1"

Partial 2's ^

Menu Display

Ytu*V

Tone Menu Display |

(Upper) Patch Menu Display

Common

^Menu Display

Partial 1's

Menu Display

Partial 2's

Menu Display

t t t 1tf V"v

several more parameters.

You can select any parameter you want by using the corresponding

Selector Button or Scroll Button.

CZH

i 1 ii—i;

i—i i—

r~ri

I—

l—il—li—

fZZl I

Left Scroll Button

rzzjczziczzi

i i

—

ii—it=i

rzzn ICZZICZZI

Selector Buttons Right Scroll Button Exit Button Shift Key

EDITING

The following explains how each button works. The Menu Display

and parameter which each button leads to are shown in the supplied

Edit Map. Please thoroughly study the map.

•Selector Buttons

These can be used to select one of the parameters shown in the

Display. Simply push the relevant Selector Button, and its current

value will flash in the Display.

•Scroll Buttons

These buttons can be used to scroll through more parameters in

the same menu group.

Pushing the far —right Scroll Button calls the next parameter

group, and the left Scroll Button returns to the previous parameter

group.

•Exit Button

This button can be used to leave the parameter currently called

and go back to its Menu Display. To go back to the Play Mode

Display, hold down the Shift Key while pressing the Exit Button.

[CHANGING PARTIAL DISPLAYS]

While editing aparameter of one Partial, you can call the Display

of the same parameter for adifferent Partial.

The Patch Buttons 1to 4can select Partials as shown below.

I!=

i—ii—M—

i—

1—

1—ii 1 1 11i

i—

E=Dfc£5Er=]

CZTJCZ] CZDCZ] [IPIZPCZ]^[zzi czrj en tzzi iii ir~~i inn11 11 i

Upper's Partial 2

Upper's Partial 1

Lower's Partial 2

Lower's Partial 1

Altri manuali per D-50

Indice

Altri manuali Roland Sintetizzatore

Roland

Roland Jupiter-50 Manuale utente

Roland

Roland SH-2 Manuale operativo e di manutenzione

Roland

Roland SH-201 Istruzioni per il montaggio

Roland

Roland E-38 Manuale utente

Roland

Roland UNO-Di Manuale di istruzioni

Roland

Roland Sound Canvas SC-88 VL Manuale utente

Roland

Roland SH-1 Manuale operativo e di manutenzione

Roland

Roland Alpha JUNO-1 Manuale utente

Roland

Roland SH-201 Manuale utente

Roland

Roland JUNO-Gi Istruzioni per il montaggio

Roland

Roland E-66 Manuale utente

Roland

Roland FANTOM Series Manuale utente

Roland

Roland GR-33 Manuale utente

Roland

Roland SH-09 Manuale operativo e di manutenzione

Roland

Roland Fantom G6 Manuale utente

Roland

Roland JUNO-Di Manuale utente

Roland

Roland JUNO-Gi Manuale di istruzioni

Roland

Roland E-16 Manuale utente

Roland

Roland RD-600 Manuale utente

Roland

Roland G-800 Manuale operativo e di manutenzione

Roland

Roland D-50 Manuale utente

Roland

Roland JV-1080 Manuale utente

Roland

Roland JV-880 Manuale operativo e di manutenzione

Roland

Roland XV-88 Manuale operativo e di manutenzione

Manuali Sintetizzatore popolari di altre marche

Kawai

Kawai MP7 Manuale tecnico

Joranalogue

Joranalogue Contour 1 Manuale utente

Full Bucket Music

Full Bucket Music Mono/Fury Manuale utente

Kawai

Kawai PH50 Manuale utente

IK Multimedia

IK Multimedia UNO Synth PRO X Manuale utente

Behringer

Behringer DEEPMIND 12 Manuale utente

Gotharman

Gotharman Gotharman's anAmoNo-box Manuale utente

Yamaha

Yamaha DX21 Manuale utente

QuStream

QuStream HDFS-550 Manuale utente

Modal Electronics

Modal Electronics ARGON8 Manuale utente

Octave

Octave Cat SRM Manuale utente

Dreadbox

Dreadbox Murmux Initiate Manuale utente

neutral labs

neutral labs ELMYRA 2 Manuale utente

Waldorf

Waldorf KYRA Manuale utente

Tubbutec

Tubbutec Juno-66 Manuale utente

EFM

EFM VCADSR - 3510 Manuale utente

Yamaha

Yamaha MOTIF XF Manuale utente

Korg

Korg Poly-800 Manuale utente
