ROLL-ROAD EMMA Manuale utente
EMMA Owner's Manual
http://roll-road.com
Take down your serial numbers here!
Bike frame number:
B
Battery serial number:
Motor serial number:
If you reset a security password via Display Setting,
we suggest you write it down here in case you may forget:
is impossible toy forget:
1
Contents
About Manual.....................................................................................................................................................................1
Basic Specifications..........................................................................................................................................................2
Bike Assembly Guide........................................................................................................................................................4
Assembly Instructions.......................................................................................................................................................6
Safety Checklist.................................................................................................................................................................12
Emma Use&Care................................................................................................................................................................15
Trouble Shooting................................................................................................................................................................21
Quality Assurance and After-Sale Service ......................................................................................................................22
Maintenance........................................................................................................................................................................25
Riding Limitations...............................................................................................................................................................26
Warranty...............................................................................................................................................................................27
2
About Manual
This manual contains details of the product, information on its operation and maintenance, and other helpful tips for owners. Read it carefully and familiarize
yourself with the Roll Road e-bike before using it to ensure safe use, reduce risk of damage and premature wear, and prevent accidents. Be sure to retain this
manual as your convenient Roll Road e-Bike information source.
This manual contains many Warnings and Cautions concerning safe operation, and consequences if proper setup, operation and maintenance
guidelines are not followed. All information in this manual should be carefully reviewed.
The safety grade color of Caution is orange, and if
not avoided, may result in moderate or serious injury.
Users should also pay special attention to information
marked in this manual beginning with “
NOTICE
”
The safety grade color of Warning is red, and if not
avoided will likely result in serious injury or death.
Because it is impossible to anticipate every situation or condition which can occur while riding, this manual makes no representations about the safe use of
our bicycles under all conditions. There are risks associated with the use of any bicycle which cannot be predicted or avoided, and which are the sole
responsibility of the rider. You should keep this manual, along with any other documents that were included with your bicycle, for future reference, however all
content in this manual is subject to change or withdrawal without notice. Visit
http://roll-road.com/
to download the latest version. Assembly and first adjustment
of your Roll Road e-Bike requires special tools and skills, and it is recommended that this be performed by a trained bicycle mechanic if possible.
3
Basic Specifications
A-----------------Total Length 70”
B--------Handlebar Height41.3”
C----------------Wheelbase47.2”
D---------------Seat Height 30.7”
E---------Top Tube Length25.5”
F---------Chain Stay Length19”
G---------Wheel Diameter23”
H------------Standover Height 24”
4
Frame
JYL 6061 Aluminum Alloy. Hydro-formed. Tapered head
tube. Full suspension
Handlebar
Half Twist Throttle ,Three Core Wiring
Motor
WJ 750W Brushless Hub Motor
Pedal
Foldable Pedals
Display
S700 Intelligent LCD Display
Weight
63 lb
Color
White/ Azure
Length*Width*Height
71*27*43 In
Battery position
Outside Frame Body
Throttle
Half twist throttle
Fork
Aluminum Alloy Steerer Tube, Air Suspension.
Mechanical Lockout
Max Range
Estimated Mileage For Reference: 40 Miles
(pure electric)/ 60 miles (pedal assist)
Shift System
Shimano 6 Speed Gear Shift System
Package Size
61*31*12 In
Wheel Size
20Inch
Headlight
2-In-1 LED, 4 Lamp Bead 1200 Lumen. Horn Inside
Tyre
Kenda 20”*4”
Max Speed
28 M/h
Chain
KMC Z51
Total Payload
Capacity
350 lb
Brake
Mechanical Disc Brake
Charging Time
5-7 Hours
RIM
500: Aluminum Alloy Spake Rim
USB Charging Port
Yes
Electric Drive
Mode
Throttle Mode+Pedal Assist Mode(5 Levels)
Electric Drive Mode
Half Twist Throttle Mode+Pedal Assist Mode(5
levels)
5
Bike Assembly Guide
Check the accessories
Charger Hex wrench Pedals Qui ck Release Skewer
Take the accessories box out of the package and make sure it contains those components.
\
6
Recommended Torque Values
Hardware Location
Recommended Torque(NM)
Handlebar
12-18
Stem
12-18
Saddle
12-18
Front Wheel(For bikes with bolts on front wheel)
15-22
Rear wheel
30-38
Bottom Bracket Parts
30-50
Pedals
28-33
Disk Mounting Bolts
3-5
Disk Caliper Mount
6-8
Crank Bolts
32-36
Rear Derailleur Cable Pinch
3-5
Front Derailleur Clamp
3-6
Saddle Post Clamp
3-6
7
Assembly Instructions
8

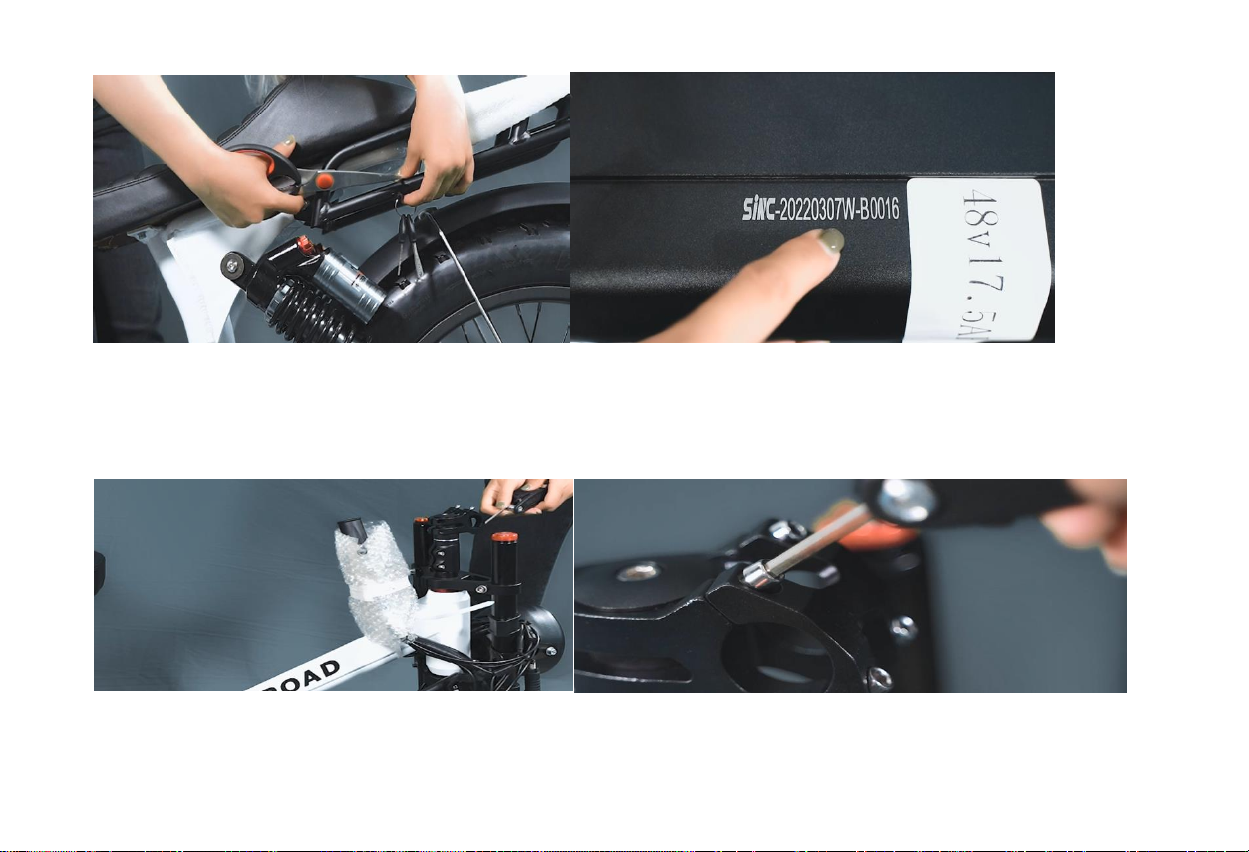

Step1: Remove the battery
Find the keys located on the saddle and remove them. Use the key to unlock the battery. Remove the battery to avoid damage to the battery during installation.
The battery serial number is on the back of the battery.
Step 2: Handlebar Installation
Loosen the bolts on your bike stem
Make the handlebar upright, center your handle bars
