Preface

Thank you for purchasing thiscamera. This camera will help you to fulfill all

your digital picture processing needs.

The camera is equipped with five modes (Capture Mode, Playback

Mode, DSC Setup Mode, Video Mode, and Macro Mode) for your explo-

ration.

This light and handy digital camera offers 4.23 mega pixels high-quality

image along with precise 12 x zoom (3 x optical plus 4 x digital) The built-

in 16MB memory can store your images. The stylish metallic case is

crafted from aluminum alloy, making this camera light and portable.

Through a USB cable connection, pictures can be easily transmitted from

the camera to the PC. Nine recorded images can be displayed on the

high resoultion LCD. Continuous shooting function is also available for

users to take multiple frames of scenes in quick succession.

Note: 1. The company keeps the right to change the con-

tents of this document, spec of this camera in the

future, without prior notice.

Table of Contents ii

E N

Table of Contents

Preface............................................................................i

Prior to Operating the Camera.....................................1

Unpacking the camera...............................................................1

Identifying components..............................................................2

Loading the battery and SD Card...............................................3

Basic Settings............................................................................4

Formatting the Internal Memory and the SD Card.....................4

Basic Operating Procedure..........................................5

Turning the Camera ON/OFF.....................................................5

Basic Shooting...........................................................................5

Auto-Focus Function..................................................................6

Zooming In/Out..........................................................................6

Flash Setting..............................................................................6

Playback....................................................................................6

Five Main Camera Modesand Instructions...................7

Video Mode................................................................................9

Capture Mode..........................................................................10

Playback Mode........................................................................14

Macro Mode.............................................................................16

DSC Setup Mode.....................................................................17

Making Connections...................................................20

Installing software....................................................................20

Connecting through the mini USB............................................20

Connecting through TV-out via docking station (optional)........22

Recharging through the docking station (optional)...................22

APPENDIX...................................................................23

Specifications...........................................................................23

Prior to Operating the Camera

Set this digital camera by following these quick and simple instructions.

Unpacking the camera

1. Clear all items from the box. (It is highly recommended that the box and wrap-

pings are kept for future usage)

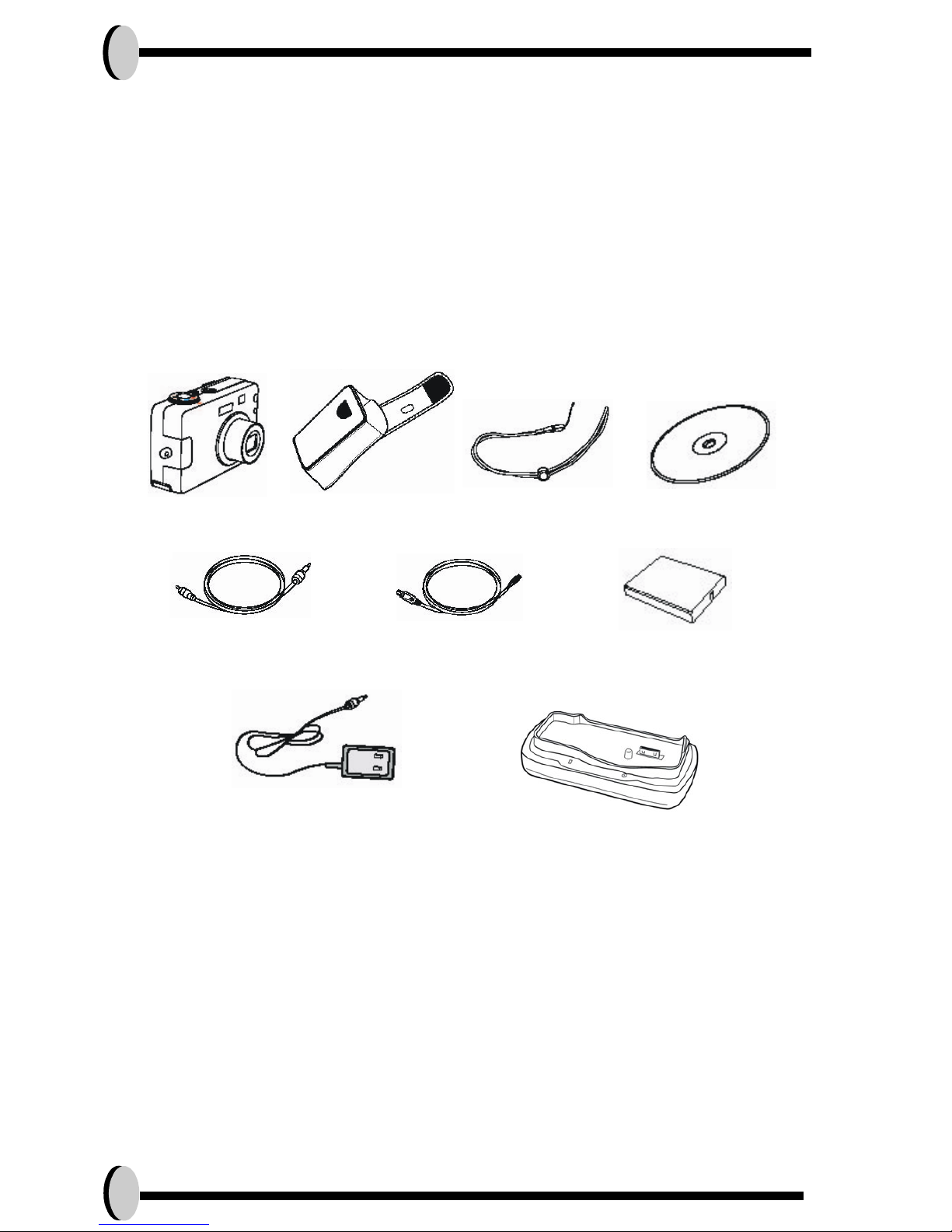

2. Double check for the following items:

Pouch

Camera

ACAdapterDockingStation

Video Cable

Handstrap CD-ROM

Mini USB Cable Battery

E N

Prior to Operating the Camera 2

Identifying components

CAUTION! 1. Use the rechargeable Li-ion for docking only. Do not

use non-rechargeable batteries while docking.

2. Use only the specified battery or AC power adapter

specified (5V 2A) for use with this camera. Other

power sources may cause fire.

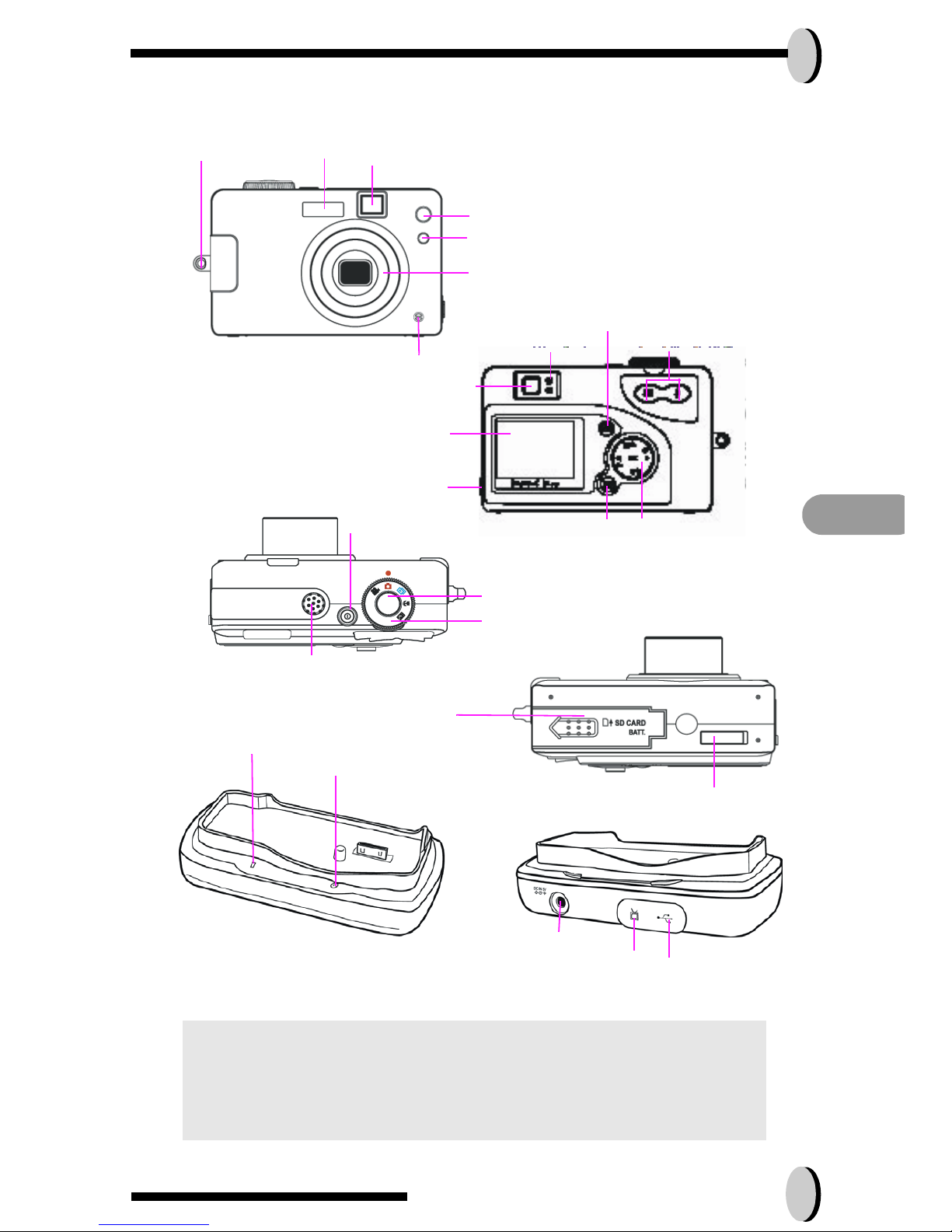

Power/Flash LED Zoom Button

TFT LCD

DC-in & USB Connector

Flash Viewfinder

Self timer LED

Auto-Focus LED

Zoom Lens

Handstrap Hook

Display Button

Five-way Switch

Viewfinder

Menu Selection

Shutter

Mode Dial

Speaker

Power Button

Battery & SD Card

Compartment

AC Adapter LED

Battery Charging Status LED

Red (Charging), Green (Done)

DC-In

TV-Out

USB

Docking Connector

Microphone

Loading the battery and SD Card

This camera uses a Li-ion battery. The battery and SD card share the same compart-

ment and door.

1.Slide the battery/SD Card cover in the direc-

tion of the arrow, then lift to open.

2.Load the included battery in the compartment.

3.Insert the SD card into the slot.

4.Close the cover.

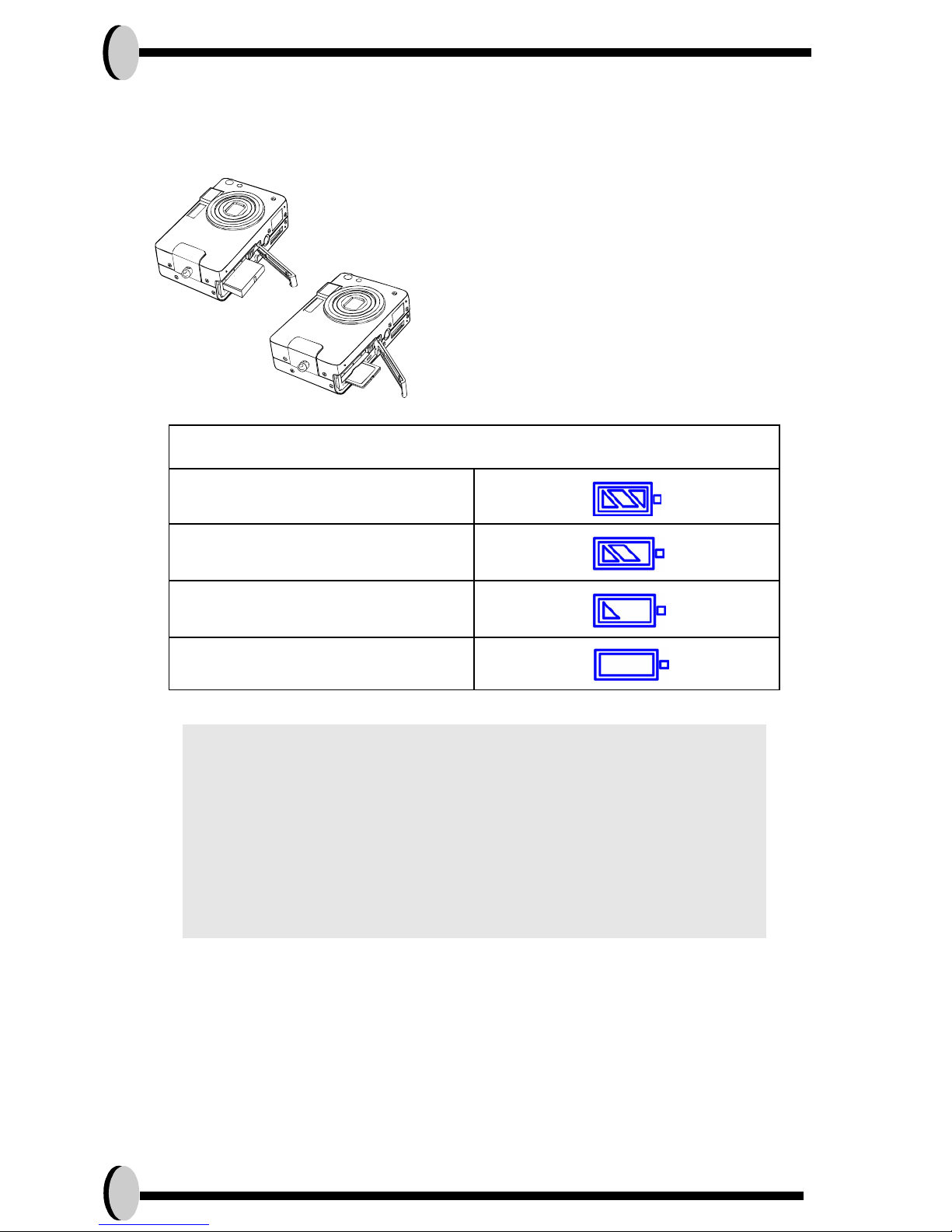

Battery Power Status

Full

Middle

Low

Empty

CAUTION! 1. Fully charge the battery before its first use.

2. Use the rechargeable Li-ion battery for docking.

3. To improve battery performance, replace installed

battery at the same time and keep away from heat.

4. To discard battery, refer to the index of the battery

manufacturer.

5. Battery should be inserted in the battery compart-

ment with the "+" and "-" sides facing correctly.

6. For alternative power source, the optional AC-

Adapter kit is available.

E N

Prior to Operating the Camera 4

Basic Settings

Upon turning the camera ON, a “welcome image” will appear on the LCD

display. Turn the mode dial to the DSC Setup Mode. Please proceed with

the following settings:

Language Preference Setting

1. There are a total of nine languages to choose from to interact with this camera.

English will be the default language. Please refer to DSC Setup Mode. (Page

18)

Date and Time Setting

1. Please refer to the Date and Time setting under DSC Setup Mode. (Page 17)

Formatting the Internal Memory and the SD

Card

To format SD card, please insert your compatible SD card into SD slot.

Thenproceed with the following steps:

1. Turn the Mode Dial to Playback Mode.

2. Press the Menu button to enter Playback menu setting to select “Erase” and

then “Format”

3. You will then be asked "Format SD card?" on the LCD Display.

4. Press the OK button to confirm and proceed with formatting.

5. Push the Menu button to exit Playback menu setting.

As a result, once you withdraw the SD Card from the camera, the LCD

display will show the following message for confirmation: "Format internal

memory?" Then, press OK button to complete formatting internal mem-

ory.

NOTE: 1. Upon loading new battery, users will need to reset their

Basic Settings

2. Do not open the battery/SD card cover or remove the

battery when the camera is in its ON status. Only

remove the battery and SD card when the camera is not

in use, or in its OFF status.

3. If you do not plan on using the camera for a long period

of time, please remove the battery and SD card.

4. Battery charges through the charger or docking station.

5. Camera will draw power from DC-in when used with the

AC-Adapter

Basic Operating Procedure

This section provides simple and basic directions to get you started with

your camera. From this section, you will learn how to turn the camera on

and off, shoot pictures, zoom In and Out, set your flash, and playback

your pictures.

Turning the Camera ON/OFF

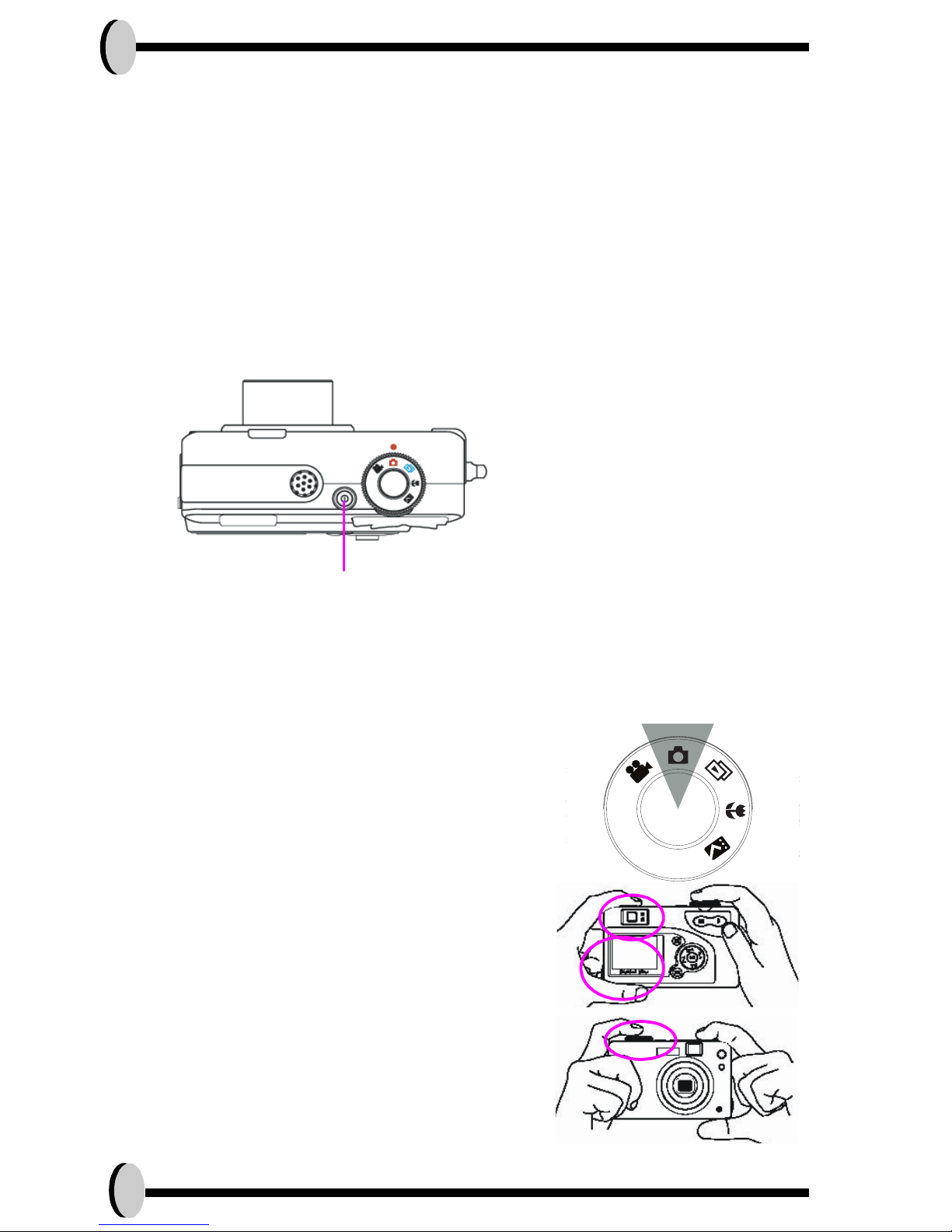

1. Locate the power button on top of the camera.

2. Press the power button down to turn the camera ON or OFF,

The backside LED indicator will remain green while the power is turned

Basic Shooting

1. Turn the mode dial to the capture mode

2. Look into the viewfinder/LCD and try to align

your subject in the crop mark.

3. When you are set, press the shutter button

once.

Power ON/OFF Button

E N

Basic Operating Procedure 6

Auto-Focus Function

Under Auto-Focus, the camera lens focuses automatically when the shut-

ter releaseis pressed halfway.To activateAuto-Focus, please follow these

steps:

1.Crop mark is white in normal situation.Press the

shutter halfway to activateauto focus. Cropmark

turns green when focused. If fail, crop mark isred.

2.Then, fully press the shutter button to take the

picture.

Zooming In/Out

This camera has 3 x optical zoom and 4 x digital zoom. The zoom bar

located on the left side of the LCD display, informs users of the zoom sta-

tus while the zoom in or out button is pressed. While the zoom button is

pressed, there would be 5 levels of optical zoom magnifications (f0~f6),

from W(Wide) to T(Tele) of zoom bar; The zoom lens can automatically

protrude and retract. Then, if you keep pressing the zoom button, there

are additional 8 levels of optical zoom magnification (0.5x/each),

from T(tele)to 4x (4x Digital Zoom) of zoom bar. Users can see the result

on the LCD display.

1. Once you have aligned your subject in the LCD display, press the zoom in or

out button to select your preferred distance.

2. The picture can be zoomed in up to four times the original size, 12 times from

its original size.

Flash Setting

Please Refer to CAPTURE MODE, page 12.

Resolution Digital Zoom

5.5M x 1

4.0M x 4

2.0M x 4

1.3M x 4

VGA x 4

Playback

Please Refer back to PLAYBACK Mode, page 16

Five Main Camera Modesand

Instructions

This section describes the five modes included in this camera. An in-

depth coverage of these modes will be further described. Here are the

five main functions of this camera:

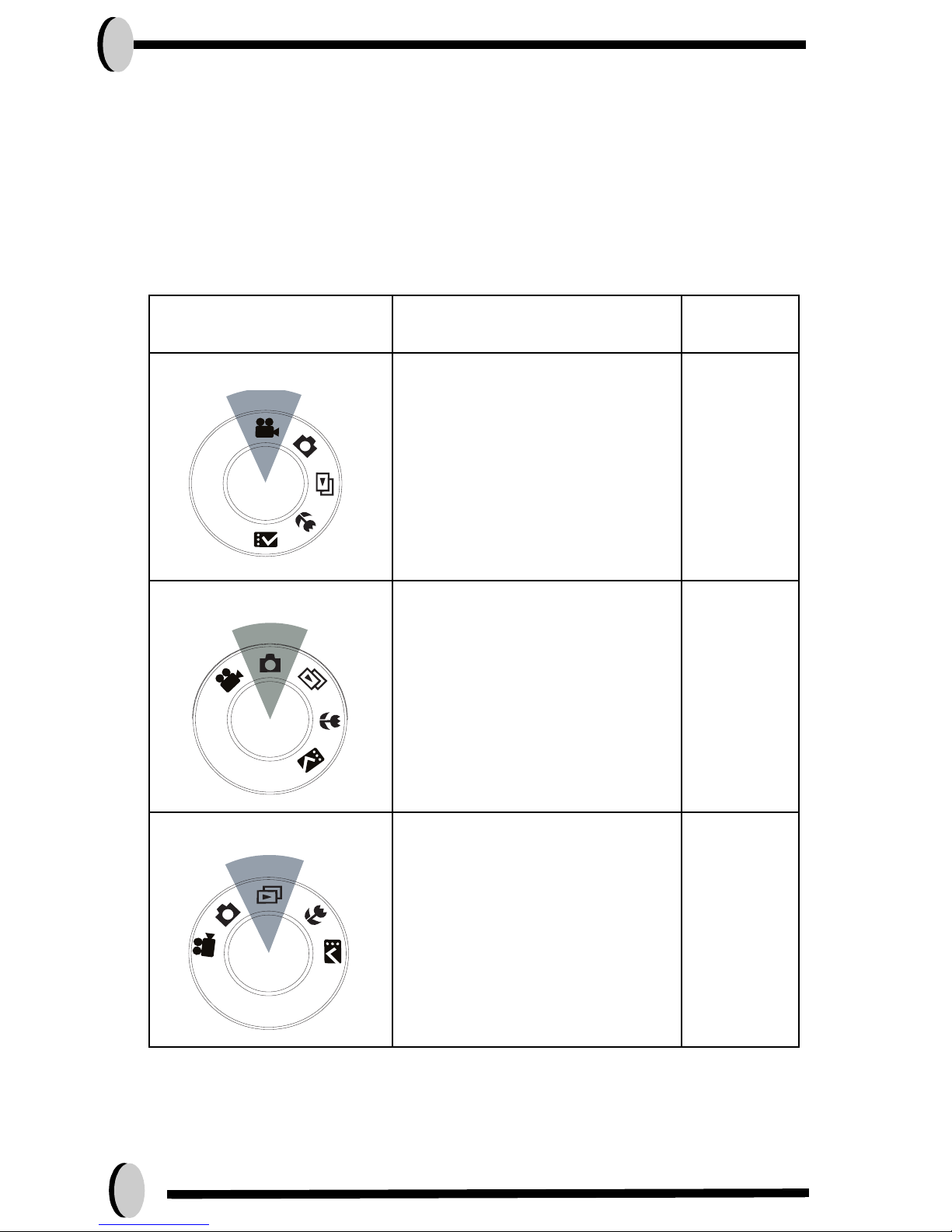

Camera Mode Function Setting Page

Video Mode 1. Record Movies Page 9

Capture Mode 1. Resolution

2. Image Quality

3. Color Effect

4. White Balance

5. Scene

6. Metering

7. Sharpness

8. EV Adjust

9. ISO

Page 10

Playback Mode 1. Erase Picture

2. Protect Picture

3. DPOF

4. Slide Show

5. Voice Memo

Page 14

E N

Five Main Camera Modes and Instructions 8

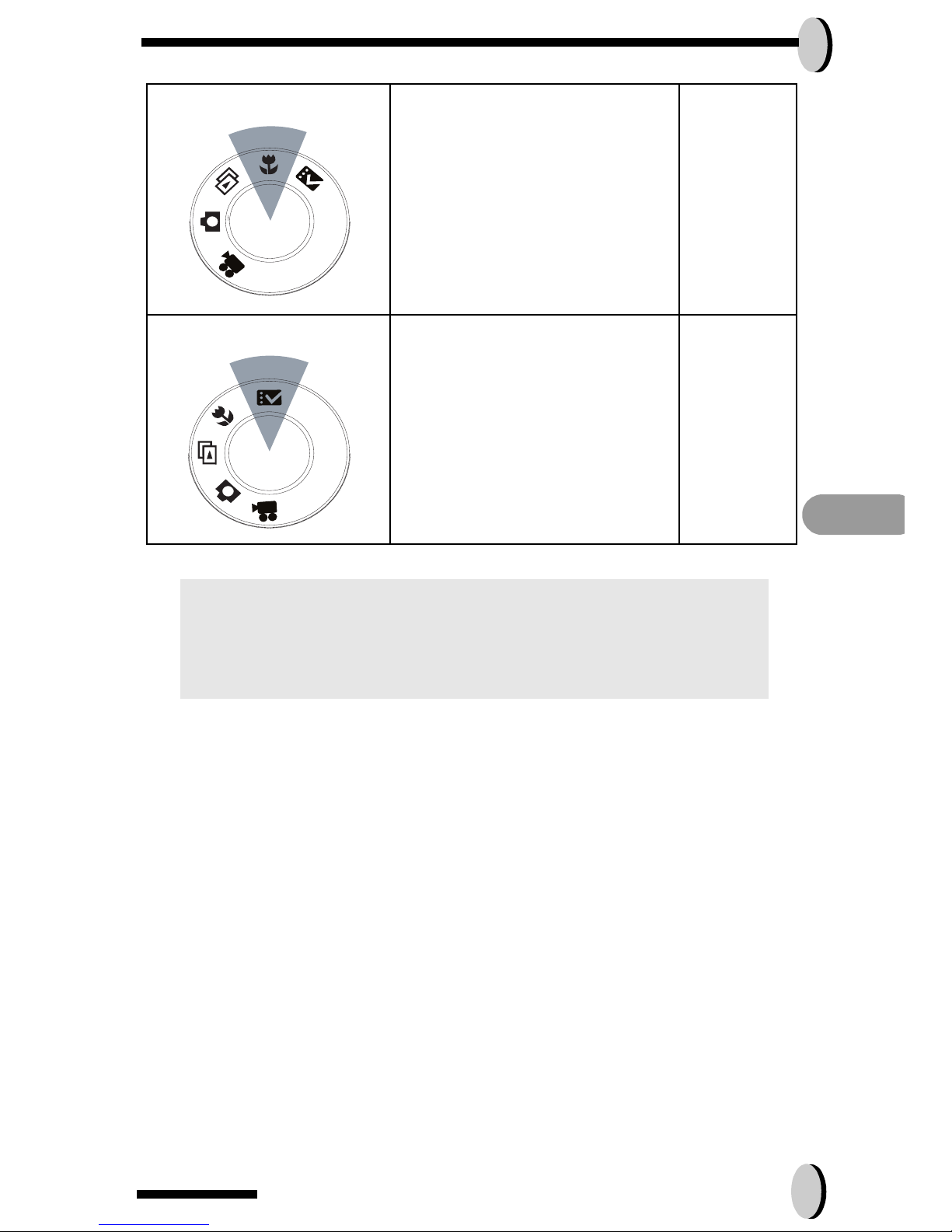

Macro Mode 1. Resolution

2. Image Quality

3. Color Effect

4. White Balance

5. Scene

6. Metering

7. Sharpness

8. EV Adjust

9. ISO

Page 16

DSC Setup Mode 1. Date and Time

2. Auto Power Off

3. DPOF

4. Slide Show

5. Sound Effect

6. Languages

7. TV-out

8. Restoring

Page 17

NOTE: 1. Press the display button once to delete the icons

from the LCD display. To turn the LCD display sim-

ply press the display button a second time. To save

your battery power, it is best to not leave your dis-

play ON for a long period of time.

Indice

Altri manuali Rollei Macchina fotografica digitale

Rollei

Rollei 35 Classic Manuale utente

Rollei

Rollei COMPACTLINE 102 Manuale utente

Rollei

Rollei Sportsline 60 Plus Manuale utente

Rollei

Rollei dsx410 Manuale utente

Rollei

Rollei dr4 Manuale utente

Rollei

Rollei d23 com Manuale utente

Rollei

Rollei RCP-7430XW Manuale utente

Rollei

Rollei Compactline 150 Manuale utente

Rollei

Rollei RCP-8527X Manuale utente

Rollei

Rollei COMPACTLINE 50 - Manuale utente

Rollei

Rollei X-8 Sports Manuale utente

Rollei

Rollei 360 Degree Camera Manuale utente

Rollei

Rollei dt3200 Manuale utente

Rollei

Rollei MiniDigi Manuale utente

Rollei

Rollei d330 Manuale utente

Rollei

Rollei XS-10 inTouch Manuale utente

Rollei

Rollei COMPACTLINE 200 Manuale utente

Rollei

Rollei COMPACTLINE 80 - Manuale utente

Rollei

Rollei d33 Manuale utente

Rollei

Rollei 90 Manuale utente

Rollei

Rollei RCP-8330X SE Manuale utente

Rollei

Rollei COMPACTLINE 81 Manuale utente

Rollei

Rollei Powerflex 700 Full HD Manuale utente

Rollei

Rollei Powerflex 240 HD Manuale utente

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente

Rollei dt4200 Manuale utente

Manuali Macchina fotografica digitale popolari di altre marche
